Sorry, this Trek Checkpoint SL 5 Gravel Bike - 2021, 56cm has been sold.

Try these similar items:

BGR11644_PH2_11

BGR11644_PH2_12

BGR11644_PH2_13

BGR11644_PH2_14

BGR11644_PH2_15

BGR11644_PH2_16

BGR11644_PH2_17

BGR11644_PH2_18

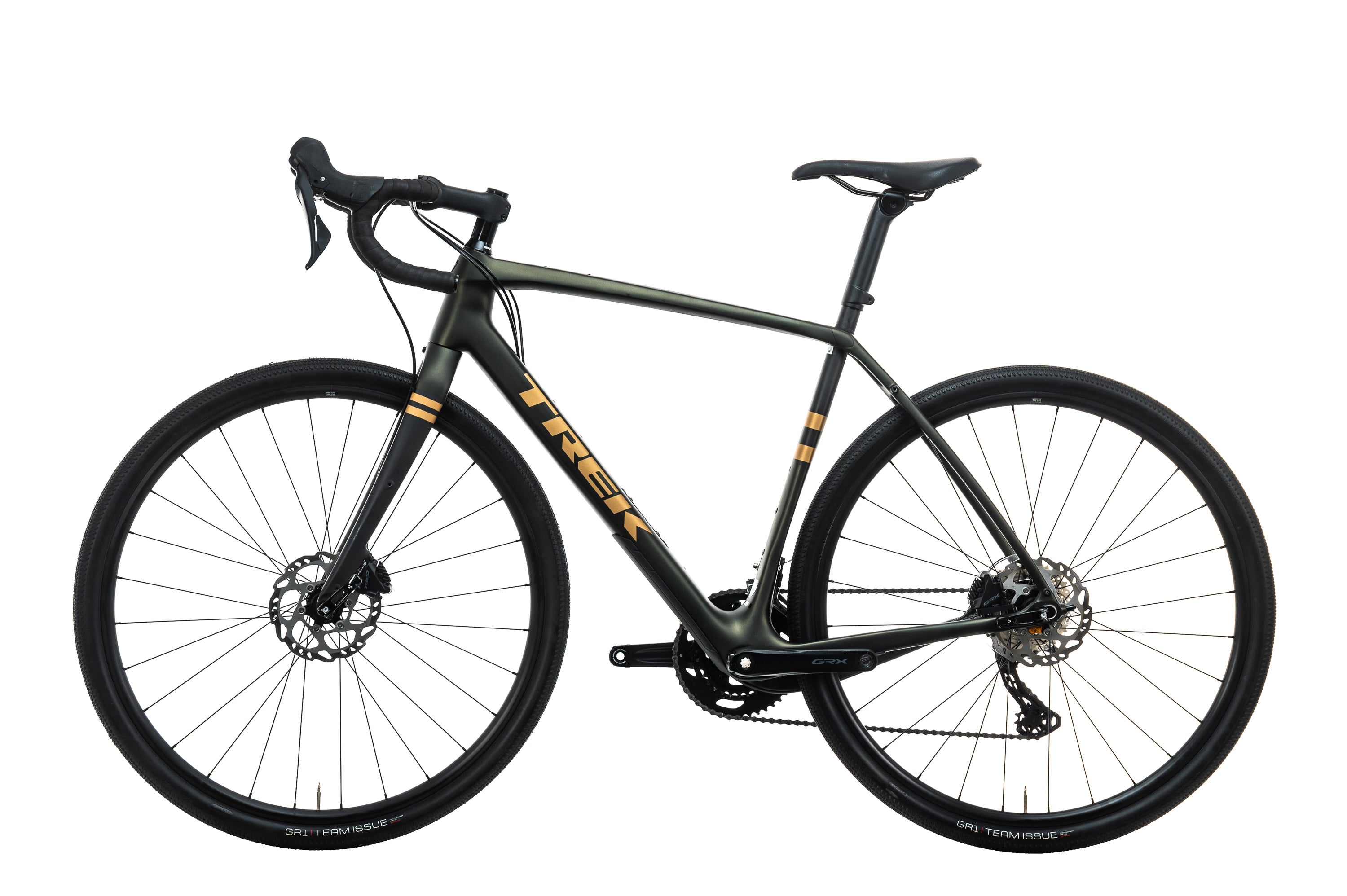

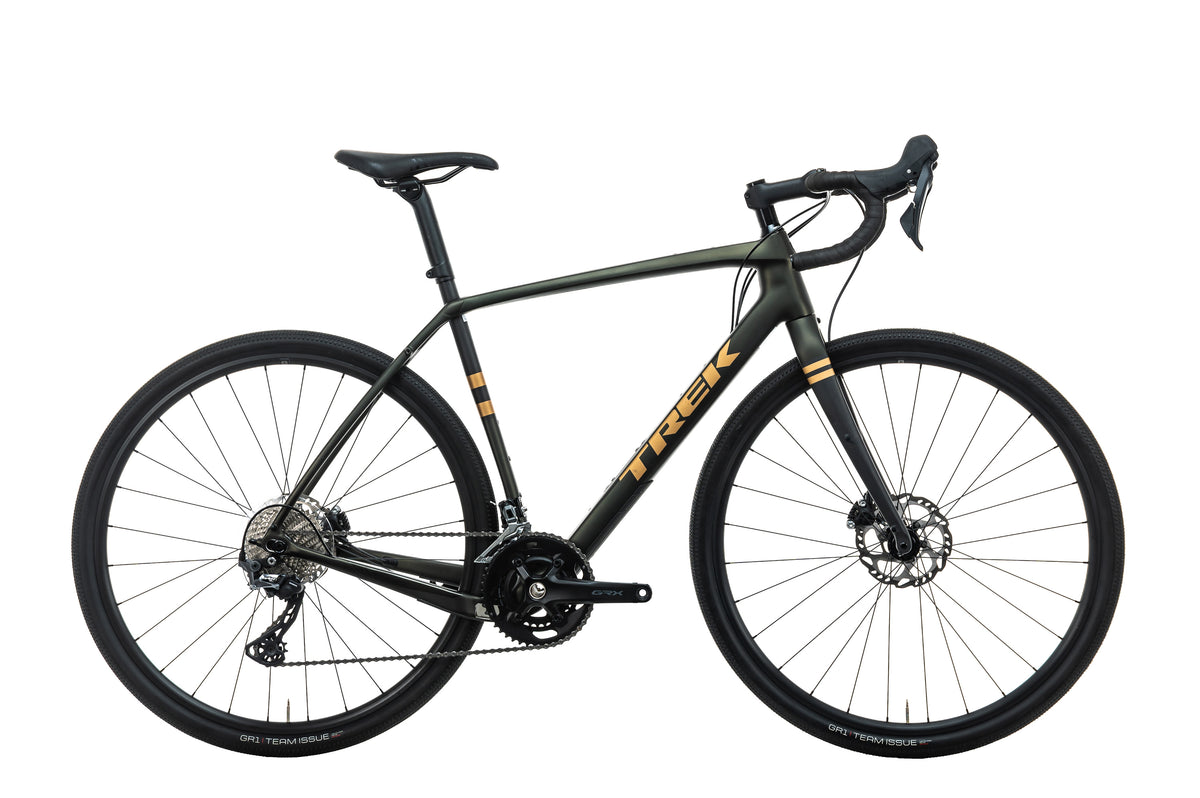

Trek Checkpoint SL 5 Gravel Bike - 2021, 56cm

Item #BGR11644

Recommended Rider Height: 5'10" - 6'1" Sizing Guide

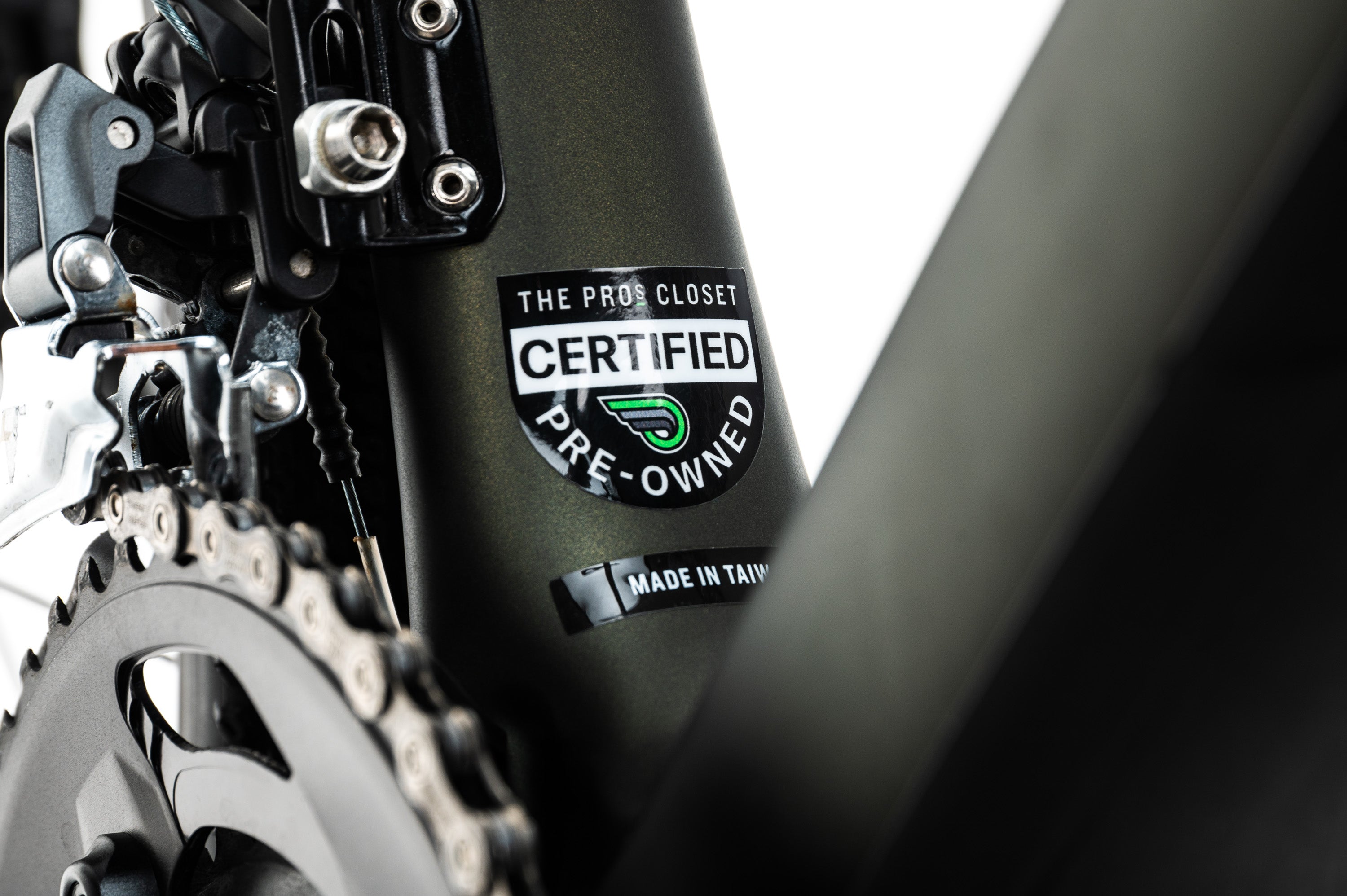

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2021
Brand	Trek
Model	Checkpoint SL 5
Size	56cm
Frame Material	Carbon Fiber

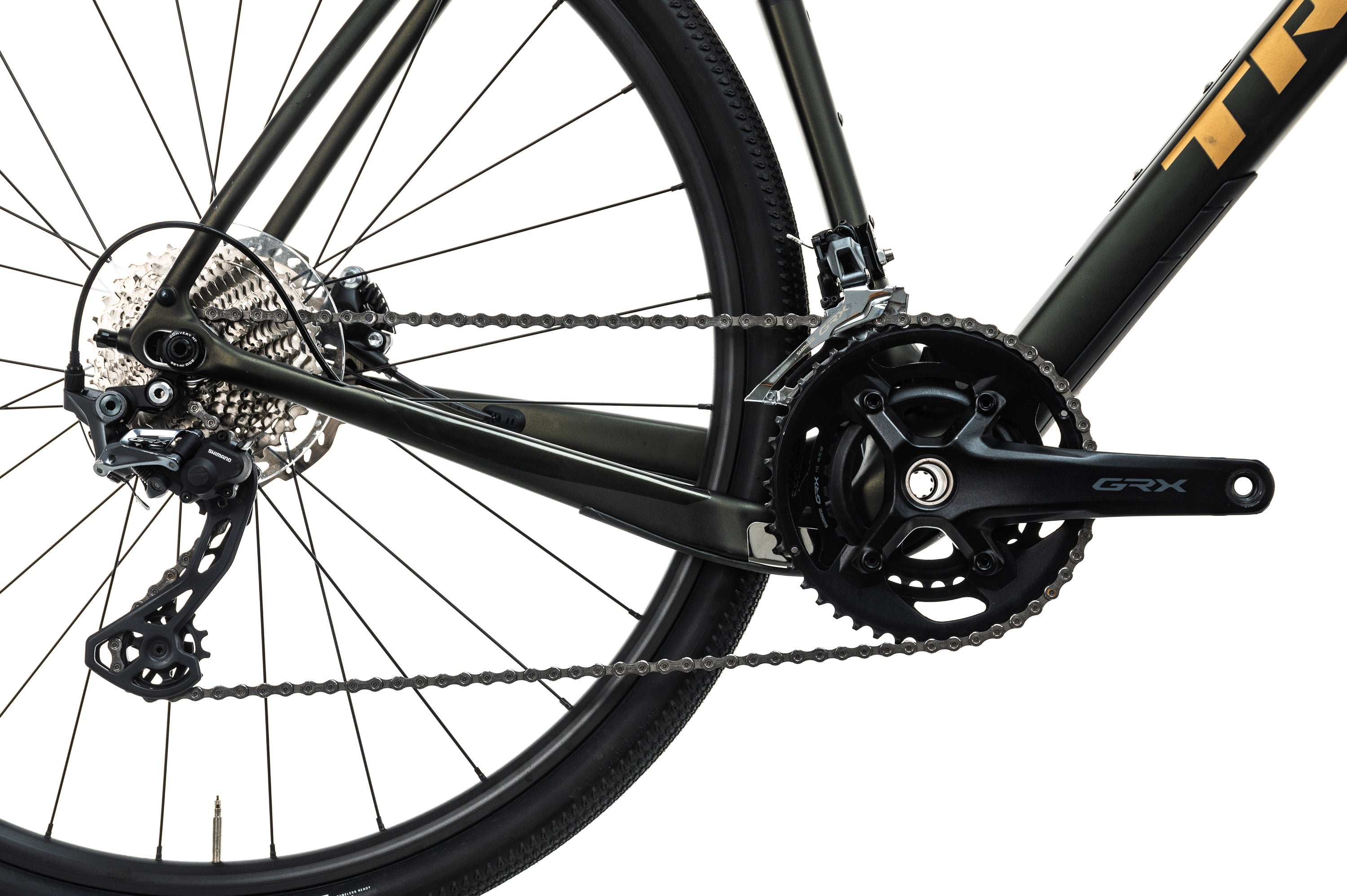

Drivetrain	Shimano, 2x11 spd
Weight	21 lbs 10 oz

Build

Fork	Trek Checkpoint , Carbon

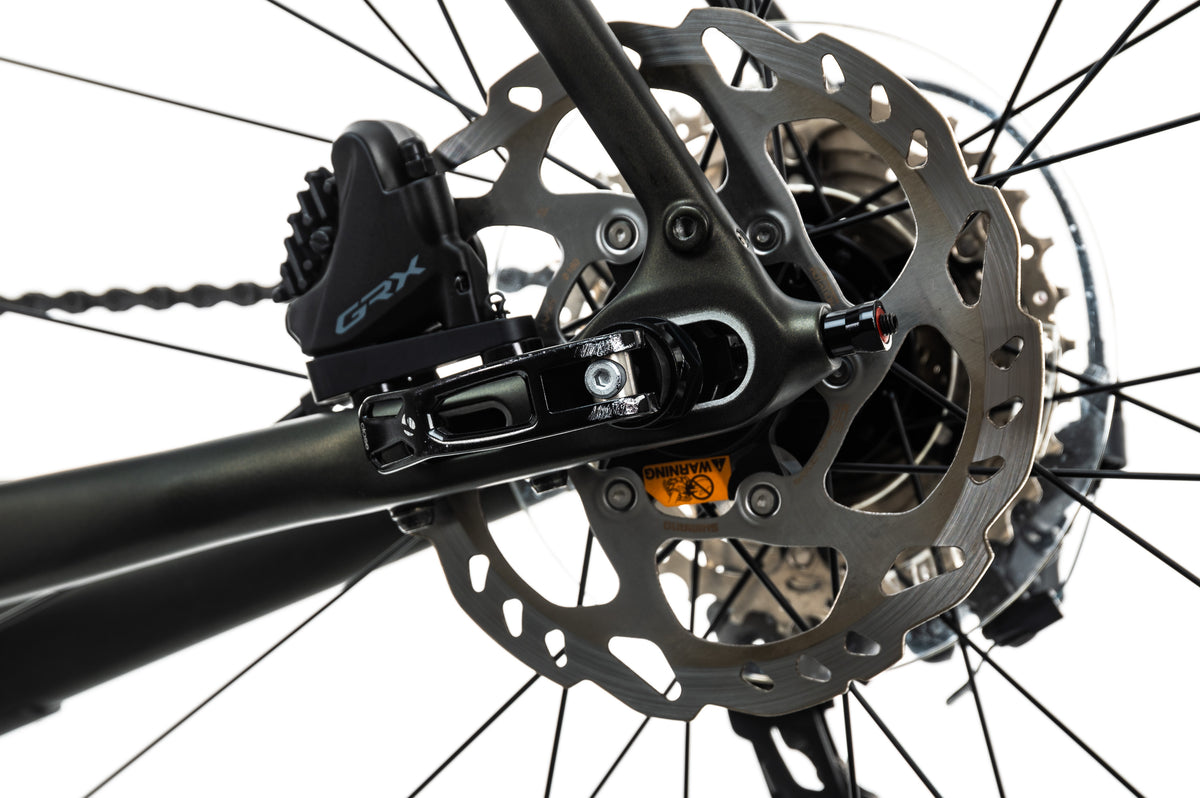

Brakes	Shimano GRX RX400, Disc Brakes - Hydraulic
Shifters	Shimano GRX RX600, Mechanical
Front Derailleur	Shimano GRX RX810
Rear Derailleur	Shimano GRX RX810
Bottom Bracket Shell	Press fit
Crankset	Shimano GRX RX600 Alloy, 48/30t, 172.5mm
Cassette	Shimano HG700-11, 11-34t
Chain	Shimano

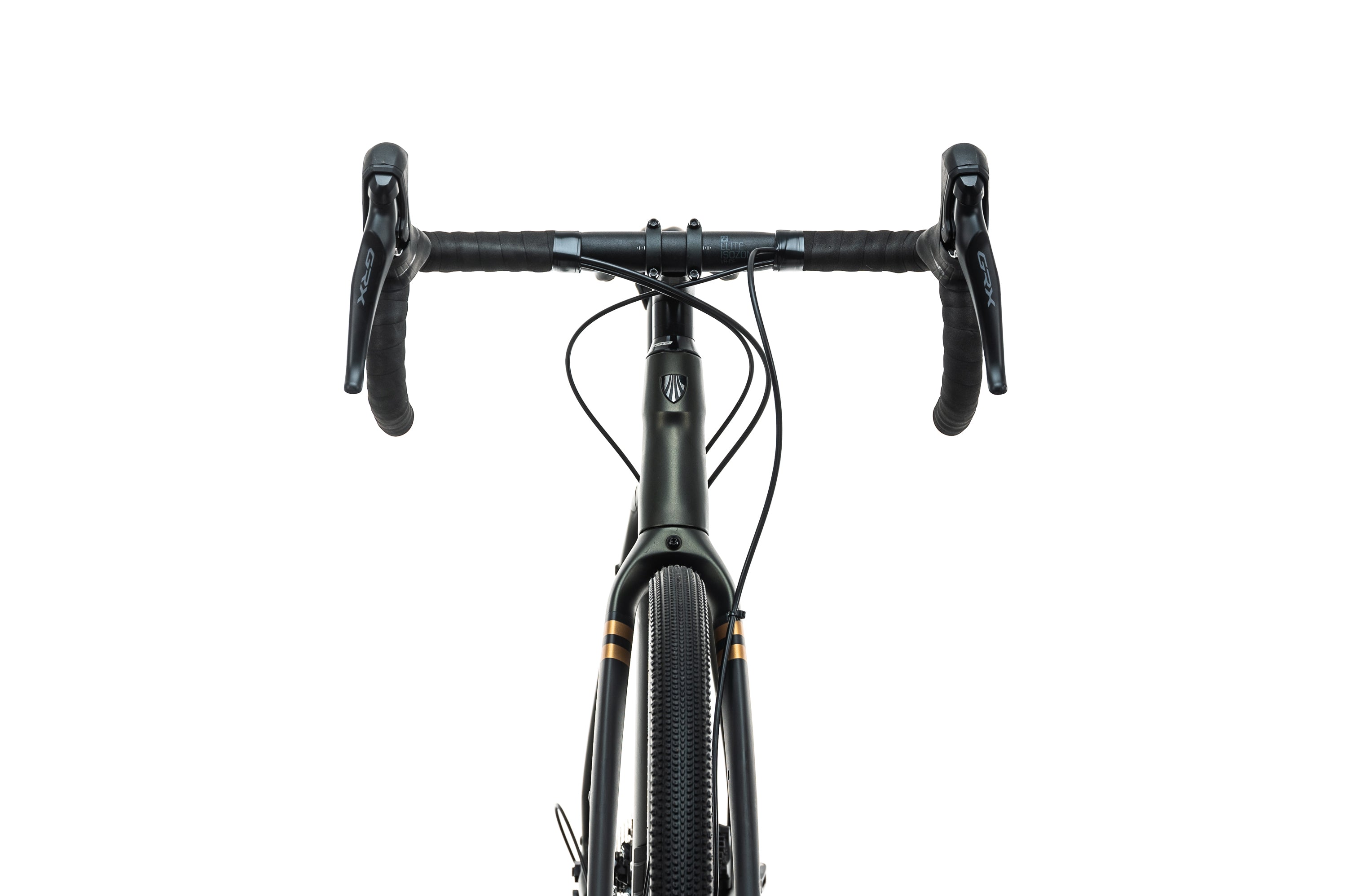

Handlebar	Bontrager Elite IsoZone VR-CF Alloy, 42cm
Headset	FSA
Stem	Bontrager Elite Alloy, 31.8mm x 100mm, 7°
Seatpost	Bontrager Seatmast Cap Alloy, Frame Specific
Saddle	Bontrager Verse
Front Axle Spacing	12x100mm (Thru-Axle)
Rear Axle Spacing	12x142mm
Wheelset	Bontrager TLR Aluminum Tubeless Compatible, Bontrager
Front Tire	Bontrager GR1 Team Issue, 700C x 40C
Rear Tire	Bontrager GR1 Team Issue, 700C x 40C
Tire Type	Tubeless
Tubeless Compatibility	Wheels are tubeless compatible but ships with tubes installed
Pedals	Sold separately

Geometry

Recommended Rider Height	5'10" - 6'1" Sizing Guide
a. Effective Top Tube	566 mm
b. Seat Tube	560 mm
c. Seat Tube Angle	73°
d. Head Tube Angle	72.2°
e. Head Tube	145 mm
f. Stack	586 mm
g. Reach	387 mm
h. Standover Height	795 mm
i. Saddle Height Range	700 - 760 mm

Trek Checkpoint SL 5 Gravel Bike - 2021, 56cm

Item #BGR11644

Recommended Rider Height: 5'10" - 6'1" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Sizing Guide

The chart below provides a general suggested range of heights and is not exact. Sizing may vary across brands.
+ Read more

The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.

Sizing Guide
Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
48cm	XS	4' 11"	5' 2"
50 cm	Small	5' 2"	5' 5"
52 cm	Small/M	5' 5"	5' 7"
54 cm	Medium	5' 7"	5' 10"
56 cm	Large	5' 10"	6' 1"
58 cm	Large/XL	6' 1"	6' 3"
60 cm	XL	6' 3"	6' 5"

Contact our Ride Guides if you have any questions about the fit of your new bike.

866.401.9636 - rideguides@theproscloset.com

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
