Sorry, this Orbea TERRA M20 Gravel Bike - 2021, Medium has been sold.

Try these similar items:

BGR12937_PH1_01

BGR12937_PH1_02

BGR12937_PH1_03

BGR12937_PH1_04

BGR12937_PH1_05

BGR12937_PH1_06

BGR12937_PH1_07

BGR12937_PH1_08

BGR12937_PH1_09

BGR12937_PH1_10

BGR12937_PH1_01

BGR12937_PH1_02

BGR12937_PH1_03

BGR12937_PH1_04

BGR12937_PH1_05

BGR12937_PH1_06

BGR12937_PH1_07

BGR12937_PH1_08

BGR12937_PH1_09

BGR12937_PH1_10

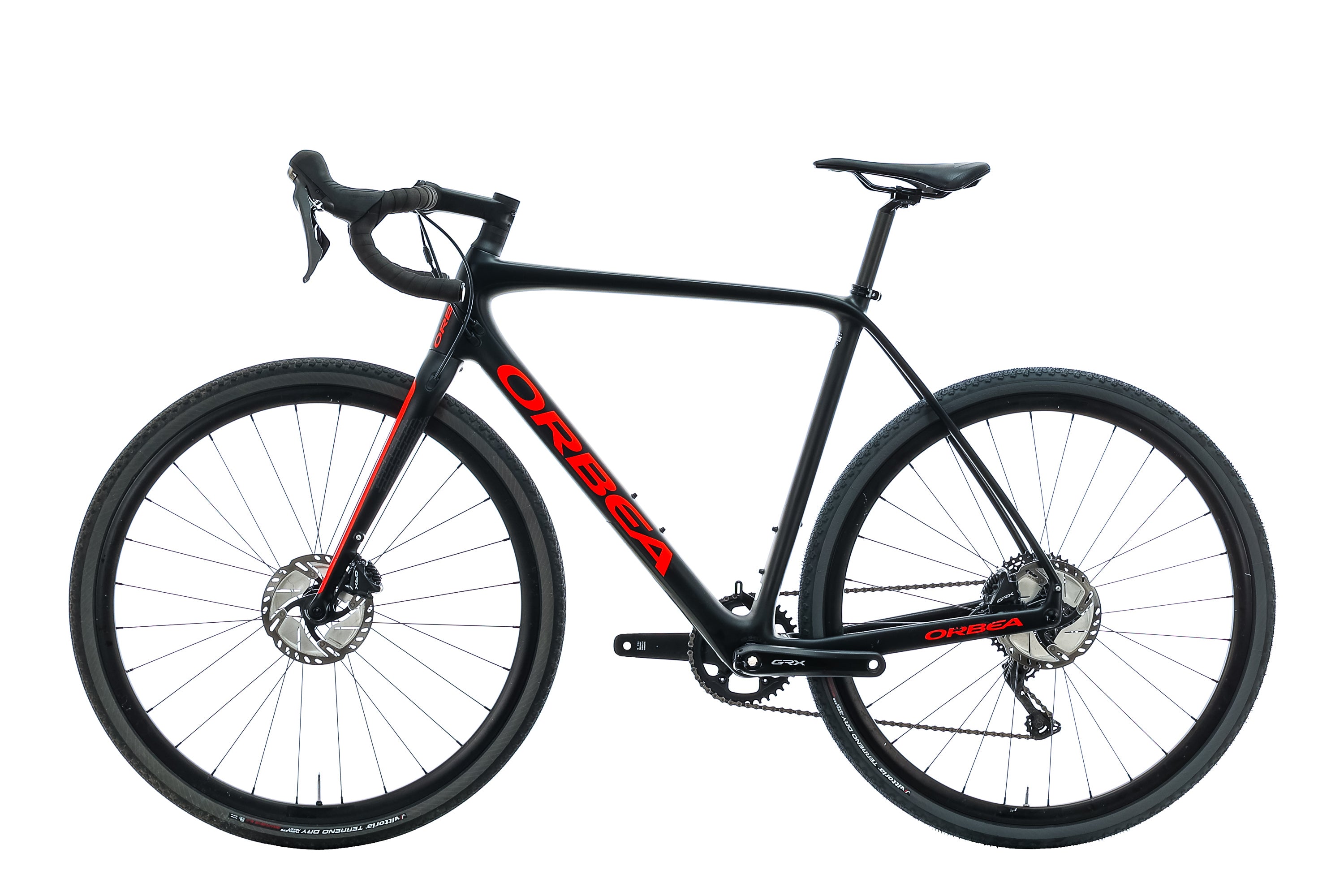

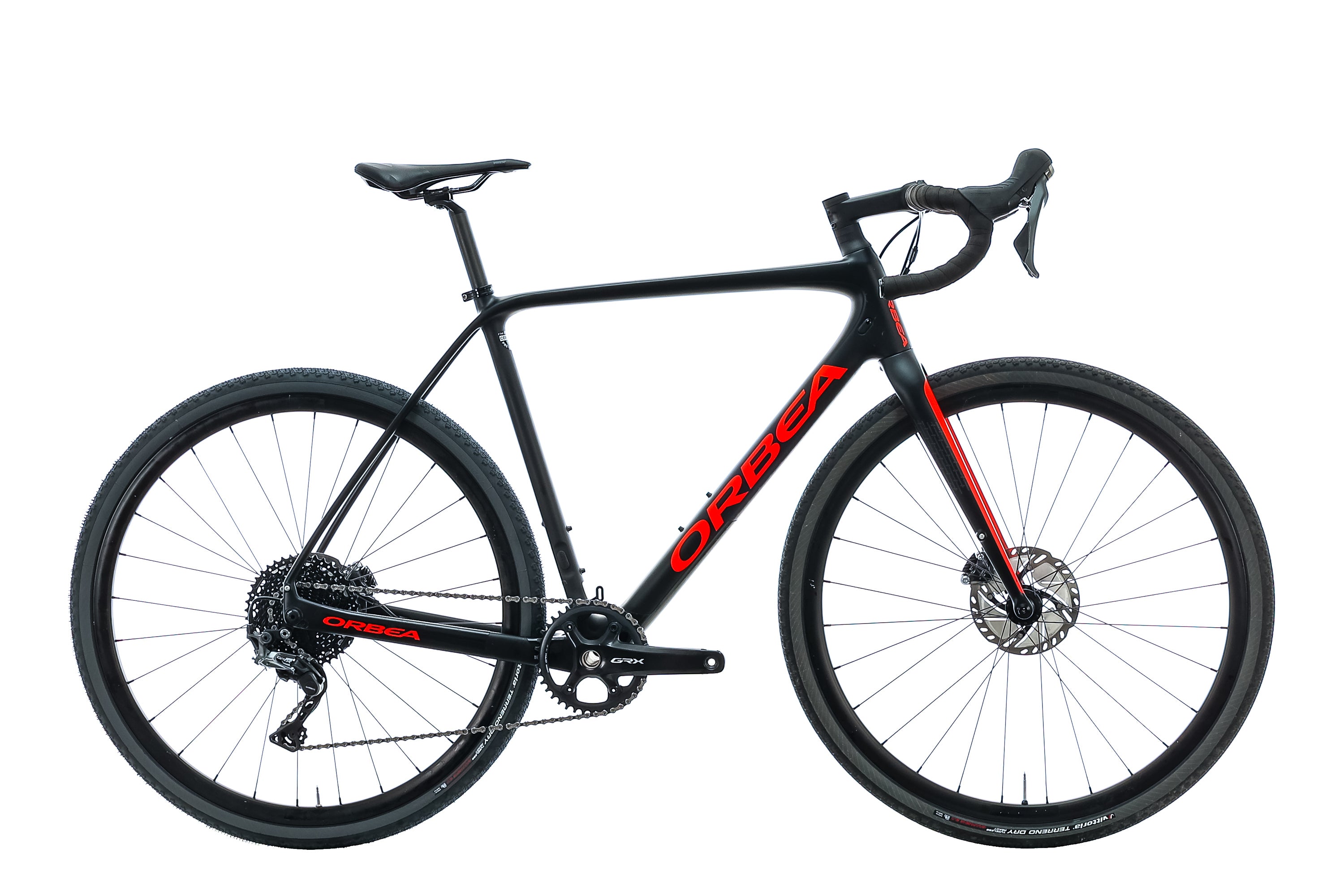

Orbea TERRA M20 Gravel Bike - 2021, Medium

Item #BGR12937

Recommended Rider Height: 5'7" - 5'10" Sizing Guide

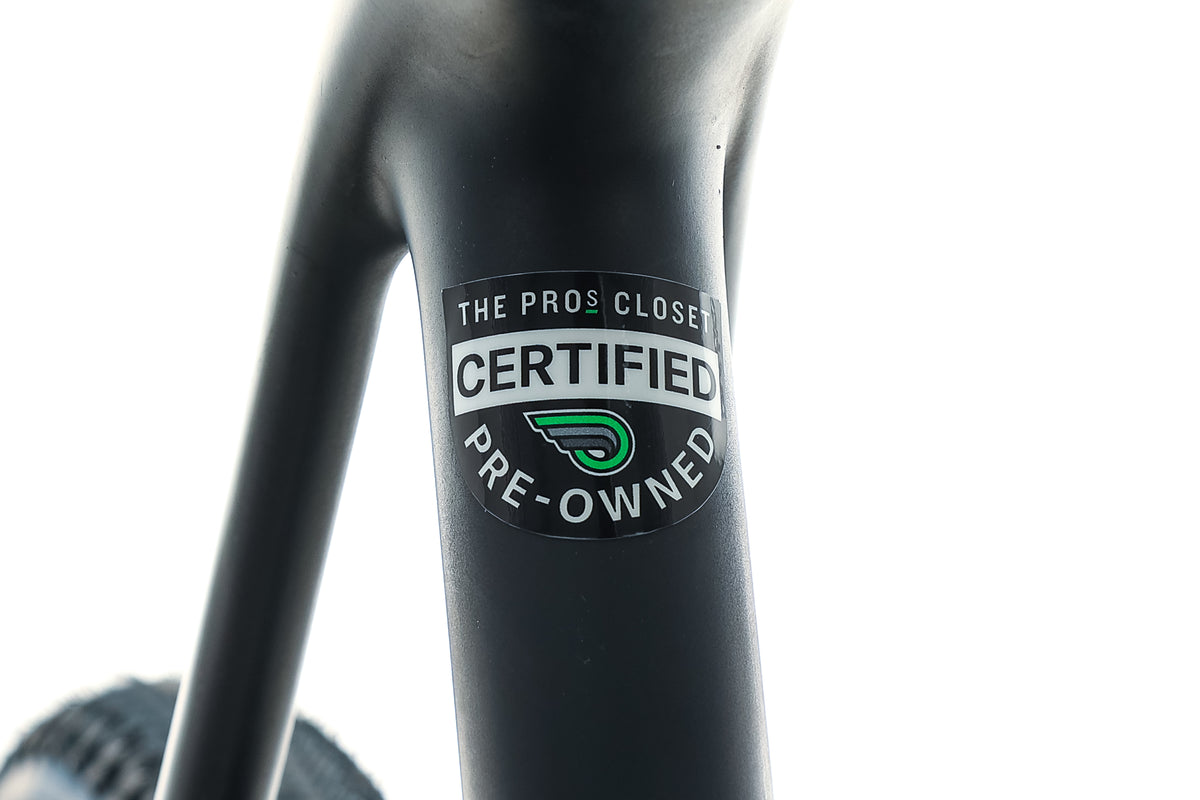

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Performance Fun Machine

Specifications

Details

Year	2021
Brand	Orbea
Model	Terra
Size	Medium
Frame Material	Carbon Fiber

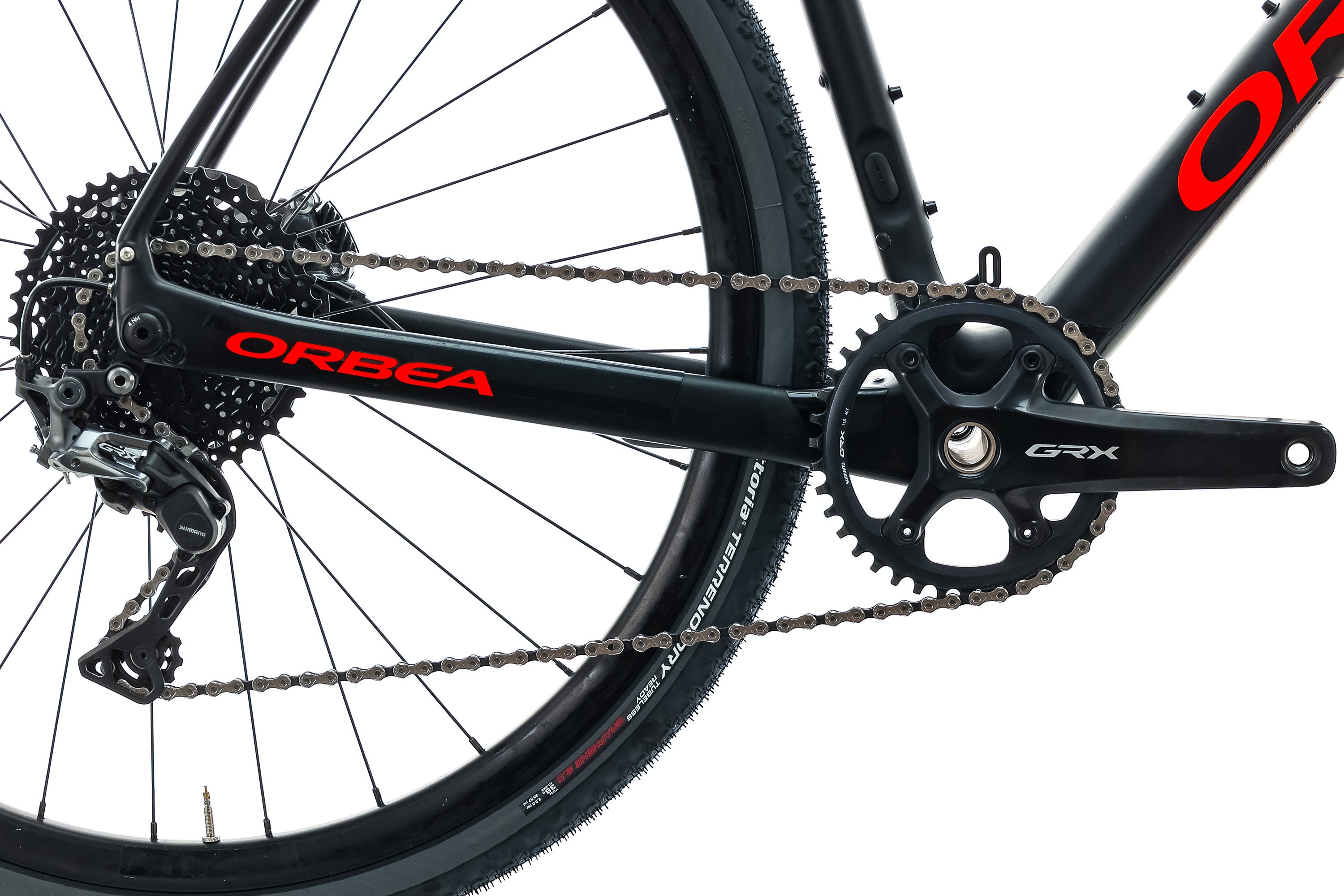

Drivetrain	Shimano, 1x11 spd
Weight	20 lbs 5 oz

Build

Fork	Orbea Terra OMP, Carbon
Brakes	Shimano GRX RX810, Disc Brakes - Hydraulic
Shifters	Shimano GRX RX810, Mechanical
Rear Derailleur	Shimano GRX RX812
Bottom Bracket Shell	Threaded
Crankset	Shimano GRX RX810, 40t, 172.5mm
Cassette	SunRace, 11-42t
Chain	KMC
Handlebar	OC1 All Road Alloy, 40cm
Headset	Integrated
Stem	OC2 Road Alloy, 31.8mm x 120mm, 8°
Seatpost	OC2 Carbon, 27.2mm
Saddle	Prologo Akero AGX
Front Axle Spacing	12x100mm (Thru-Axle)
Rear Axle Spacing	12x142mm
Wheelset	Orbea Aluminum Tubeless Ready, Shimano HB-RS470
Front Tire	Vittoria Terreno Dry Tubeless Ready Graphene 2.0, 700C x 38C
Rear Tire	Vittoria Terreno Dry Tubeless Ready Graphene 2.0, 700C x 38C
Tire Type	Tubeless
Tubeless Compatibility	Bike ships tubeless

Geometry

Recommended Rider Height	5'7" - 5'10" Sizing Guide
a. Effective Top Tube	555 mm
b. Seat Tube	554 mm
c. Seat Tube Angle	73.5°
d. Head Tube Angle	70.5°
e. Head Tube	156 mm
f. Stack	575 mm
g. Reach	385 mm
h. Standover Height	828 mm
i. Saddle Height Range	N/A

Orbea TERRA M20 Gravel Bike - 2021, Medium

Item #BGR12937

Recommended Rider Height: 5'7" - 5'10" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
