Sorry, this Trek Fuel EX 8 Mountain Bike - 2020, Large has been sold.

Try these similar items:

BMT24250_PH1_01

BMT24250_PH1_02

BMT24250_PH1_03

BMT24250_PH1_04

BMT24250_PH1_05

BMT24250_PH1_06

BMT24250_PH1_07

BMT24250_PH1_08

BMT24250_PH1_09

BMT24250_PH1_10

BMT24250_PH1_01

BMT24250_PH1_02

BMT24250_PH1_03

BMT24250_PH1_04

BMT24250_PH1_05

BMT24250_PH1_06

BMT24250_PH1_07

BMT24250_PH1_08

BMT24250_PH1_09

BMT24250_PH1_10

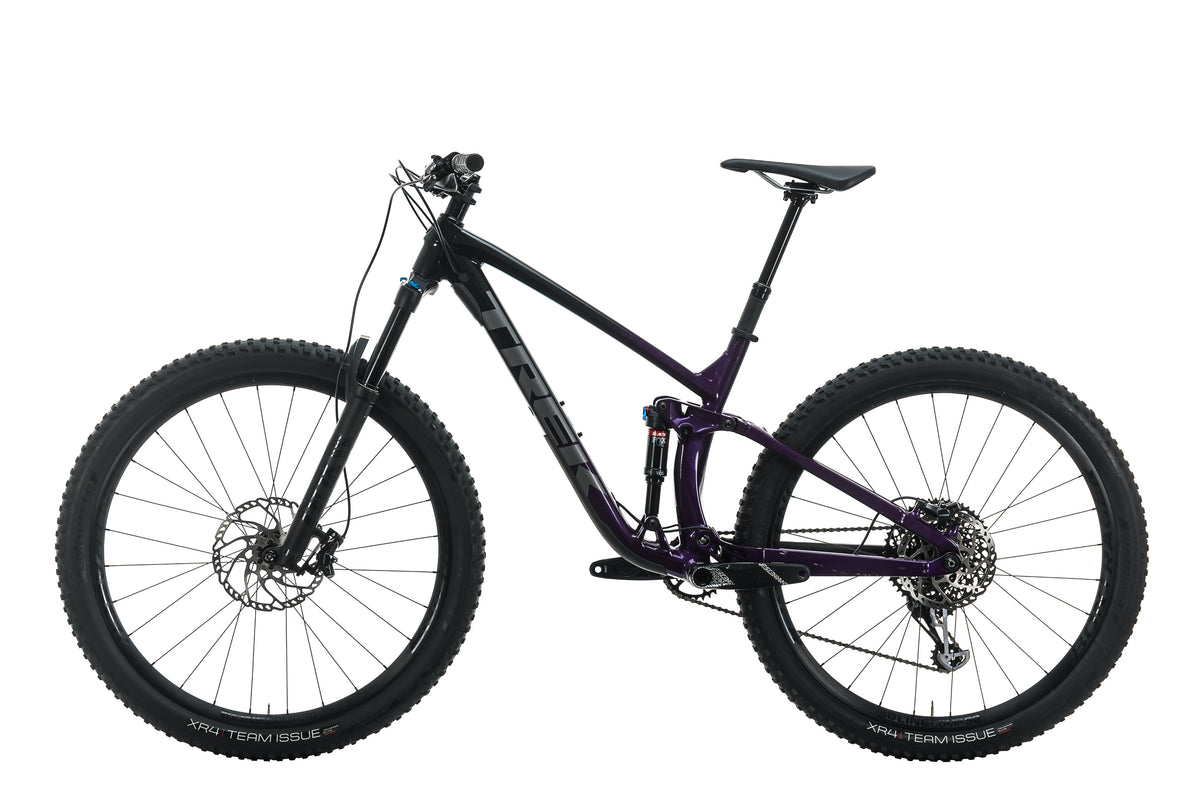

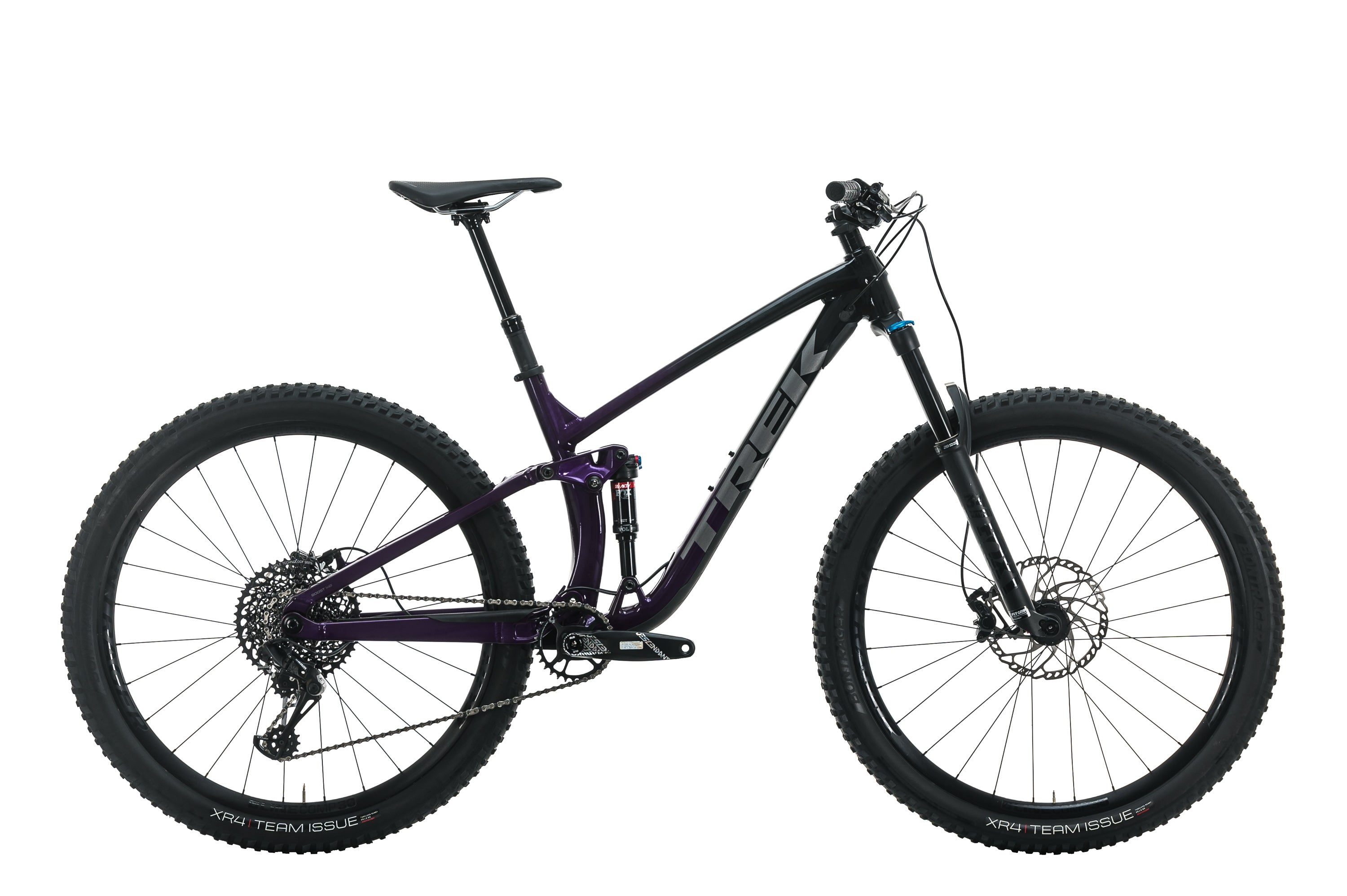

Trek Fuel EX 8 Mountain Bike - 2020, Large

Item #BMT24250

Recommended Rider Height: 5'10" - 6'2" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2020
Brand	Trek
Model	Fuel EX 8
Size	Large
Frame Material	Aluminum
Drivetrain	SRAM, 1x12 spd
Weight	32 lbs 5 oz

Build

Fork	FOX Rhythm 34 Float EVOL
Fork Travel	140mm
Rear Shock	FOX Performance Float EVOL
Rear Shock Travel	130mm
Brakes	Shimano Deore M6000, Disc - Hydraulic
Shifters	SRAM GX Eagle, Mechanical
Rear Derailleur	SRAM GX Eagle
Bottom Bracket Shell	Press fit
Crankset	Truativ Descendant 6K Eagle, 30t, 175mm
Cassette	SRAM XG-1275 Eagle, 10-50t
Chain	SRAM
Handlebar	Bontrager Line Alloy, 780mm
Headset	Trek
Stem	Bontrager Line Alloy, 31.8mm x 50mm, 0°
Seatpost	Bontrager Line Dropper , 31.6mm
Seatpost Travel	150mm
Saddle	Bontrager Arvada
Front Axle Spacing	15x110mm (Boost)
Rear Axle Spacing	12x148mm Boost
Wheelset	Bontrager Line Comp 30 Aluminum Tubeless Compatible, Bontrager
Front Tire	Bontrager XR4 Team Issue, 29" x 2.6"
Rear Tire	Bontrager XR4 Team Issue, 29" x 2.6"
Tire Type	Tubeless
Tubeless Compatibility	Wheels are tubeless compatible but ships with tubes installed

Geometry

Recommended Rider Height	5'10" - 6'2" Sizing Guide
a. Effective Top Tube	633mm, 634mm (High, Low)
b. Seat Tube	450 mm
c. Seat Tube Angle	77.5, 75.0 (High, Low)
d. Head Tube Angle	66.5, 66.0 (High, Low)
e. Head Tube	105 mm
f. Stack	609mm, 613mm (High, Low)
g. Reach	475mm, 470mm (High, Low)
h. Standover Height	756mm, 760mm (High, Low)
i. Saddle Height Range	N/A

Trek Fuel EX 8 Mountain Bike - 2020, Large

Item #BMT24250

Recommended Rider Height: 5'10" - 6'2" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Sizing Guide

The chart below provides a general suggested height of range for Mountain Bike sizes and is not exact. Sizing may vary across brands.
+ Read more

The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.

Mountain Bike Sizing Guide
Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
13 in	XS	4' 10"	5' 2"
15 in	Small	5' 2"	5' 6"
17 in	Medium	5' 6"	5' 10"
19 in	Large	5' 10"	6' 2"
21 in	XL	6' 2"	6' 5"

Contact our Ride Guides if you have any questions about the fit of your new bike.

866.401.9636 - rideguides@theproscloset.com

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
