2019 15.5" SKU: BMT23523

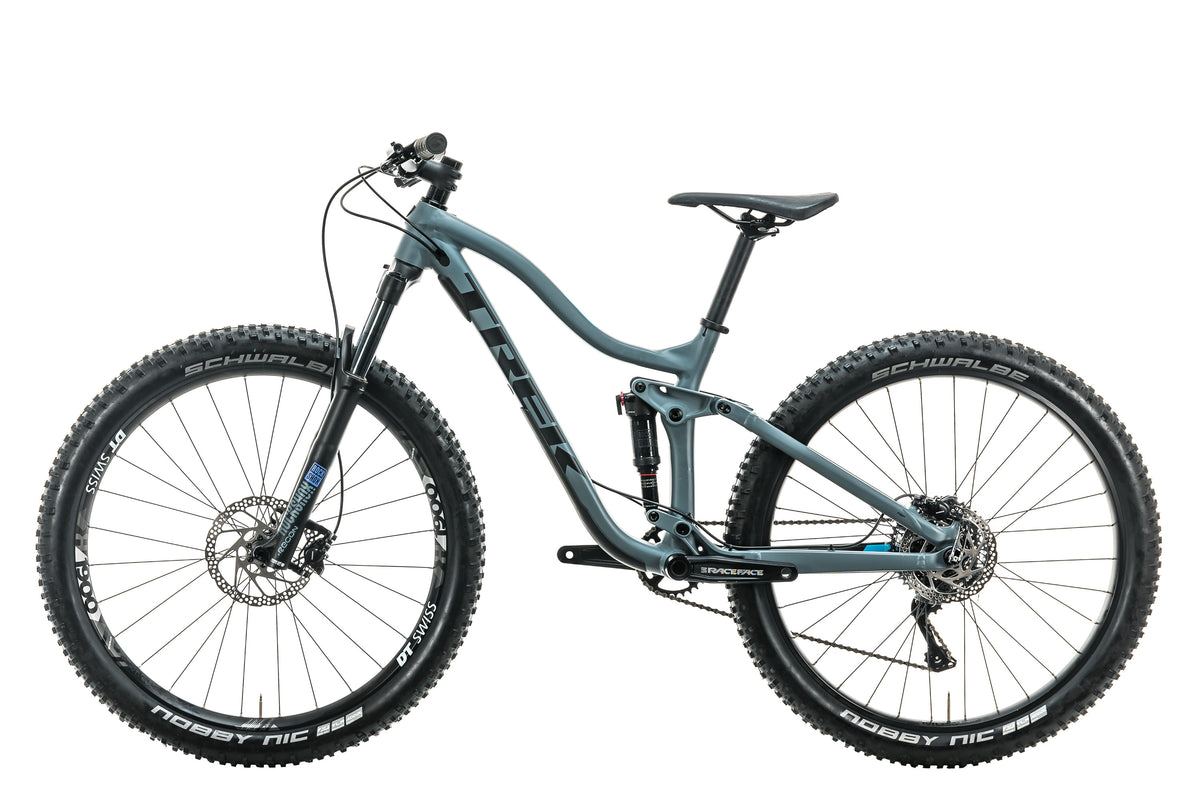

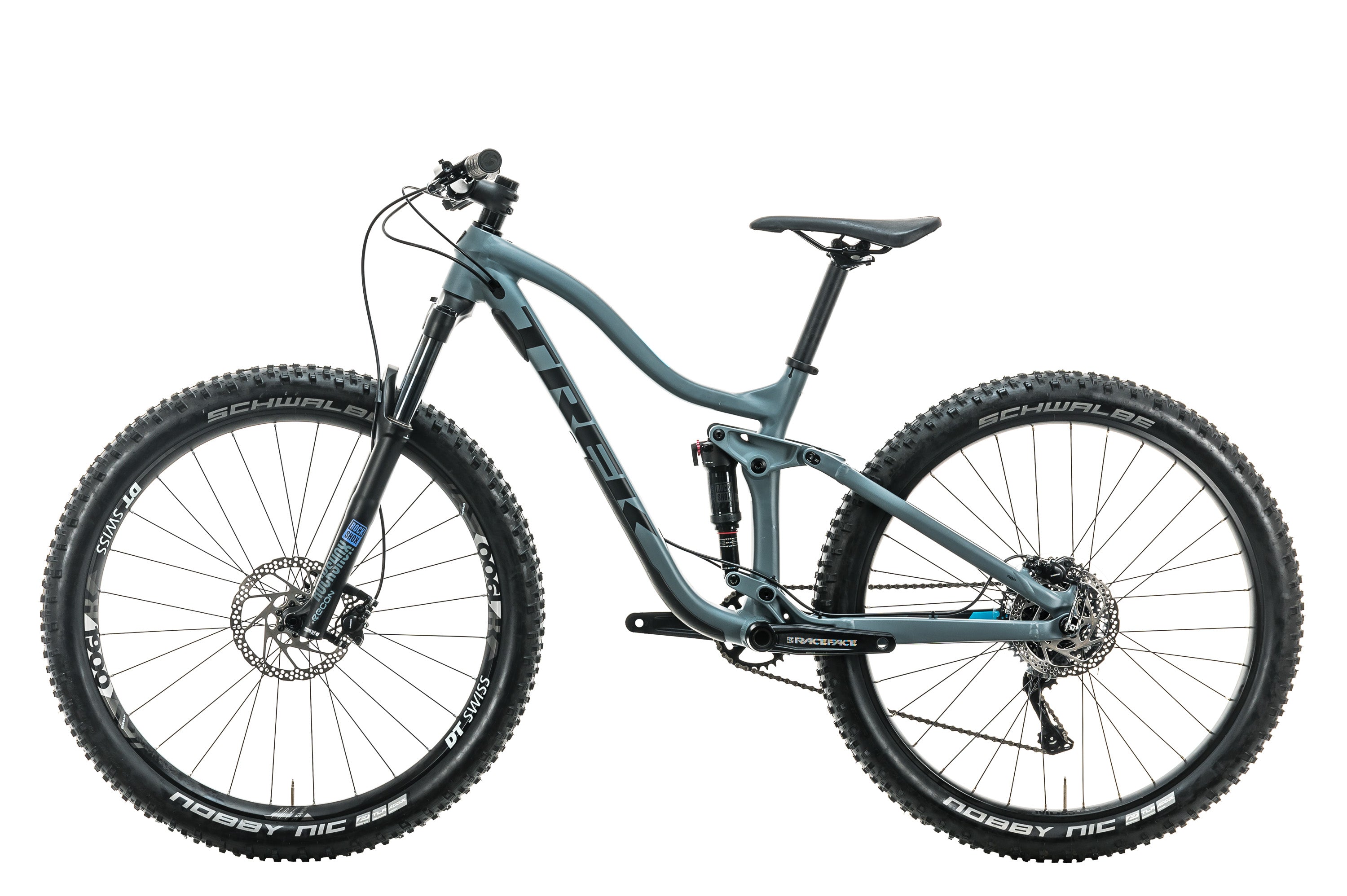

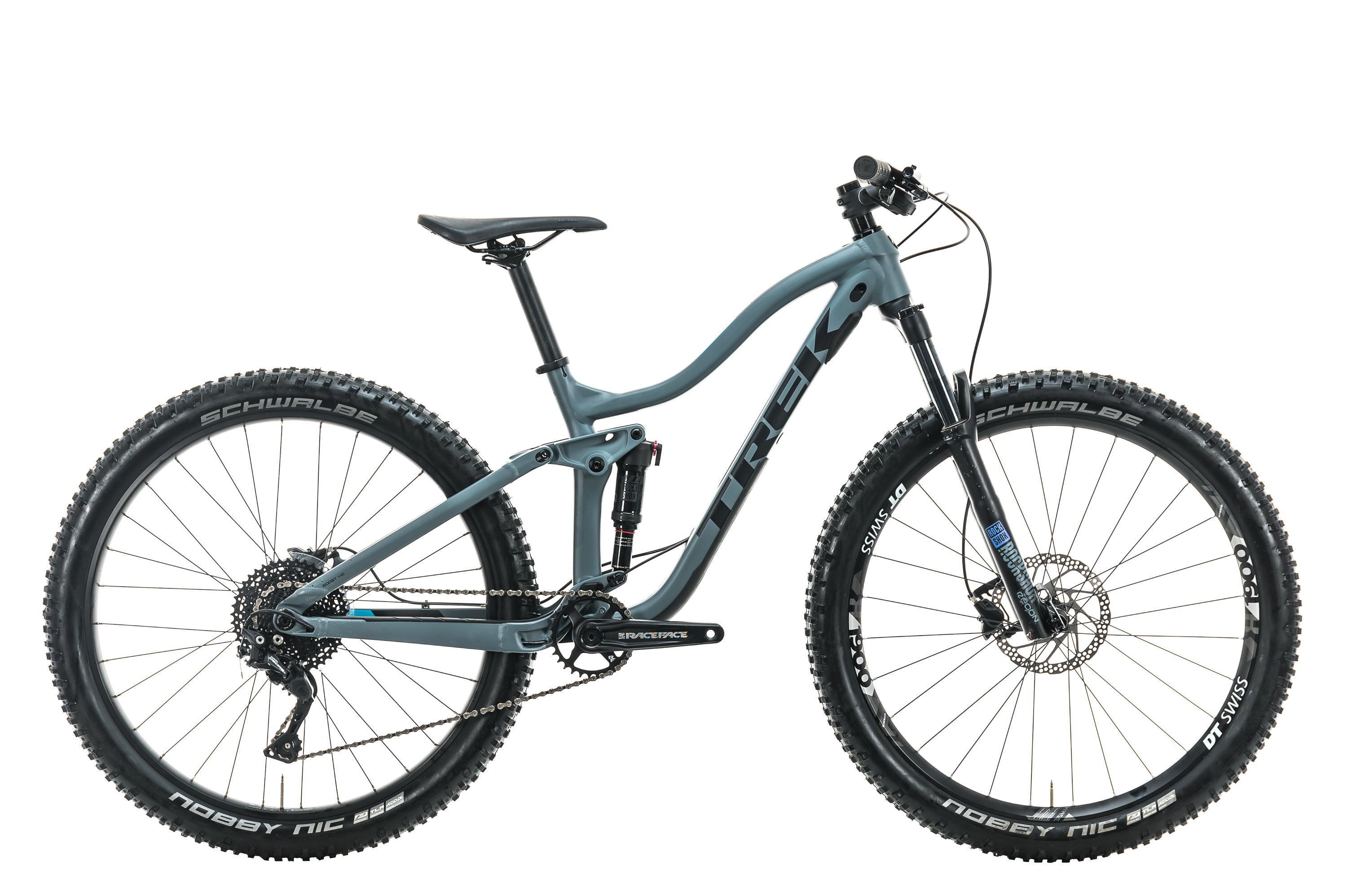

Trek Fuel EX 5 Women's Mountain Bike - 2019, 15.5"

Recommended Rider Height: N/A Size Guide
Regular price

return icon 30-day returns
shipping icon $94.99 RideFast Shipping

About Trek

Trek Bicycles set out to change minds—top-notch bikes do come from America, not just Europe. Trek makes over a million bikes a year and is still simmering with homegrown American pride.

Highlights:
- The Fuel EX 5 Women's is the ideal entryway to full suspension trail bikes.
- Tuned rear brake, firming up lever pull & creating consistent grab.

Master Mechanic's Notes:

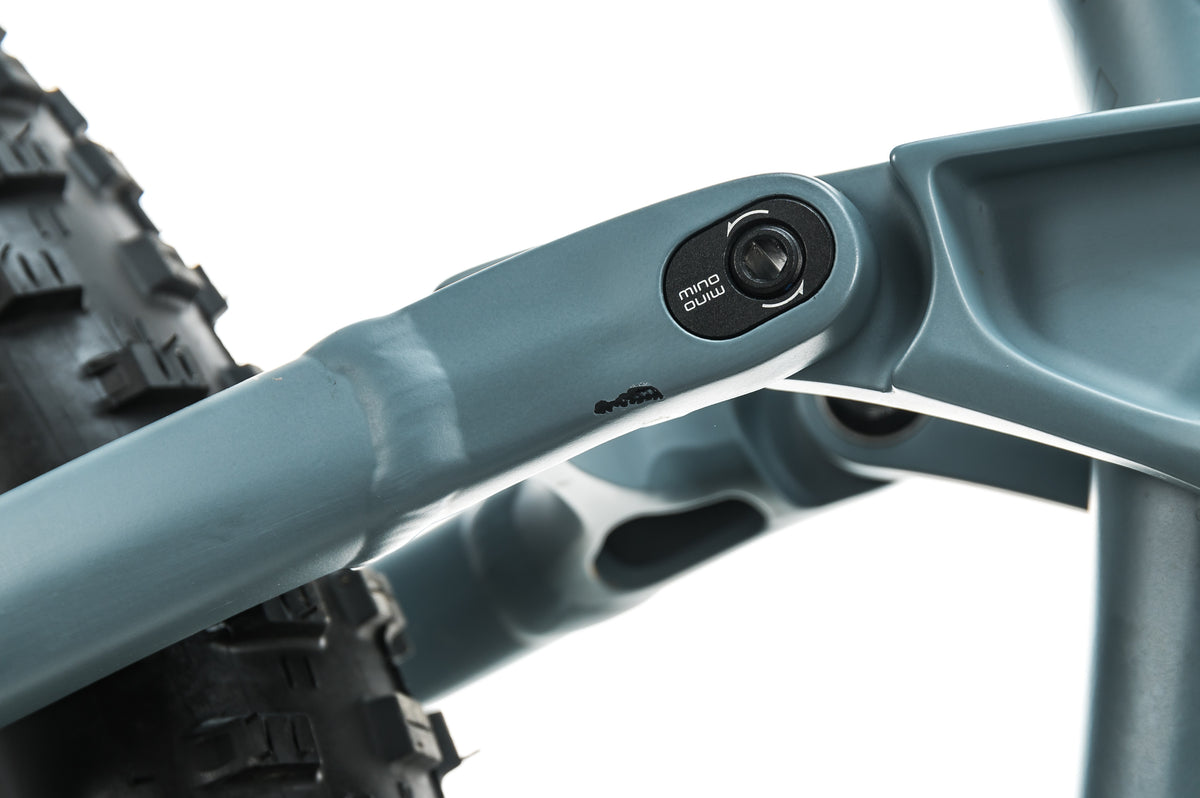

- Light wear and tear from cable rub, heel rub & chain.

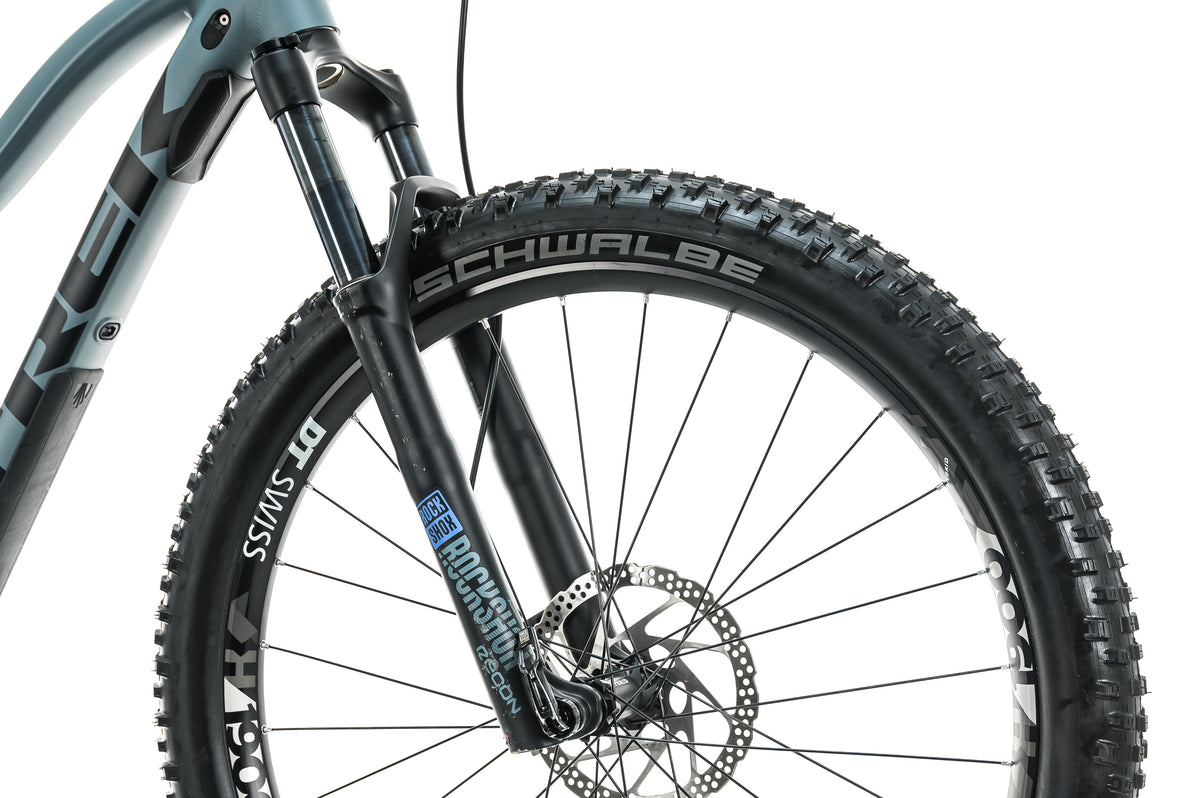

- Moderate to heavy scratches on the drive side fork leg lowers.

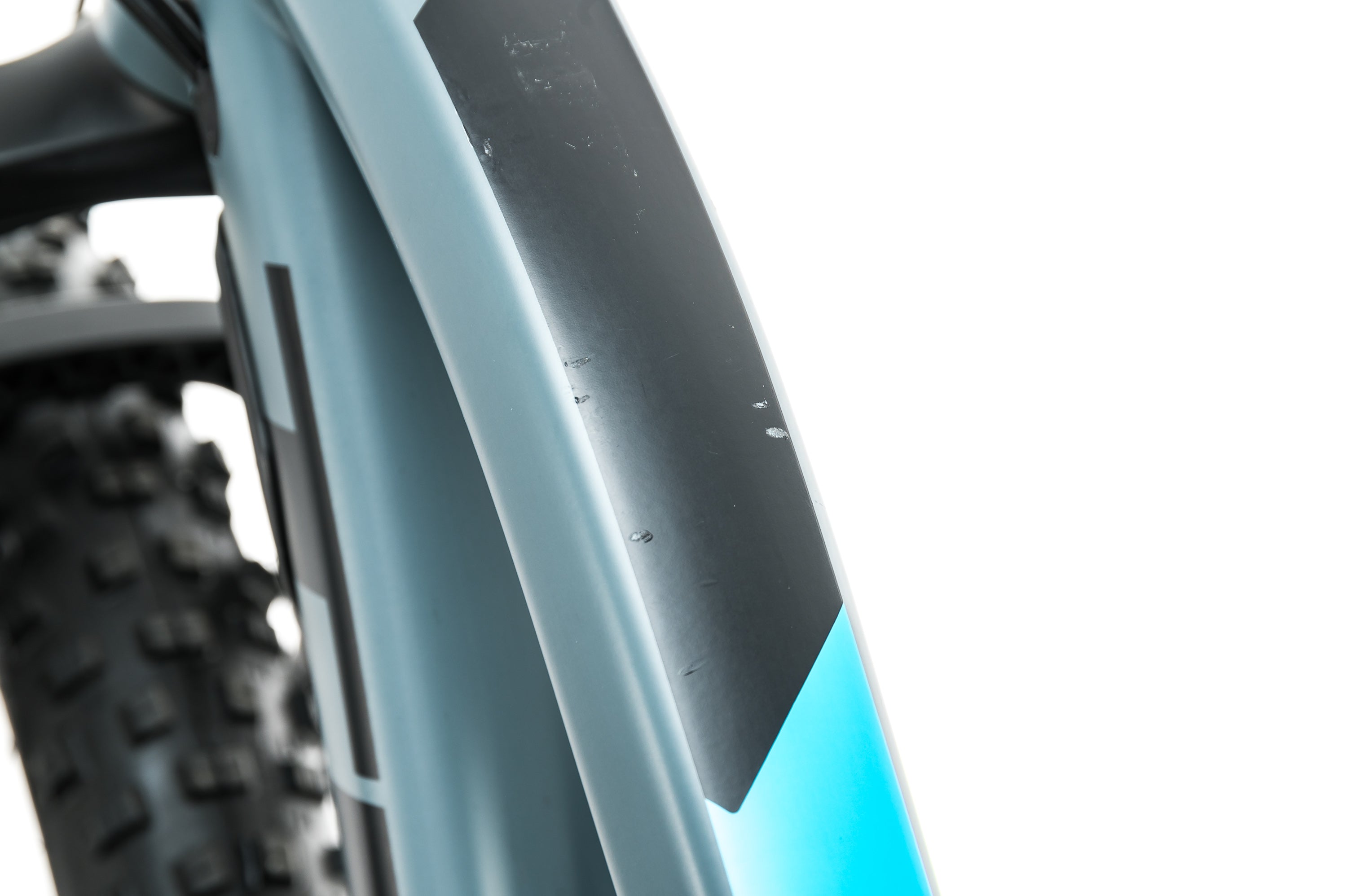

- Paint chips on the top tube, both seatstays & chainstays.

About Trek

Trek Bicycles set out to change minds—top-notch bikes do come from America, not just Europe. Trek makes over a million bikes a year and is still simmering with homegrown American pride.
inspection image

TPC Guarantee

This bike passed a 141-point inspection and received a full pro-tune by our Master Mechanics in our Certified Pre-Owned process. CPO bikes are pristine and ready to ride!

Learn more
returns image

30-Day Hassle-Free Returns

Shop with confidence. Every bike is covered by our 30-day satisfaction guarantee. If this bike isn’t perfect for you, get in touch and we’ll help you find the right bike.

Learn more
shipping image

RideFast Shipping

Bikes ship in our custom RideFast box, and assembly is incredibly simple. Most novice riders can assemble their bike in 5 minutes or less. The tools you need to assemble are also included.

Learn more

Specifications

Year 2019
Brand Trek
Model Fuel EX 5 Women's
Size 15.5"
Frame Material Aluminum
Drivetrain Shimano, 1x10 spd
Weight 32 lbs 14 oz
Fork RockShox Recon RL
Fork Travel 140mm
Rear Shock RockShox Deluxe RL
Rear Shock Travel 130mm
Brakes Shimano MT200, Disc Brakes - Hydraulic
Shifters Shimano Deore M6000, Mechanical
Rear Derailleur Shimano Deore M6000 Shadow Plus
Bottom Bracket Shell Press fit
Crankset Race Face Ride Alloy, 30t, 170mm
Cassette SunRace, 11-42t
Chain KMC
Handlebar Bontrager Alloy, 720mm
Headset Knock Block Integrated
Stem Bontrager Rhythm Comp Alloy, 31.8mm x 60mm, 0°
Seatpost Bontrager Alloy, 31.6mm
Saddle Bontrager Arvada
Front Axle Spacing 15x110mm (Thru-Axle)
Rear Axle Spacing 12x148mm Boost
Wheelset Front: DT Swiss H 1900 Spline 35 / Rear: Alex MD35, Aluminum Tubeless Ready , Front: DT Swiss 370 Boost / Rear: Bontrager Boost
Front Tire Schwalbe Nobby Nic Performance TLR Addix , 27.5" x 2.8"
Rear Tire Schwalbe Nobby Nic Performance TLR Addix , 27.5" x 2.8"
Tire Type Tubeless
Tubeless Compatibility Wheels are tubeless compatible but ships with tubes installed

Geometry

Recommended Rider Height N/A
a. Effective Top Tube 563 mm
b. Seat Tube 394 mm
c. Seat Tube Angle 65.8°
d. Head Tube Angle 67°
e. Head Tube 100 mm
f. Stack 580 mm
g. Reach 387 mm
h. Standover Height 711 mm
i. Saddle Height Range N/A
VIEW SIZING GUIDE
