Sorry, this Trek Checkpoint SL5 Women's Gravel Bike - 2019, 49cm has been sold.

Try these similar items:

BGR12786_PH2_01

BGR12786_PH2_02

BGR12786_PH2_03

BGR12786_PH2_04

BGR12786_PH2_05

BGR12786_PH2_06

BGR12786_PH2_07

BGR12786_PH2_08

BGR12786_PH2_09

BGR12786_PH2_10

BGR12786_PH2_01

BGR12786_PH2_02

BGR12786_PH2_03

BGR12786_PH2_04

BGR12786_PH2_05

BGR12786_PH2_06

BGR12786_PH2_07

BGR12786_PH2_08

BGR12786_PH2_09

BGR12786_PH2_10

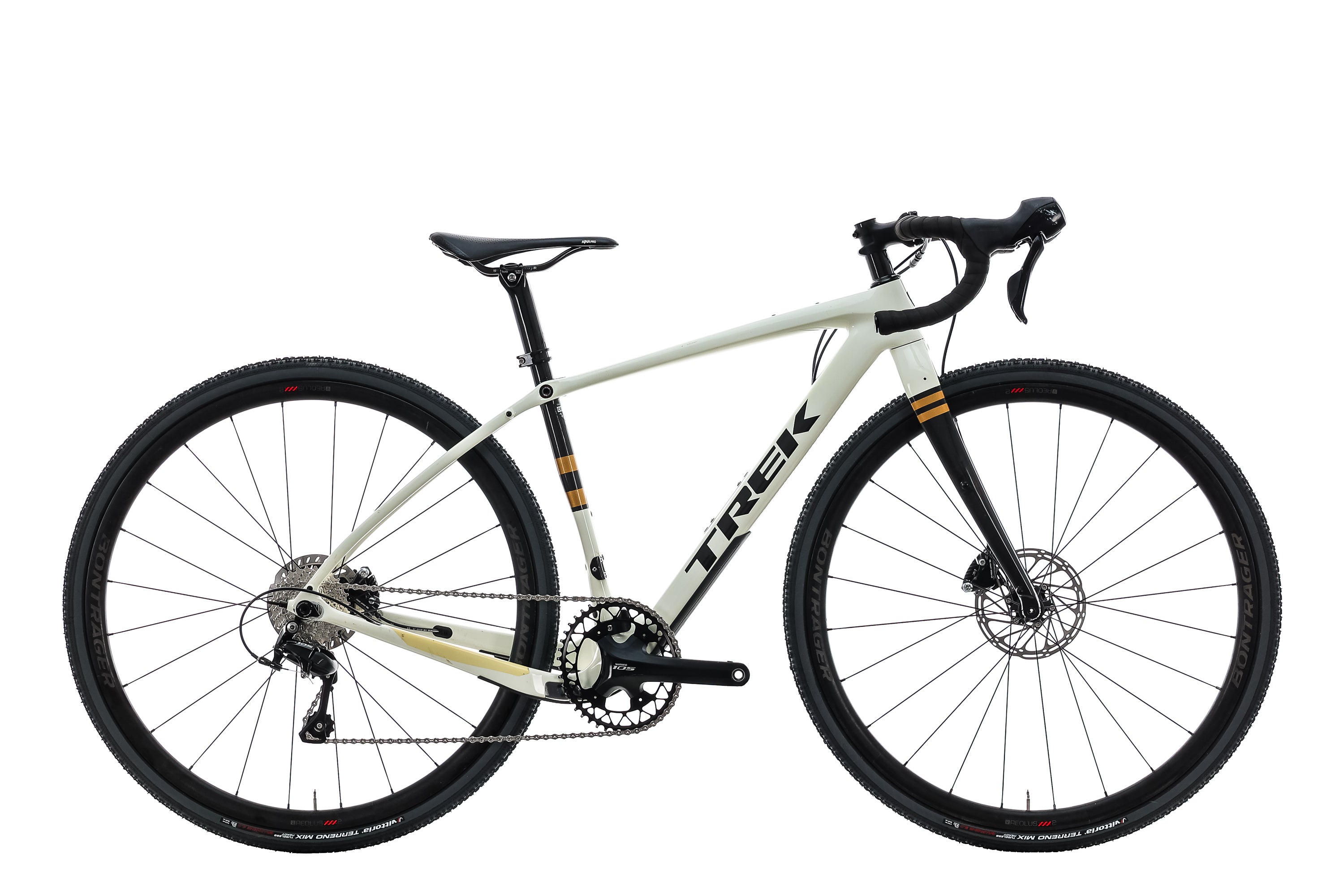

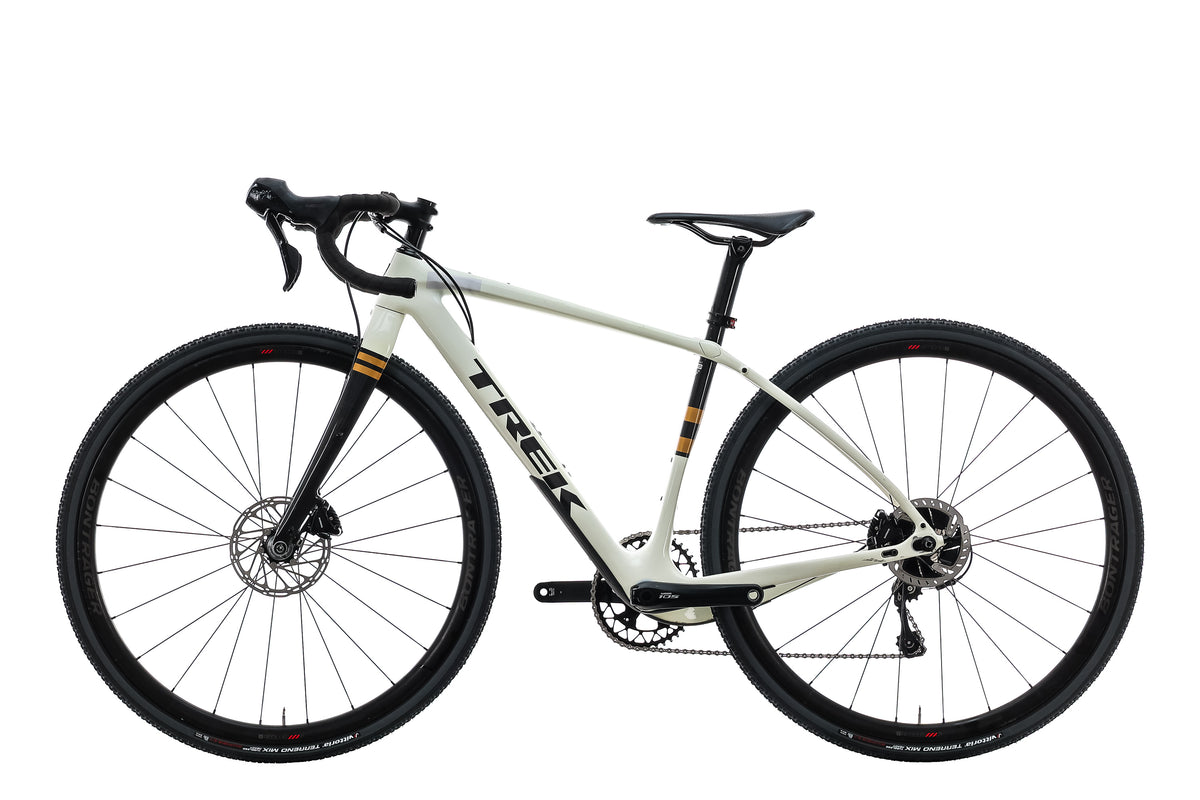

Trek Checkpoint SL5 Women's Gravel Bike - 2019, 49cm

Item #BGR12786

Recommended Rider Height: 5'2" - 5'5" Sizing Guide

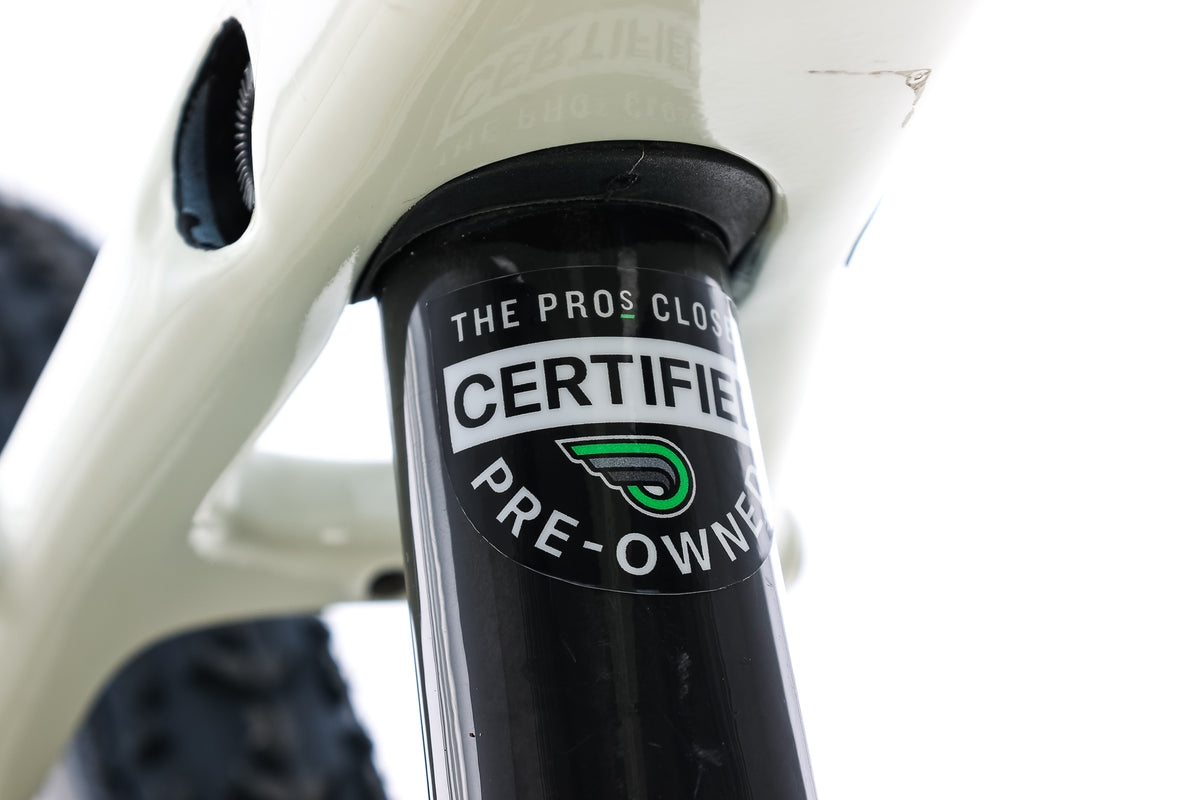

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2019
Brand	Trek
Model	Checkpoint SL5 Women's
Size	49cm
Frame Material	Carbon Fiber
Drivetrain	Shimano, 1x11 spd
Weight	18 lbs 2 oz

Build

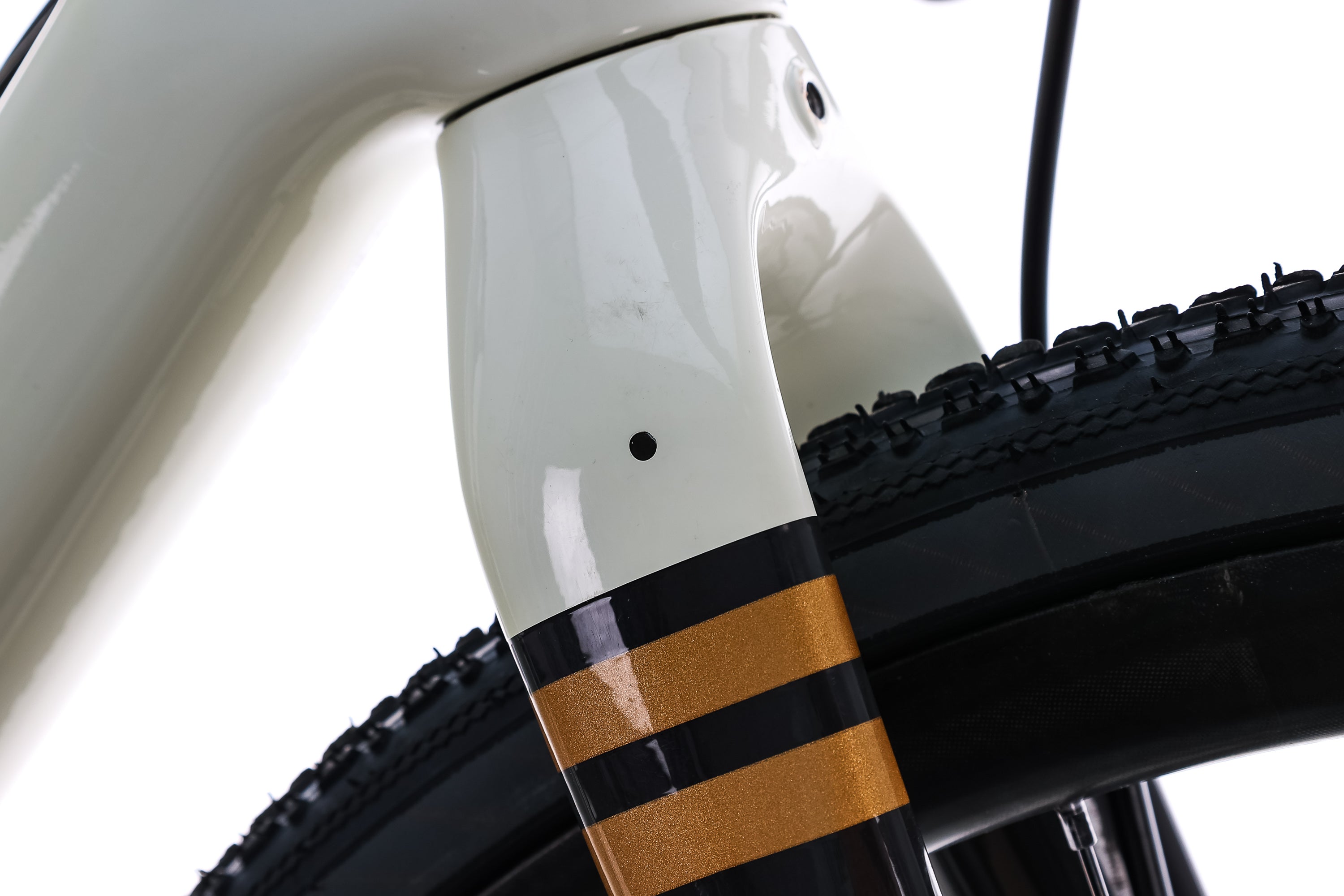

Fork	Trek, Carbon

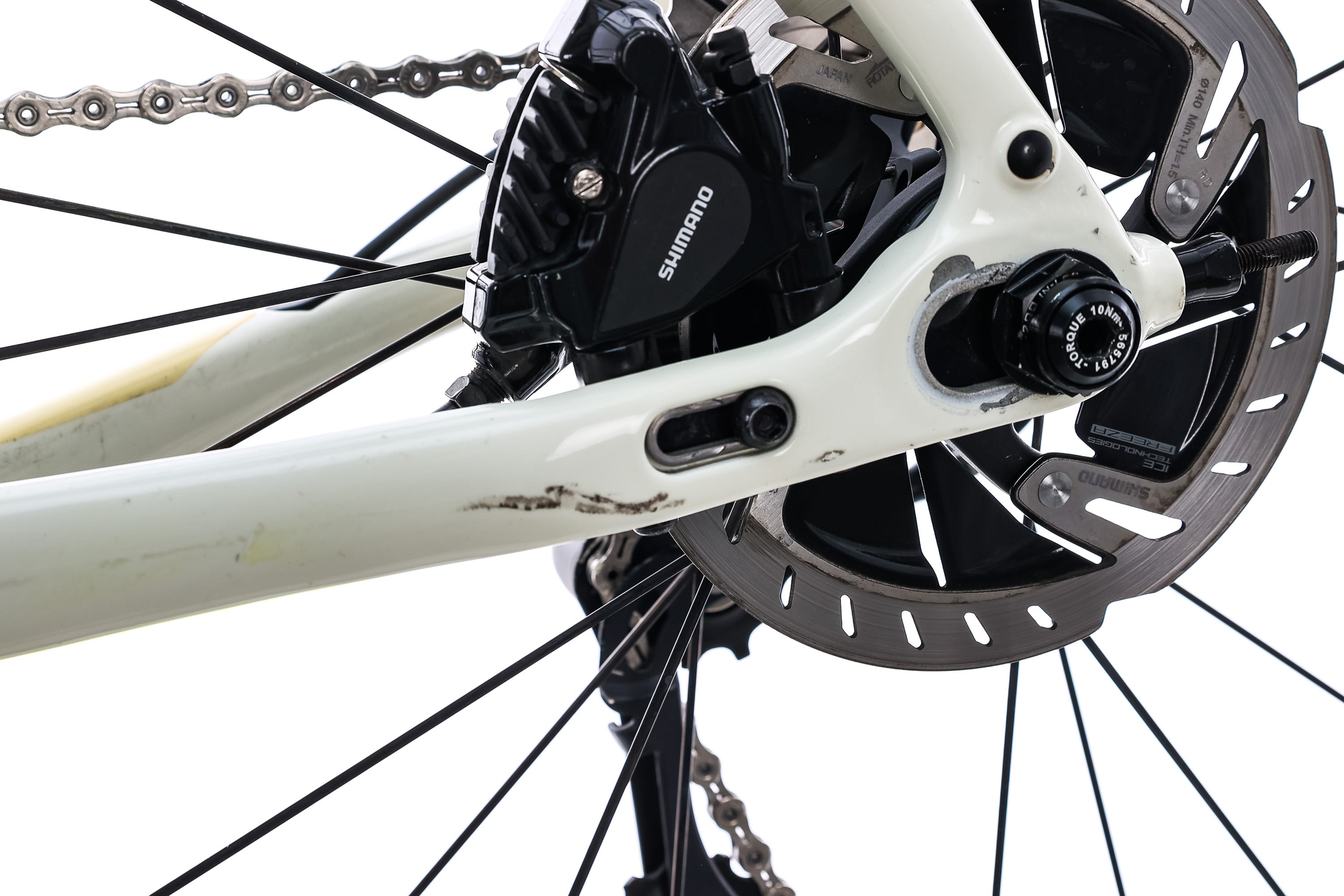

Brakes	Shimano RS805, Disc Brakes - Hydraulic
Shifters	Shimano RS505, Mechanical
Rear Derailleur	Shimano 105 5800
Bottom Bracket Shell	Press fit

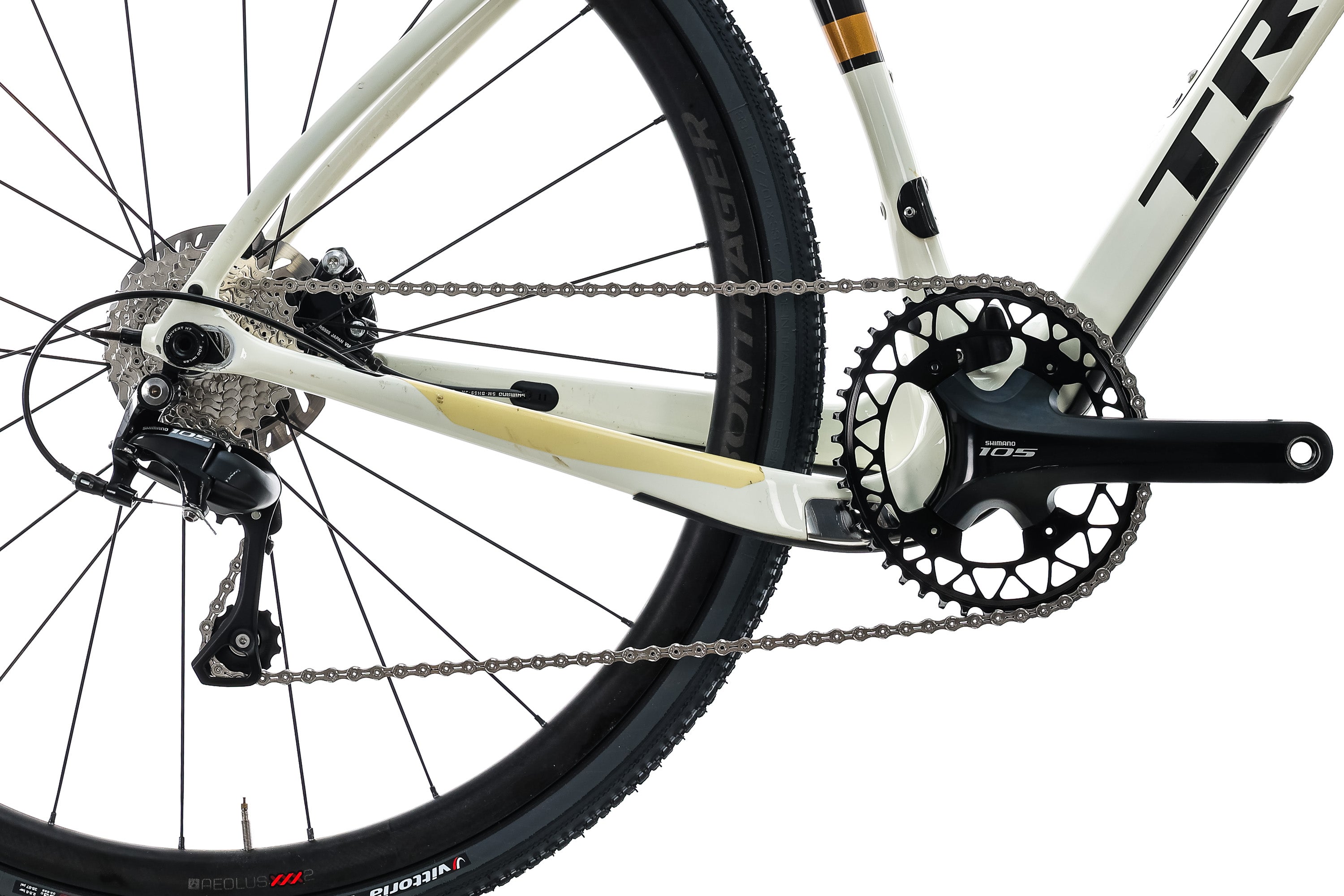

Crankset	Shimano 105 5800 w/ absoluteBLACK Oval Chainring , 44t, 165mm
Cassette	Shimano 105 R7000, 11-28t
Chain	KMC

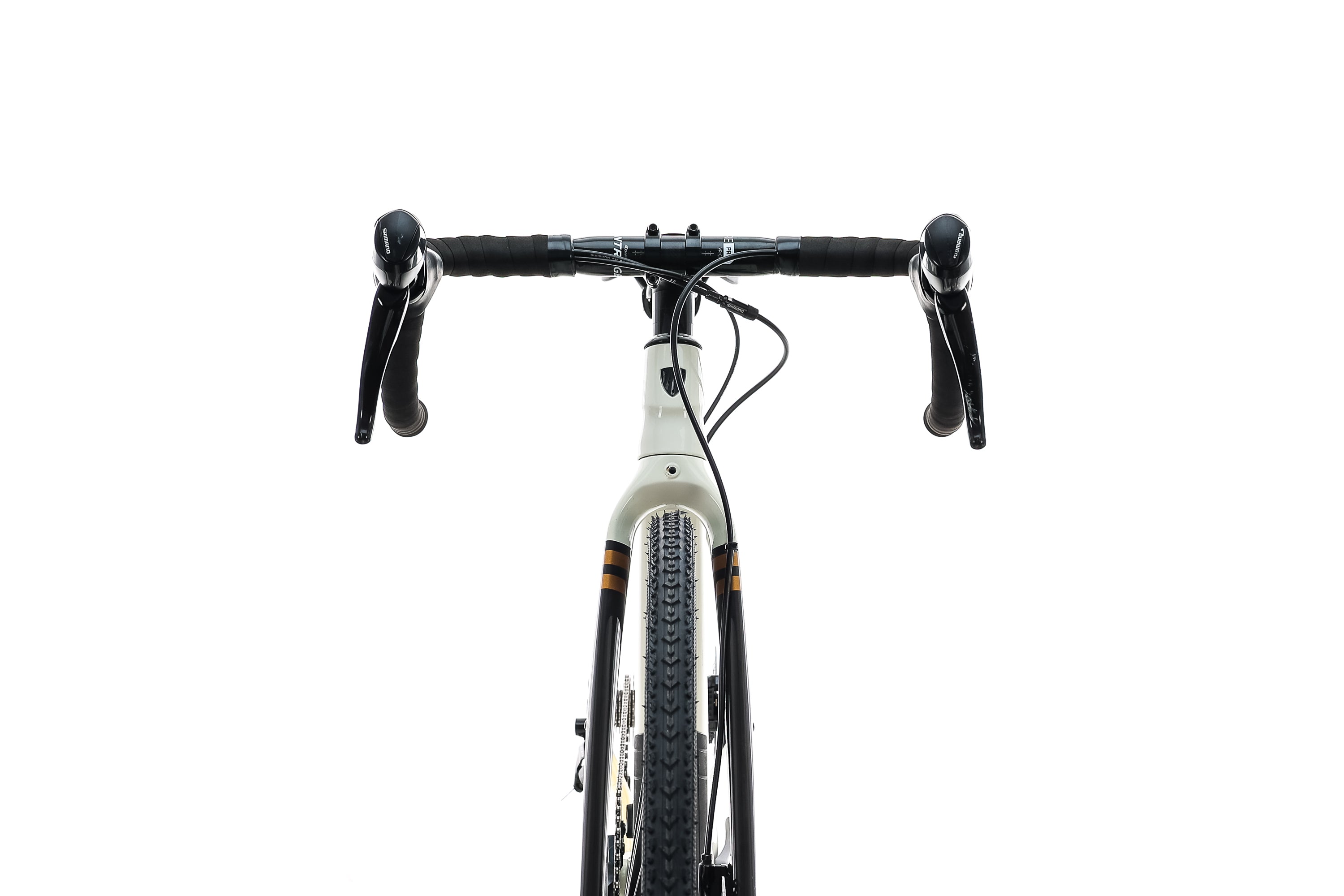

Handlebar	Bontrager IsoCore Pro Carbon , 40cm
Headset	FSA Integrated
Stem	Bontrager Alloy, 31.8mm x 60mm, 6°
Seatpost	Bontrager Ride Tuned Carbon Seatmast Cap, Frame Specific
Saddle	Bontrager Ajna Pro
Front Axle Spacing	12x100mm (Thru-Axle)
Rear Axle Spacing	12x142mm

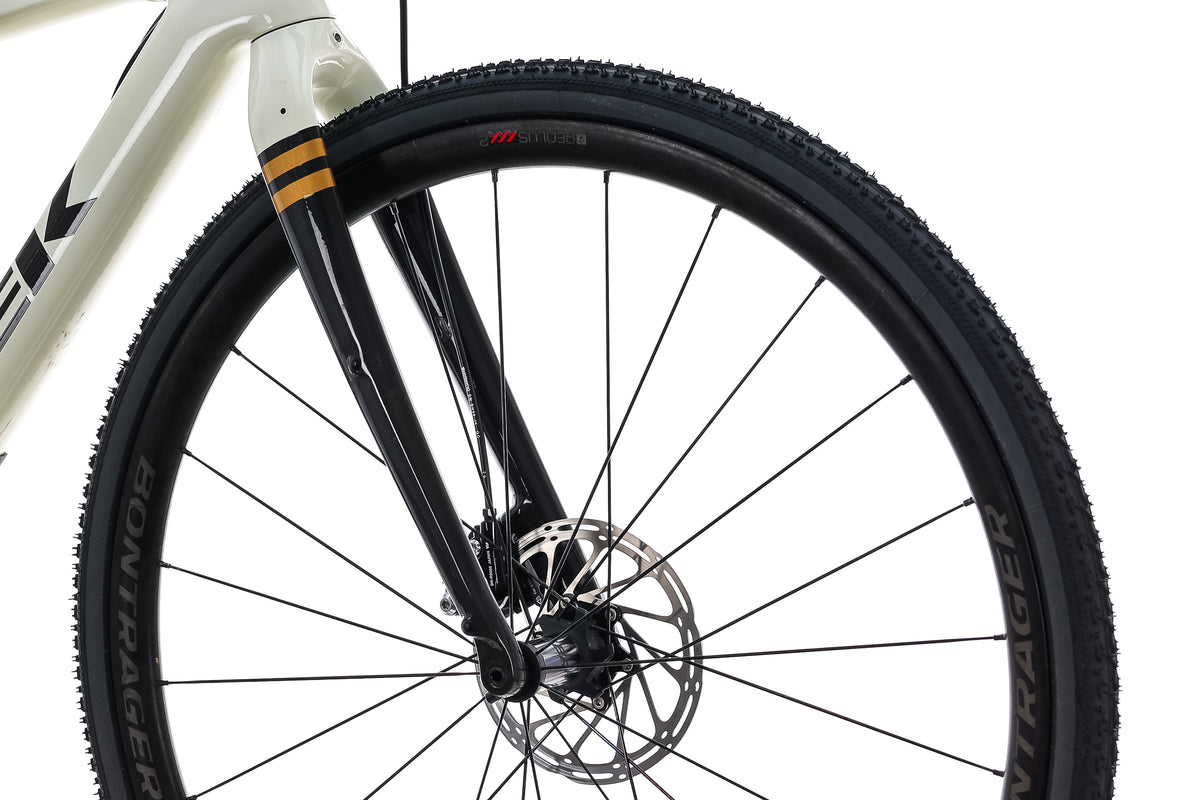

Wheelset	Bontrager Aeolus XXX 2 Disc Carbon Tubeless Compatible, Bontrager
Front Tire	Vittoria Terreno Mix Tubeless Ready Graphene 2.0, 700C x 33C
Rear Tire	Vittoria Terreno Mix Tubeless Ready Graphene 2.0, 700C x 33C
Tire Type	Tubeless
Tubeless Compatibility	Wheels are tubeless compatible

Geometry

Recommended Rider Height	5'2" - 5'5" Sizing Guide
a. Effective Top Tube	515 mm
b. Seat Tube	490 mm
c. Seat Tube Angle	75°
d. Head Tube Angle	71.4°
e. Head Tube	90 mm
f. Stack	532 mm
g. Reach	373 mm
h. Standover Height	723 mm
i. Saddle Height Range	580 - 650 mm

Trek Checkpoint SL5 Women's Gravel Bike - 2019, 49cm

Item #BGR12786

Recommended Rider Height: 5'2" - 5'5" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
