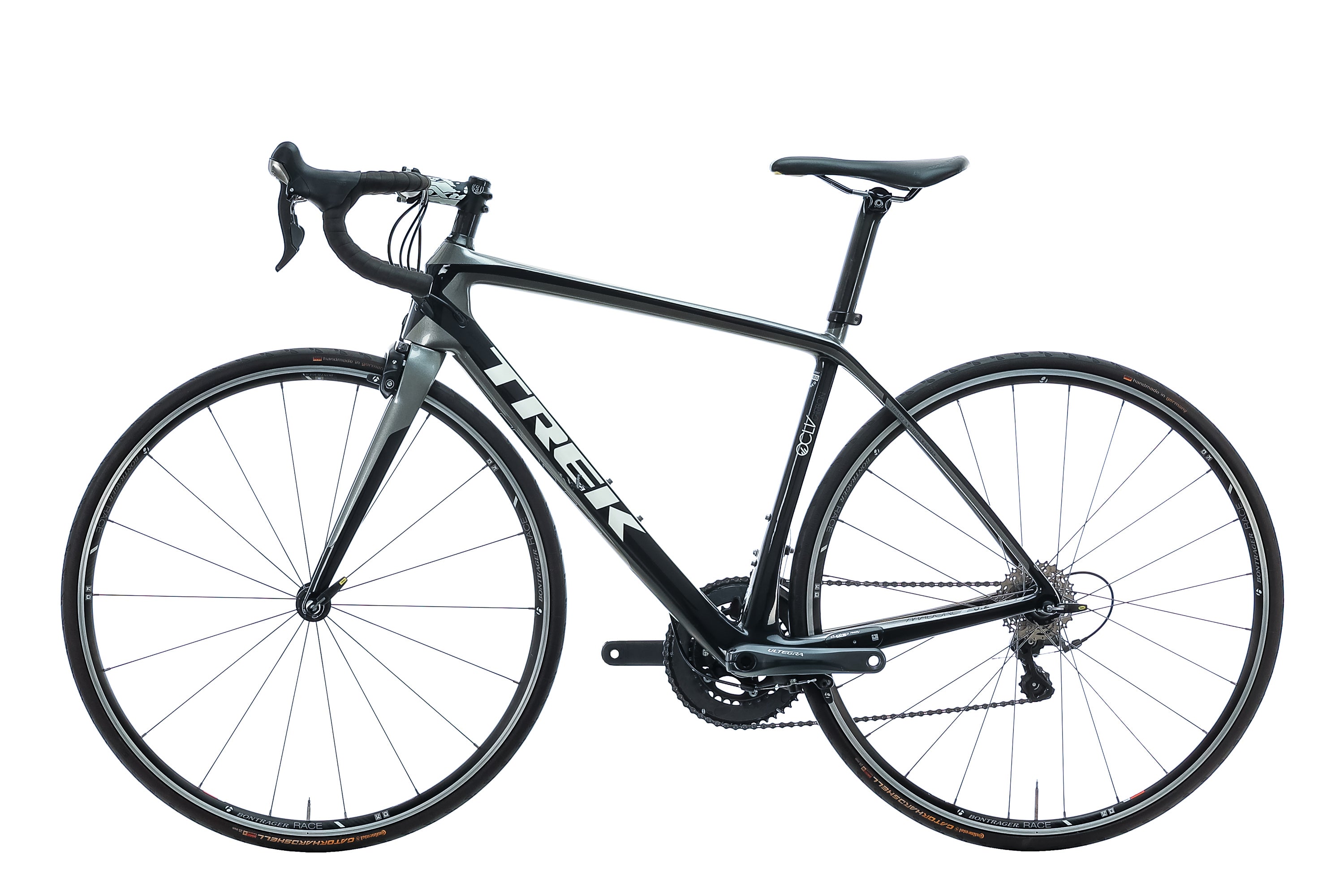

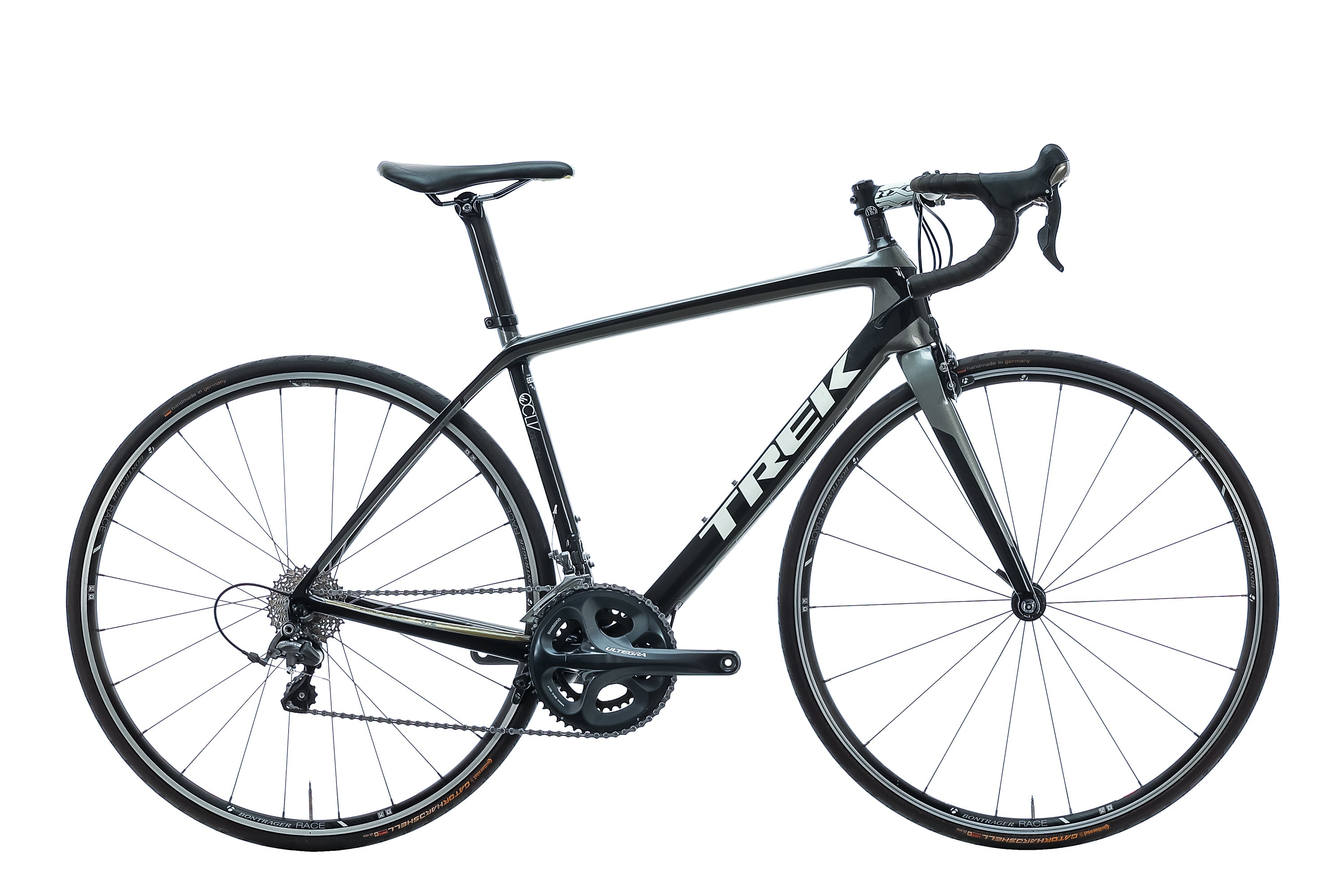

Trek Madone 5.2 H2 Compact Road Bike - 2013, 52cm

Name: Trek Madone 5.2 H2 Compact Road Bike - 2013, 52cm
Brand: Trek
SKU: BRD28306
Price: 2299.99 USD
Availability: InStock

Item #BRD28306

Recommended Rider Height: 5'5" - 5'7" Sizing Guide

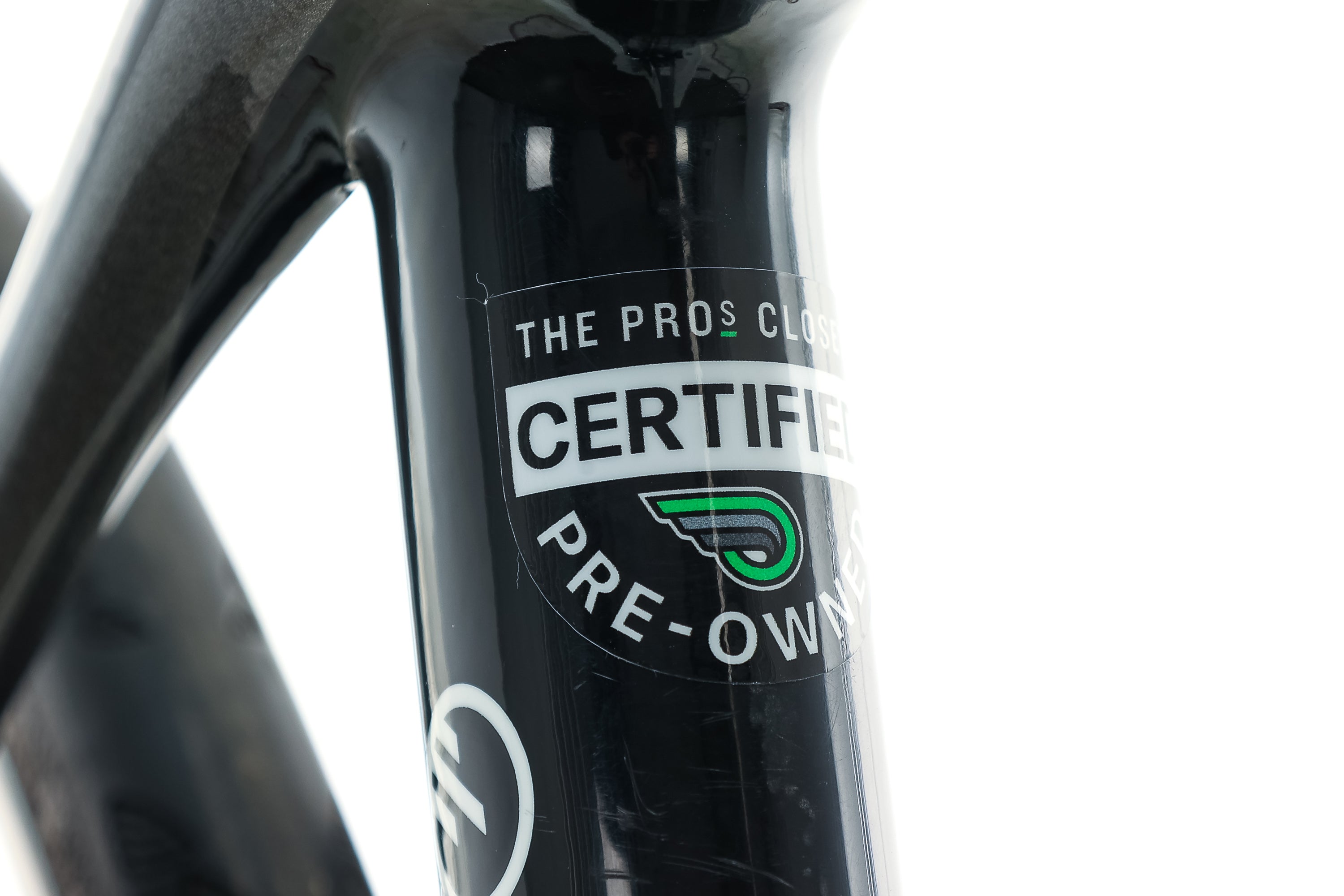

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Product Details

Upgrades

Kammtail Virtual Foil tube shaping for optimal aerodynamics.
New bar tape for improved comfort.
New front & rear brake cable & housing for confident braking.

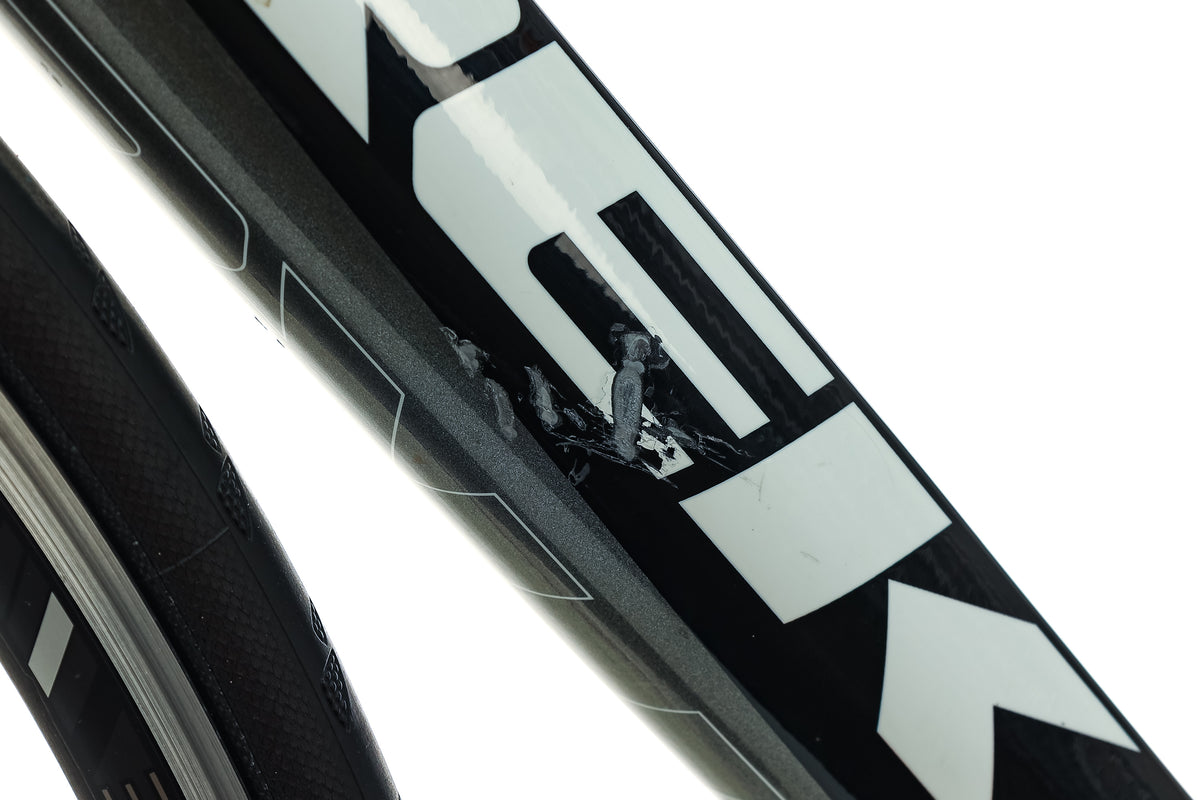

Master Mechanic’s Notes

Specifications

Details

Year	2013
Brand	Trek
Model	Madone 5.2 H2 Compact
Size	52cm
Frame Material	Carbon Fiber
Drivetrain	Shimano, 2x10 spd
Weight	17 lbs 0 oz

Build

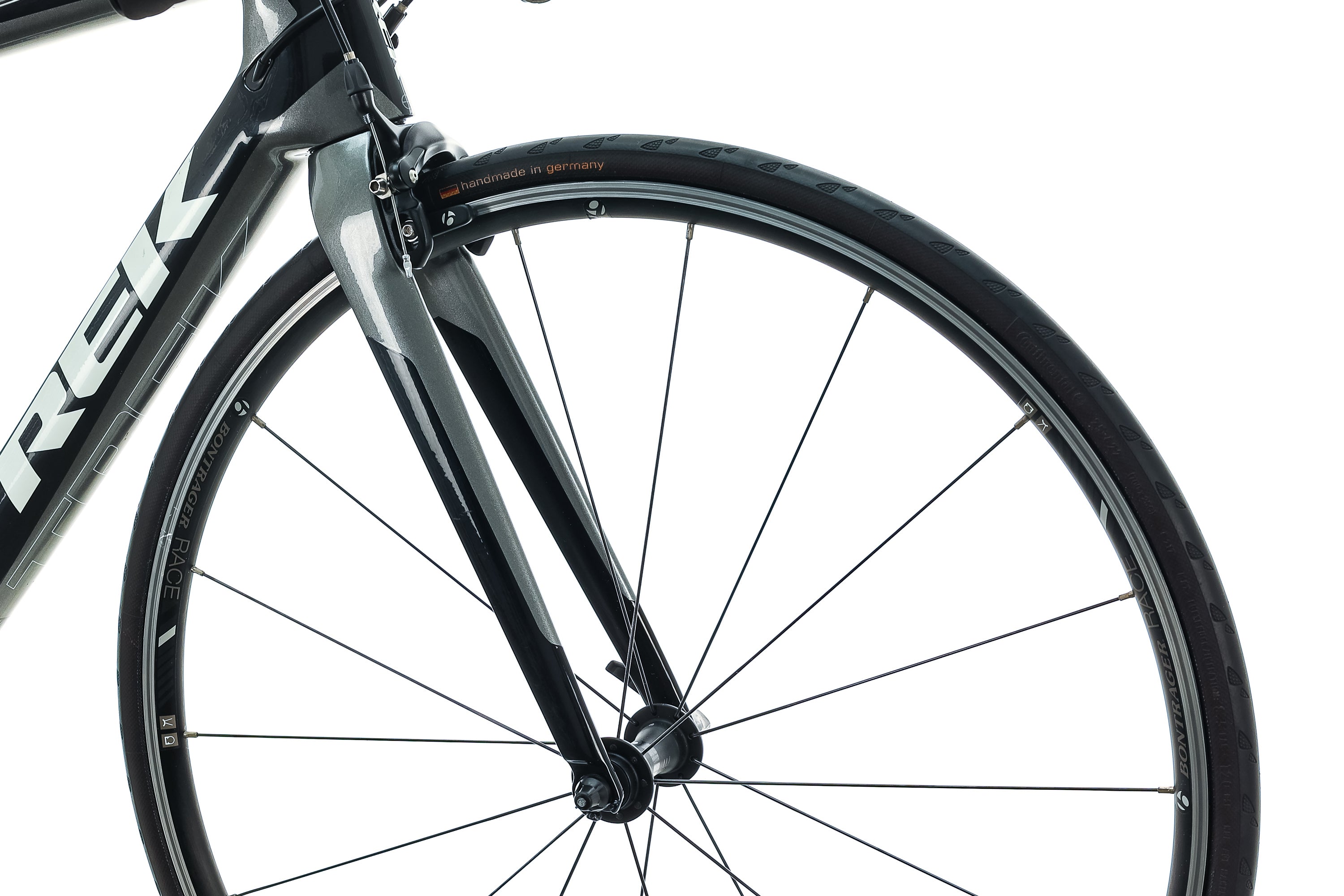

Fork	Madone KVF, Carbon
Brakes	Bontrager Speed Limit Integrated, Caliper - Side Pull
Shifters	Shimano Ultegra 6700, Mechanical
Front Derailleur	Shimano Ultegra 6700
Rear Derailleur	Shimano Ultegra 6700
Bottom Bracket Shell	Press fit

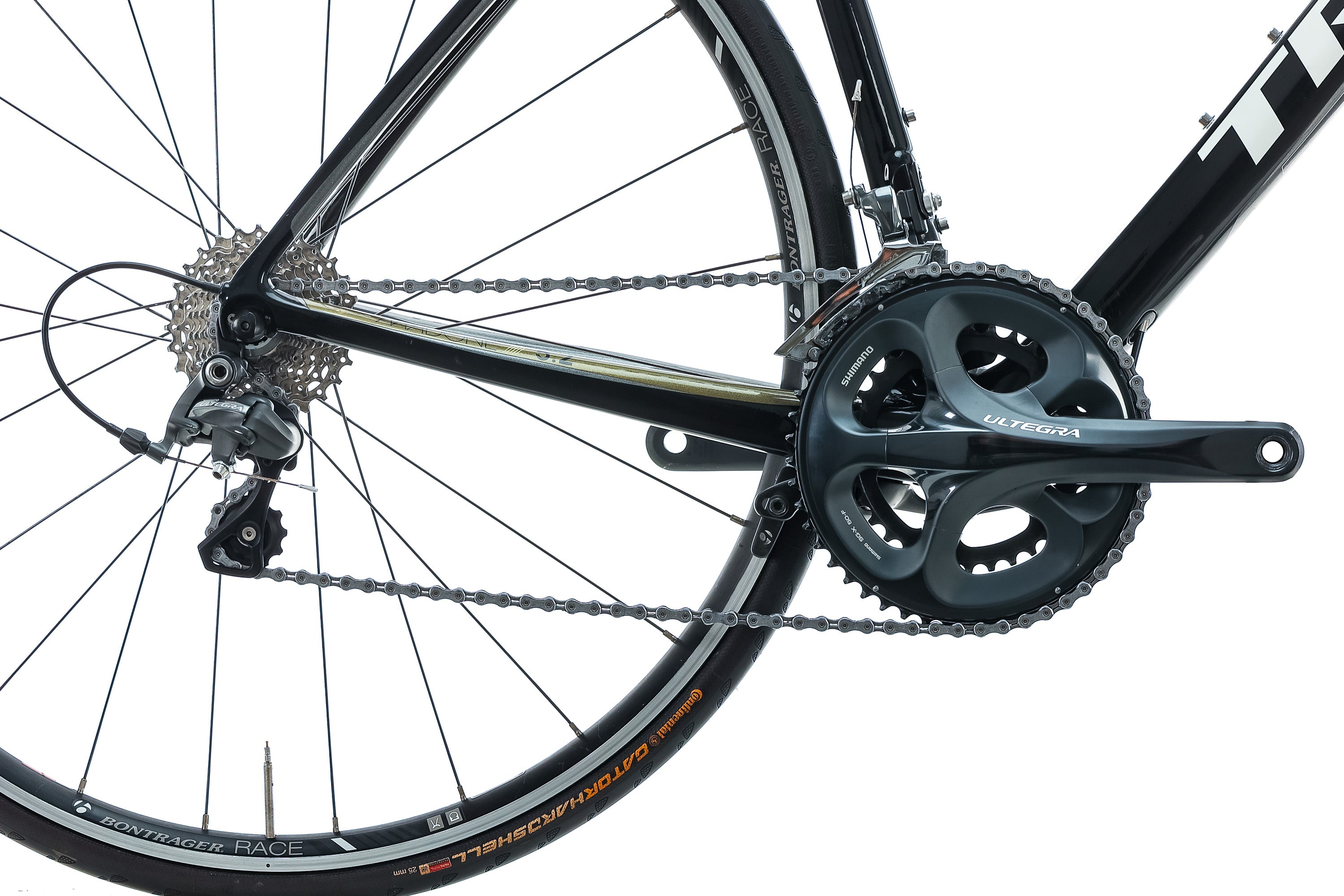

Crankset	Shimano Ultegra 6700, 50/34t, 170mm
Cassette	Shimano Ultegra 6700, 11-28t
Chain	Shimano

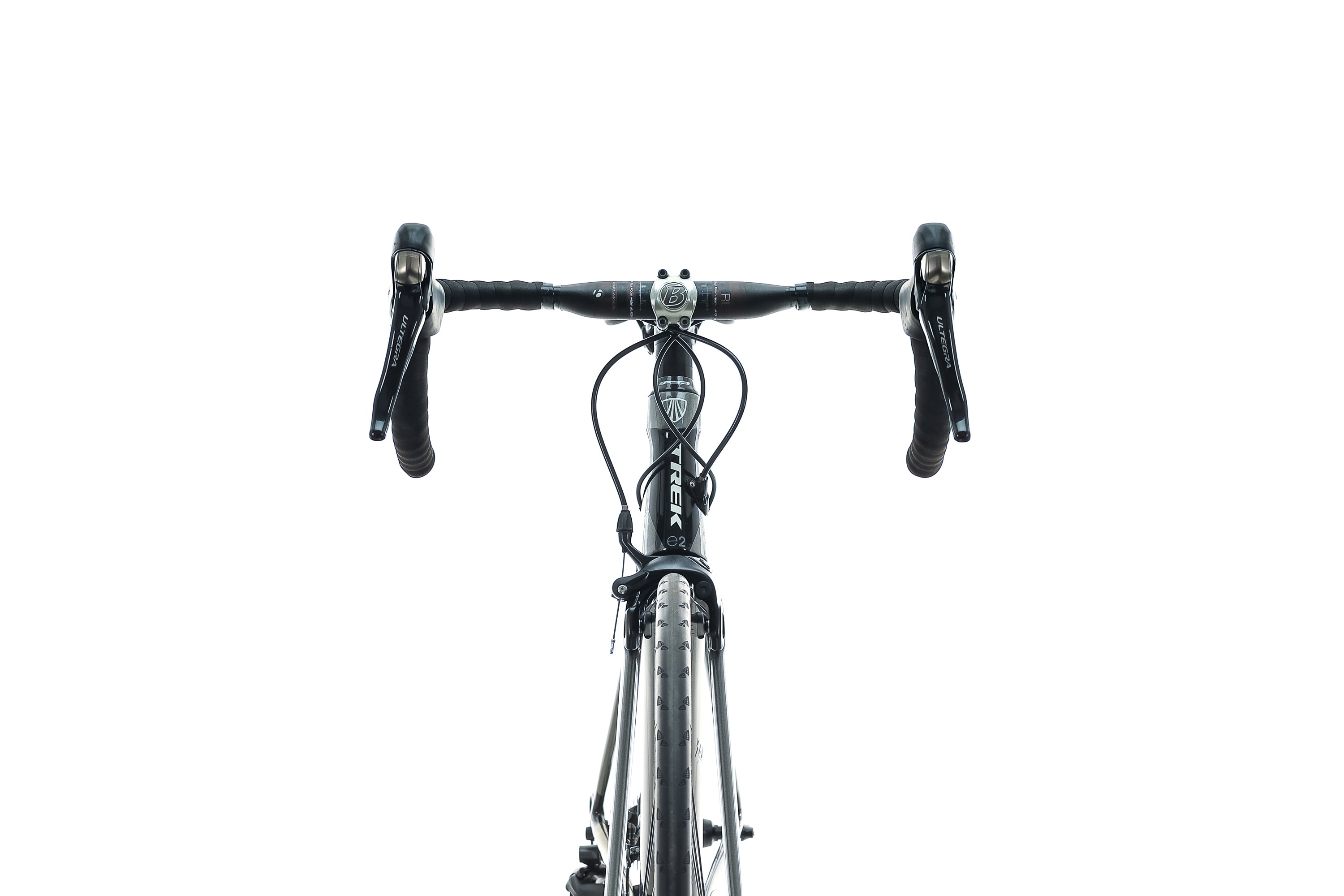

Handlebar	Bontrager Race Lite Aero Alloy, 40cm
Headset	FSA Integrated
Stem	Bontrager Race X Lite Alloy, 31.8mm x 90mm, 7°
Seatpost	Bontrager Ride Tuned Carbon Seatmast Cap, Frame Specific
Saddle	Bontrager Affinity 3
Front Axle Spacing	9x100mm (Quick Release)
Rear Axle Spacing	10x130mm
Wheelset	Bontrager Race Aluminum Clincher, Bontrager Race
Front Tire	Continental Gator Hardshell, 700C x 25C
Rear Tire	Continental Gator Hardshell, 700C x 25C
Tire Type	Clincher
Tubeless Compatibility	Wheels are tubeless compatible but ships with tubes installed

Geometry

Recommended Rider Height	5'5" - 5'7" Sizing Guide
a. Effective Top Tube	529 mm
b. Seat Tube	493 mm
c. Seat Tube Angle	74.7°
d. Head Tube Angle	72.8°
e. Head Tube	140 mm
f. Stack	547 mm
g. Reach	379 mm
h. Standover Height	729 mm
i. Saddle Height Range	N/A
