Sorry, this Pivot Switchblade Medium Frame - 2018 has been sold.

Try these similar items:

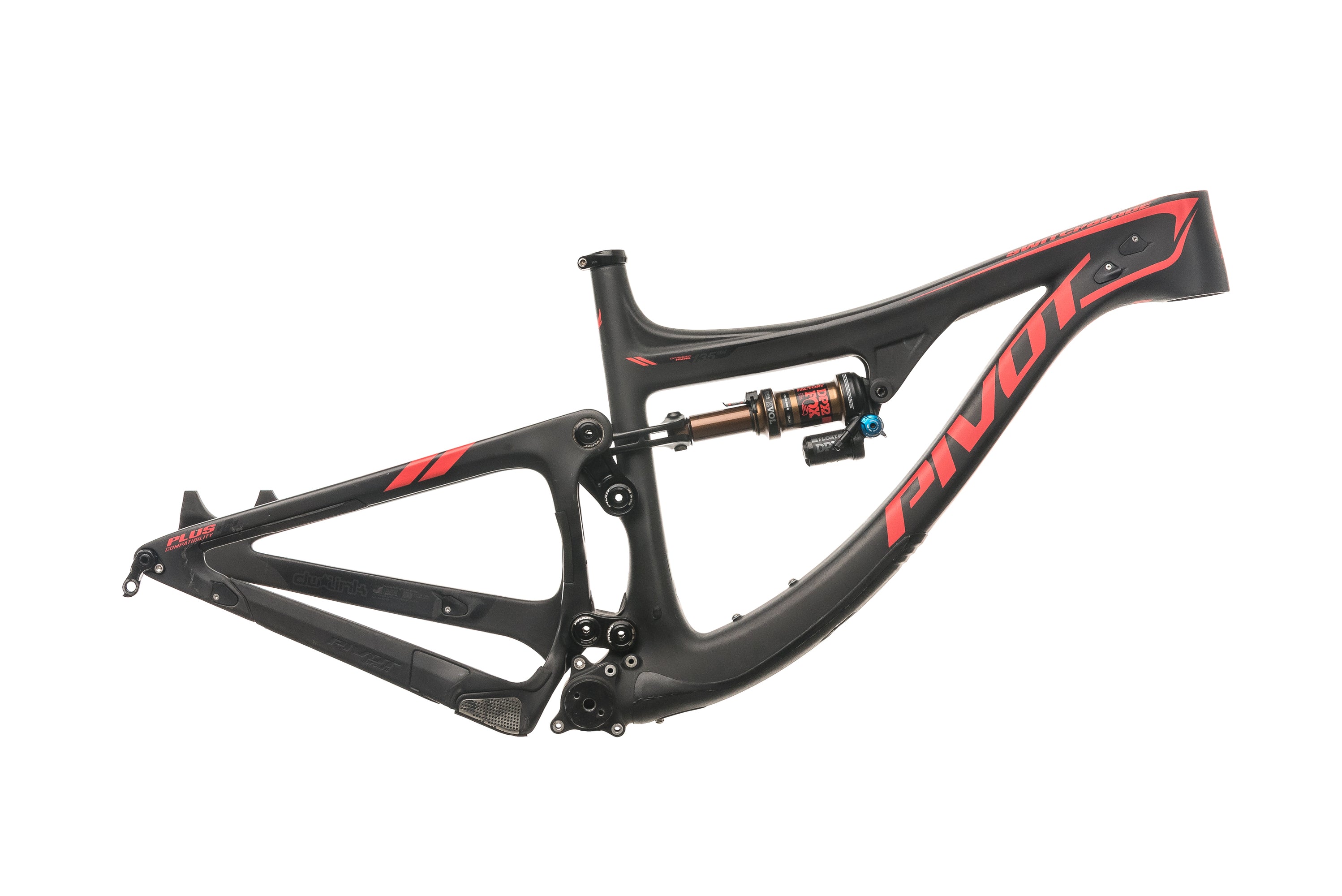

Pivot Switchblade Medium Frame - 2018 drive side

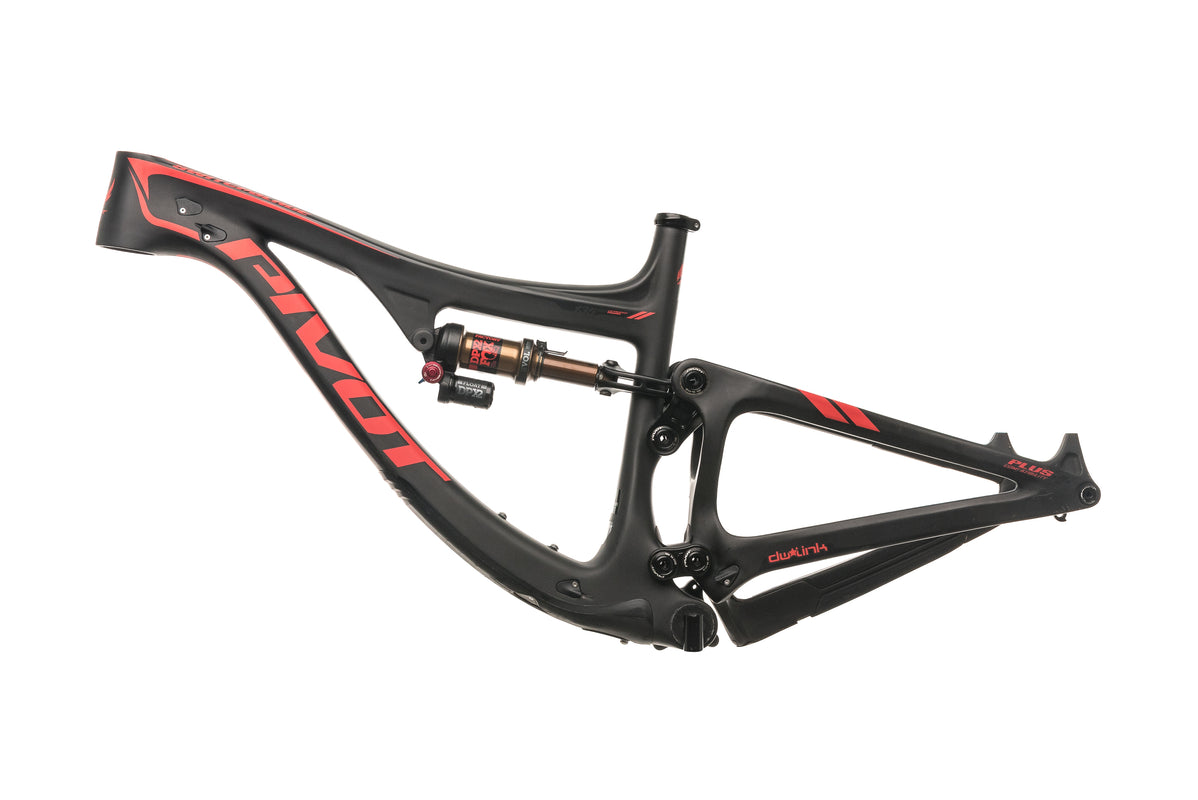

Pivot Switchblade Medium Frame - 2018 non-drive side

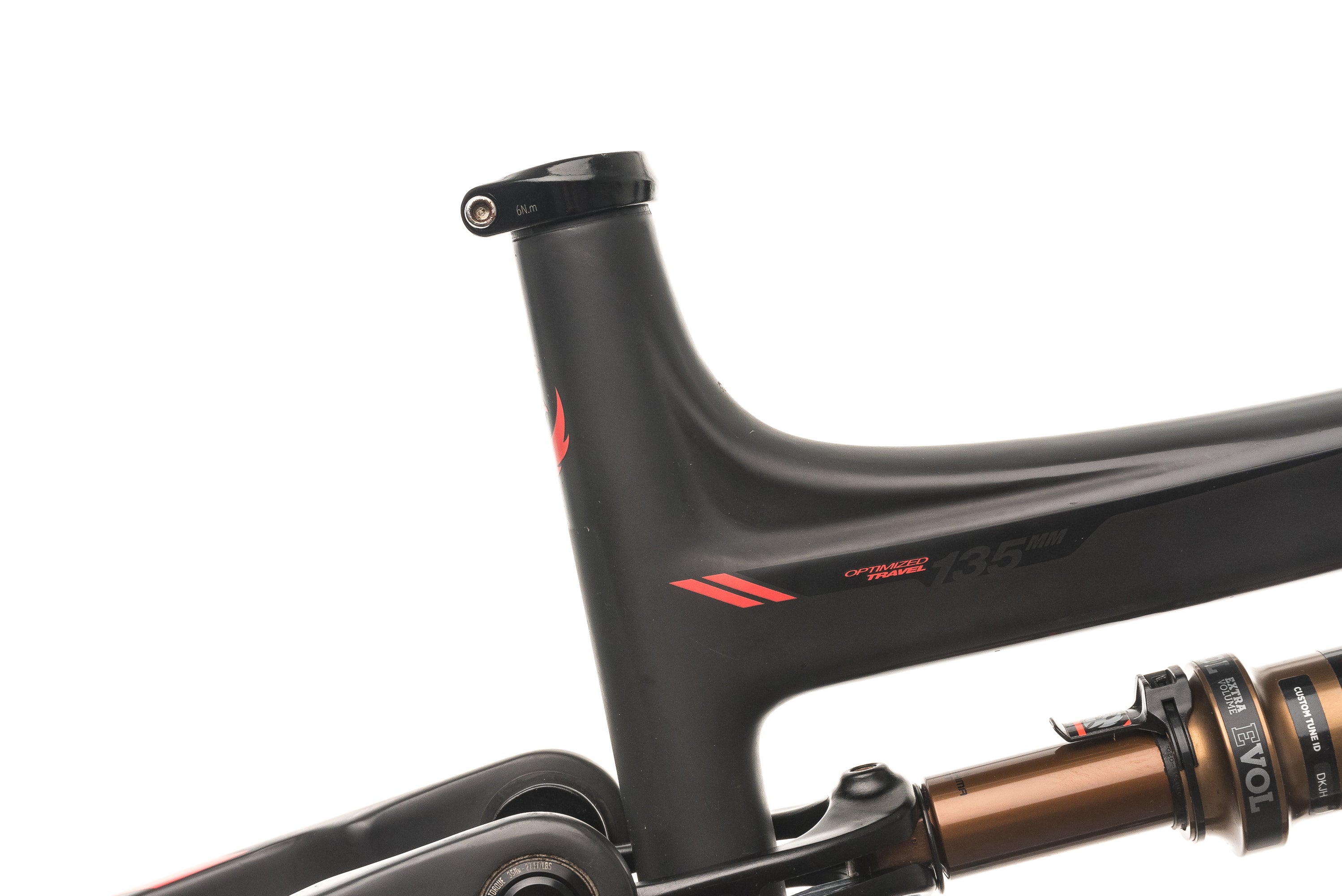

Pivot Switchblade Medium Frame - 2018 sticker

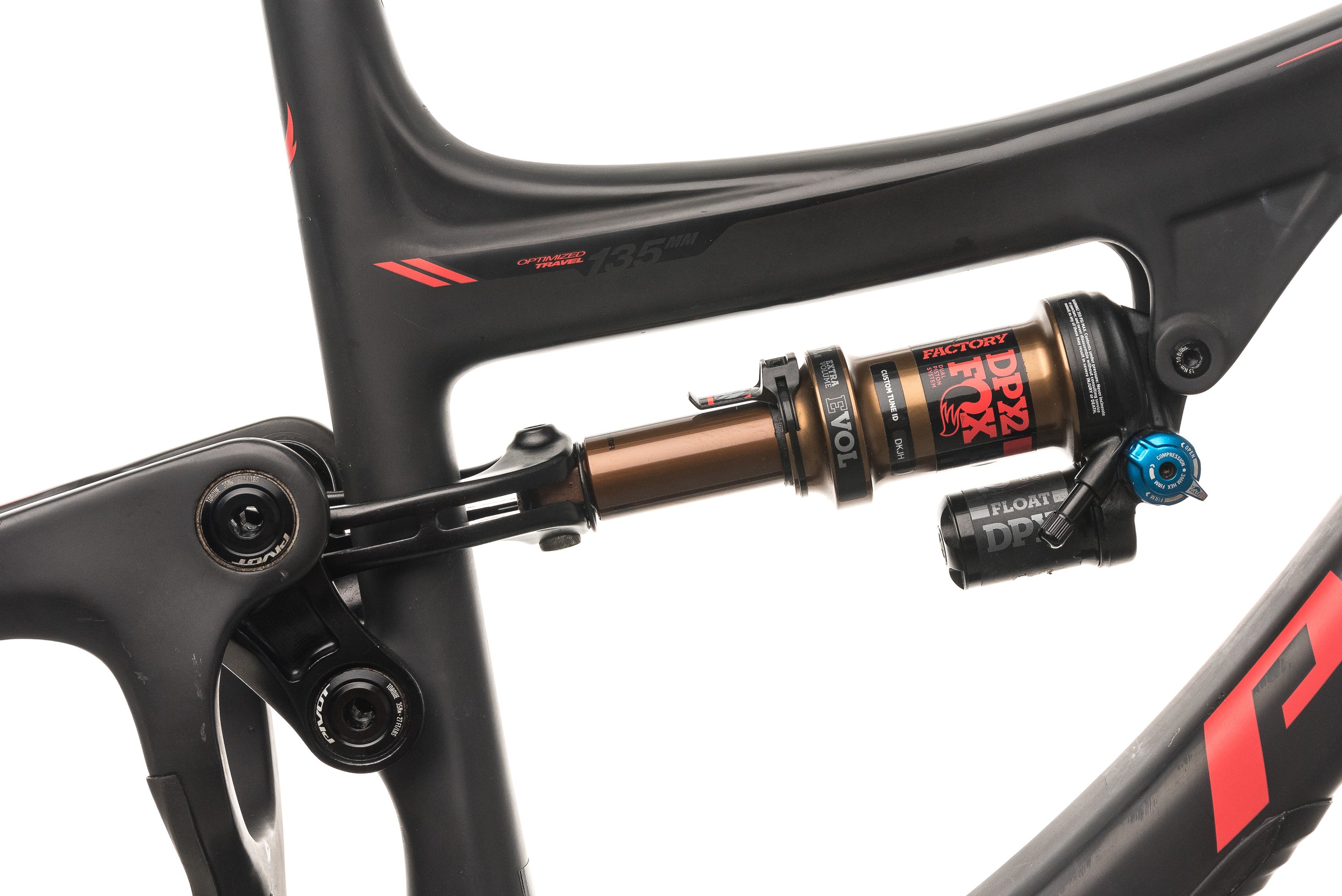

Pivot Switchblade Medium Frame - 2018 drivetrain

Pivot Switchblade Medium Frame - 2018 front wheel

Pivot Switchblade Medium Frame - 2018 cockpit

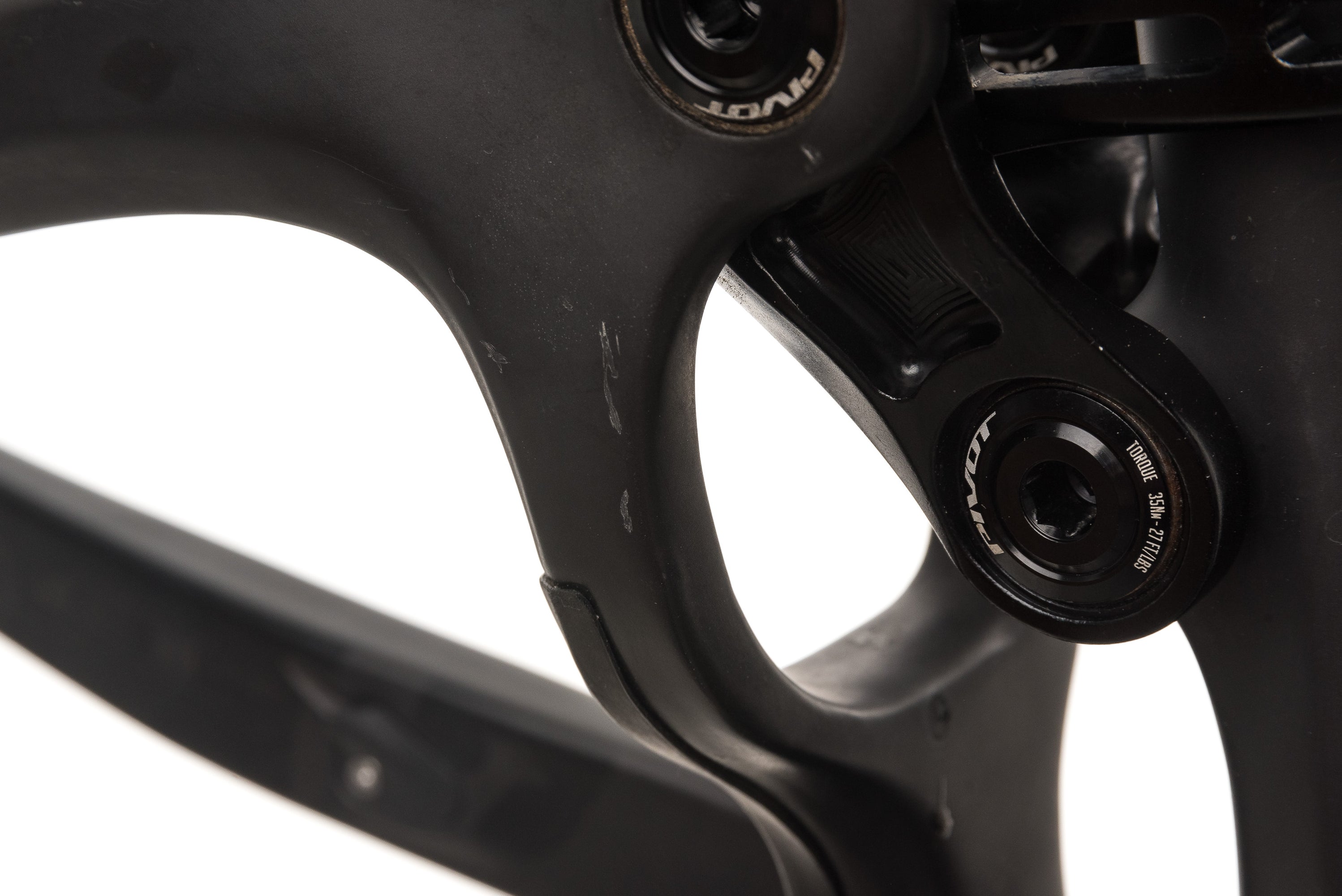

Pivot Switchblade Medium Frame - 2018 crank

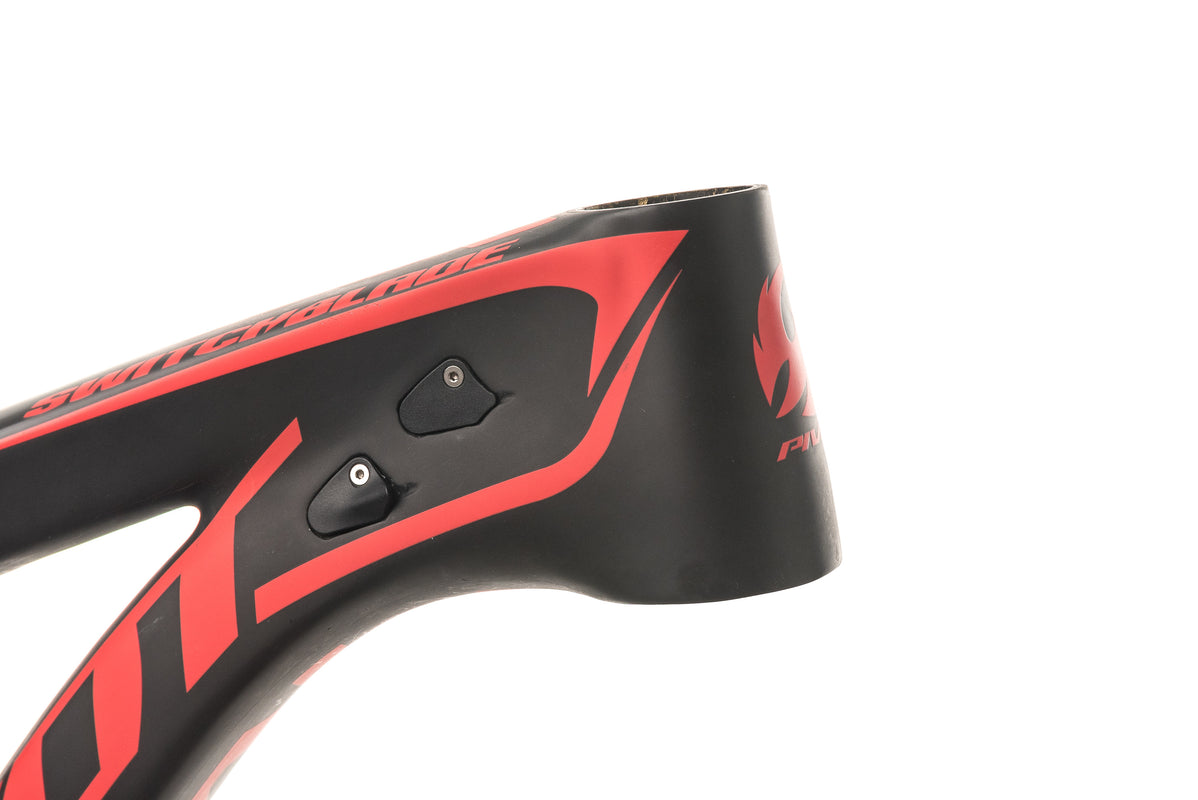

Pivot Switchblade Medium Frame - 2018 detail 1

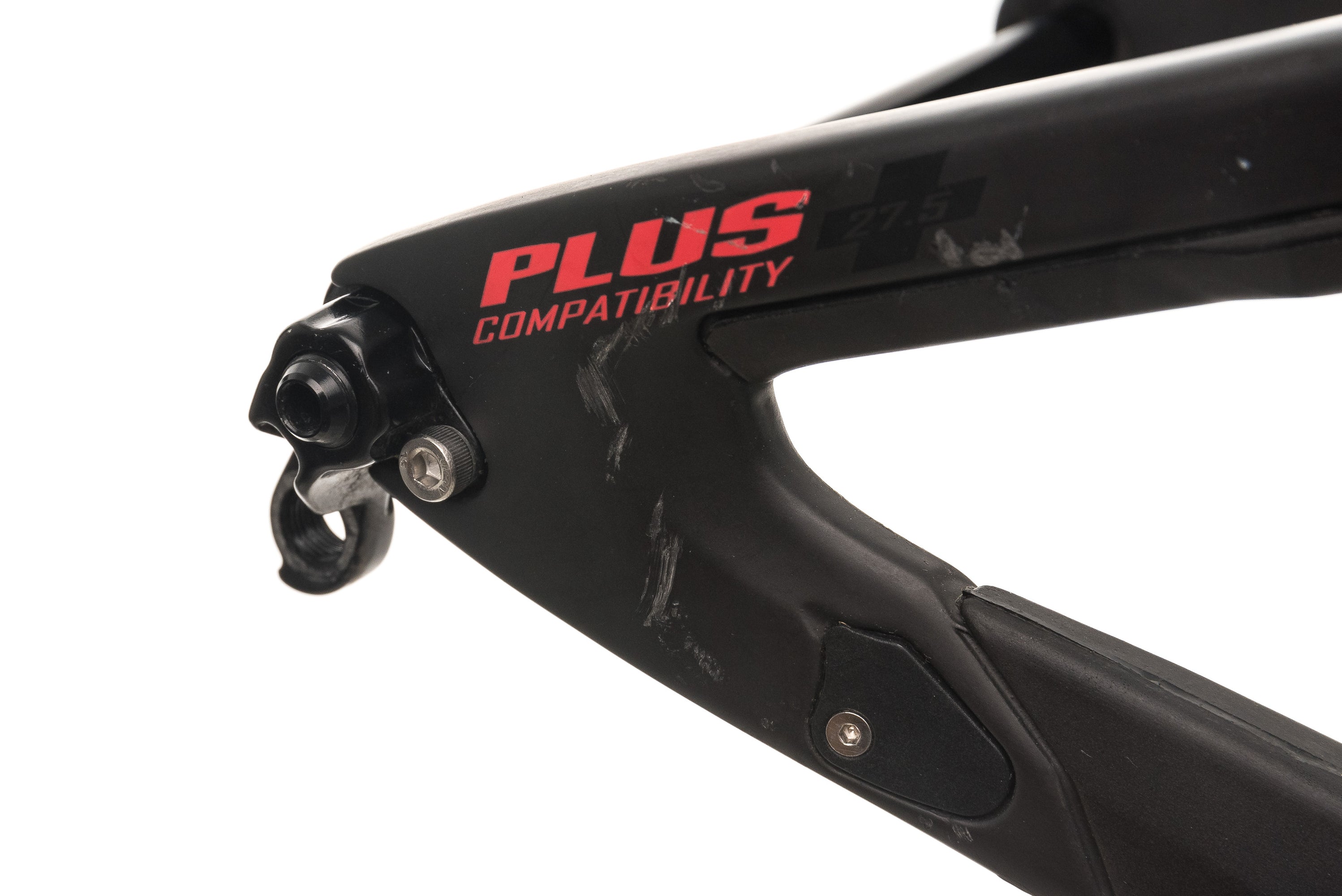

Pivot Switchblade Medium Frame - 2018 detail 2

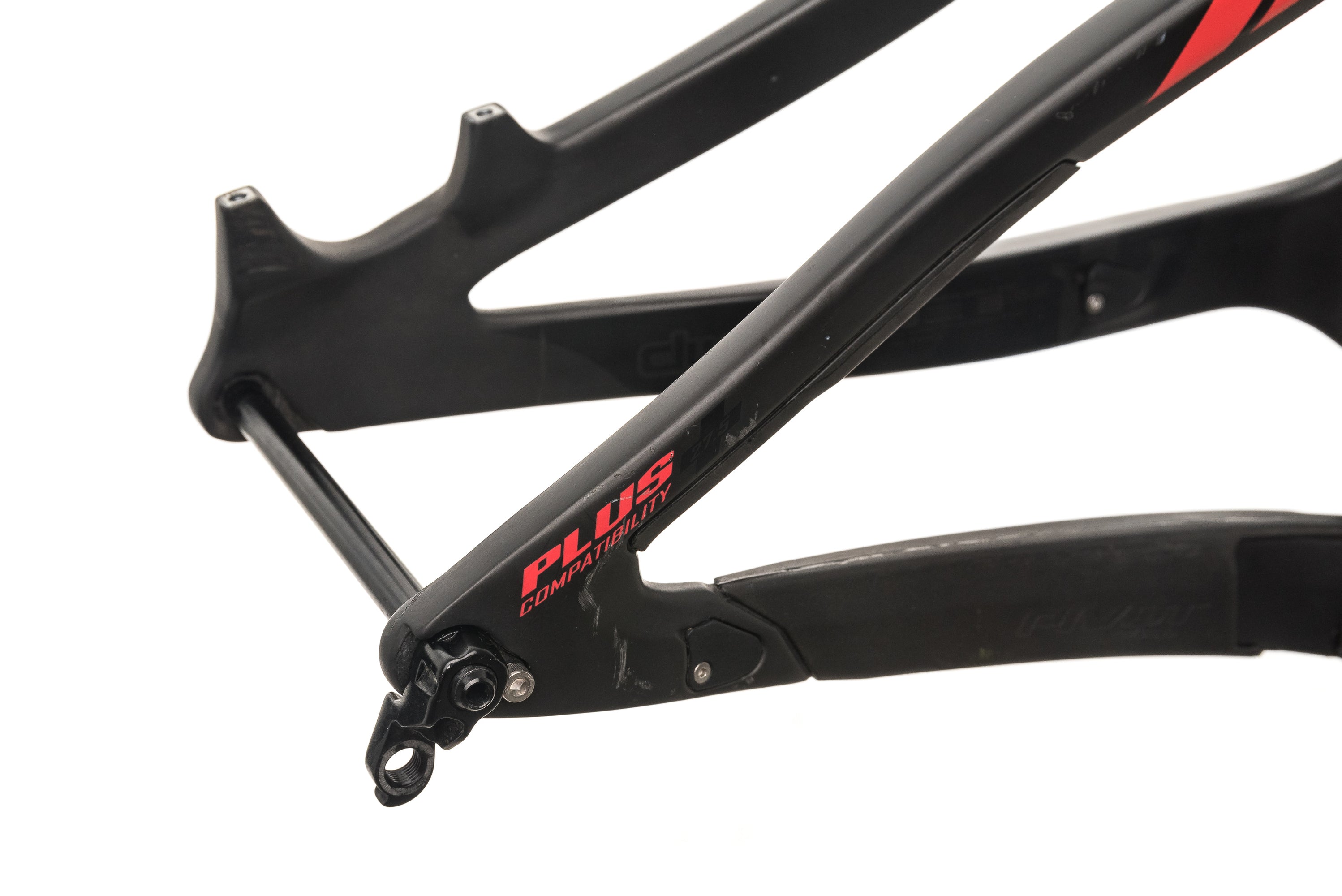

Pivot Switchblade Medium Frame - 2018 detail 3

Pivot Switchblade Medium Frame - 2018 drive side

Pivot Switchblade Medium Frame - 2018 non-drive side

Pivot Switchblade Medium Frame - 2018 sticker

Pivot Switchblade Medium Frame - 2018 drivetrain

Pivot Switchblade Medium Frame - 2018 front wheel

Pivot Switchblade Medium Frame - 2018 cockpit

Pivot Switchblade Medium Frame - 2018 crank

Pivot Switchblade Medium Frame - 2018 detail 1

Pivot Switchblade Medium Frame - 2018 detail 2

Pivot Switchblade Medium Frame - 2018 detail 3

Pivot Switchblade Medium Frame - 2018

Item #FMT10930

Recommended Rider Height: 5'6" - 5'10" Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING

RETURNS

Specifications

Details

Year	2018
Brand	Pivot
Model	Switchblade
Size	Medium
Frame Material	Carbon Fiber / Carbon Fiber
Fork	N/A
Fork Travel	N/A
Steerer Tube	N/A,
Rear Shock	Fox Float DPX2 Factory Series EVOL
Rear Shock Travel	135mm
Brake Type	Disc Brakes
Front Derailleur Mount	N/A
Headset	Not Included
Bottom Bracket	Not Included, PF92
Wheel Size	29"
Seatpost Diameter	30.9mm
Seatpost Clamp	Included
Rear Axle Spacing	12x157mm Super Boost (Thru Axle)
Weight	7 lbs 3 oz

Geometry

Recommended Rider Height	5'6" - 5'10" Sizing Guide
a. Effective Top Tube	614.7 mm
b. Seat Tube	425.5 mm
c. Seat Tube Angle	74.25°
d. Head Tube Angle	67.25°
e. Head Tube	101.6 mm
f. Stack	614.9 mm
g. Reach	439.9 mm
h. Standover Height	708.7 mm

Pivot Switchblade Medium Frame - 2018

Item #FMT10930

Recommended Rider Height: 5'6" - 5'10" Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING

RETURNS

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
