2018 Medium SKU: BMT23632

Kona Process 134 Mountain Bike - 2018, Medium

Recommended Rider Height: 5'6" - 5'10" Size Guide
Regular price

return icon 30-day returns
shipping icon $94.99 RideFast Shipping

About Kona

Kona Bikes is a PNW bike company with a 30-year history and the founders still at the helm. Hard-and-fast dedication to people and culture is the most important thing at Kona.

Upgrades
- 2019 FOX 34 Float Factory Series FiT4 suspension fork.

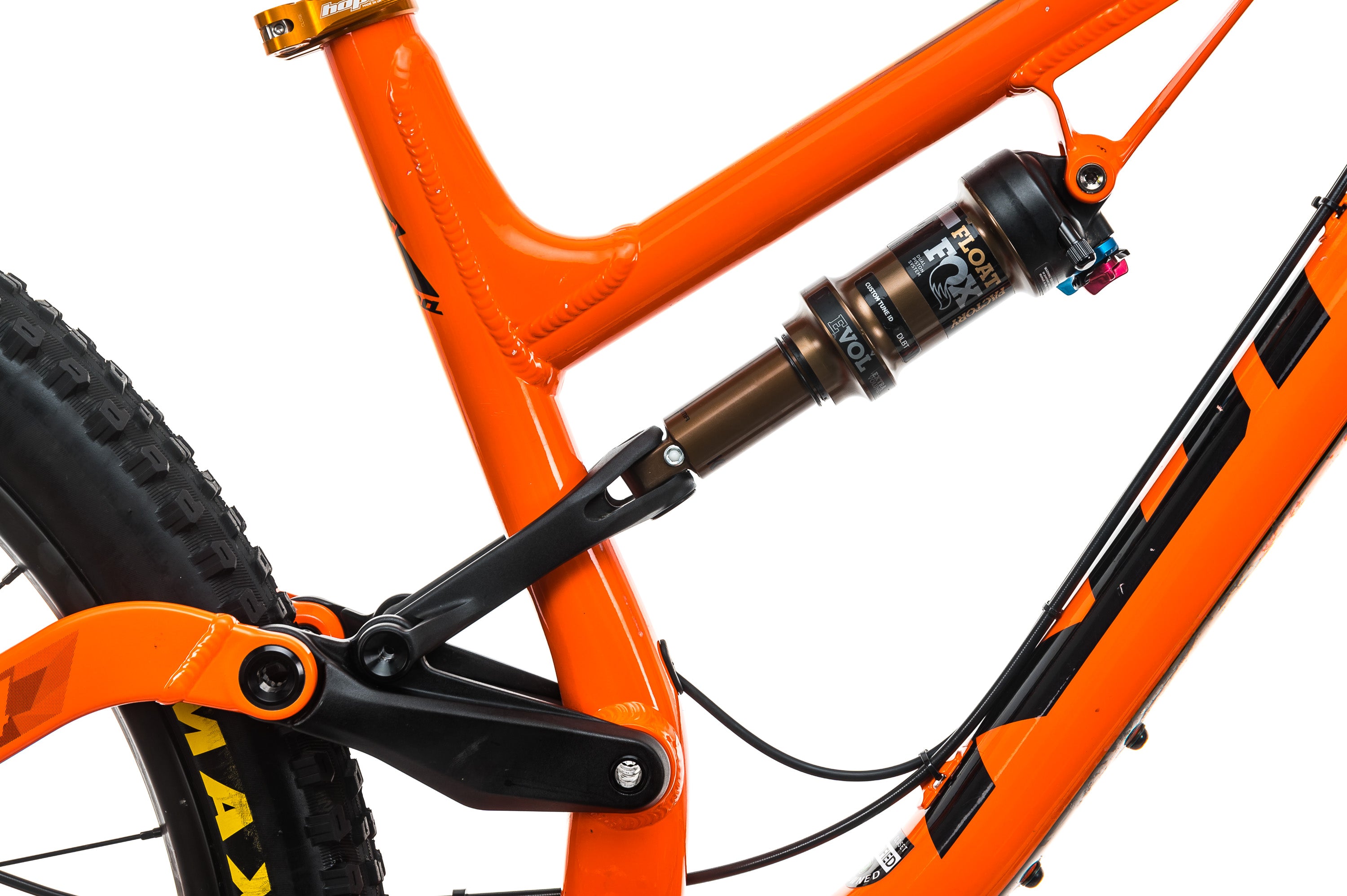

- 2019 FOX Float DPS Factory Series EVOL LV rear shock.
- SRAM NX Eagle 12 speed drivetrain.
- Wolf Tooth Drop-Stop Oval chainring

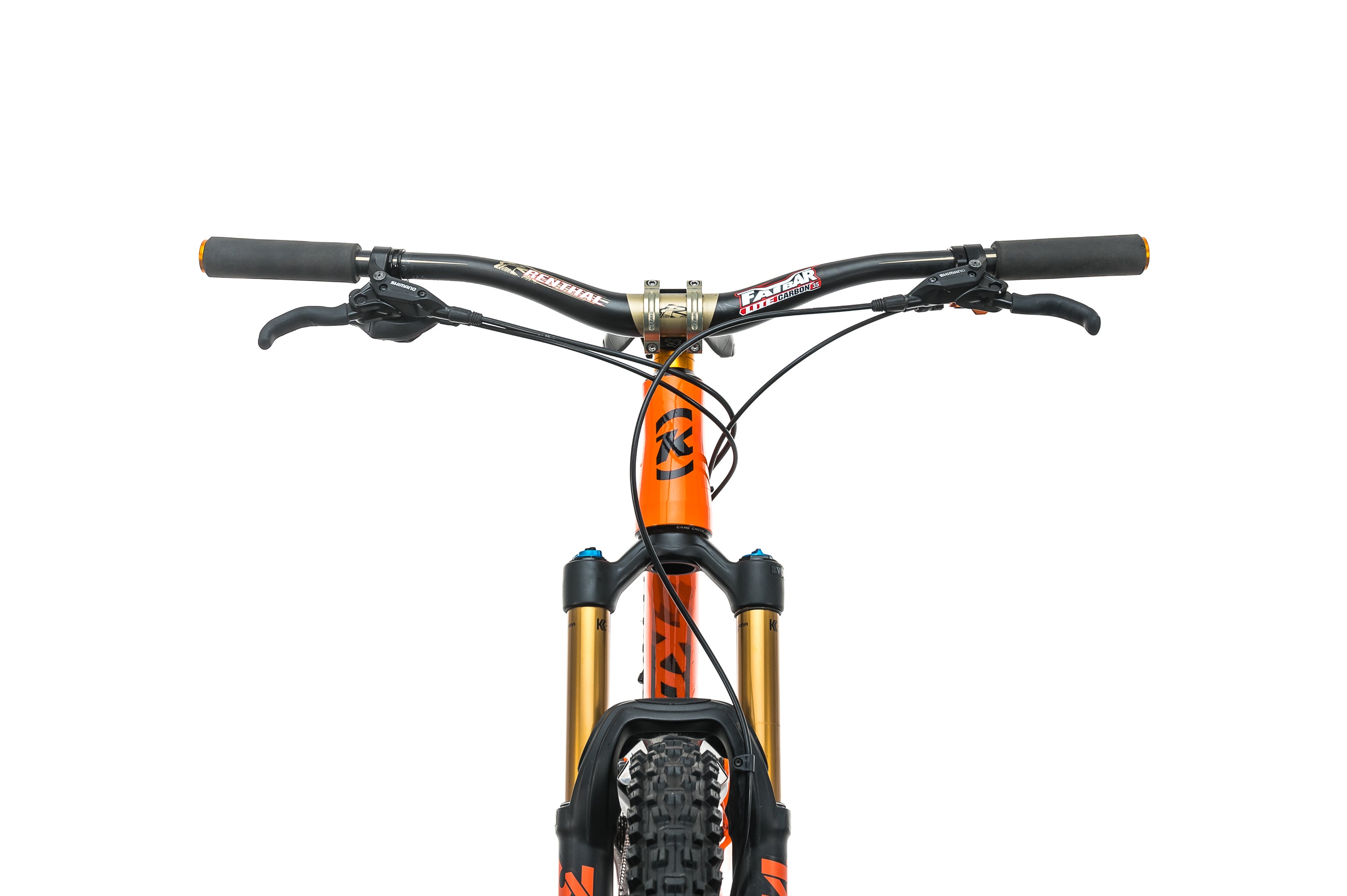

- Renthal Fatbar Light fCarbon 35 handlebar w/ Renthal Apex Alloy stem.
- FOX Transfer Factory Series Dropper post w/ Wolf Tooth Light Action orange remote lever & Hope Anodized orange quick release seatpost clamp.
- Selle Italia Novus saddle.
- Hope Anodized orange headset spacers.
- Tuned front & rear brakes, firming up lever pull & creating consistent grab.

Master Mechanic's Notes:
- Light wear and tear from cable rub, heel rub, chain, etc.
- Paint chipping on the top tube, down tube, seat tube & both chainstays.

About Kona

Kona Bikes is a PNW bike company with a 30-year history and the founders still at the helm. Hard-and-fast dedication to people and culture is the most important thing at Kona.
inspection image

TPC Guarantee

This bike passed a 141-point inspection and received a full pro-tune by our Master Mechanics in our Certified Pre-Owned process. CPO bikes are pristine and ready to ride!

Learn more
returns image

30-Day Hassle-Free Returns

Shop with confidence. Every bike is covered by our 30-day satisfaction guarantee. If this bike isn’t perfect for you, get in touch and we’ll help you find the right bike.

Learn more
shipping image

RideFast Shipping

Bikes ship in our custom RideFast box, and assembly is incredibly simple. Most novice riders can assemble their bike in 5 minutes or less. The tools you need to assemble are also included.

Learn more

Specifications

Year 2018
Brand Kona
Model Process 134
Size Medium
Frame Material Aluminum
Drivetrain SRAM, 1x12 spd
Weight 31 lbs 12 oz
Fork FOX Factory Series 34 FLOAT FiT4
Fork Travel 140mm
Rear Shock FOX DPS Factory Series FLOAT EVOL LV
Rear Shock Travel 134mm
Brakes Shimano Hydraulic , Disc - Hydraulic
Shifters SRAM NX Eagle, Mechanical
Rear Derailleur SRAM NX Eagle
Bottom Bracket Shell Press fit
Crankset Race Face Aeffect Alloy w/ Wolf Tooth Drop-Stop Oval Chainring , 30t, 175mm
Cassette SRAM NX Eagle PG-1230, 11-50t
Chain SRAM
Handlebar Renthal Fatbar Lite Carbon 35, 750mm
Headset FSA Integrated
Stem Renthal Apex Alloy , 35.0mm x 40mm, 0°
Seatpost FOX Transfer Factory Series Dropper , 31.6mm
Seatpost Travel 100mm
Saddle Selle Italia Novus
Front Axle Spacing 15x100mm (Thru-Axle)
Rear Axle Spacing 12x142mm
Wheelset WTB SX25 Aluminum , Shimano Deore M6010
Front Tire Maxxis Assegai EXO TR, 27.5" x 2.5"
Rear Tire Maxxis Aggressor EXO TR, 27.5" x 2.3"
Tire Type Tubeless
Tubeless Compatibility Bike ships tubeless

Geometry

Recommended Rider Height 5'6" - 5'10"
a. Effective Top Tube 618 mm
b. Seat Tube 410 mm
c. Seat Tube Angle 74.5°
d. Head Tube Angle 67°
e. Head Tube 125 mm
f. Stack 600 mm
g. Reach 450 mm
h. Standover Height 705 mm
i. Saddle Height Range N/A
