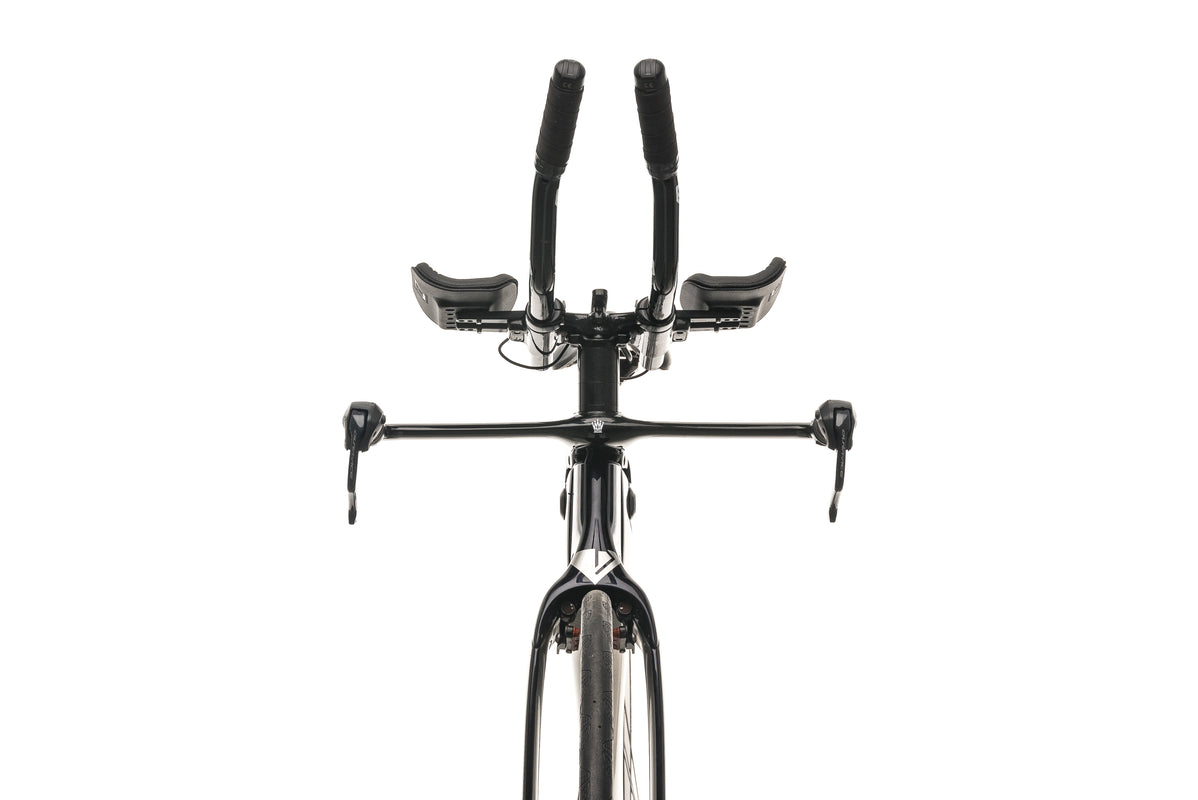

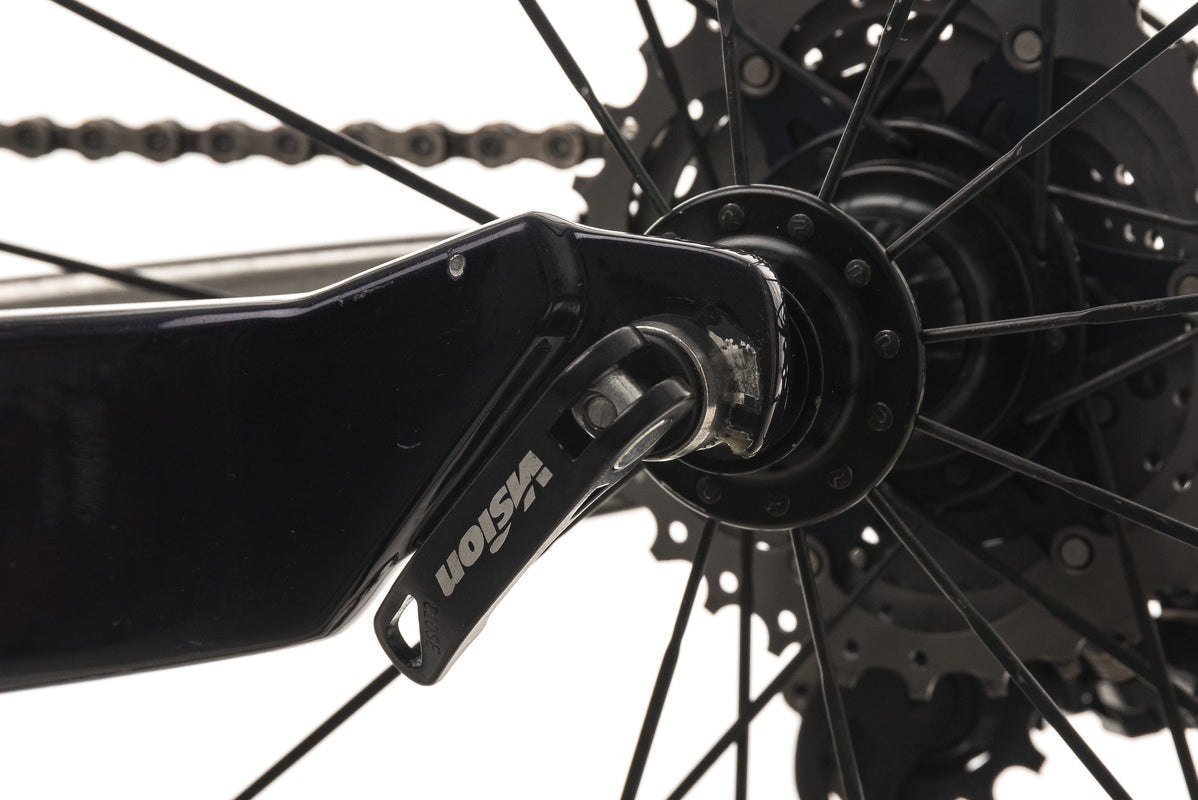

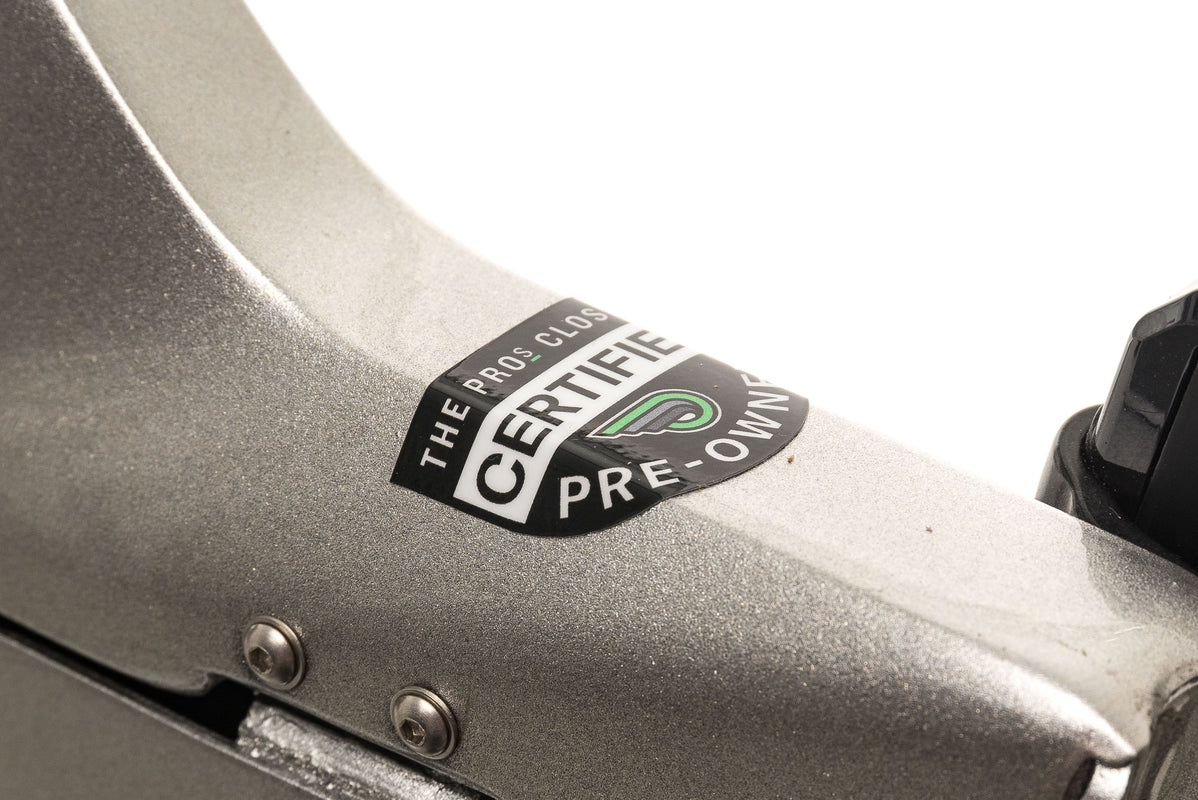

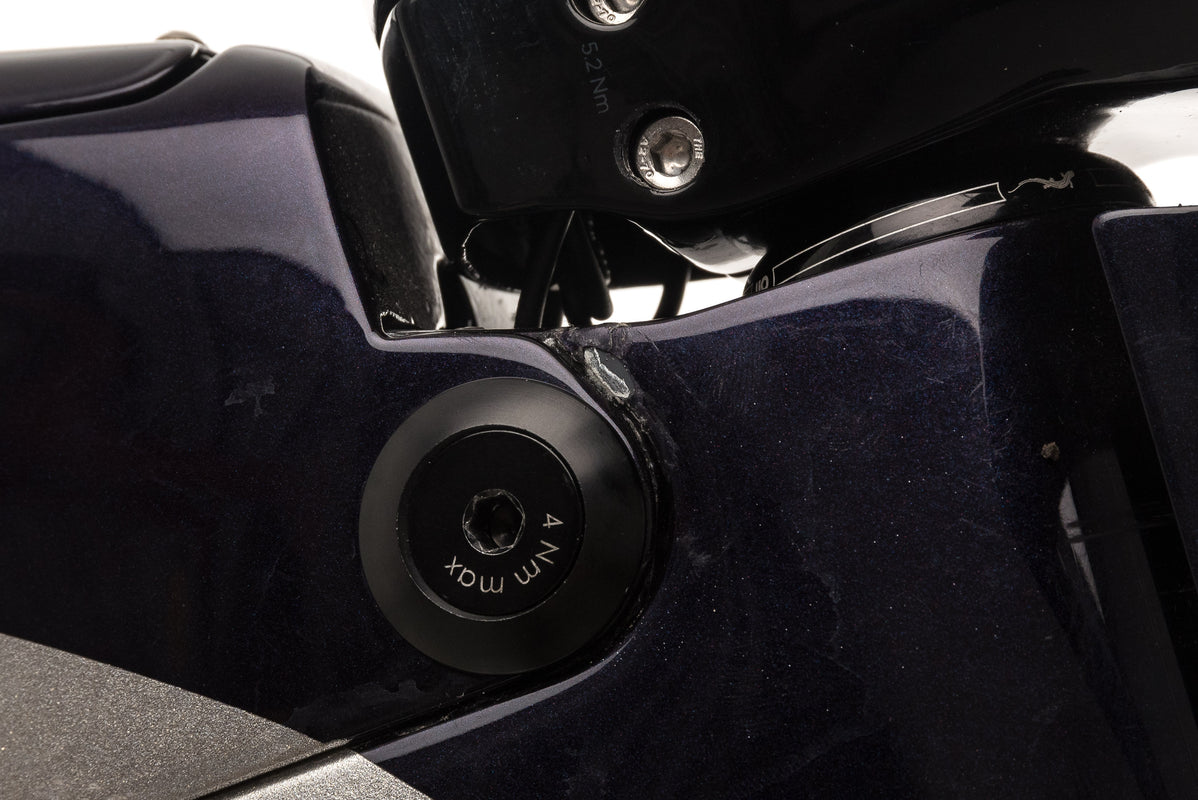

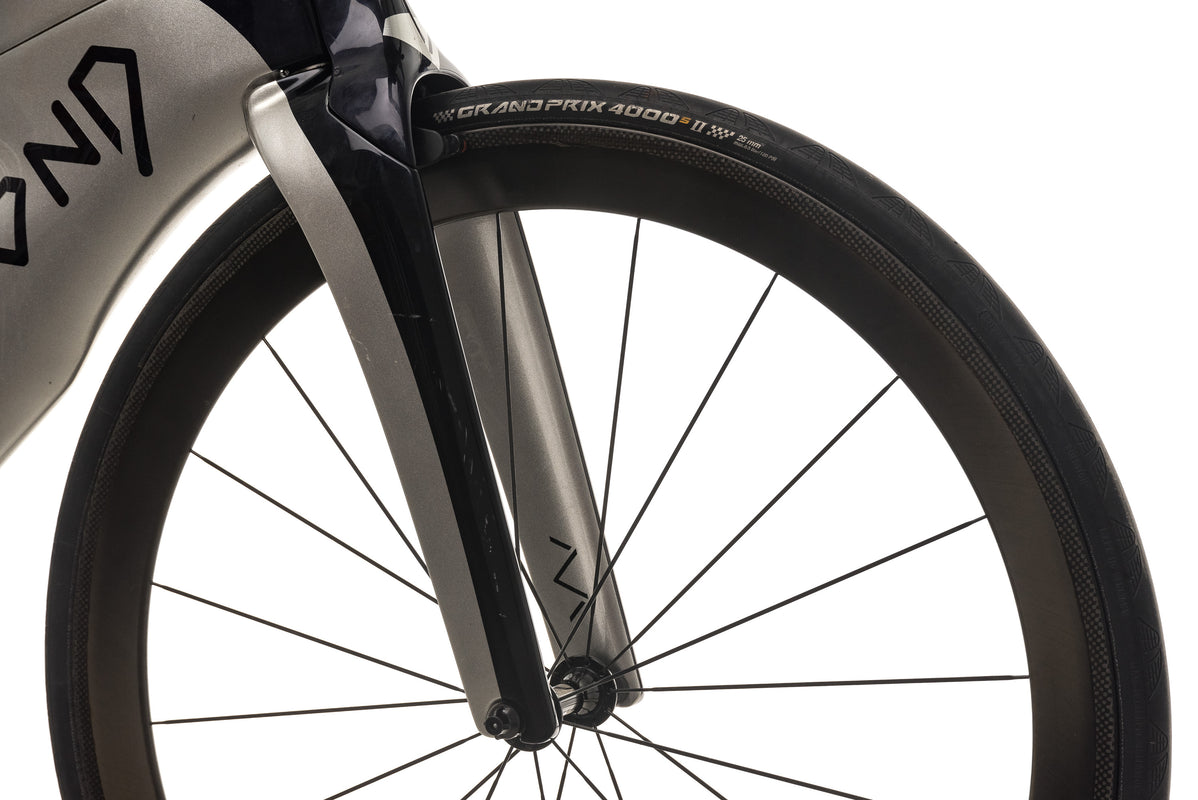

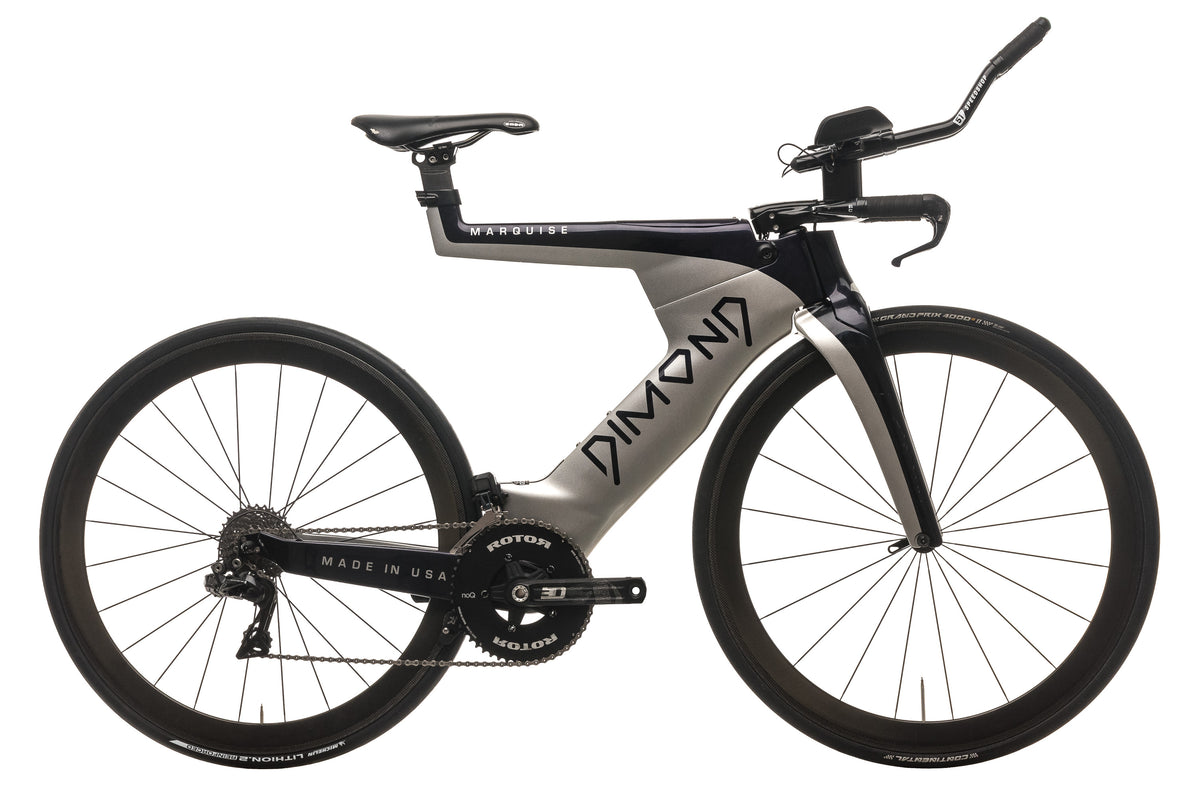

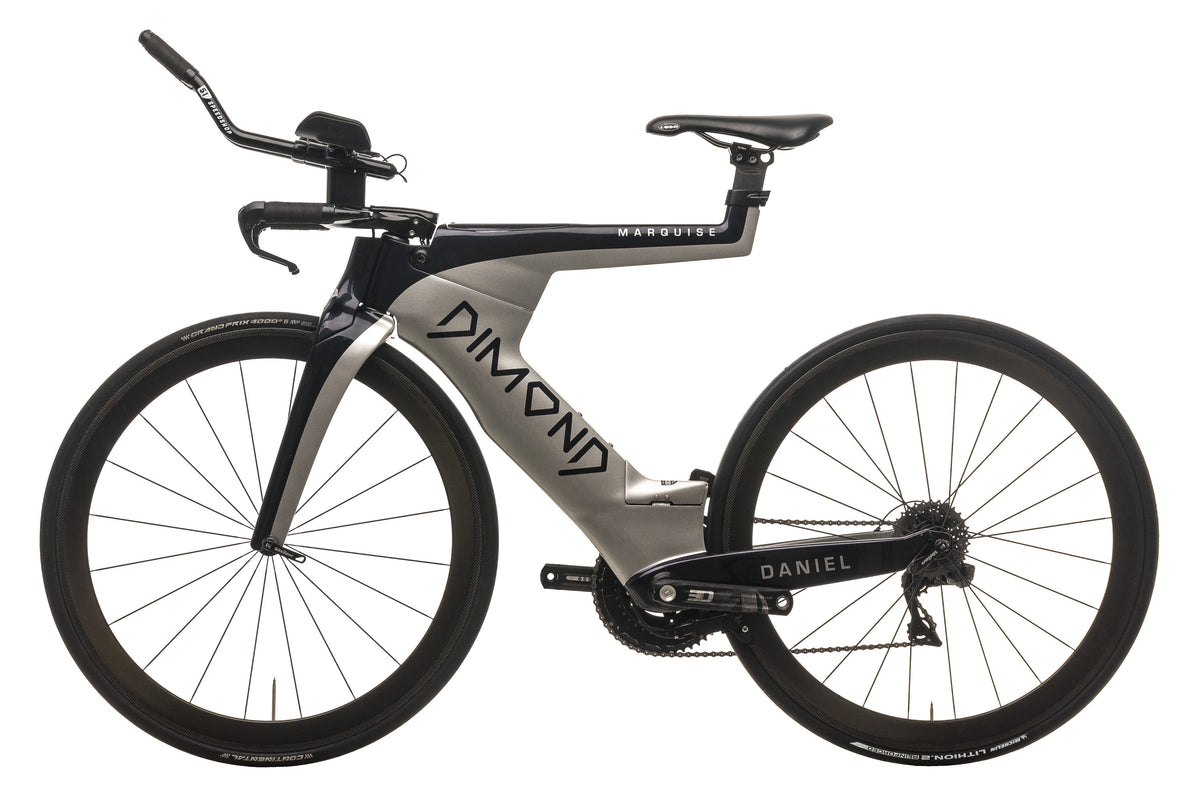

Dimond Marquise Triathlon Bike, Small drive side Dimond Marquise Triathlon Bike, Small non-drive side Dimond Marquise Triathlon Bike, Small sticker Dimond Marquise Triathlon Bike, Small drivetrain Dimond Marquise Triathlon Bike, Small front wheel Dimond Marquise Triathlon Bike, Small cockpit Dimond Marquise Triathlon Bike, Small crank Dimond Marquise Triathlon Bike, Small detail 1 Dimond Marquise Triathlon Bike, Small detail 2 Dimond Marquise Triathlon Bike, Small detail 3
N/A Small SKU: BTT11466

Dimond Marquise Triathlon Bike, Small

Recommended Rider Height: N/A Size Guide
Regular price

return icon 30-day returns
shipping icon $94.99 RideFast Shipping

Front wheel has a slight hop to it.

Frame geometry was measured by hand and is therefore approximate.

Seat post has slight cosmetic splintering.

To lower seat height, seat post needs to be cut.

inspection image

TPC Guarantee

This bike passed a 141-point inspection and received a full pro-tune by our Master Mechanics in our Certified Pre-Owned process. CPO bikes are pristine and ready to ride!

Learn more
returns image

30-Day Hassle-Free Returns

Shop with confidence. Every bike is covered by our 30-day satisfaction guarantee. If this bike isn’t perfect for you, get in touch and we’ll help you find the right bike.

Learn more
shipping image

RideFast Shipping

Bikes ship in our custom RideFast box, and assembly is incredibly simple. Most novice riders can assemble their bike in 5 minutes or less. The tools you need to assemble are also included.

Learn more

Specifications

Year N/A
Brand Dimond
Model Dimond Marquise
Size Small
Frame Material Carbon Fiber
Weight 19 lbs 10 oz
Fork Dimond Rim Super Fork, Carbon Fiber
Brakes TriRig Omega X w/ Shimano R9160 Dual-Control levers, Caliper - Center Pull
Shifters Shimano Dura-Ace Di2 R9160, Electronic
Front Derailleur Shimano Dura-Ace Di2 R9150
Rear Derailleur Shimano Dura-Ace Di2 R9150
Bottom Bracket Shell Press Fit
Crankset Rotor 3D Alloy, 52/36t, 170 mm
Cassette Shimano Dura-Ace CS-9100, 11spd, 11-30t
Chain Shimano
Handlebar Red Crown Cycling Monarch Carbon Basebar w/ 51 SpeedShop Carbon Extensions, 40 cm
Headset Cane Creek 110 integrated
Stem Red Crown Cycling Monarch Carbon Basebar N/A x 80mm, 6°
Seatpost Dimond Carbon, Frame Specific
Saddle Selle Italia Manganese Rails
Saddle Height Range 640 mm - 665 mm
Wheelset Reynolds Carbon Tubeless Ready, Reynolds
Front Tire Continental Grand Prix 4000 S II, 700C x 25C
Rear Tire Michelin Lithion.2 Reinforced, 700C x 25C
Tire Type Clincher
Tubeless Compatibility Wheels are tubeless compatible but ships with tubes installed
Charger Included Yes

Geometry

Recommended Rider Height N/A
a. Effective Top Tube 535 mm
b. Seat Tube 610 mm
c. Seat Tube Angle 79°
d. Head Tube Angle 72.5°
e. Head Tube 102 mm
f. Stack 515 mm
g. Reach 405 mm
h. Standover Height 810 mm
i. Saddle Height Range 640 mm - 665 mm
VIEW SIZING GUIDE
