2017 Large SKU: BMT22354

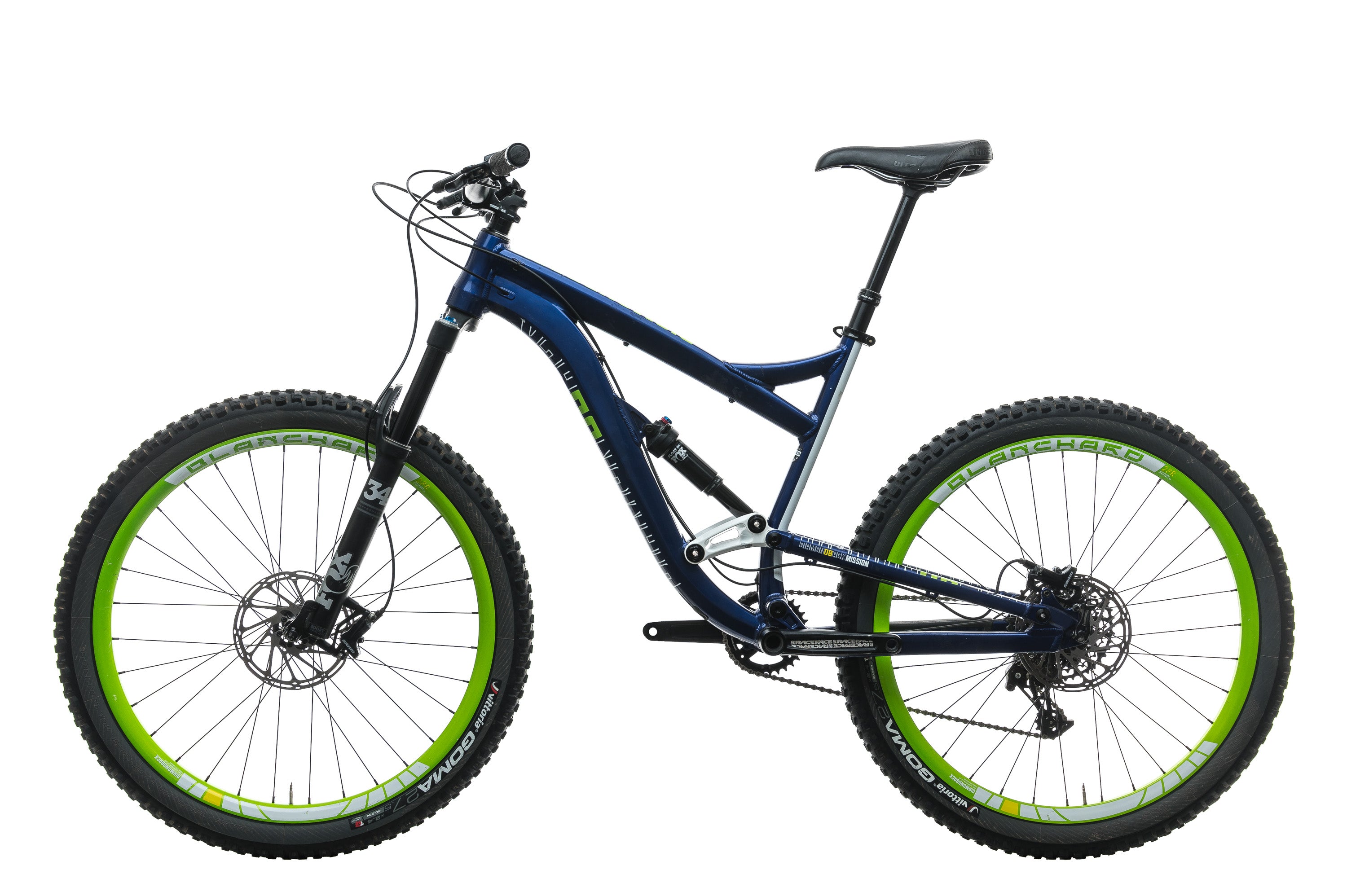

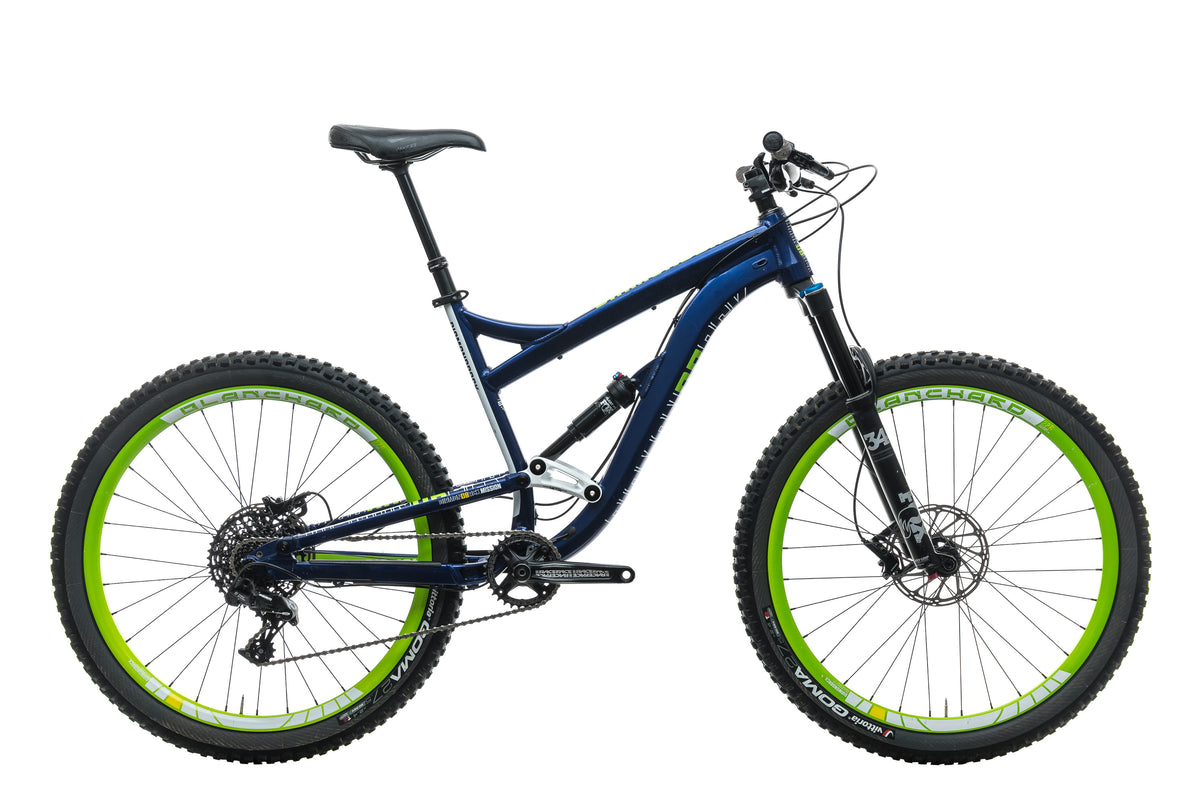

Diamondback Mission 1 Mountain Bike - 2017, Large

Recommended Rider Height: 5'10" - 6'2" Size Guide
Regular price

return icon 30-day returns
shipping icon $94.99 RideFast Shipping

About Diamondback

Diamondback Bikes built the rad BMX bikes that fueled the 80s boom. Their bikes are different (read: evolved), but today Dback still caters to an elite roster of sponsored pros, bringing performance and stoke.

Upgrades
- New front & rear brake pads for confident braking.
- New bottom bracket for smooth pedaling.
- New X-Fusion Manic dropper post w/ 150mm of travel.

Master Mechanic's Notes:
- Front & rear brake bleeds, firming up lever pull & creating consistent grab.
- Moderate scratches on bar ends & brake levers.

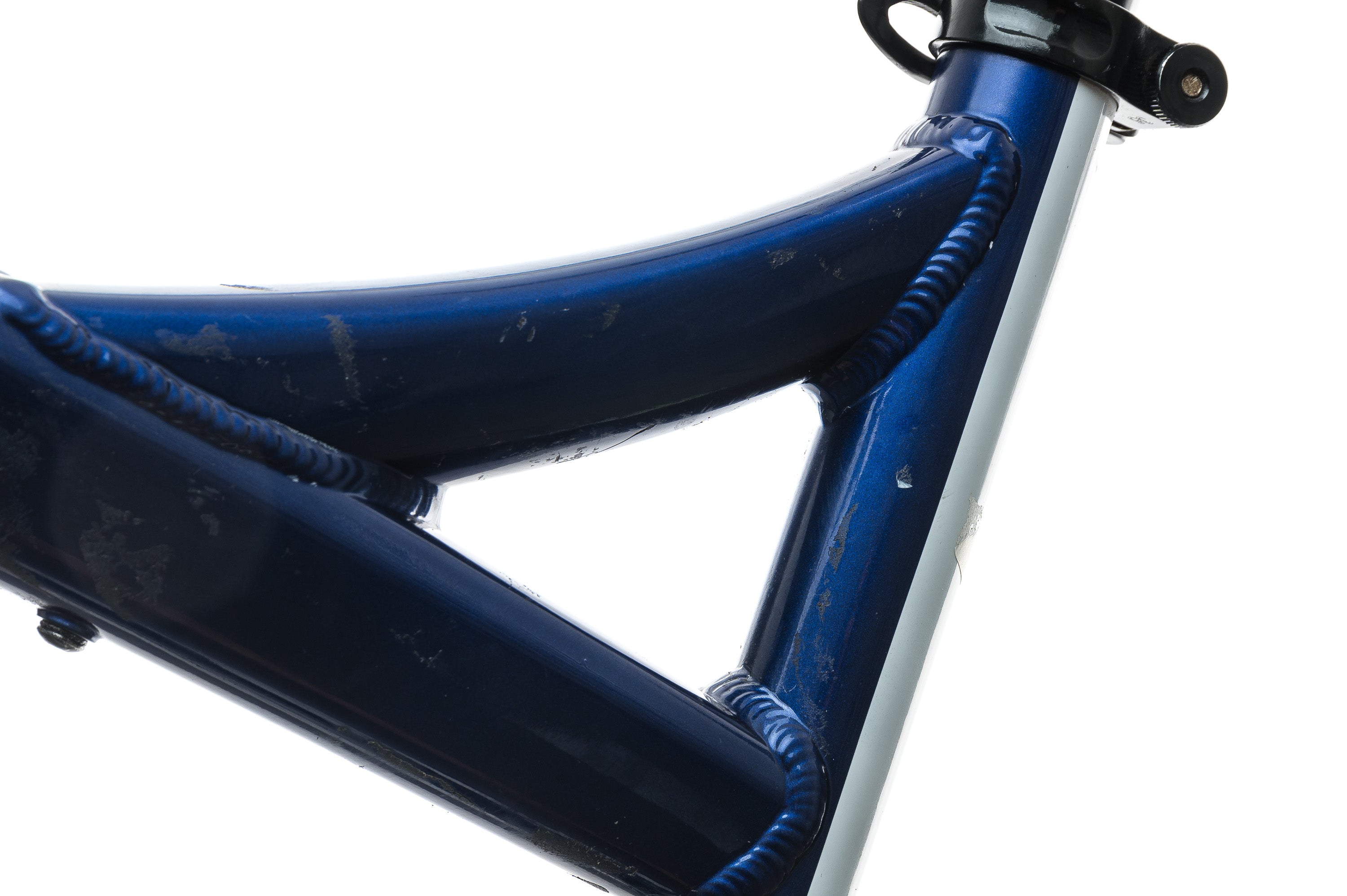

- Light scratches on top tube.
- Moderate scratches on crank arms & rear derailleur.

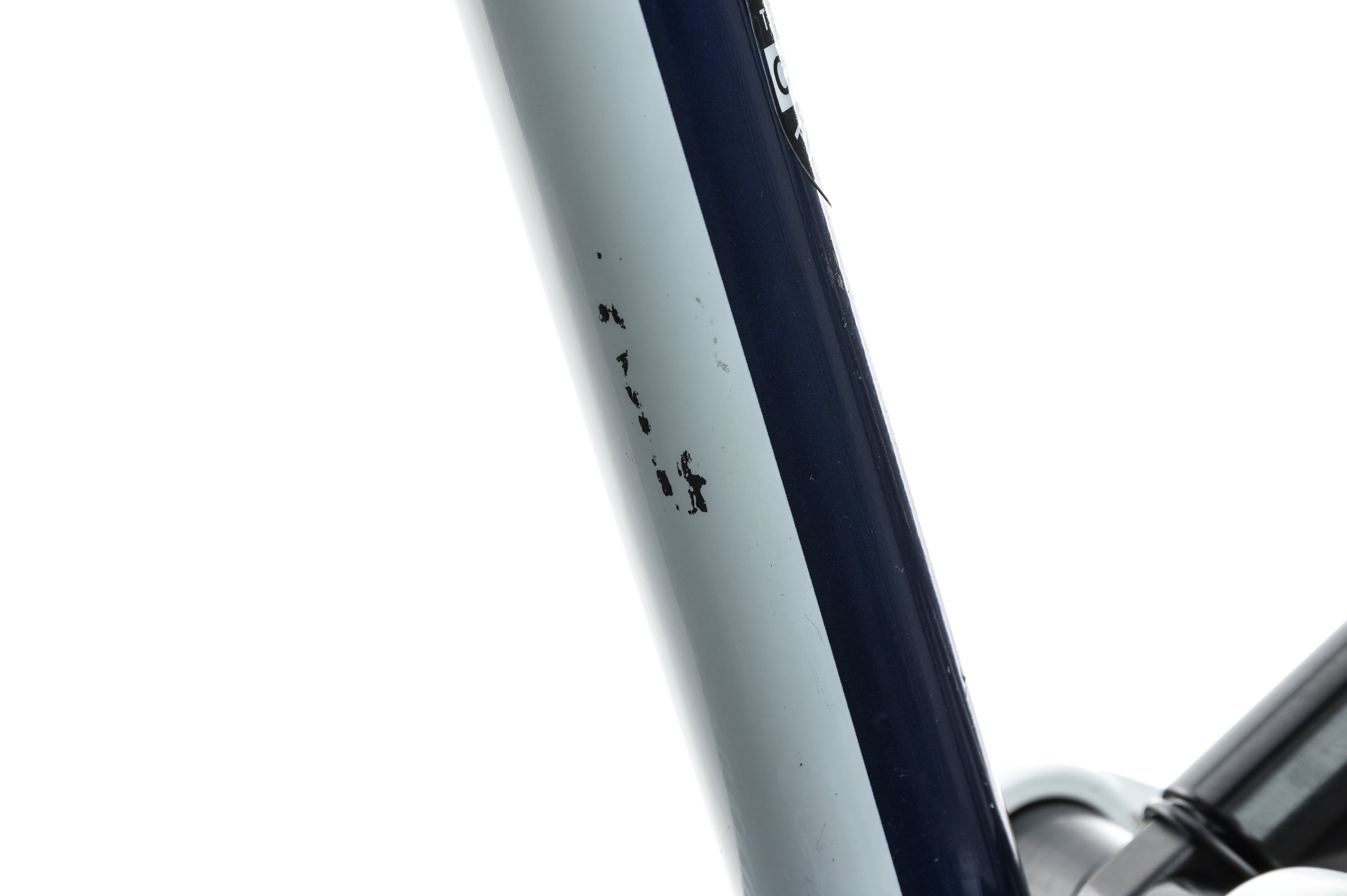

- Light scratches on rear triangle.
- Light scratches on rims & spokes.

About Diamondback

Diamondback Bikes built the rad BMX bikes that fueled the 80s boom. Their bikes are different (read: evolved), but today Dback still caters to an elite roster of sponsored pros, bringing performance and stoke.
inspection image

TPC Guarantee

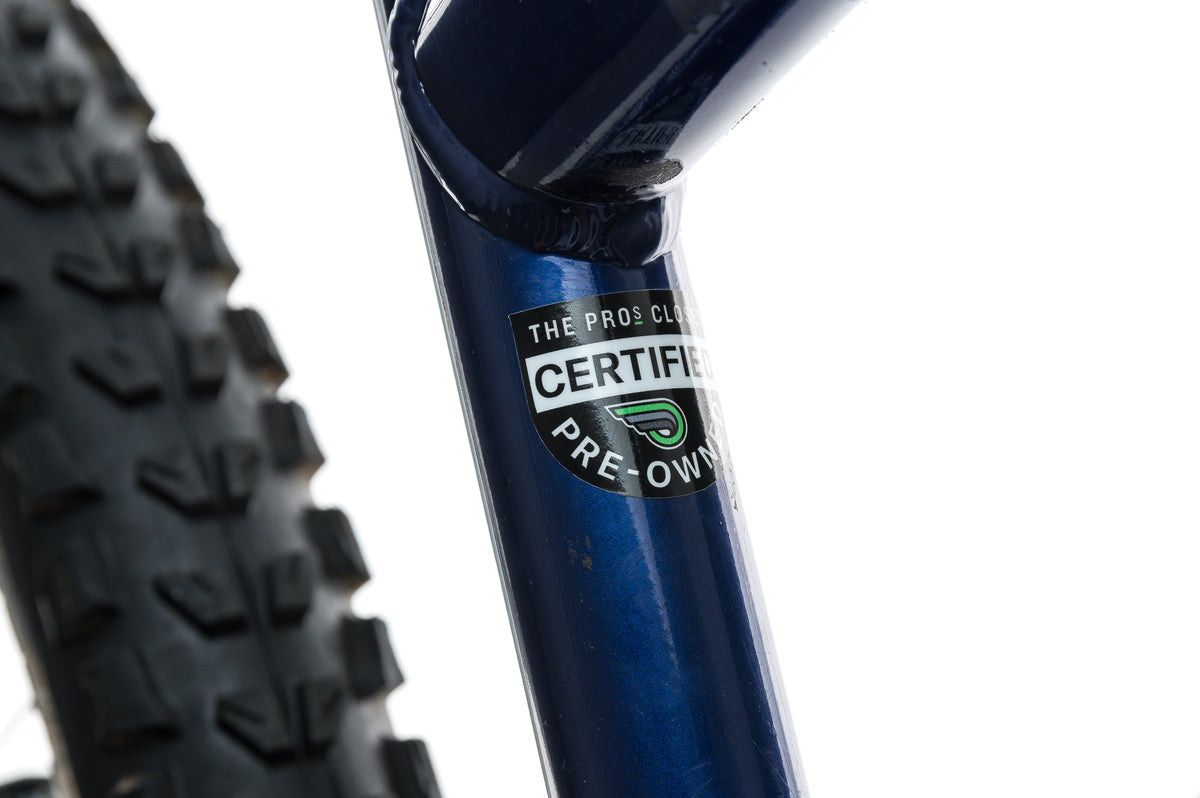

This bike passed a 141-point inspection and received a full pro-tune by our Master Mechanics in our Certified Pre-Owned process. CPO bikes are pristine and ready to ride!

Learn more
returns image

30-Day Hassle-Free Returns

Shop with confidence. Every bike is covered by our 30-day satisfaction guarantee. If this bike isn’t perfect for you, get in touch and we’ll help you find the right bike.

Learn more
shipping image

RideFast Shipping

Bikes ship in our custom RideFast box, and assembly is incredibly simple. Most novice riders can assemble their bike in 5 minutes or less. The tools you need to assemble are also included.

Learn more

Specifications

Year 2017
Brand Diamondback
Model Mission 1
Size Large
Frame Material Aluminum
Drivetrain SRAM, 1x11 spd
Weight 33 lbs 8 oz

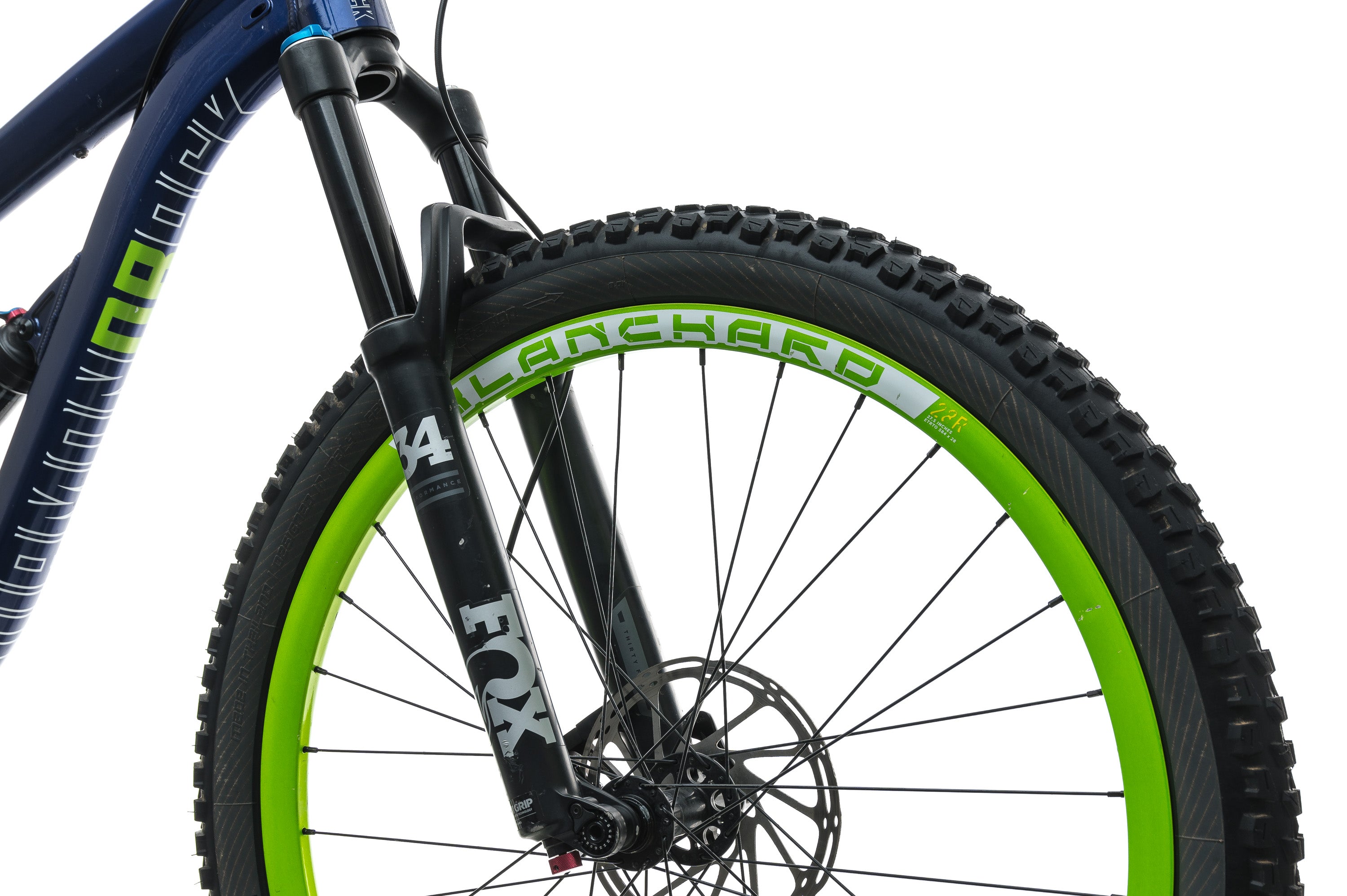

Fork FOX Performance Series 34 FLOAT
Fork Travel 160mm

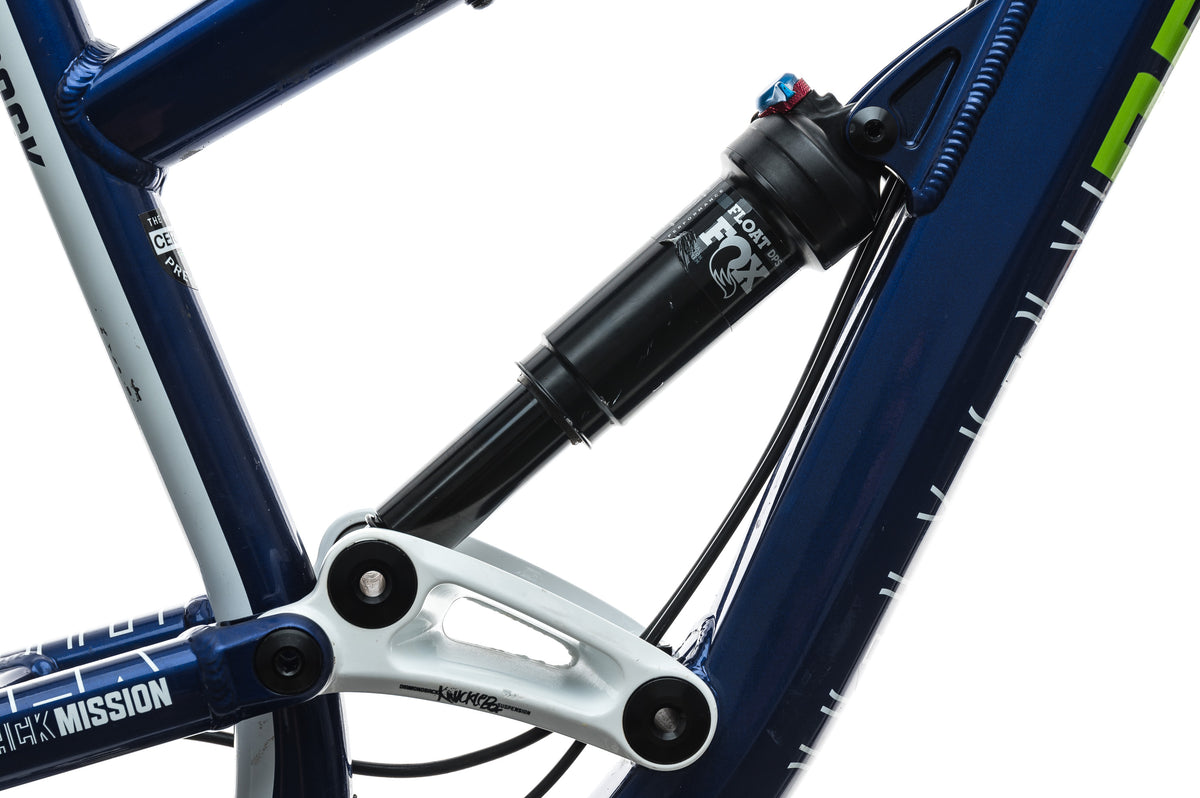

Rear Shock FOX Performance Series FLOAT DPS
Rear Shock Travel 160mm
Brakes SRAM Level T, Disc - Hydraulic
Shifters SRAM NX, Mechanical

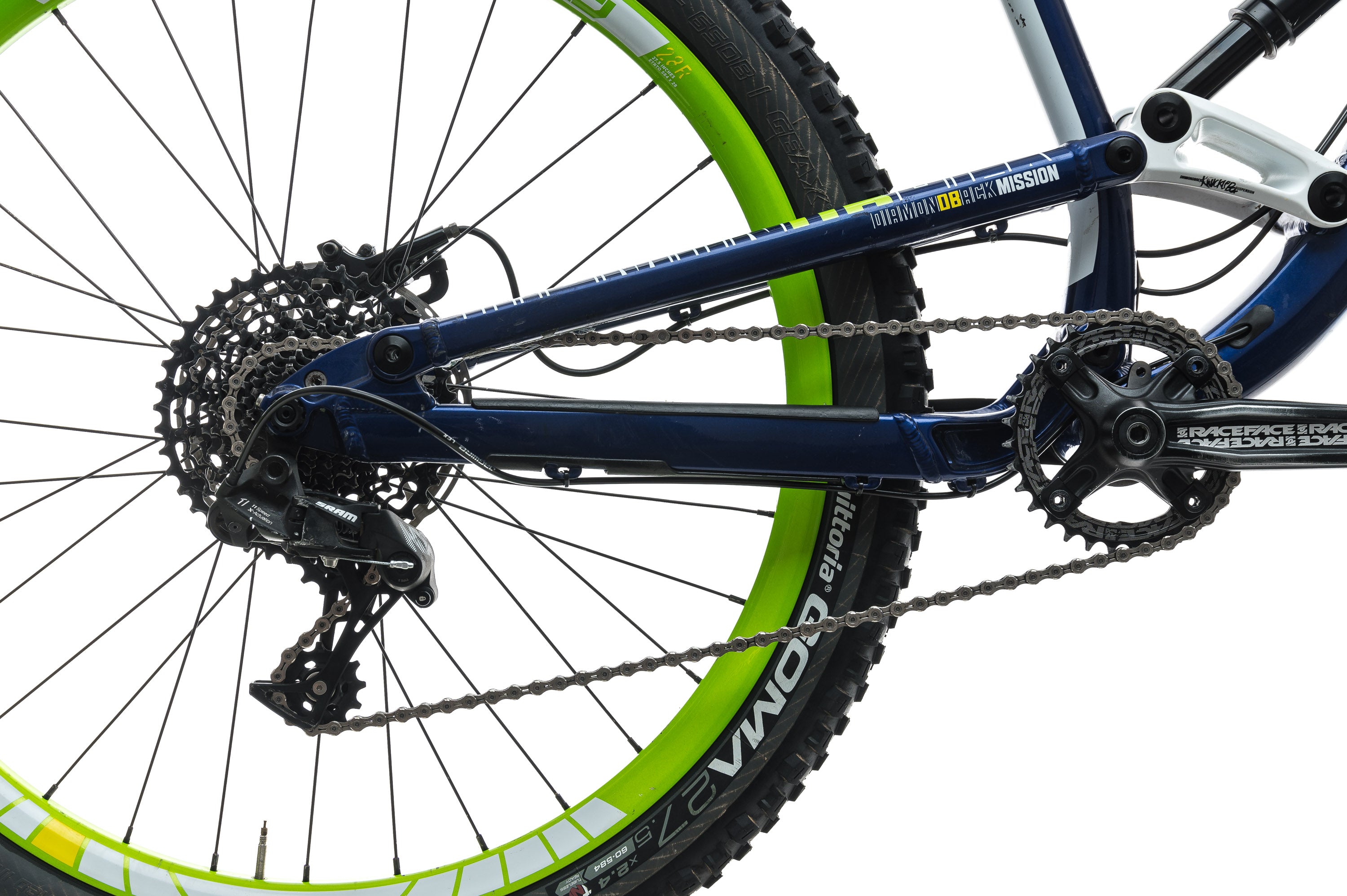

Rear Derailleur SRAM NX Type 3
Crankset Race Face, 32t, 175mm
Cassette SRAM PG-1130, 11-42t
Chain KMC

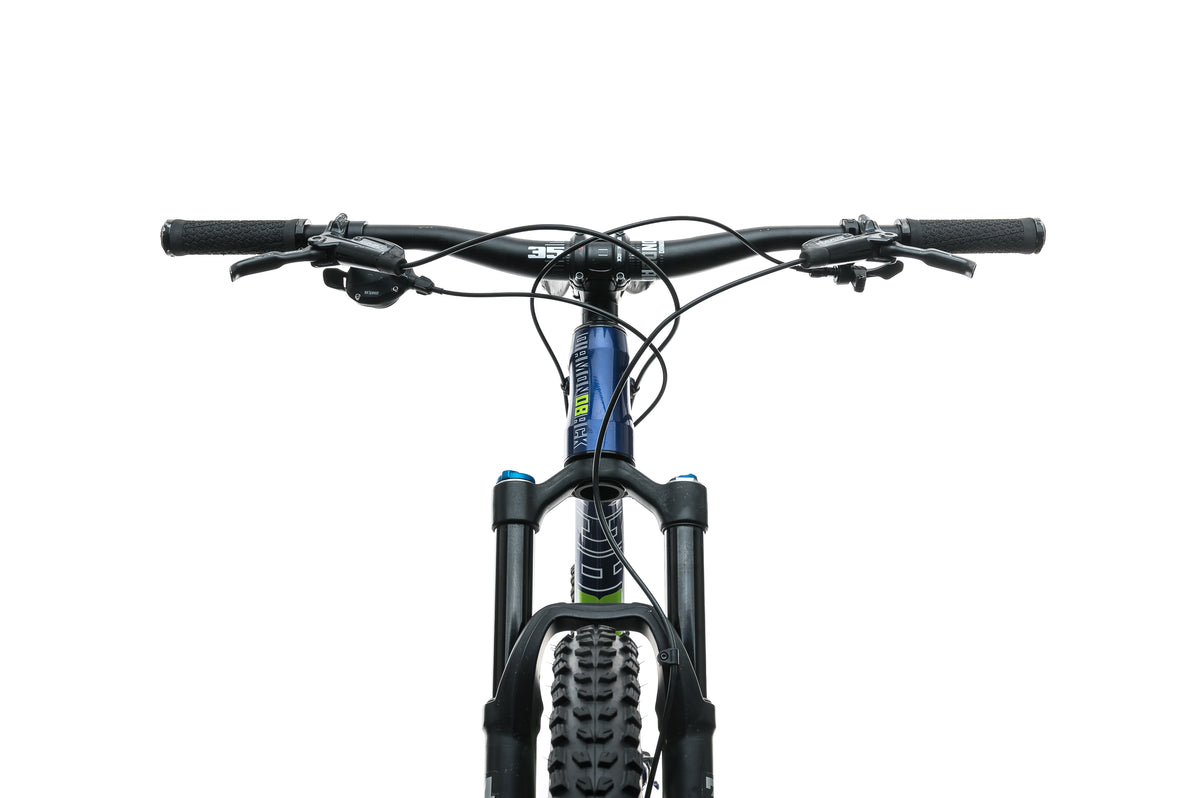

Handlebar Diamondback 35 Alloy, 760mm

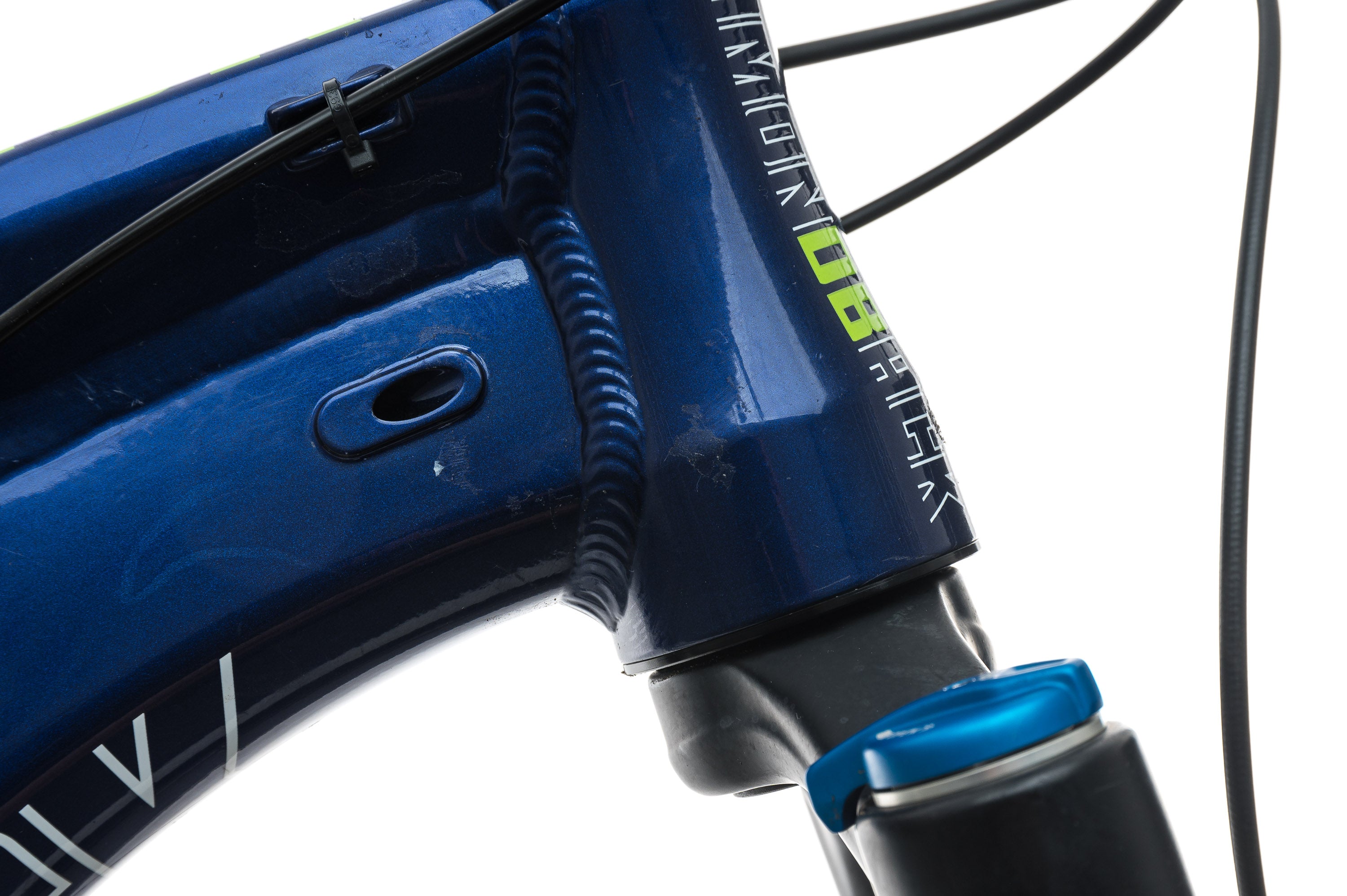

Headset FSA Integrated
Stem Diamondback Alloy, 31.8mm x 50mm, 6°
Seatpost X-Fusion Manic, 30.9mm
Seatpost Travel 150mm
Saddle WTB Speed Alloy
Front Axle Spacing 15x110mm (Thru-Axle)
Rear Axle Spacing 12x142mm
Wheelset Diamondback Blanchard 28R Disc Aluminum Tubeless Compatible, Alloy
Front Tire Vittoria Goma TNT, 27.5" x 2.4"
Rear Tire Vittoria Goma TNT, 27.5" x 2.4"
Tire Type Tubeless
Tubeless Compatibility Wheels are tubeless compatible

Geometry

Recommended Rider Height 5'10" - 6'2"
a. Effective Top Tube 610 mm
b. Seat Tube 483 mm
c. Seat Tube Angle 73°
d. Head Tube Angle 66.5°
e. Head Tube 120 mm
f. Stack 604 mm
g. Reach 416 mm
h. Standover Height 800 mm
i. Saddle Height Range 680 - 810 mm
VIEW SIZING GUIDE
