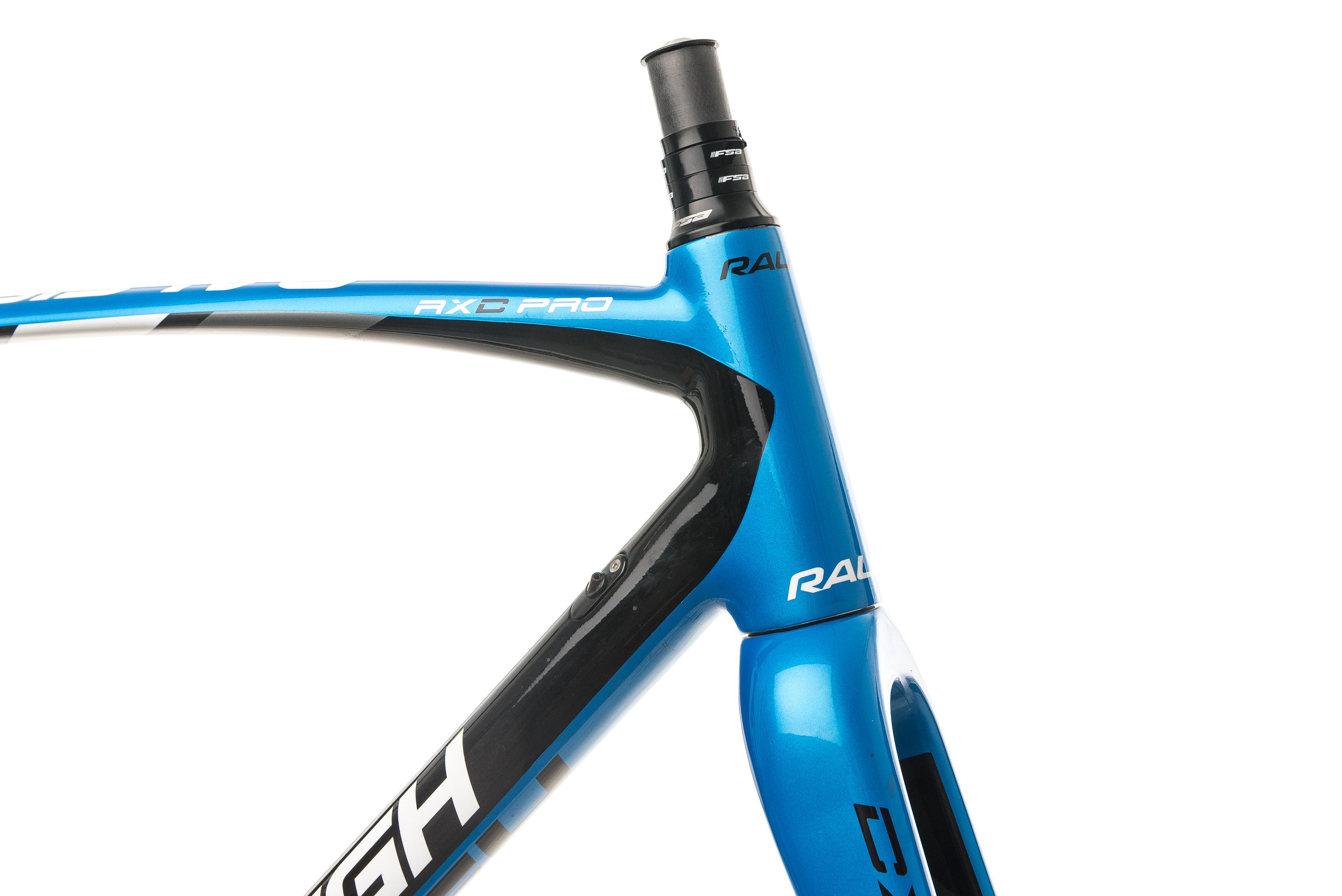

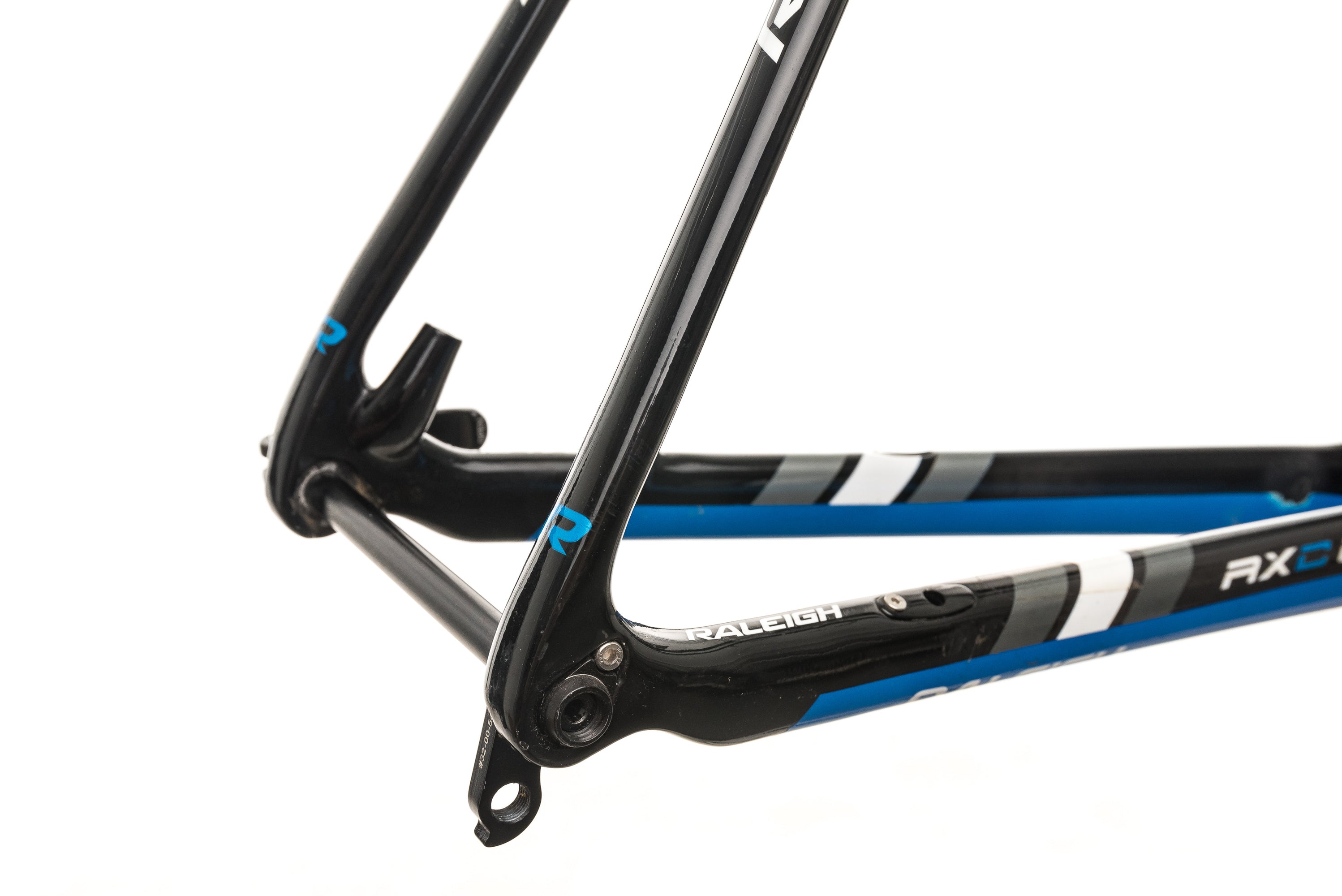

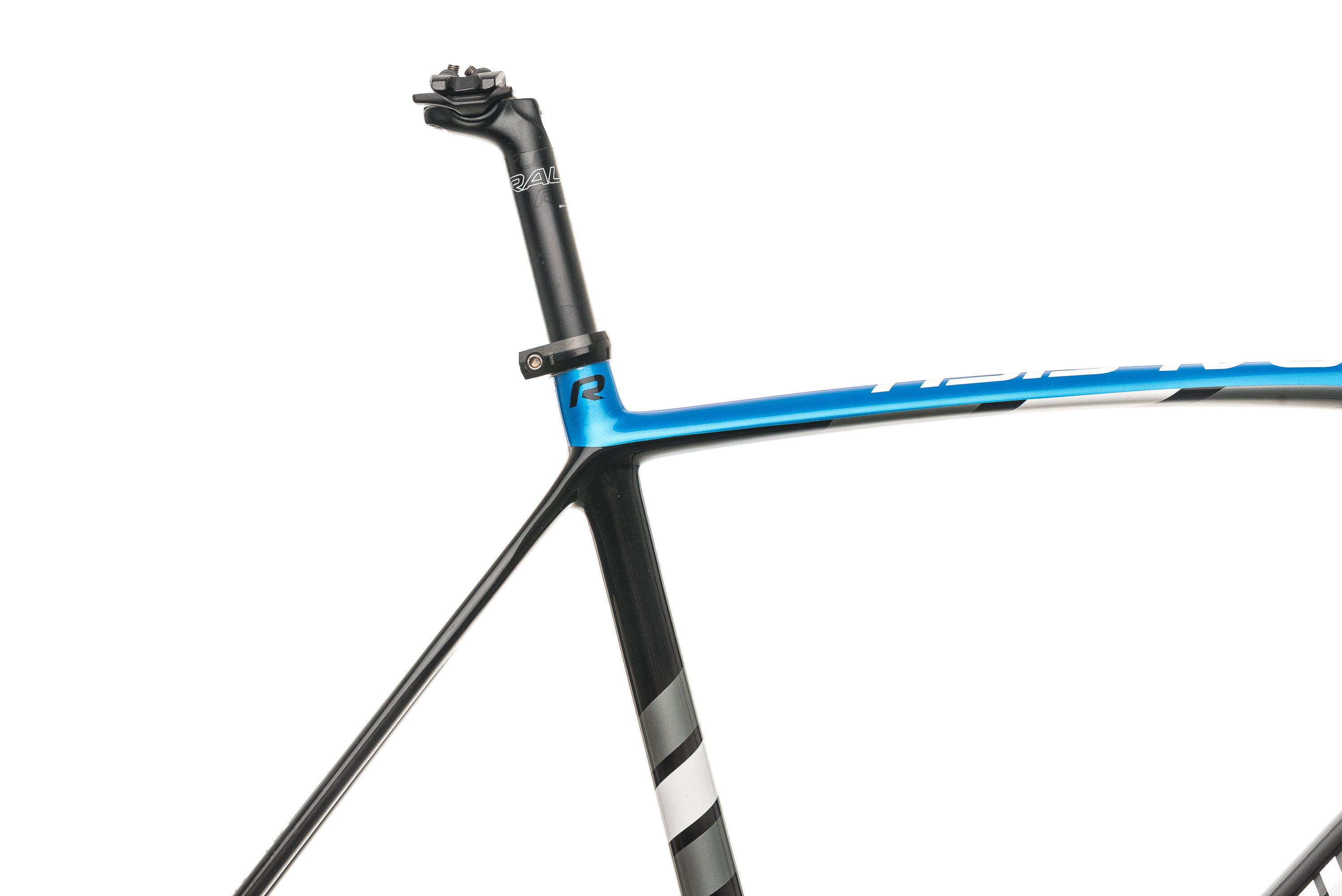

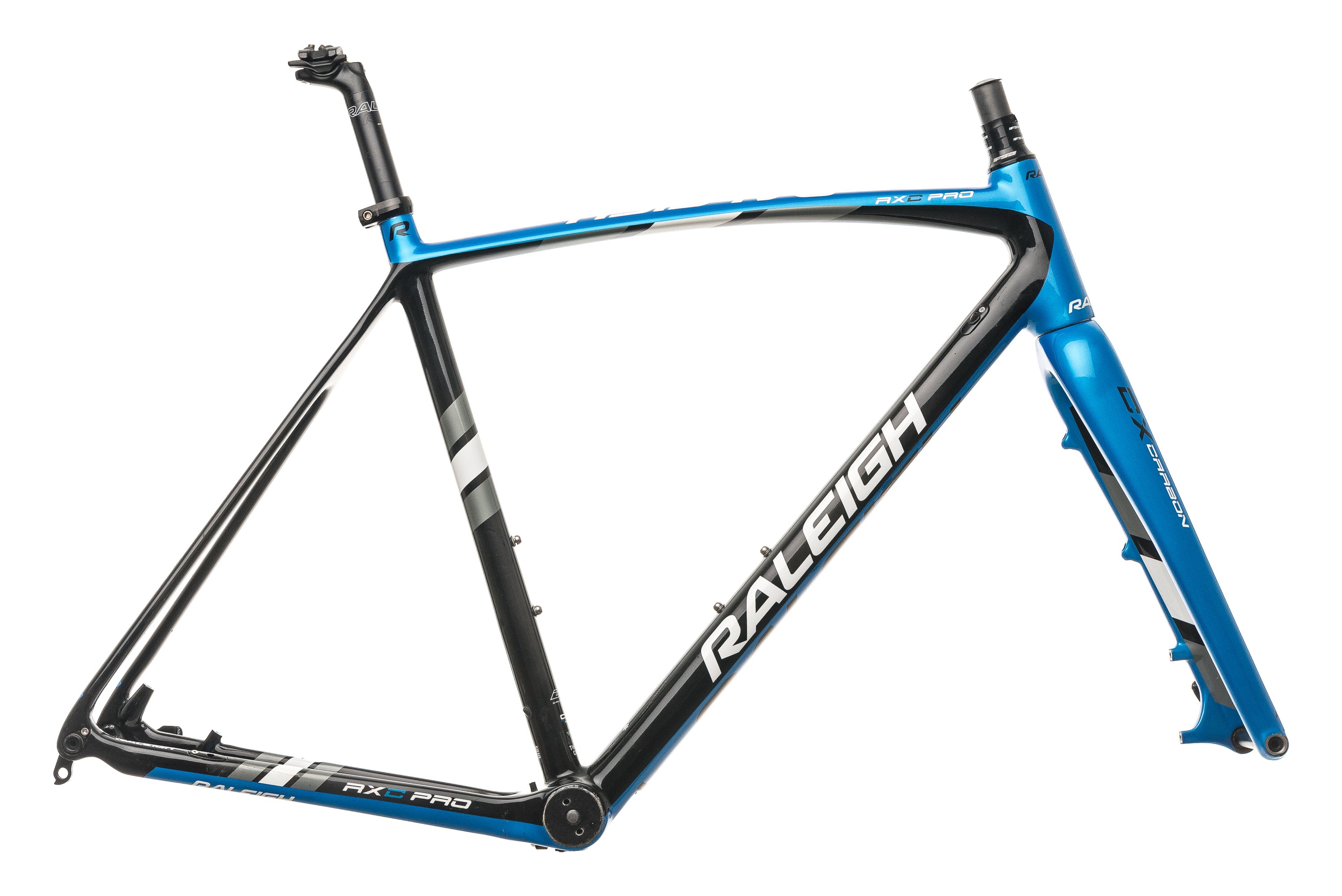

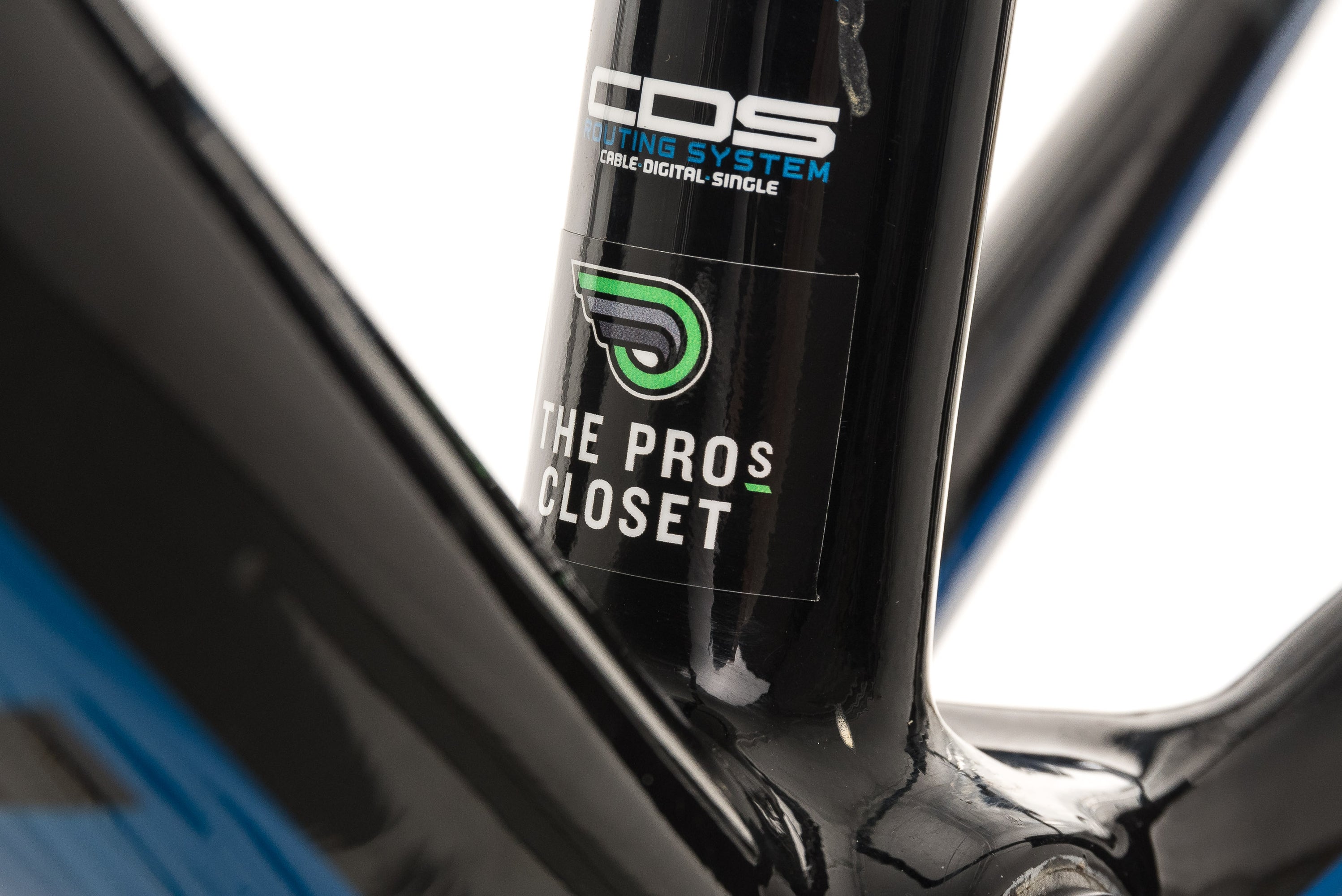

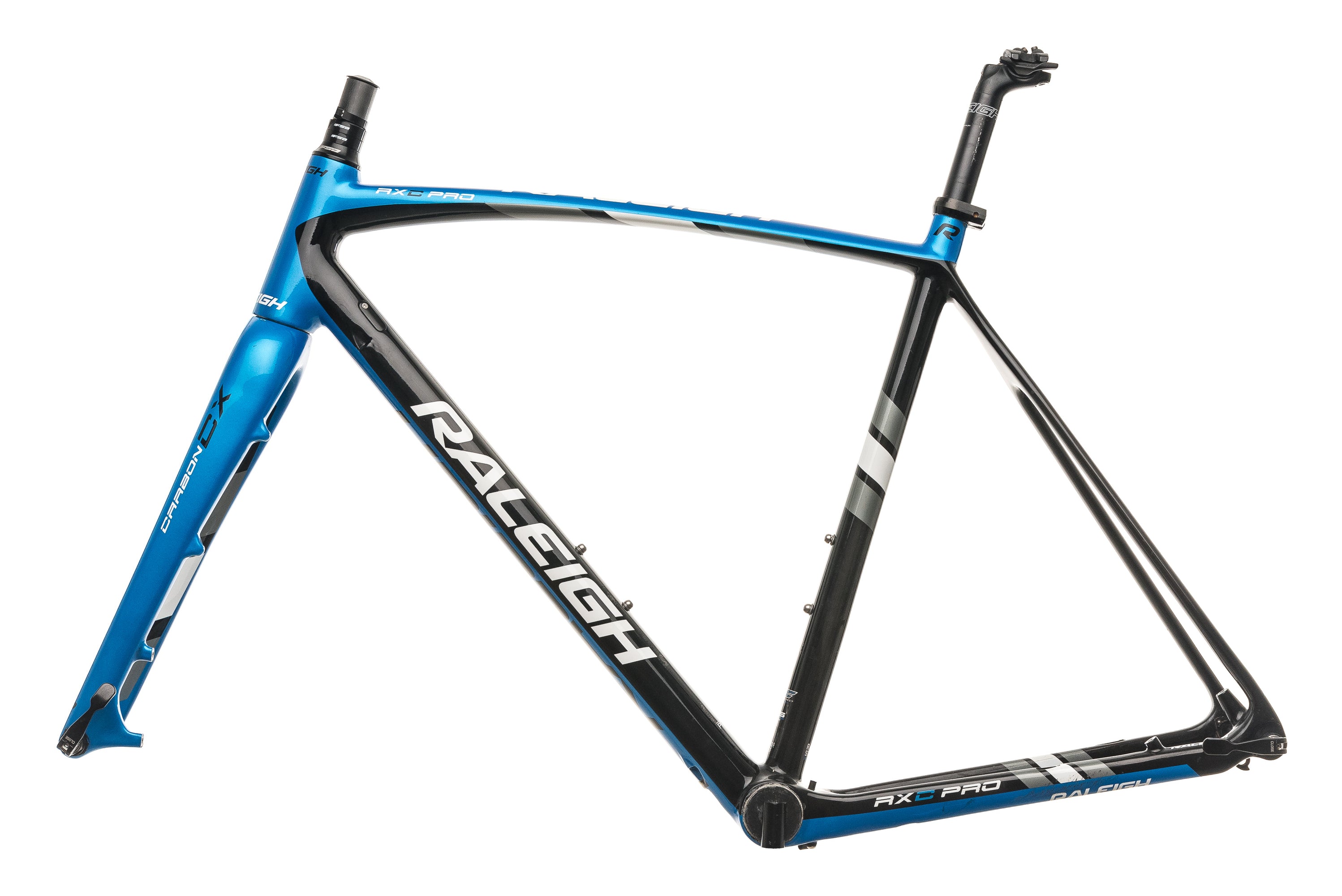

Raleigh RXC Pro Disc 56cm Frameset - 2015 drive side Raleigh RXC Pro Disc 56cm Frameset - 2015 non-drive side Raleigh RXC Pro Disc 56cm Frameset - 2015 sticker Raleigh RXC Pro Disc 56cm Frameset - 2015 drivetrain Raleigh RXC Pro Disc 56cm Frameset - 2015 front wheel Raleigh RXC Pro Disc 56cm Frameset - 2015 cockpit Raleigh RXC Pro Disc 56cm Frameset - 2015 crank Raleigh RXC Pro Disc 56cm Frameset - 2015 detail 1 Raleigh RXC Pro Disc 56cm Frameset - 2015 detail 2 Raleigh RXC Pro Disc 56cm Frameset - 2015 detail 3
2015 56cm SKU: FCY10098

Raleigh RXC Pro Disc 56cm Frameset - 2015

Condition: PRE-OWNED
Regular price

return icon 30-day returns
shipping icon Fast Shipping

About this item

Raleigh RXC Pro Disc 56cm Frameset - 2015

Includes: Frame, fork, seatpost, headset, thru axles, and rear derailleur hanger (installed).

Light to moderate wear and tear from cable rub, heel rub, chain, etc.

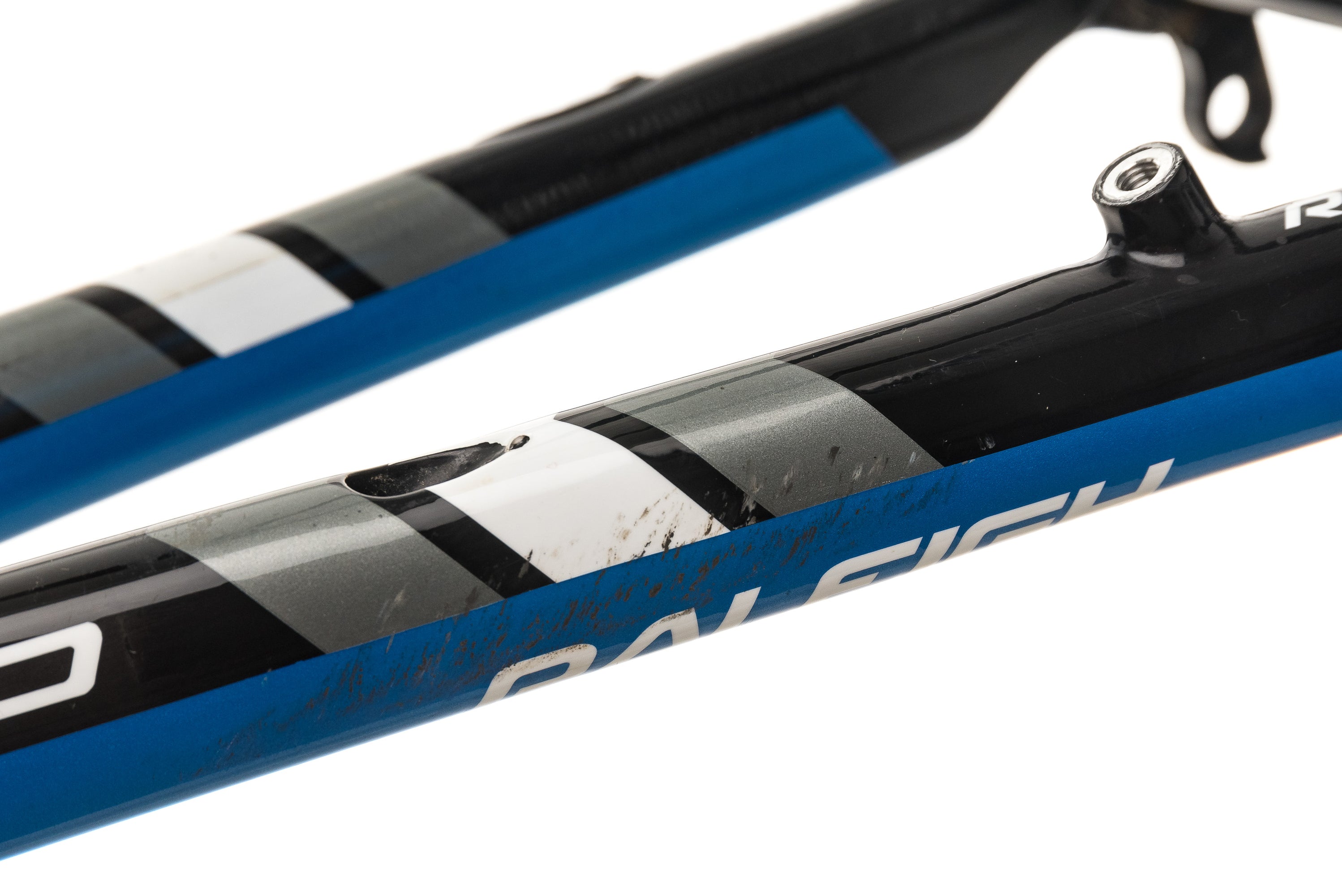

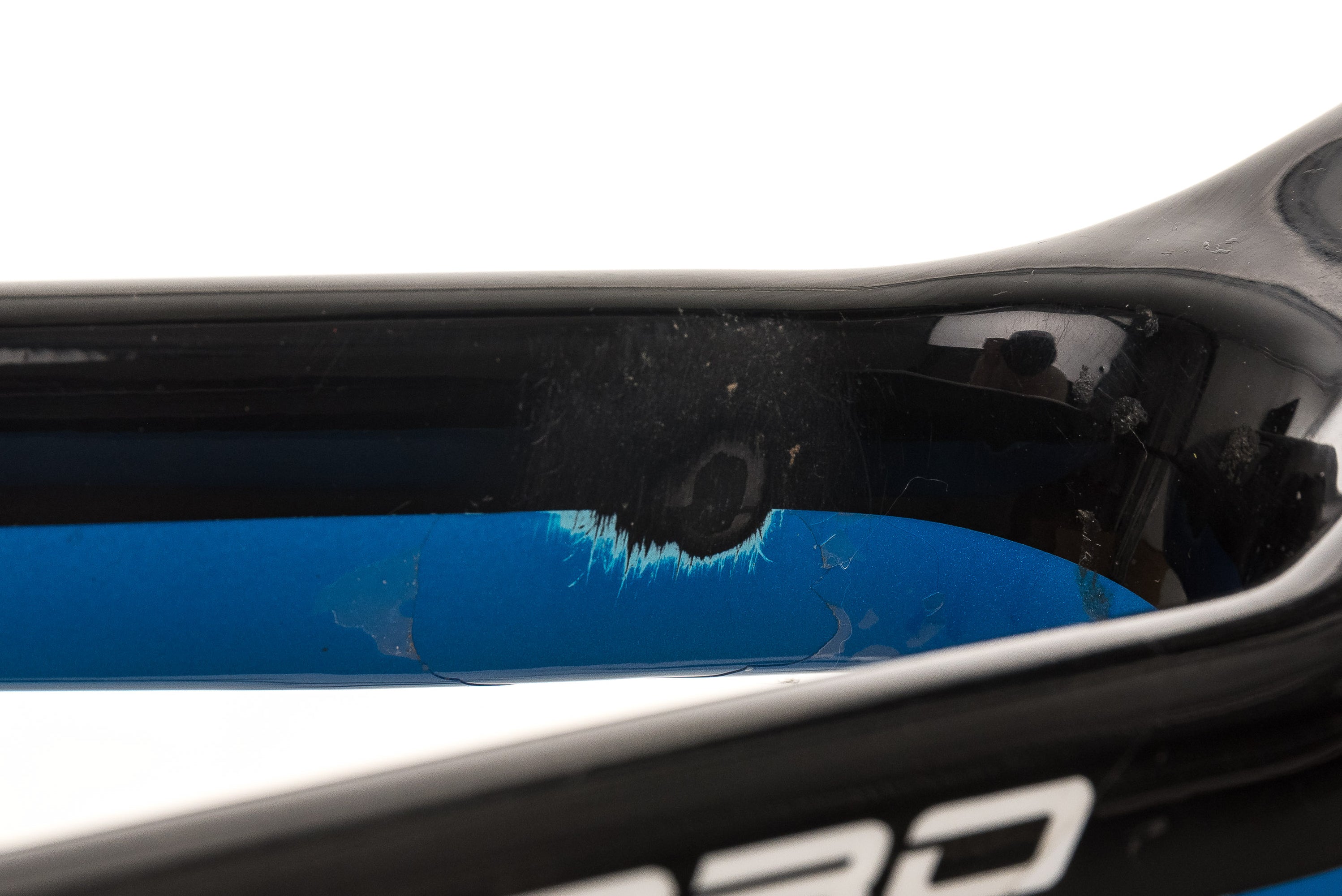

Paint chipping to both chainstays.

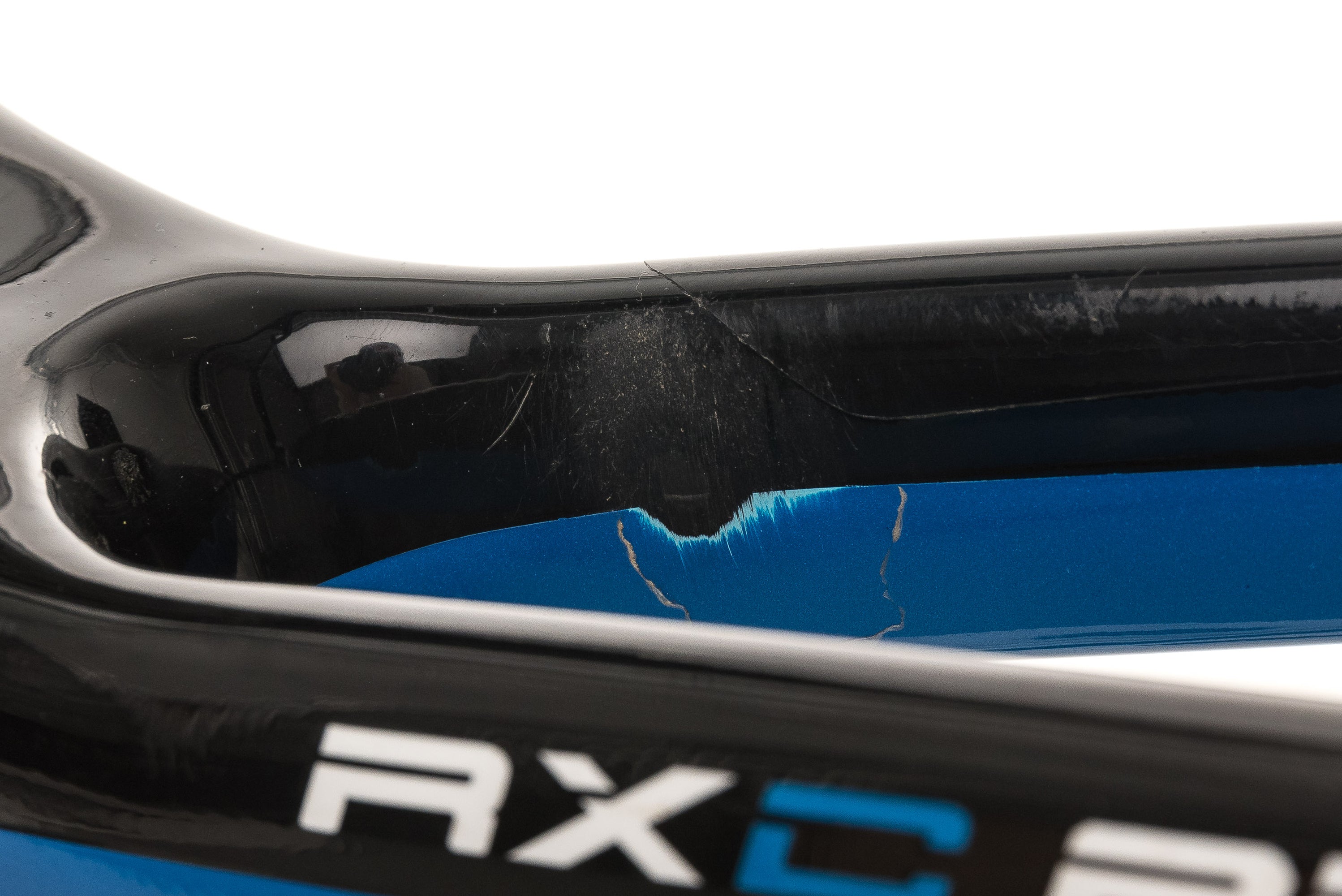

Heavy tire rub marks to both inner chainstays.

Specifications

Year 2015
Brand Raleigh
Model RXC Pro Disc
Size 56cm
Frame Material Carbon Fiber

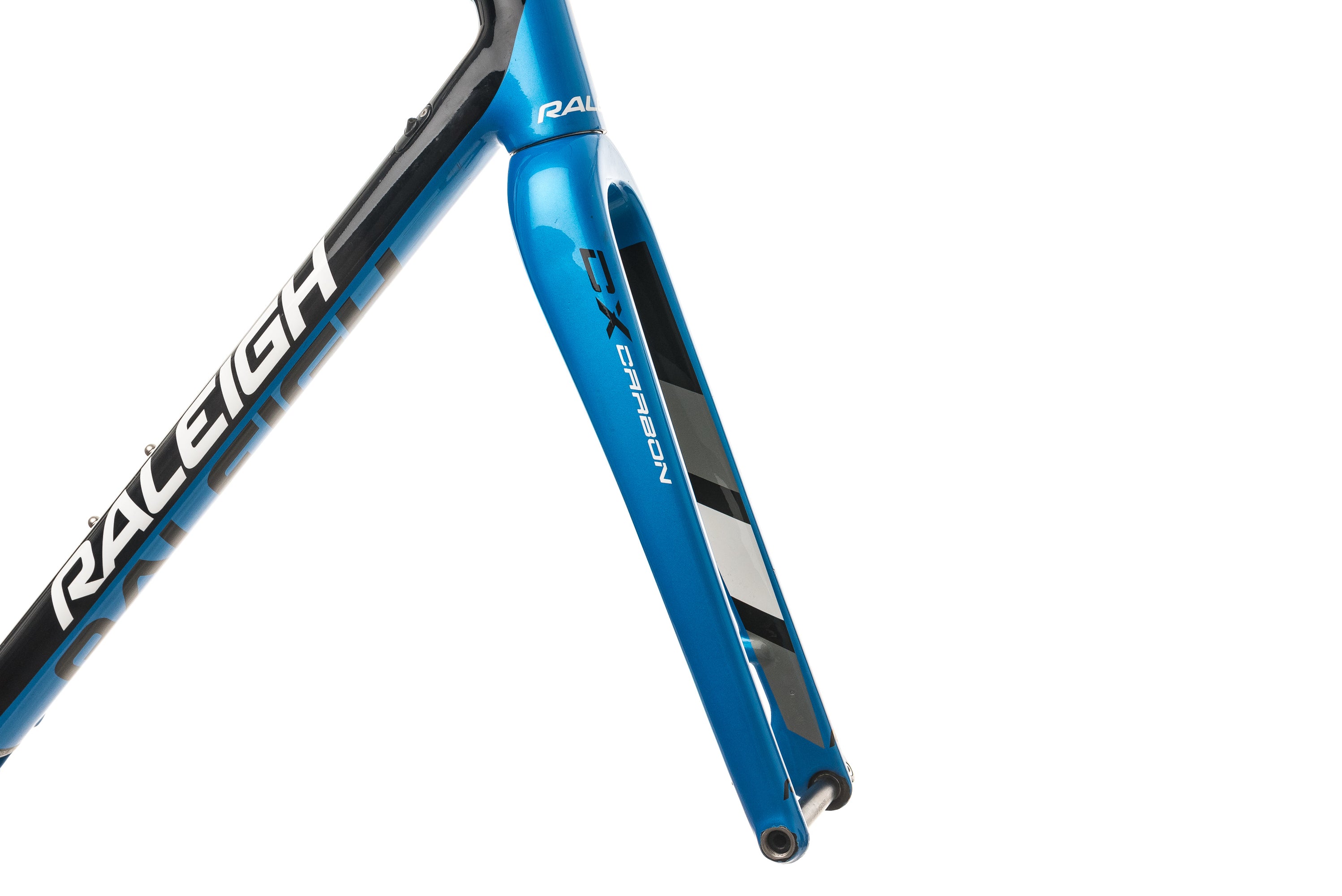

Fork Raleigh Cross Disc, Carbon Fiber
Steerer Tube 225 mm, Tapered
Brake Type Disc Brakes
Front Derailleur Mount 34.9mm
Headset FSA Integrated w/ compression plug and top cat included. FSA 15mm alloy top spacer and 2 FSA carbon spacers included.
Bottom Bracket Not Included, PF30
Seatpost Diameter 27.2mm
Seatpost Clamp Included
Front Axle Spacing 15x100mm (Thru-Axle)
Rear Axle Spacing 12x142mm (Thru-Axle)
Saddle Height Range N/A
Weight 5 lbs 1 oz
Drivetrain Compatibility Mechanical/Electronic

Geometry

Recommended Rider Height 5'11" - 6'1"
a. Effective Top Tube 560 mm
b. Seat Tube 560 mm
c. Seat Tube Angle 73.0°
d. Head Tube Angle 72.0°
e. Head Tube 150 mm
f. Stack 570 mm
g. Reach 386 mm
h. Standover Height 830 mm
i. Saddle Height Range N/A
