2019 Large SKU: FGR10145

Orbea Terra Disc Large Frameset - 2018

Recommended Rider Height: 6'2" - 6'4" Size Guide
Condition: PRE-OWNED
Regular price

return icon 30-day returns
shipping icon Fast Shipping

About this item

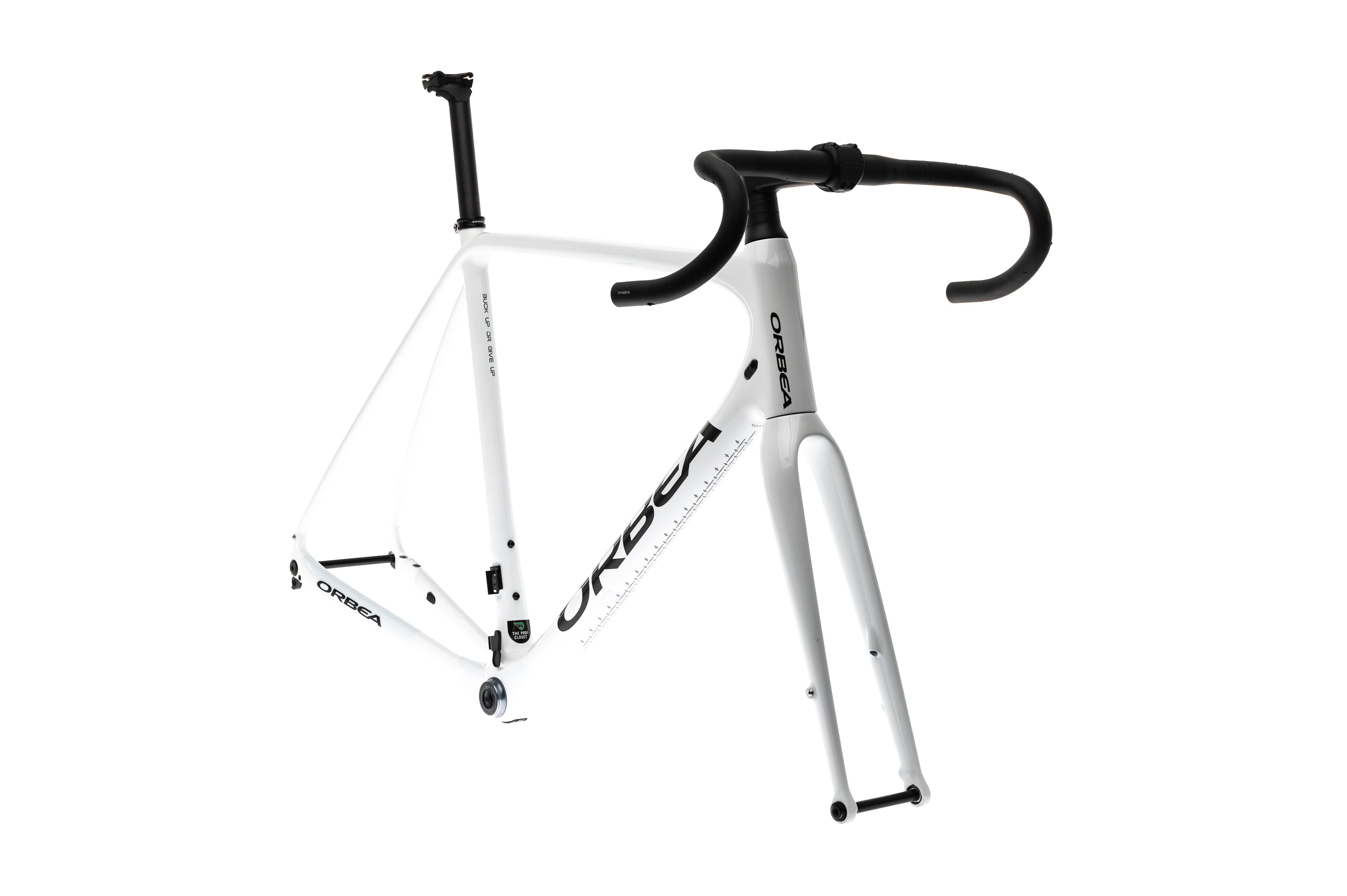

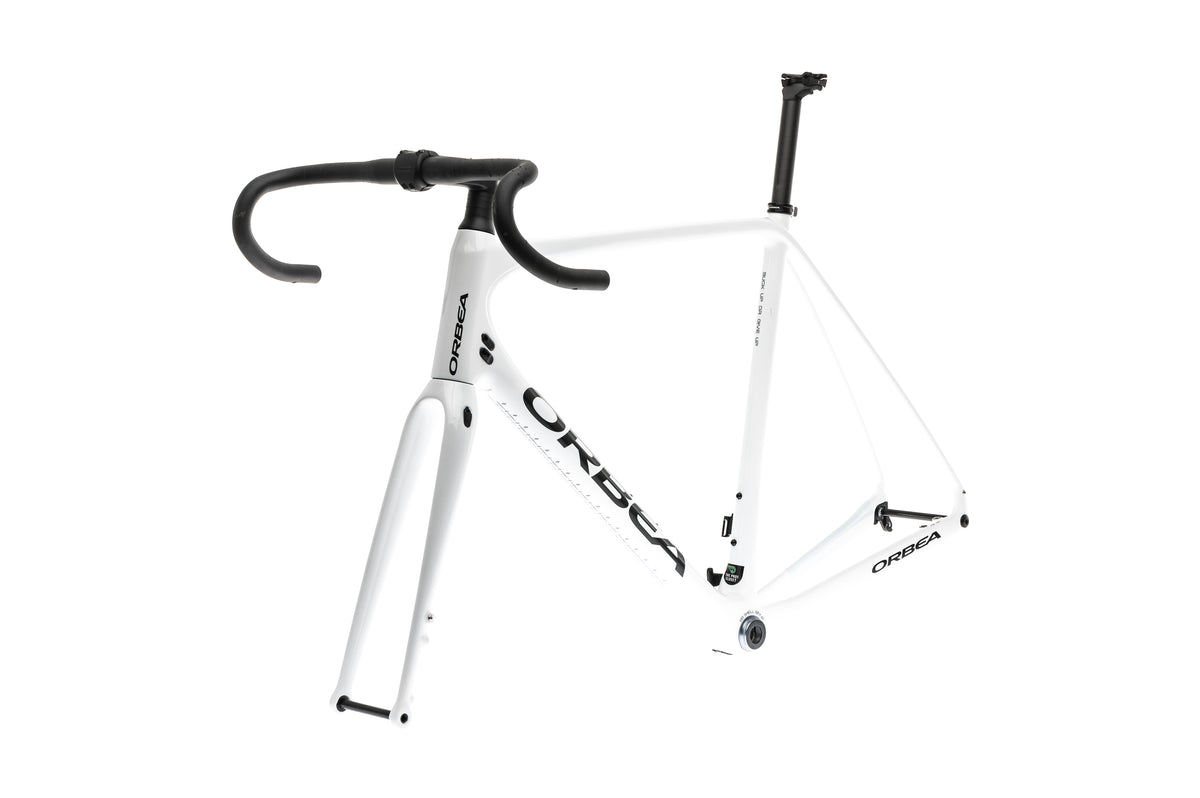

Orbea Terra Disc Large Frameset - 2018

Mechanic's Comments:
- Includes: Frame, fork, headset, handlebar/stem, seatpost, thru axles, & rear derailleur hanger (installed).

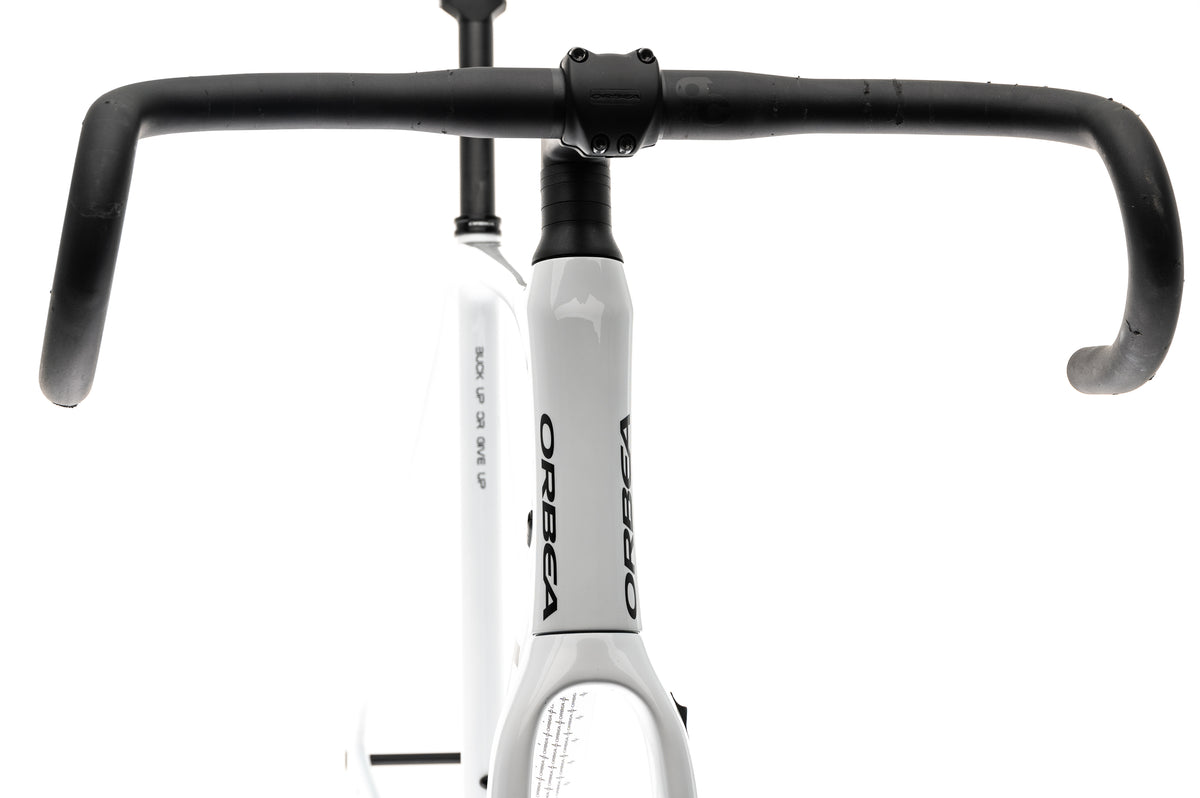

- Orbea OC-II handlebar/stem 44cm x110mm included.
- Frameset is in excellent condition.
- Frame is currently setup for electronic shifting.
- Cable grommets for mechanical shifting not included.
- Custom MyO wording "Buck Up Or Give Up" on seat tube.
- Seat tube Di2 cable grommet/plug not included.
- Drive side chainstay cable grommet/plug not included.

Specifications

Year 2019
Brand Orbea
Model Terra Disc
Size Large
Frame Material Carbon Fiber
Fork Orbea Terra Disc
Fork Material OMP Carbon
Steerer Tube 265 mm, Tapered
Brake Type Disc Brakes - Hydraulic
Front Derailleur Mount Braze-On
Headset FSA Integrated w/ 2-5mm, 2-10mm Composite Spacers & Top Cap
Bottom Bracket Included, PF30
Wheel Size 700C
Seatpost Diameter 27.2mm
Seatpost Clamp Yes
Front Axle Spacing 12x100mm (Thru-Axle)
Rear Axle Spacing 12x142mm
Weight 6 lbs 3 oz
Drivetrain Compatibility Mechanical/Electronic

Geometry

Recommended Rider Height 6'2" - 6'4"
a. Effective Top Tube 570 mm
b. Seat Tube 590 mm
c. Seat Tube Angle 73.5°
d. Head Tube Angle 70.5°
e. Head Tube 182 mm
f. Stack 600 mm
g. Reach 392 mm
h. Standover Height 858 mm
i. Saddle Height Range N/A
