Sorry, this Ibis DV9 Mountain Bike - 2020, Large has been sold.

Try these similar items:

BMT21473_PH1_01

BMT21473_PH1_02

BMT21473_PH1_03

BMT21473_PH1_04

BMT21473_PH1_05

BMT21473_PH1_06

BMT21473_PH1_07

BMT21473_PH1_01

BMT21473_PH1_02

BMT21473_PH1_03

BMT21473_PH1_04

BMT21473_PH1_05

BMT21473_PH1_06

BMT21473_PH1_07

Ibis DV9 Mountain Bike - 2020, Large

Item #BMT21473

Recommended Rider Height: 5'11" - 6'1" Sizing Guide

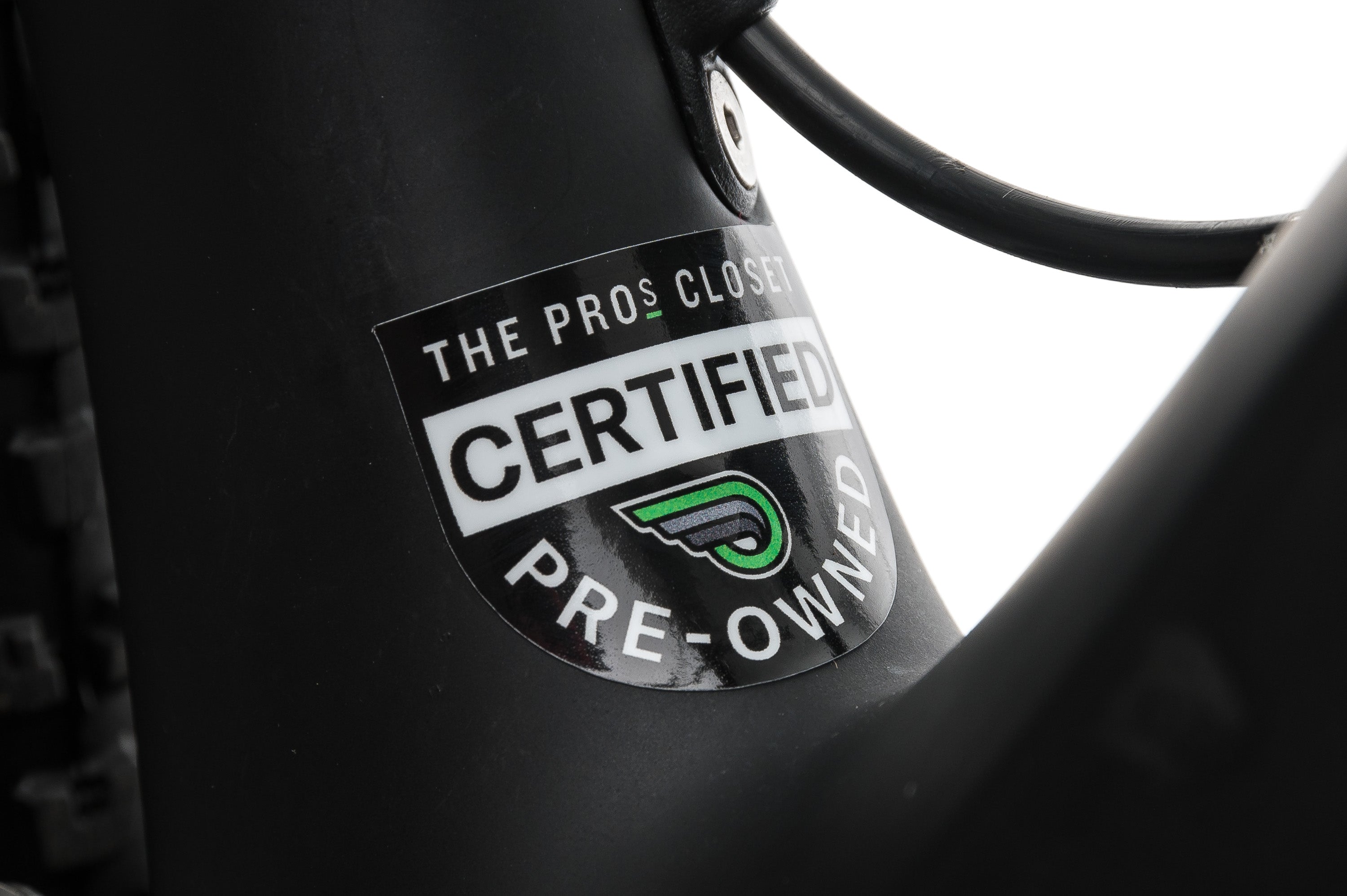

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2020
Brand	Ibis
Model	DV9
Size	Large
Frame Material	Carbon Fiber
Drivetrain	Shimano, 1x12 spd
Weight	25 lbs 12 oz

Build

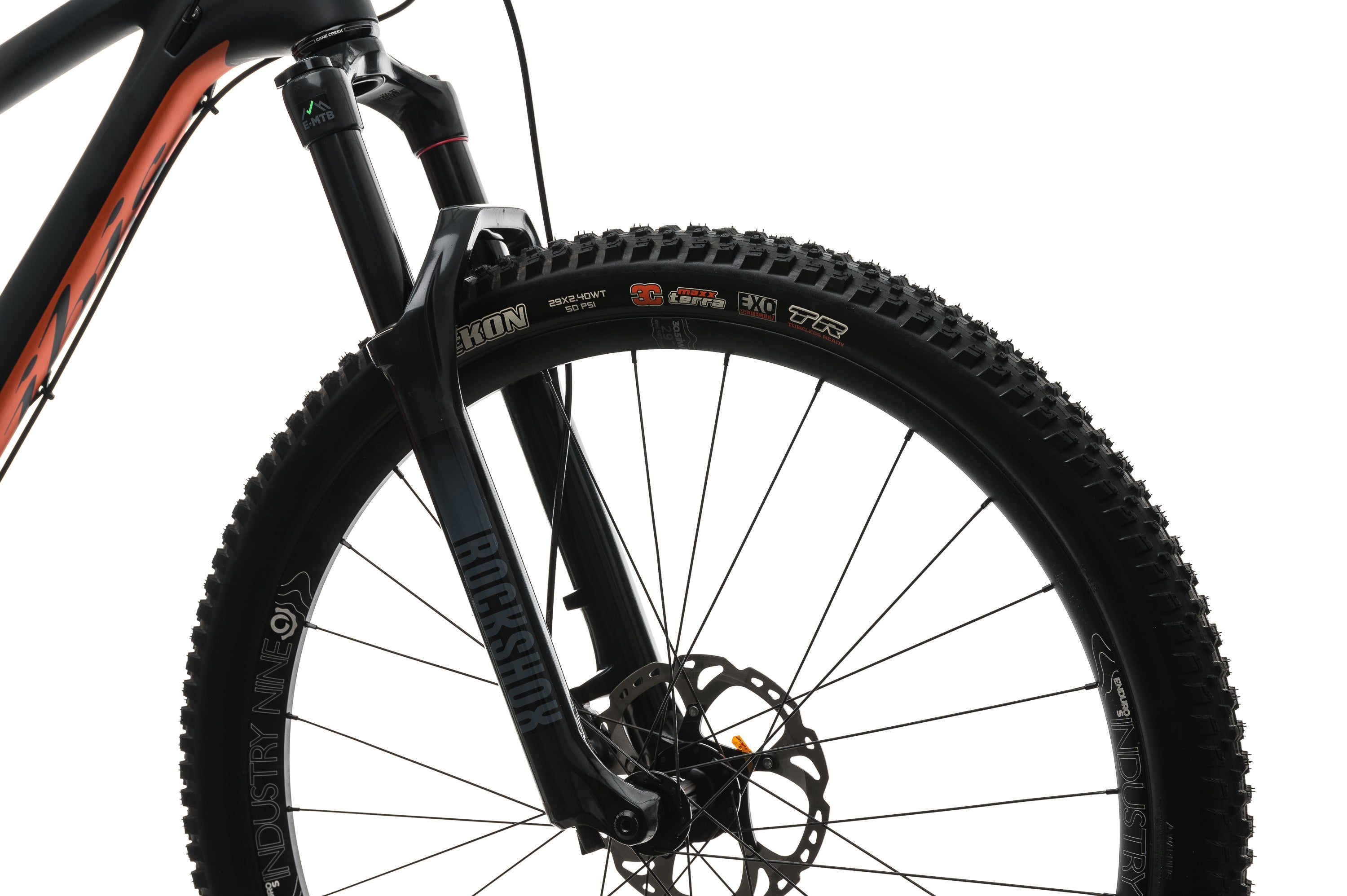

Fork	RockShox 35
Fork Travel	120mm
Brakes	Shimano MT200, Disc - Hydraulic
Shifters	Shimano Deore XT M8100, Mechanical
Rear Derailleur	Shimano Deore XT M8100
Bottom Bracket Shell	Threaded
Crankset	Shimano Deore XT M8100 Alloy, 34t, 175mm
Cassette	Shimano Deore XT M8100, 10-51t
Chain	Shimano
Handlebar	Race Race Next Carbon, 760mm
Headset	Cane Creek
Stem	Race Face Turbine Alloy, 35.0mm x 40mm, 6°
Seatpost	Fox Transfer Dropper, 31.6mm
Saddle	Ergon SR
Front Axle Spacing	15x110mm (Boost)
Rear Axle Spacing	12x148mm Boost
Wheelset	Industry Nine Enduro S Disc Aluminum Tubeless Compatible , Industry Nine
Front Tire	Maxxis Rekon 3C MaxxTerra EXO TR, 29" x 2.4"
Rear Tire	Maxxis Rekon Race EXO TR, 29" x 2.25"
Tire Type	Tubeless
Tubeless Compatibility	Bike ships tubeless
Charger Included	N/A

Geometry

Recommended Rider Height	5'11" - 6'1" Sizing Guide
a. Effective Top Tube	628 mm
b. Seat Tube	482 mm
c. Seat Tube Angle	73°
d. Head Tube Angle	68.5°
e. Head Tube	116 mm
f. Stack	634 mm
g. Reach	435 mm
h. Standover Height	757 mm
i. Saddle Height Range	630 - 700 mm

Ibis DV9 Mountain Bike - 2020, Large

Item #BMT21473

Recommended Rider Height: 5'11" - 6'1" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Sizing Guide

The chart below provides a general suggested height of range for Mountain Bike sizes and is not exact. Sizing may vary across brands.
+ Read more

The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.

Mountain Bike Sizing Guide
Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
13 in	XS	4' 10"	5' 2"
15 in	Small	5' 2"	5' 6"
17 in	Medium	5' 6"	5' 10"
19 in	Large	5' 10"	6' 2"
21 in	XL	6' 2"	6' 5"

Contact our Ride Guides if you have any questions about the fit of your new bike.

866.401.9636 - rideguides@theproscloset.com

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
