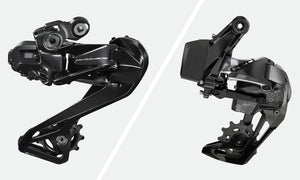

Shimano Di2 Vs SRAM eTap AXS, Eagle: Electronic Shifting, Weight, Price Comparisons

If you're going with an electronic drivetrain it's between Shimano Di2 and SRAM AXS. Which costs more? Weighs less? Wired vs. wireless? 1x vs. 2x? Find out which group is best for your bike.

Written by: Bruce Lin

Published on:

Posted in:Gravel

We may soon witness the death of the mechanical drivetrain. Electronic shifting has become refined and reliable. Electronic drivetrains are used throughout the pro peloton and increasingly available on new bikes.

Maybe you’ve learned all about the advantages of electronic shifting or you’re just a gear geek who wants to stay current. Either way, there’s good reason to ditch the cables on your next bike. But how do you decide between a Shimano Di2 group and a SRAM AXS drivetrain? Each has different features, pros, and cons. Here’s what you need to know.


Shimano Di2 vs. SRAM AXS Price and Weight Comparison

The tables below feature the latest hydraulic disc brake drivetrains from each brand. Prices are based on retail pricing; if you find it cheaper online, more power to ya! Weights are based on the manufacturer’s claimed weight.

These tables only compare electronic components like shifters (including brakes for road shifters), derailleurs, and batteries. Components such as cranksets and cassettes have been omitted. These tables will give you a rough idea of how much cost and weight the electronics add to a complete bike.








Dura-Ace Di2 R9200






Ultegra Di2 R8100



Force eTap AXS



105 Di2 R7100



Rival eTap AXS
















GRX Di2 RX800

$1,342 (1x) / $1,569 (2x)

1,133g (1x) / 1,264g (2x)

Force XPLR eTap AXS






Rival XPLR eTap AXS










XTR Di2 M9000

$1,210 (1x)

436g (1x)

XX1 Eagle AXS



XT Di2 M8000

$689 (1x)

505g (1x)

X01 Eagle AXS






GX Eagle AXS



Bottom line: Di2 is more expensive than its AXS competition. This can change though once you factor in the cost of cranksets and cassettes. For road applications, Di2 is notably lighter.

[product-block handle="sram-force-axs-1x-hydraulic-groupset"/]

Wires vs. Wireless Drivetrains

Shimano Dura-Ace R9200 Ultegra R8100 Di2The latest generation of Di2 uses wires with easier to install wireless shifters. | Photo: Shimano

Shimano Di2 uses wires to connect the battery, shifters, and derailleurs. SRAM AXS is fully wireless. The latest Dura-Ace Di2 R9200 and Ultegra Di2 R8100 drivetrains are hybrid, using wireless shifters.

Wired advantages

  • Fastest shifting, although the difference is imperceptible to most.
  • A central battery that provides a longer run-time

Wired disadvantages

  • Requires frame compatible with Di2 wiring.
  • Installation can be difficult and time-consuming. Once installed, it’s set and forget.

Wireless advantages

  • Extremely easy to install on any frame.
  • Provides a clean, cable-free look.

Wireless disadvantages

  • Multiple smaller batteries (one per derailleur) that require recharging more often.
  • Bulkier derailleurs due to the battery.

Bottom line: Both shift quickly and reliably. Once set up, both are very easy to live with. If upgrading an existing bike, AXS will be easier to install for most home mechanics.

[product-block handle="shimano-ultegra-st-r8150-di2-rim-brake-shifter-set-2x12-speed"/]

Batteries and Charging

SRAM AXS battery chargingThe SRAM AXS battery in a recharging cradle. | Photo: SRAM

Shimano Di2 battery life: at least 1,000km (621mi)

  • In practice, an average cyclist that rides three to five times a week will only need to charge their Di2 bike about four times a year. Full charge in about 1.5 hours.

SRAM AXS battery life: approximately 60 hours of ride time

  • AXS batteries take an hour to fully recharge. Because the batteries only weigh 25g, it’s possible to carry a spare. You can swap batteries between the front and rear derailleurs or an AXS dropper seatpost if one dies.

Bottom line: The two brands use different metrics to measure battery life so it’s hard to compare them. What’s more important is which battery style you prefer.

Shift Customization

Shimano Di2 E-tube project appMake adjustments with the Shimano E-Tube Project app. | Photo: Shimano

Both Di2 and AXS allow the addition of small accessory  “sprint shifters,” “climbing switch shifters,” or “blips.” Both Di2 and AXS can connect to a smartphone app to customize shift preferences like Synchro (Shimano) or Sequential (SRAM) shifting or Semi Synchro (Shimano) or Compensating (SRAM) modes.

Bottom line: It’s a tie.

Gearing and Speeds

SRAM AXS X-range gearingX-Range vs. traditional gearing. | Photo: SRAM

12-speed Shimano Di2 road drivetrains offer “standard” gear range that most experienced cyclists will already know. SRAM’s AXS road groups have switched to “X-Range” gearing with smaller chainring sizes and wide-range cassettes. For road, AXS X-Range provides the easiest low gear (43/30t chainrings + 10-36t cassette vs. 50/34t chainring + 11-34t cassette).

Shimano’s GRX Di2 gravel drivetrain is currently 11-speed and can be run as a 2x or 1x. SRAM’s gravel-specific XPLR drivetrains are now 1x only with a 12-speed 10-44t cassette. Gearing depends on chainring selection, usually 40-44t.

Shimano does not offer a 12-speed Di2 mountain bike drivetrain using its wide-range 10-51t cassette. Its widest range cassette is an 11-speed 11-46t. SRAM Eagle AXS mountain bike drivetrains are all 12-speed and work with 10-50t or 10-52t cassettes.

Bottom line: If you like old-school 2x go with Di2. On the MTB side, SRAM Eagle AXS has no real competition … yet.

[product-block handle="sram-gx-eagle-axs-upgrade-kit"/]

Clutches and Chain Management

SRAM GX Eagle AXS overload clutchAll Eagle AXS derailleurs from GX to XX1 feature the Overload Clutch. | Photo: SRAM

SRAM RED and Force AXS rear derailleurs use Orbit Fluid Dampers to prevent dropped chains and chain noise on rough roads. The Orbit Damper is ​​lightweight, low friction, and speed-sensitive. The harsher the bump, the more resistance it applies to keep the chain under control. Rival AXS rear derailleurs use a more traditional mechanical clutch.

SRAM Eagle AXS mountain bike rear derailleurs use a standard roller bearing clutch but add an Overload Gearbox Clutch to protect the derailleur and motor during an impact. The Overload Gearbox Clutch disengages, giving the derailleur freedom to move and absorb the impact, saving you a hefty repair bill. It quickly reengages and the derailleur will realign itself in a split-second.

The latest generation 12-speed Shimano Dura-Ace and Ultegra Di2 drivetrains currently don’t offer a clutched derailleur option (the previous generation had the clutched Ultegra RX). The gravel-oriented GRX Di2 rear derailleur uses the same clutch mechanism as the rest of Shimano’s mountain bike derailleurs which can be toggled on or off.

Bottom line: If you ride rough roads, gravel, or trails, SRAM AXS has the latest clutch technology. Pure roadies probably won’t care, though.

[product-block handle="sram-red-xplr-axs-rear-derailleur-12-speed-long-cage"/]

So Which Is Better?

There are pros and cons to each system. Here’s what I think:

  • AXS for MTB
  • Di2 road for weight savings
  • Di2 for battery life
  • AXS for 1x simplicity/ease of install/upgrading any bike
  • AXS for climbing gears

At the end of that day, no single brand makes a better groupset; it all boils down to personal preference and what you are looking to get out of your components.

I would recommend AXS for its simplicity, range, and durability for mountain biking. It will clean up your cockpit by eliminating shifter and dropper cables, and installation is simple enough for any at-home mechanic to do.

If you want to go electric for your road bike, I would go with Shimano Di2. The Shimano offering is lighter and will last longer on lengthy road rides, so you won’t be stranded miles from your destination with only one gear to pedal in the event your battery dies early.

    Do you like Di2 or AXS? Why do you prefer one over the other? Let me know in the comments!
