Sorry, this Trek Fuel EX 5 29 Mountain Bike - 2016, 17.5" has been sold.

Try these similar items:

BMT27837_PH1_01

BMT27837_PH1_02

BMT27837_PH1_03

BMT27837_PH1_04

BMT27837_PH1_05

BMT27837_PH1_06

BMT27837_PH1_07

BMT27837_PH1_08

BMT27837_PH1_09

BMT27837_PH1_10

BMT27837_PH1_01

BMT27837_PH1_02

BMT27837_PH1_03

BMT27837_PH1_04

BMT27837_PH1_05

BMT27837_PH1_06

BMT27837_PH1_07

BMT27837_PH1_08

BMT27837_PH1_09

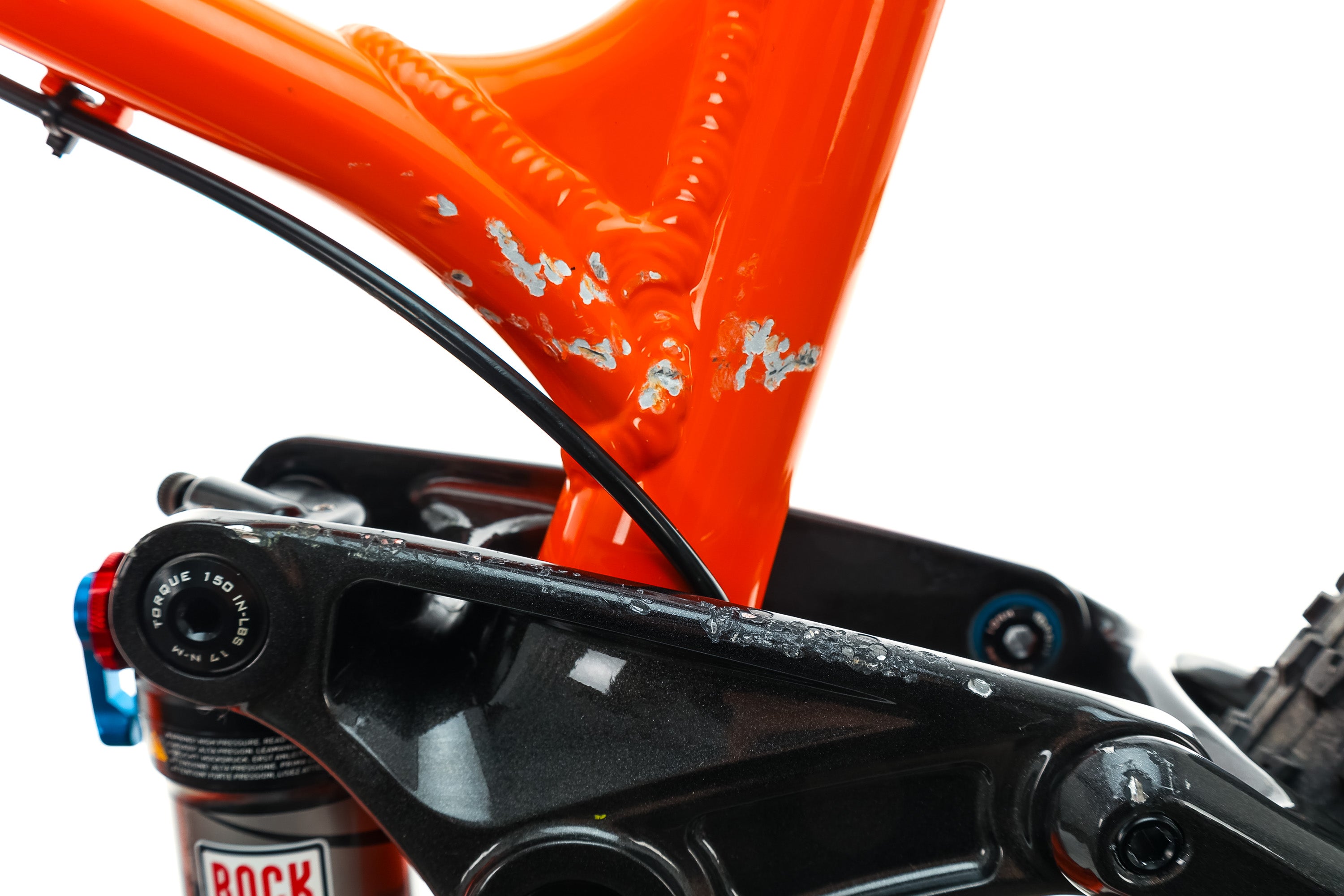

BMT27837_PH1_10

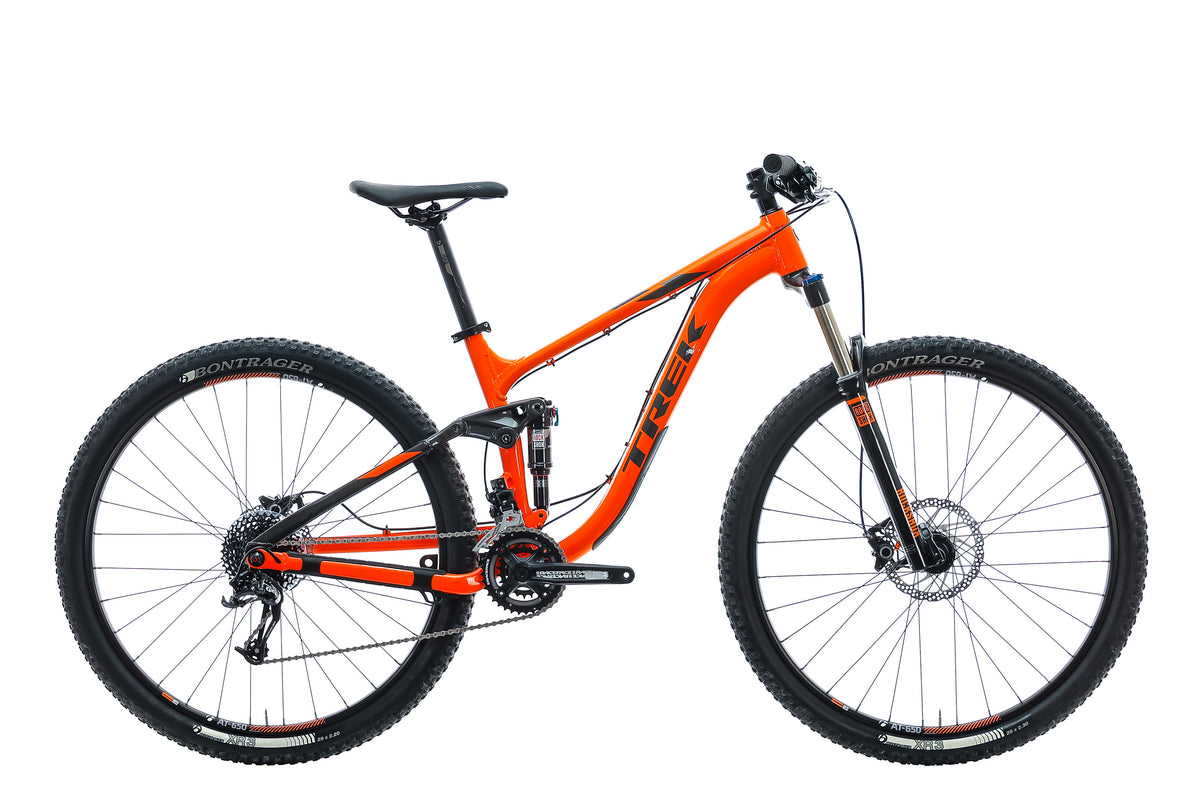

Trek Fuel EX 5 29 Mountain Bike - 2016, 17.5"

Item #BMT27837

Recommended Rider Height: 5'6" - 5'10" Sizing Guide

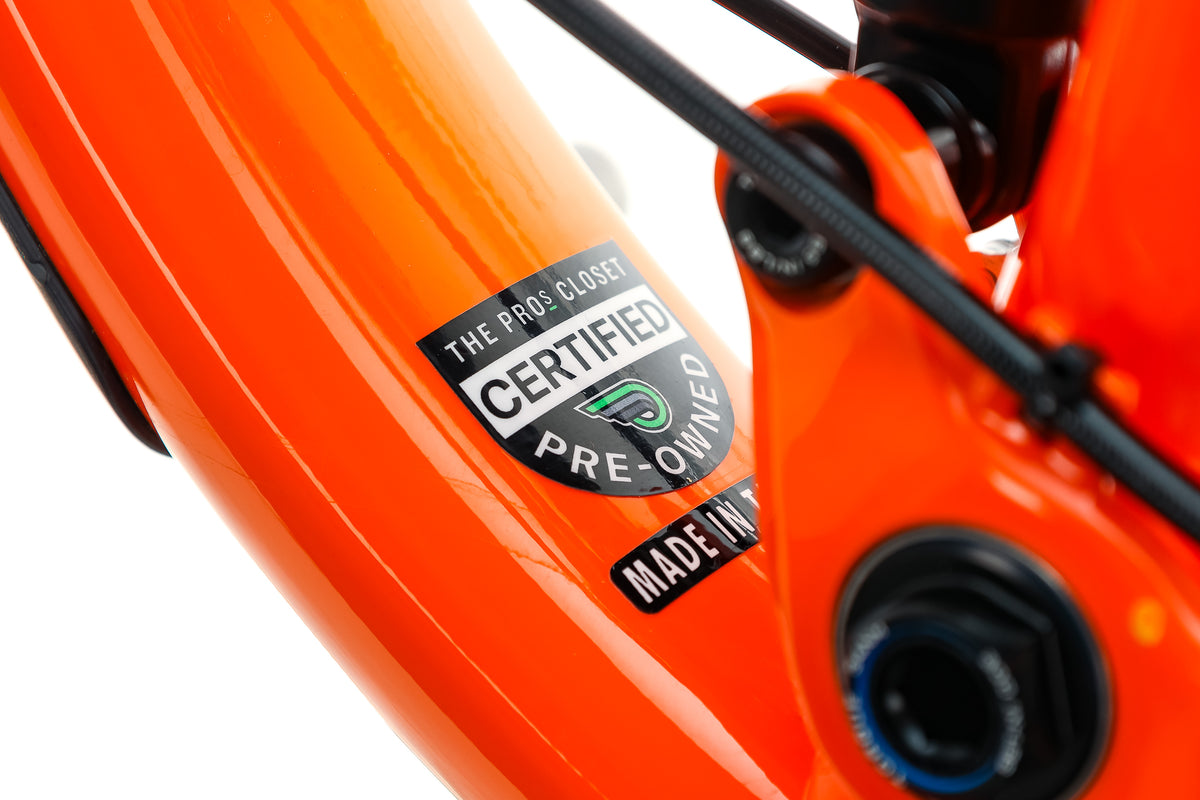

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Quiver Killer Trail Bike

Specifications

Details

Year	2016
Brand	Trek
Model	Fuel EX
Size	17.5"
Frame Material	Aluminum
Drivetrain	SRAM, 2x10 spd
Weight	31 lbs 2 oz

Build

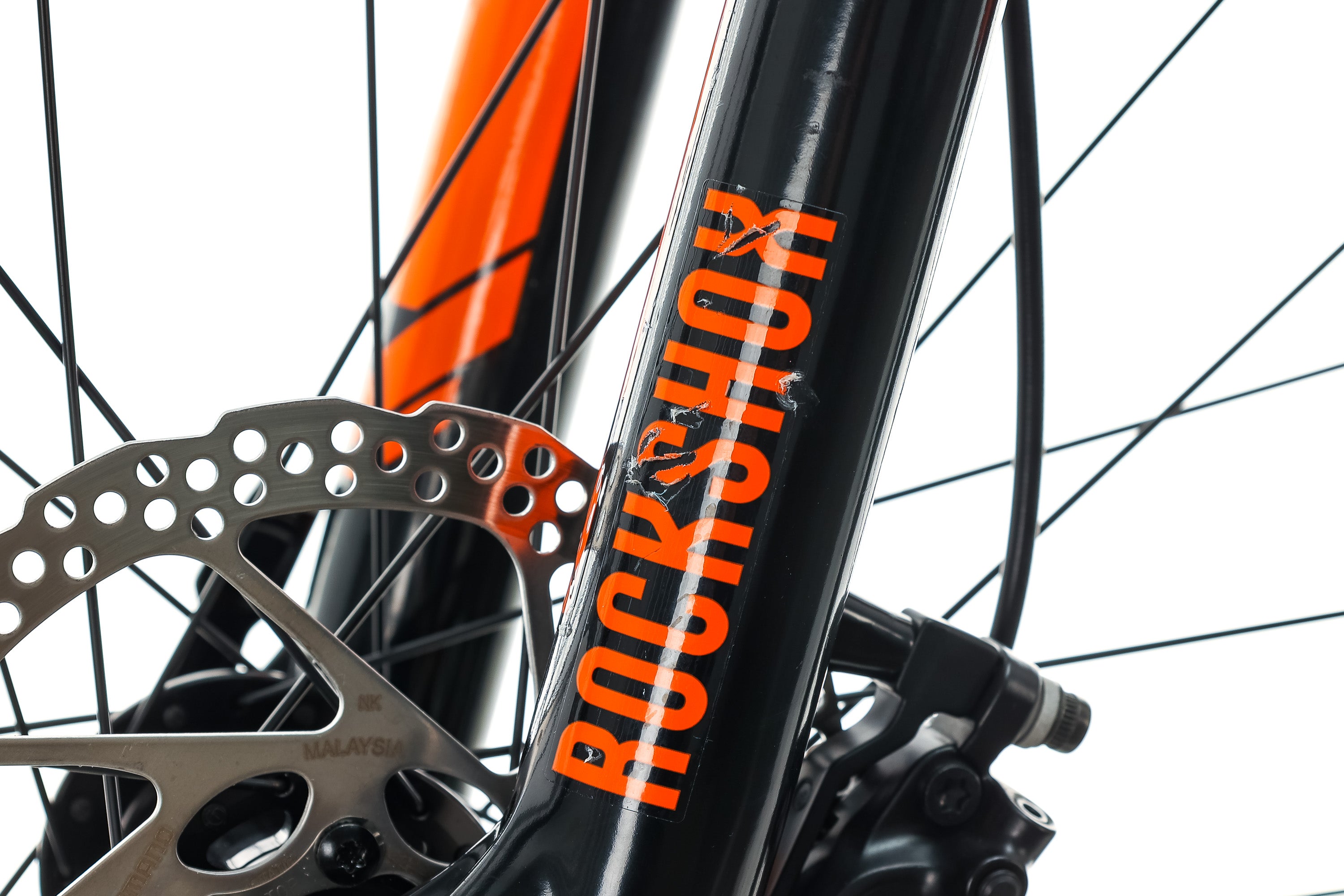

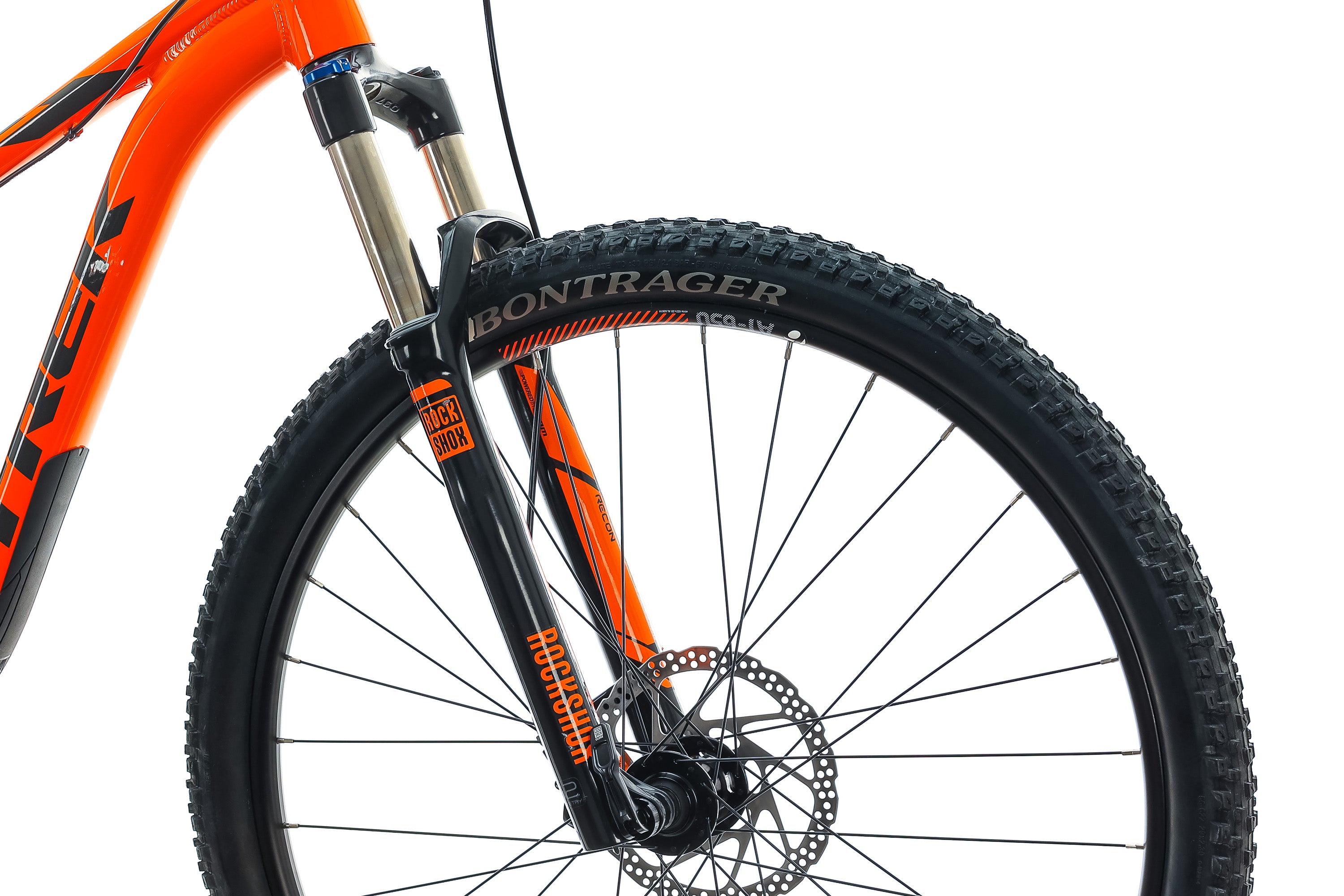

Fork	RockShox Recon TK Silver
Fork Travel	120mm

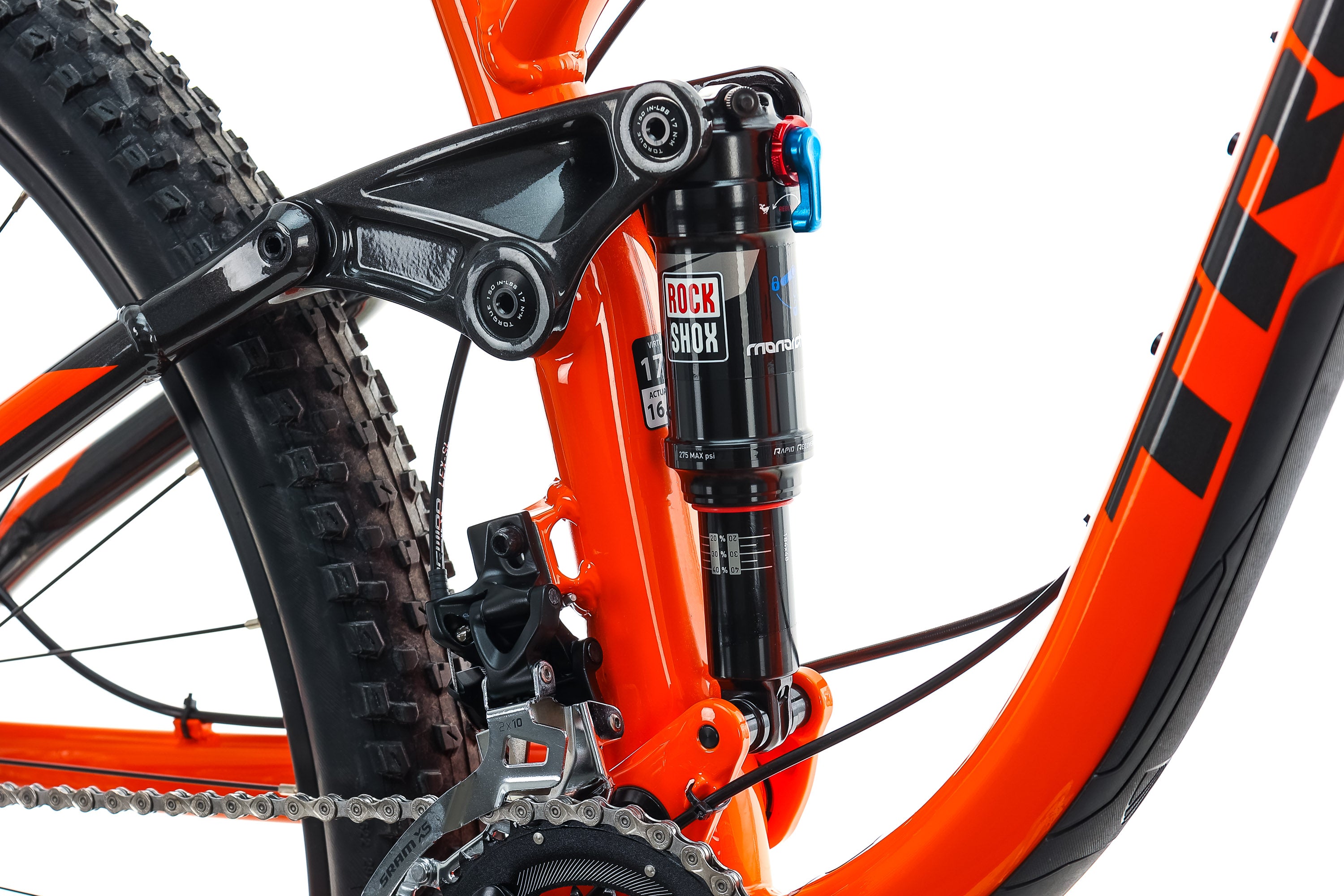

Rear Shock	RockShox Monarch RL
Rear Shock Travel	120mm
Brakes	Shimano M355, Disc - Hydraulic
Shifters	Shimano Deore M610, Mechanical
Front Derailleur	SRAM X5
Rear Derailleur	SRAM GX
Bottom Bracket Shell	Press fit

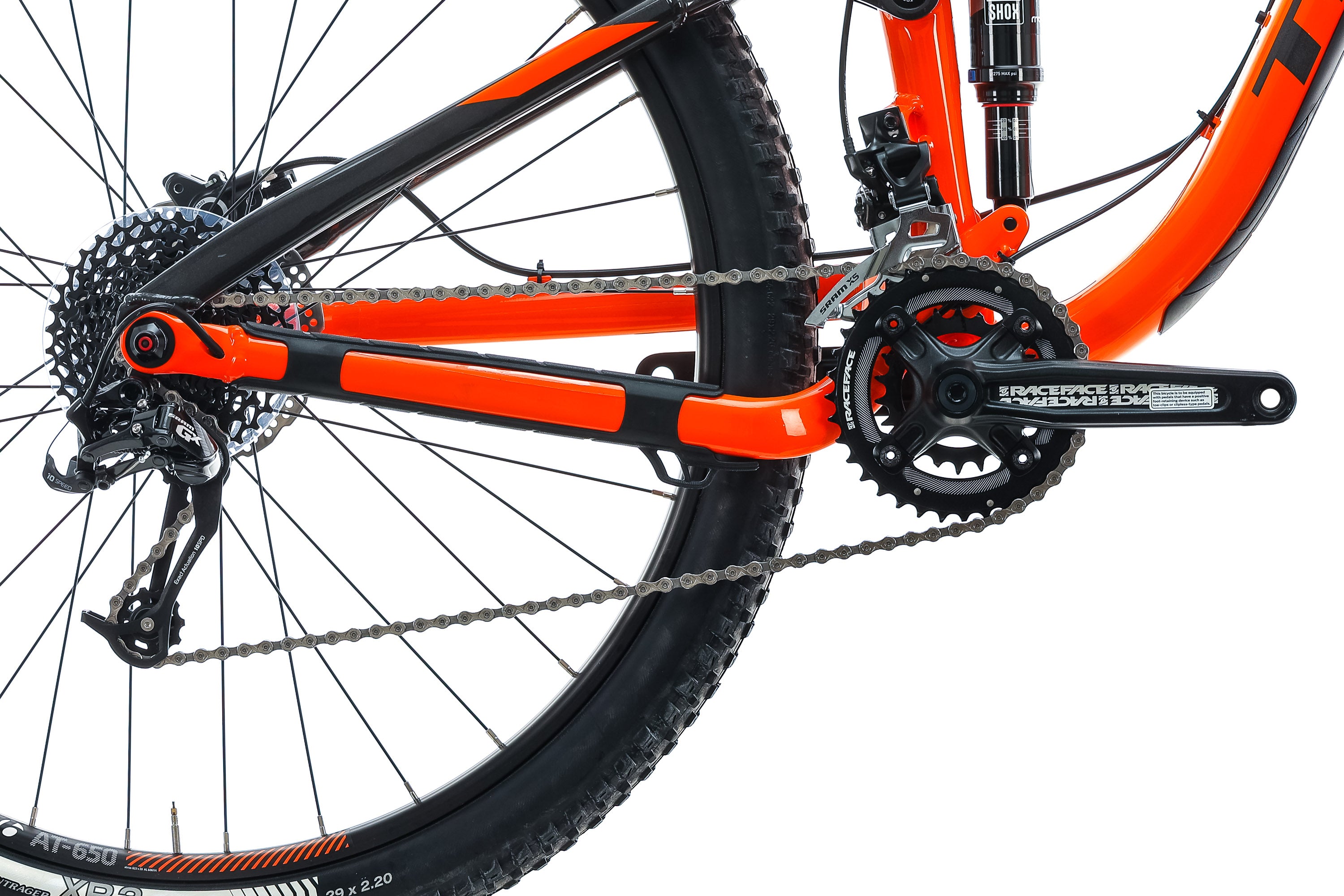

Crankset	Race Face Ride Alloy, 36/22t, 175mm
Cassette	SRAM PG-1020, 11-36t
Chain	KMC

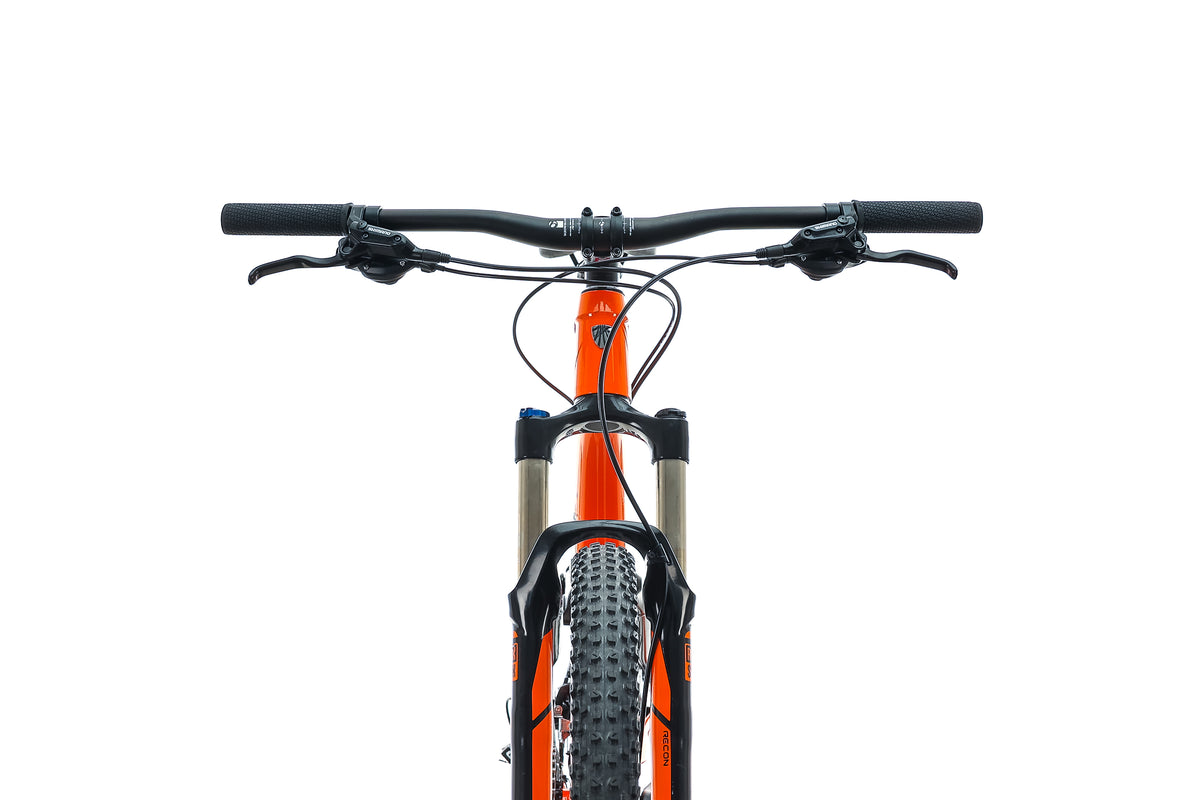

Handlebar	Bontrager Alloy, 730mm
Headset	FSA Integrated
Stem	Bontrager Alloy, 31.8mm x 70mm, 7°
Seatpost	Bontrager SSR Alloy, 31.6mm
Saddle	Bontrager Evoke 1.5
Front Axle Spacing	15x100mm (Thru-Axle)
Rear Axle Spacing	12x142mm
Wheelset	Bontrager AT-650 Aluminum Clincher, Bontrager
Front Tire	Bontrager XR3, 29" x 2.3"
Rear Tire	Bontrager XR3, 29" x 2.3"
Tire Type	Clincher
Tubeless Compatibility	Wheels are not tubeless compatible

Geometry

Recommended Rider Height	5'6" - 5'10" Sizing Guide
a. Effective Top Tube	598 mm
b. Seat Tube	420 mm
c. Seat Tube Angle	73.6°
d. Head Tube Angle	69.5°
e. Head Tube	105 mm
f. Stack	601 mm
g. Reach	421 mm
h. Standover Height	765 mm
i. Saddle Height Range	N/A

Trek Fuel EX 5 29 Mountain Bike - 2016, 17.5"

Item #BMT27837

Recommended Rider Height: 5'6" - 5'10" Sizing Guide

Condition: Certified Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Sizing Guide

The chart below provides a general suggested height of range for Mountain Bike sizes and is not exact. Sizing may vary across brands.
+ Read more

The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.

Mountain Bike Sizing Guide
Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
13 in	XS	4' 10"	5' 2"
15 in	Small	5' 2"	5' 6"
17 in	Medium	5' 6"	5' 10"
19 in	Large	5' 10"	6' 2"
21 in	XL	6' 2"	6' 5"

Contact our Ride Guides if you have any questions about the fit of your new bike.

866.401.9636 - rideguides@theproscloset.com

Condition Rating Guide

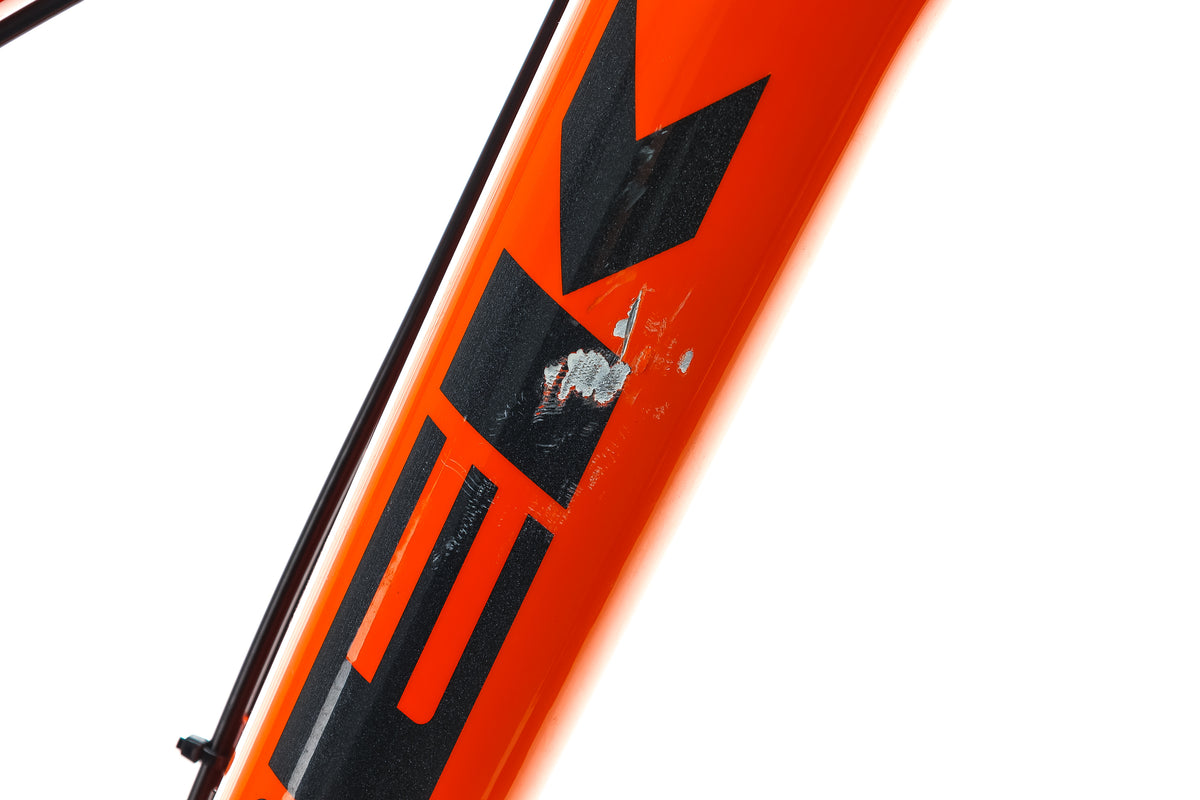

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
