Wilier Triestina Jena Hybrid Gravel E-Bike - 2022, Small
isn't available.
You'll be the first to know next time this or similar products are available.

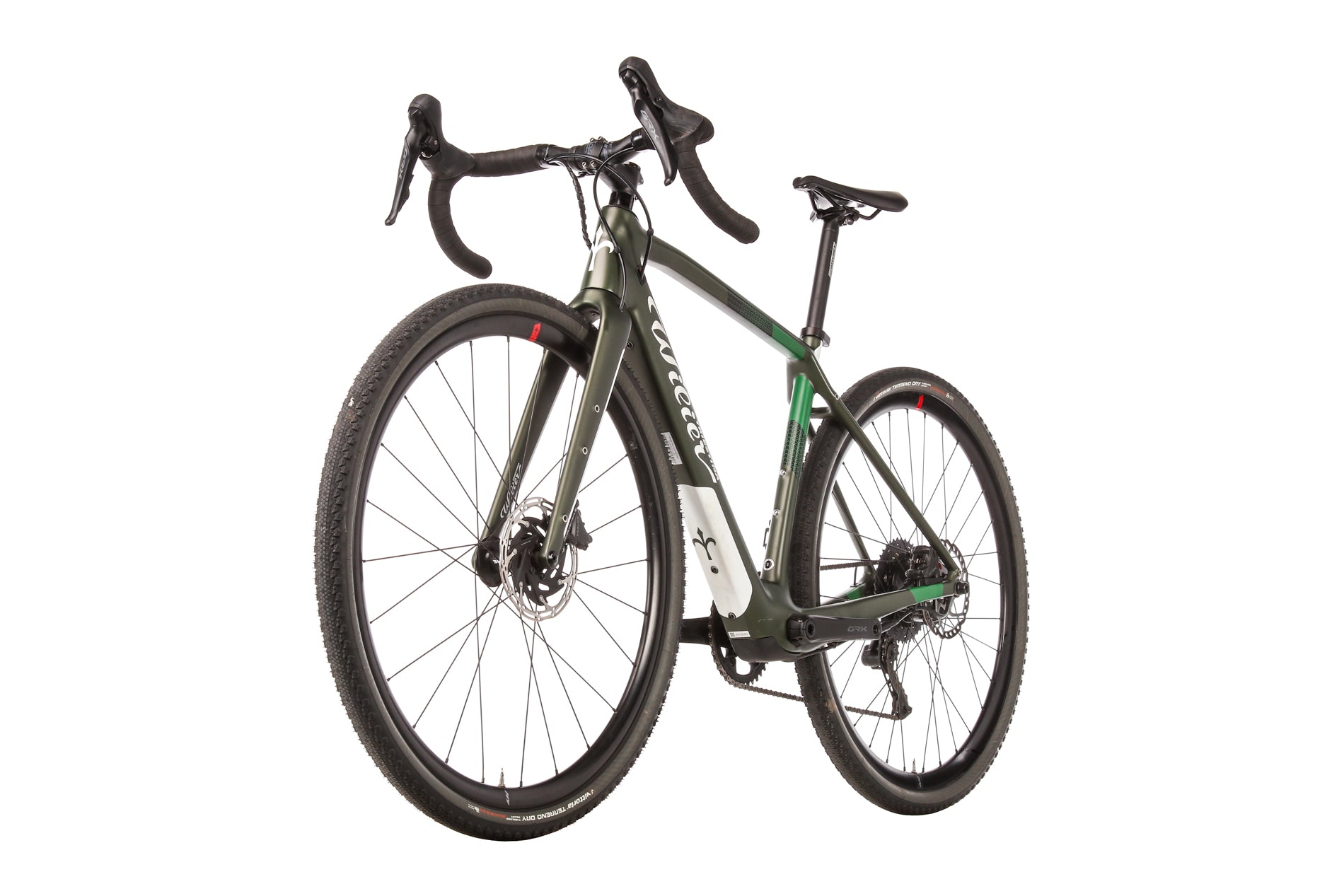

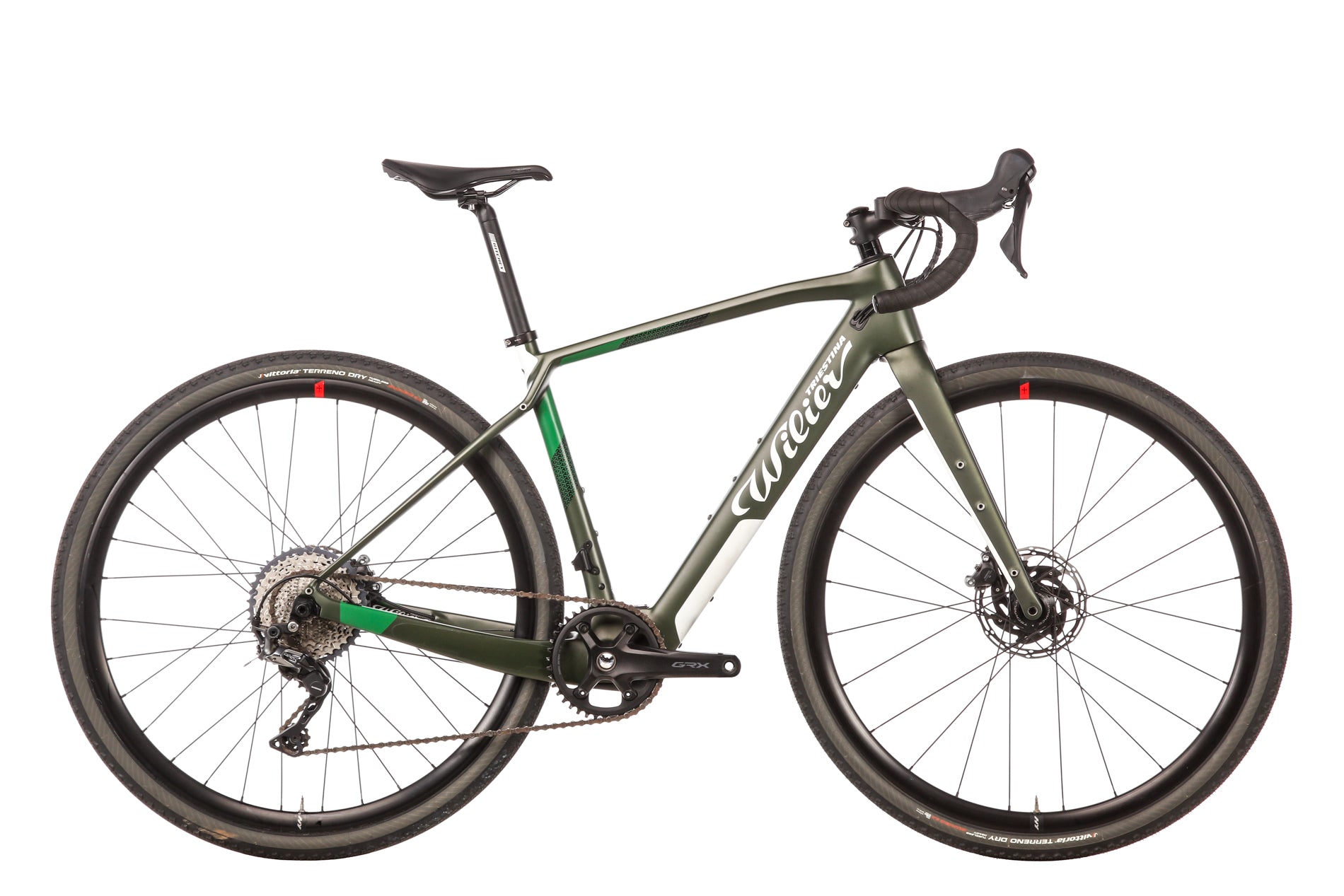

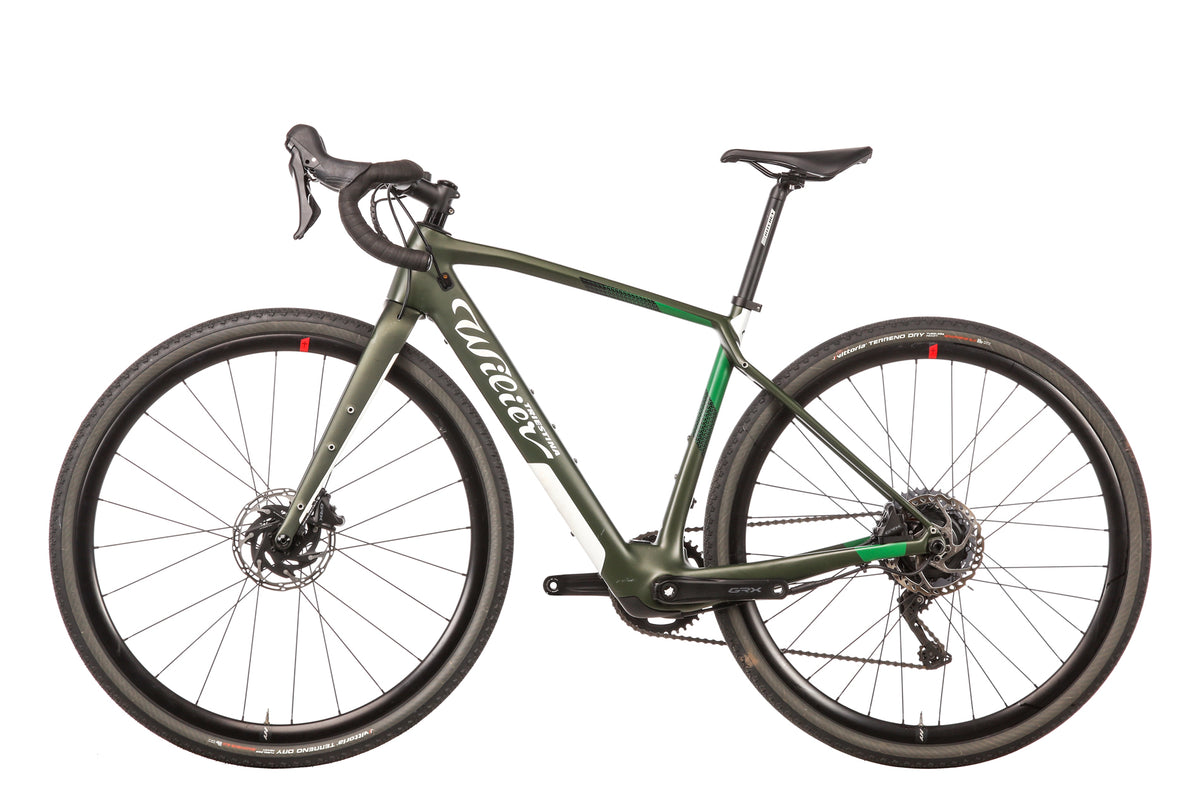

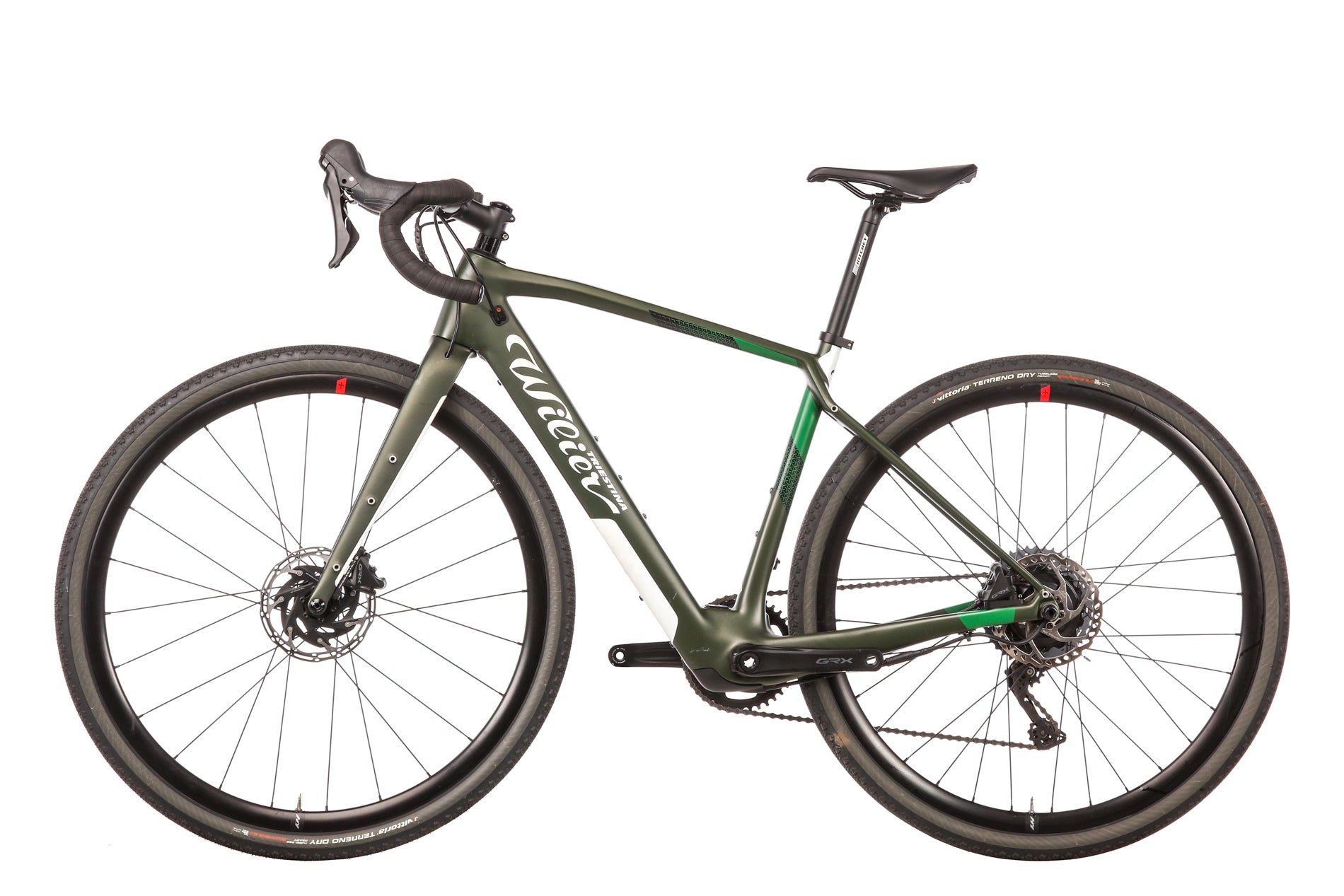

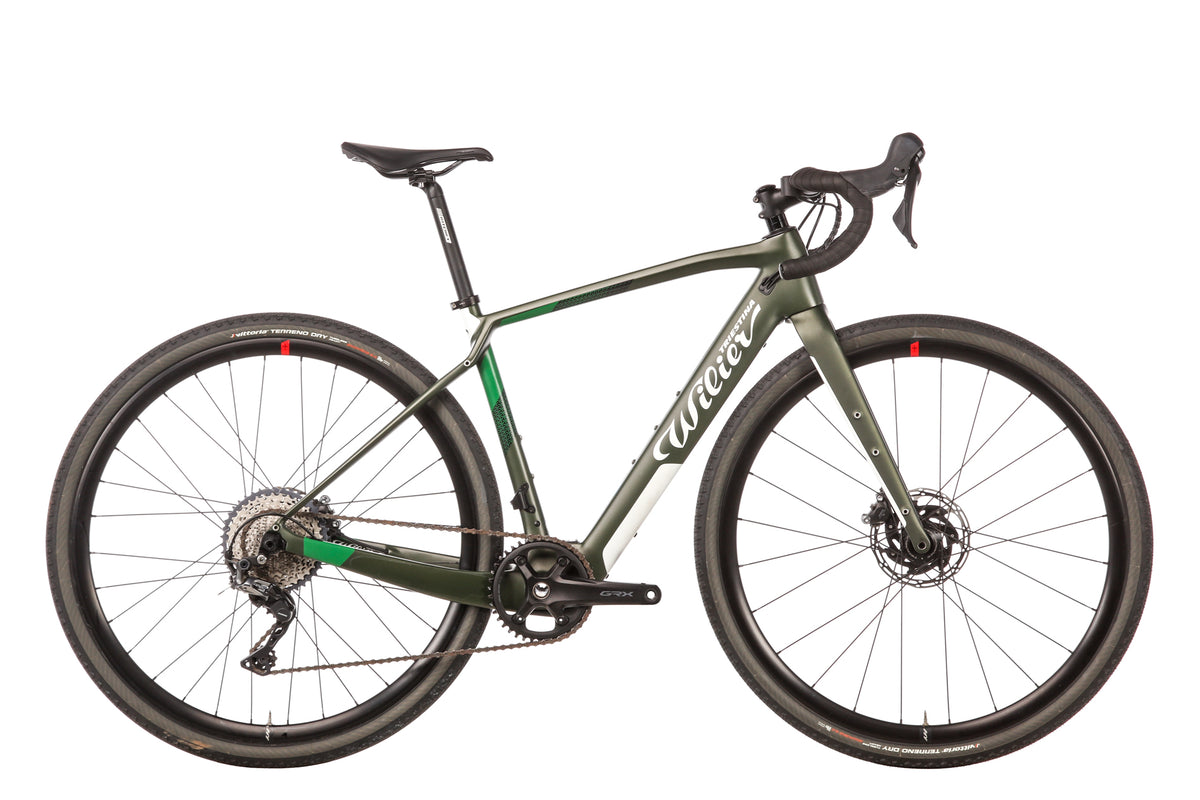

Wilier Triestina Jena Hybrid Gravel E-Bike - 2022, Small
Item #BRD36760
Condition: Certified Pre-Owned
Fit Range: 5'2" - 5'5"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
Free to choose.
Why We Love It
The Jena Hybrid features traditional components like hydraulic disc brakes, 11-speed transmission, and carbon or aluminium rims.
The only component added to the traditional configuration is the rear hub containing the 40 Nm Ebikemotion motor to assist pedalling. The motor is powered by a 250 Wh battery perfectly integrated inside the frame’s down tube.
System control (on, off, and monitoring) is controlled by the iWoc button installed on the handlebar, allowing the rider to choose Jena Hybrid's various assistance modes.
Master Mechanic’s Notes
- New handlebar tape

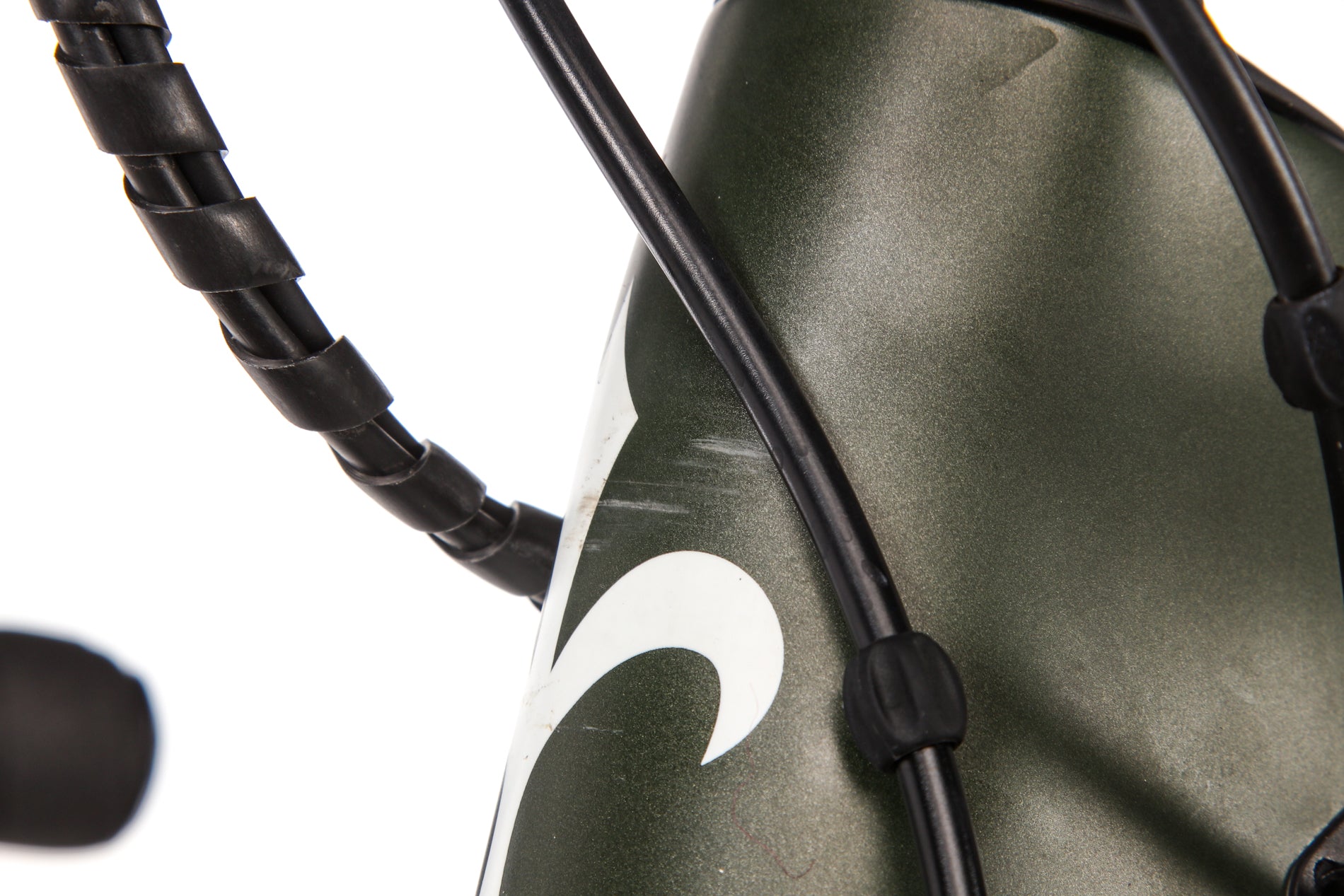

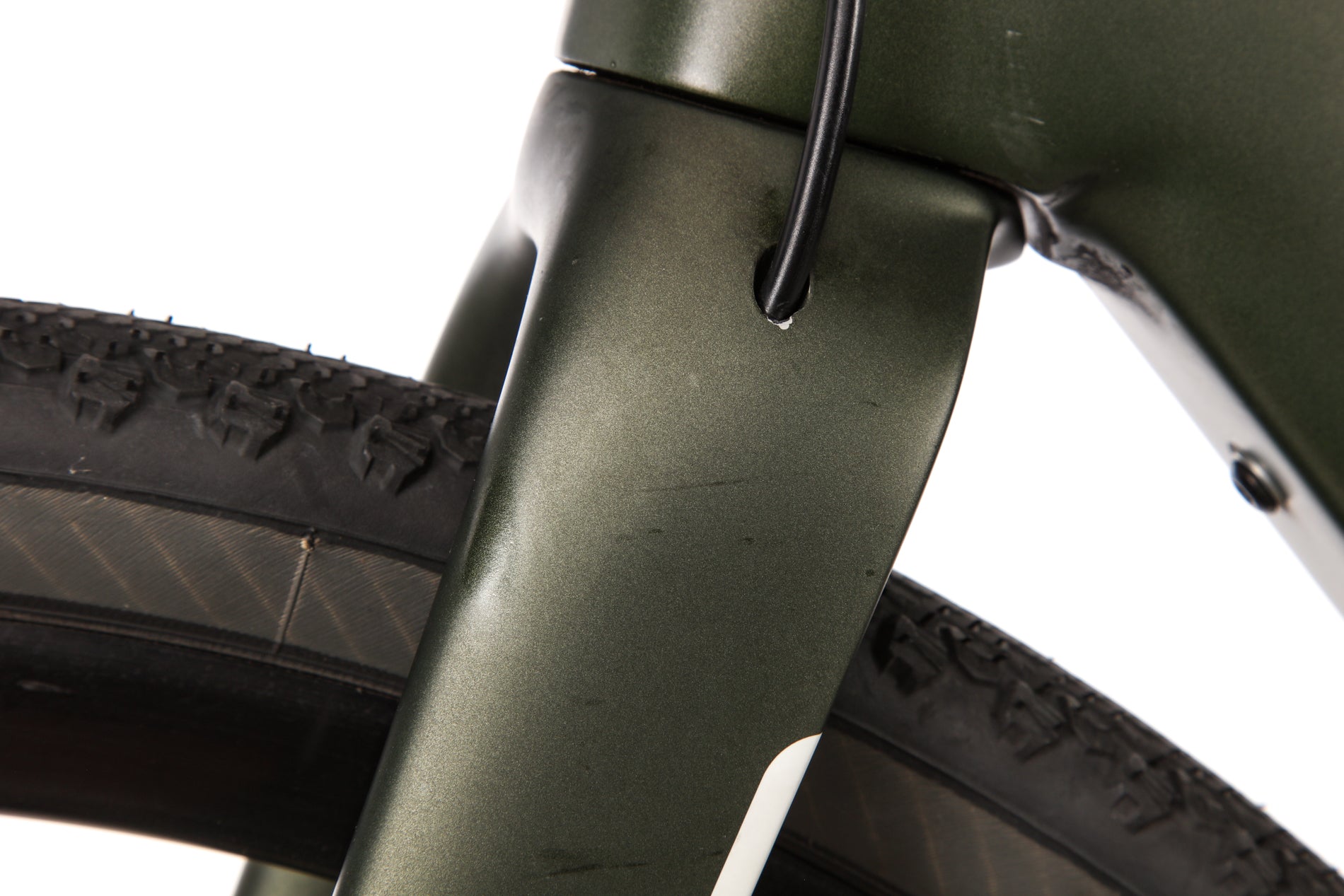

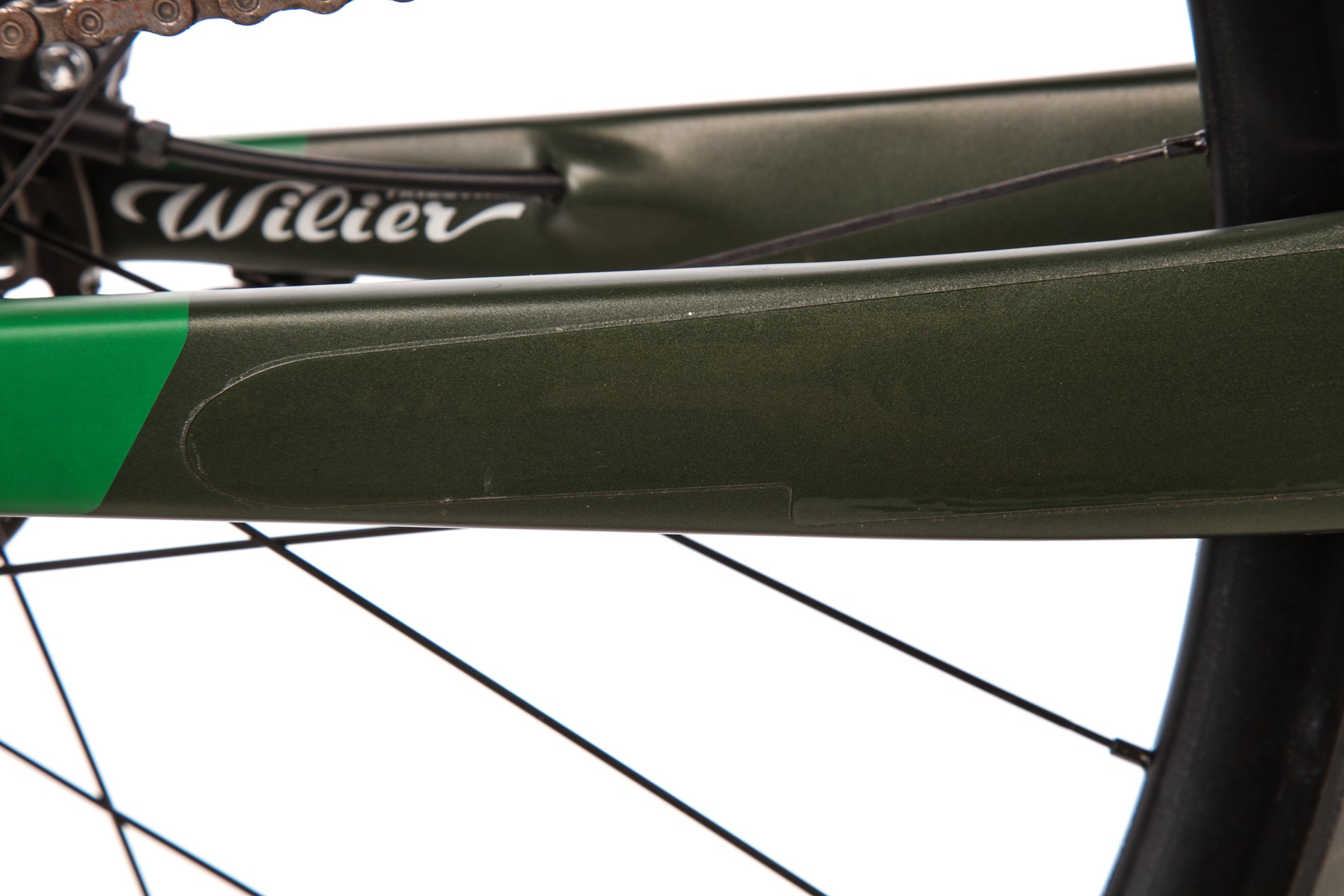

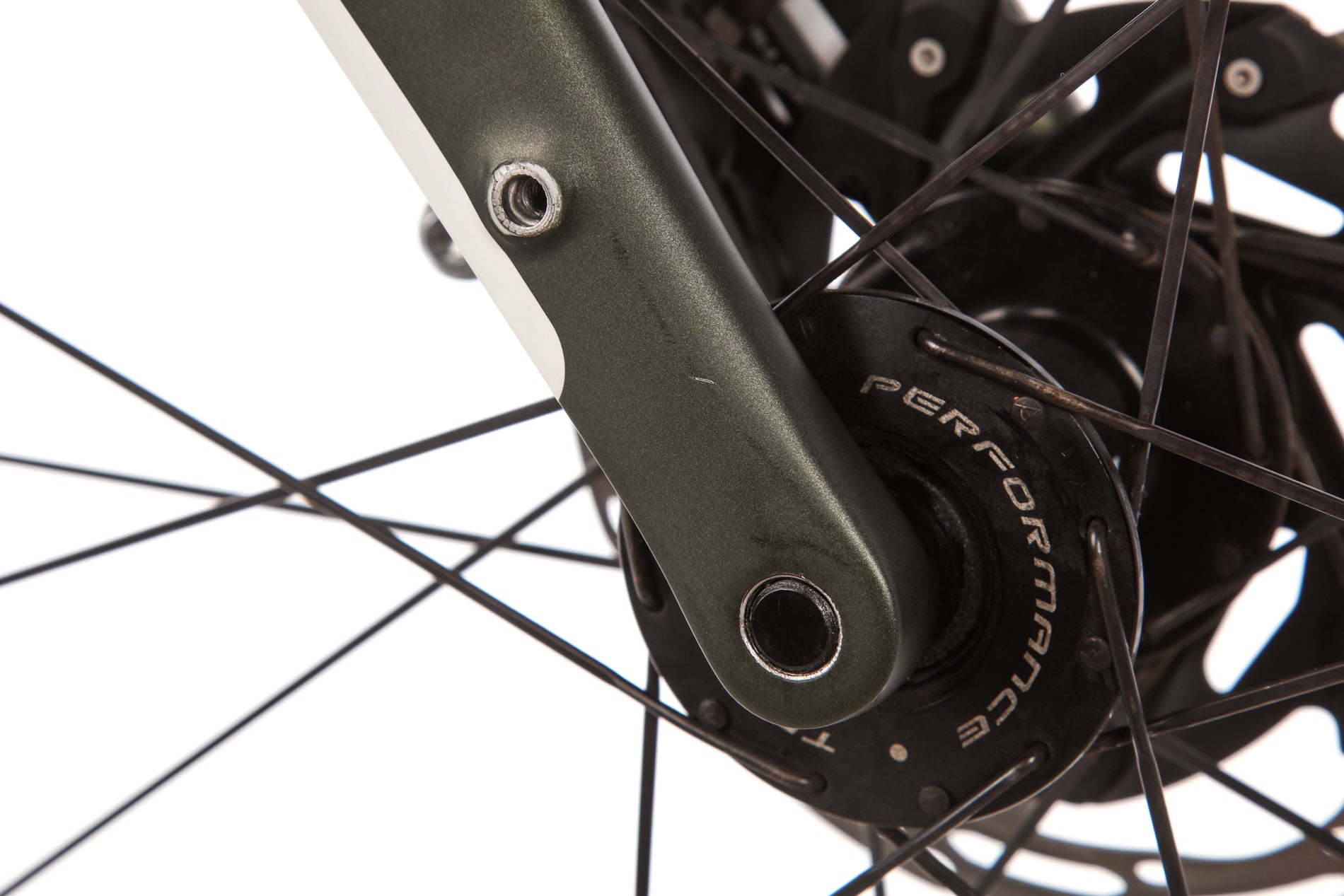

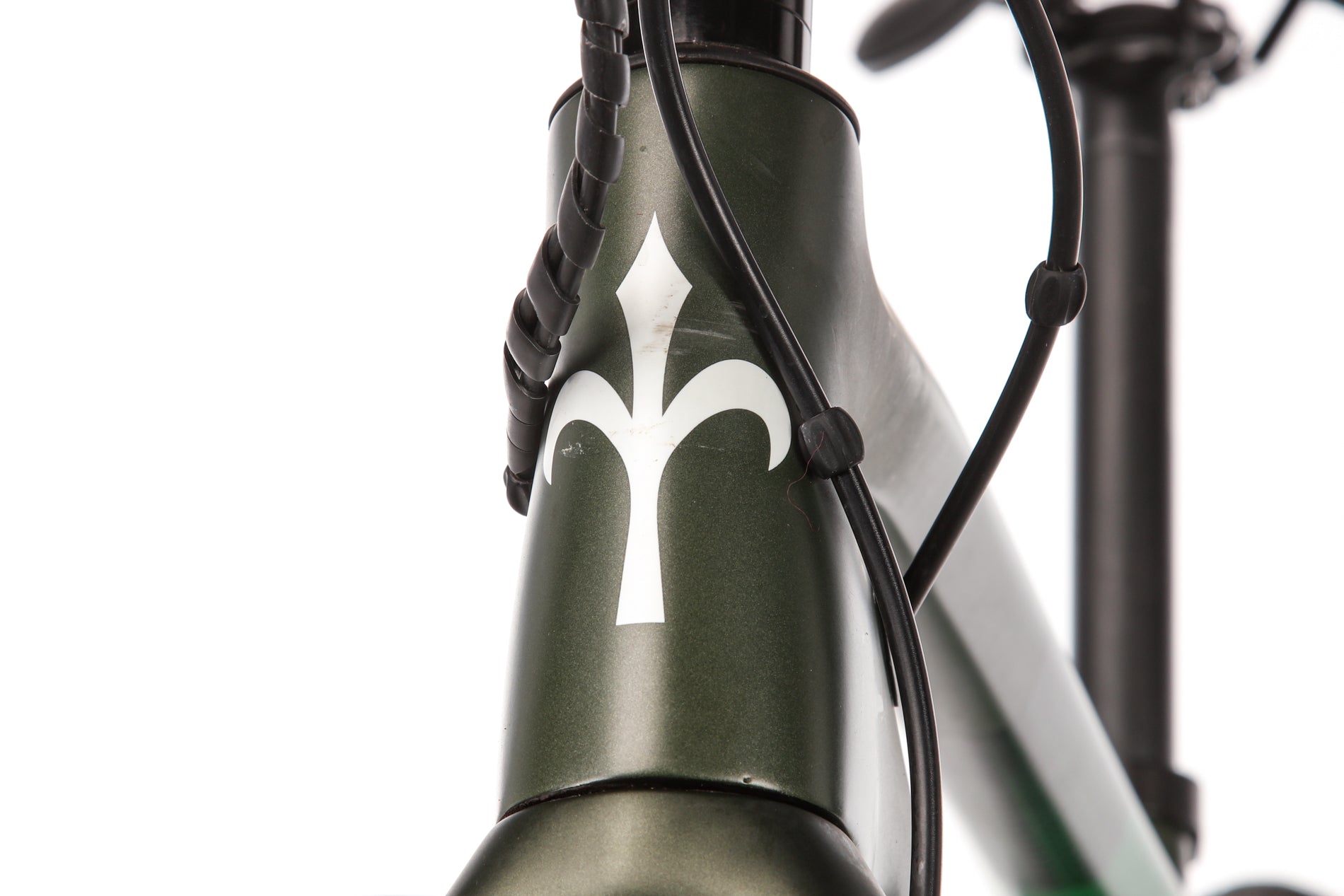

- Light scratches on the fork lowers, head tube, & drive side chainstay

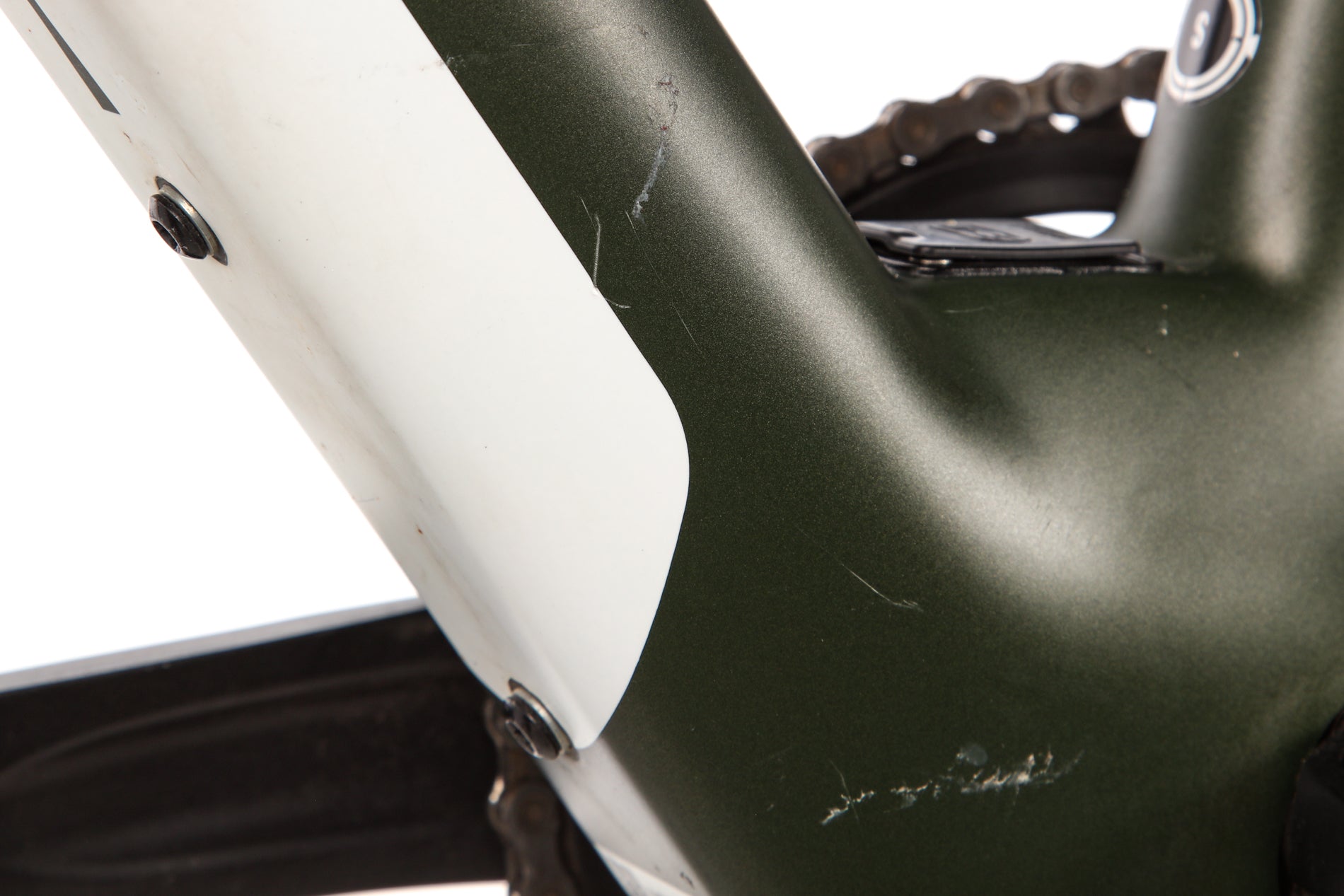

- Moderate scratches on the non-drive side down tube
Specifications
Details
| Original MSRP | $6,600.00 |
| Year | 2022 |
| Brand | Wilier Triestina |
| Model | Jena Hybrid |
| Size | Small |
| Frame Material | Carbon Fiber |
| Drivetrain | SRAM, 1x11 spd |
| Weight | 28 lbs 6 oz |
Build
| Fork | Wilier Triestina Jena Hybrid, Carbon |
| Brakes | Shimano GRX RX400, Disc Brakes - Hydraulic |
| Shifters | Shimano GRX RX600, Mechanical |
| Rear Derailleur | Shimano GRX RX812 |
| Bottom Bracket Shell | Press fit |

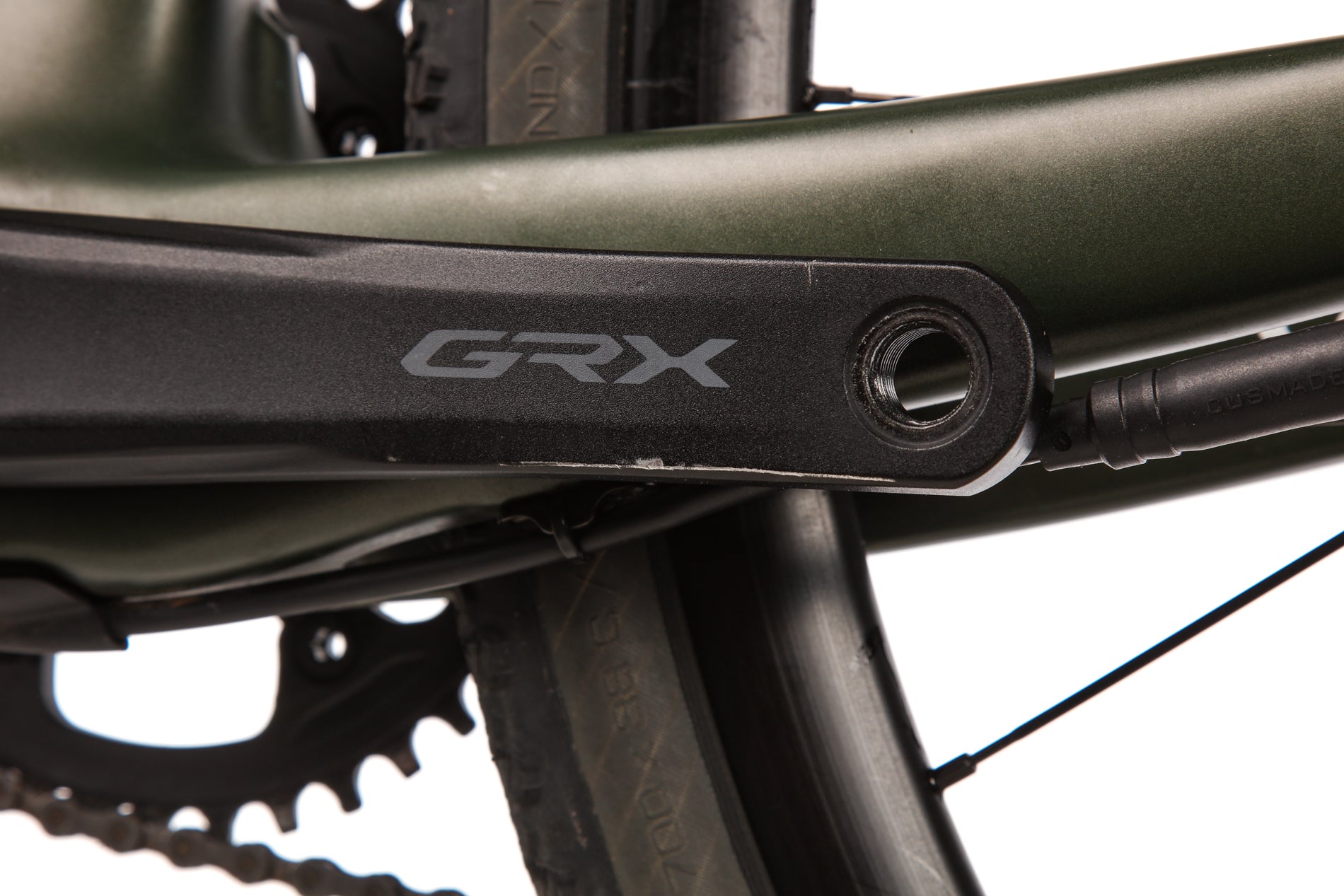

| Crankset | Shimano GRX RX600, 40t, 170mm |
| Cassette | Shimano SLX M7000, 11-42t |
| Chain | Shimano |

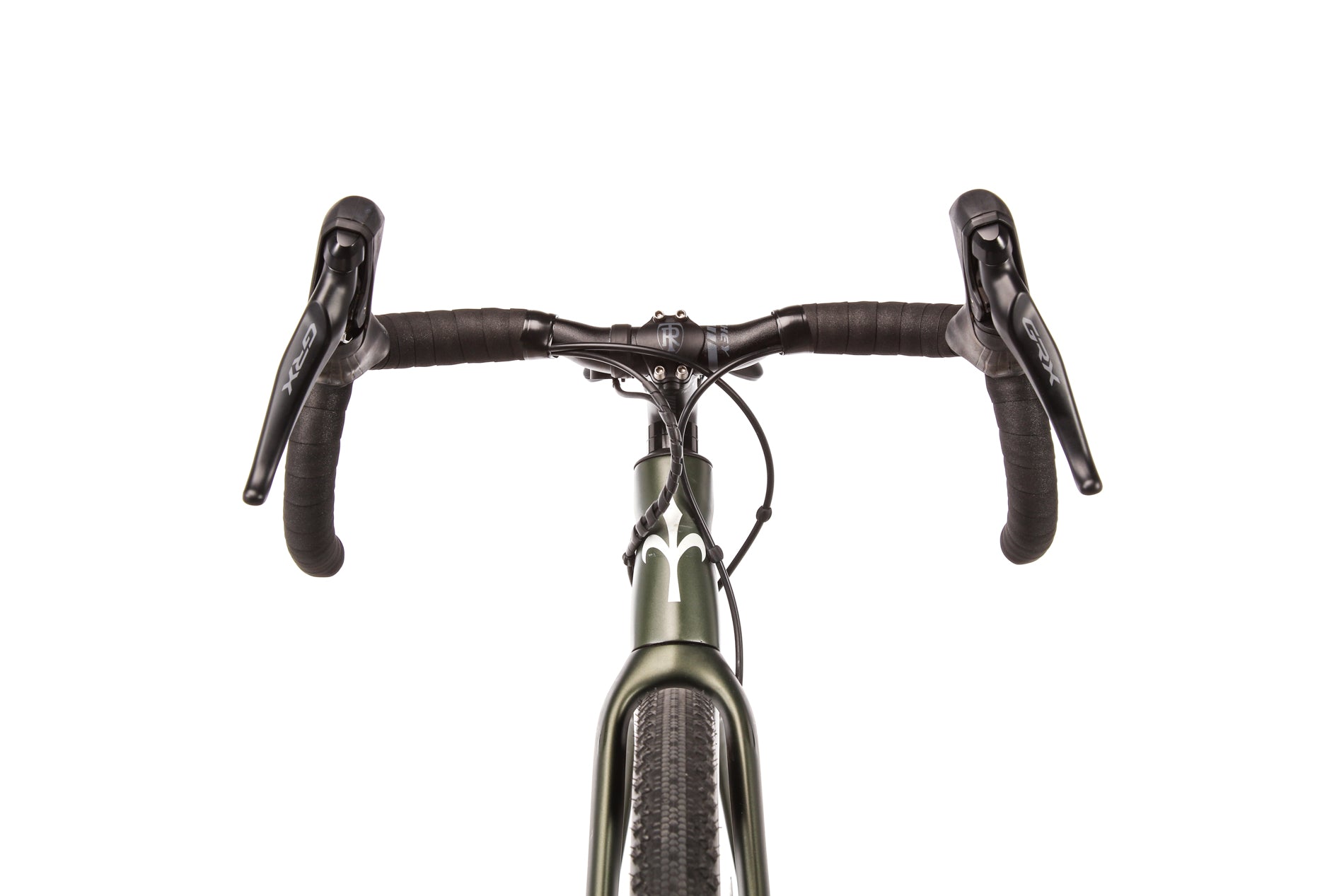

| Handlebar | Ritchey Comp Corralitos Gravel Alloy, 40cm |
| Headset | Wilier Triestina |
| Stem | Ritchey Alloy, 31.8mm x 70mm, 6° |
| Seatpost | Ritchey Alloy, 27.2mm |
| Saddle | Specialized Power Hollow w/ Cr-Mo Rails |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 10x135mm (Quick Release) |
| Wheelset | Wilier Triestina HY-NDR28AC Aluminum Tubeless Compatible, Front: Wilier Triestina / Rear: Mahle Hub-Drive ebikemotion X35 |
| Front Tire | Vittoria Terreno Dry Graphene 2.0, 700C x 38C |
| Rear Tire | Vittoria Terreno Dry Graphene 2.0, 700C x 38C |
| Tire Type | Tubeless |
| Tubeless Compatibility | Bike ships tubeless |
| Motor | Mahle Hub-Drive ebikemotion X35 |
| Torque | 40Nm |
| Wattage | 250w |
| Battery | Mahle |
| Top Speed | 20mph |
| Mileage | N/A |
| Charger Included | yes |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'2" - 5'5"
|
| A. Effective Top Tube | 529 mm |
| B. Seat Tube | 470 mm |
| C. Seat Tube Angle | 72.8° |
| D. Head Tube Angle | 70.5° |
| E. Head Tube | 125 mm |
| F. Stack | 556 mm |
| G. Reach | 373 mm |
| H. Standover Height | 778 mm |
| I. Saddle Height Range | N/A |
