Sorry, this Trek Madone 5.9 H2 56cm Bike - 2012 has been sold.

Try these similar items:

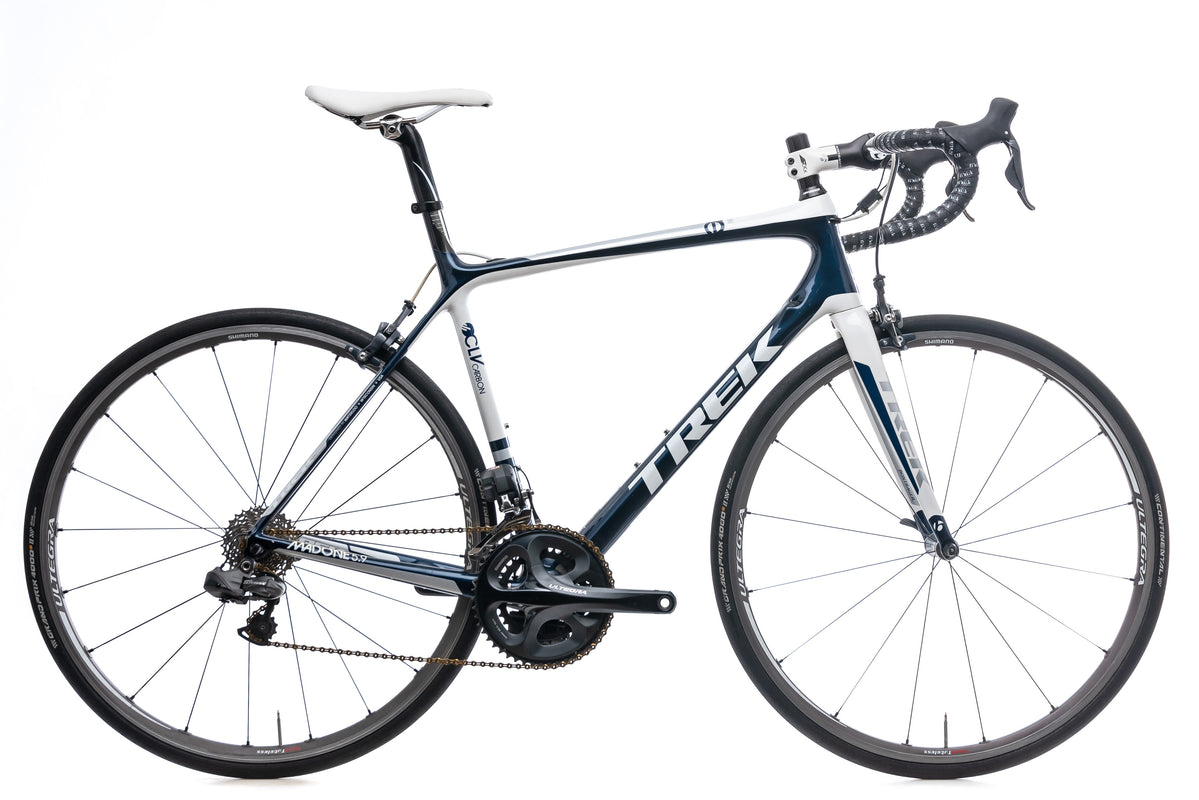

Trek Madone 5.9 H2 56cm Bike - 2012 drive side

Trek Madone 5.9 H2 56cm Bike - 2012 non-drive side

Trek Madone 5.9 H2 56cm Bike - 2012 sticker

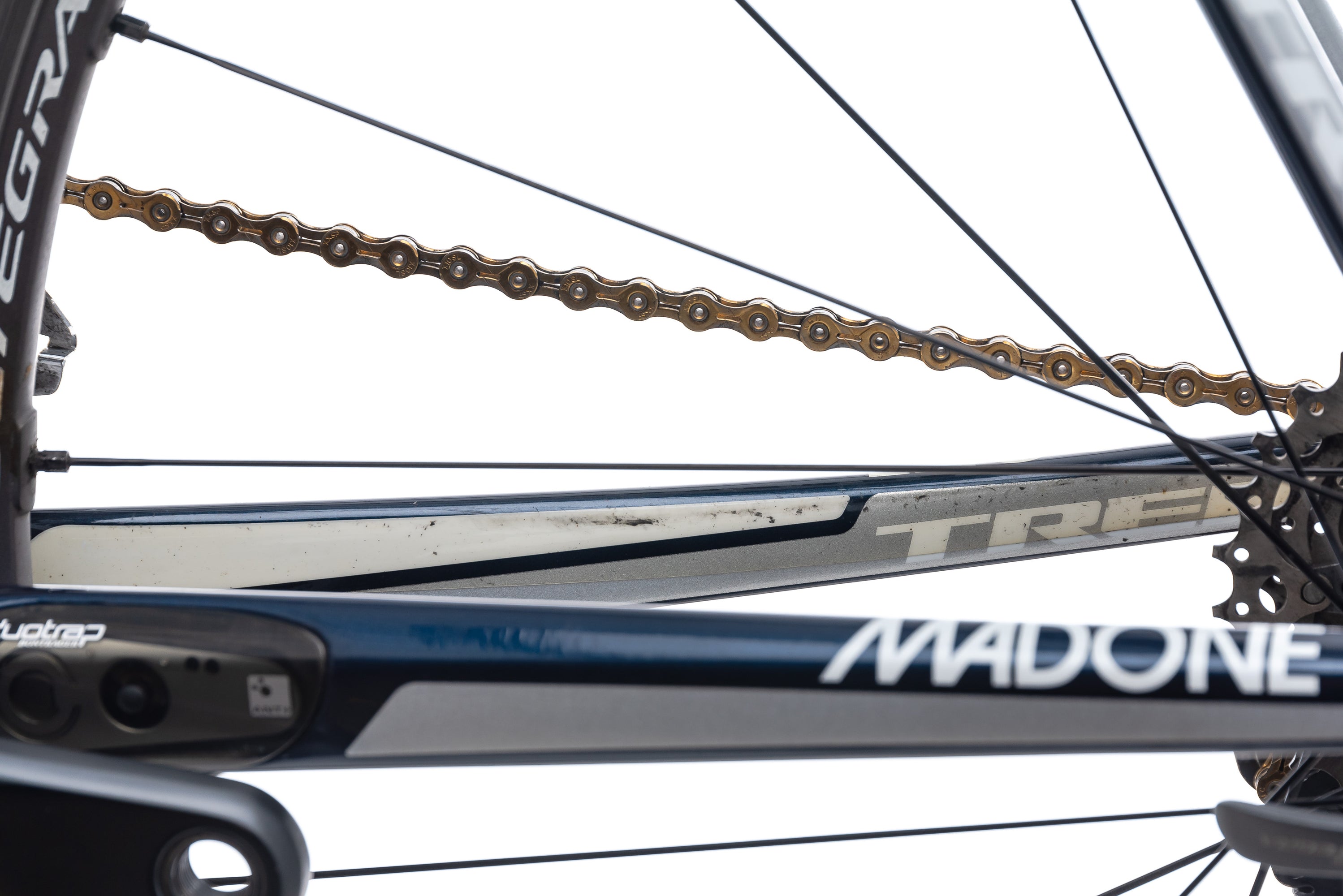

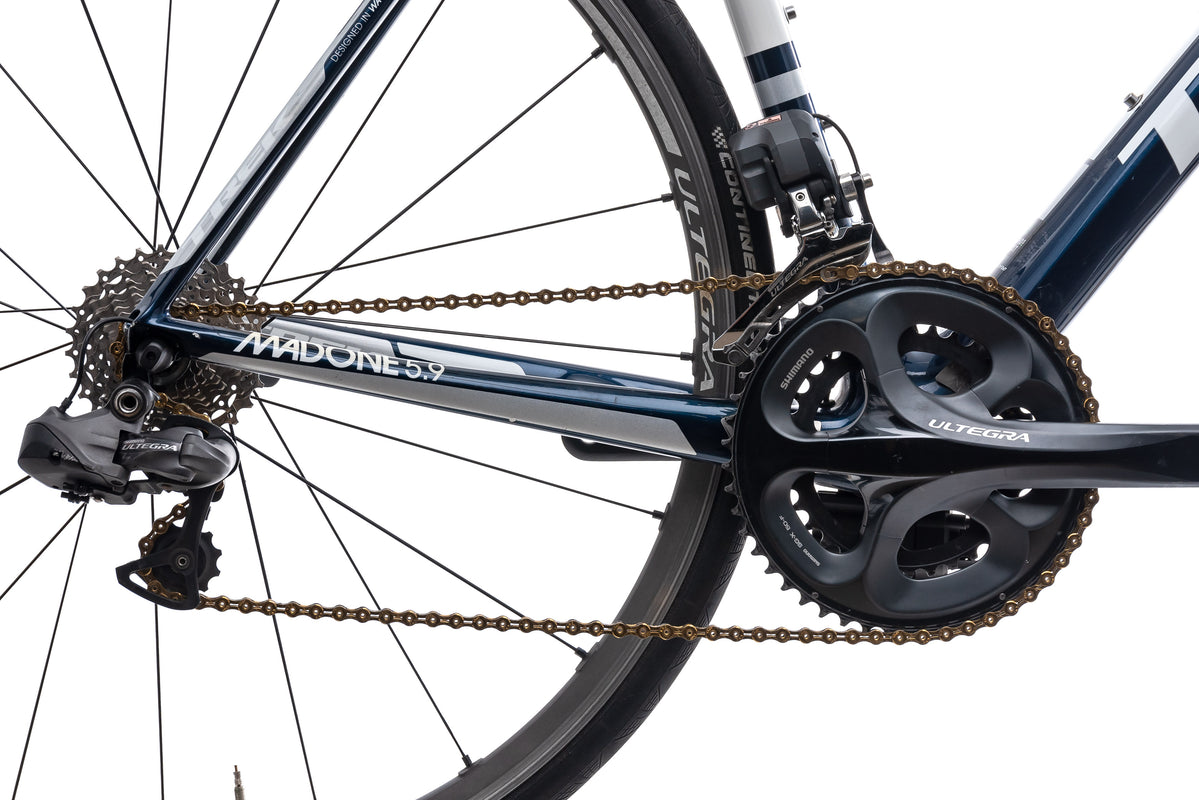

Trek Madone 5.9 H2 56cm Bike - 2012 drivetrain

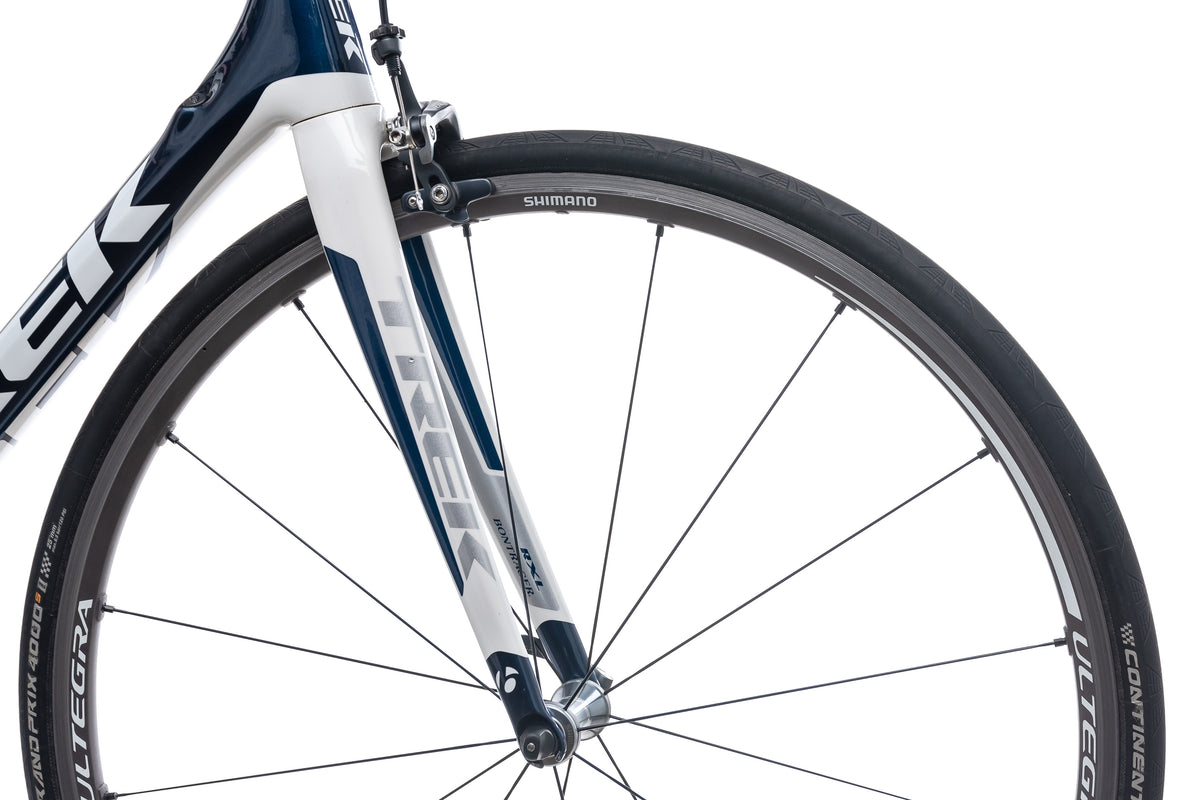

Trek Madone 5.9 H2 56cm Bike - 2012 front wheel

Trek Madone 5.9 H2 56cm Bike - 2012 cockpit

Trek Madone 5.9 H2 56cm Bike - 2012 crank

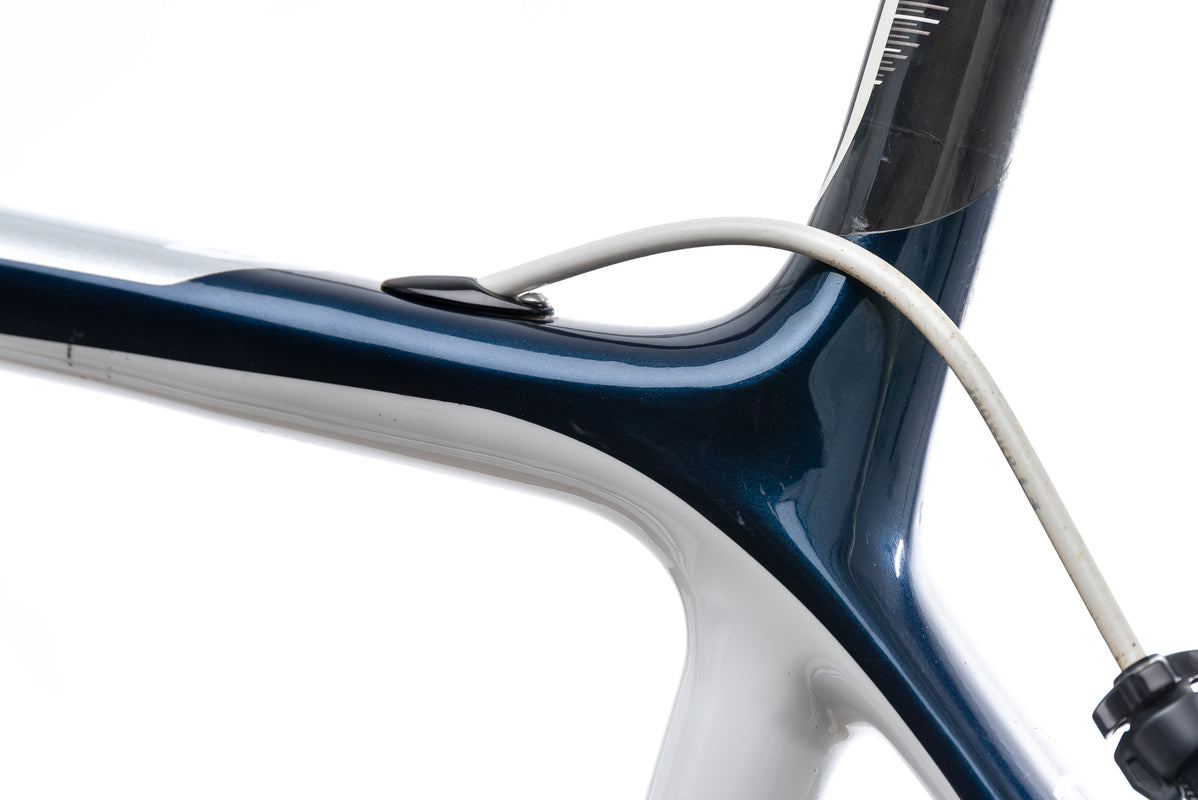

Trek Madone 5.9 H2 56cm Bike - 2012 detail 1

Trek Madone 5.9 H2 56cm Bike - 2012 detail 2

Trek Madone 5.9 H2 56cm Bike - 2012 detail 3

Trek Madone 5.9 H2 56cm Bike - 2012 drive side

Trek Madone 5.9 H2 56cm Bike - 2012 non-drive side

Trek Madone 5.9 H2 56cm Bike - 2012 sticker

Trek Madone 5.9 H2 56cm Bike - 2012 drivetrain

Trek Madone 5.9 H2 56cm Bike - 2012 front wheel

Trek Madone 5.9 H2 56cm Bike - 2012 cockpit

Trek Madone 5.9 H2 56cm Bike - 2012 crank

Trek Madone 5.9 H2 56cm Bike - 2012 detail 1

Trek Madone 5.9 H2 56cm Bike - 2012 detail 2

Trek Madone 5.9 H2 56cm Bike - 2012 detail 3

Trek Madone 5.9 H2 56cm Bike - 2012

Item #BRD13035

Recommended Rider Height: N/A Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Specifications

Details

Year	2012
Brand	Trek
Model	Madone 5.9 H2
Size	56cm
Frame Material	Carbon Fiber
Weight	16 lbs 2 oz

Build

Fork	Bontrager Race X Lite, Carbon Fiber
Brakes	Shimano Ultegra 6700, Caliper - Side Pull
Shifters	Shimano Ultegra 6700, Electronic
Front Derailleur	Shimano Ultegra Di2 6770
Rear Derailleur	Shimano Ultegra Di2 6770
Crankset	Shimano Ultegra 6700, 50/34t, 172.5 mm
Cassette	Shimano Ultegra 6700, 10spd, 11-28t
Chain	KMC
Handlebar	Bontrager RXL carbon, 42 cm
Headset	FSA integrated
Stem	Bontrager XXX carbon 31.8 mm x 100mm, 7°
Seatpost	Bontrager Ride Tuned carbon, Frame Specific
Saddle	Bontrager Affinity RL alloy
Wheelset	Shimano Ultegra WH 6700, Shimano
Front Tire	Continental Grand Prix 4000s II, 700C x 25C
Rear Tire	Continental Grand Prix 4000s II, 700C x 25C
Tire Type	Tubeless
Tubeless Compatibility	Yes (rim strips and valve stem not included)
Charger Included	Yes

Geometry

Recommended Rider Height	N/A Sizing Guide
a. Effective Top Tube	560 mm
b. Seat Tube	533 mm
c. Seat Tube Angle	73.3°
d. Head Tube Angle	73.5°
e. Head Tube	170 mm
f. Stack	577 mm
g. Reach	387 mm
h. Standover Height	767 mm
i. Saddle Height Range	N/A

Trek Madone 5.9 H2 56cm Bike - 2012

Item #BRD13035

Recommended Rider Height: N/A Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING & ASSEMBLY

OUR GUARANTEE

RETURNS

Sizing Guide

The chart below provides a general suggested height of range for Road Bike sizes and is not exact. Sizing may vary across brands.
+ Read more

The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.

Road Bike Sizing Guide
Measured Frame Size	Frame Size	Min Rider Height	Max Rider Height
48cm	XS	4' 11"	5' 2"
50 cm	Small	5' 2"	5' 5"
52 cm	Small/M	5' 5"	5' 7"
54 cm	Medium	5' 7"	5' 10"
56 cm	Large	5' 10"	6' 1"
58 cm	Large/XL	6' 1"	6' 3"
60 cm	XL	6' 3"	6' 5"

Contact our Ride Guides if you have any questions about the fit of your new bike.

866.401.9636 - rideguides@theproscloset.com

Condition Rating Guide

Our experts inspect each bike and rate its components on a scale of 1-10. The condition chart’s Overall Rating is the average of those individual components, helping you tell how much overall wear a bike has. We don’t sell anything that scores below a 7. Along with the condition chart, look closely at the bike’s detail images, which highlight any wear or damage.

10/10 Like-New:

These bicycles are good as new, often built right out of the box from the manufacturer. Original stickers, parts, and accessories are included. The frame and wheels might have minor blemishes or scuffs from transportation or showroom display. Drivetrain, levers, cockpit, and suspension (where applicable) are in new condition.

9/10 Excellent

While these bikes have been ridden, they remain in excellent condition. Frame and wheels show slight signs of wear with only minor scuffs and scratches — no paint chipping. The drivetrain shows light wear but the derailleurs, shifters, and levers have not sustained any damage. The cockpit has light wear, primarily on the grips or handlebar tape. Bikes with suspension components have minor scuffs and scratches on the fork legs and shock, and the stanchions are immaculate.

8/10 Very good

To earn a rating in this range, bicycles have sustained some wear but no significant damage. The frame will have slight paint loss, scratches, and/or scuffs. Wheels will also have minor cosmetic damage on rims, spokes, and/or hubs. The drivetrain will have wear from normal usage and there will be slight scratches and scuffs on derailleurs, shifters, and levers. Cockpit, saddle, and suspension lowers (where applicable) will also have cosmetic scuffs and scratches.

7/10 Good

Bikes in this range are well-loved and have moderate wear. While the frame and wheels will have cosmetic scuffs, scratches, and/or paint loss, they will not be structurally damaged. Aluminum, steel, and titanium frames may have minor dents. Carbon frames may have been previously damaged, but have been professionally repaired and are structurally sound. Aluminum rims may have minor dents. The drivetrain has moderate to heavy wear. Handlebars, stem, derailleurs, and levers show moderate scuffing or scratches, and the saddle might have slight tears. If the bike has suspension, those components will have scratches and scuffs. The stanchions may have small scratches.

6-1/10 Average

We do not sell bikes that we rate lower than 6 on the condition scale. For example, this includes bikes with major dents, carbon fiber damage, excessive drivetrain wear, and/or moderate to significant suspension component wear.
