T-Lab X3 Disc Electronic Medium Frameset
isn't available.
You'll be the first to know next time this or similar products are available.

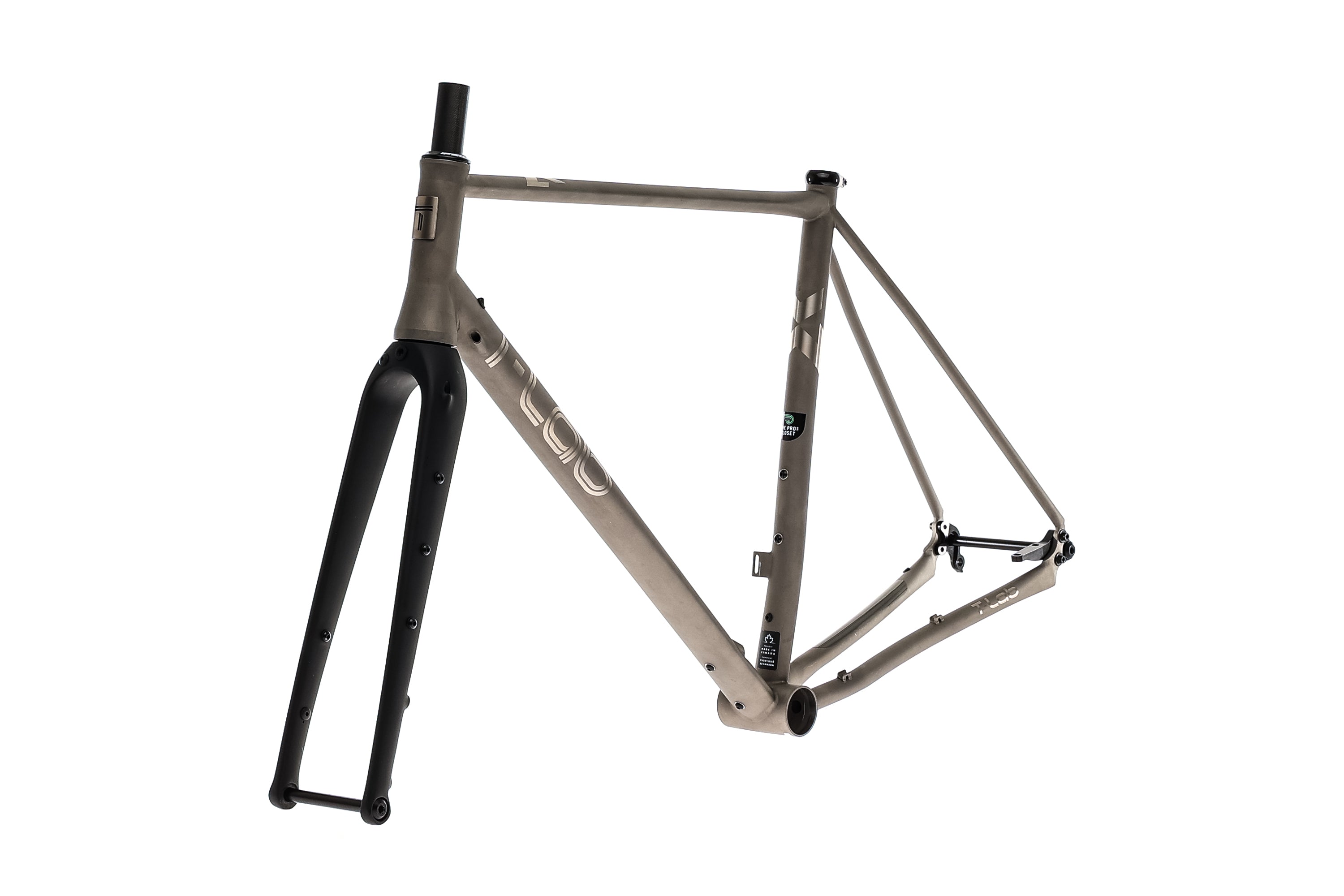

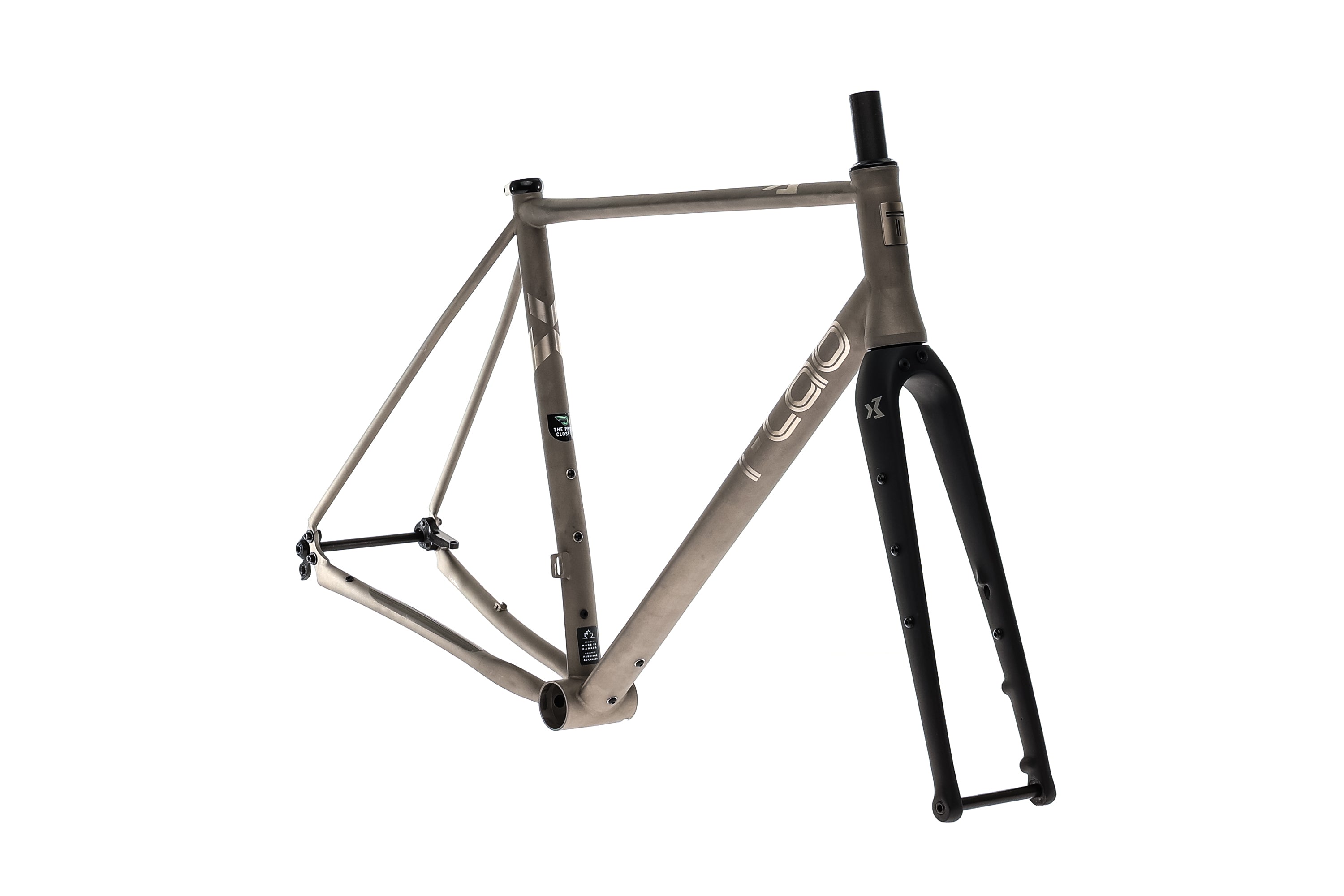

T-Lab X3 Disc Electronic Medium Frameset
Item #FGR10256
Condition:
Pre-Owned
Fit Range: 5’-9” - 6’-0”
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
About This Item
- Includes: Frame, fork, headset, thru axles, and rear derailleur hanger (installed)
- Frameset is in excellent condition
- Frameset has some light scuffs
- Frame is for electronic shifting only
Specifications
Details
| Brand | T-Lab |
| Model | X3 Disc |
| Size | Medium |
| Frame Material | Titanium |
| Fork | T-Lab X3 Disc |
| Fork Material | Titanium |
| Steerer Tube | 230 mm, Tapered |
| Brake Type | Disc Brakes - Hydraulic |
| Front Derailleur Mount | Braze-On |
| Headset | FSA Integrated (top cap not included) |
| Bottom Bracket | Not Included, BB386 |
| Wheel Size | 700C/650B |
| Seatpost Diameter | 27.2mm |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Weight | 4 lbs 10 oz |
| Drivetrain Compatibility | Electronic |
Geometry
| Fit Range |
5’-9” - 6’-0”
|
| A. Effective Top Tube | 562 mm (C-C) |
| B. Seat Tube | 530 mm |
| C. Seat Tube Angle | 73.5° |
| D. Head Tube Angle | 71.5° |
| E. Head Tube | 160 mm |
| F. Stack | 585 mm |
| G. Reach | 389 mm |
| H. Standover Height | 804 mm |
| I. Saddle Height Range | N/A |
