Surly Krampus 29" British Racing Green Medium Frameset - 2022
isn't available.
You'll be the first to know next time this or similar products are available.

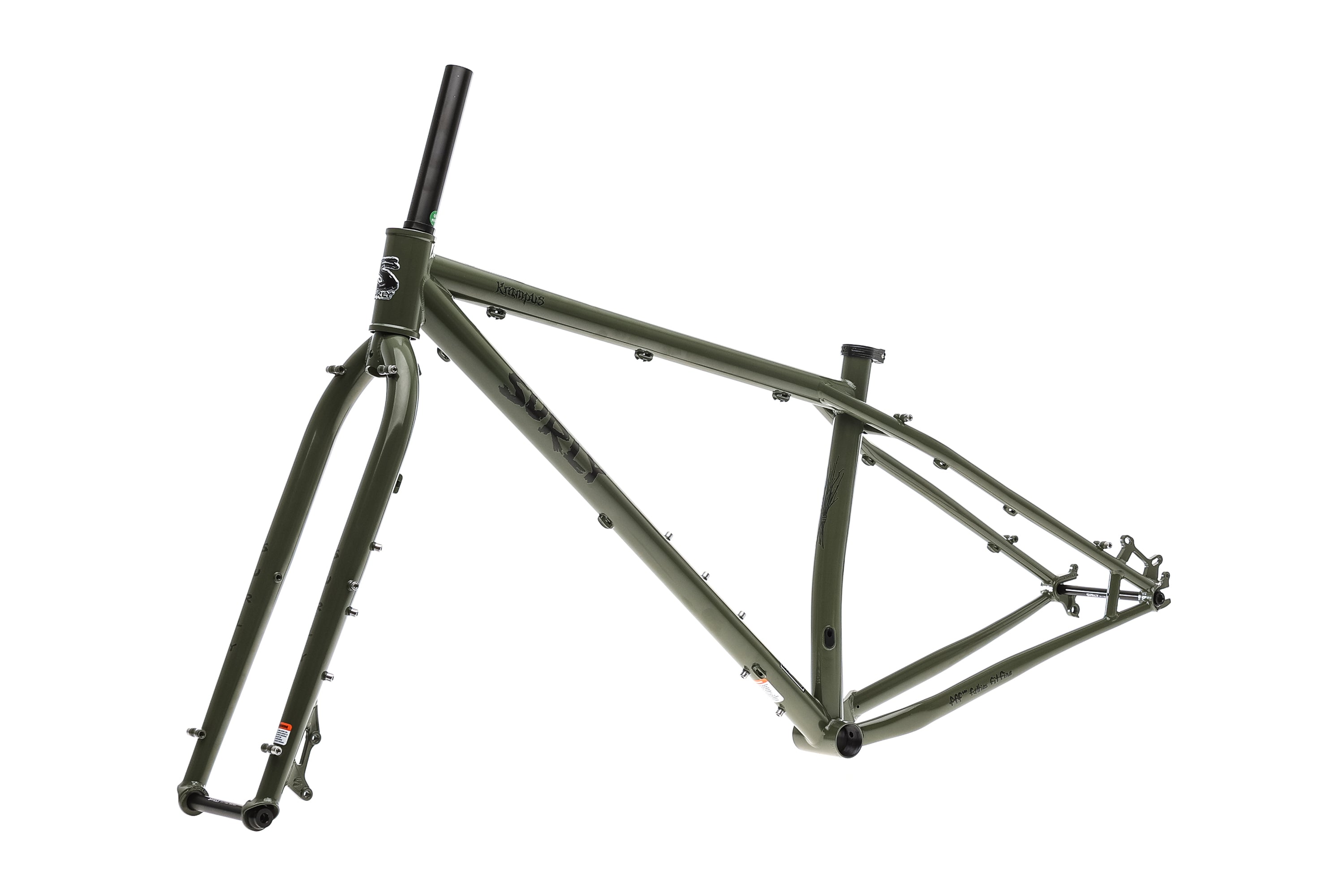

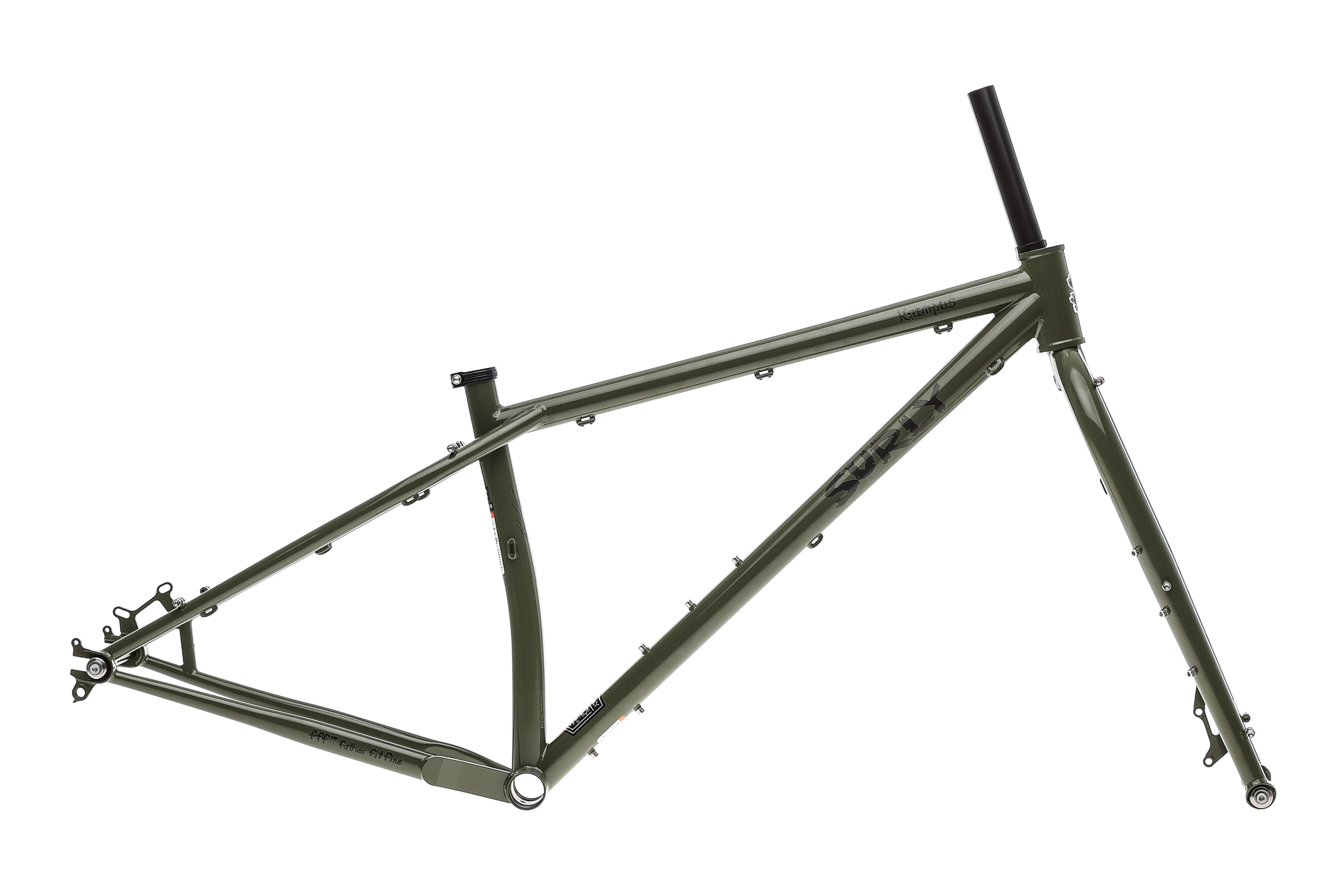

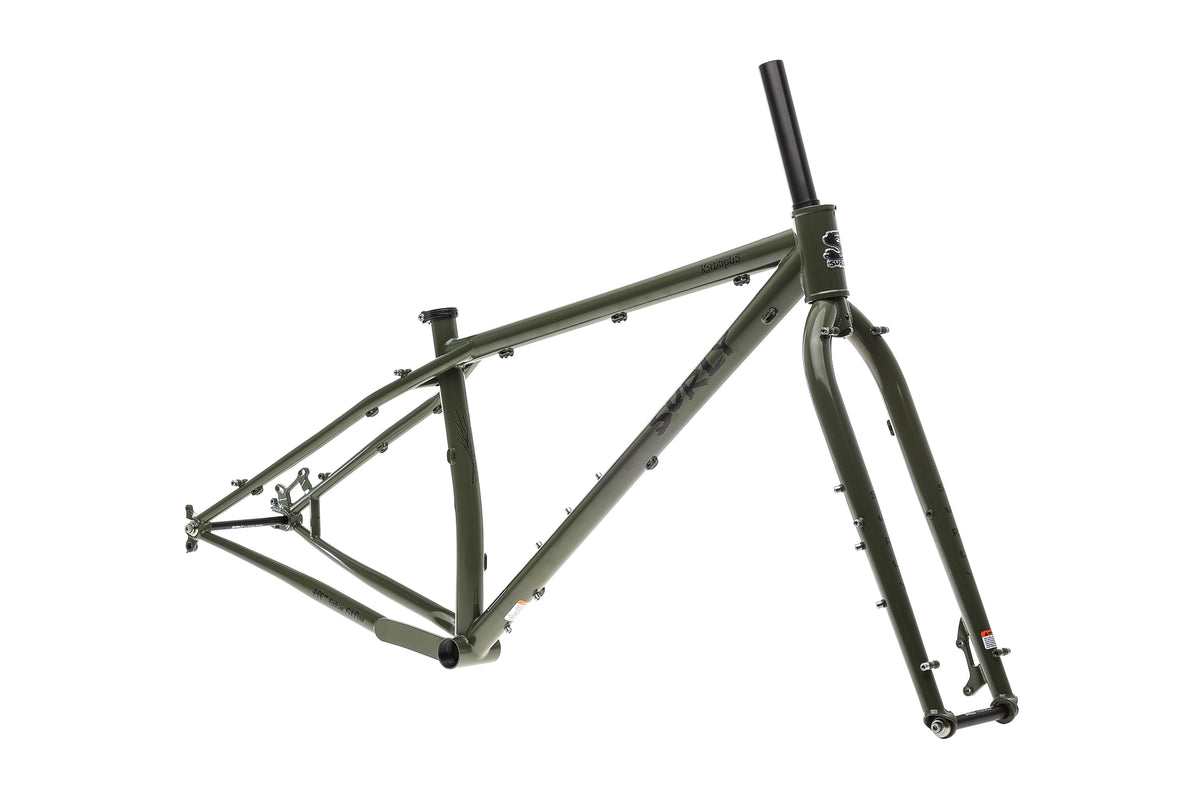

Surly Krampus 29" British Racing Green Medium Frameset - 2022
Item #FMT11611
Condition:
Pre-Owned
Fit Range: 5'7" - 6'0"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Breaking the Mold with a 29er Bike
Why We Love It
Krampus is kind of like the opposite of a mullet: long in the front and short in the rear. With a long toptube and compact chainstays, it takes trail-shredding abilities to the next level. A mullet may be business in the front, party in the back but Krampus makes partying its business.
About This Item
- Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
- Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
- Clearance for 29" x 3" tires
- 100% Surly 4130 CroMoly steel frame and fork; double-butted main triangle and 44mm headtube
- New tube-set uses the same trumpet tubes found on 2017 Karate Monkey frame
- Gnot-Boost adjustable rear dropouts
- Internal dropper seatpost routing
- 30.9mm seat tube
- Designed to fit up to 29 x 3.0” tires
- Frame + Fork Weight: 9lbs 4 oz
- Stock Headset Upper (S.H.I.S): ZS44/28.6
- Stock Headset Lower (S.H.I.S): EC44/30
- Front Derailleur (Clamp): High direct mount top-pull (Ø34.9mm), 26mm offset adapter (not included) for 142 or 135mm rear hub spacing, 29mm offset adapter (not included) for 148mm rear hub spacing
- Max Chainring (CL) : 1x (Mtn): 28T, 1x (Boost): 30T, 2x (Boost): 24/36T
- Bottom Bracket: 73mm threaded (1.37" x 24TPI)
Master Mechanic’s Notes

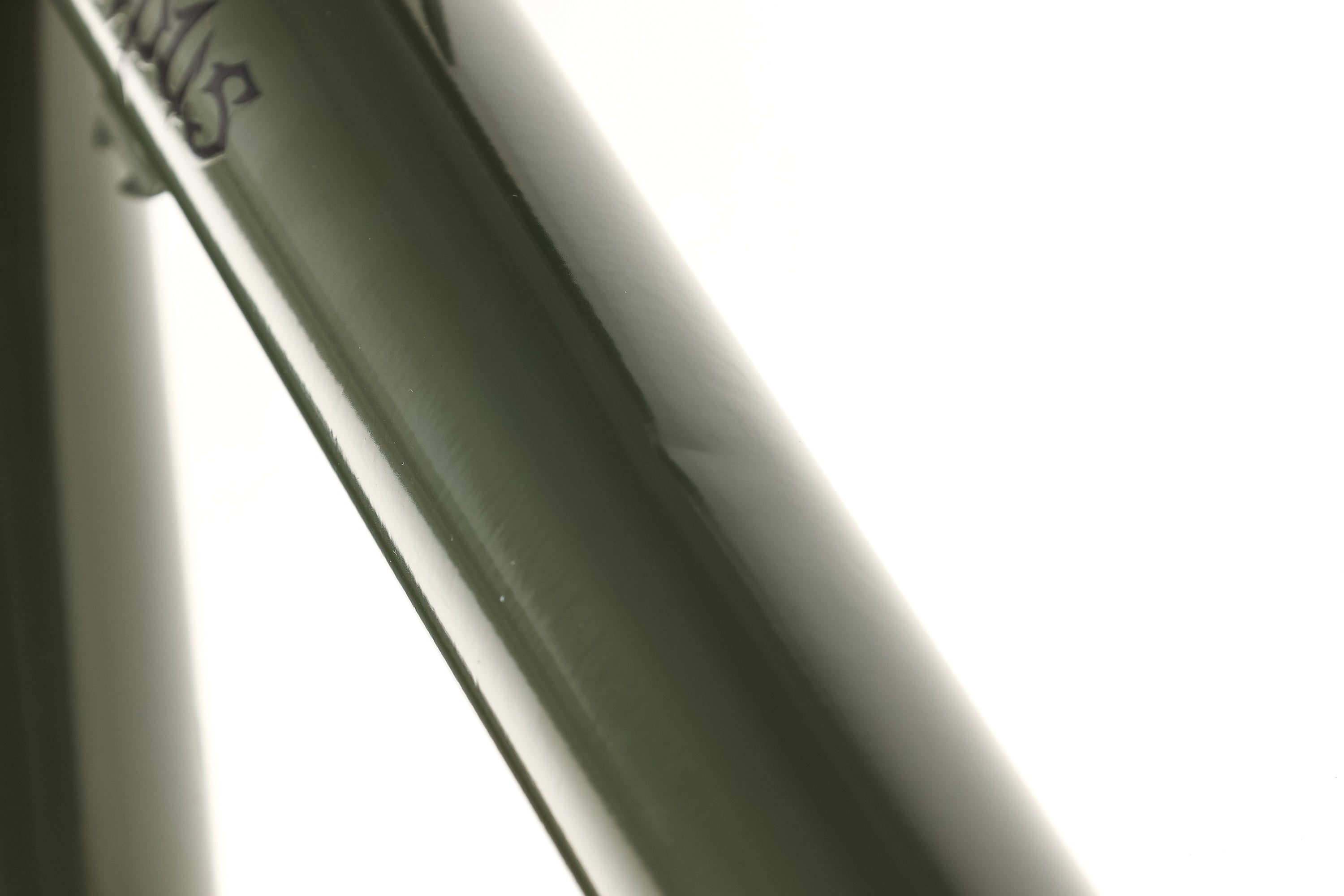

- Showroom model: Frameset may have blemishes or marks from display, otherwise new.

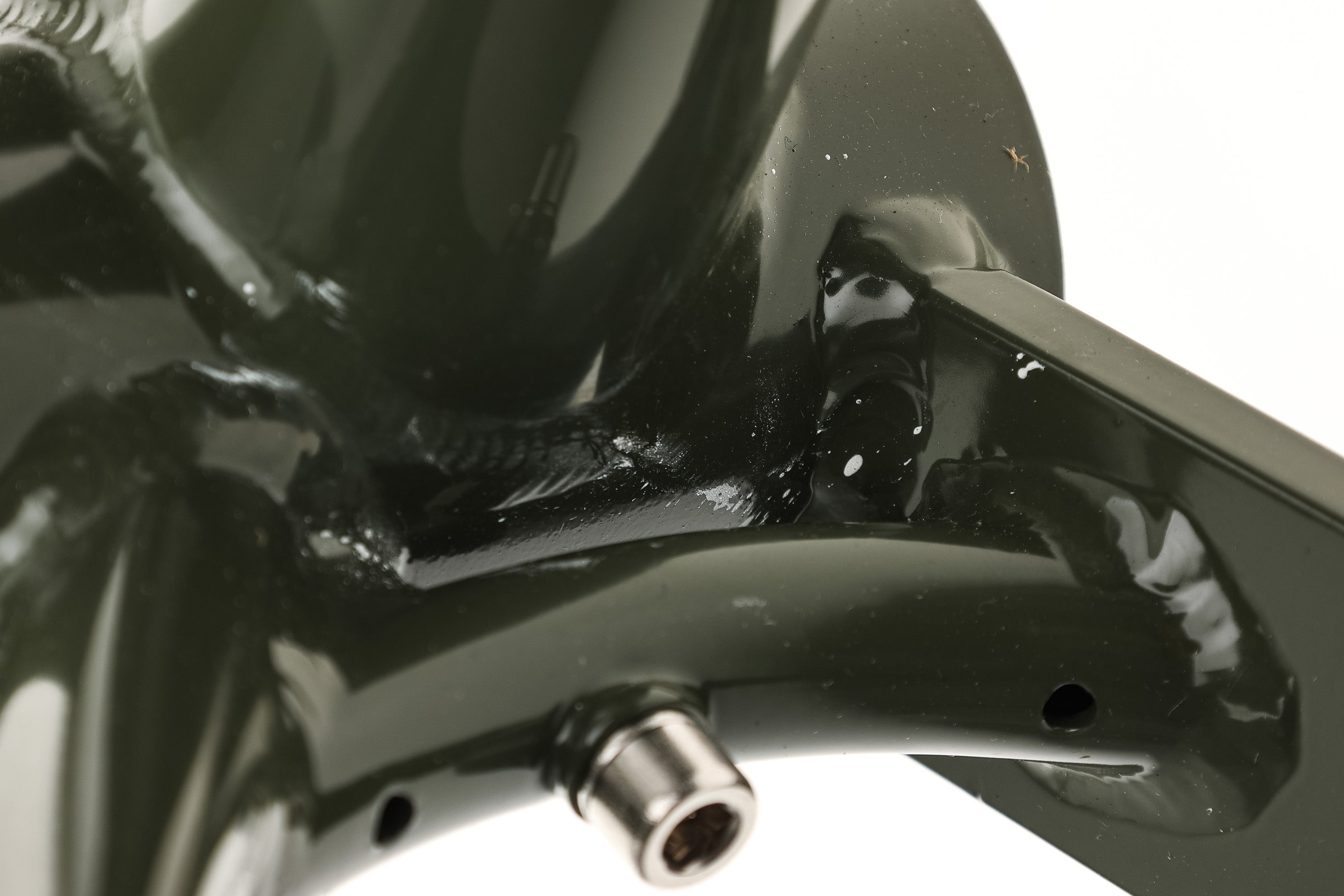

- Blemishes around bottom bracket area.
Specifications
Details
| Original MSRP | $999.00 |
| Brand | Surly |
| Model | Krampus 29" |
| Size | Medium |
| Frame Material | Steel |
| Fork | Surly Krampus |
| Fork Material | Steel |
| Steerer Tube | 258mm, 1-1/8 in |
| Brake Type | Disc Brakes - Hydraulic |
| Bottom Bracket | Not Included, English |
| Wheel Size | 29" |
| Seatpost Diameter | 30.9mm |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 15x110mm (Thru-Axle) |
| Rear Axle Spacing | 12x148mm Boost |
| Weight | 10 lbs 2 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Geometry
| Fit Range |
5'7" - 6'0"
|
| A. Effective Top Tube | 610 mm |
| B. Seat Tube | 419 mm |
| C. Seat Tube Angle | 73° |
| D. Head Tube Angle | 69° |
| E. Head Tube | 100 mm |
| F. Stack | 602 mm |
| G. Reach | 426 mm |
| H. Standover Height | 797 mm |
| I. Saddle Height Range | N/A |
