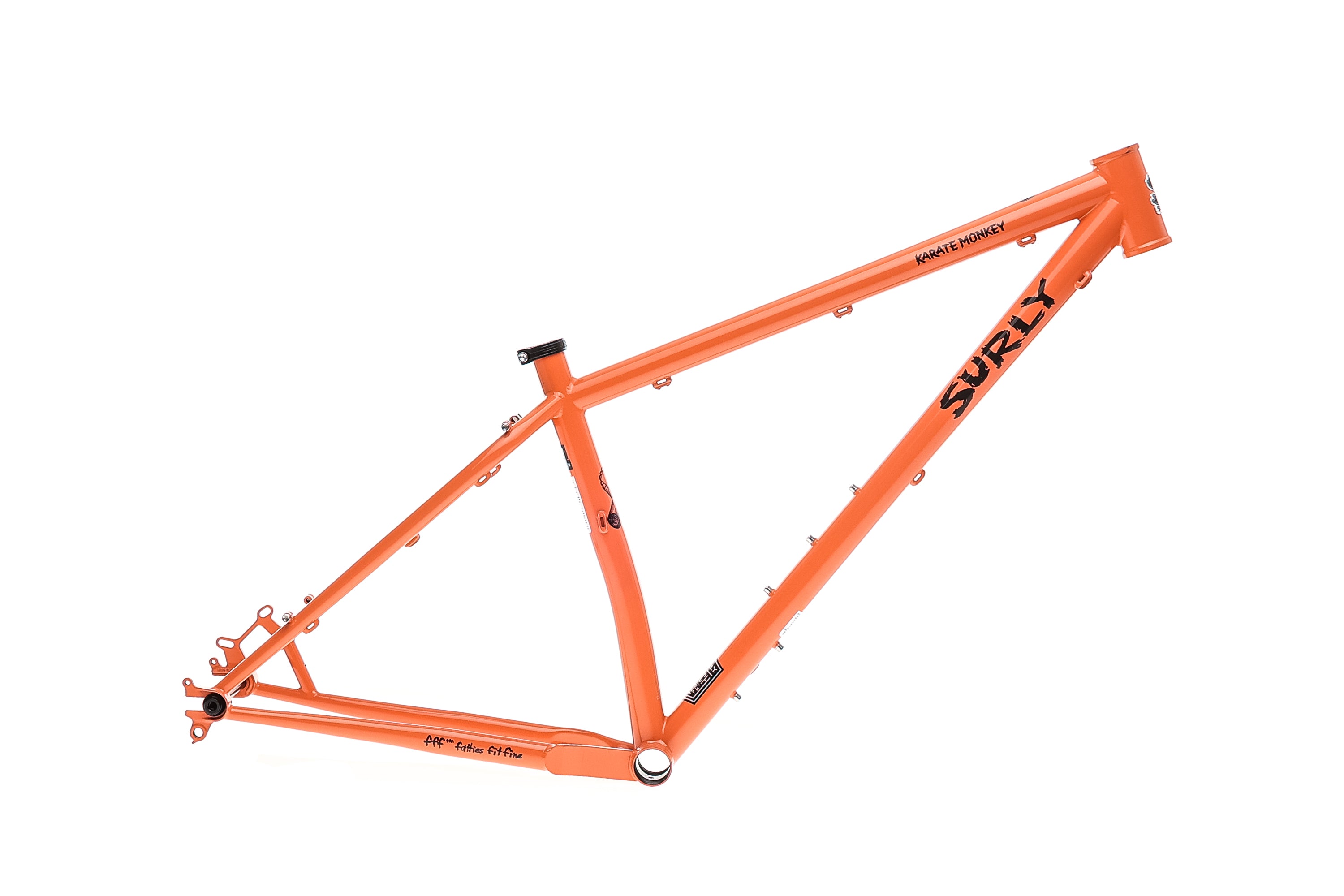

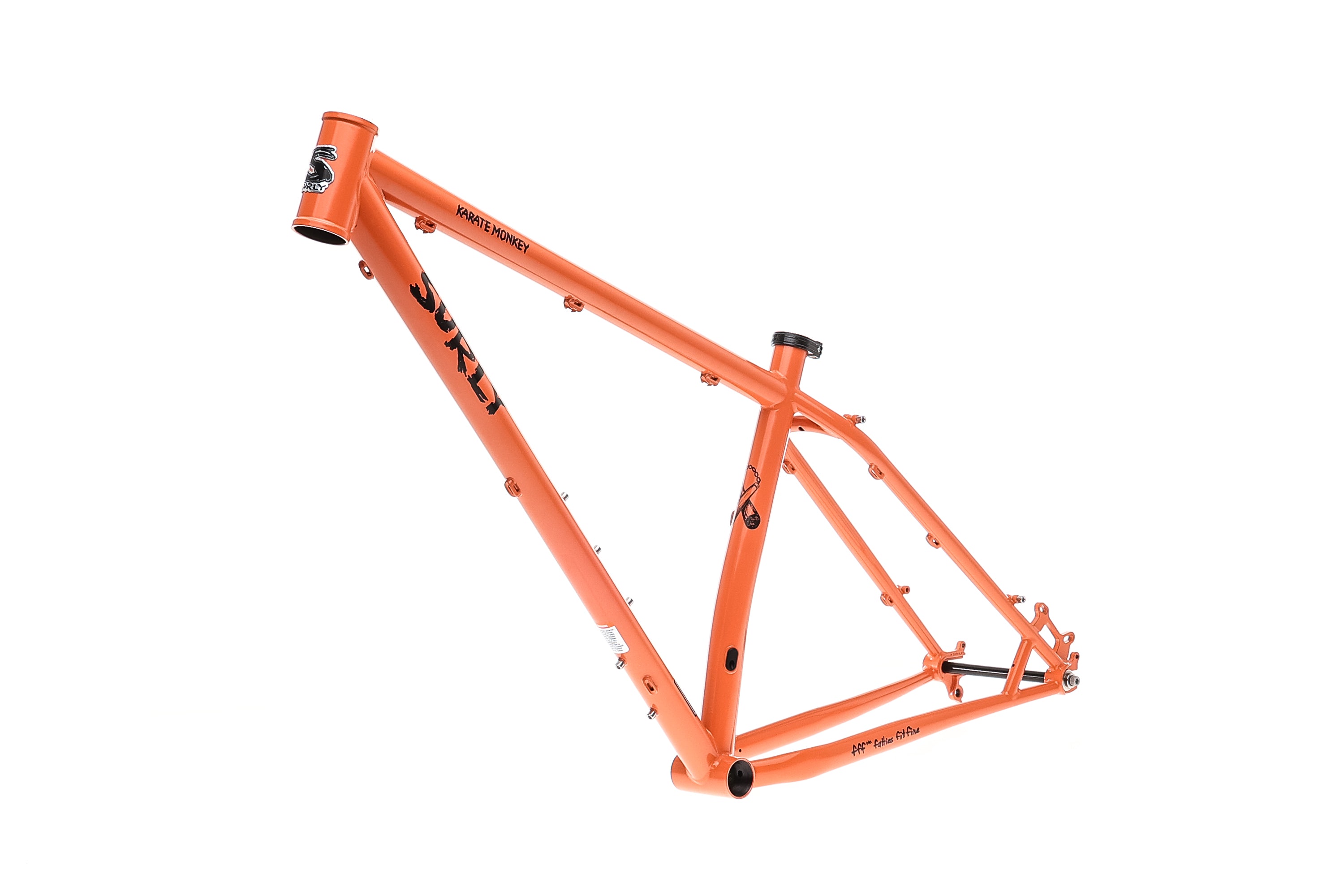

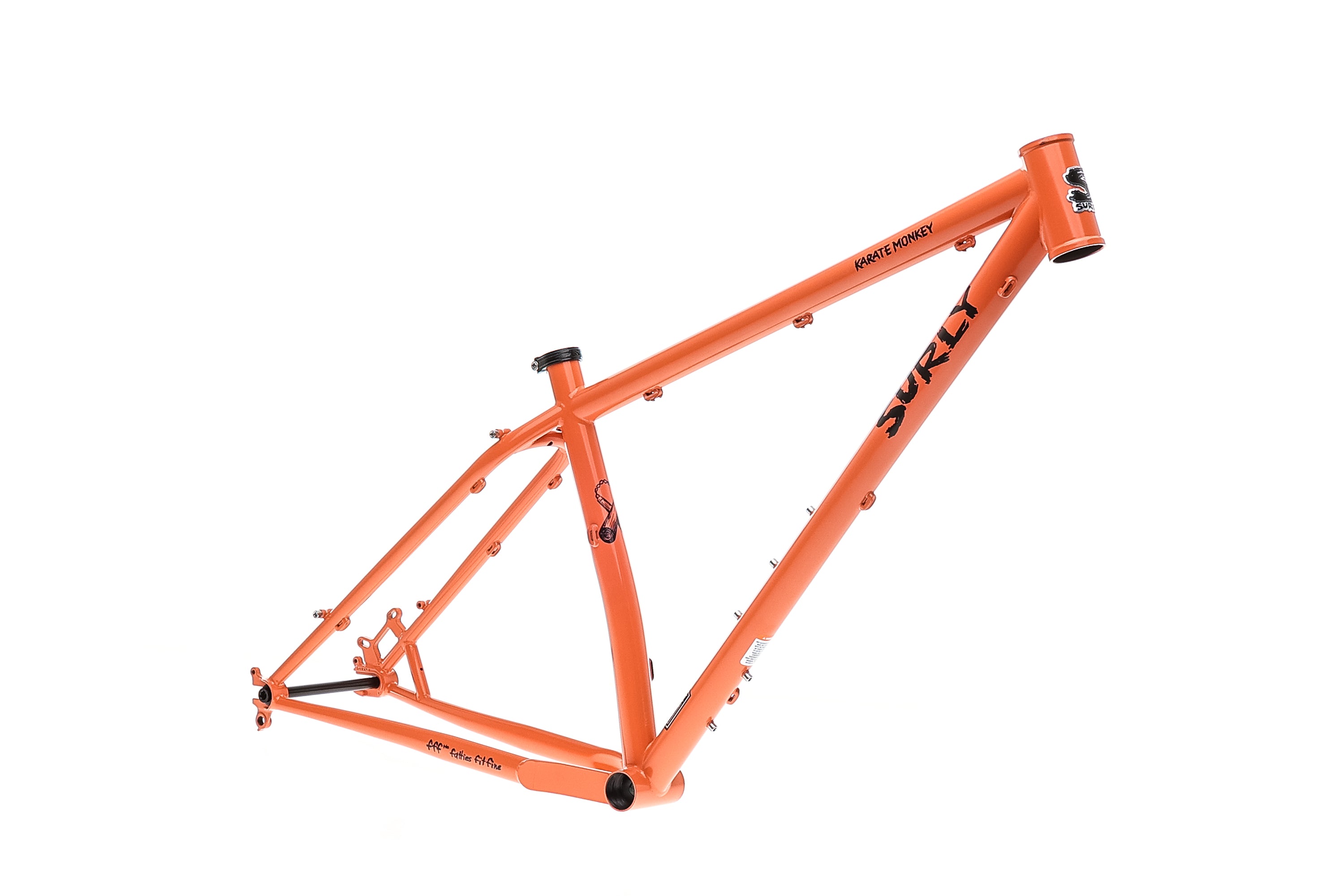

Surly Karate Monkey Medium Frame - Peach Salmon Sundae
isn't available.
You'll be the first to know next time this or similar products are available.
Surly Karate Monkey Medium Frame - Peach Salmon Sundae
Item #FMT11608
Condition:
Pre-Owned
Fit Range: 5'6" - 5'10"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Precision & Fun in a Steel Hardtail
Why We Love It
/n
Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.
About This Item
- Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
- Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
- Clearance for 29” x 2.5” or 27.5” x 3” tires
- 100% Surly Chromoly steel frame and fork; double-butted main triangle and 44mm headtube
- The tubeset uses the same trumpet tubes found on Instigator 2.0 frame
- Adjustable rear dropouts with 145mm Gnot-Boost spacing. Works with 142, 148 12mm thru, as well as 135mm w/ 10/12 washer
- Internal dropper seatpost routing with 30.9mm seat tube ID
- Stock Headset Upper (S.H.I.S): ZS44/28.6
- Stock Headset Lower (S.H.I.S): EC44/30
- Bottom Bracket: 73mm threaded (1.37" x 24TPI)
- Max Chainring (CL): 1x (Mtn): 28T, 2x (Mtn): 24/34T, 1x (Boost): 32T, 2x (Boost): 24/36T
- Front Derailleur (Clamp): High direct mount top-pull (Ø34.9mm), 26mm offset adapter (not included) for 142 or 135mm rear hub spacing, 29mm offset adapter (not included) for 148mm rear hub spacing
Master Mechanic’s Notes
- Showroom model: Frame may have blemishes or marks from display, otherwise new.

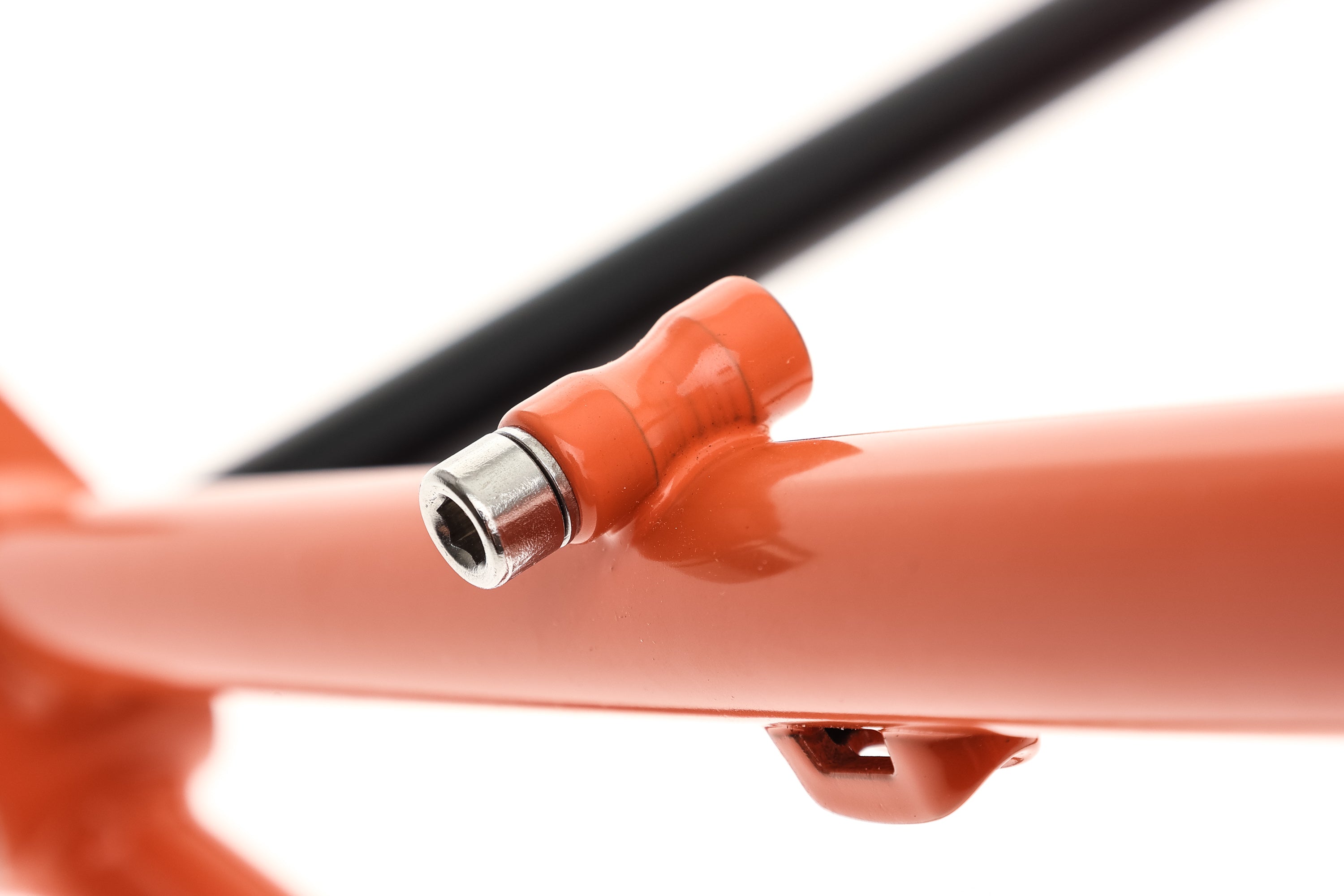

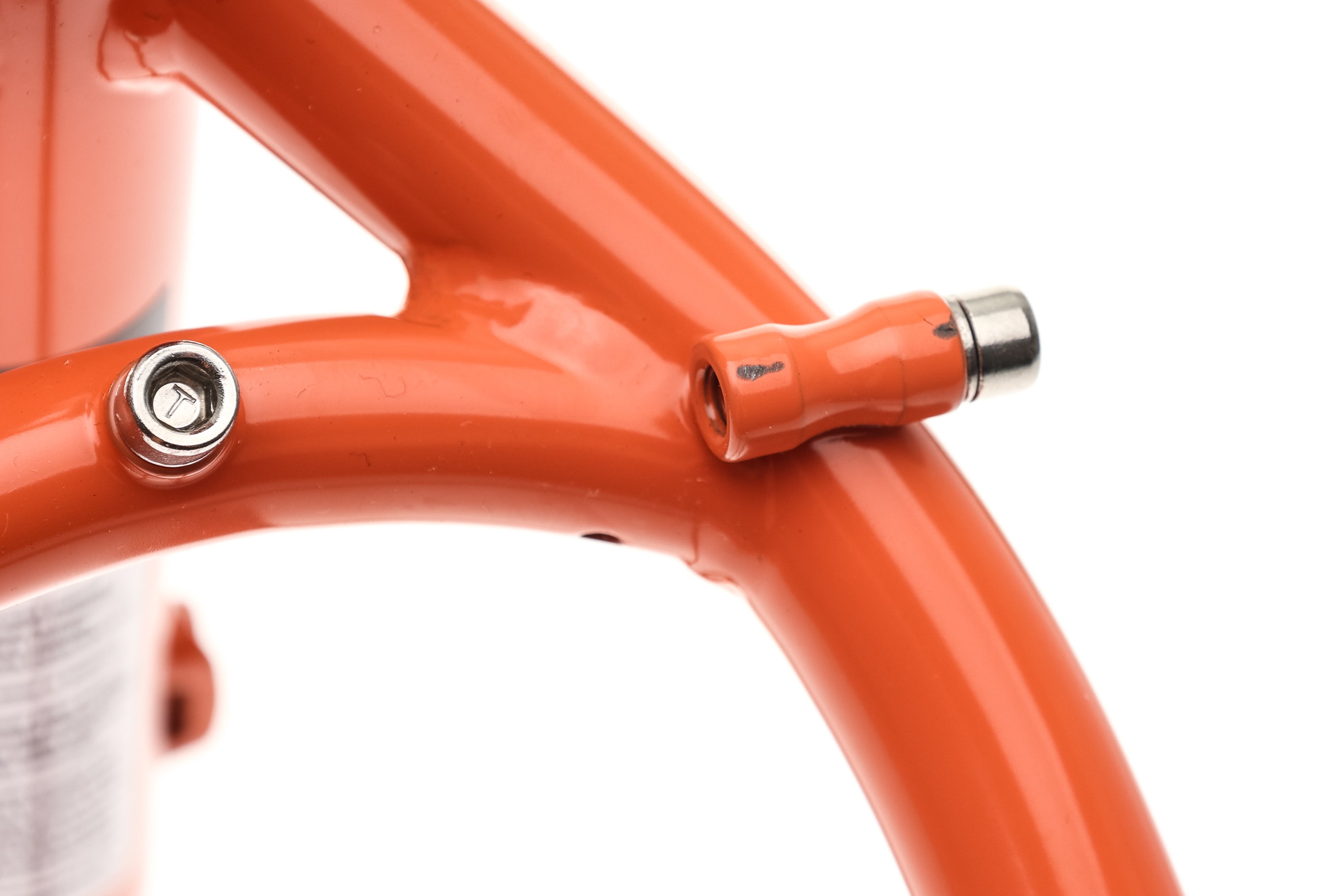

- Blemishes appear on rear rack mounts, seatstay bridge, headtube edges, and disc brake mount.
Specifications
Details
| Brand | Surly |
| Model | Karate Monkey |
| Size | Medium |
| Frame Material | Steel / Steel |
| Steerer Tube | 1-1/8 in |
| Rear Shock Travel | N/A |
| Brake Type | Disc Brakes - Hydraulic |
| Bottom Bracket | Not Included, English |
| Wheel Size | 29"/27.5" |
| Seatpost Diameter | 30.9mm |
| Seatpost Clamp | Yes |
| Rear Axle Spacing | 12x142mm |
| Weight | 6 lbs 4 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Build
| Rear Shock Travel | N/A |
| Brakes | Disc Brakes - Hydraulic |
| Shifters | Mechanical/Electronic |
| Seatpost | 30.9mm |
| Rear Axle Spacing | 12x142mm |
Geometry
| Fit Range |
5'6" - 5'10"
|
| A. Effective Top Tube | 615 mm |
| B. Seat Tube | 419 mm |
| C. Seat Tube Angle | 71.5° |
| D. Head Tube Angle | 67.5° |
| E. Head Tube | 100 mm |
| F. Stack | 608 mm |
| G. Reach | 412 mm |
| H. Standover Height | 797 mm |
| I. Saddle Height Range | N/A |
