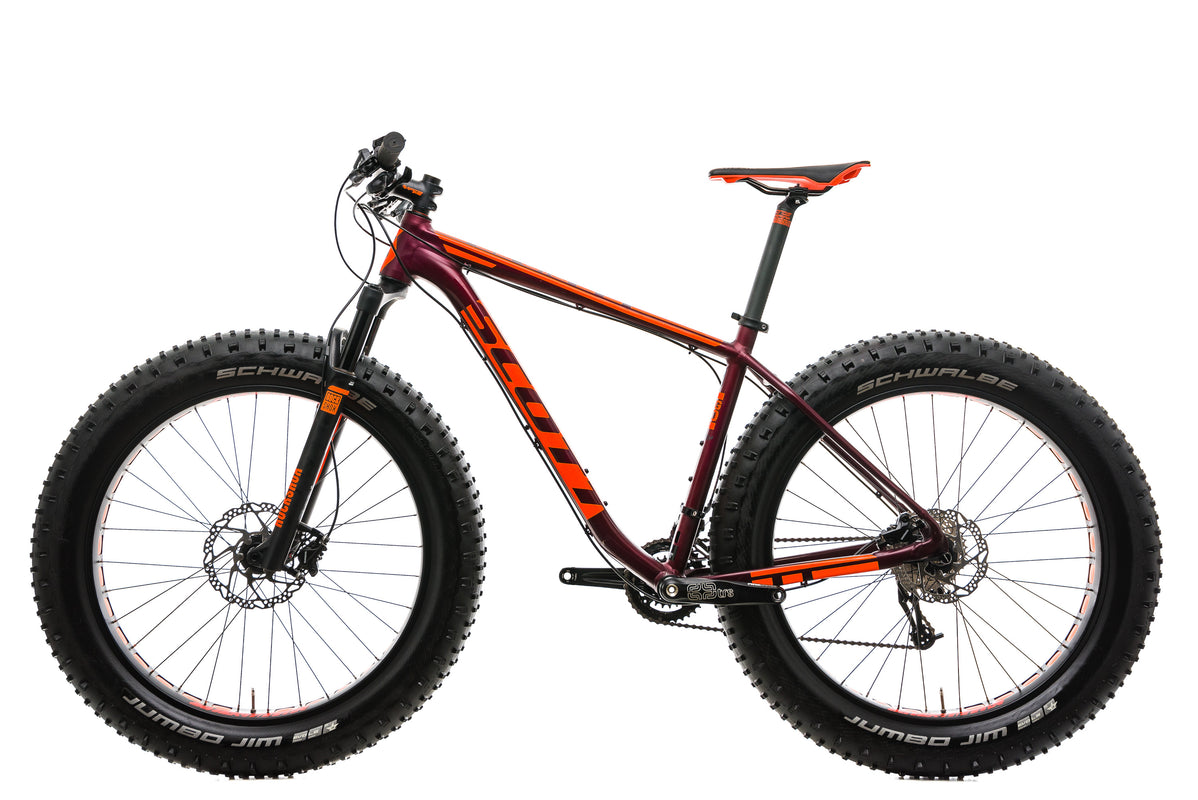

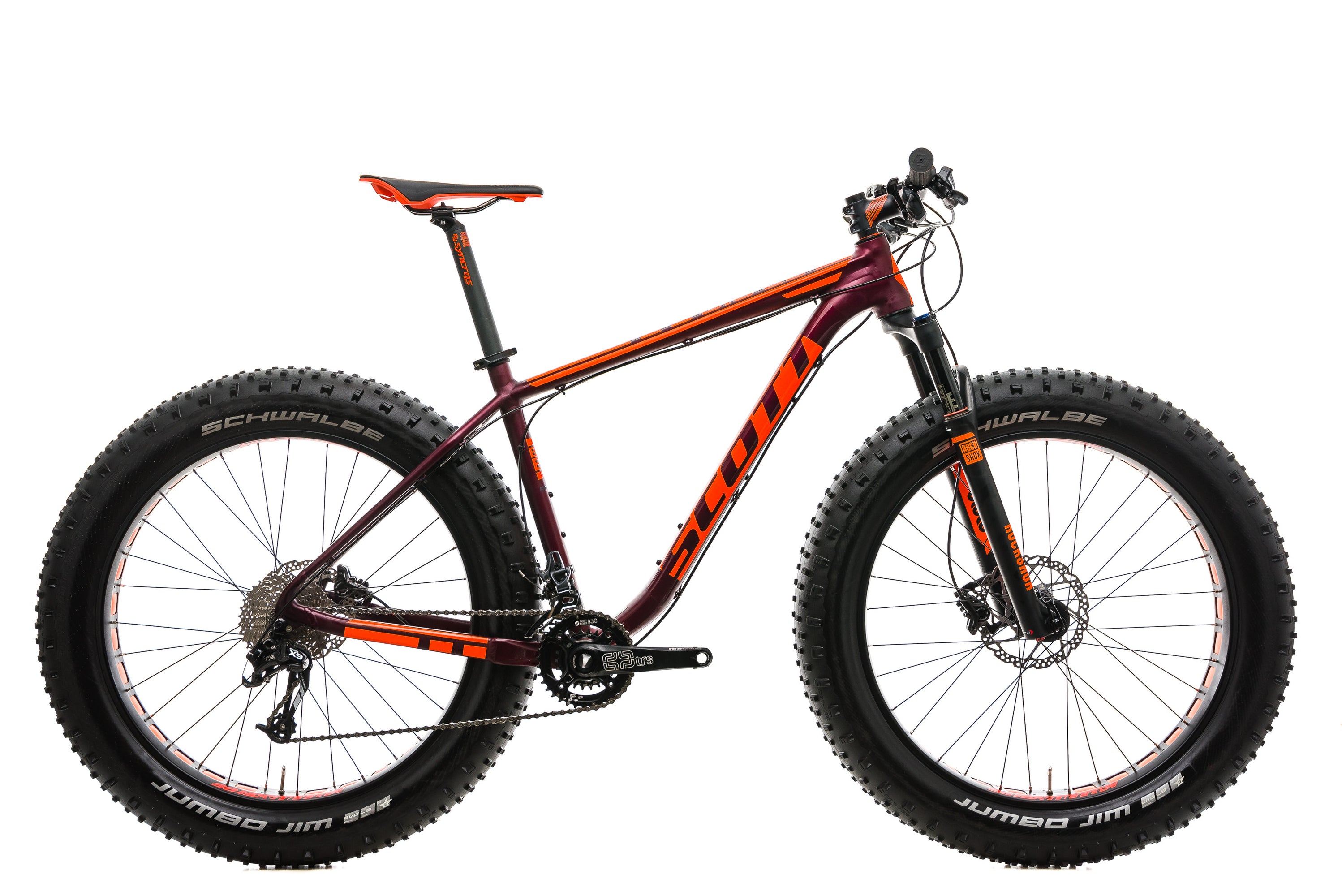

Scott Big Ed Fat Bike - 2016, Large
isn't available.
You'll be the first to know next time this or similar products are available.
Scott Big Ed Fat Bike - 2016, Large
Item #BMT14527
Condition:
Pre-Owned
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Torque tool & video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Specifications
Details
| Year | 2016 |
| Brand | Scott |
| Model | Big Ed |
| Size | Large |
| Frame Material | Aluminum |
| Drivetrain | SRAM, 2x10 spd |
| Weight | 32 lbs 2 oz |
Build

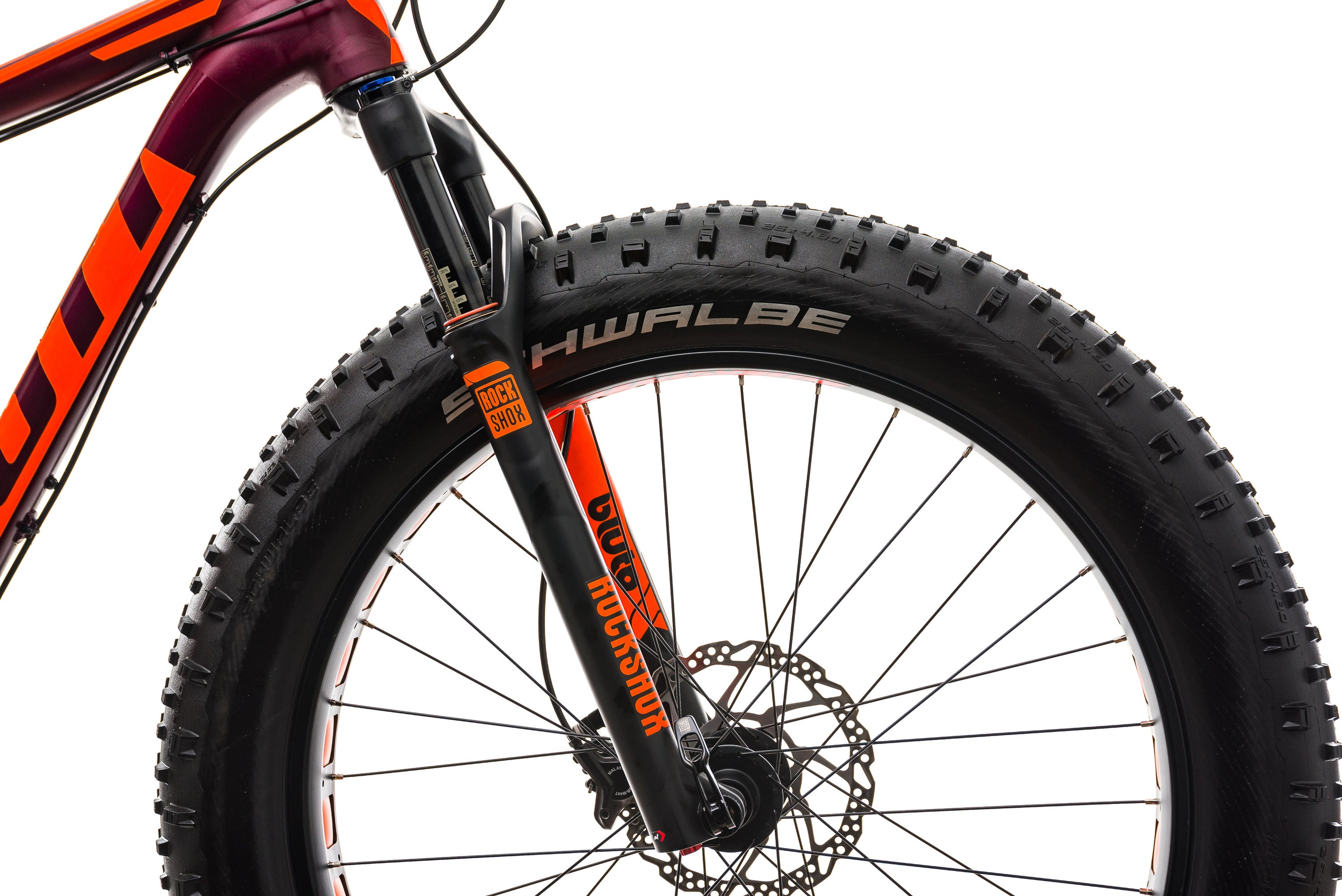

| Fork | Rock Shox Bluto RL |
| Fork Travel | 100mm |
| Rear Shock | N/A |
| Rear Shock Travel | N/A |
| Brakes | Shimano M506, Disc Brakes - Hydraulic |
| Shifters | SRAM X7, Mechanical |
| Front Derailleur | SRAM X7 |
| Rear Derailleur | SRAM X9 Long Cage |

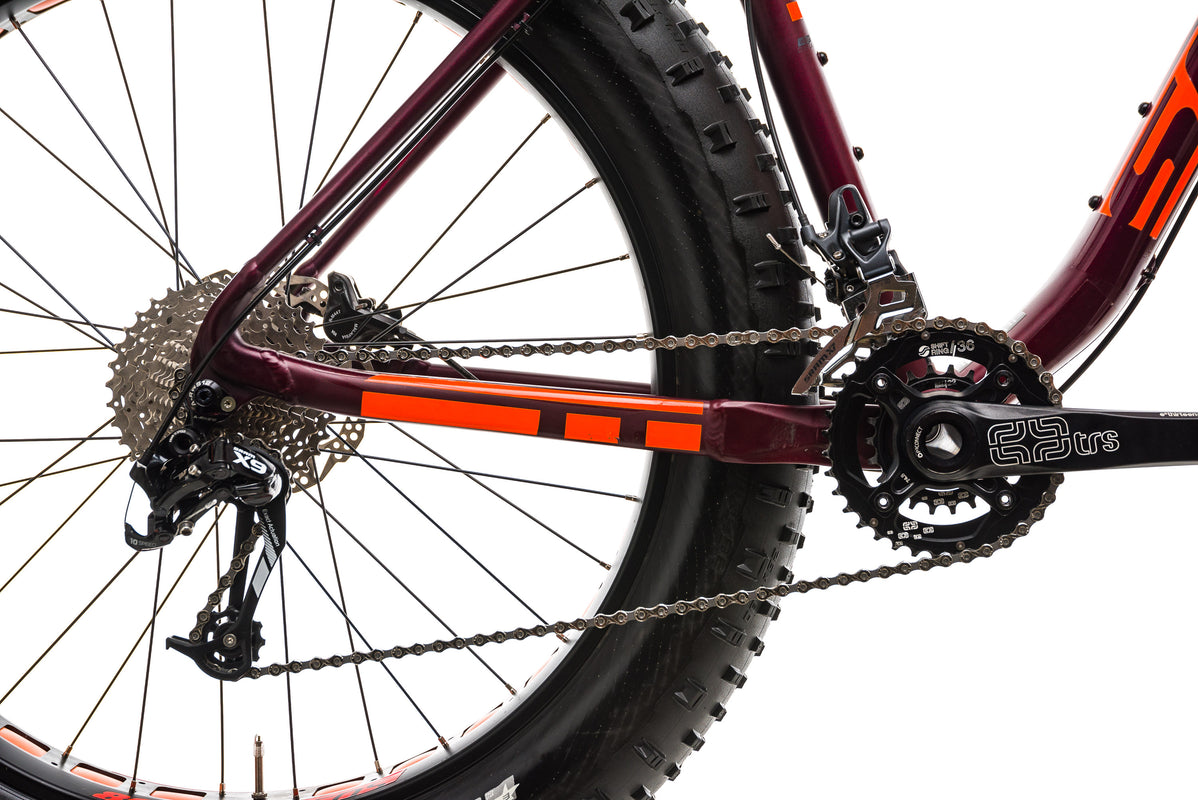

| Crankset | e*thriteen TRS, 36/26t, 175 mm |
| Cassette | Shimano HG500-10, 10spd, 11-36t |
| Chain | KMC |
| Handlebar | Syncros AM1.5, 740 mm |
| Headset | Integrated |
| Stem | Syncros XM1.5, 35.0 mm x 70mm, 0° |
| Seatpost | Syncros AM1.5, 31.6mm |
| Seatpost Travel | N/A |
| Saddle | Syncros XM2.0 |
| Front Axle Spacing | 15x150mm |
| Rear Axle Spacing | 12x197mm (Thru-Axle) |
| Wheelset | Syncros 80, Syncros |
| Front Tire | Schwalbe Jumbo Jim EVO, 26" x 4.8" |
| Rear Tire | Schwalbe Jumbo Jim EVO, 26" x 4.8" |
| Tire Type | Clincher |
| Tubeless Compatibility | No |
Geometry
| Fit Range |
N/A
|
| A. Effective Top Tube | 625 mm |
| B. Seat Tube | 480 mm |
| C. Seat Tube Angle | 73° |
| D. Head Tube Angle | 69° |
| E. Head Tube | 115 mm |
| F. Stack | 629 mm |
| G. Reach | 432 mm |
| H. Standover Height | 835 mm |
