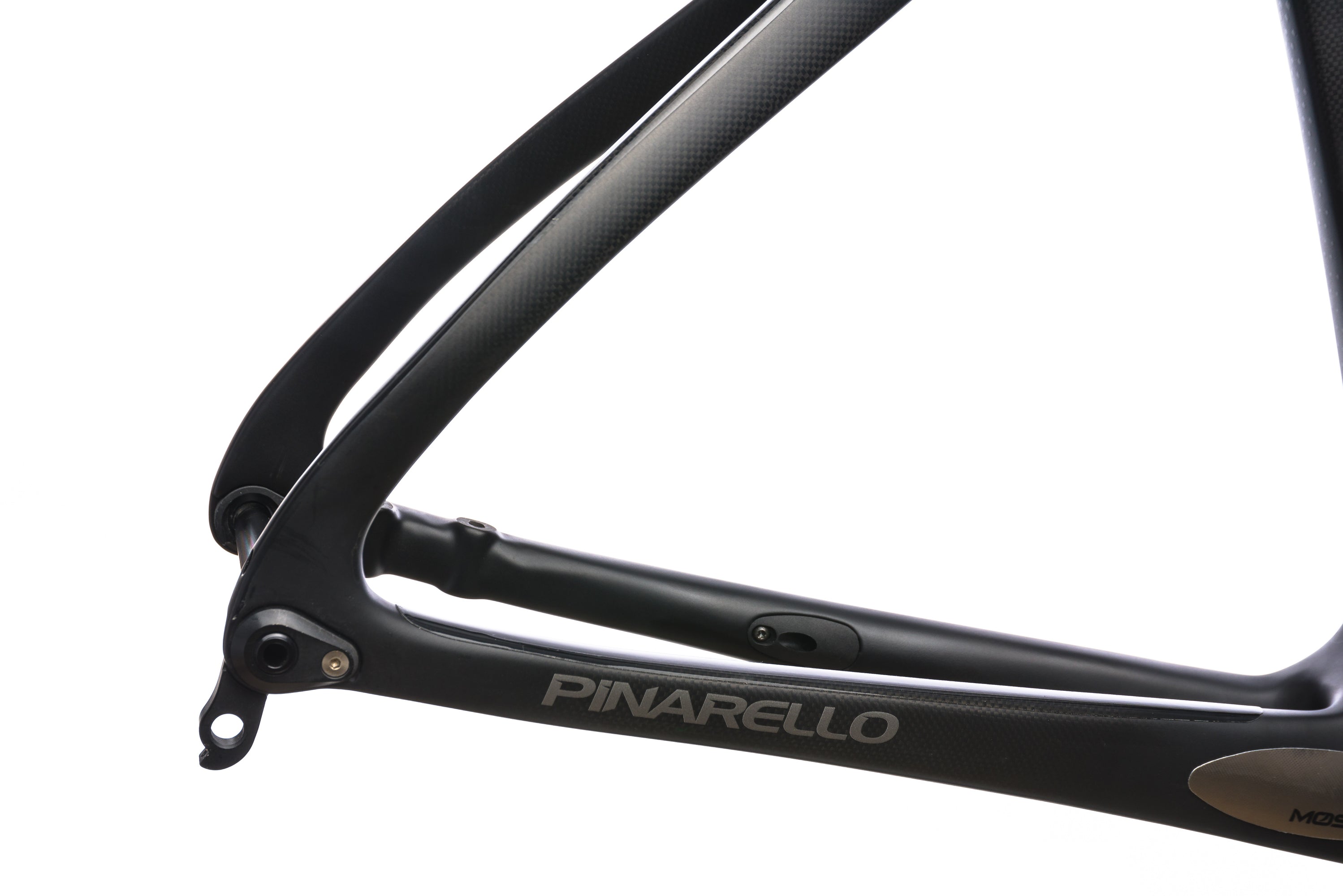

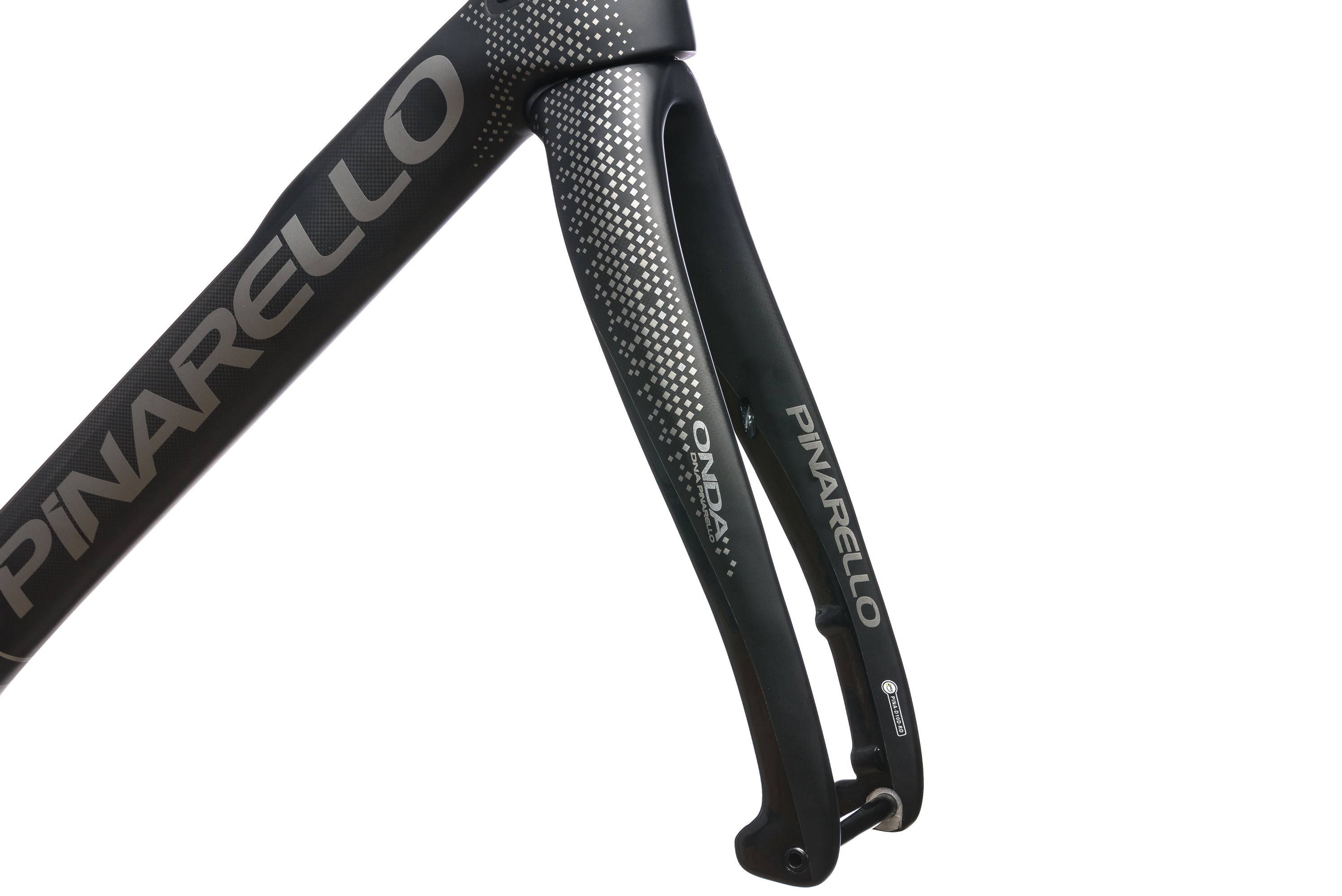

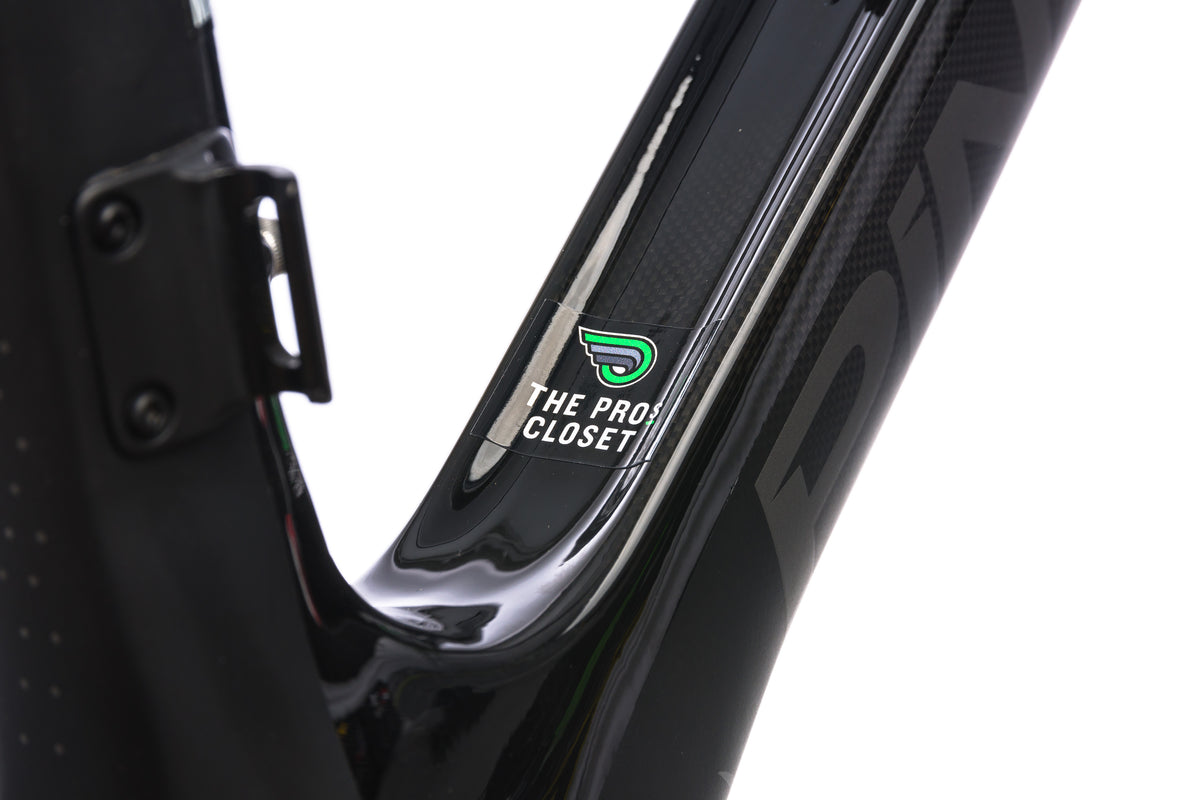

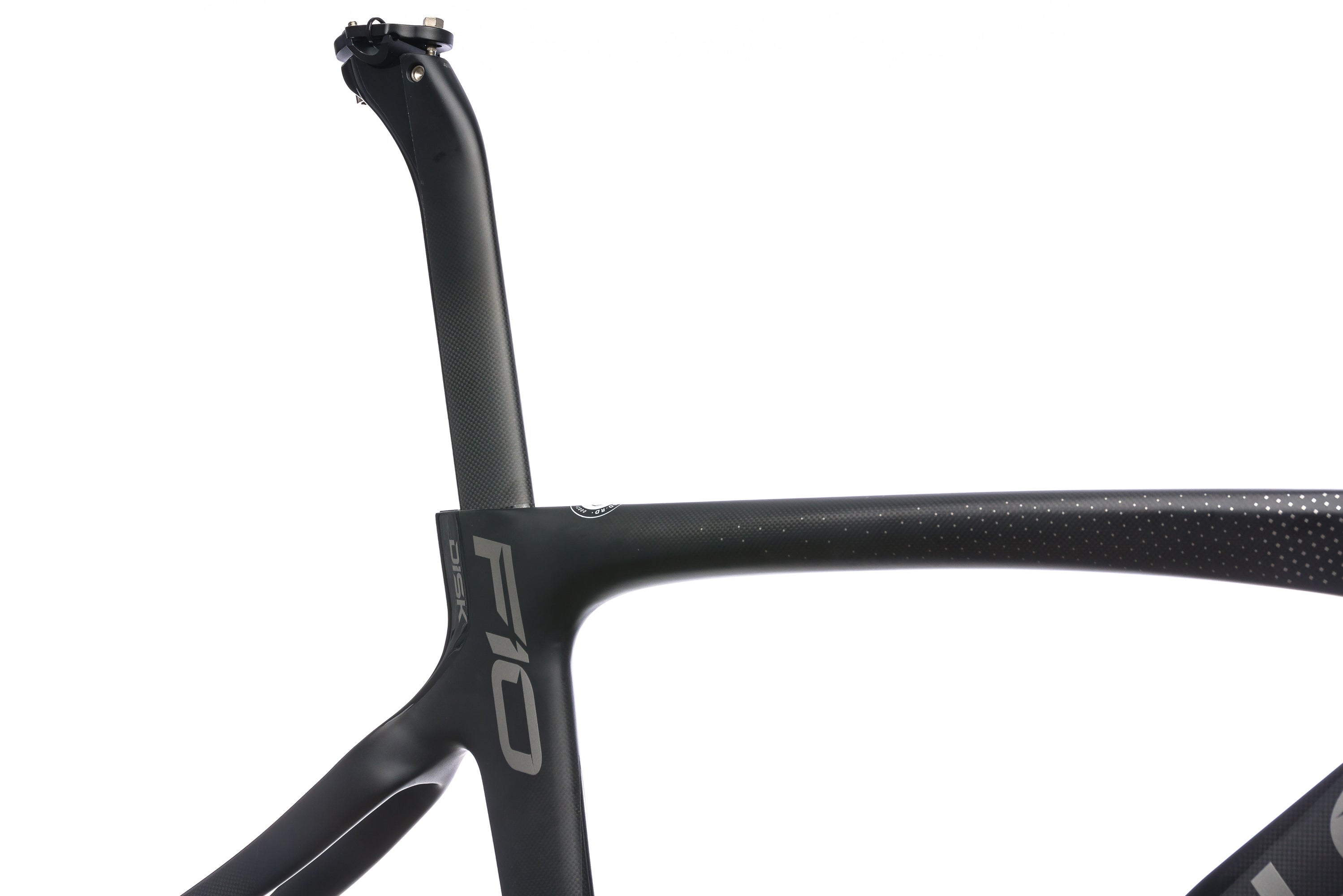

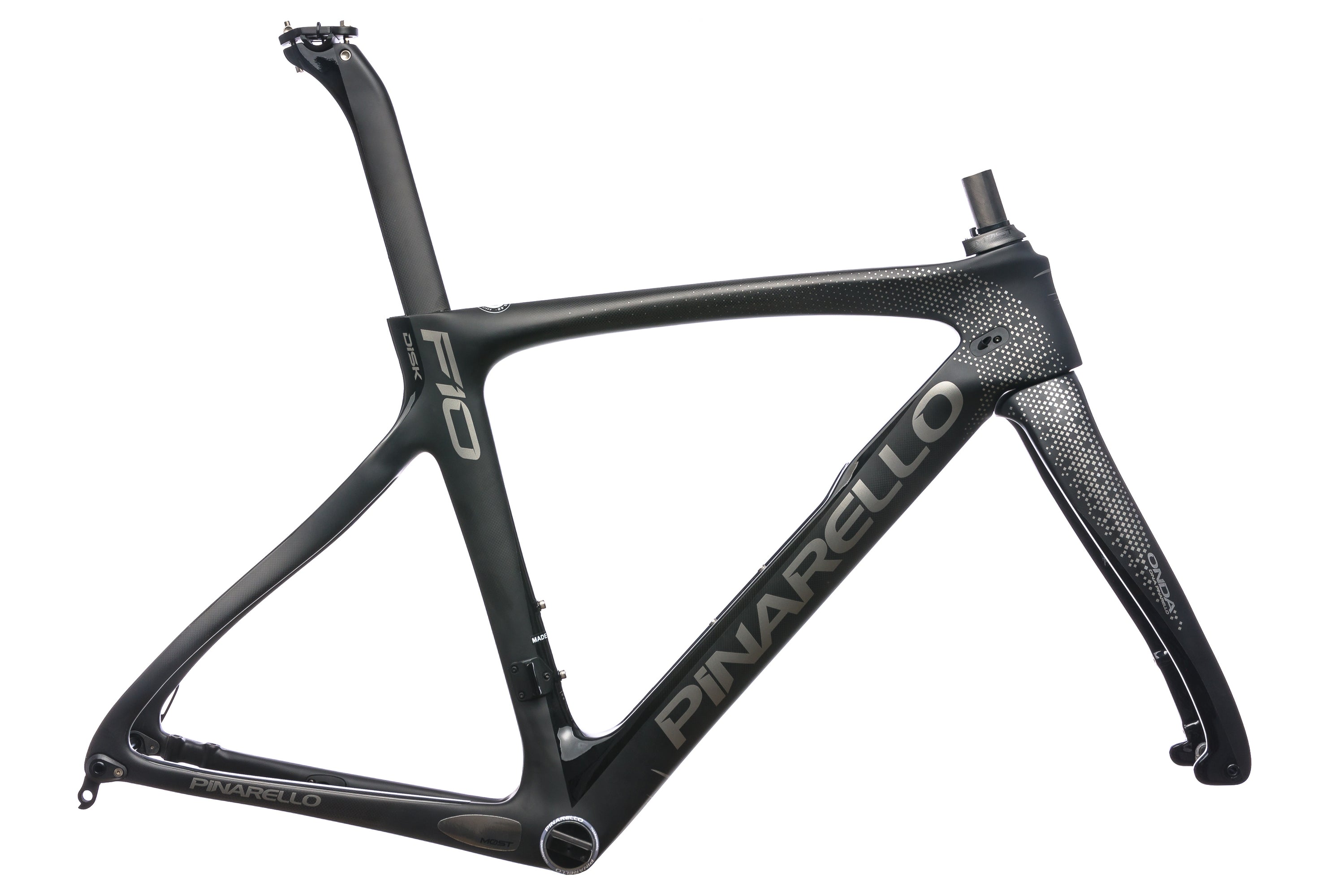

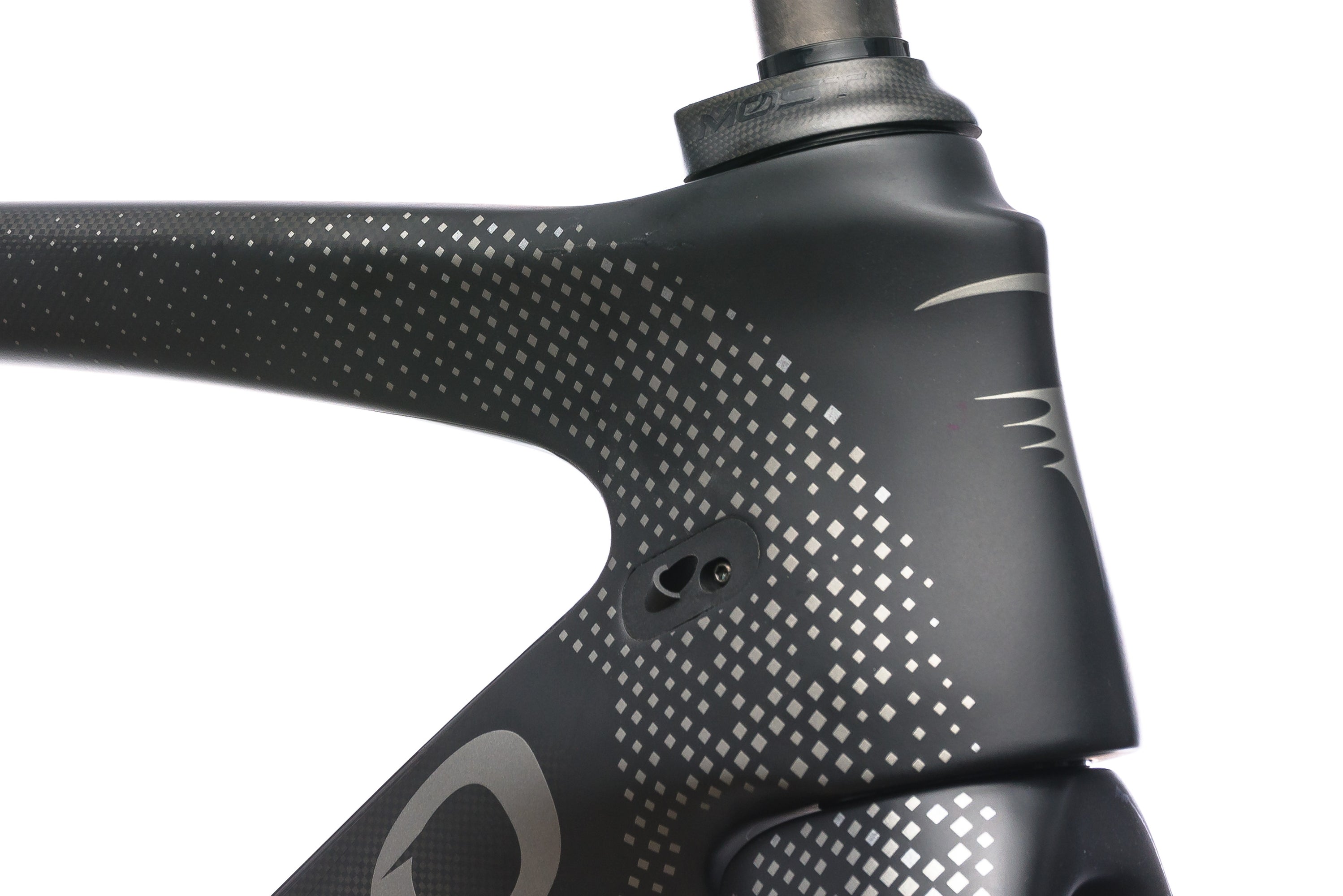

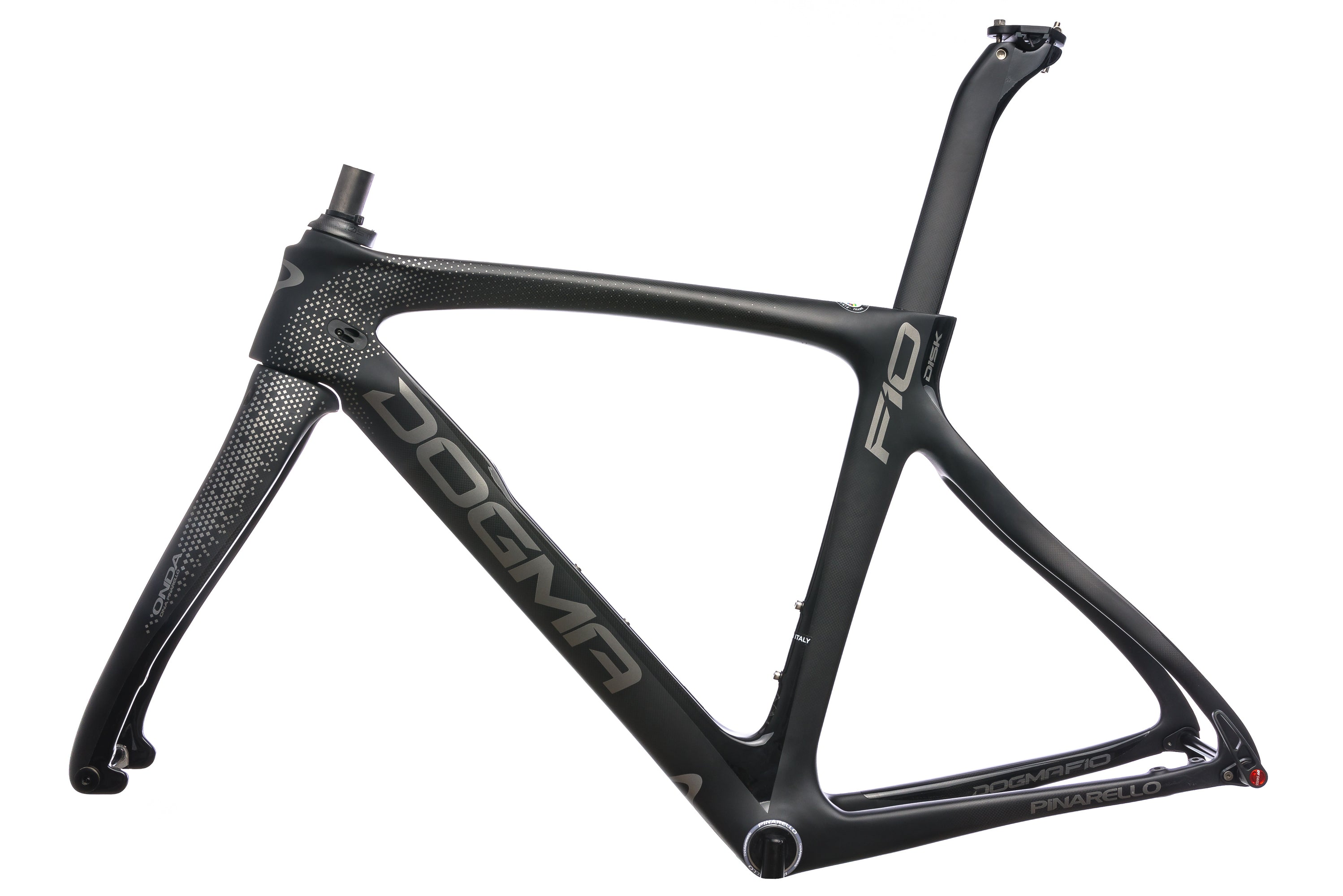

Pinarello Dogma F10 Disk 50cm Frameset - 2019 drive side Pinarello Dogma F10 Disk 50cm Frameset - 2019 non-drive side Pinarello Dogma F10 Disk 50cm Frameset - 2019 sticker Pinarello Dogma F10 Disk 50cm Frameset - 2019 drivetrain Pinarello Dogma F10 Disk 50cm Frameset - 2019 front wheel Pinarello Dogma F10 Disk 50cm Frameset - 2019 cockpit Pinarello Dogma F10 Disk 50cm Frameset - 2019 crank Pinarello Dogma F10 Disk 50cm Frameset - 2019 detail 1
2019 50cm SKU: FRD10656

Pinarello Dogma F10 Disk 50cm Frameset - 2019

Condition: NEW
Regular price

return icon 30-day returns
shipping icon Fast Shipping

About this item

Pinarello Dogma F10 Disk 50cm Frameset - 2019

New showroom model may show light signs of wear from display, test rides, storage or transport

Aero seatpost included is 350mm long, with a 25mm setback.

Frame is set up for mechanical use.

All stops and plugs are not included for electronic drivetrain conversion.

Specifications

Year 2019
Brand Pinarello
Model Dogma F10 Disk
Size 50cm
Frame Material Carbon Fiber
Fork Pinarello Onda, Carbon Fiber
Steerer Tube 265 mm, Tapered
Brake Type Disc Brakes
Front Derailleur Mount Braze On
Headset Included
Bottom Bracket Not Included, Italian
Seatpost Diameter Frame Specific
Seatpost Clamp Included
Front Axle Spacing 12x100mm
Rear Axle Spacing 12x142mm
Saddle Height Range N/A
Weight 4 lbs 4 oz
Drivetrain Compatibility Mechanical/Electronic

Geometry

Recommended Rider Height N/A
a. Effective Top Tube 525 mm
b. Seat Tube 480 mm
c. Seat Tube Angle 74°
d. Head Tube Angle 71.4°
e. Head Tube 120 mm
f. Stack 520 mm
g. Reach 374 mm
h. Standover Height N/A
i. Saddle Height Range N/A
VIEW SIZING GUIDE
