OPEN U.P. Disc Medium Frameset
isn't available.
You'll be the first to know next time this or similar products are available.
OPEN U.P. Disc Medium Frameset
Item #FGR10257
Condition:
Pre-Owned
Fit Range: 5’7" - 5’11"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
About This Item

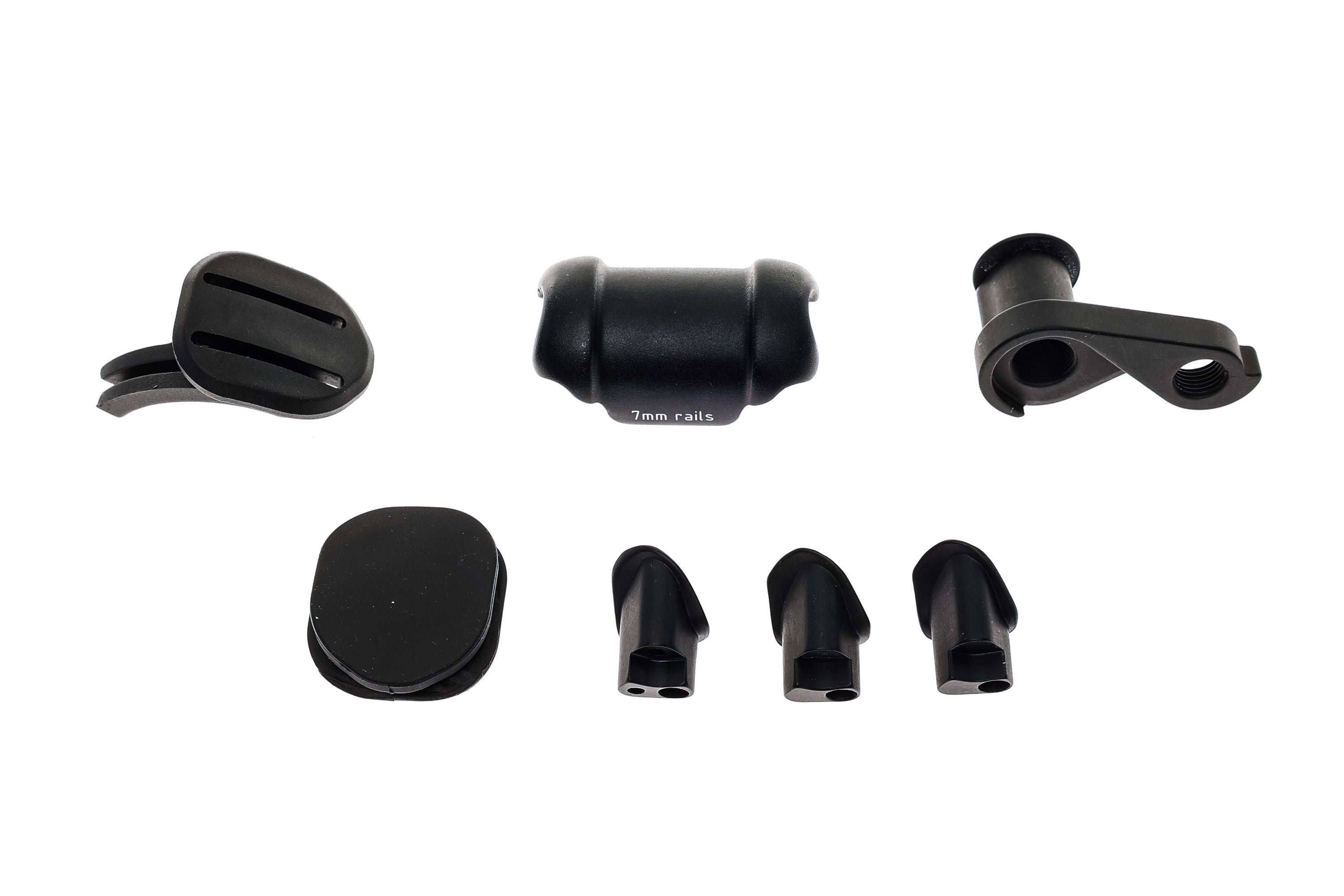

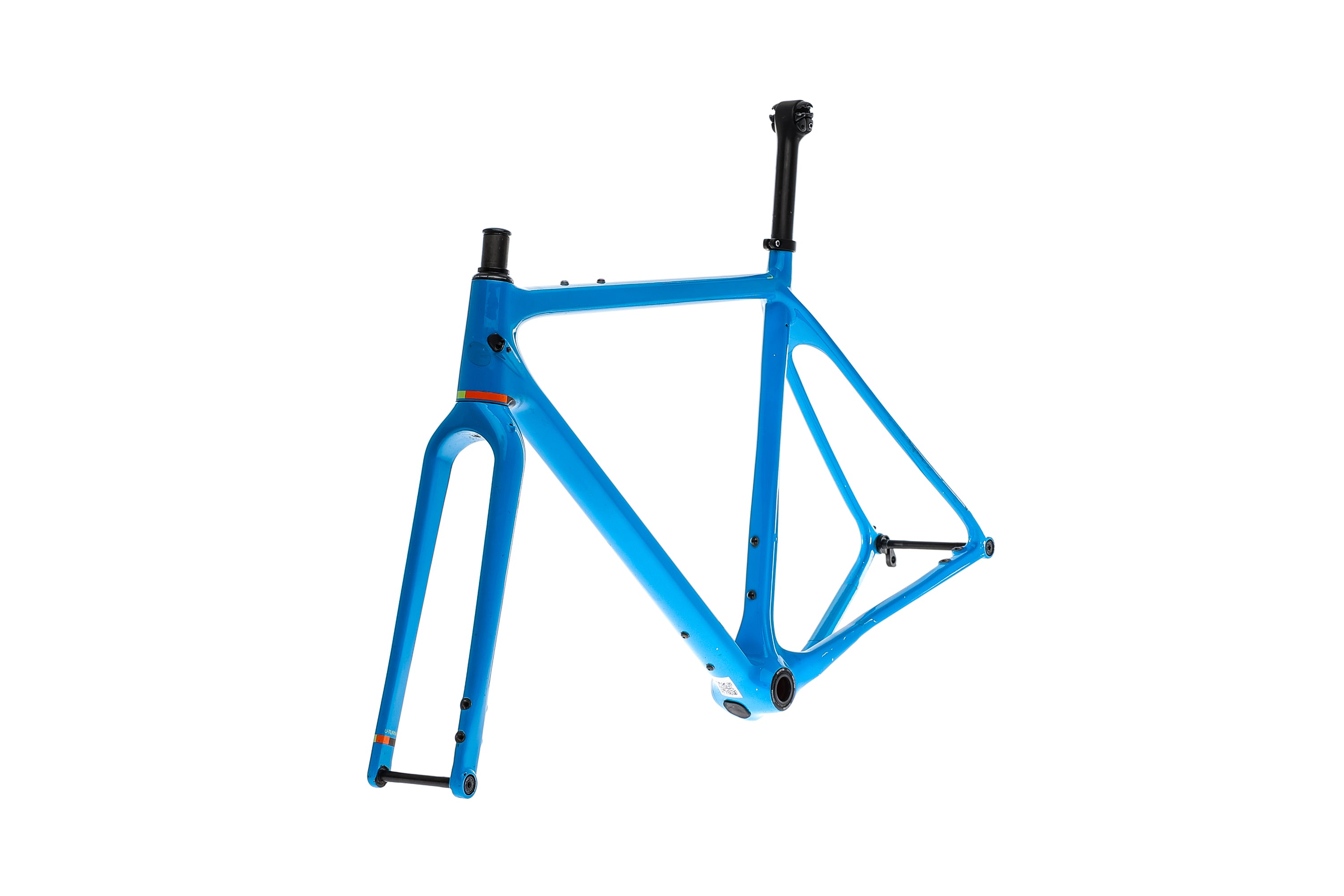

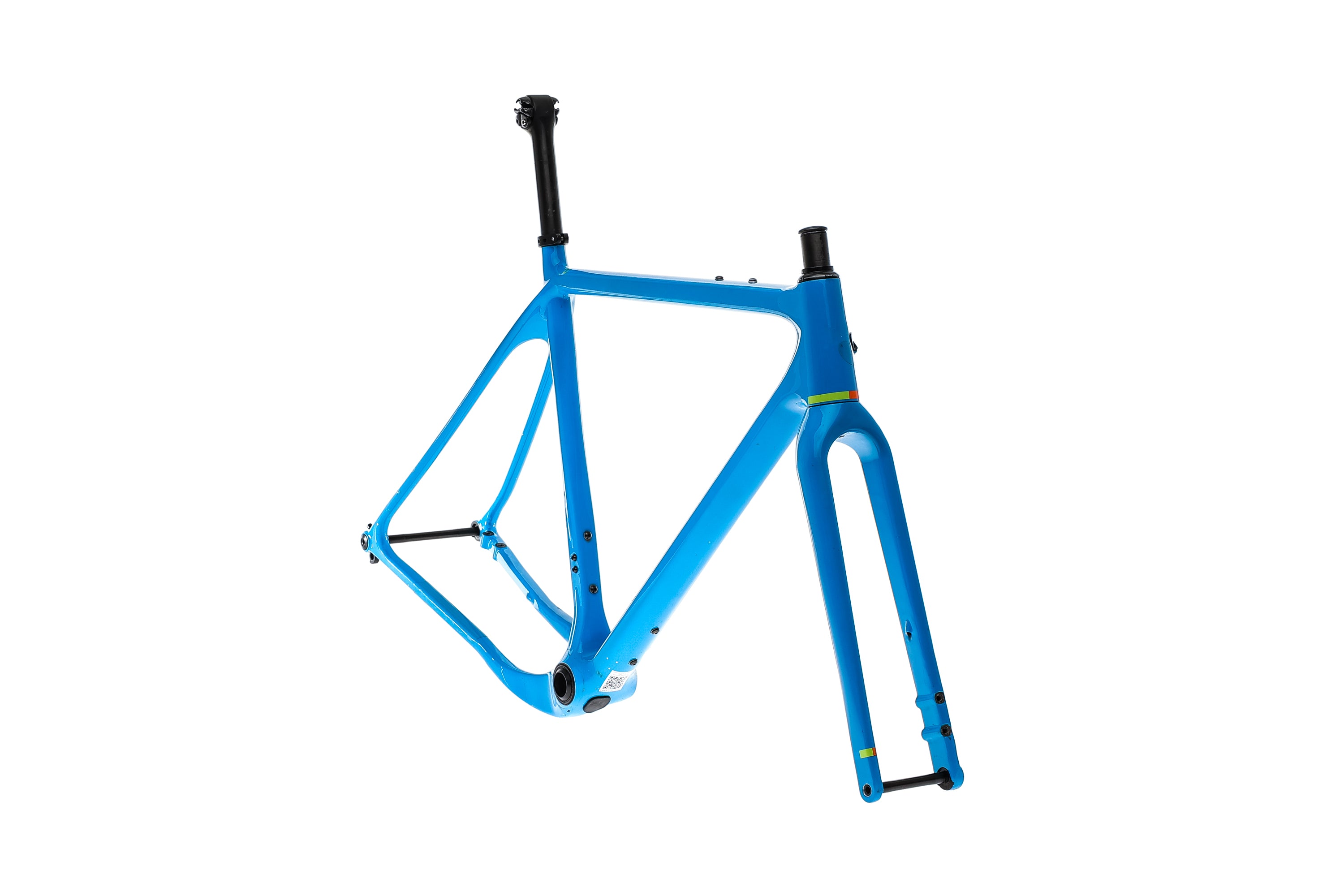

- Includes: Frame, fork, headset, bottom bracket, seatpost, thru axles, and rear derailleur hanger (installed)
- Frameset is in good condition

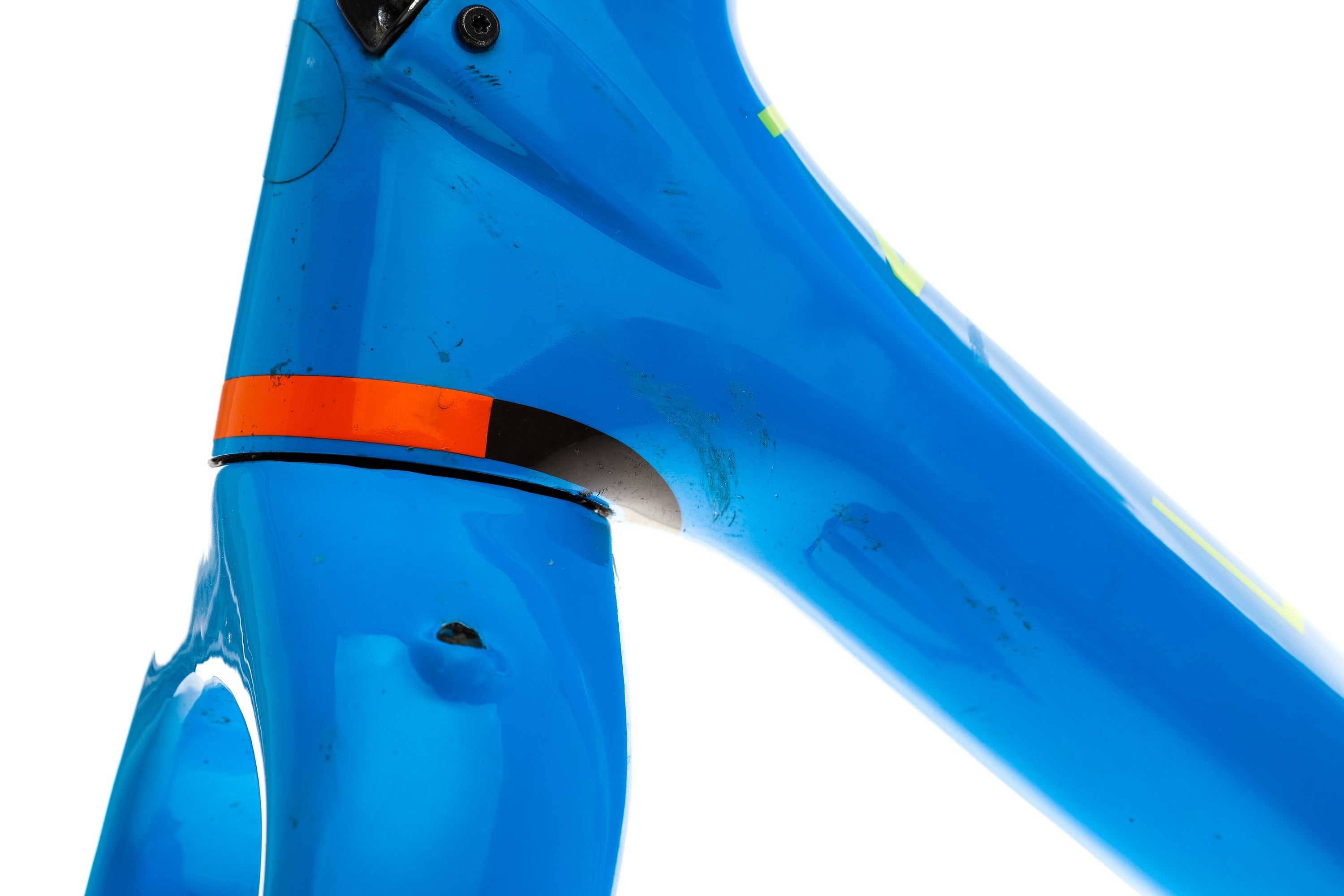

- Light wear and tear from cable rub, heel rub, chain, etc
- Frameset has some light scratches/scuffs

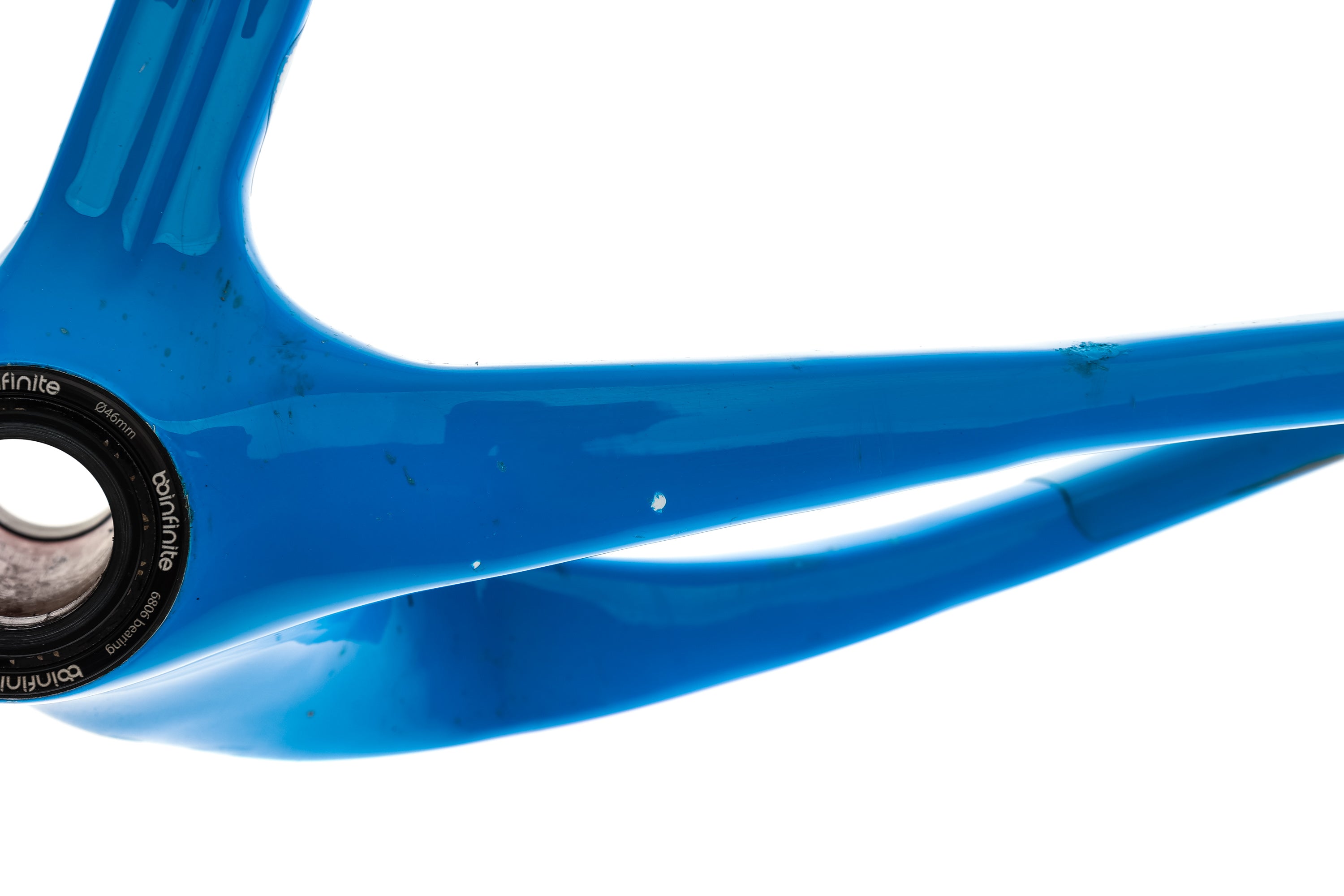

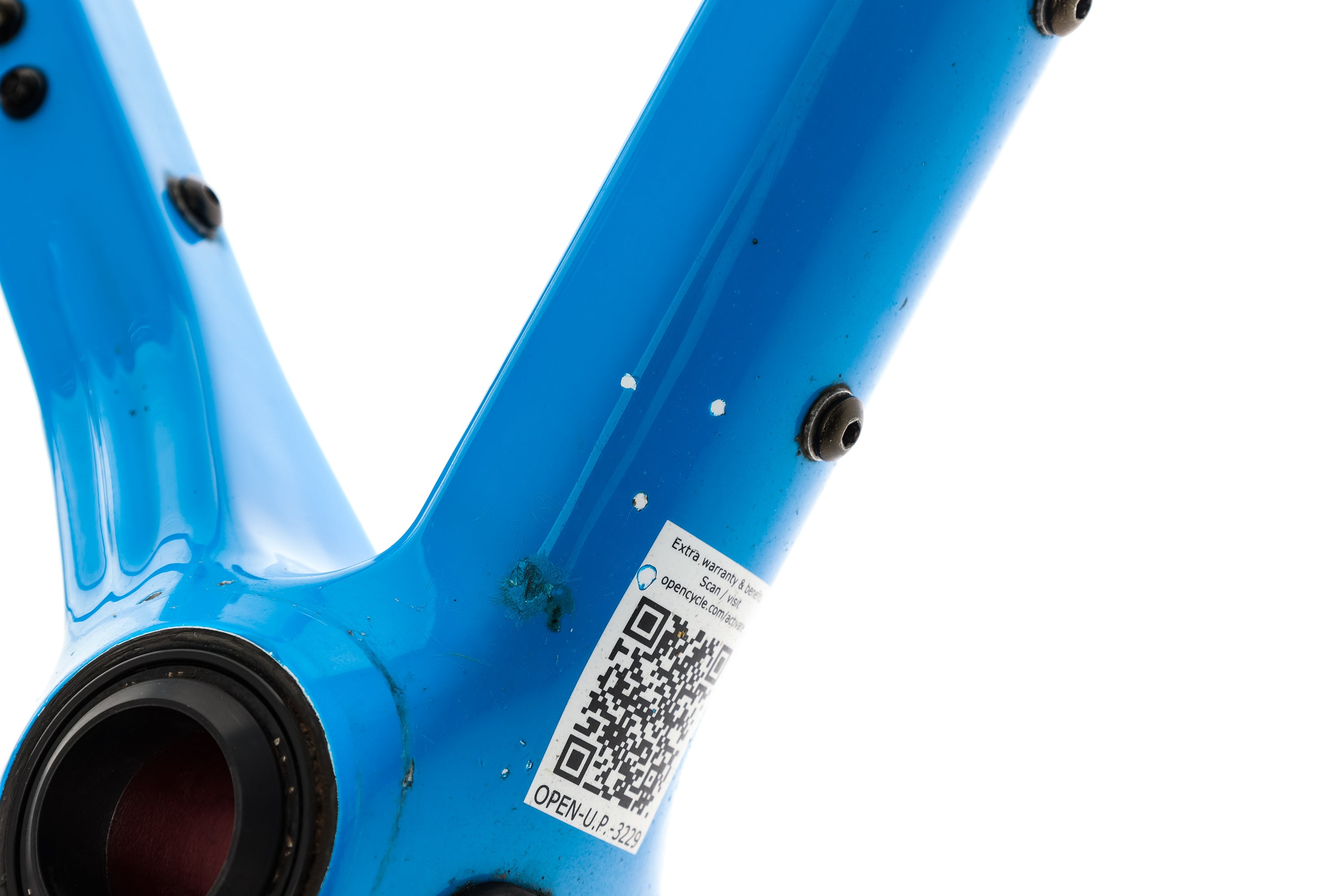

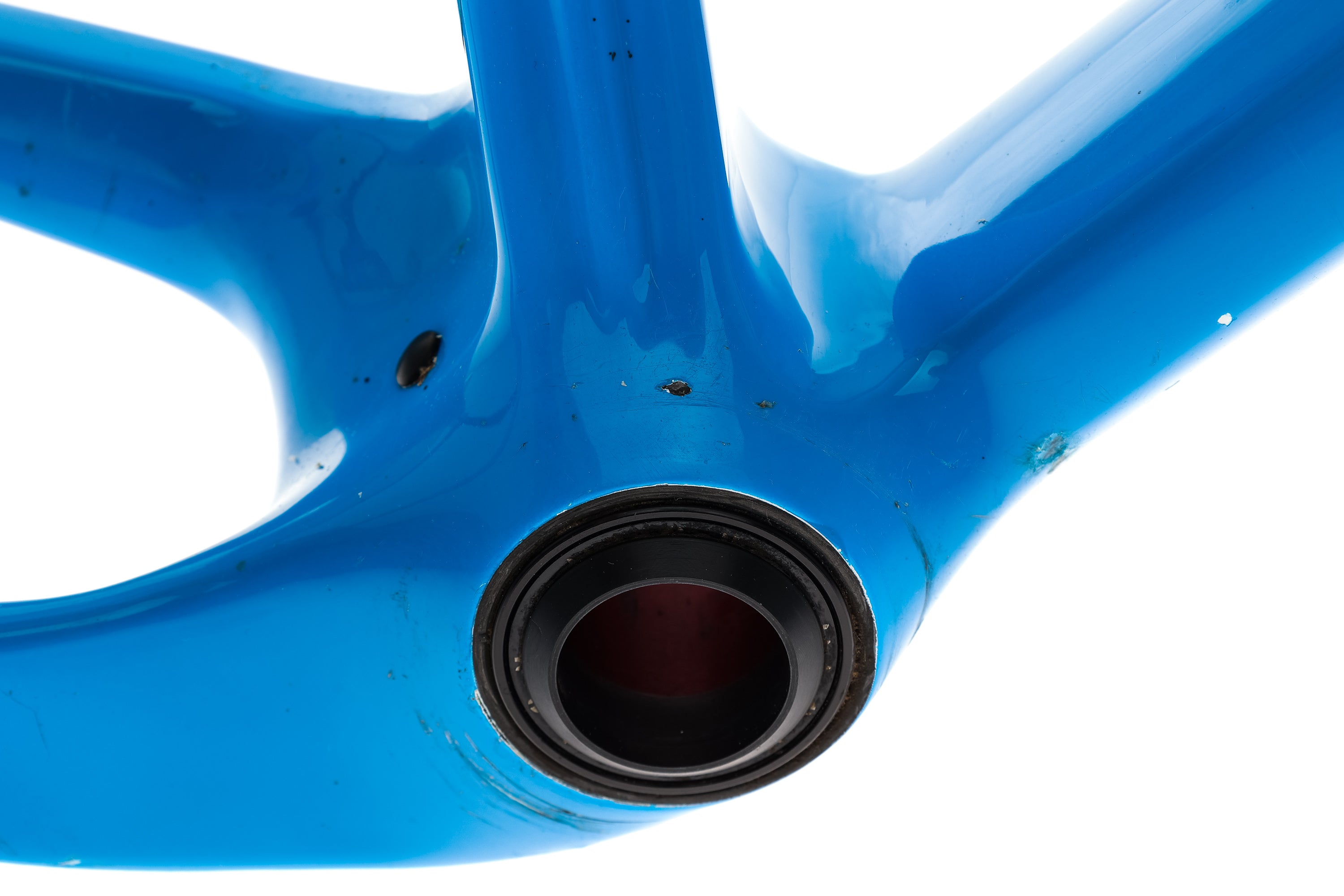

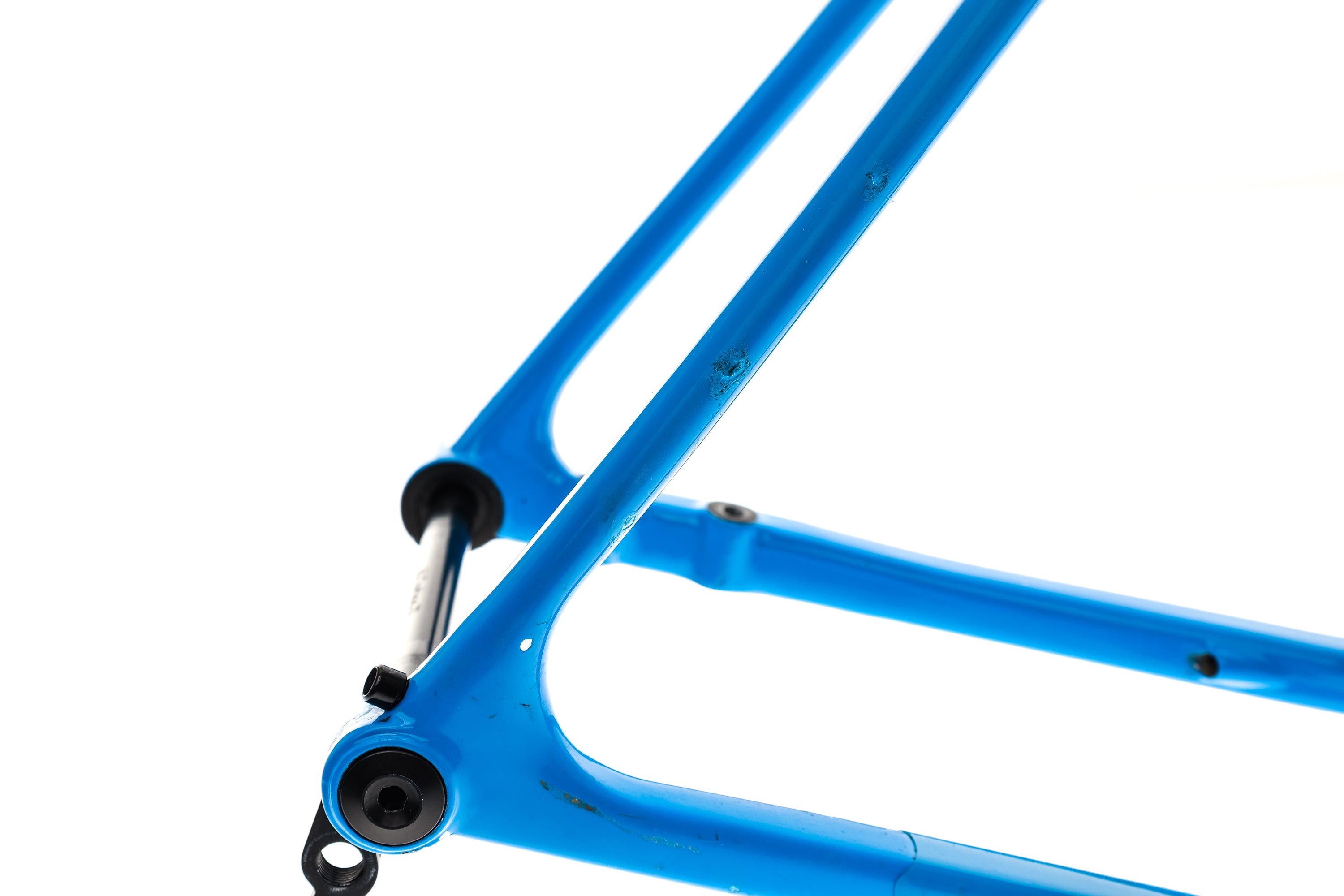

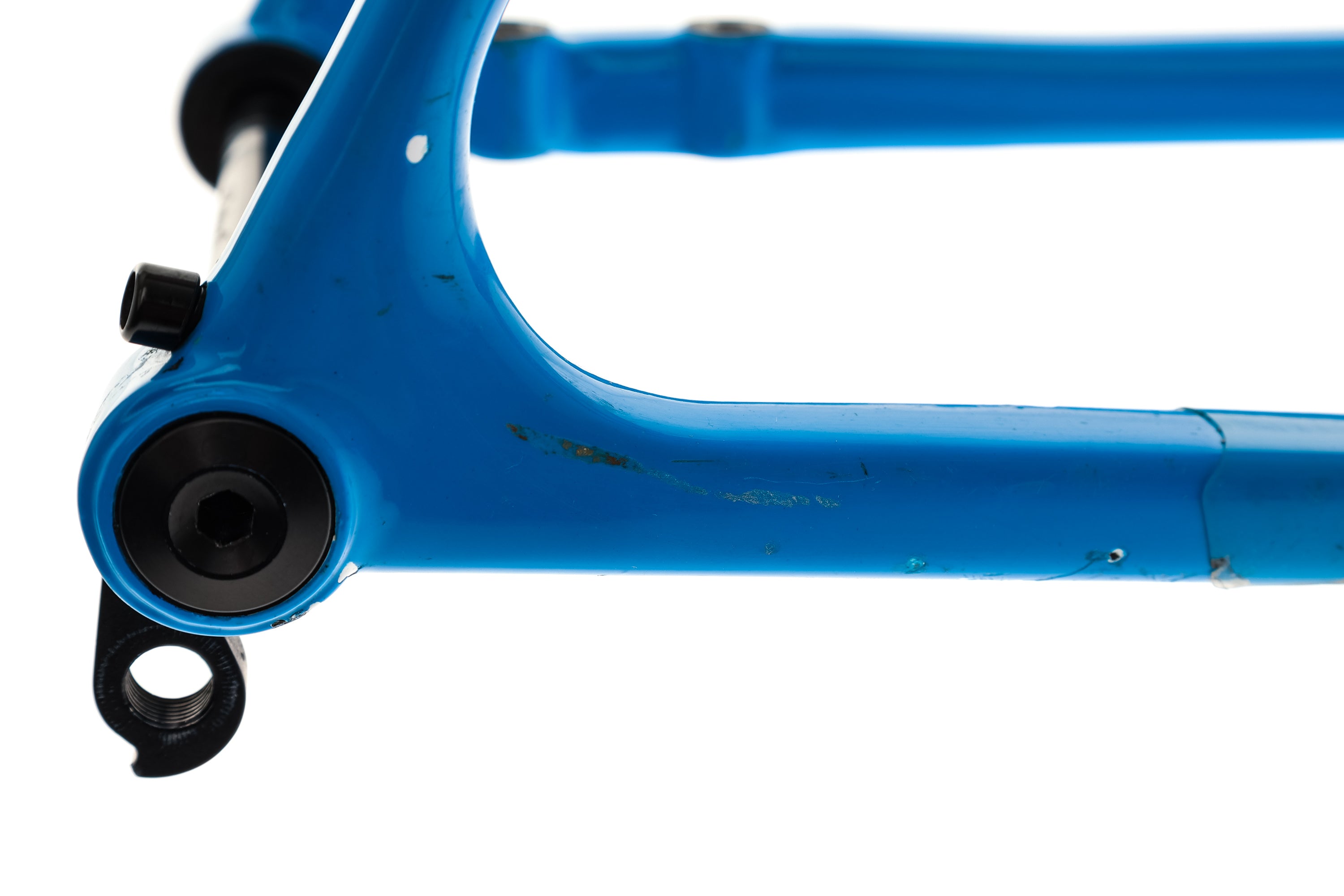

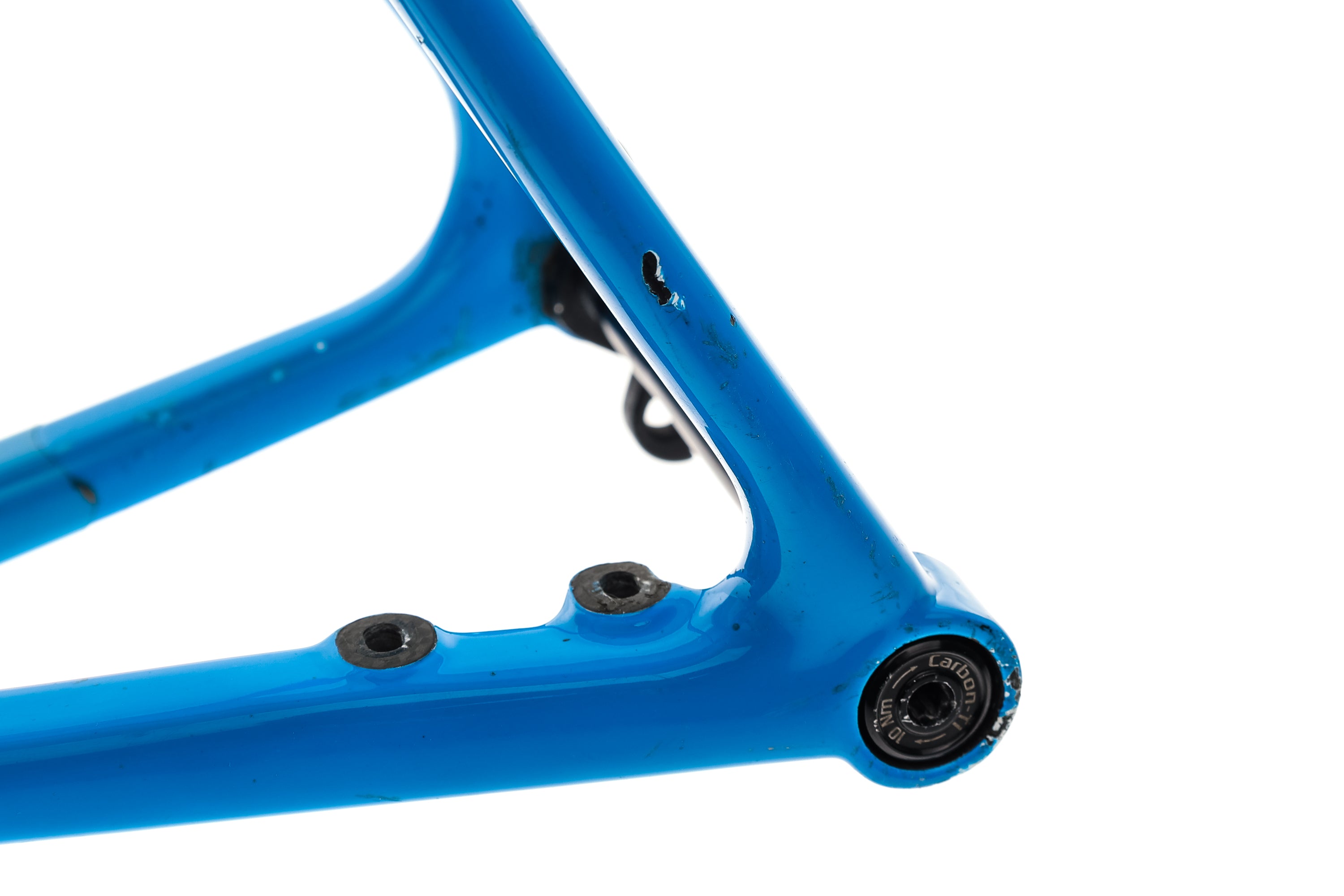

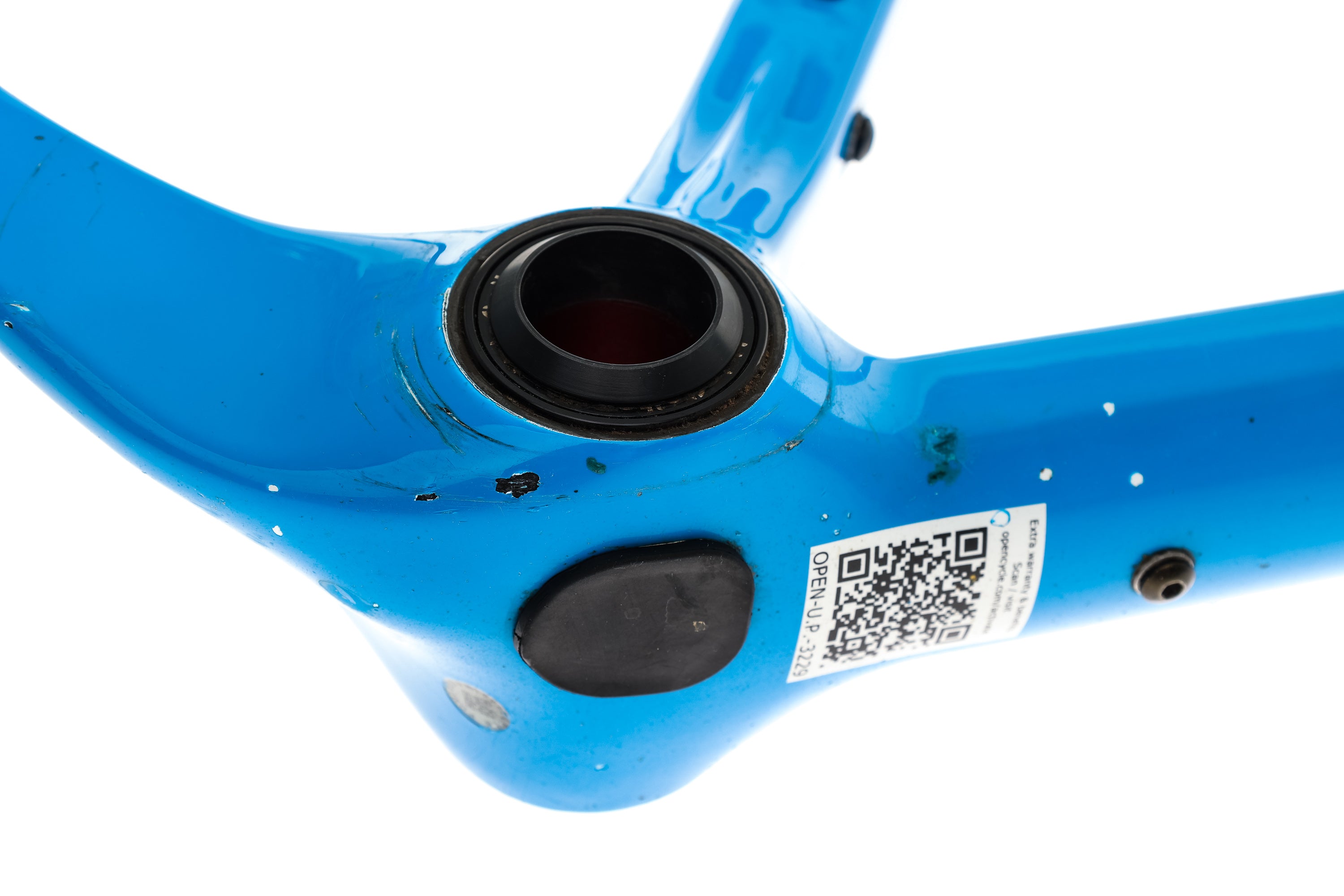

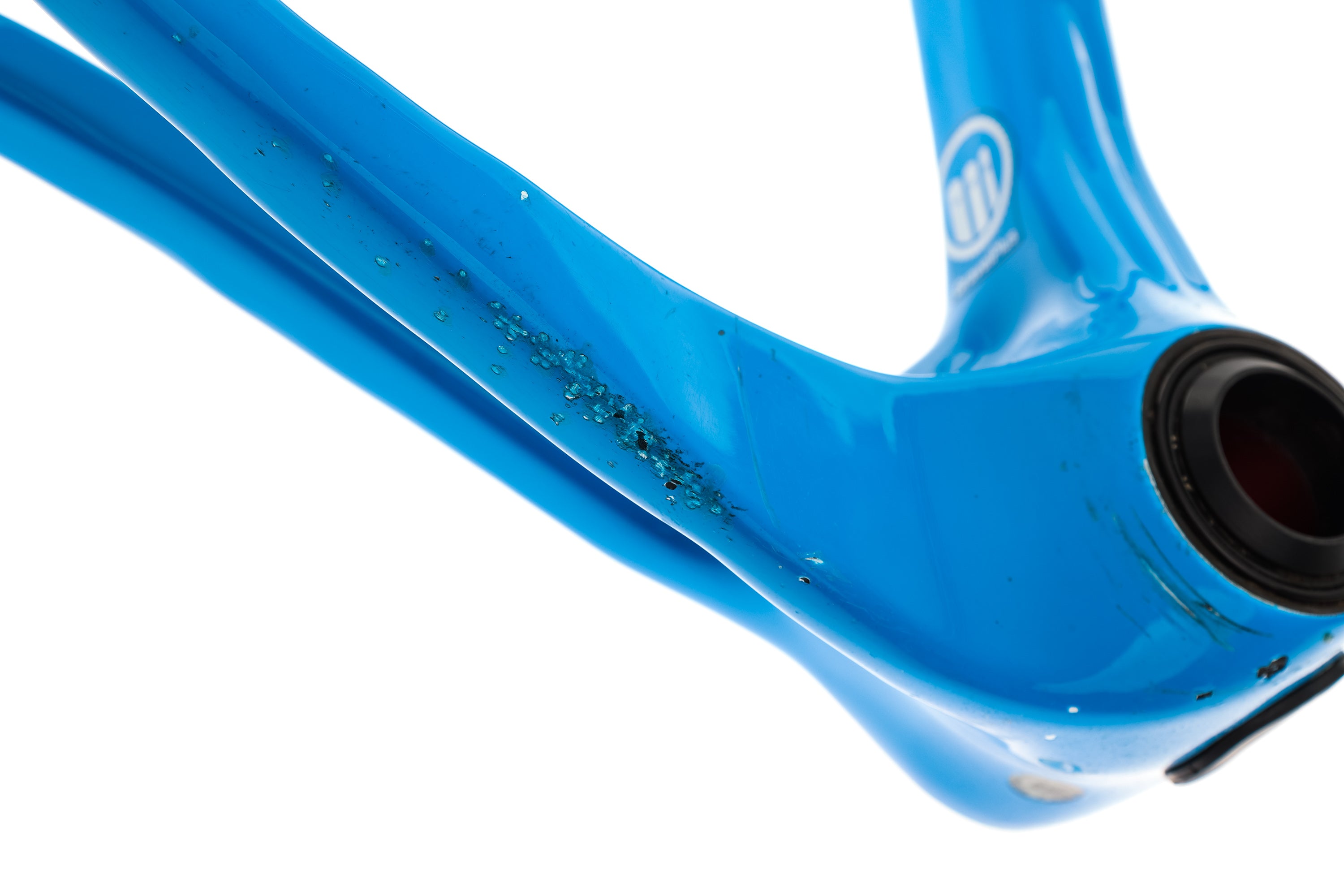

- Paint chipping to drive side fork dropout, down tube, seat tube, bottom bracket shell, both seatstays and chainstays
- Front derailleur braze-on mount not included
Specifications
Details
| Brand | OPEN |
| Model | U.P. |
| Size | Medium |
| Frame Material | Carbon Fiber |
| Fork | OPEN U-Turn Disc |
| Fork Material | Carbon |
| Steerer Tube | 180 mm, Tapered |
| Brake Type | Disc Brakes - Hydraulic |
| Front Derailleur Mount | Braze-On |

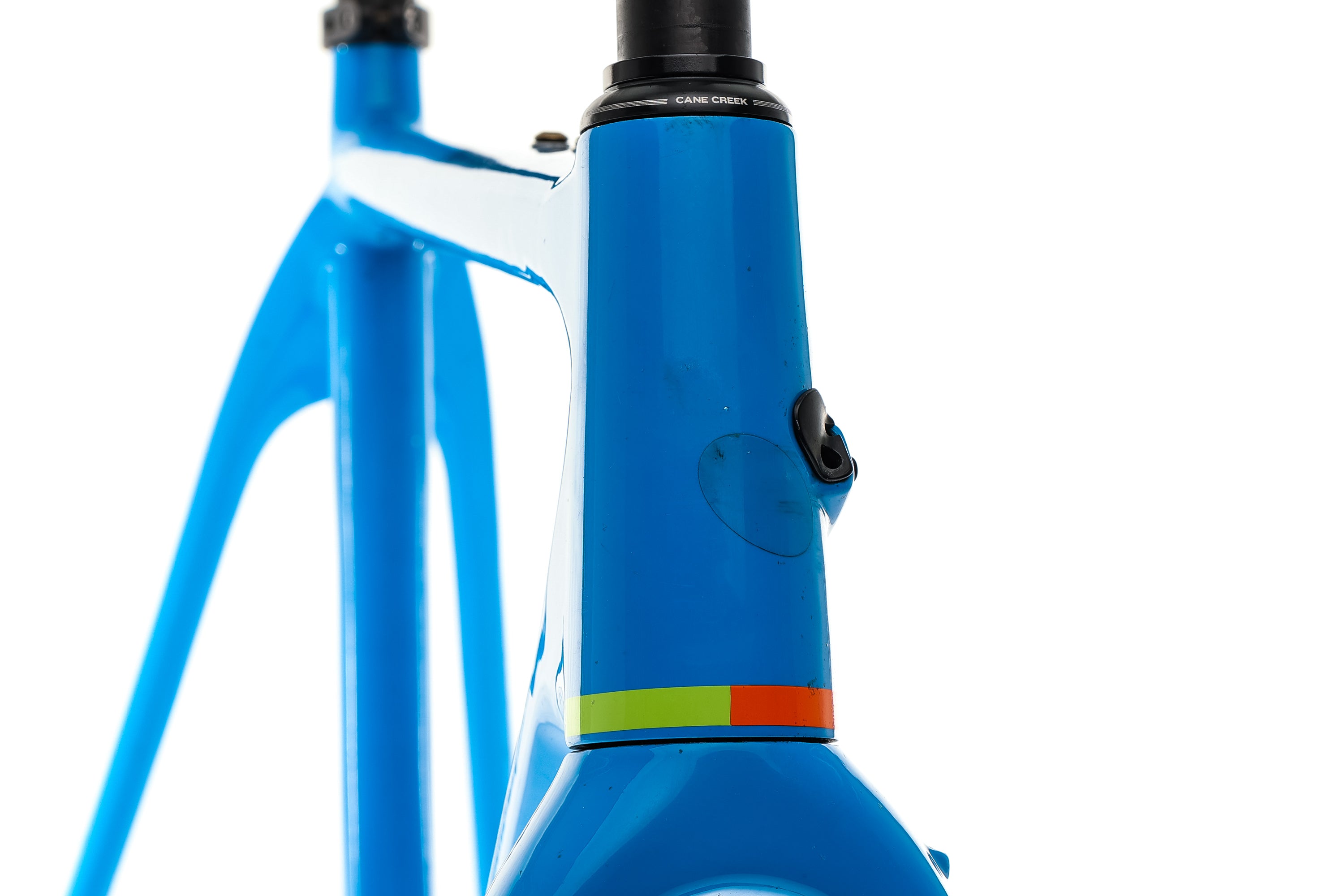

| Headset | Cane Creek 40 Integrated w/ Top Cap |
| Bottom Bracket | Included, BB386 |
| Wheel Size | 700C/650B |
| Seatpost Diameter | 27.2mm |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Weight | 4 lbs 4 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Build
| Fork | OPEN U-Turn Disc , Carbon |
| Brakes | Disc Brakes - Hydraulic |
| Shifters | Mechanical/Electronic |
| Headset | Cane Creek 40 Integrated w/ Top Cap |
| Seatpost | 27.2mm |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
Geometry
| Fit Range |
5’7" - 5’11"
|
| A. Effective Top Tube | 549 mm |
| B. Seat Tube | 540 mm |
| C. Seat Tube Angle | 72.5° |
| D. Head Tube Angle | 71° |
| E. Head Tube | 130 mm |
| F. Stack | 551 mm |
| G. Reach | 376 mm |
| H. Standover Height | 767 mm |
| I. Saddle Height Range | N/A |
