Öhlins RXF36 m.2 160mm Fork/TTX2 Air Shock Package for 2021-2023 Specialized Stumpjumper
Item #KSU11106
Condition:
New with Warranty
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
Every product we sell is covered by a hassle-free 30-day satisfaction guarantee. Restrictions may apply.
Why We Love It

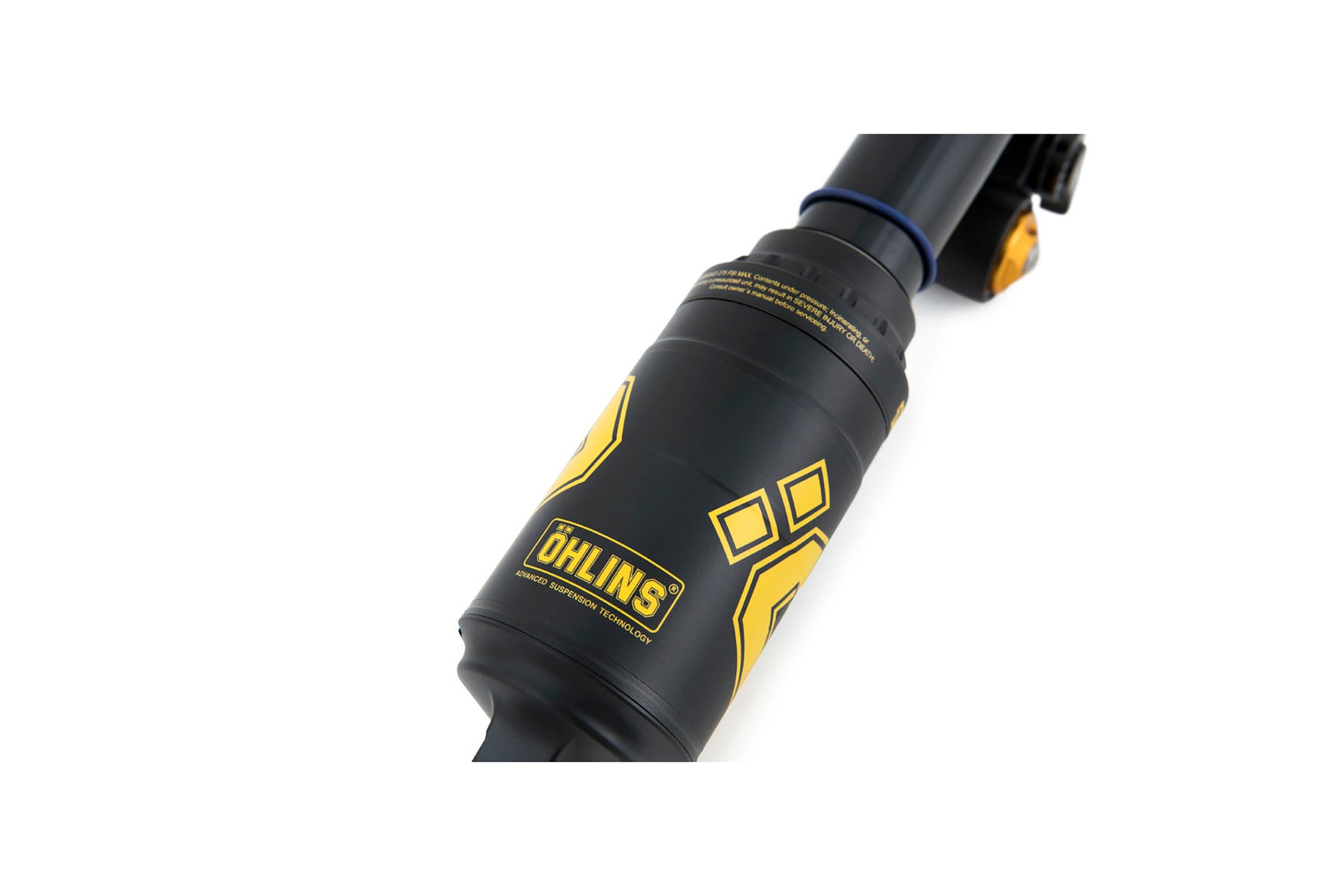

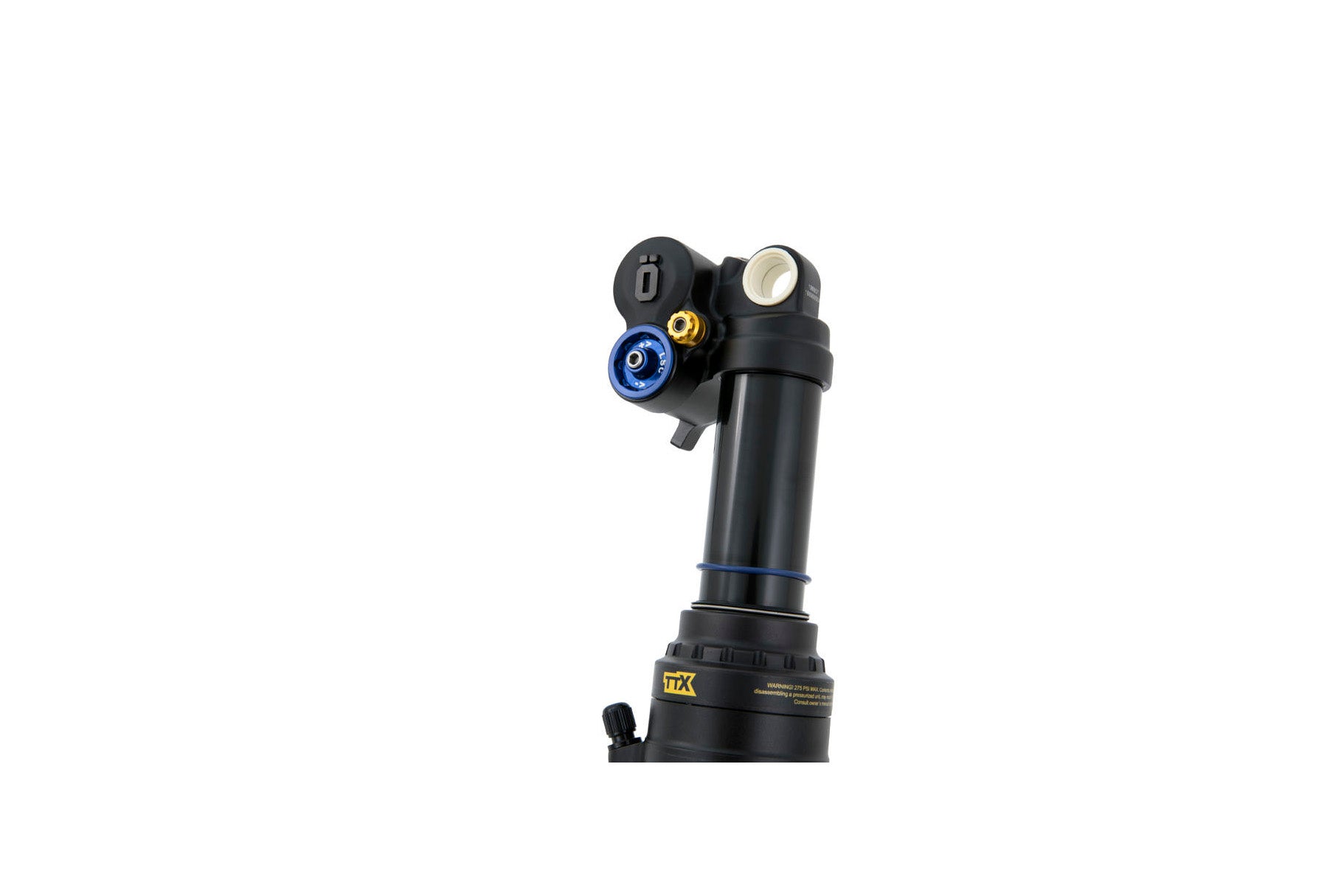

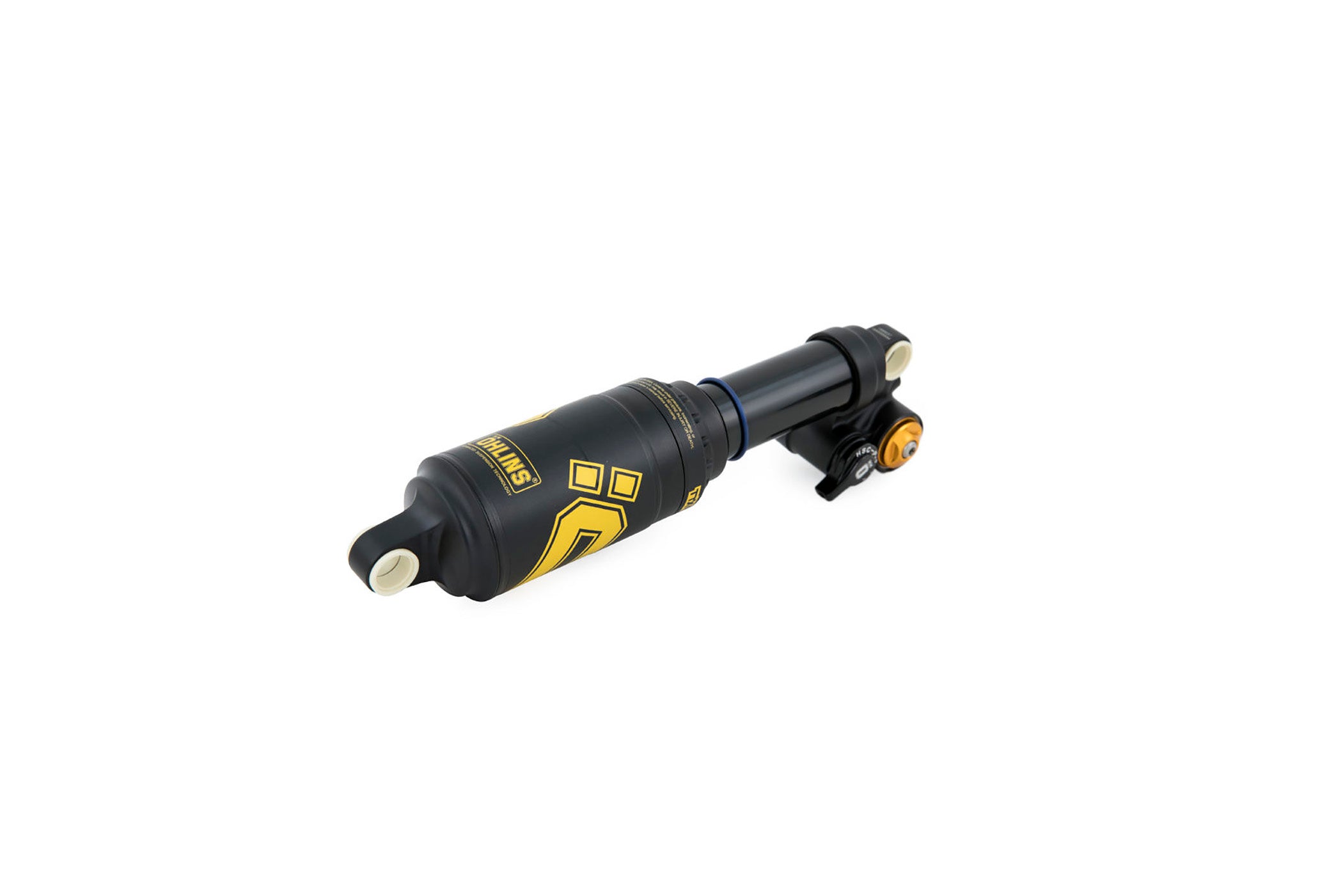

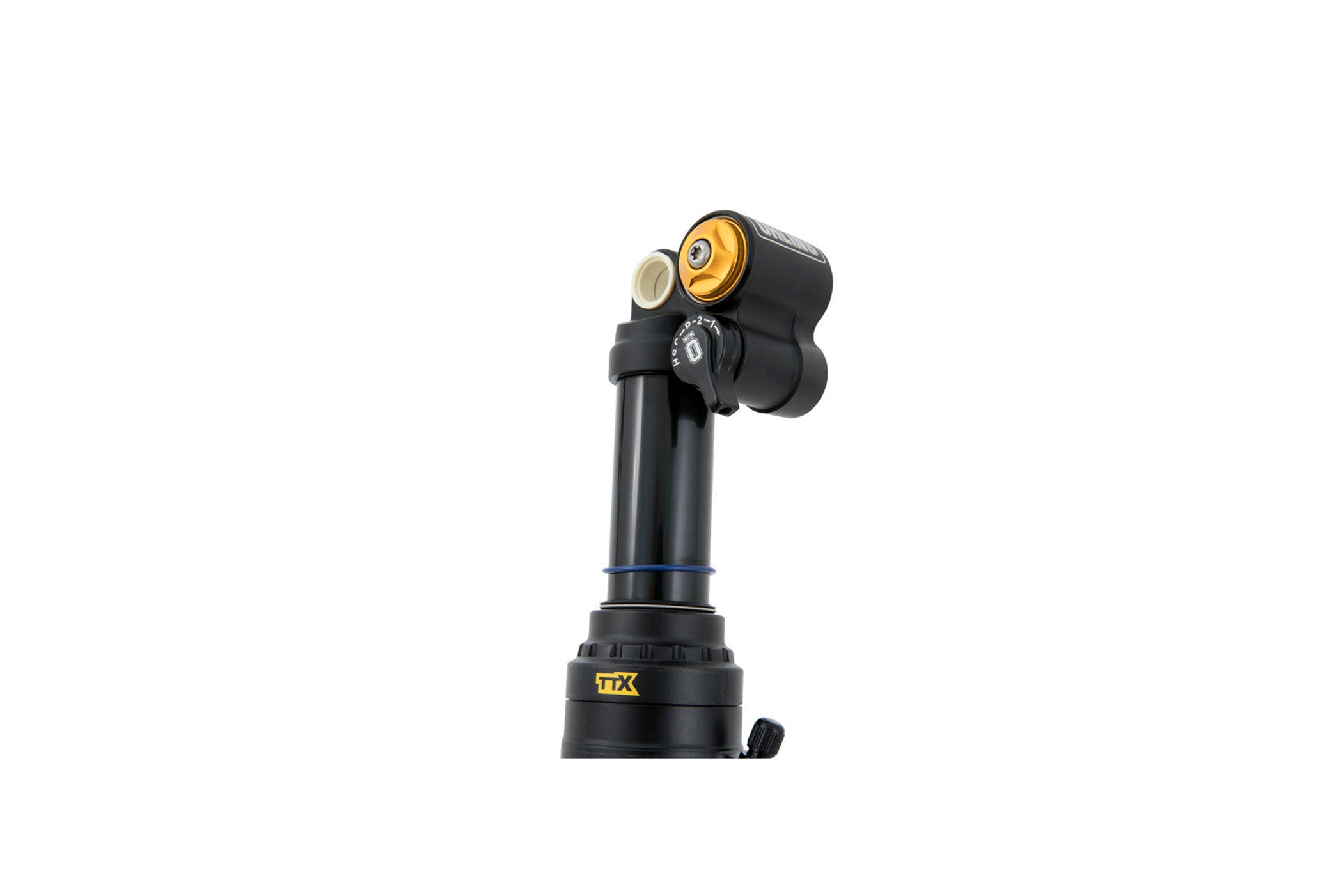

TTX2 Air Shock:
The TTX2Air has larger positive and negative air chamber volumes, a double-can, air spring design with additional control of the air volume spacing. This gives riders greater freedom to adjust the spring curve and easily dial-in the exact amount of progression they desire. The TTX2Air delivers the unrivalled sensitivity, control and flawless all-conditions damping that TTX products have built their reputation on.
Once dialled-in, you’ll immediately appreciate the shock’s super-plush feel that increases comfort over long, demanding rides, maintains momentum over roots and rocks and also has the capacity to soak up more serious hits. The TTX2Air’s superb levels of confidence inspiring traction and control will encourage you to push your bike harder and faster than ever before.
The TTX2Air combines the superior damping function of Ohlins' TTX system together with a low friction air-spring. The twin-tubed design enables two-way oil flow through the piston and the double tubes. With the ability to extensively tune the pressure when the oil passes the compression and rebound valves, Ohlins has created a well-balanced and extremely predictable damper. This results in a highly effective range of clicks enabling you to easily dial-in the shock and achieve the perfect suspension set-up.
Just like every product fitted with TTX damping technology, the TTX2Air has a race-proven settings bank giving access to a huge range of options for tuning the damper to suit any specific rider, bike or riding style.

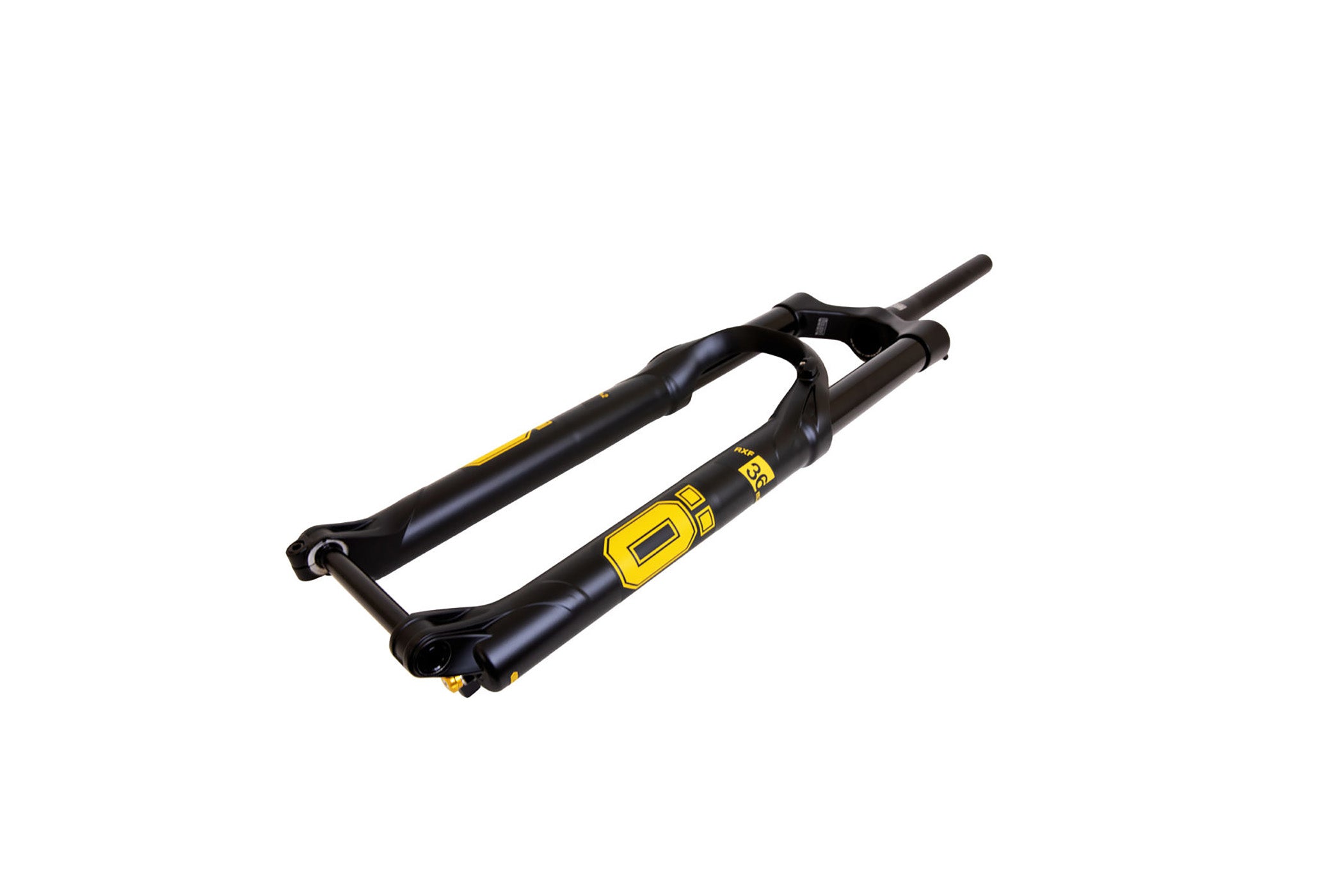

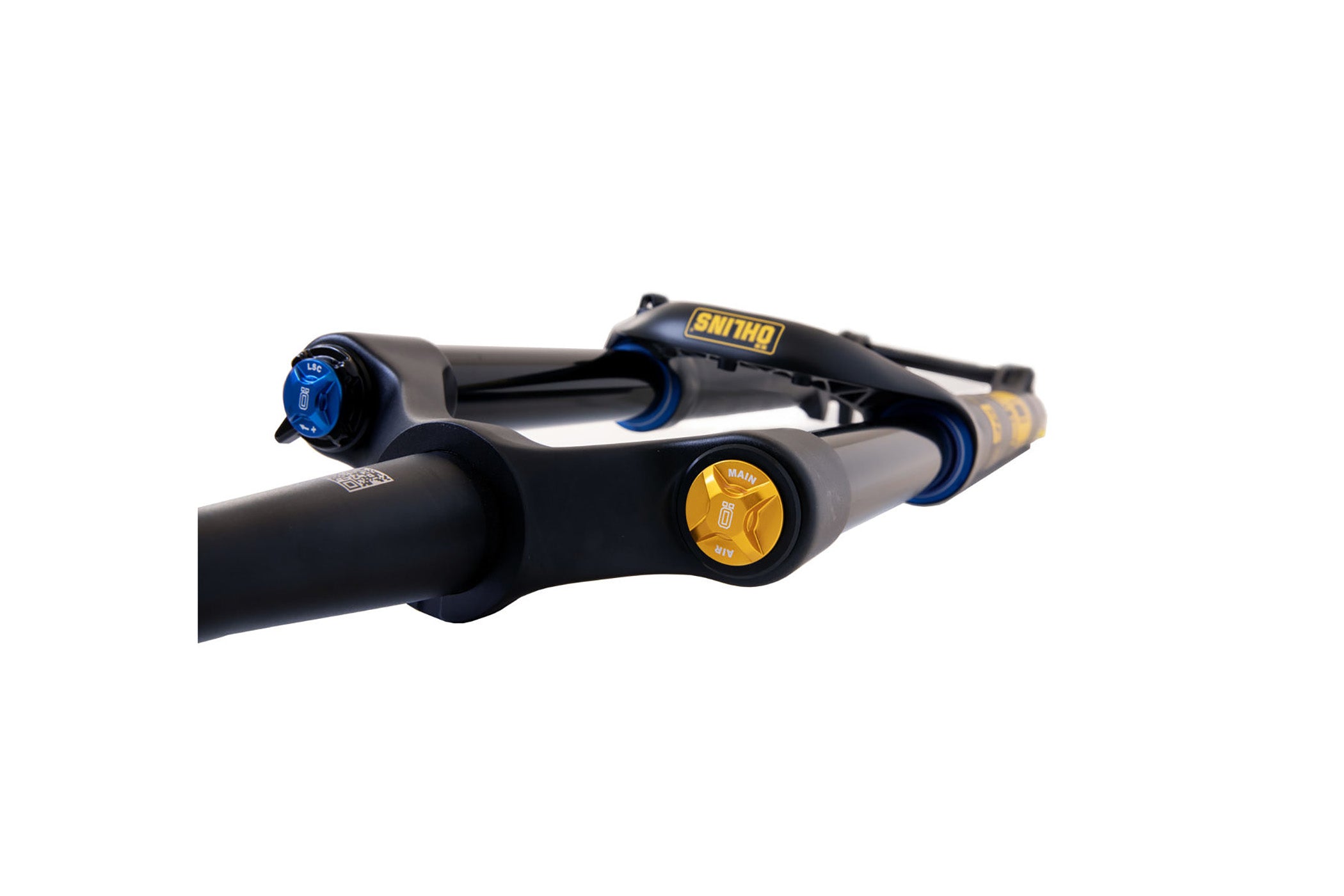

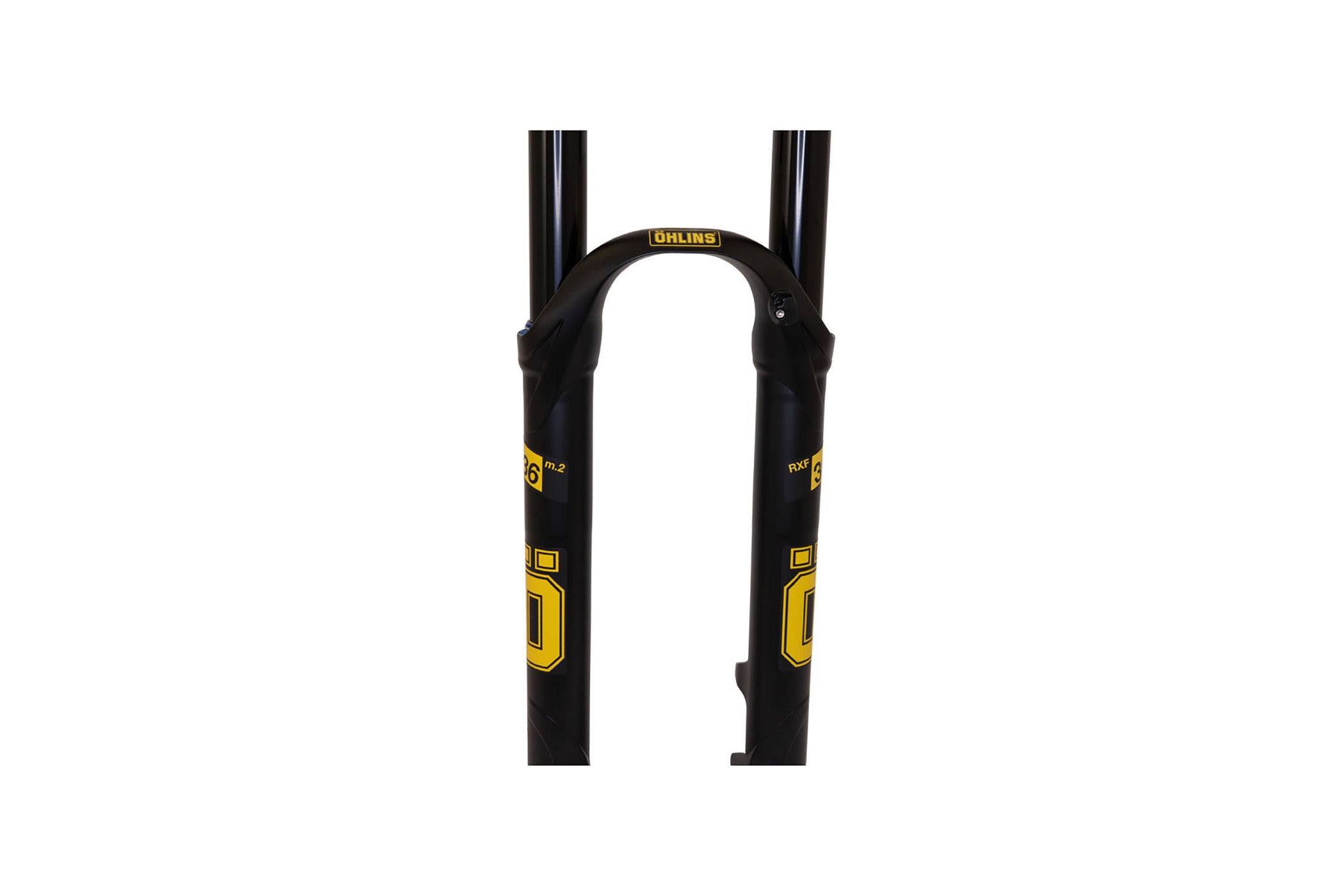

RXF36 m.2 Fork:
The race winning TTX18 damping from our DH38 Race Fork has been reworked to bring its renowned levels of traction and control for use on the trail and enduro circuit. The TTX18 cartridge kit features a trail-optimized 18mm piston that now adds ultra-sensitive tracking over small bumps to the superbly capable package.
The RXF36 m.2’s adjustment range is specifically designed for tough trails and enduro races, giving 15 clicks of low-speed compression and low-speed rebound for total suspension control. For high-speed compression, you get three clicks plus a climb mode setting. Clicker dials make for easy on-the-fly, tool-free adjustments.
The retuned, twin piston, three chamber air-spring system allows you to completely dial-in the level of progression – from the initial movement, right through to the bottom out. The independent third air chamber allows you to adjust bottom out ramp with only a shock pump. No volume spacers or tokens needed. The air spring is cartridge based, so you can easily change between coil and air spring cartridges if desired.
Improved tire clearance enables you to run up to a whopping 29×2.8 or 27.5+ x 3.2. This ability to run large volume tires combined with the super-stiff chassis makes the RXF36 m.2 a great choice for e-bikes as well as pedal powered machines. Just like every product fitted with TTX damping technology, the RXF36 m.2 has a race-proven settings bank giving access to a huge range of options for tuning the damper to suit any specific rider, bike or riding style.
About This Item
- Product is new with manufacturer's warranty
- TTX2 Air Shock:
- Wide range of air volume spacers available to fine-tune the ride characteristics.
- Damping balanced to the specific needs of an air spring.
- The TTX2 Air, named for its double air cans, offers a large volume air spring and advanced damping optimized for stability on long travel bikes with progressive leverage curves.
- Side load approved. Thoroughly tested to perform under the demands of yoke-driven suspension, this air shock shines under pressure.
- Optimized valving means less adjustments to get lost in. Taking a design cue from the TTX coil, Ohlins intentionally limit the adjusters to riders don’t get lost in the useless settings range.
- RXF36 m.2:
- TTX damping keeps you consistently higher in the travel through the perfect balance of compression and rebound force.
- 4-position high speed compression adjuster performs like an instantaneous revalve, without all the oil and shims. Pedal mode in the furthest position for road transfers.
- 16 position low speed compression adjuster. Fine tune the support you need through berms, rocky traverses, and steep chutes without using extra spring force.
- 16 position rebound adjuster. Ohlins eliminated the useless super slow and super fast settings to ensure riders end up with a good, safe tune.
- Vast, verified setting bank allows revalves to suit every rider’s preference.
- No disassembly required: Add air to the ramp up chamber with a shock pump — no need to take out top caps and fiddle with spacers. Makes trailside tuning easy.
- Adjustable negative spring volume. Want more support? Add a spacer. Want more off the top suppleness? Remove one. Another Öhlins special feature
- Cheap and easy travel changes are available by swapping $40 air tubes. Available in 90, 100, 120, 130, 140, 150, 160, 170, and 180mm increments to suite your needs.
- Easy to rebuild. Our cartridge design means you can remove the entire air spring without taking the fork off you bike. A set of shaft clamps is all you need to perform a rebuild.

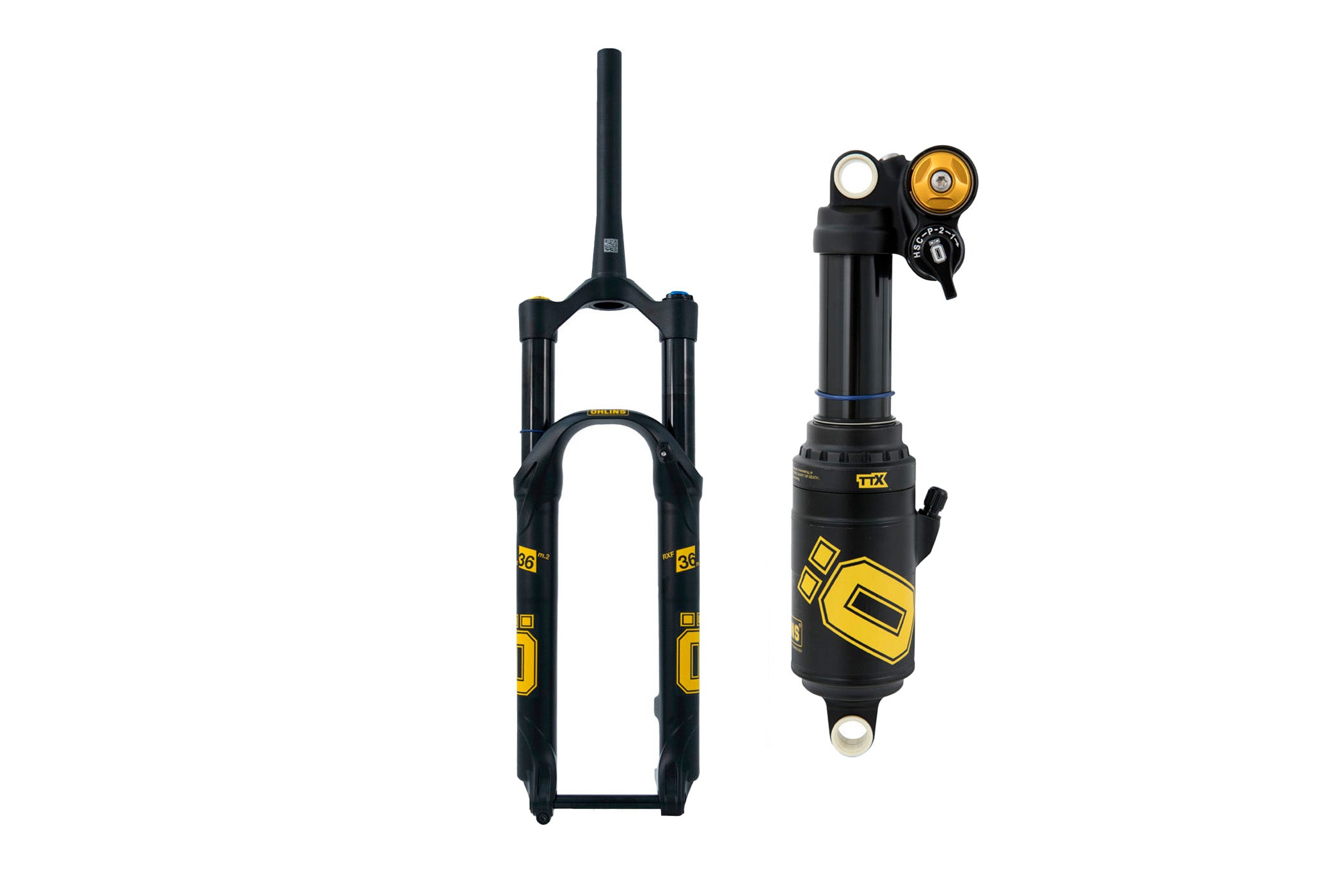

- Fork/Shock Package:
- Matched Performance
- Popular Applications
- Lightest Weight with Proven “Öhlins Feel”
- Low Speed Rebound Adjustment
- Low Speed Compression Adjustment
- Three Step High Speed Comp. Adjustment
- Climb Mode
- Race-Prove Optional Setting Bank
- Air Spring Volume Spacers Included
- Friction reducing Floating Axle
- Same Travel as OE: 160mm travel fork / 210x55mm shock
- For sizes S2-S6
- Hardware Included
Specifications
Details
| Brand | Ohlins |
| Model | RXF36 m.2 160mm Fork/TTX2 Air Shock Package for 2021-2023 Specialized Stumpjumper |
| Wheel Size | 29" |
| Travel | 160mm |
| Stanchion Size | 36mm |
| Steerer Tube Diameter | Tapered |
| Brake Mount | Disc Brakes - Hydraulic |
| Rake/Offset | 44mm |
| Weight | 2610 grams |
| Front Axle Spacing | 15x110mm (Boost) |
