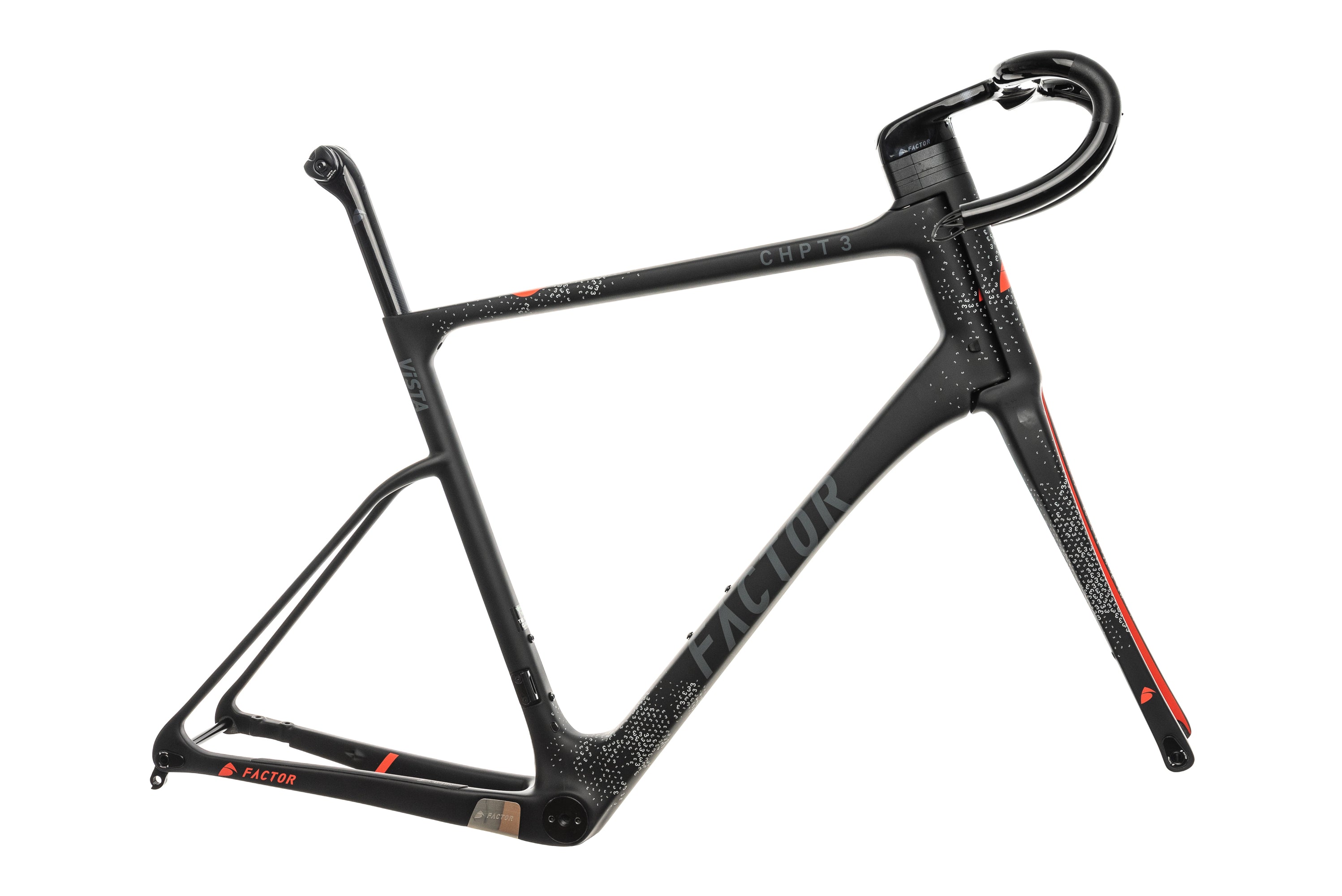

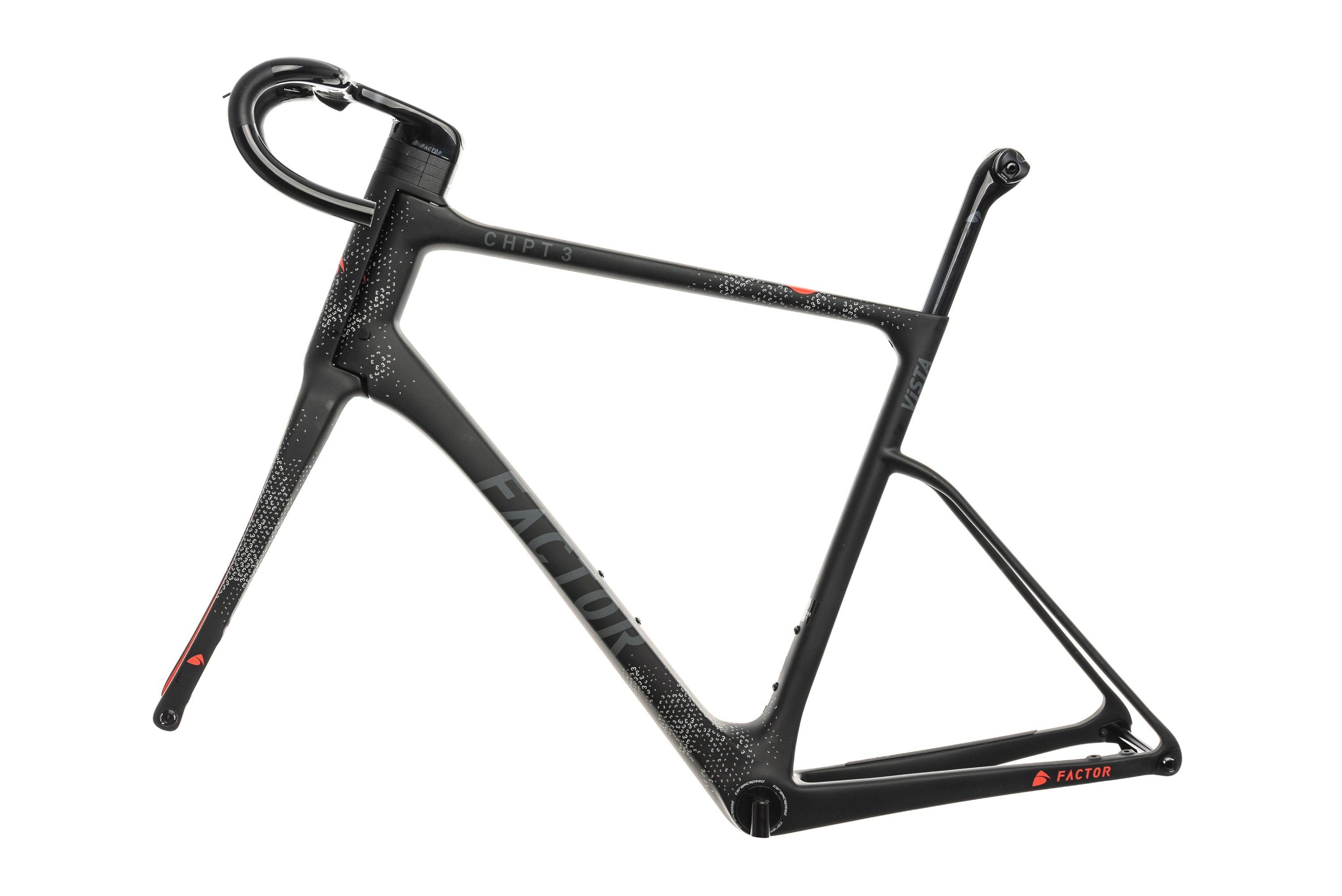

Factor Vista CHPT3 Devesa 58cm Frameset - 2020
isn't available.
You'll be the first to know next time this or similar products are available.
Factor Vista CHPT3 Devesa 58cm Frameset - 2020
Item #FRD11770
Condition:
New — Open
Fit Range: 6'1" - 6'5"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
About This Item
- Includes: Frame, fork, seatpost, bar/stem, headset, thru axles, and rear derailleur hanger (installed). Frameset may have blemishes or nicks from being on showroom floor. Otherwise, unridden. Factor Otis Vista All-Road Carbon bar/stem 44cm x 120mm w/ handlebar tape included. CeramicSpeed PF30 bottom bracket w/ Wheels MFG 24mm BBRight reducers/adapters included. Black Inc Garmin computer integrated handlebar mount included.
Specifications
Details
| Year | 2020 |
| Brand | Factor |
| Model | Vista CHPT3 Devesa |
| Size | 58cm |
| Frame Material | Carbon Fiber |
| Fork | Factor Vista OTIS All-Road RBi |
| Fork Material | Carbon Fiber |
| Steerer Tube | 210 mm, 1-1/8 in |
| Brake Type | Disc Brakes |
| Front Derailleur Mount | Braze On |
| Headset | Integrated w/ 3-10mm/1-5mm alloy spacers and top cover installed. |
| Bottom Bracket | Included, PF30 |
| Wheel Size | 700C |
| Seatpost Diameter | Frame Specific |
| Seatpost Clamp | Included |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm (Thru-Axle) |
| Weight | 5 lbs 14 oz |
Build
| Fork | Factor Vista OTIS All-Road RBi, Carbon Fiber |
| Brakes | Disc Brakes |
| Headset | Integrated w/ 3-10mm/1-5mm alloy spacers and top cover installed. |
| Seatpost | Frame Specific |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm (Thru-Axle) |
Geometry
| Fit Range |
6'1" - 6'5"
|
| A. Effective Top Tube | 575 mm |
| B. Seat Tube | 548 mm |
| C. Seat Tube Angle | 73.5° |
| D. Head Tube Angle | 72.5° |
| E. Head Tube | N/A |
| F. Stack | 610 mm |
| G. Reach | 394 mm |
| H. Standover Height | 825 mm |
| I. Saddle Height Range | N/A |
