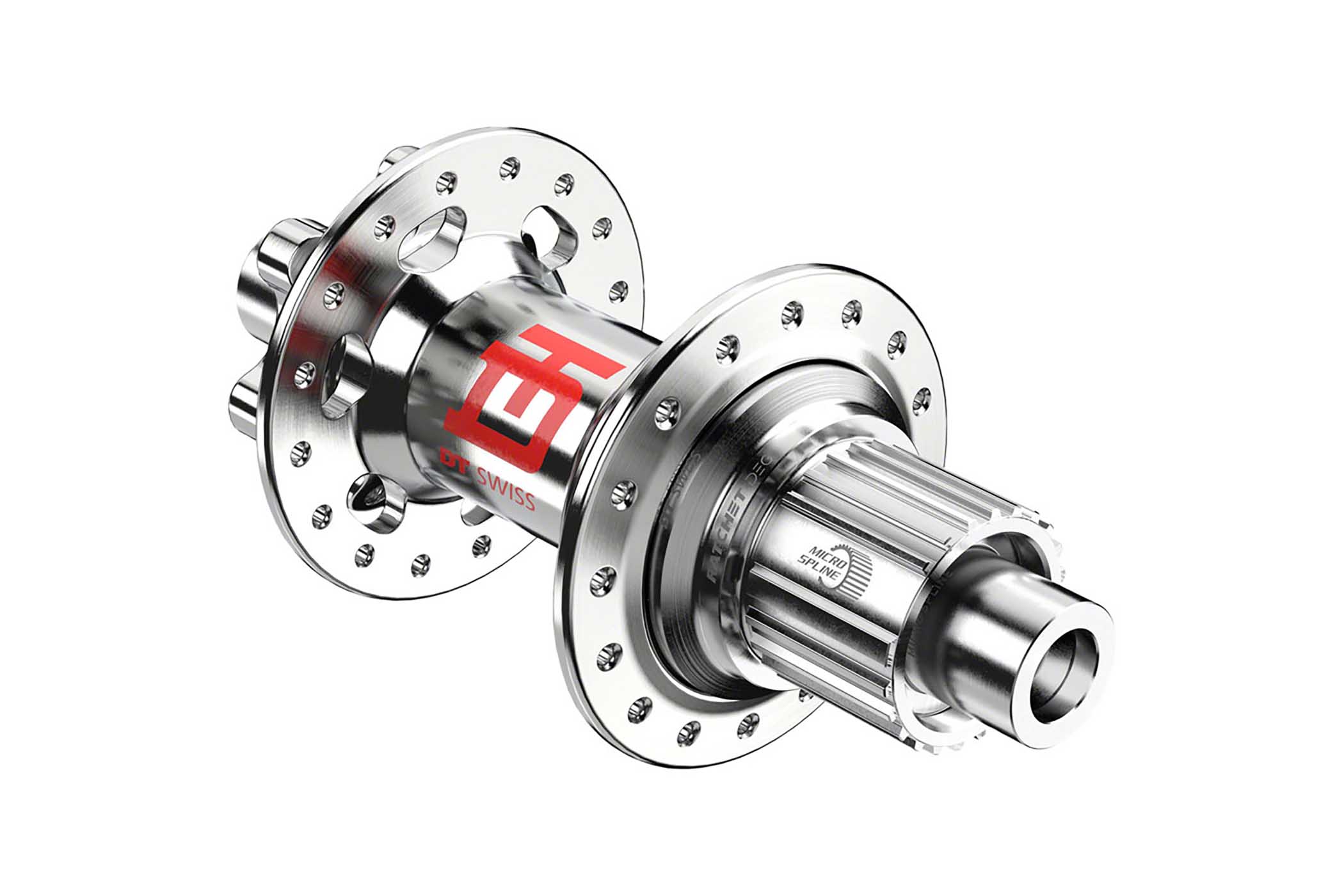

DT Swiss 240 DEG Rear Hub 12 x 148mm 6-Bolt Micro Spline 32 Hole 3 Decades Edition

Item #CHU10497
Condition:
New with Warranty

Eye icon Pulsating eye icon that grows and shrinks people are looking at this
Shipping

Your gear ships fast with Standard, Two-Day, or Local Pickup.

Canadian Customers

Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.

Why We Love It
The Ratchet DEG System was designed by taking a different angle than the common high engagement freehub systems, to deliver a smaller engagement angle and maximized reliability. The simultaneous full engagement of the ratchets provides a larger contact patch than pawl hubs and thus a more balanced load distribution, resulting in higher reliability. Two enlarged ratchets with 90 teeth offer the smallest engagement angle ever made in the DT Swiss portfolio. On the trail, this transmits into a different angle in the backlash. The small idle distance at the cranks allows for more direct acceleration, like out of corners, as well as the possibility to adjust the pedal position faster, like when overcoming obstacles on a technical uphill trail.
About This Item
  • Achieving a different engagement angle from what DT Swiss has done to date required a major adaptation to the drive side of the hub. The Ratchet DEG system and its new hub body allow the installation of size-optimized 90-tooth ratchets, at 4 degrees
  • Made of steel, the DEG ratchets are bigger than all the previous DT Swiss ratchets and aim to transmit the power of even the strongest riders for a long time and across a large contact surface
  • The innovative construction of the 240 DEG hub allows bearing replacement without special tools
  • 90 points of engagement
  • Limited Edition 3 Decades Silver
  • Hub Drilling: 32
  • Hub/Brake Compatibility: 6-Bolt Disc
  • Color: Silver
  • Cassette Body Type: Shimano Micro Spline
  • Spoke Interface: J-Bend
  • Bearing Type: Sealed Cartridge
  • Rear Axle: 12mm Thru x 148mm
Specifications
Toggle accordion
Details
Brand DT Swiss
Model 240 DEG Rear Hub 12 x 148mm 6-Bolt Micro Spline 3 Decades Edition
Rear Axle Spacing 12x148mm Boost (Thru-Axle)
Freehub Shimano Micro Spline
Brake Type Disc Brakes - Hydraulic
Intended Use Mountain
mpn H240TDD2R32NA0880S
upc 7613052398136
