Cervélo S5 Disc 56cm Frameset - 2021
Item #FRD12745
Recommended Rider Height: 5'10" - 6'1" Sizing Guide
Condition: NEW
Questions about this frame?
Be a Contender in the Sprint
Why We Love It
About This Item
- Cervélo’s flagship bike that satisfies the WorldTour’s top sprinters
- Max power transfer via intense lateral stiffness, with ample comfort too
- Stiff head tube provides predictable handling for descents or bunch sprints
- Aggressive geometry, plus seamless, adjustable cockpit in newer models
- Recent models feature clearance for 28mm tires

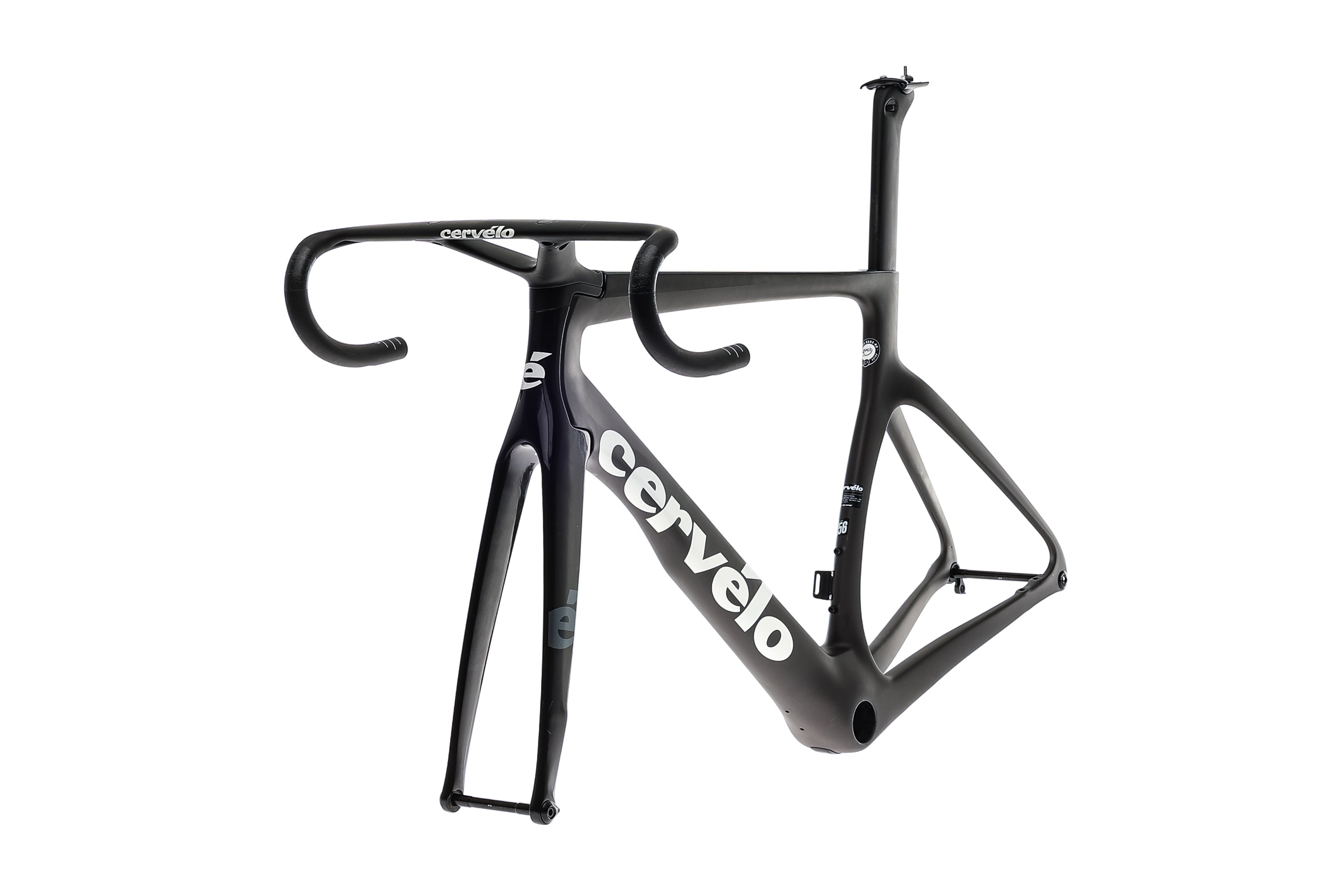

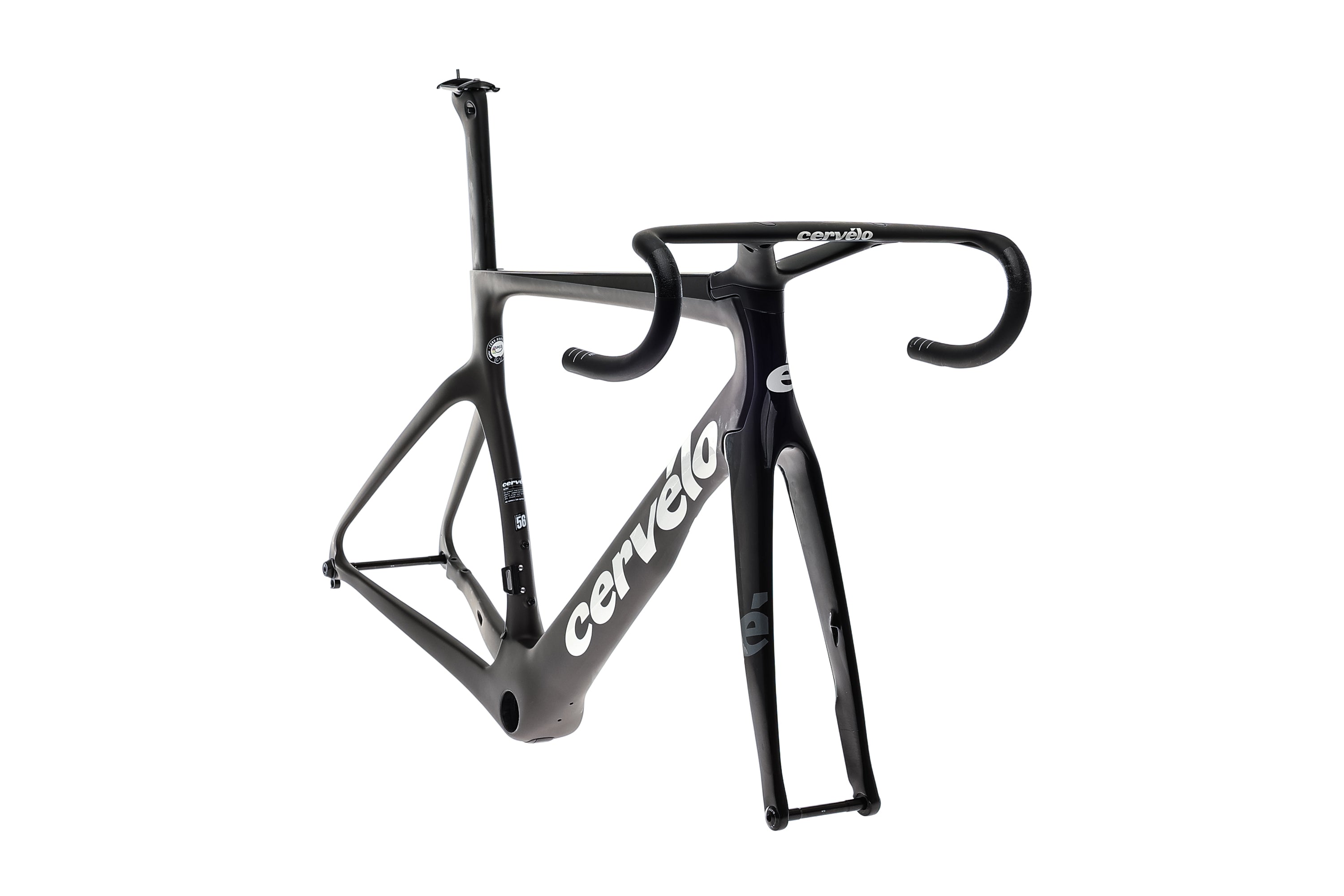

- Includes: Frame, fork, headset, handlebar/stem, seatpost, thru axles, and rear derailleur hanger (installed)
- Cervélo AB08 Carbon handlebar w/ Cervélo CS028 Carbon V-Stem, 42cm x 100mm

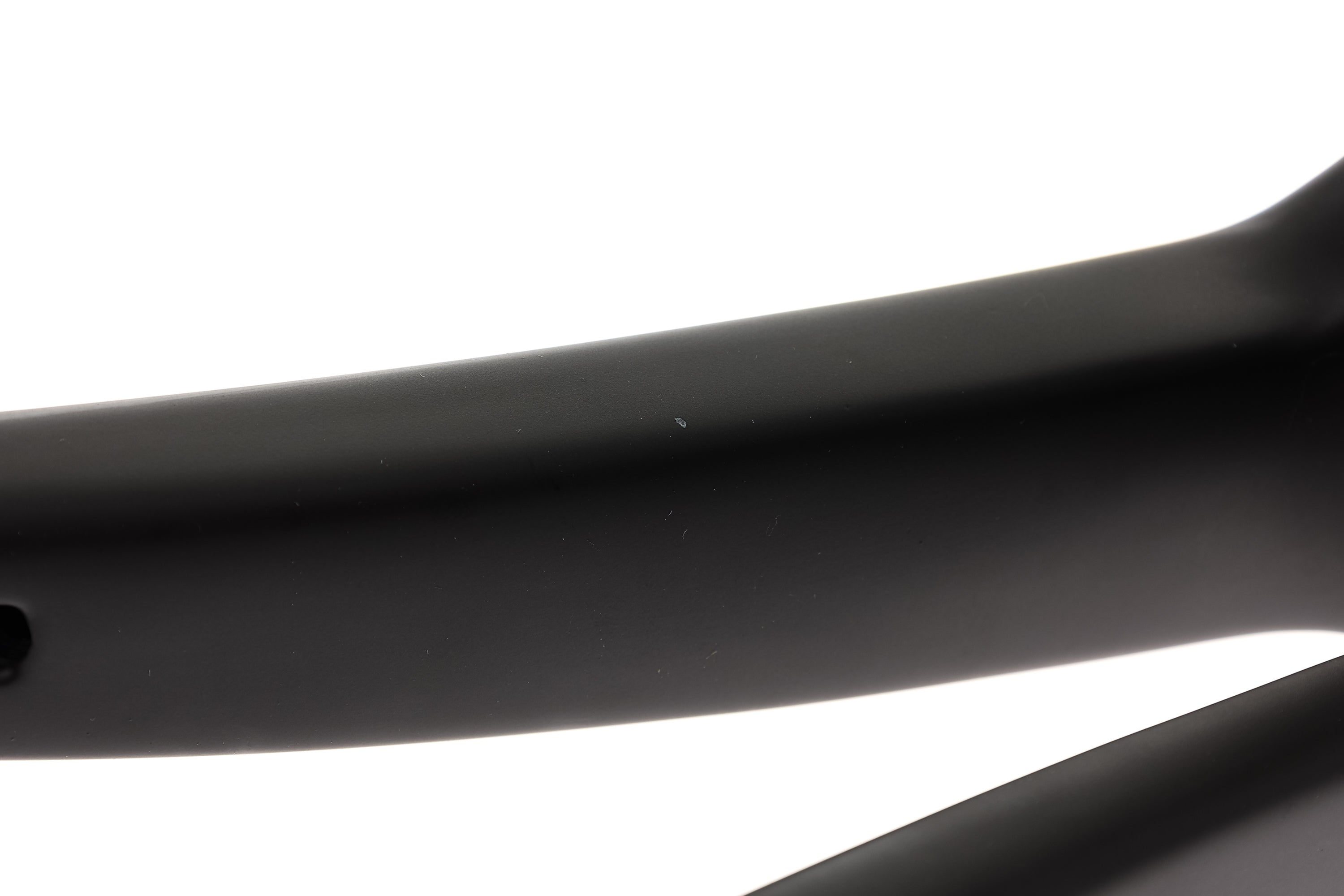

- Frameset may have blemishes or nicks from being on showroom floor. Otherwise, unridden
- Frame is currently setup for wireless shifting
- Cable grommets for Di2 and mechanical shifting not included
Details
| Year | 2021 |
| Brand | Cervelo |
| Model | S5 Disc |
| Size | 56cm |
| Frame Material | Carbon Fiber |
| Fork | Cervélo S5 Disc |
| Fork Material | Carbon |
| Steerer Tube | 140 mm, Tapered |
| Brake Type | Disc Brakes - Hydraulic |
| Front Derailleur Mount | Braze-On |
| Headset | FSA IS2 1 x 1-3/8 |
| Bottom Bracket | Not Included, BBright |
| Wheel Size | 700C |
| Seatpost Diameter | Frame Specific |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Weight | 5 lbs 5 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Build
| Fork | Cervélo S5 Disc , Carbon |
| Brakes | Disc Brakes - Hydraulic |
| Shifters | Mechanical/Electronic |
| Headset | FSA IS2 1 x 1-3/8 |
| Seatpost | Cervelo SP20 Carbon Aero Post, Frame Specific |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Recommended Rider Height |
5'10" - 6'1"
|
| a. Effective Top Tube | 565 mm |
| b. Seat Tube | 560 mm |
| c. Seat Tube Angle | 73° |
| d. Head Tube Angle | 73.5° |
| e. Head Tube | 130 mm |
| f. Stack | 565 mm |
| g. Reach | 392 mm |
| h. Standover Height | 775 mm |
| i. Saddle Height Range | N/A |
