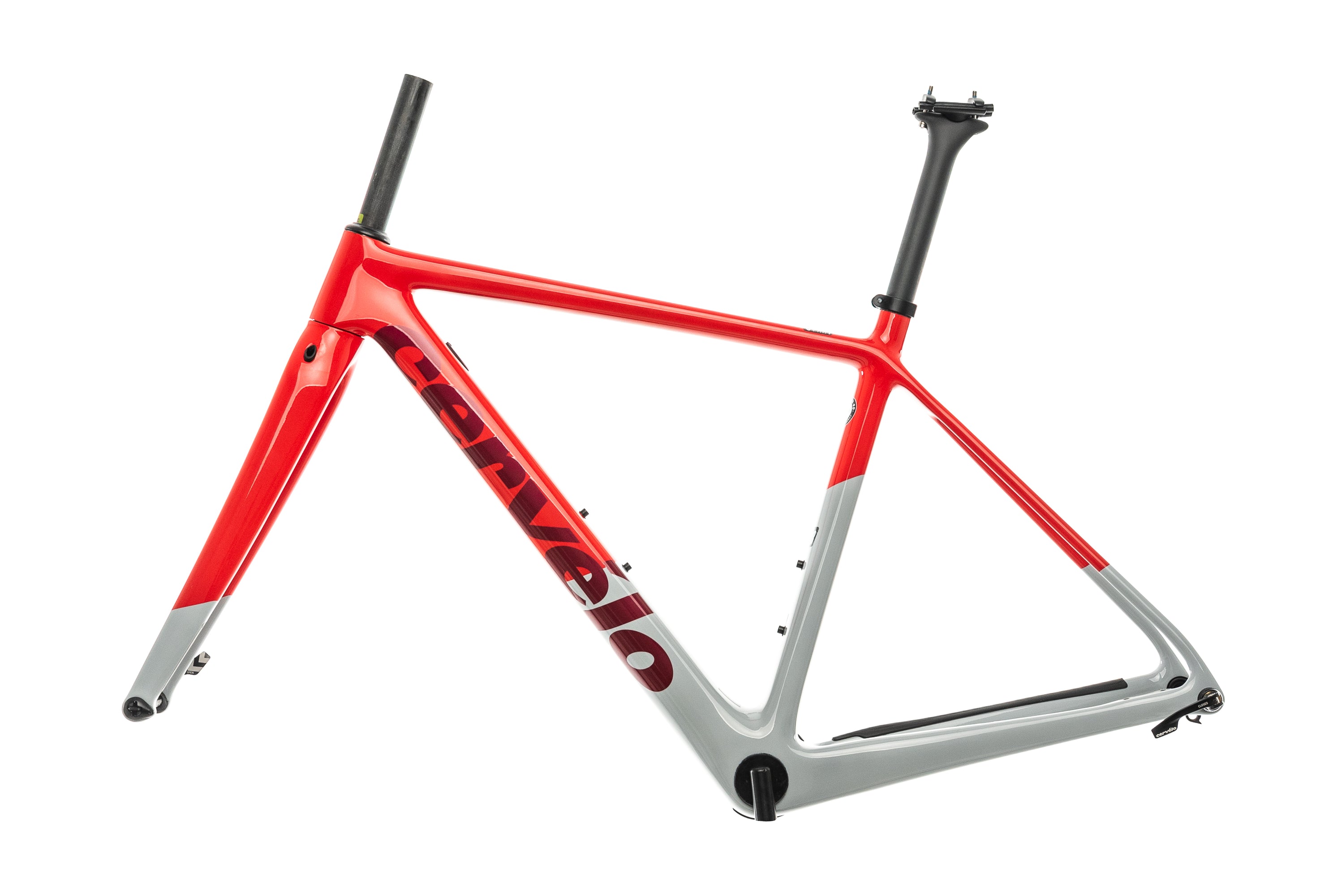

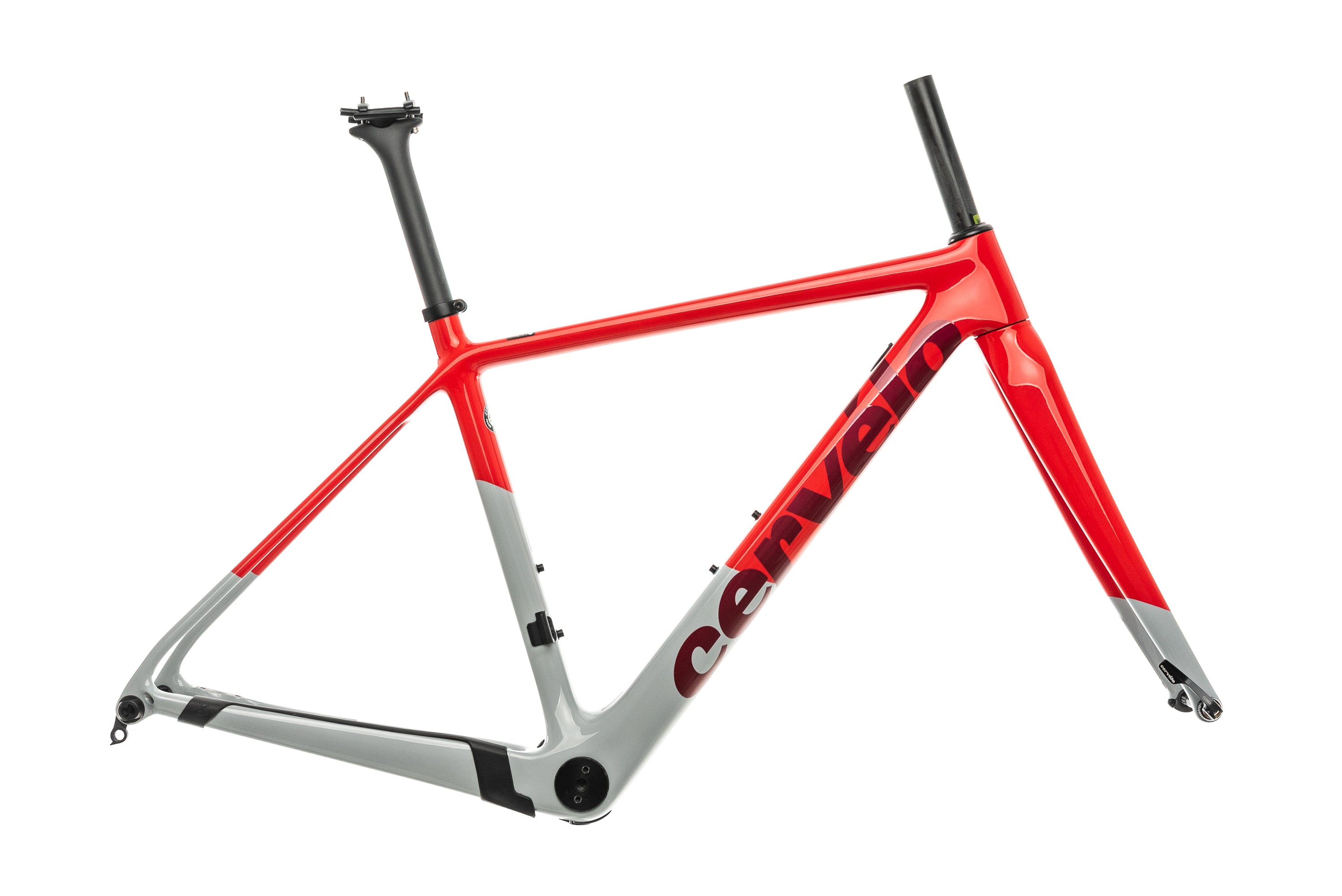

Cervelo R-Series Disc 48cm Frameset - 2020 drive side Cervelo R-Series Disc 48cm Frameset - 2020 non-drive side Cervelo R-Series Disc 48cm Frameset - 2020 sticker Cervelo R-Series Disc 48cm Frameset - 2020 drivetrain Cervelo R-Series Disc 48cm Frameset - 2020 front wheel Cervelo R-Series Disc 48cm Frameset - 2020 cockpit Cervelo R-Series Disc 48cm Frameset - 2020 crank Cervelo R-Series Disc 48cm Frameset - 2020 detail 1
2020 48cm SKU: FRD11765

Cervelo R-Series Disc 48cm Frameset - 2020

Condition: NEW
Regular price

$2,309.99

return icon 30-day returns
shipping icon Fast Shipping

About this item

Cervelo R-Series Disc 48cm Frameset - 2020

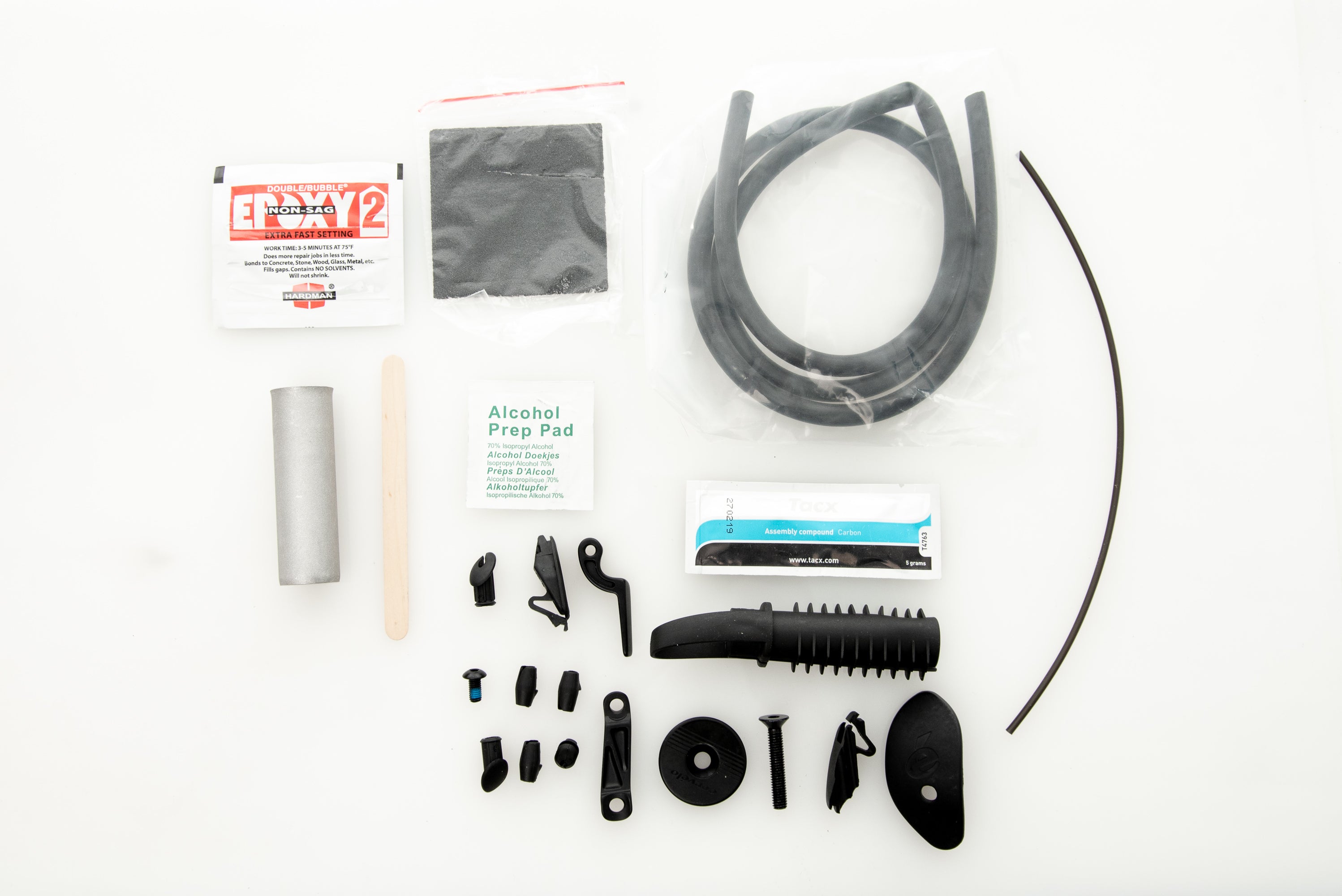

Includes: Frame, fork, seatpost, thru axles, and rear derailleur hanger (installed).

Frame cable grommets included.

Compression plug for fork steerer tube and top cap included (not installed).

Specifications

Year 2020
Brand Cervelo
Model R-Series Disc
Size 48cm
Frame Material Carbon Fiber
Fork Cervelo R-Series Disc
Fork Material Carbon Fiber
Steerer Tube 245 mm, Tapered
Brake Type Disc Brakes
Front Derailleur Mount Braze-On
Headset Not Included
Bottom Bracket Not Included, BBright
Wheel Size 700C
Seatpost Diameter 27.2mm
Seatpost Clamp Included
Front Axle Spacing 12x100mm (Thru-Axle)
Rear Axle Spacing 12x142mm (Thru-Axle)
Weight 3 lbs 10 oz

Geometry

Recommended Rider Height 4'11" - 5'2"
a. Effective Top Tube 515 mm
b. Seat Tube 480 mm
c. Seat Tube Angle 73.0°
d. Head Tube Angle 71.0°
e. Head Tube 89 mm
f. Stack 505 mm
g. Reach 360 mm
h. Standover Height 693 mm
i. Saddle Height Range N/A
VIEW SIZING GUIDE
