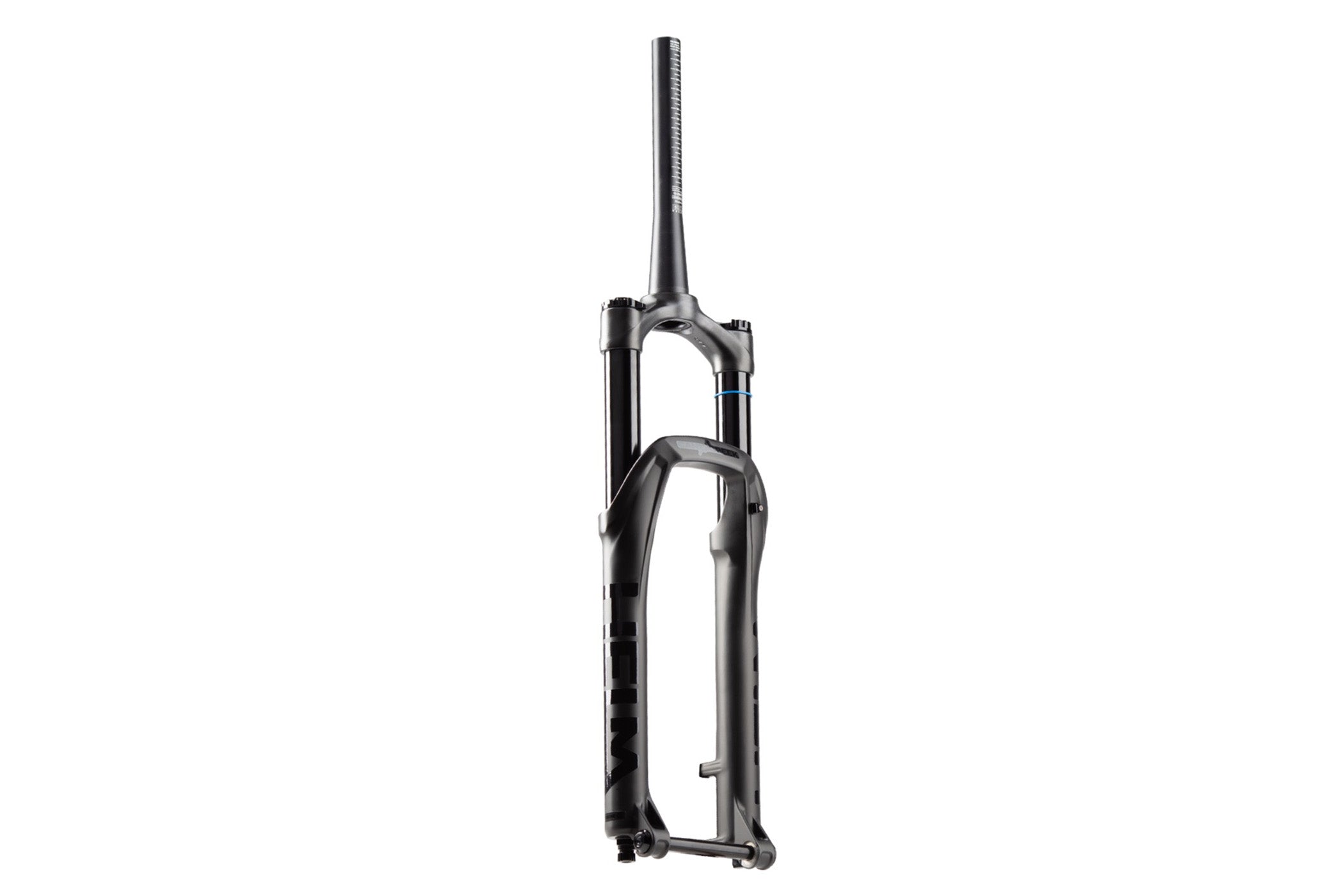

Cane Creek Helm MKII Air 27.5" Fork 44mm Offset

Item #KSU11091
Condition:
New with Warranty
Color:
Color
Size:
Size

Eye icon Pulsating eye icon that grows and shrinks people are looking at this
Shipping

Your gear ships fast with Standard, Two-Day, or Local Pickup.

Canadian Customers

Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.

Why We Love It
The Helm MKII is Cane Creek's first major update of the Helm fork lineup and improves on its predecessor in nearly every way. Hand-built in Western North Carolina and rigorously tested and developed in the Appalachian Mountains.

Featuring an updated damper design with new compression and mid valve circuits, a new SKF oil seal head, and Motorex 2.5 weight damper oil. All of these elements work to reduce friction and increase sensitivity.

Every single Helm fork is designed, built, inspected, tested and packed by a dedicated team of suspension professionals at Cane Creek's facility in Fletcher, North Carolina. Their suspension team’s attention to detail is illustrated in Cane Creek's three step Dyno testing, ensuring that their hand built products reach high standards of precision and performance.

The HELM’s Damper is the control center of the fork – highly sensitive check springs, valves and shims control the flow of oil with every compression and rebound as you ride down the trail. Cane Creek’s Development Team equips the MKII with new compression and mid valve circuits to maintain control during heavy braking and square edge scenarios.

A redesigned SKF Oil Seal Head and Motorex damper oil work together to protect the internal damper components while simultaneously reducing friction.
About This Item
  • Weight 2080 grams
  • Damping: High Speed Compression, Low Speed Compression, Low Speed Rebound
  • Adjustments: High speed compression (10 positions) / Low speed compression (17 positions) / Low speed rebound (10 positions)
  • Independent positive air spring
  • Independent negative air spring
  • Indexed travel adjust system (8 positions)
  • Spring: Double-Air spring system. High volume positive and negative air springs
  • Stanchion Diameter: 35mm
  • Min. Brake Rotor Size: 180mm. *If you are using a Hope Tech brake on a Helm fork, you will need to use a 200mm rotor with appropriate adapter.
  • Travel: Optimized for 130-160mm of travel. Travel is internally adjustable with 10mm Increments (160mm down to 130mm). 2 Travel spacers included.
  • Axle Spacing / Offset: "D-Loc" 15mm Bolt-on thru axle 15mm x 110 BOOST spacing / 44mm offset
  • Max Tire Size: 64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
Specifications
Toggle accordion
Details
Brand Cane Creek
Model Helm MKII Air 27.5"
Wheel Size 27.5"
Travel 160mm
Stanchion Size 35mm
Steerer Tube Diameter Tapered
Brake Mount Disc Brakes - Hydraulic
Rake/Offset 44
Weight 2080 grams
Front Axle Spacing 15x110mm (Thru-Axle)
mpn BAG0657
upc 840226096636
