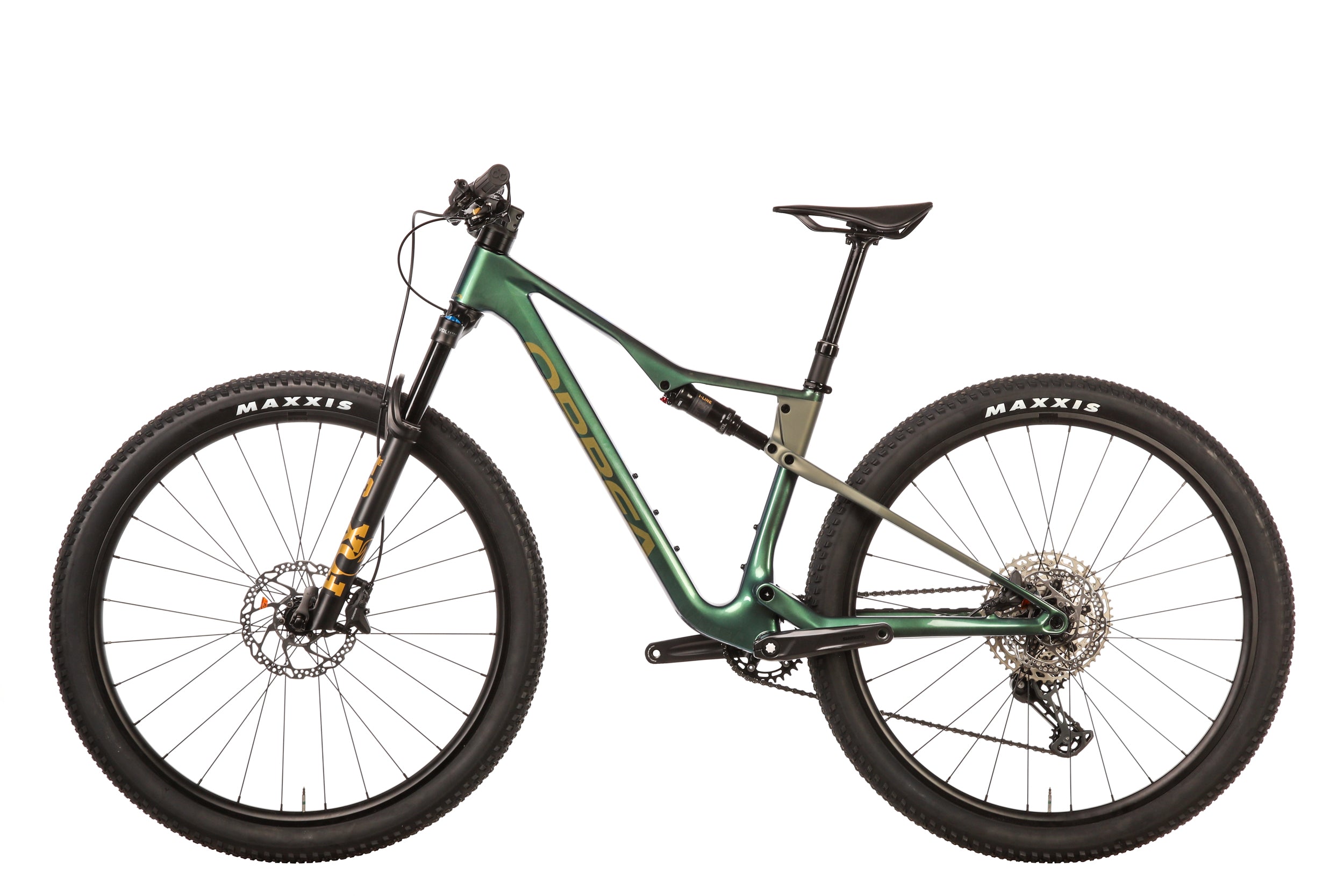

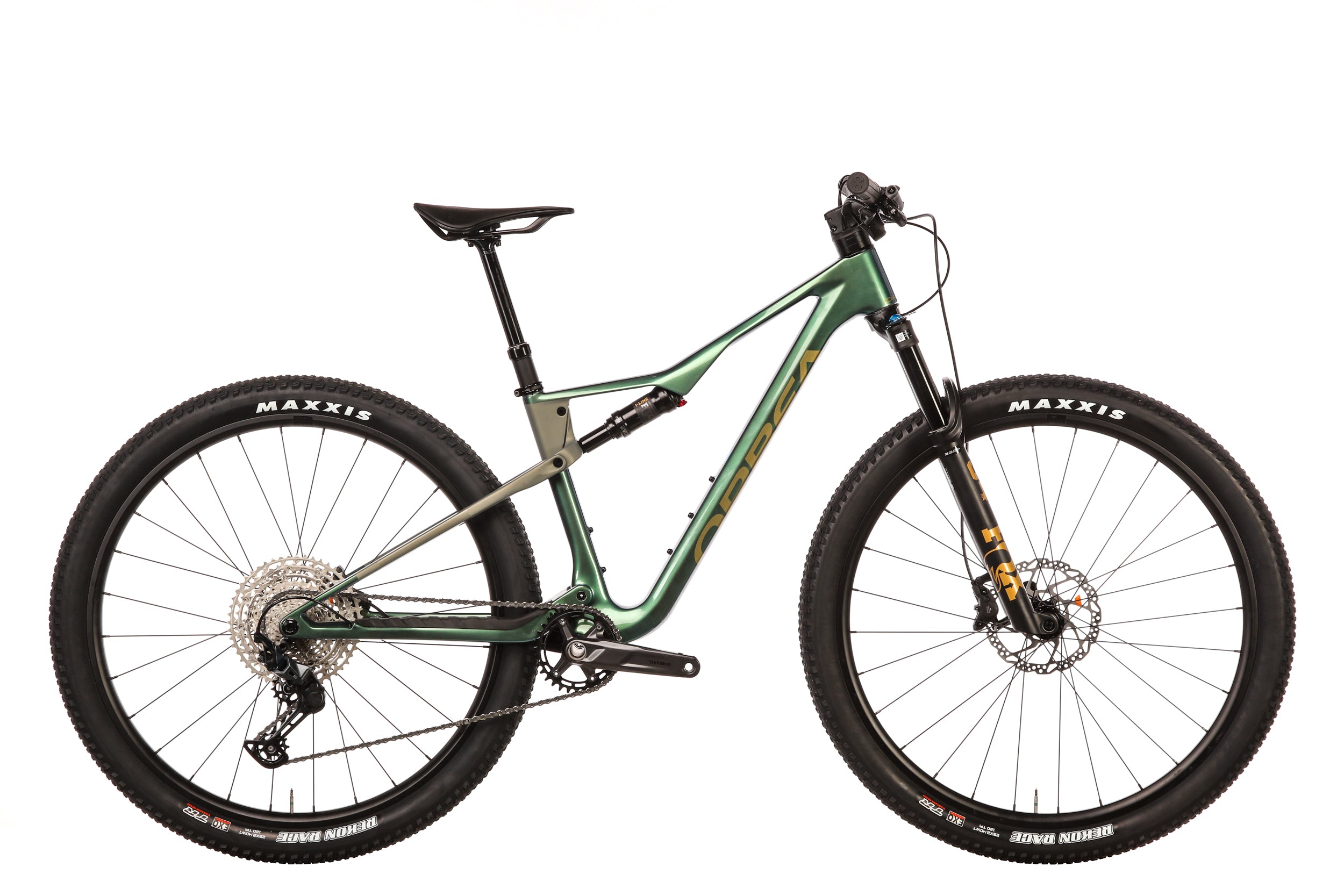

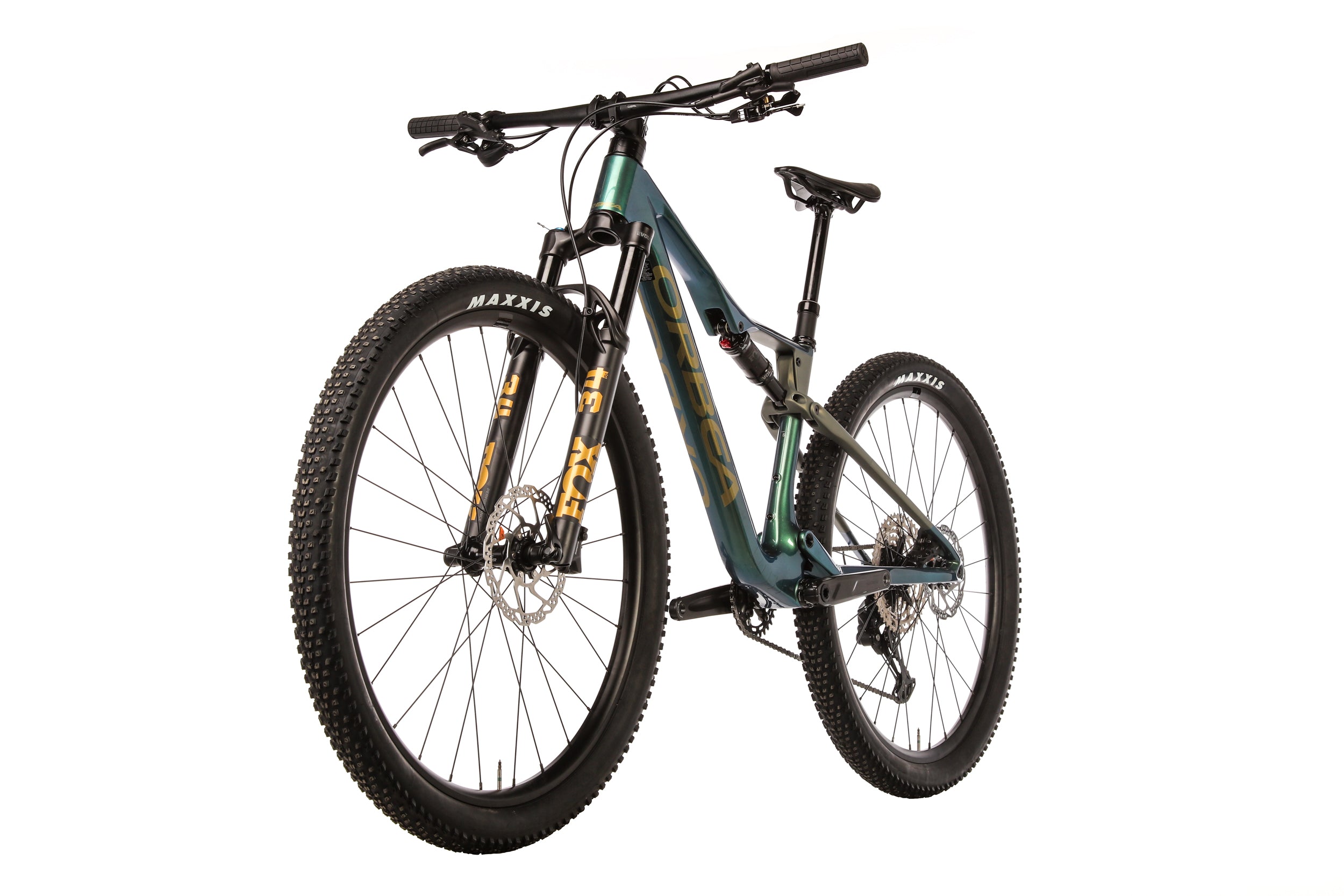

Orbea Oiz M30 Mountain Bike - 2026, Small
Item #BMT36574
Condition: Certified Pre-Owned
Fit Range: 5'1" - 5'7"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
The Bike of Champions
Why We Love It
Features
- No nonsense cross-country geometry built for speed
- Ultralight and stiff carbon or hydro-formed aluminum frame

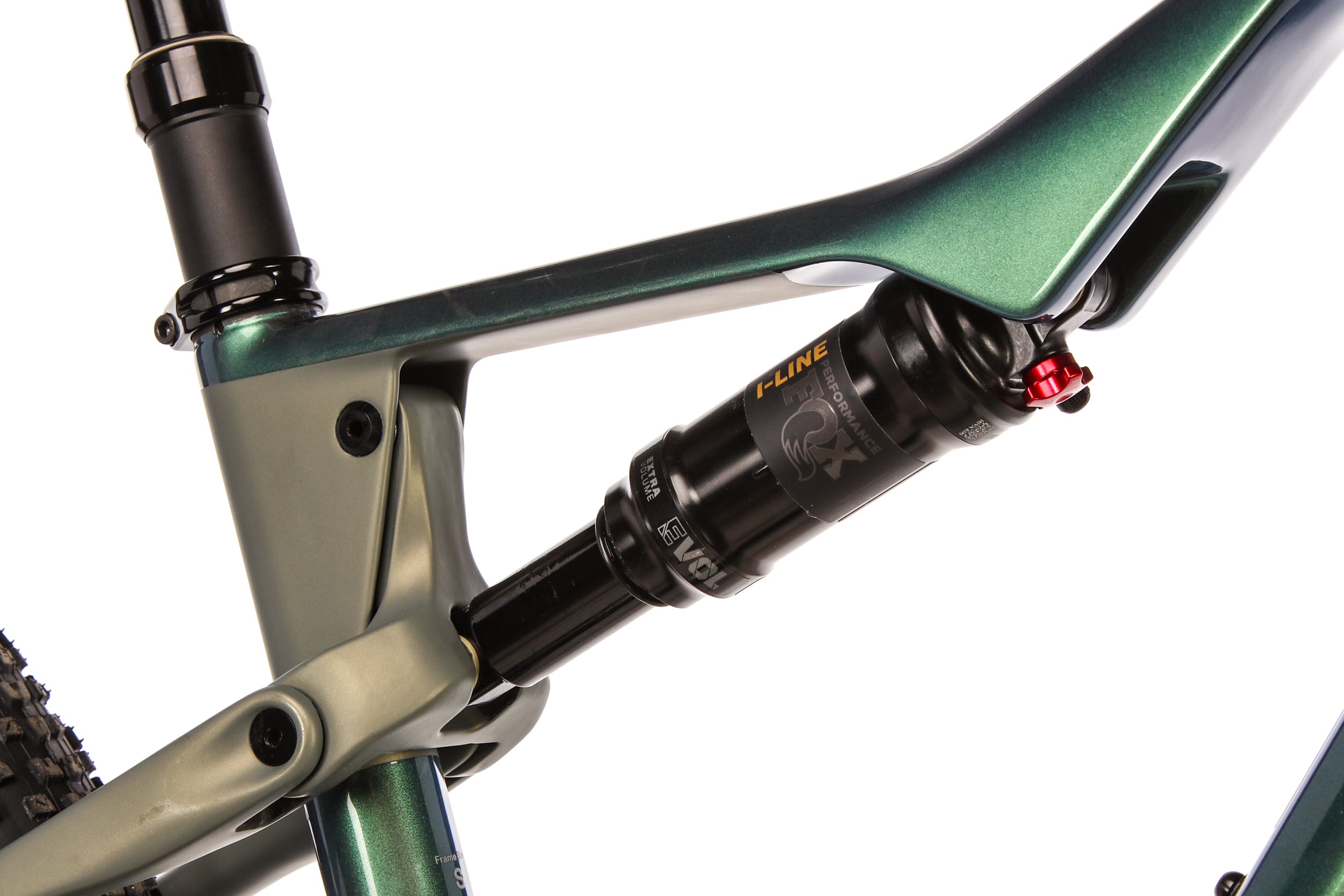

- Patented I-Line internal shock lockout to guarantee efficiency
- Space for two water bottles inside the front triangle
Master Mechanic’s Notes

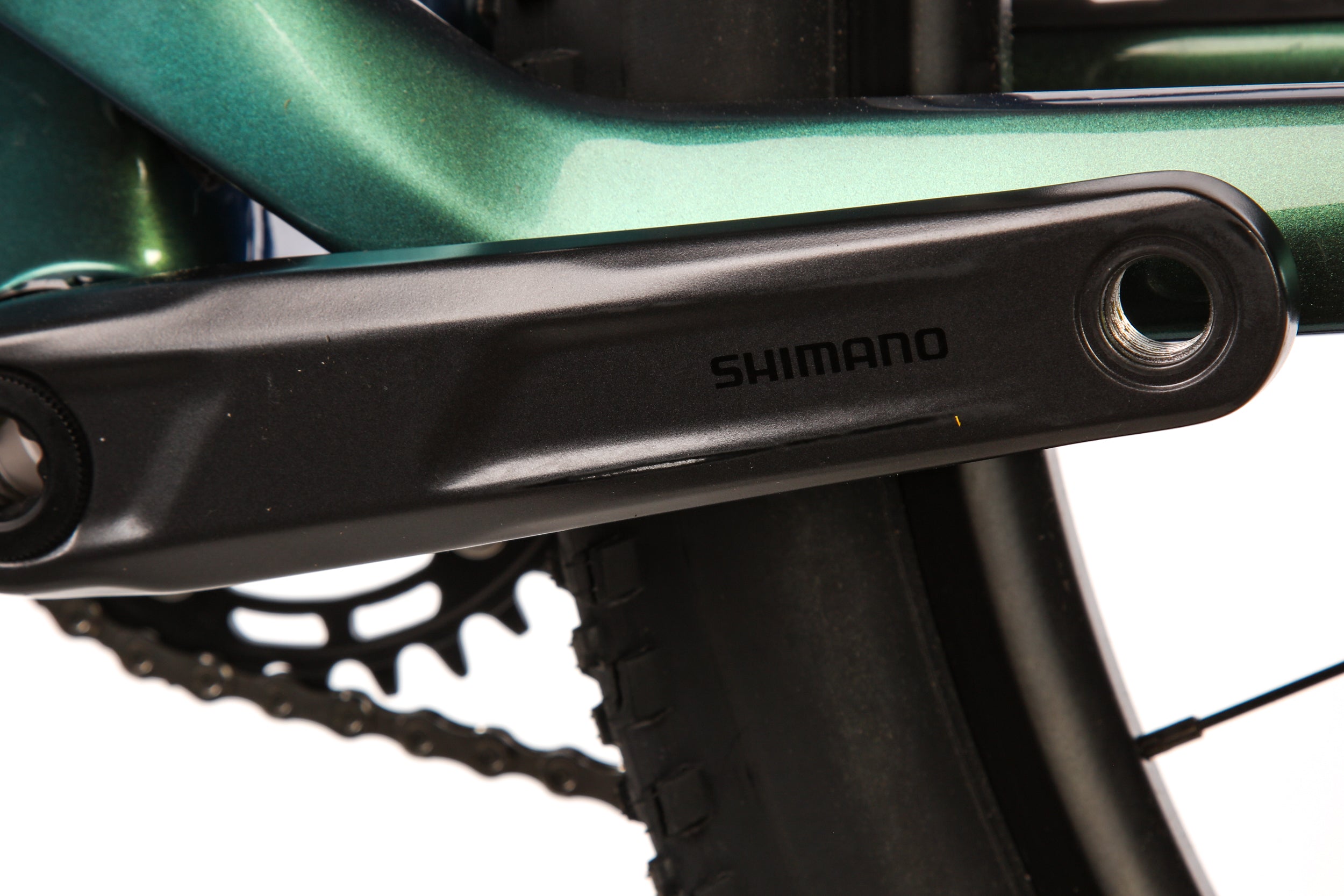

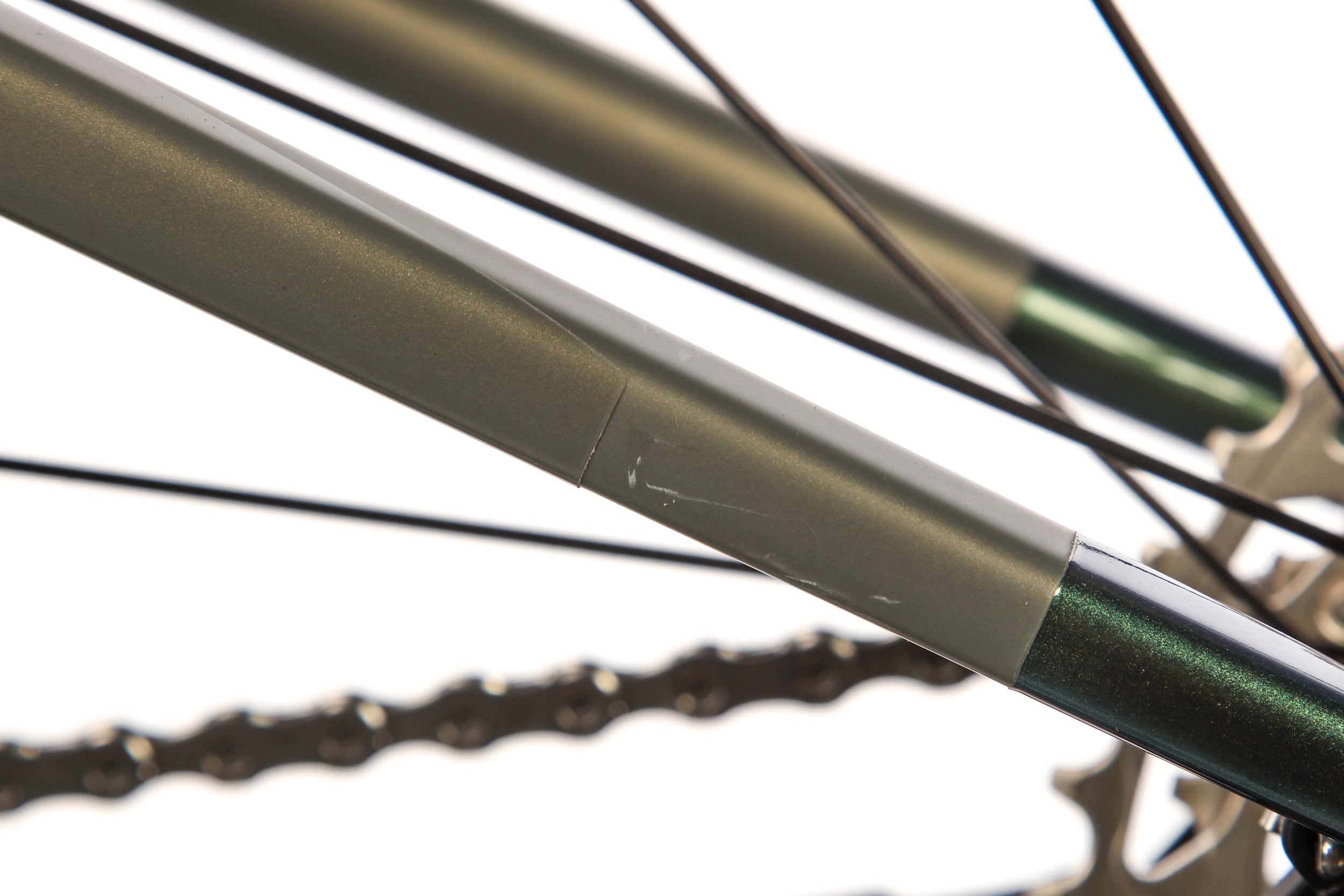

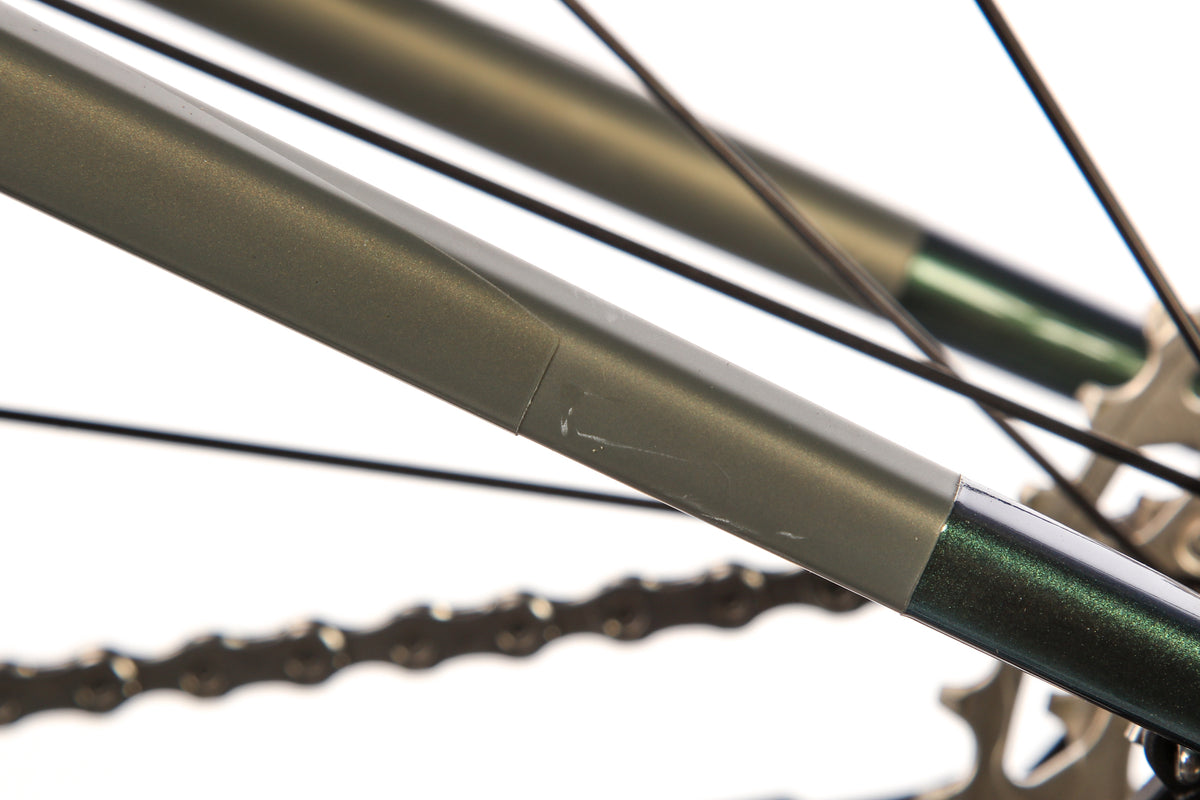

- Light scratches on the non-drive side crank arm & non-drive side seatstay
Specifications
Details
| Original MSRP | $4,199.00 |
| Year | 2026 |
| Brand | Orbea |
| Model | Oiz |
| Size | Small |
| Frame Material | Carbon Fiber |
| Drivetrain | Shimano, 1x12 spd |
| Weight | 29 lbs 0 oz |
| mpn | t22403KS |
Build
| Fork | FOX Performance 34 FLOAT |
| Fork Travel | 120mm |
| Rear Shock | FOX Performance FLOAT SL |
| Rear Shock Travel | 120mm |
| Brakes | Shimano Deore M6100, Disc Brakes - Hydraulic |
| Shifters | Shimano Deore M6100, Mechanical |
| Rear Derailleur | Shimano SLX M7100 |
| Bottom Bracket Shell | Threaded |
| Crankset | Shimano MT511 Alloy, 32t, 170mm |
| Cassette | Shimano Deore M6100, 10-51t |
| Chain | Shimano |

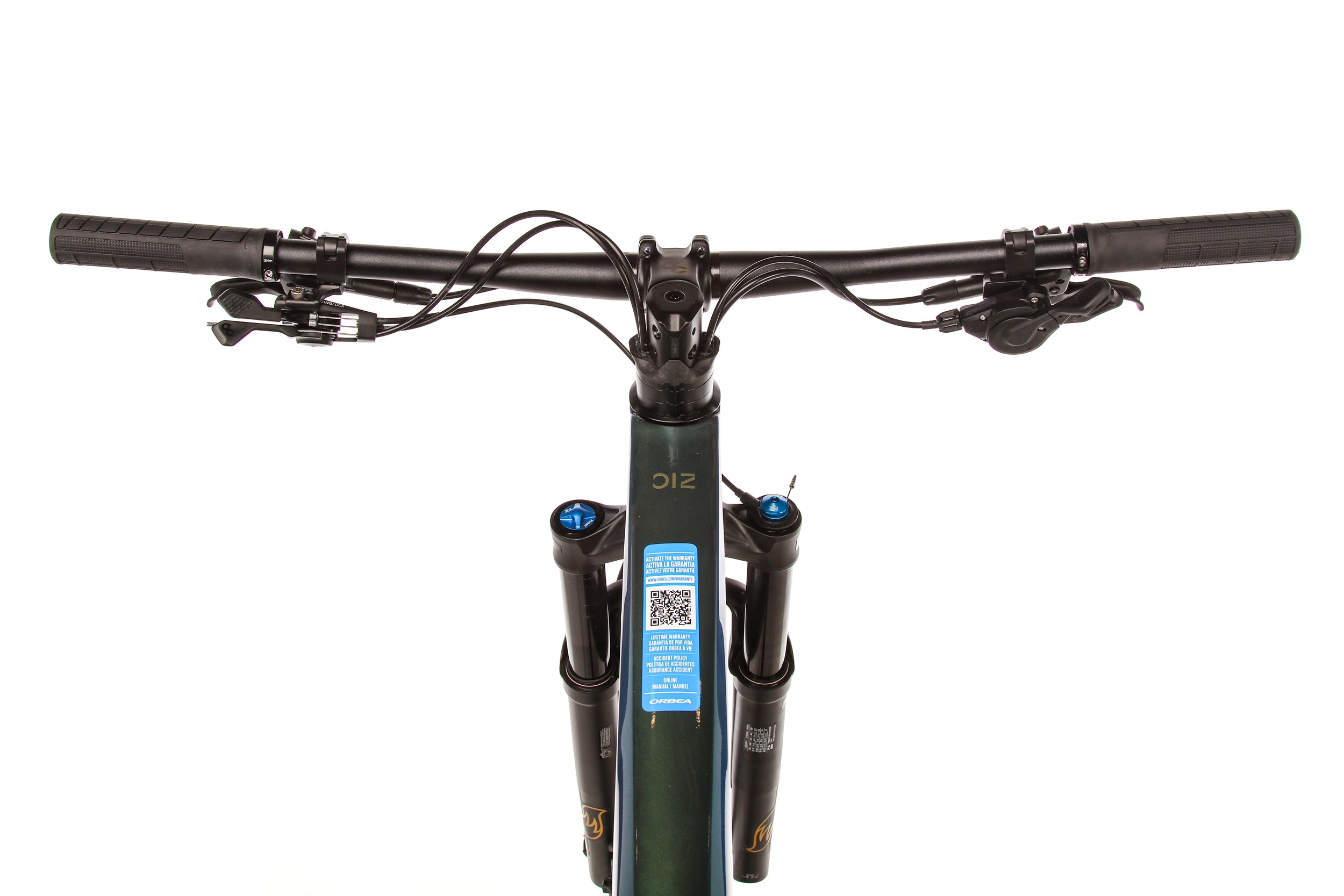

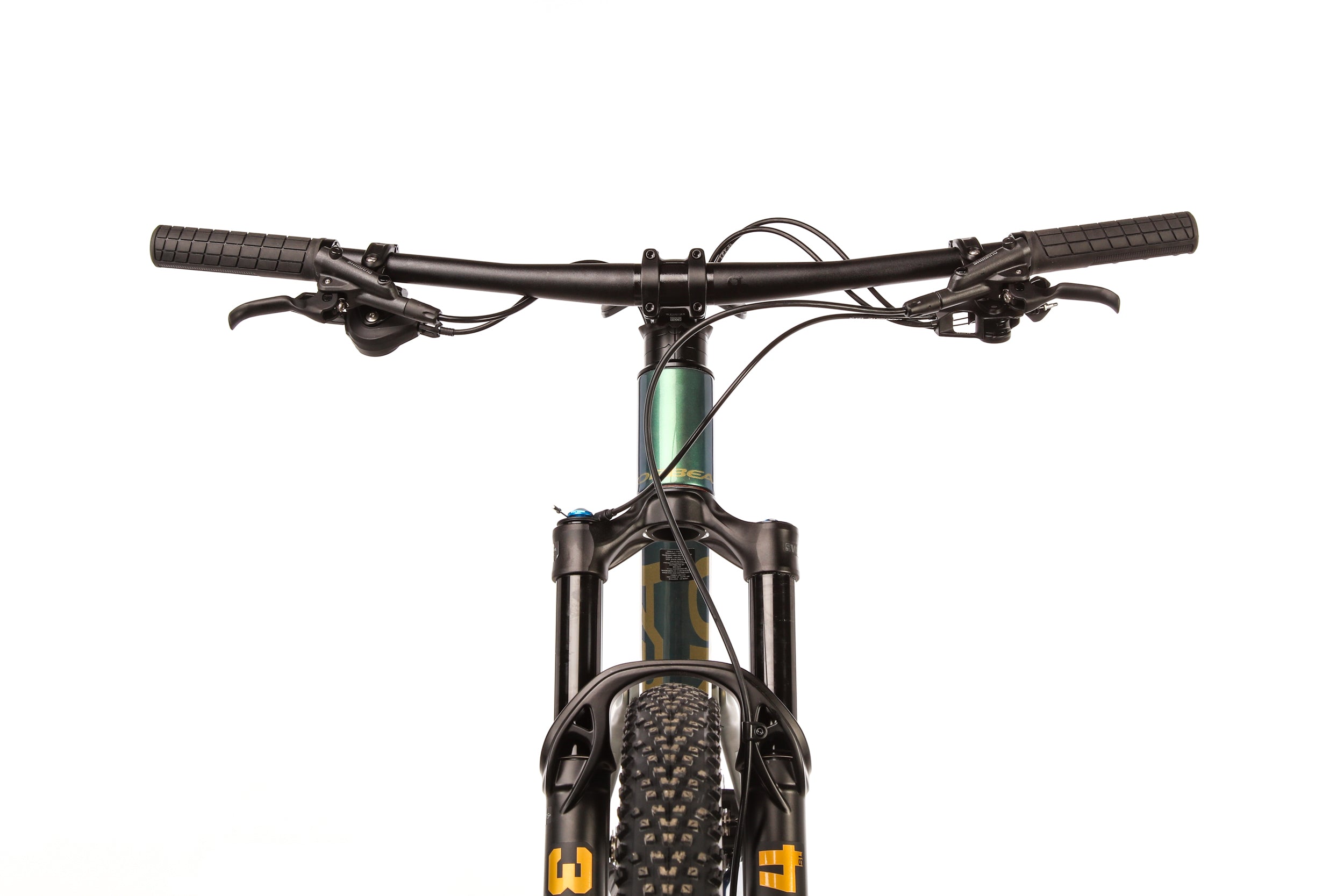

| Handlebar | OC Mountain Performance MP30 Alloy, 760mm |

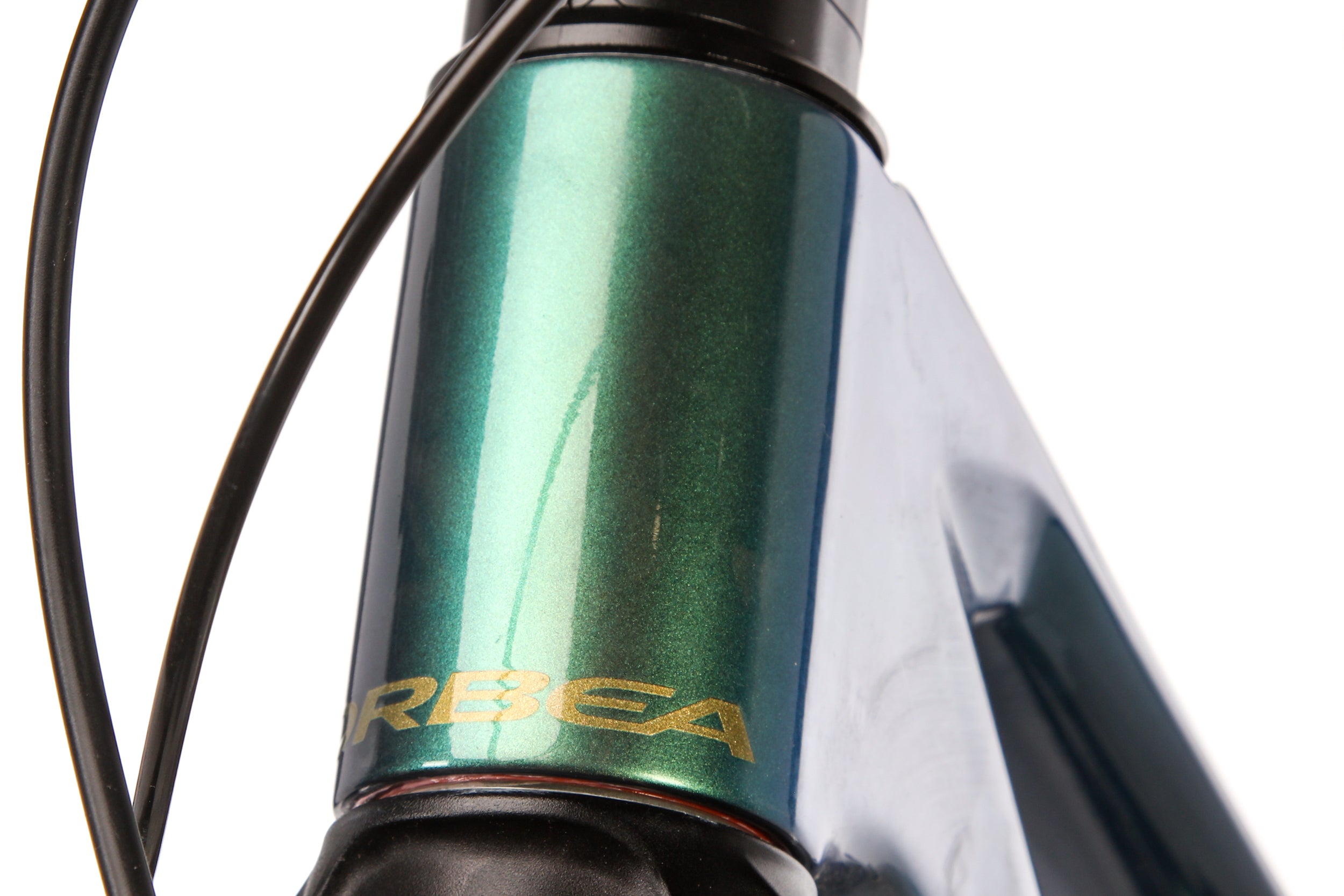

| Headset | Orbea |
| Stem | OC Mountain Performance MP21 Alloy, 31.8mm x 60mm, 6° |
| Seatpost | OC Mountain Control MC22, 31.6mm |
| Seatpost Travel | 150mm |
| Saddle | Selle Italia Model X w/ FEC Alloy Rails |
| Front Axle Spacing | 15x110mm Boost (Thru-Axle) |
| Rear Axle Spacing | 12x148mm Boost (Thru-Axle) |
| Wheelset | Orbea WH 1.7 Aluminum Tubeless Compatible, Shimano TC500 |
| Front Tire | Maxxis Rekon Race EXO TR, 29" x 2.4" |
| Rear Tire | Maxxis Rekon Race EXO TR, 29" x 2.4" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Wheels are tubeless compatible but ship with tubes installed |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'1" - 5'7"
|
| A. Effective Top Tube | 575 mm |
| B. Seat Tube | 405 mm |
| C. Seat Tube Angle | 76.5° |
| D. Head Tube Angle | 67° |
| E. Head Tube | 90 mm |
| F. Stack | 596 mm |
| G. Reach | 425 mm |
| H. Standover Height | 731 mm |
| I. Saddle Height Range | N/A |
