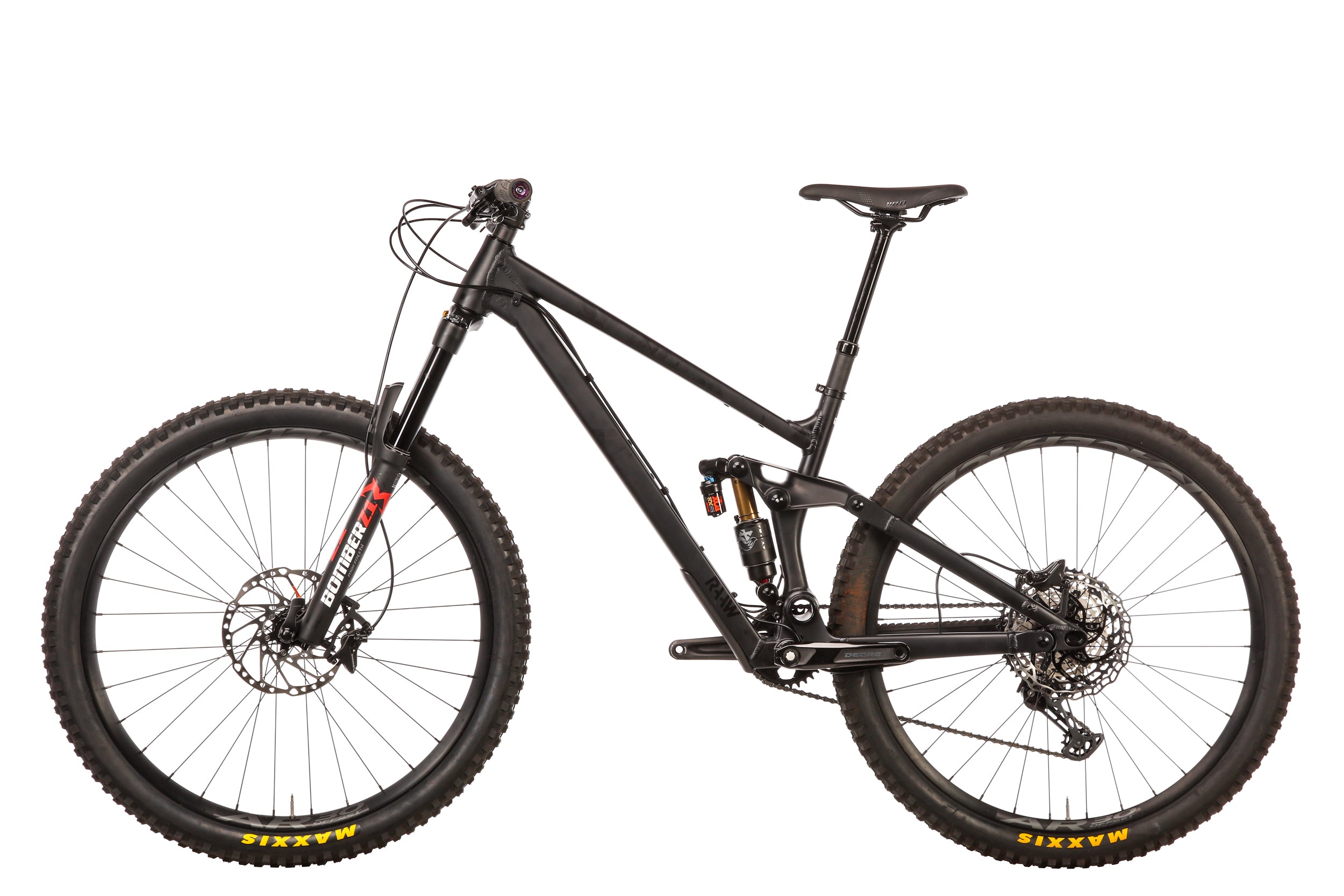

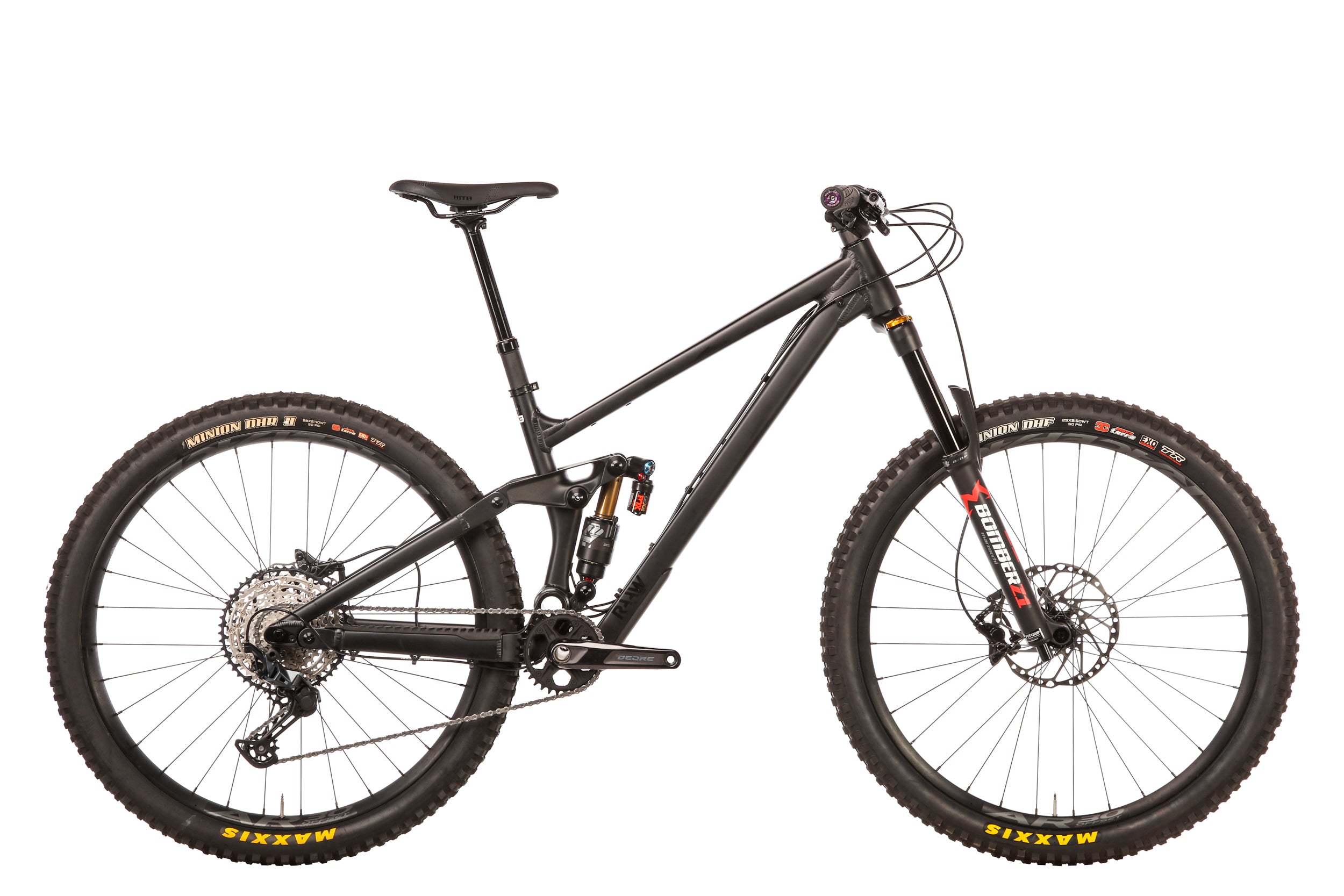

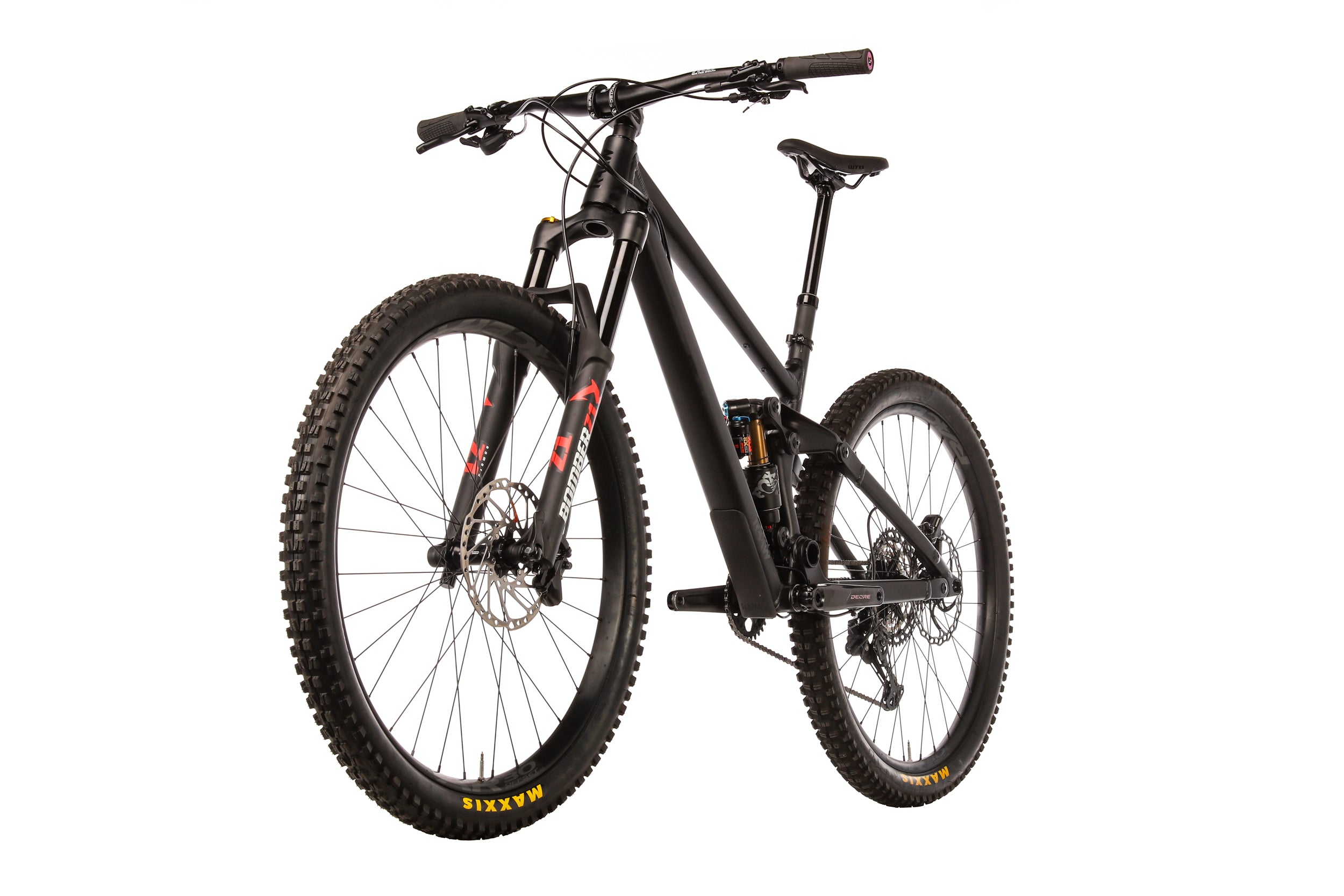

RAAW Madonna V2.2 Mountain Bike - 2022, Medium
Item #BMT36530
Condition: Certified Pre-Owned
Fit Range: 5'5.75" - 5'10.87"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
Master Mechanic’s Notes

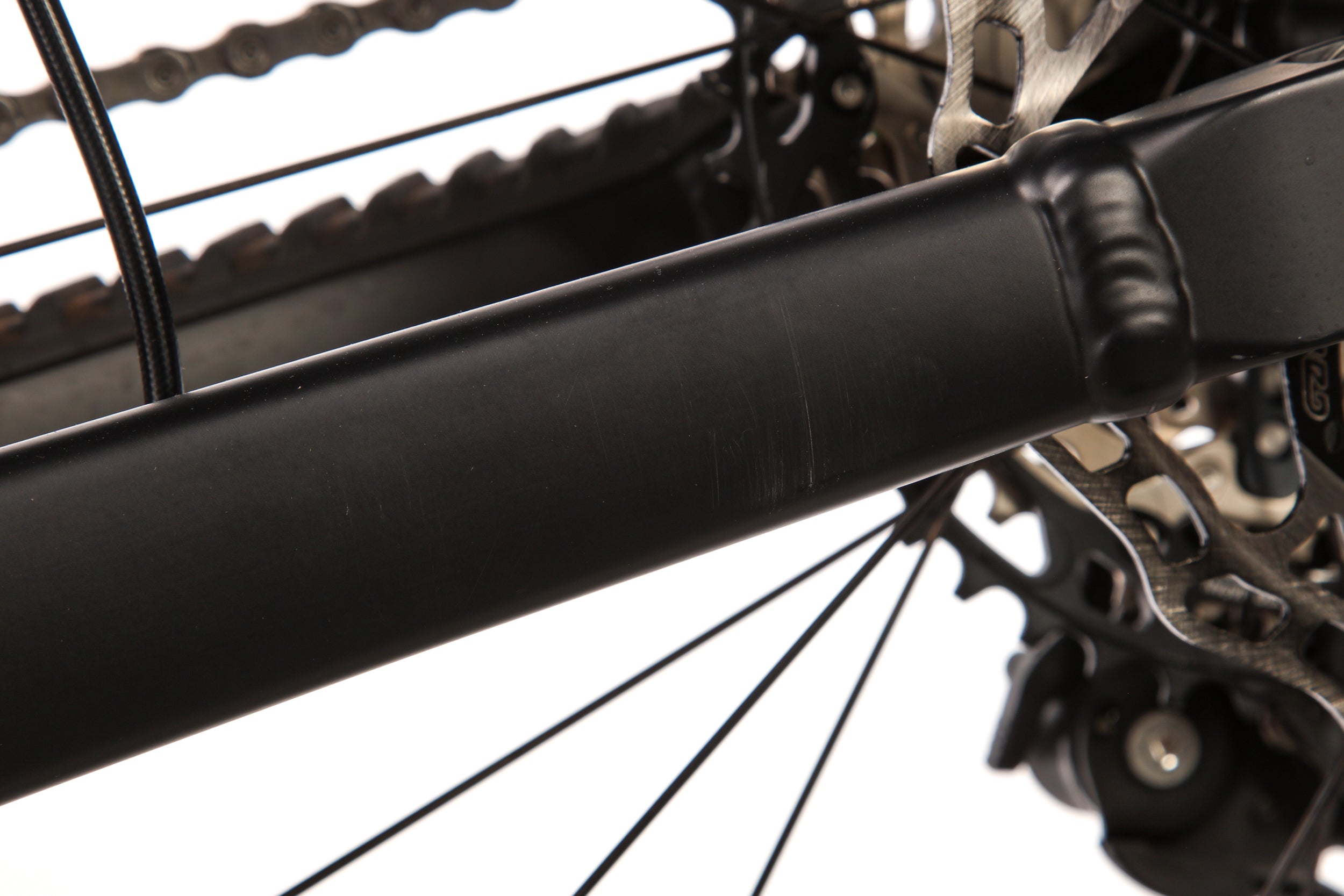

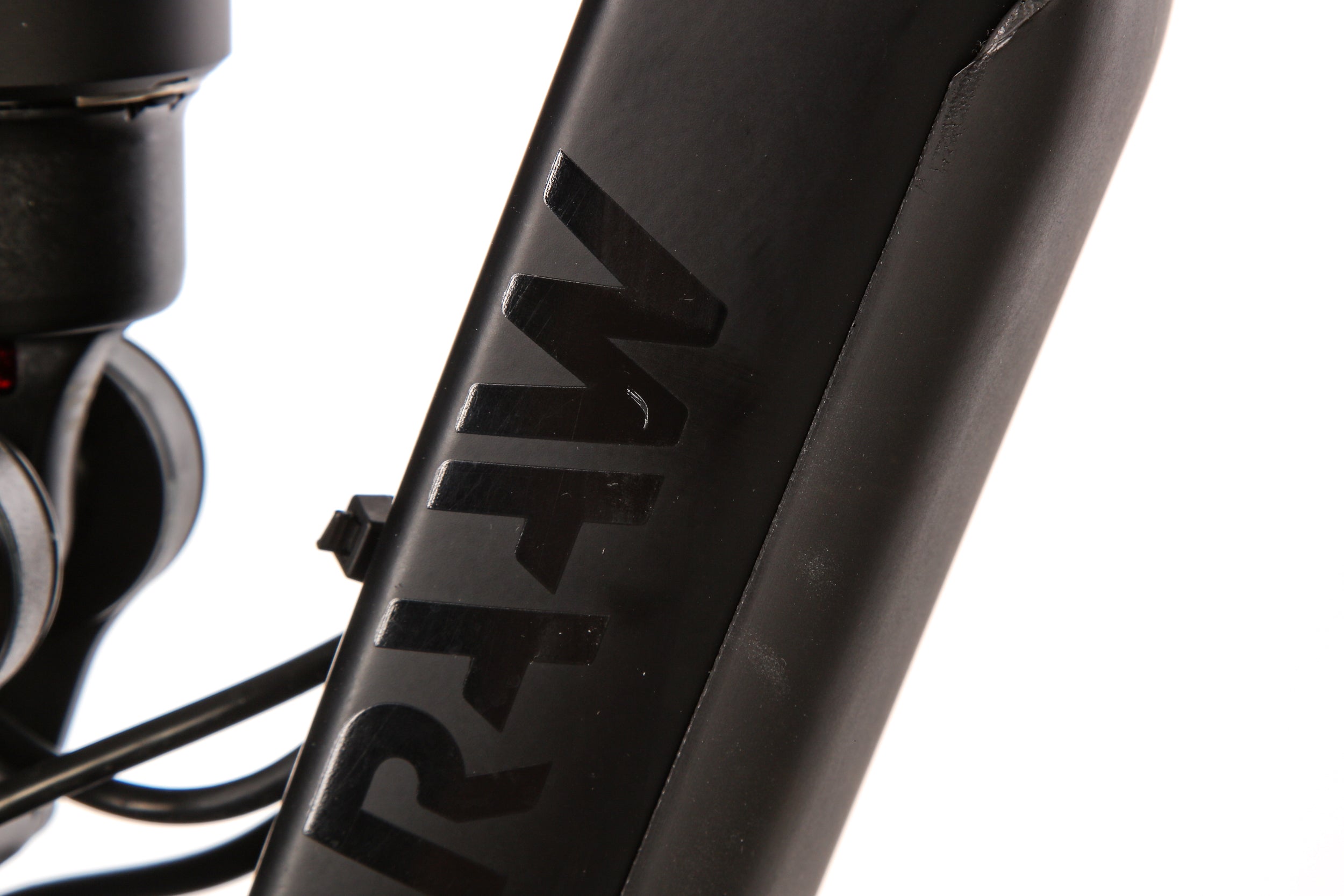

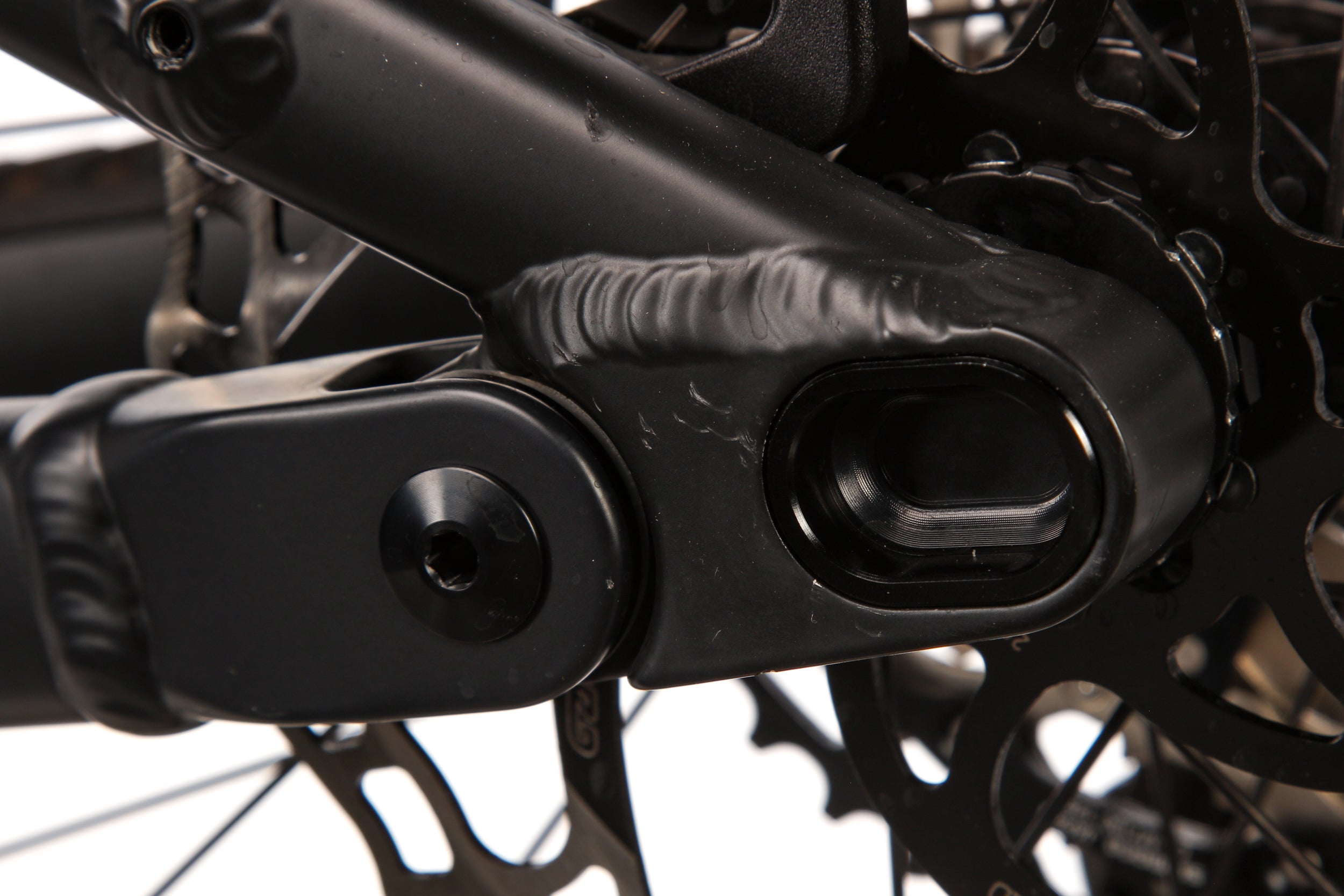

- Light scratches on the non-drive side fork lower, down tube, non-drive side seatstay, & non-drive side chainstay
Specifications
Details
| Original MSRP | $5,000.00 |
| Year | 2022 |
| Brand | RAAW |
| Model | Madonna V2.2 |
| Size | Medium |
| Frame Material | Aluminum |
| Drivetrain | Shimano, 1x12 spd |
| Weight | 37 lbs 13 oz |
Build

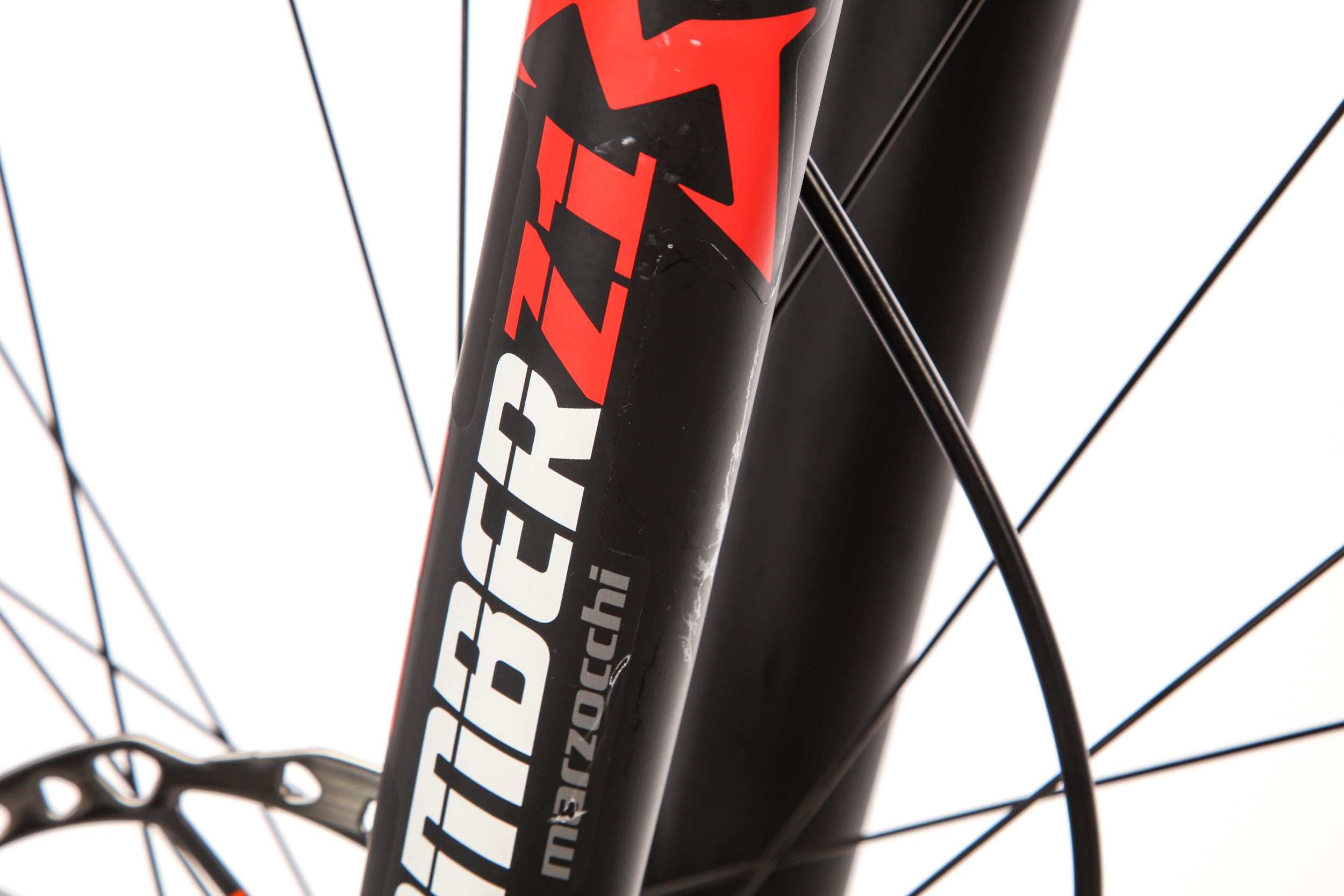

| Fork | Marzocchi 36 Bomber Z1 Coil |
| Fork Travel | 160mm |

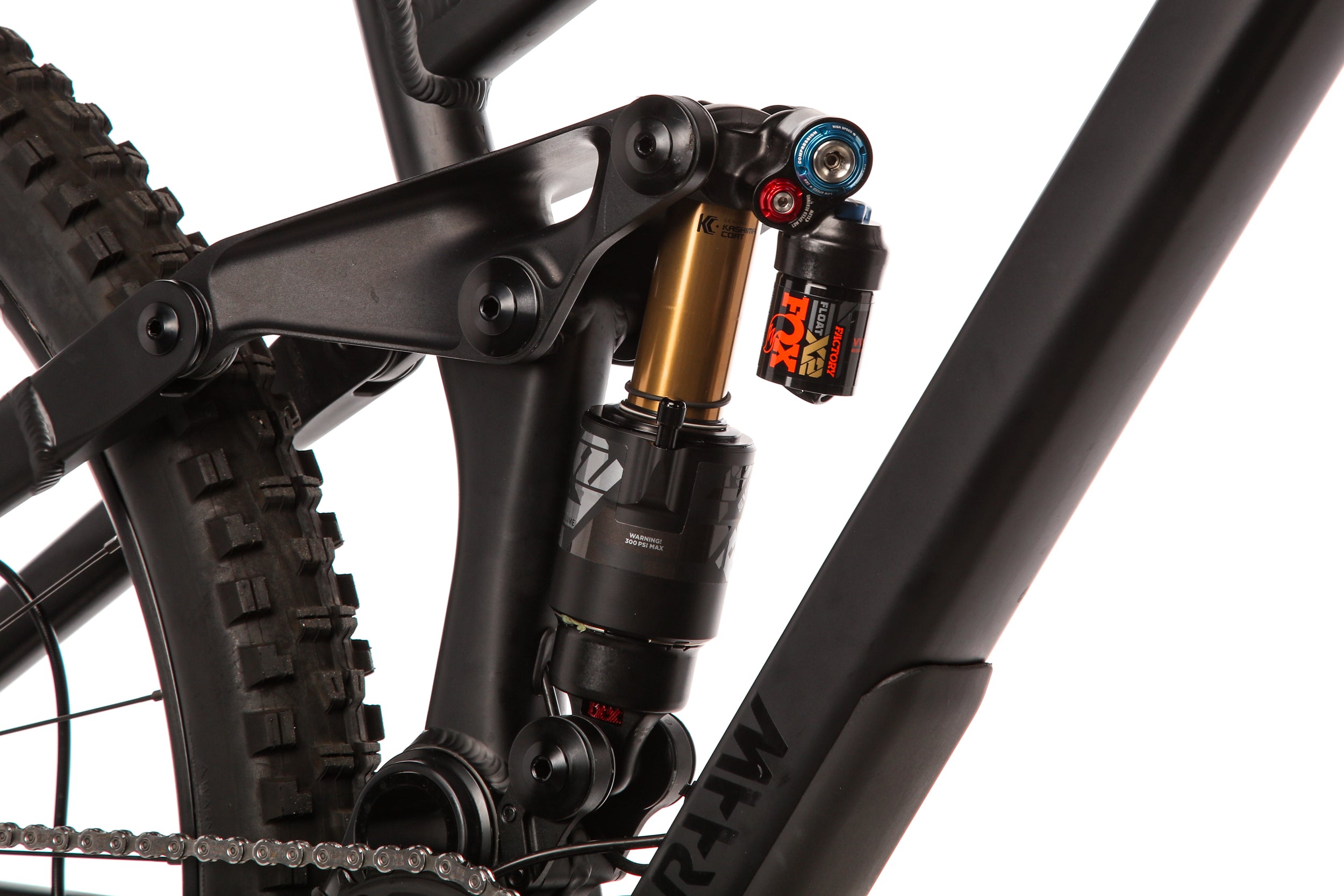

| Rear Shock | FOX Factory FLOAT X2 |
| Rear Shock Travel | 160mm |
| Brakes | Shimano MT420, Disc Brakes - Hydraulic |
| Shifters | Shimano Deore M6100, Mechanical |

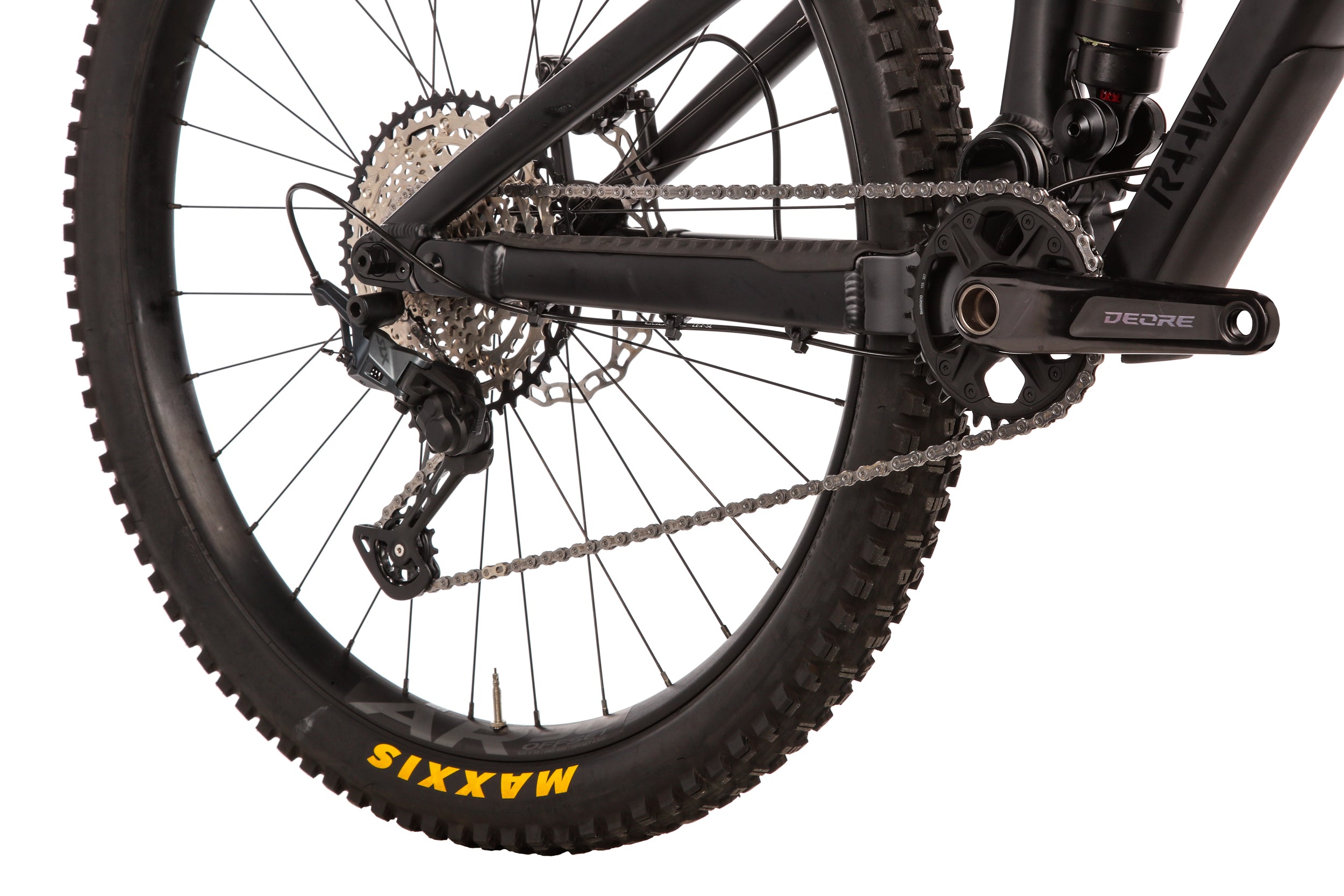

| Rear Derailleur | Shimano SLX M7100 |
| Bottom Bracket Shell | Threaded |
| Crankset | Shimano Deore M6100 Alloy, 32t, 170mm |
| Cassette | Shimano SLX M7100, 10-51t |
| Chain | Shimano |

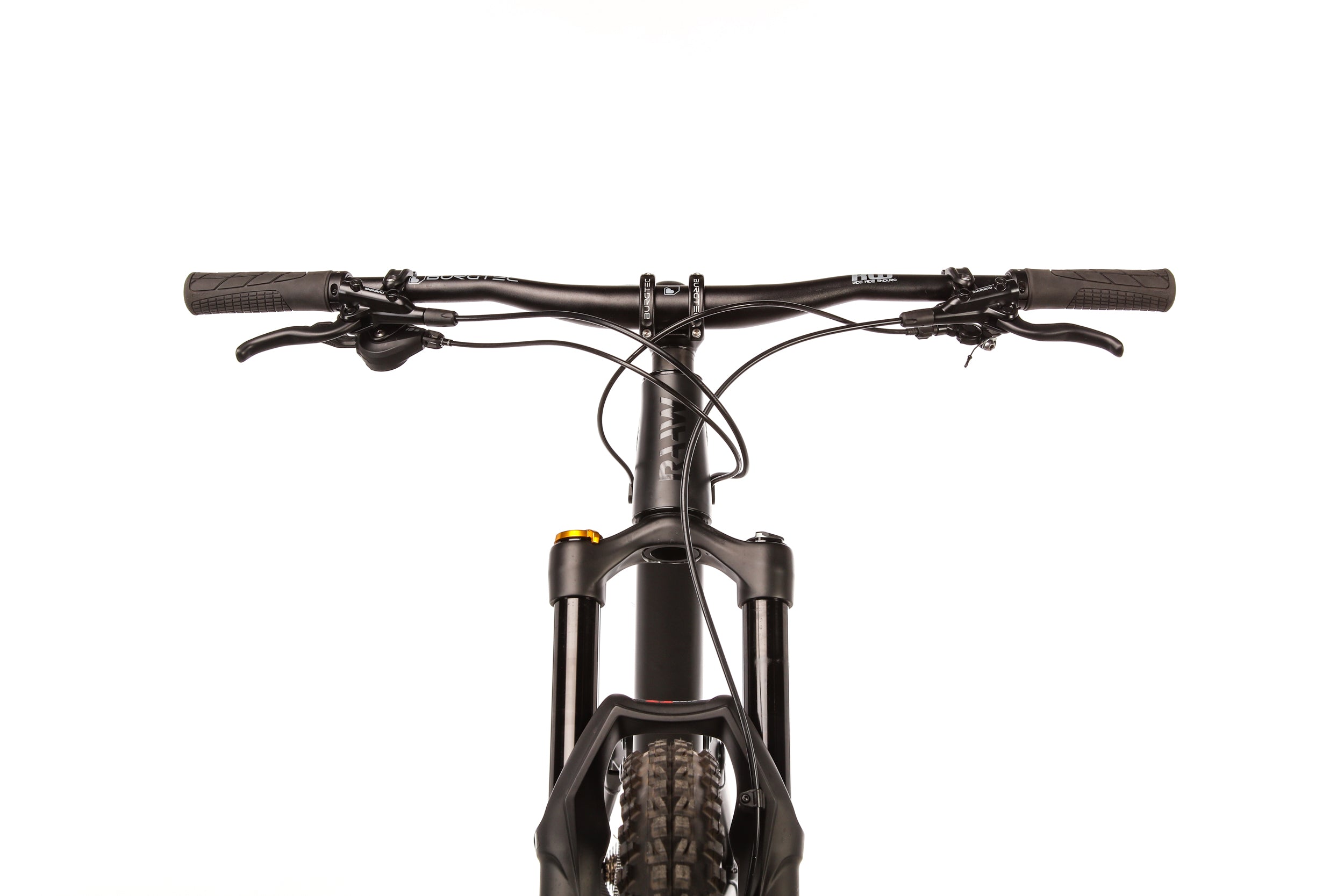

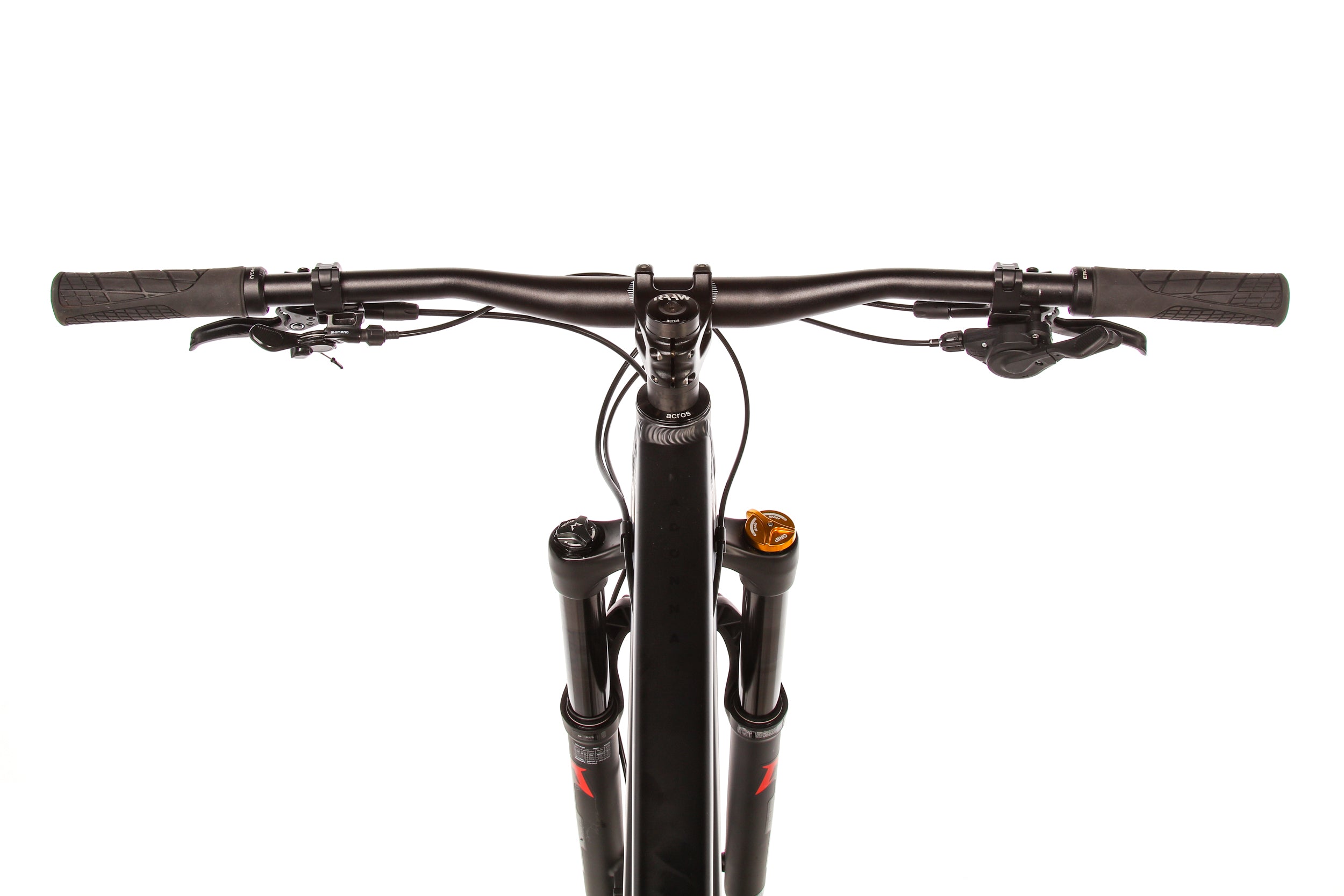

| Handlebar | Burgtec Ride Wide Enduro Alloy |

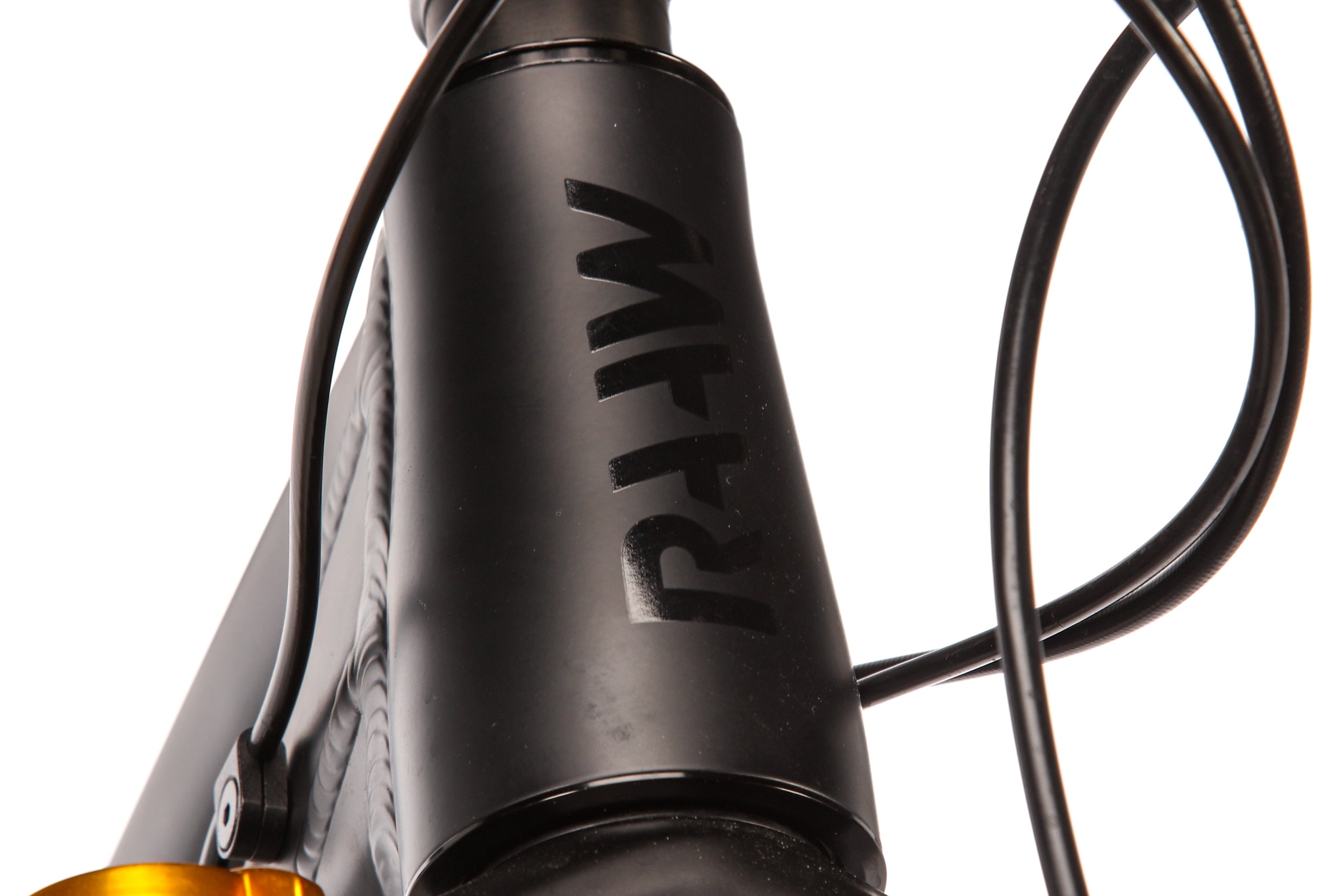

| Headset | Acros |
| Stem | Burgtec Enduro MK3 Alloy, 35.0mm x 50mm, 0° |
| Seatpost | OC Mountain Control, 31.6mm |
| Seatpost Travel | 170mm |
| Saddle | WTB Silverado w/ Steel Rails |
| Front Axle Spacing | 15x110mm Boost (Thru-Axle) |
| Rear Axle Spacing | 12x148mm Boost (Thru-Axle) |
| Wheelset | Race Face AR 30 Offset Aluminum Tubeless Compatible, Shimano TC500 |
| Front Tire | Maxxis Minion DHF 3C MaxxTerra EXO TR, 700C x 2.5" |
| Rear Tire | Maxxis Minion DHR II 3C MaxxTerra EXO+ TR, 700C x 2.4" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Bike ships tubeless |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'5.75" - 5'10.87"
|
| A. Effective Top Tube | N/A |
| B. Seat Tube | 420 mm |
| C. Seat Tube Angle | 72° |
| D. Head Tube Angle | 64.5° |
| E. Head Tube | 115 mm |
| F. Stack | 643 mm |
| G. Reach | 455 mm |
| H. Standover Height | 802 mm |
| I. Saddle Height Range | N/A |
