2022 Trek Top Fuel 9.8 XT Mountain Bike - 2022, Large
isn't available.
You'll be the first to know next time this or similar products are available.

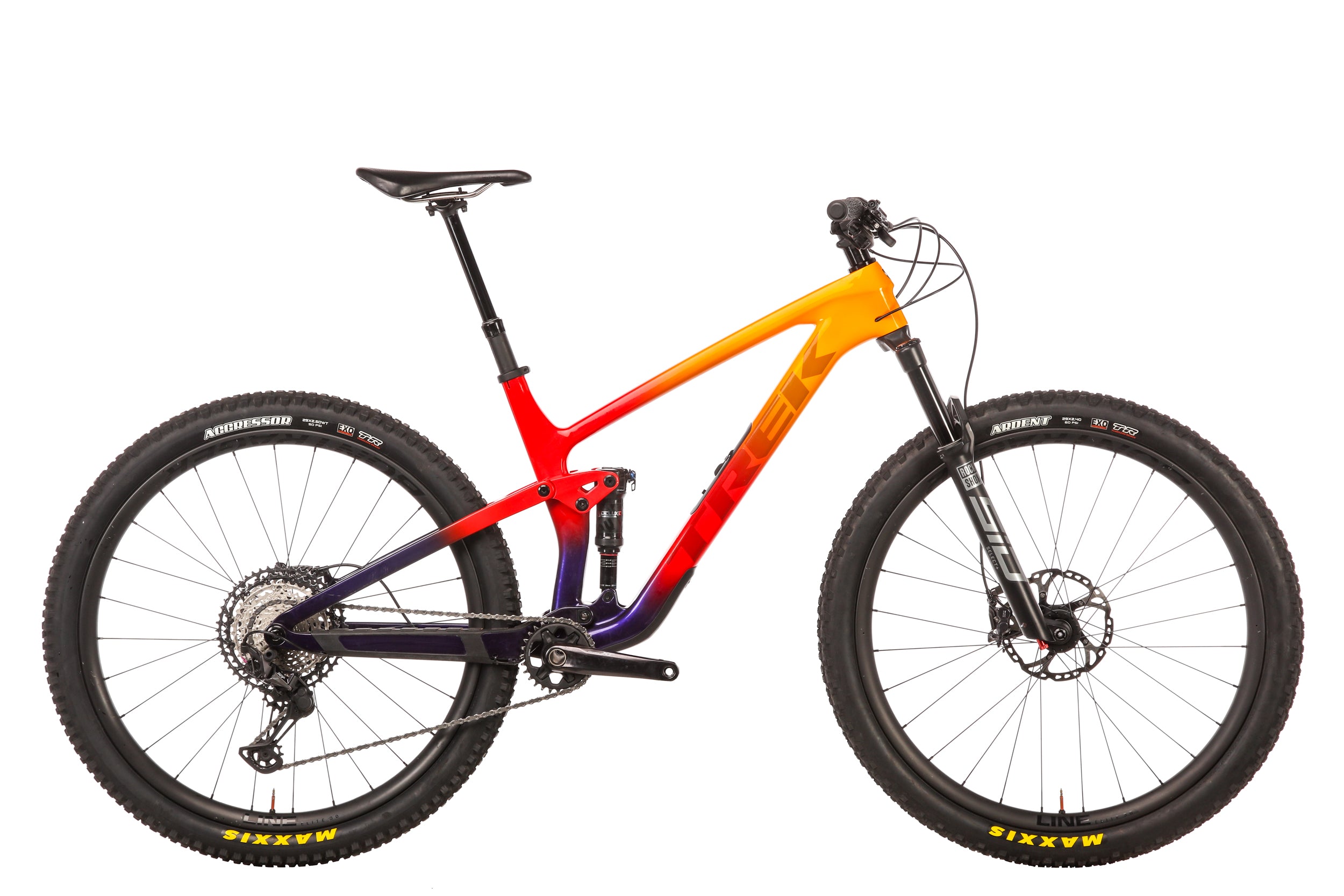

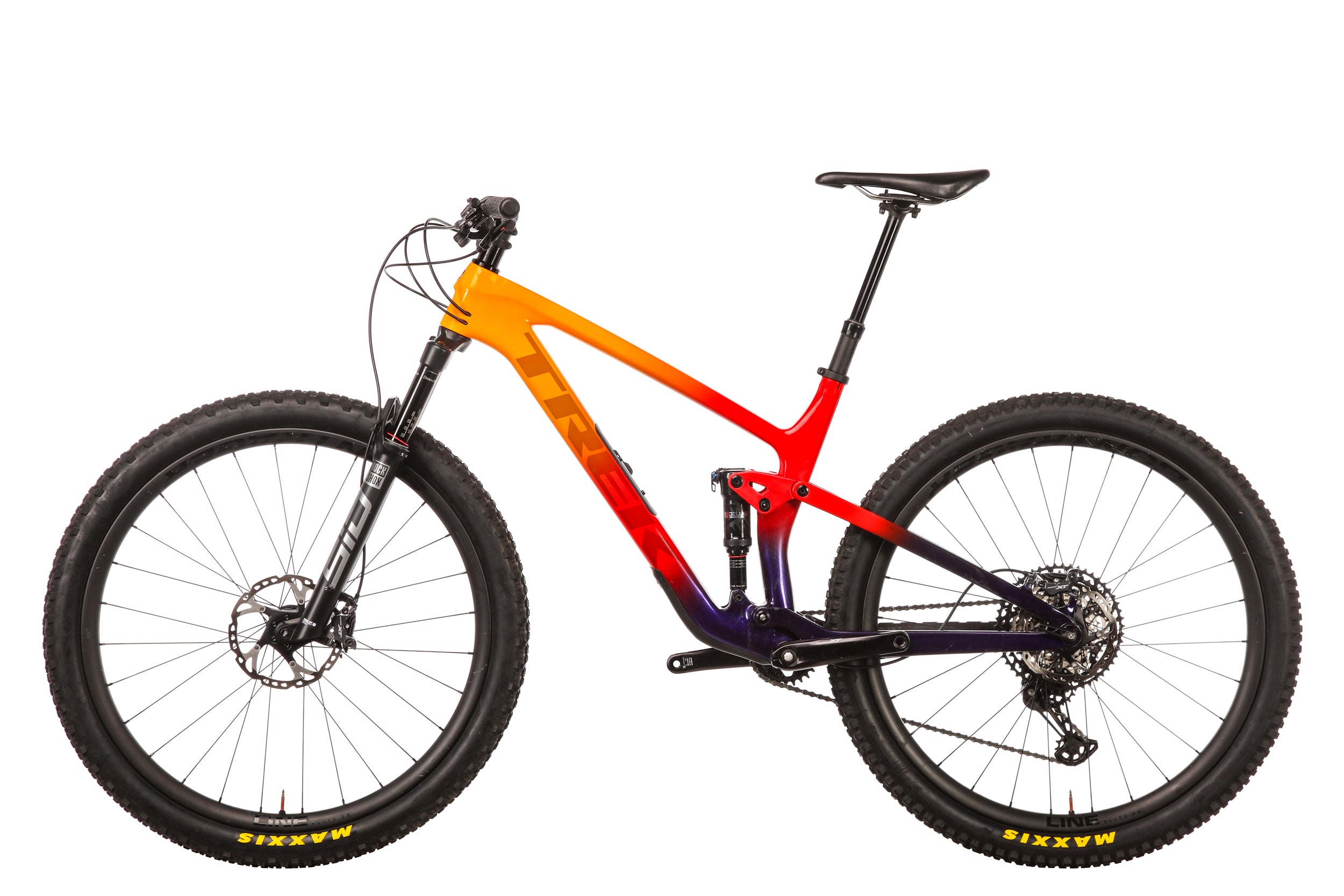

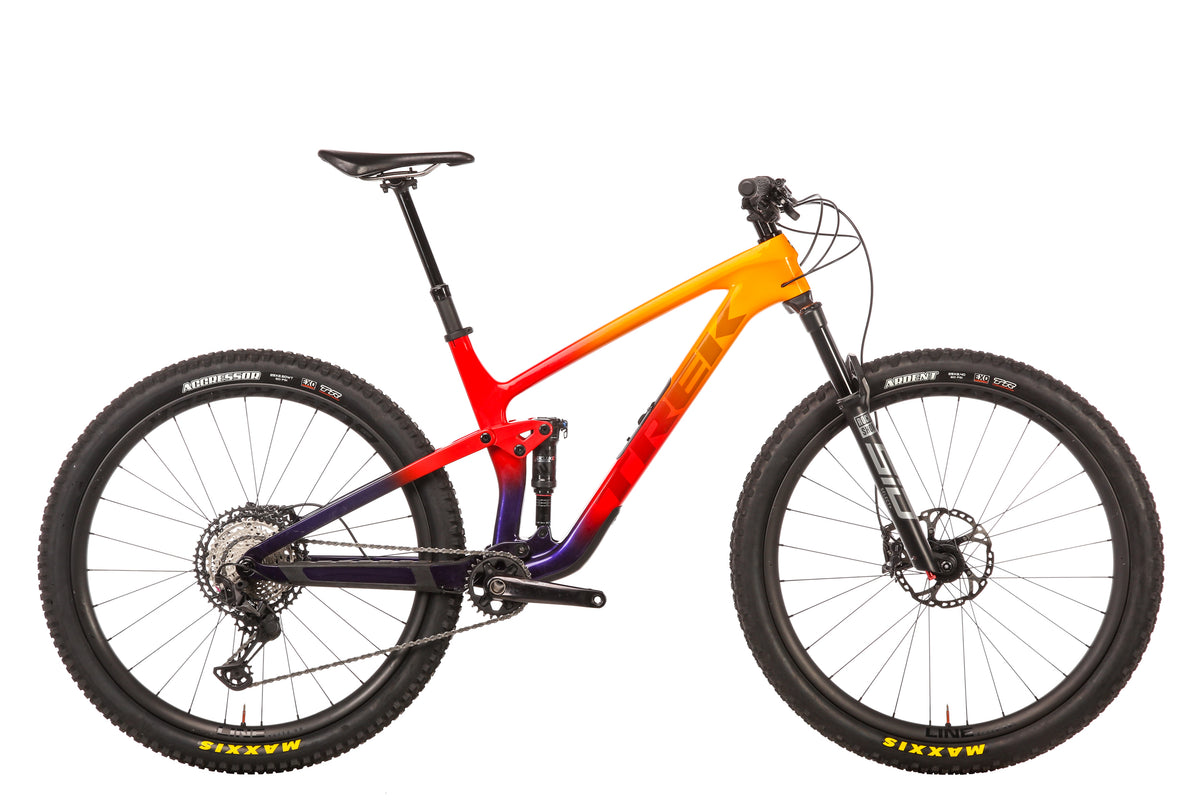

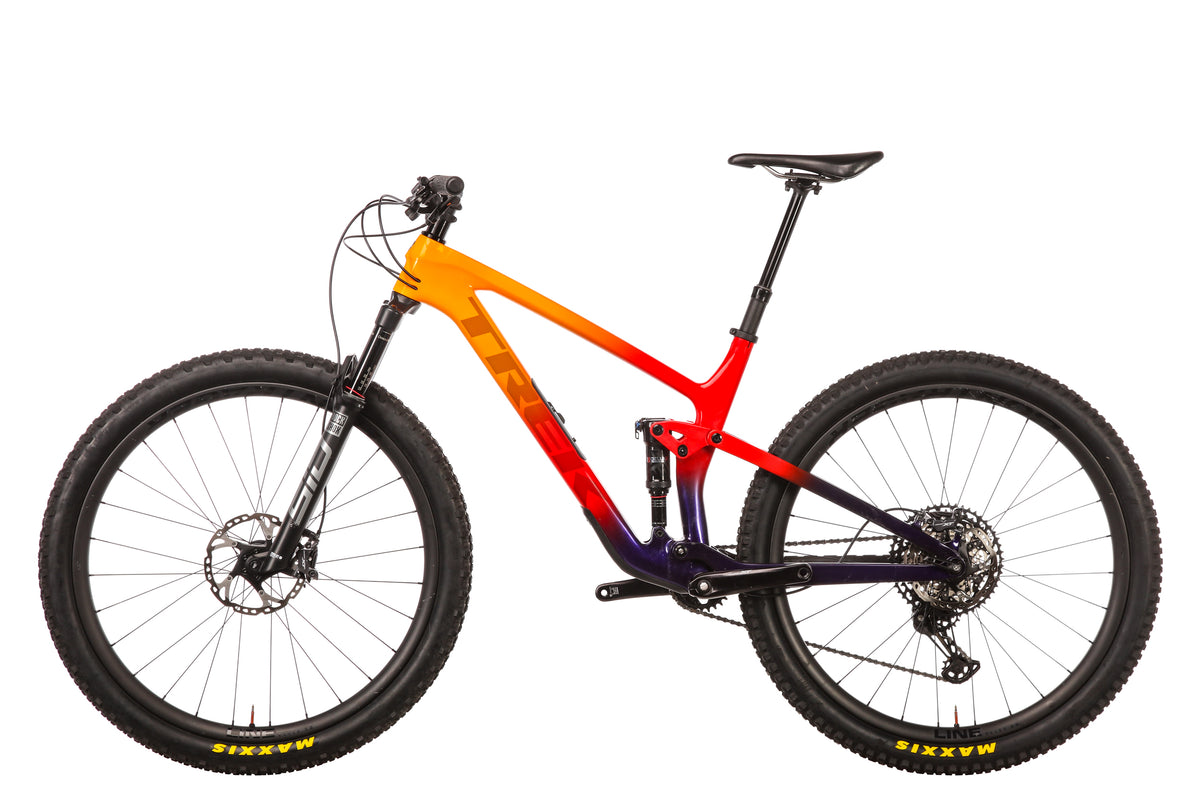

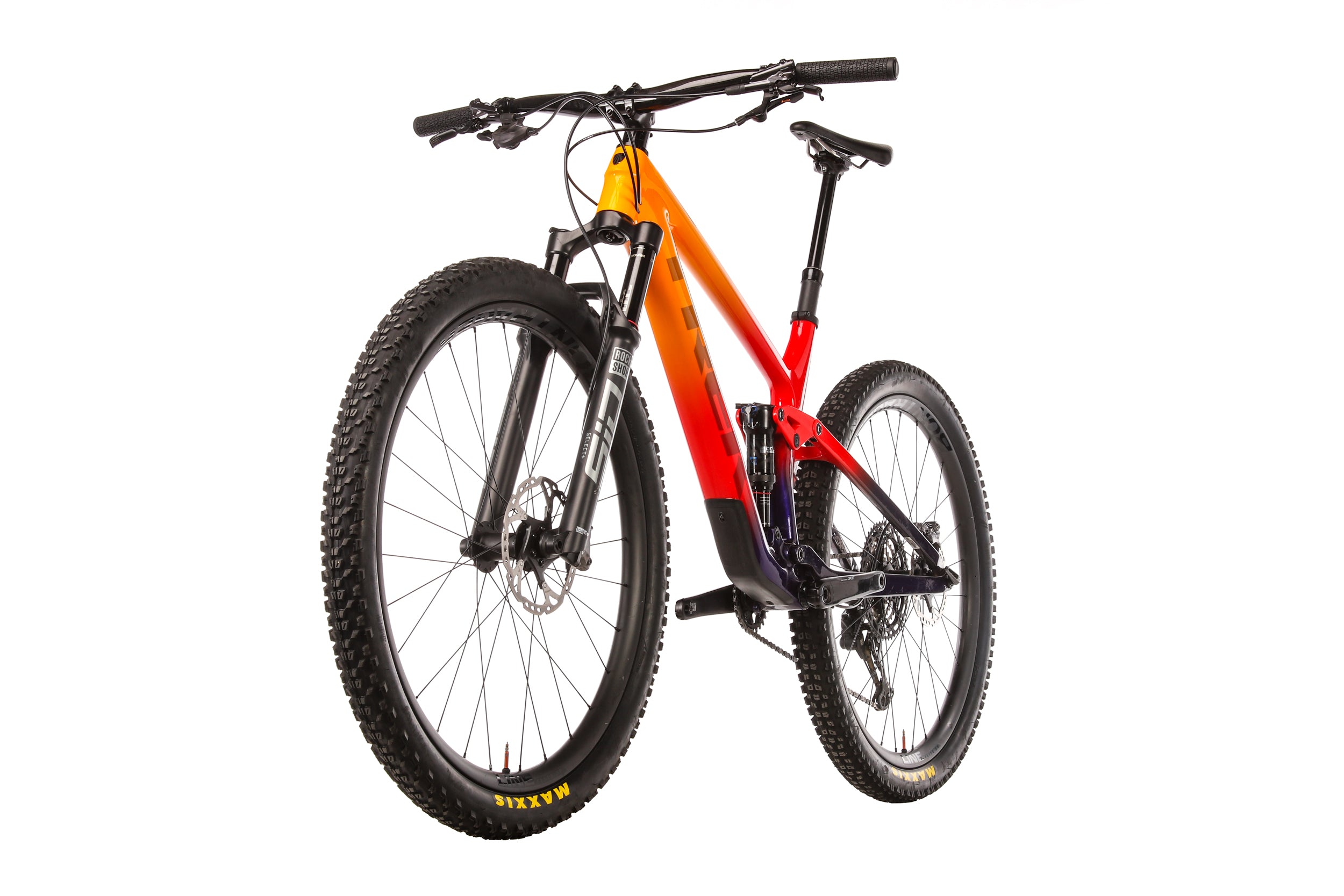

2022 Trek Top Fuel 9.8 XT Mountain Bike - 2022, Large
Item #BMT36086
Condition: Certified Pre-Owned
Fit Range: 5'10" - 6'2"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
A Do-It-All XC Bike
Why We Love It
Master Mechanic’s Notes

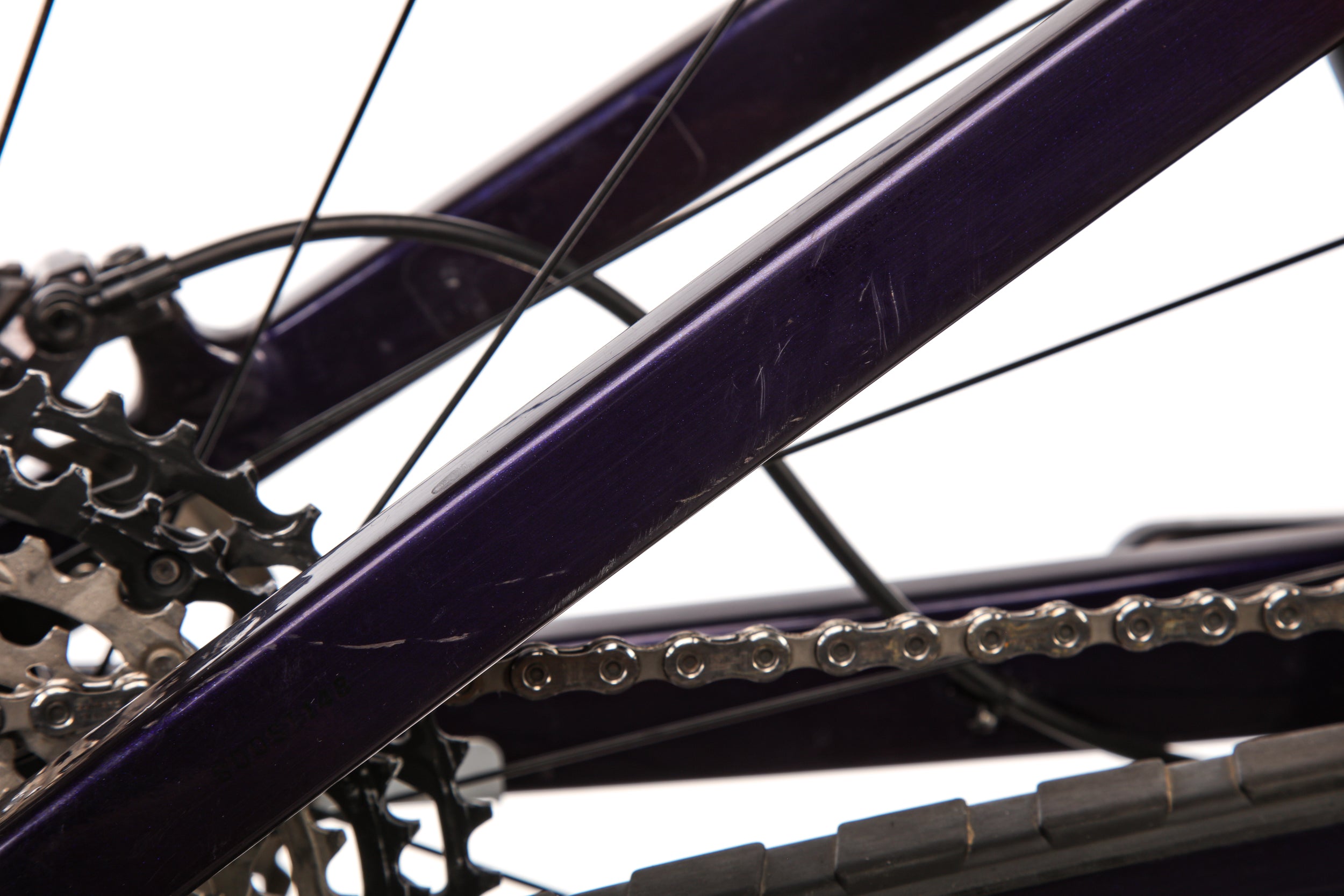

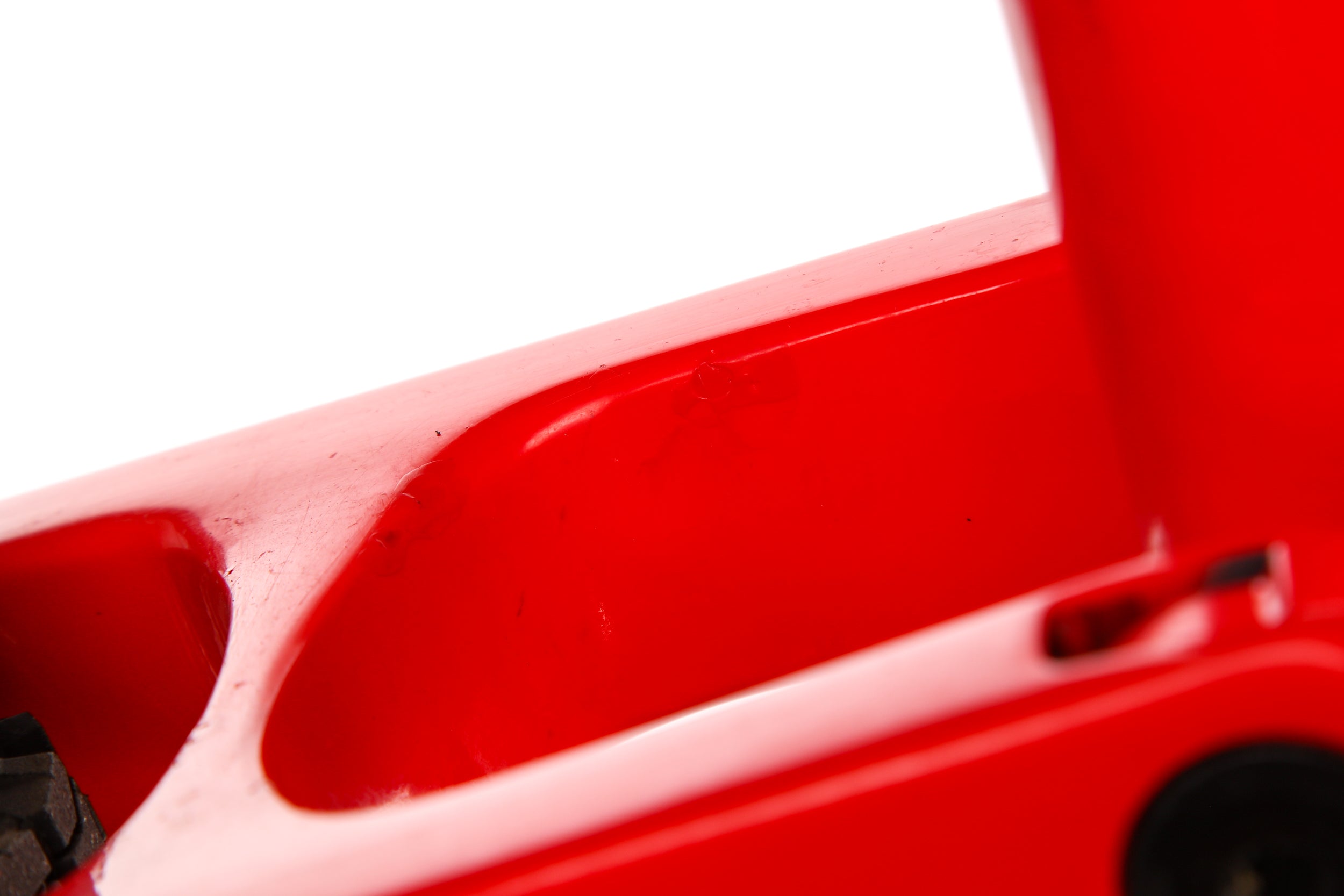

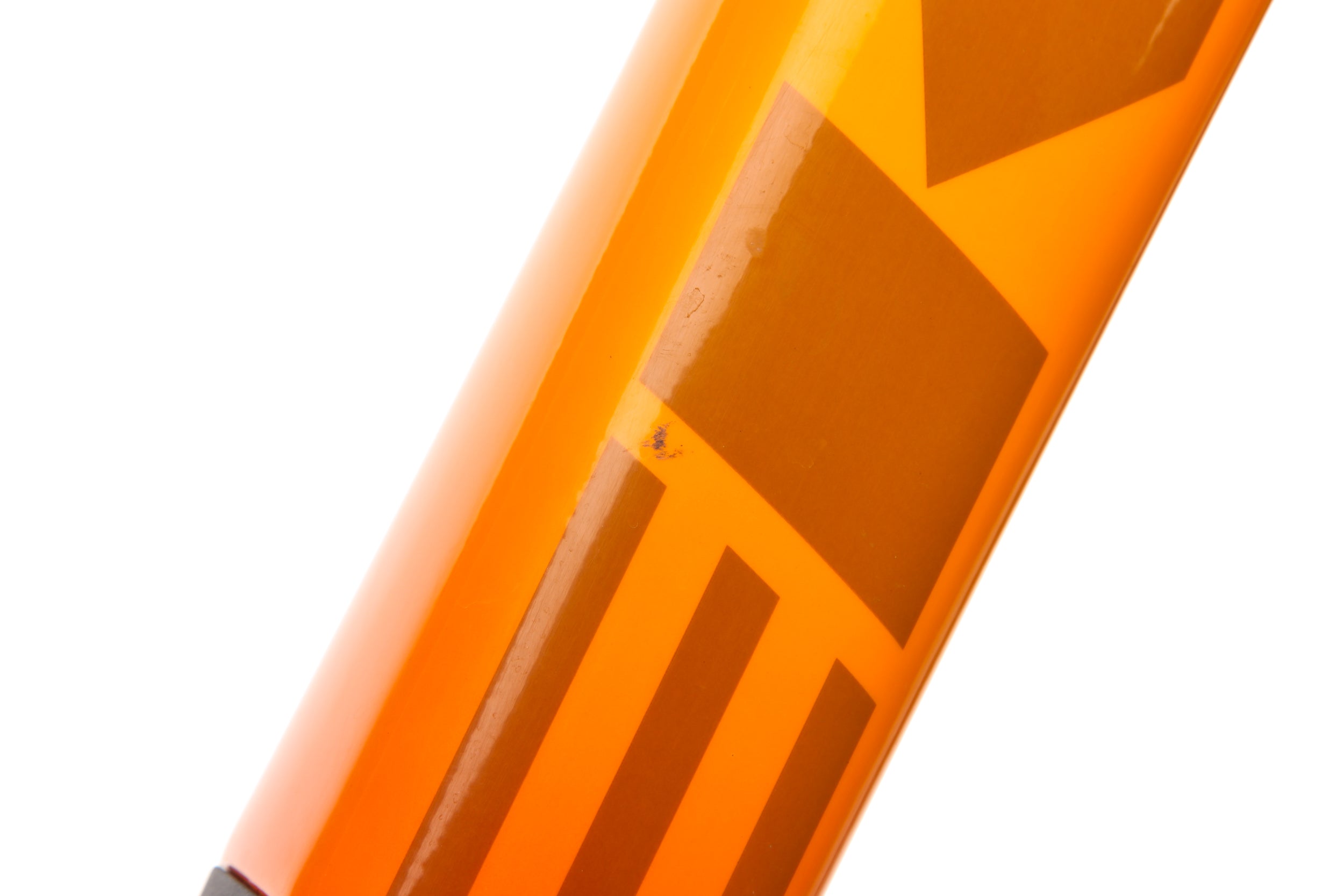

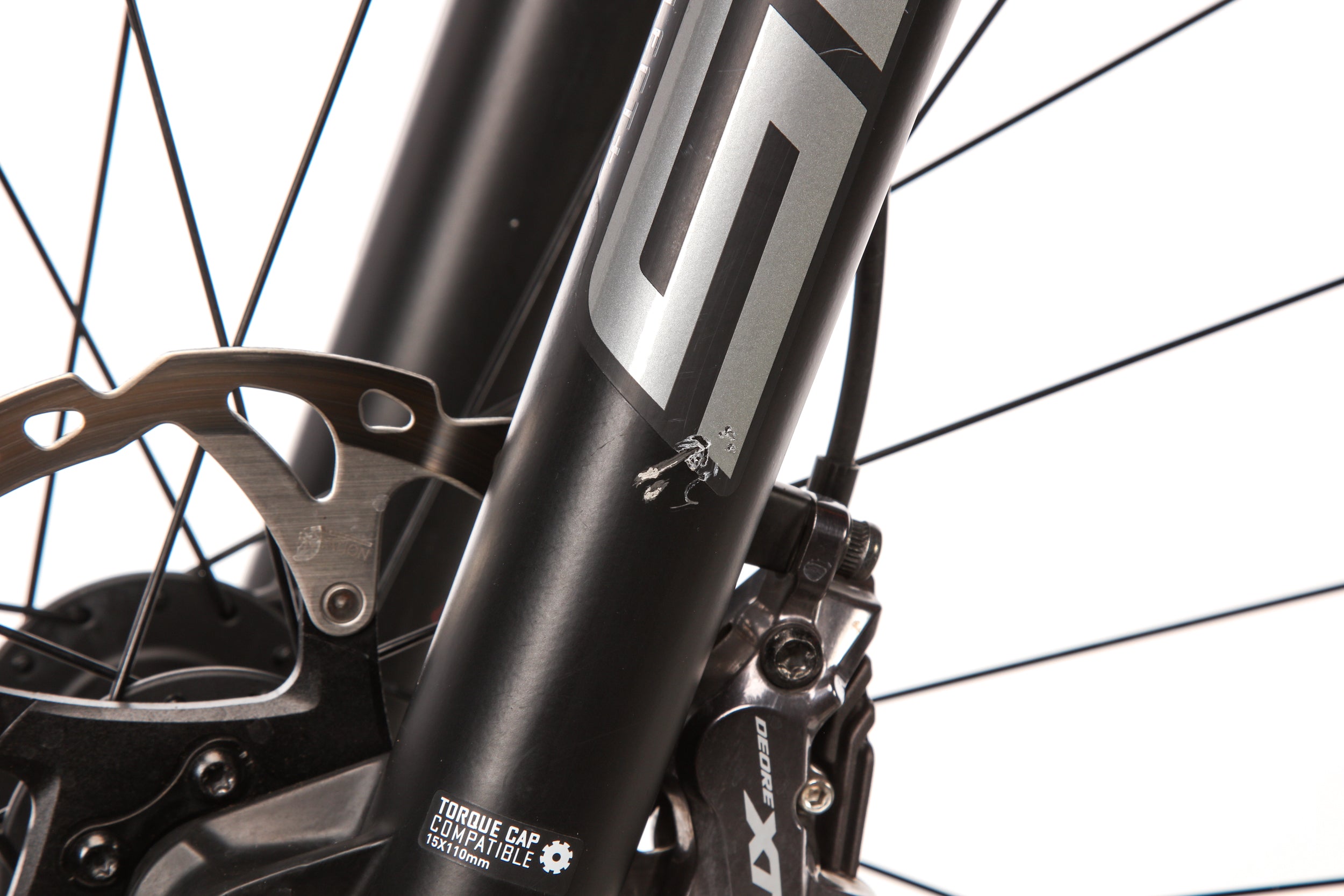

- Scratches to fork lowers, down tube, and drive-side chainstay

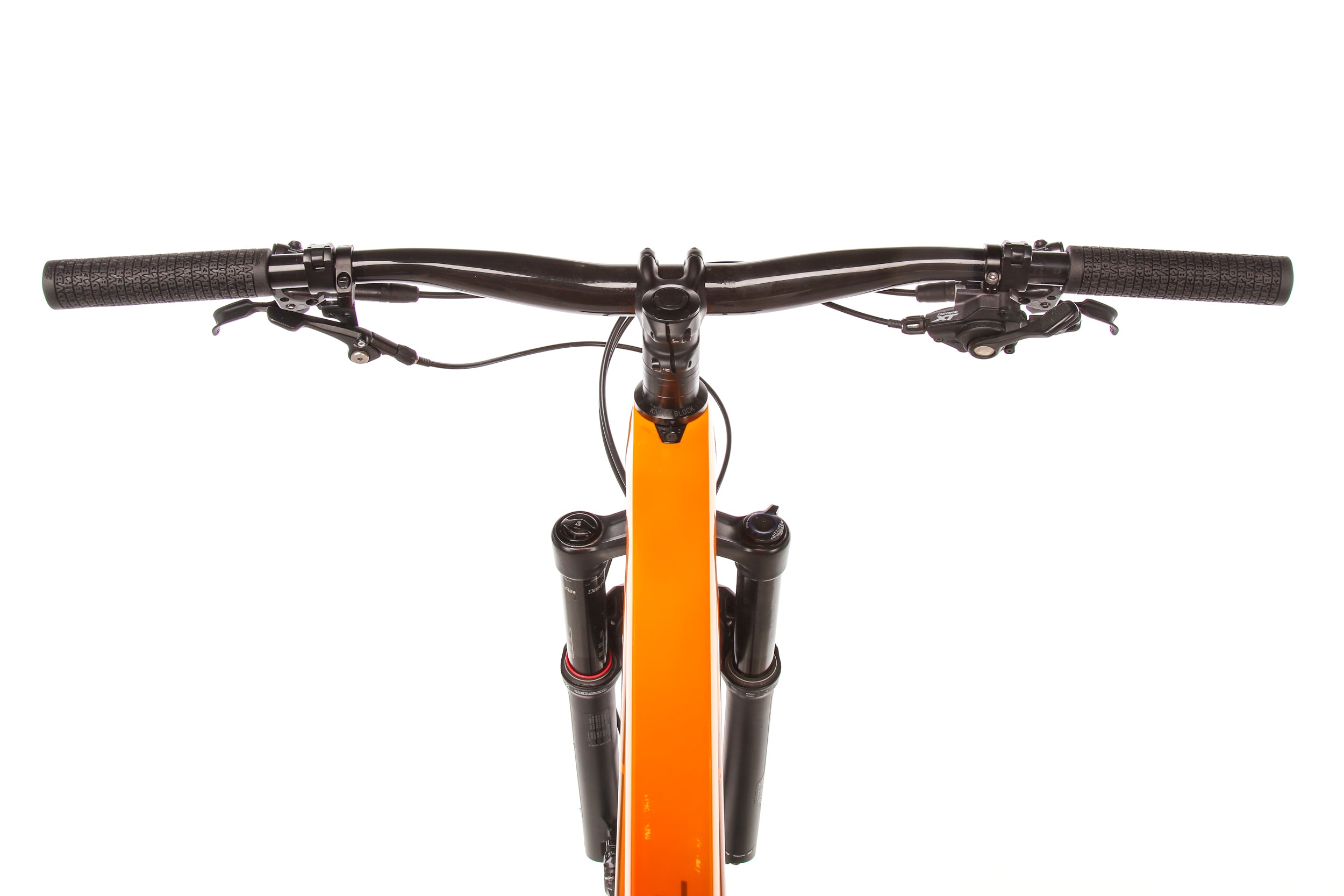

- New grips installed
Specifications
Details
| Original MSRP | $6,549.00 |
| Year | 2022 |
| Brand | Trek |
| Model | Top Fuel 9.8 XT |
| Size | Large |
| Frame Material | Carbon Fiber |
| Drivetrain | Shimano, 1x12 spd |
| Weight | 29 lbs 15 oz |
Build
| Fork | RockShox SID Select+ |
| Fork Travel | 120mm |

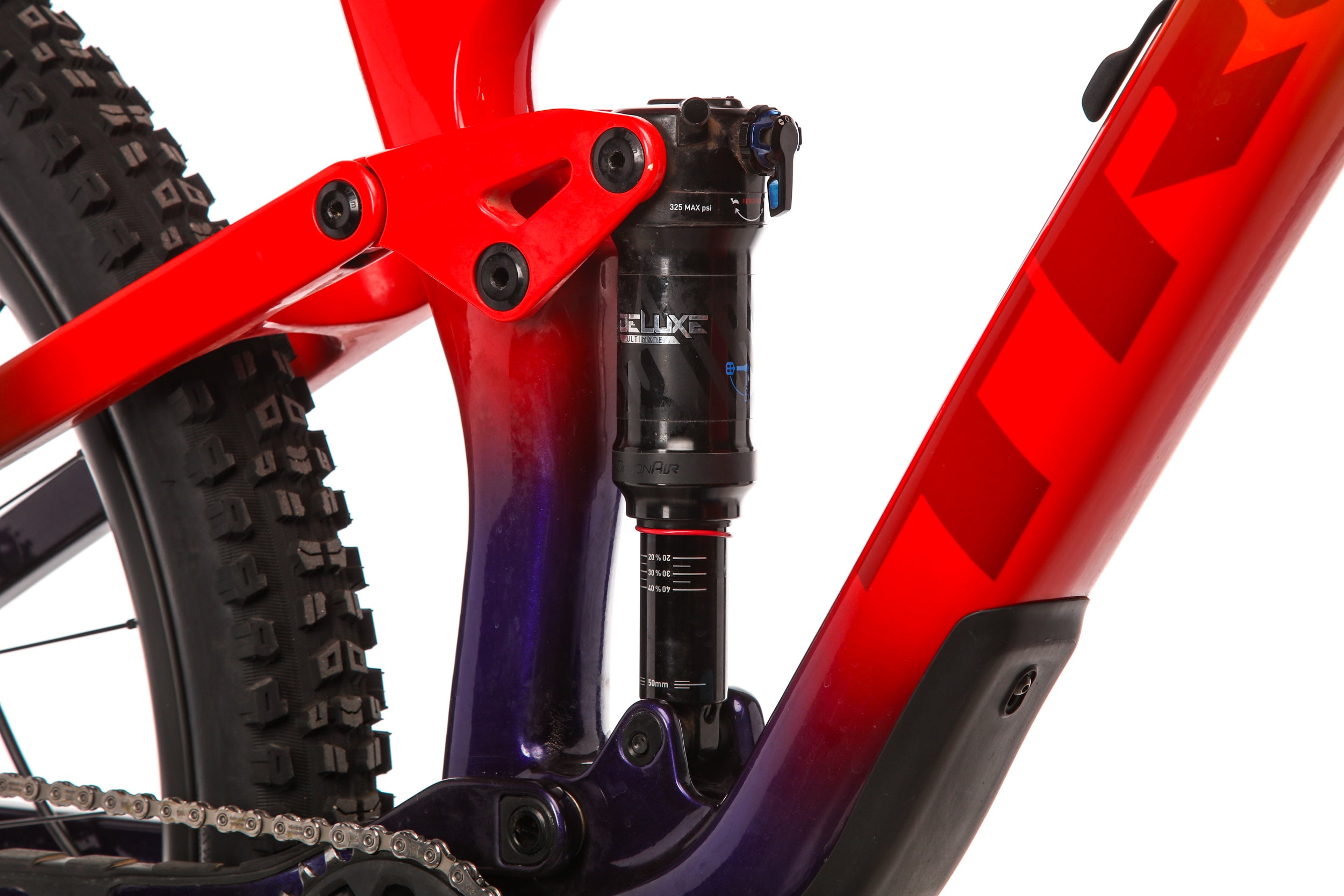

| Rear Shock | RockShox Deluxe Ultimate |
| Rear Shock Travel | 120mm |
| Brakes | Shimano Deore XT M8120, Disc Brakes - Hydraulic |
| Shifters | Shimano Deore XT M8100, Mechanical |
| Rear Derailleur | Shimano Deore XT M8100 |
| Bottom Bracket Shell | Threaded |
| Crankset | Shimano Deore XT M8100, 28t, 175mm |
| Cassette | Shimano Deore XT M8100, 10-51t |
| Chain | Shimano |

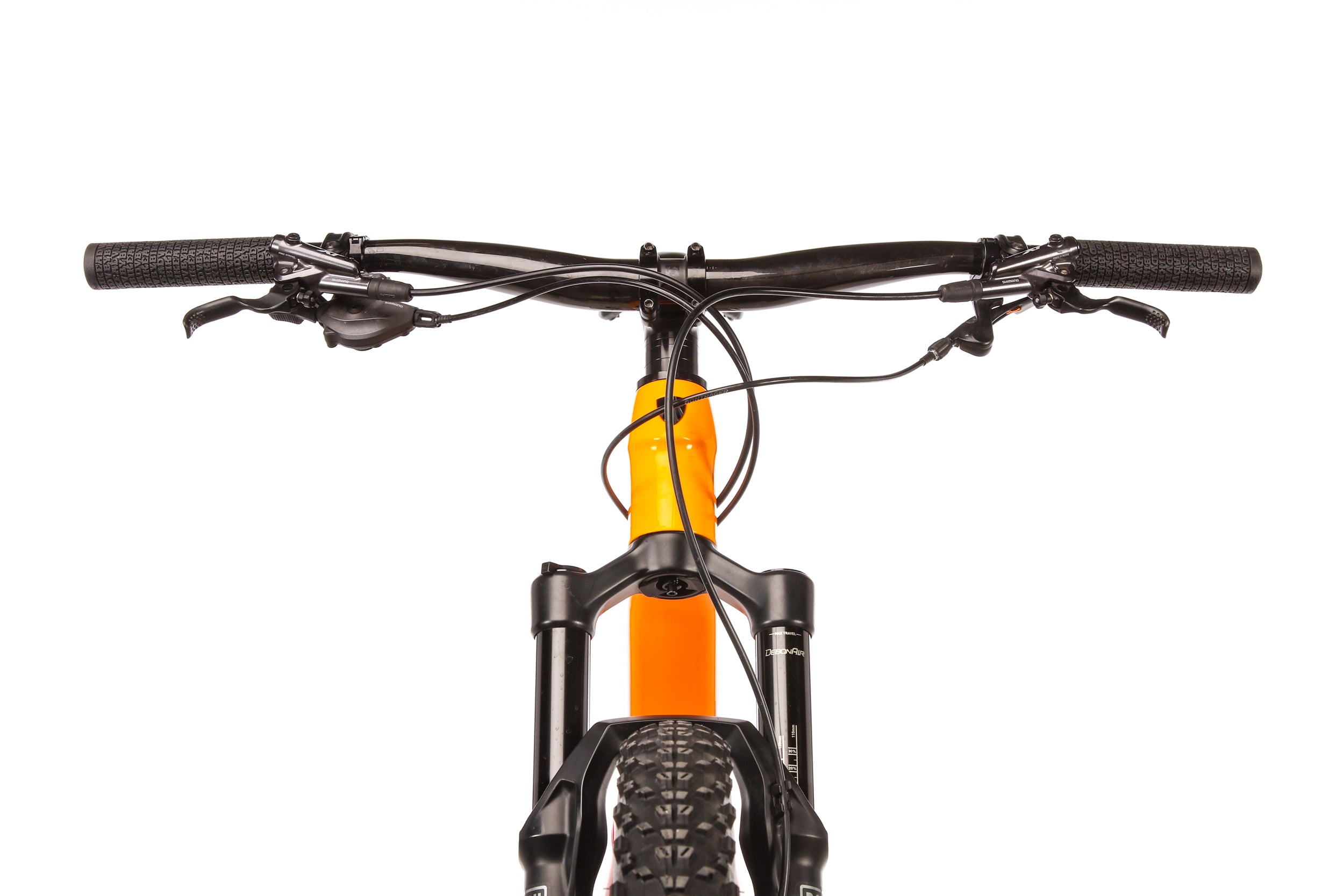

| Handlebar | Bontrager Line Pro 35 Carbon, 780mm |
| Headset | Trek |
| Stem | Bontrager Line Pro Alloy, 35.0mm x 45mm, 0° |
| Seatpost | Bontrager Line Elite, 34.9mm |
| Seatpost Travel | 170mm |
| Saddle | Bontrager Arvada w/ Austenite Rails |
| Front Axle Spacing | 15x110mm Boost (Thru-Axle) |
| Rear Axle Spacing | 12x148mm Boost (Thru-Axle) |
| Wheelset | Bontrager Line Elite 30 Carbon Tubeless Compatible, Bontrager |
| Front Tire | Maxxis Ardent EXO TR, 29" x 2.4" |
| Rear Tire | Maxxis Aggressor EXO TR, 29" x 2.5" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Bike ships tubeless |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'10" - 6'2"
|
| A. Effective Top Tube | 630mm, 631mm (High, Low) |
| B. Seat Tube | 450mm, 450mm (High, Low) |
| C. Seat Tube Angle | 76.4°, 76° (High, Low) |
| D. Head Tube Angle | 66.4°, 66° (High, Low) |
| E. Head Tube | 110mm, 110mm (High, Low) |
| F. Stack | 601mm, 605mm (High, Low) |
| G. Reach | 484mm, 480mm (High, Low) |
| H. Standover Height | 750mm, 745mm (High, Low) |
| I. Saddle Height Range | N/A |
