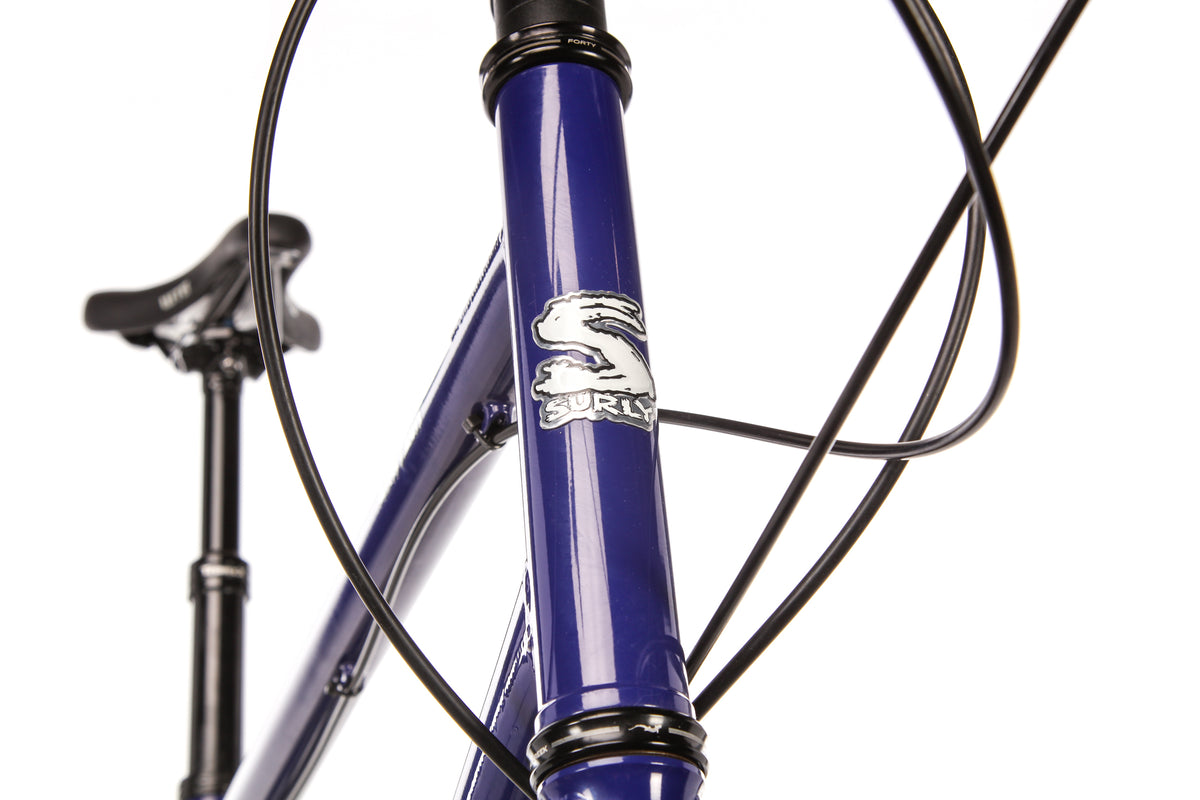

Surly Grappler Drop-Bar Mountain Bike - 2024, Medium
Item #BMT36045
Condition: Certified Pre-Owned
Fit Range: 5'5" - 5'9"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.

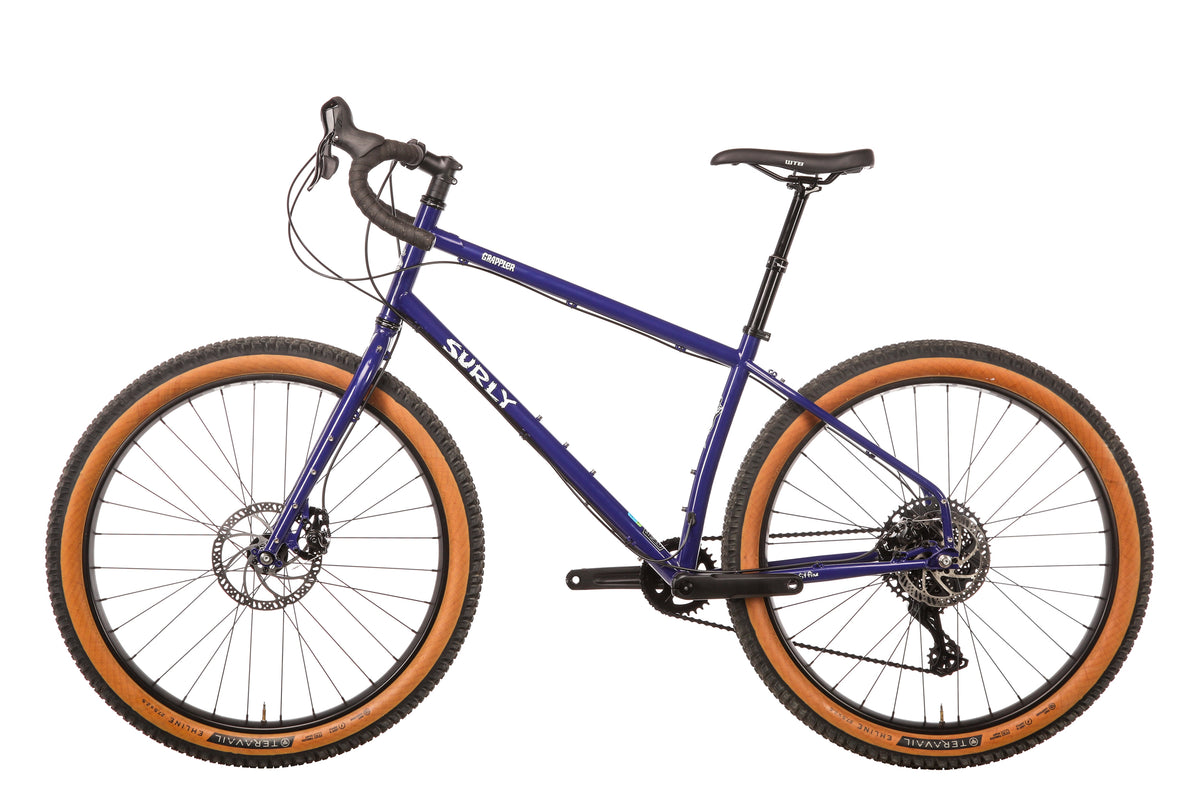

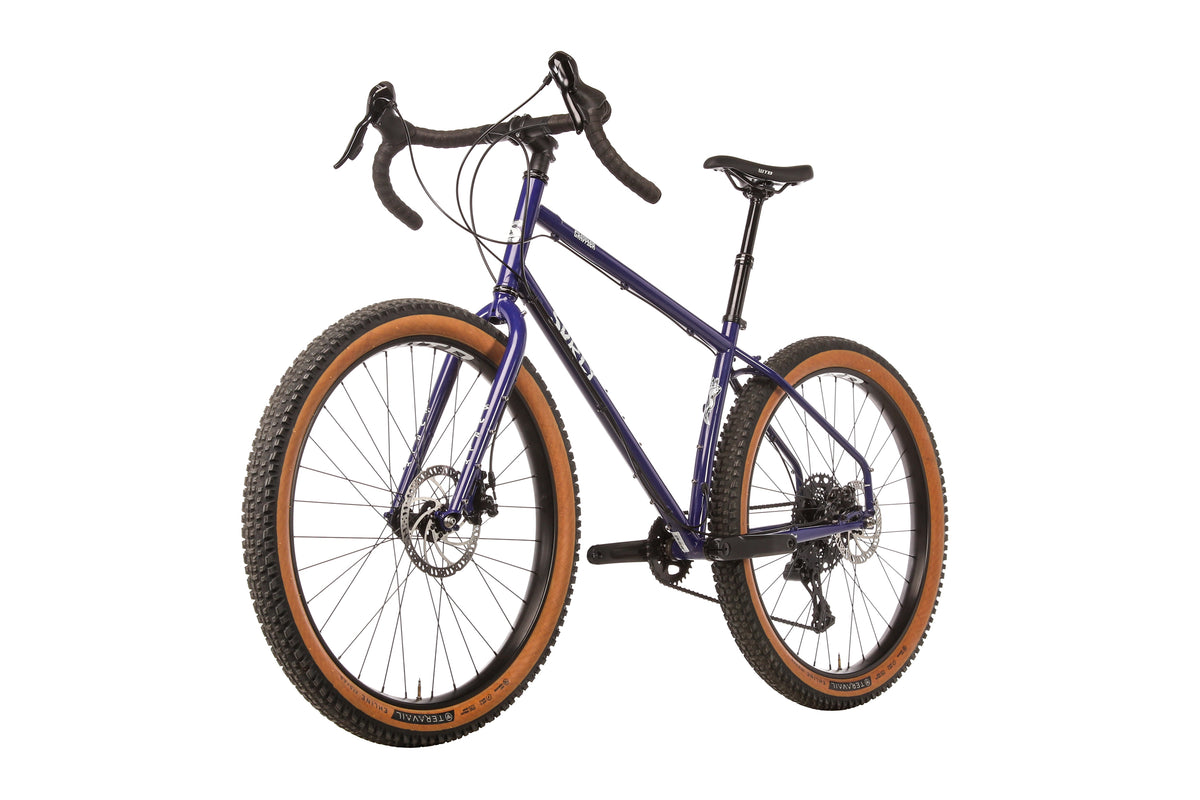

A Trail Bike Tailored for Drop Bars
Why We Love It
Cleared for girthy tires and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There’s nothing to be afraid of. Probably.
Features
- Featuring Surly’s versatile Gnot-Boost spacing, allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
- Custom dropouts ready to run single-speed or internally geared hub setups
- Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
- Frame tire clearance: 27.5 x 2.8" w/ fender, 27.5 x 3.0" w/o fender, 29 x 2.1" w/ fender (front axle position, 29 x 2.5" w/ fender (rear axle position)
Master Mechanic’s Notes

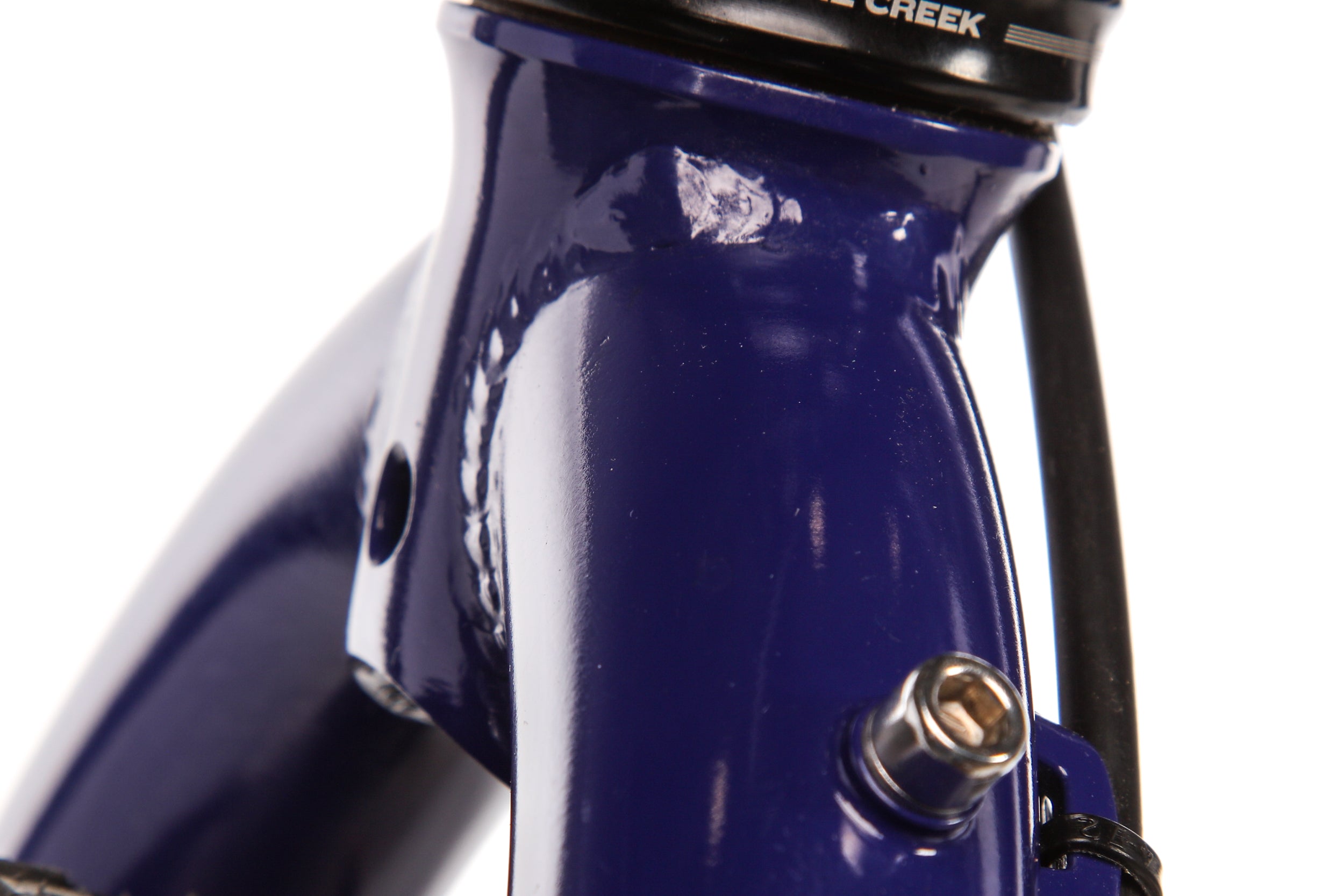

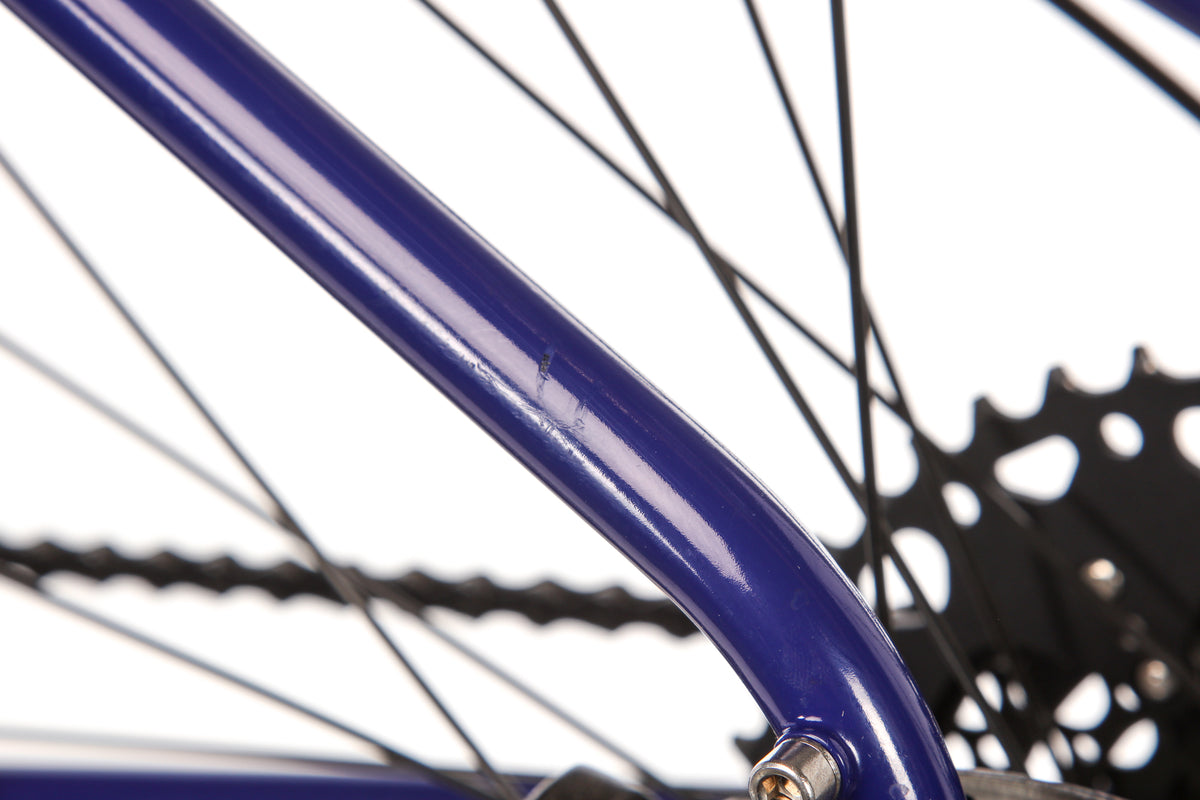

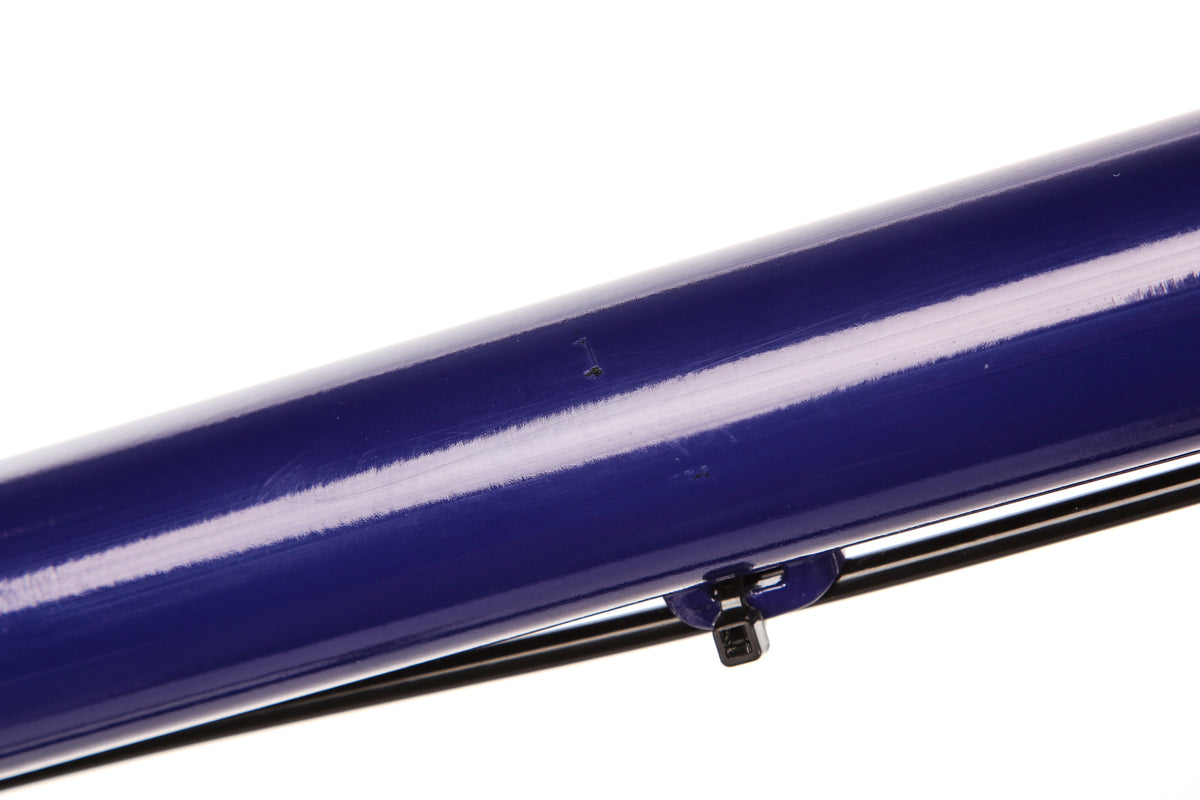

- Light scratches on the non-drive side fork leg, top tube, & non-drive side seatstay
Specifications
Details
| Original MSRP | $1,899.00 |
| Year | 2024 |
| Brand | Surly |
| Model | Grappler |
| Size | Medium |
| Frame Material | Steel |
| Drivetrain | Microshift, 1x10 spd |
| Weight | 30 lbs 5 oz |
Build
| Fork | Surly Dinner Fork, Steel |
| Rear Shock Travel | N/A |
| Brakes | Tektro Mira, Disc Brakes - Mechanical |
| Shifters | microSHIFT SB-M100A AdventX, Mechanical |

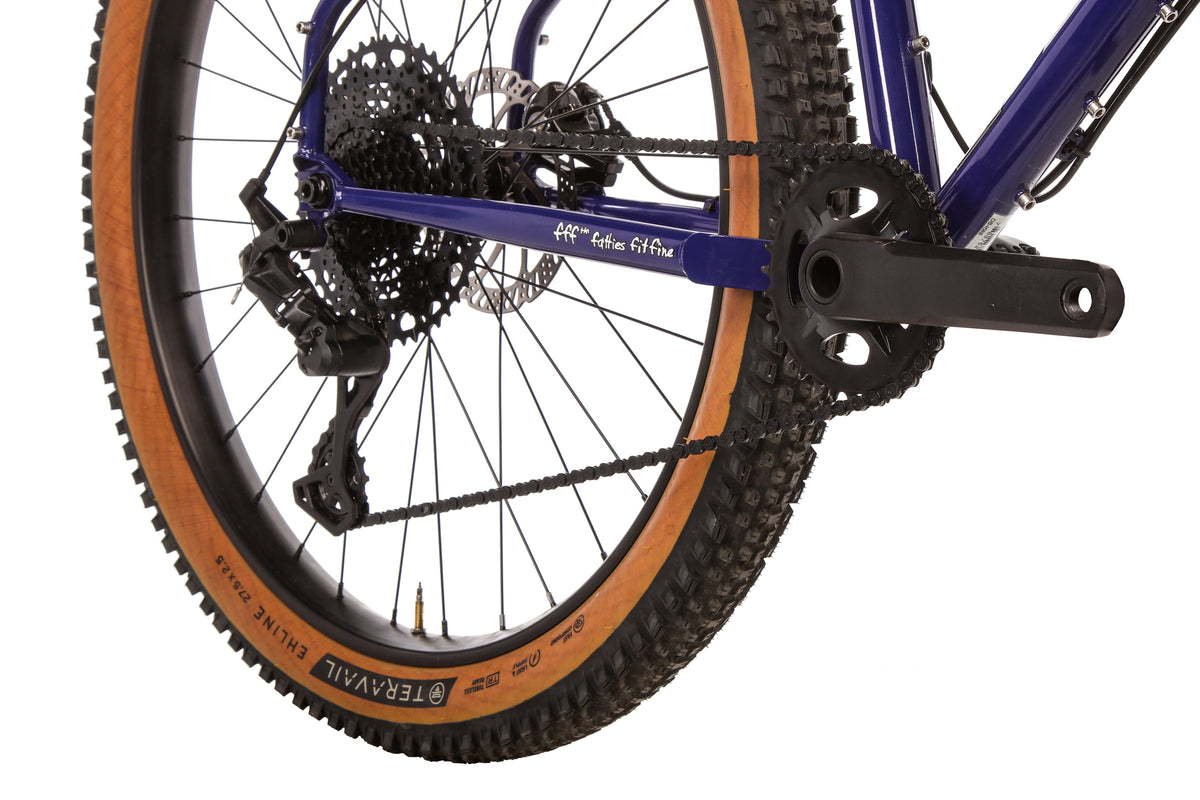

| Rear Derailleur | microSHIFT SB-M100A AdventX |
| Bottom Bracket Shell | Threaded |
| Crankset | Samox BSA Alloy, 32t, 175mm |
| Cassette | microSHIFT, 11-48t |
| Chain | KMC |

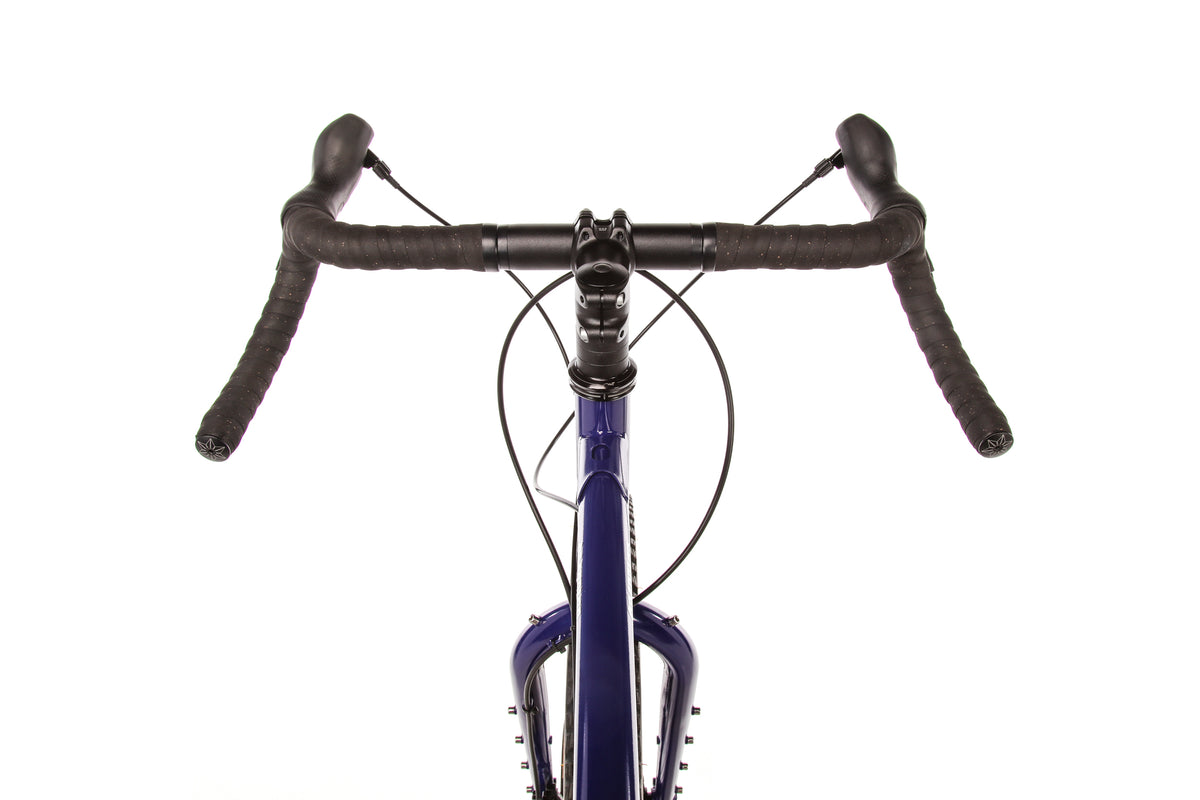

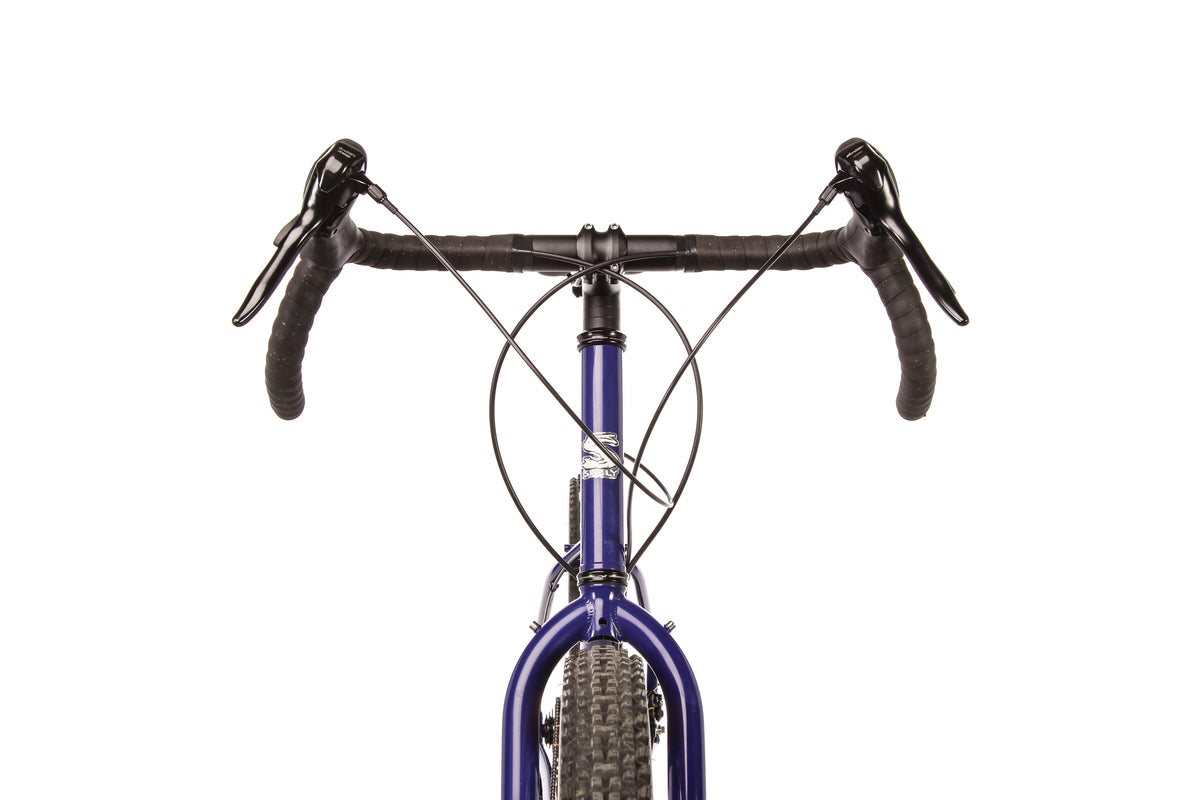

| Handlebar | Salsa Cycles Cowchipper Alloy, 44cm |
| Headset | Cane Creek Forty |
| Stem | Promax DA-296 Alloy, 31.8mm x 60mm, 6° |
| Seatpost | TransX YSP15, 31.6mm |
| Seatpost Travel | 100mm |
| Saddle | WTB Volt w/ Cr-Mo Rails |
| Front Axle Spacing | 15x110mm Boost (Thru-Axle) |
| Rear Axle Spacing | 12x148mm Boost (Thru-Axle) |
| Wheelset | WTB ST i40 TCS Aluminum Tubeless Compatible, Novatec |
| Front Tire | Teravail Ehline, 27.5" x 2.5" |
| Rear Tire | Teravail Ehline, 27.5" x 2.5" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Bike ships tubeless |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'5" - 5'9"
|
| A. Effective Top Tube | 610 mm |
| B. Seat Tube | 437.2 mm |
| C. Seat Tube Angle | 73° |
| D. Head Tube Angle | 69.5° |
| E. Head Tube | 200 mm |
| F. Stack | 623 mm |
| G. Reach | 420 mm |
| H. Standover Height | 795 mm |
| I. Saddle Height Range | N/A |
