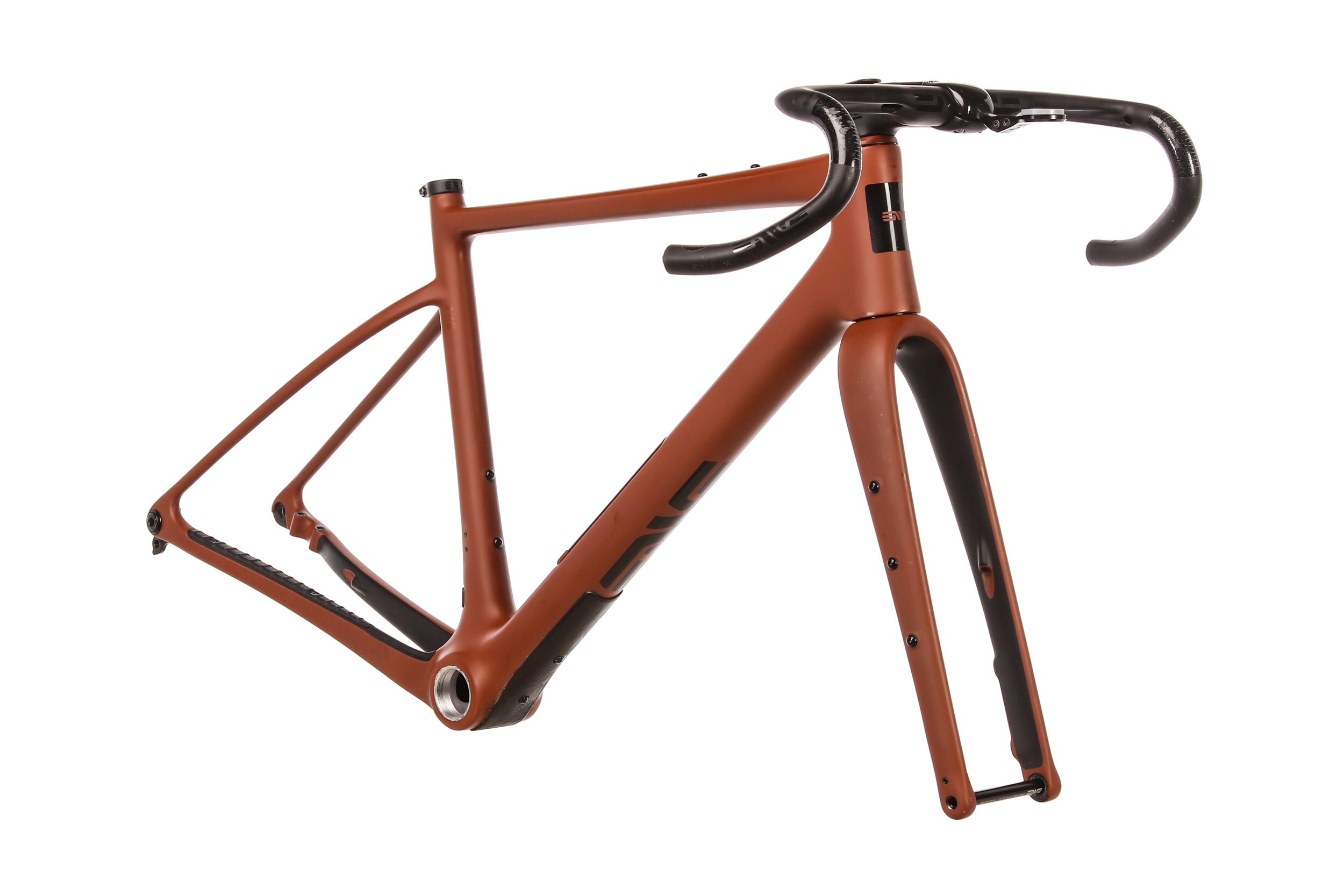

ENVE MOG 54cm Frameset - 2024
Item #FGR10796
Condition:
Pre-Owned
Fit Range: 5'7" - 5'10"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
Every product we sell is covered by a hassle-free 30-day satisfaction guarantee. Restrictions may apply.
Master Mechanic’s Notes
- Includes: headset, seatpost collar, thru-axles, & derailleur hangers
- Includes: ENVE In-Route Aero Road Carbon stem & ENVE Road In-Route Carbon handlebar
- Excellent condition
- Light scratches/scuffs & Light wear from regular use (cable/tire rub, heel rub, chain, etc)

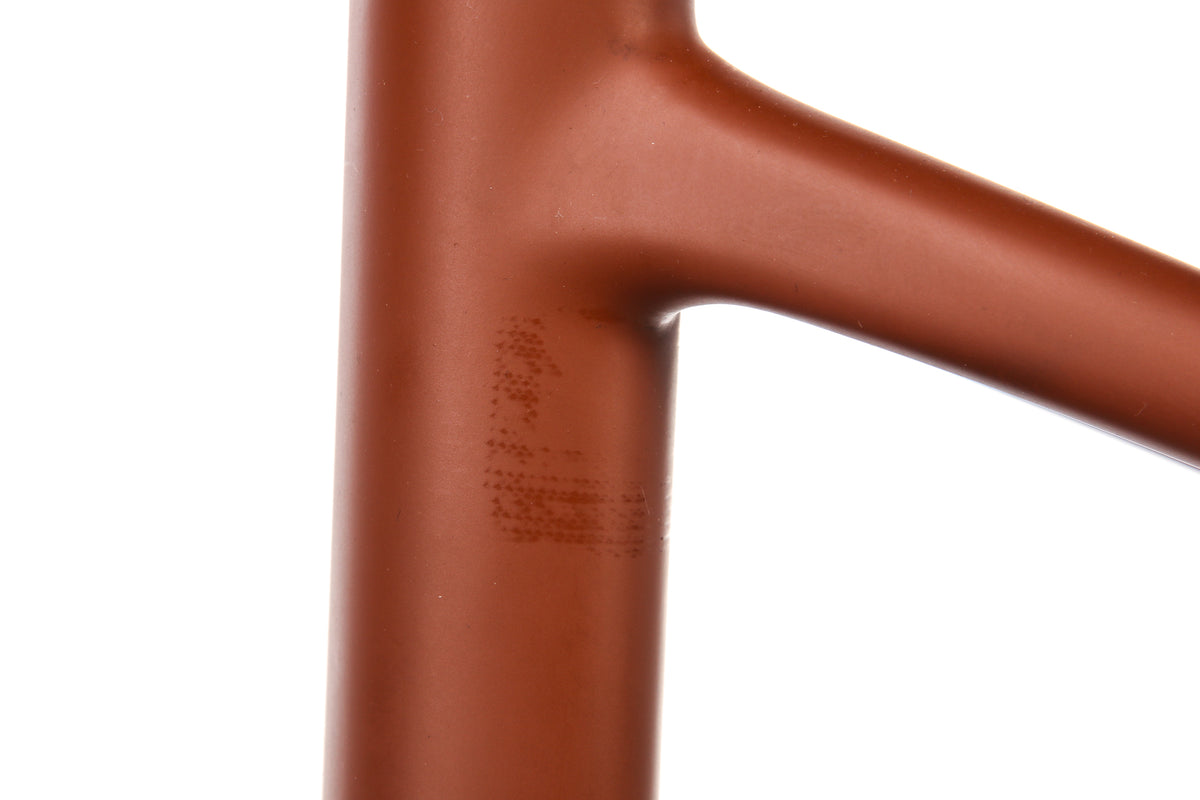

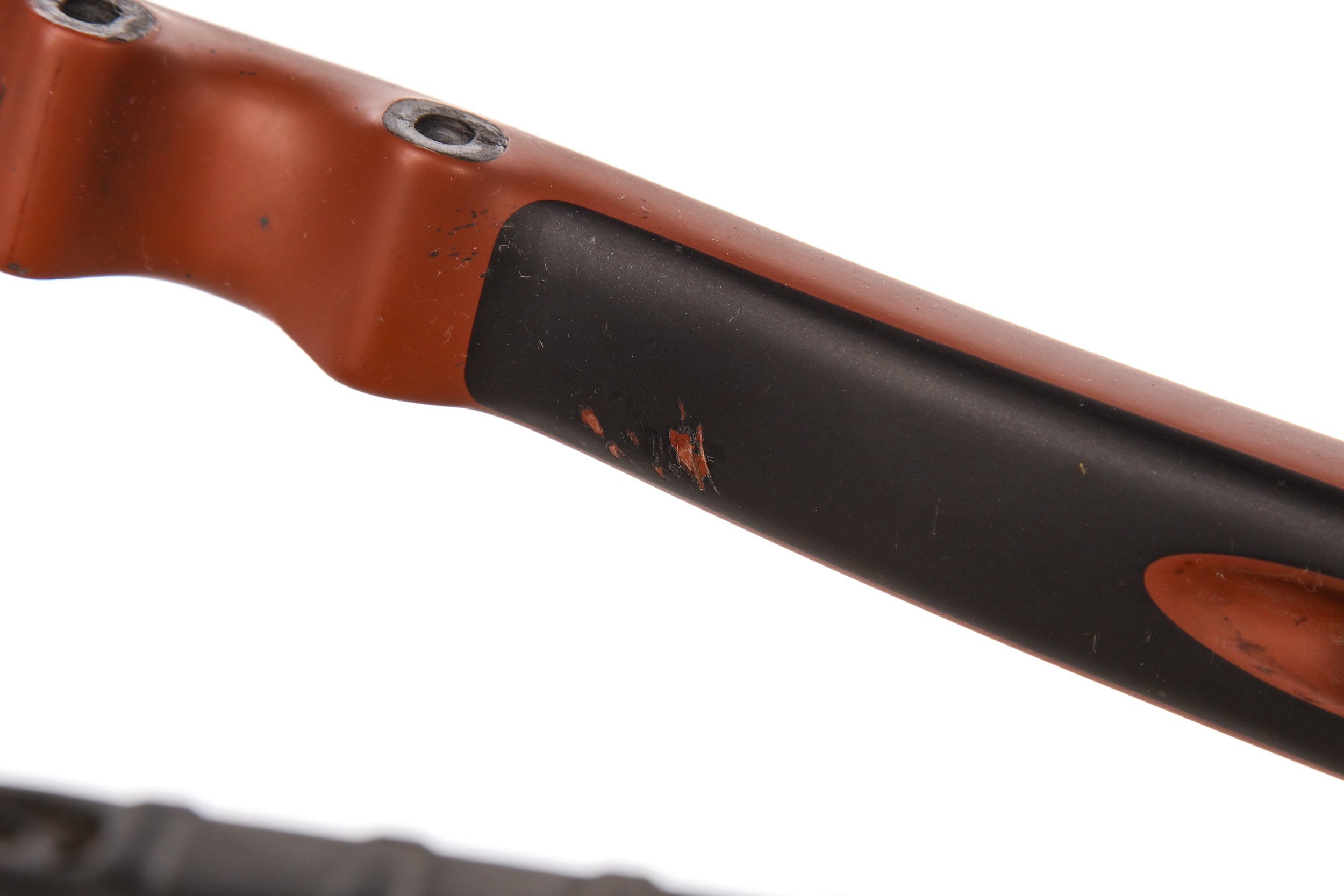

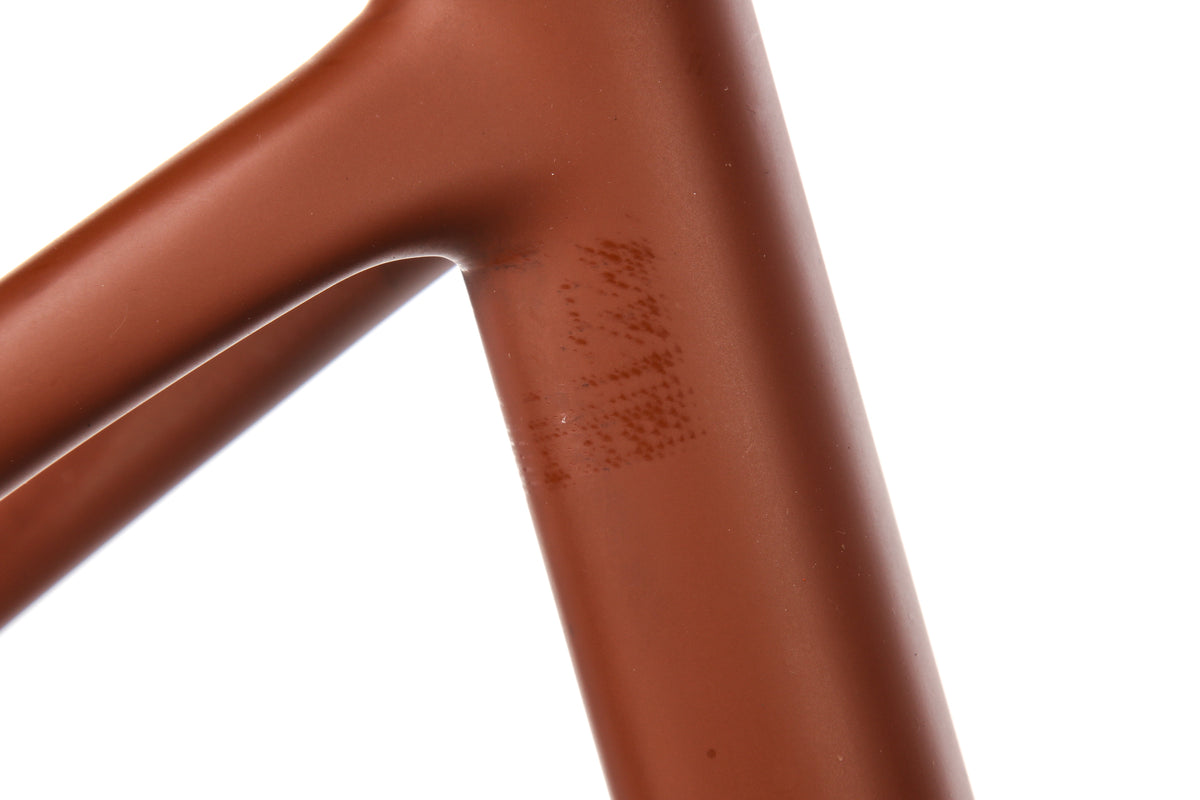

- Light scratches on the seat tube & inside non-drive side chainstay
Specifications
Details
| Brand | ENVE |
| Model | MOG |
| Size | 54cm |
| Frame Material | Carbon Fiber |
| Fork | ENVE MOG |
| Fork Material | Carbon |
| Steerer Tube | 195mm, Tapered |
| Brake Type | Disc Post-Mount |
| Headset | ENVE |
| Bottom Bracket | Not Included, T47 |
| Wheel Size | 700C |
| Seatpost Diameter | 27.2mm |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm (Thru-Axle) |
| Weight | 4 lbs 15 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
| Handlebar Width | 42cm |
| Handlebar Clamp Diameter | 31.8mm |
| Stem Length | 100mm |
| Stem Angle | 7 |
| Stem Clamp Diameter | 31.8mm |
Geometry
| Fit Range |
5'7" - 5'10"
|
| A. Effective Top Tube | 554 mm |
| B. Seat Tube | 480 mm |
| C. Seat Tube Angle | 73.75° |
| D. Head Tube Angle | 71.25° |
| E. Head Tube | 140 mm |
| F. Stack | 565 mm |
| G. Reach | 389 mm |
| H. Standover Height | 740 mm |
| I. Saddle Height Range | N/A |
