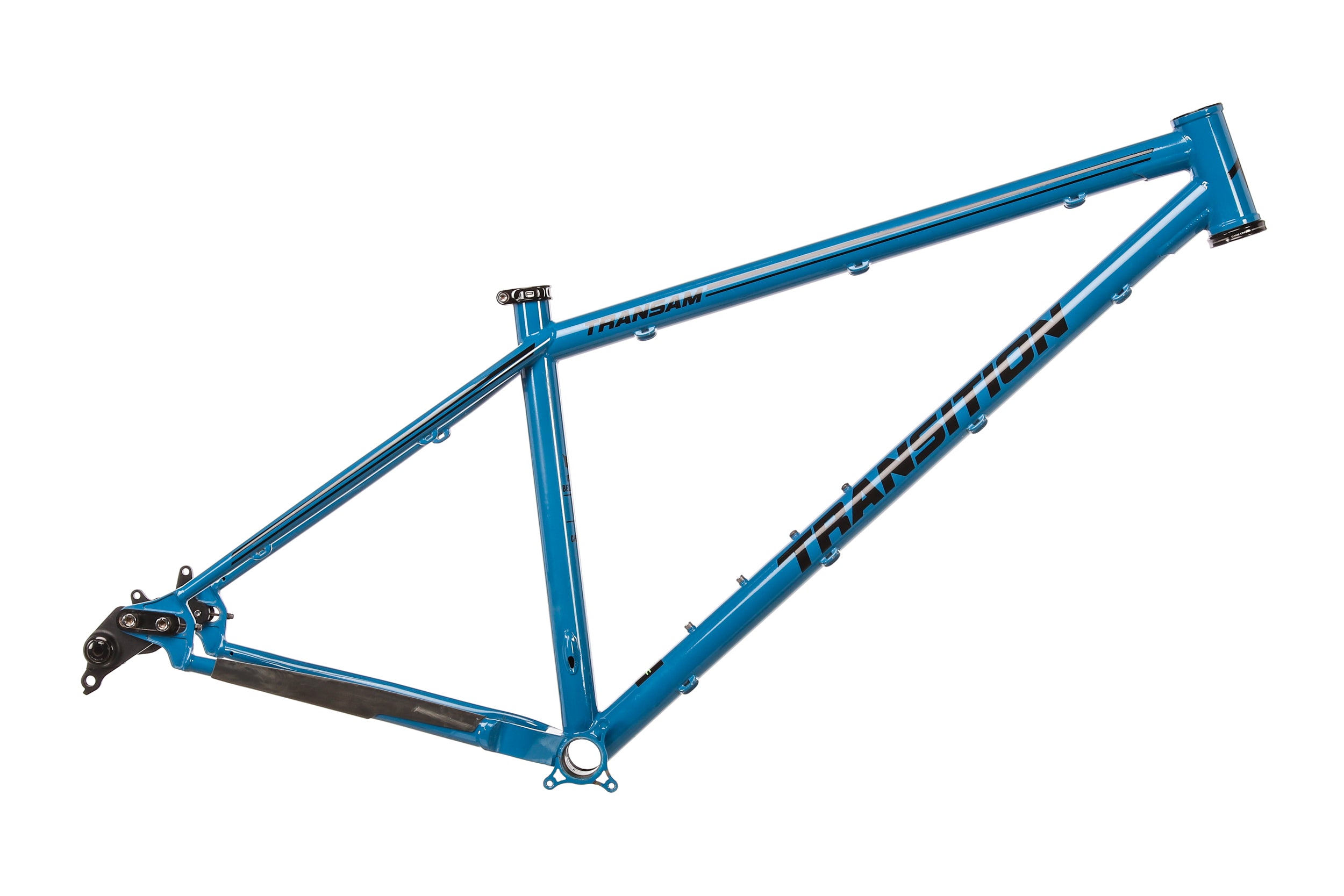

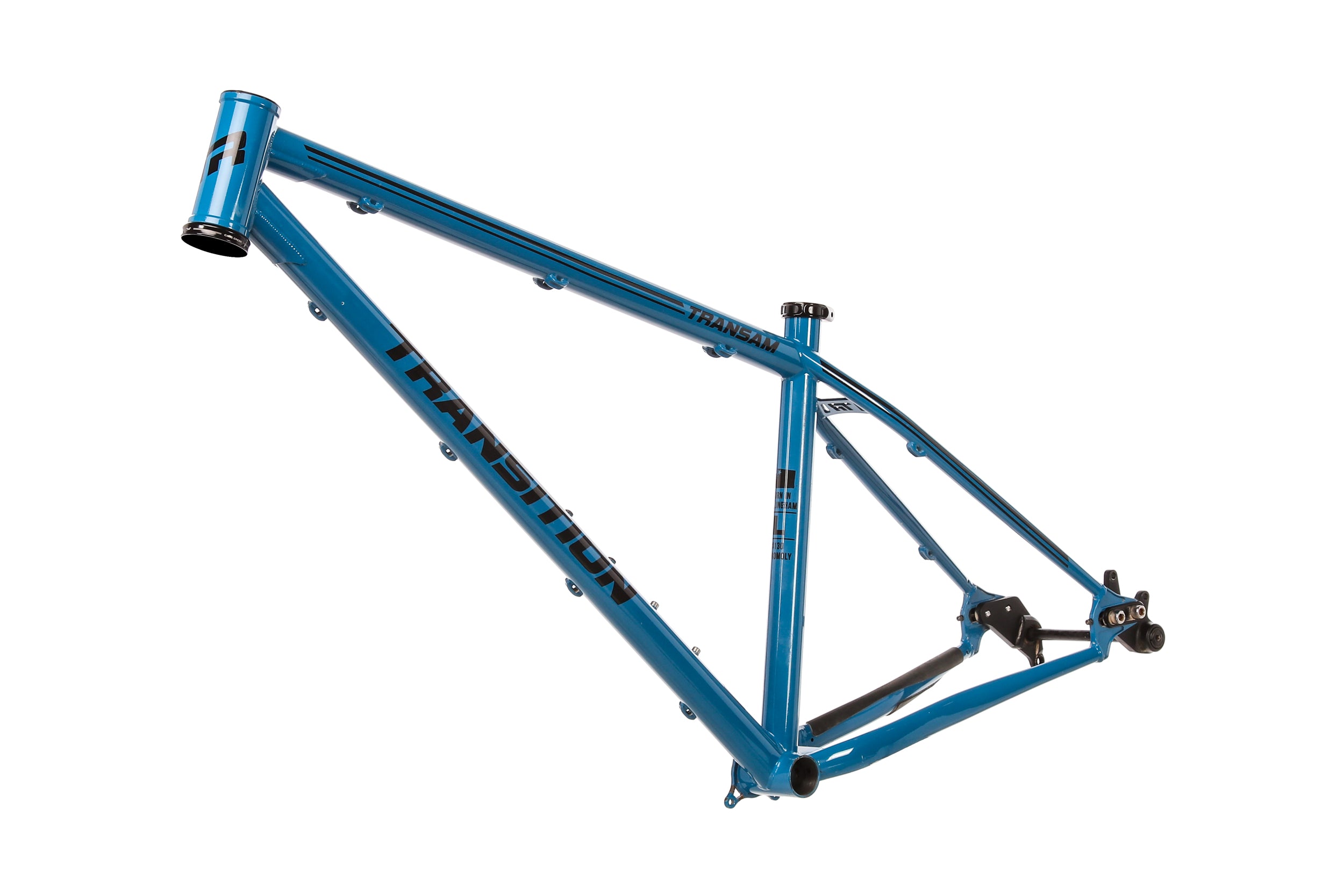

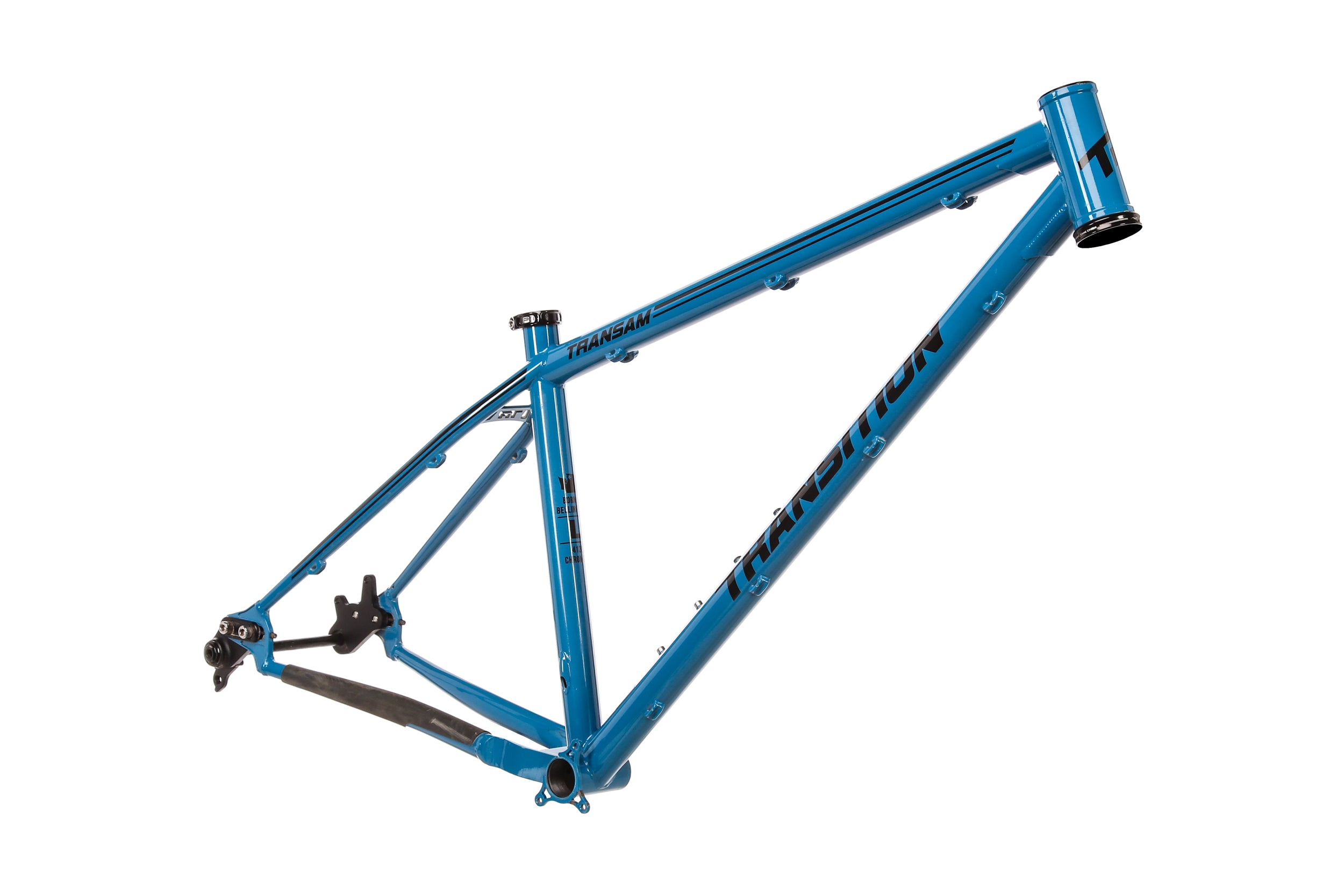

Transition TransAM 29 Large Frameset - 2024
Item #FMT12228
Condition:
Pre-Owned
Fit Range: 5'10" - 6'2"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
Every product we sell is covered by a hassle-free 30-day satisfaction guarantee. Restrictions may apply.
Master Mechanic’s Notes
- Includes: seatpost collar, thru-axles, & rear derailleur hanger
- Excellent condition

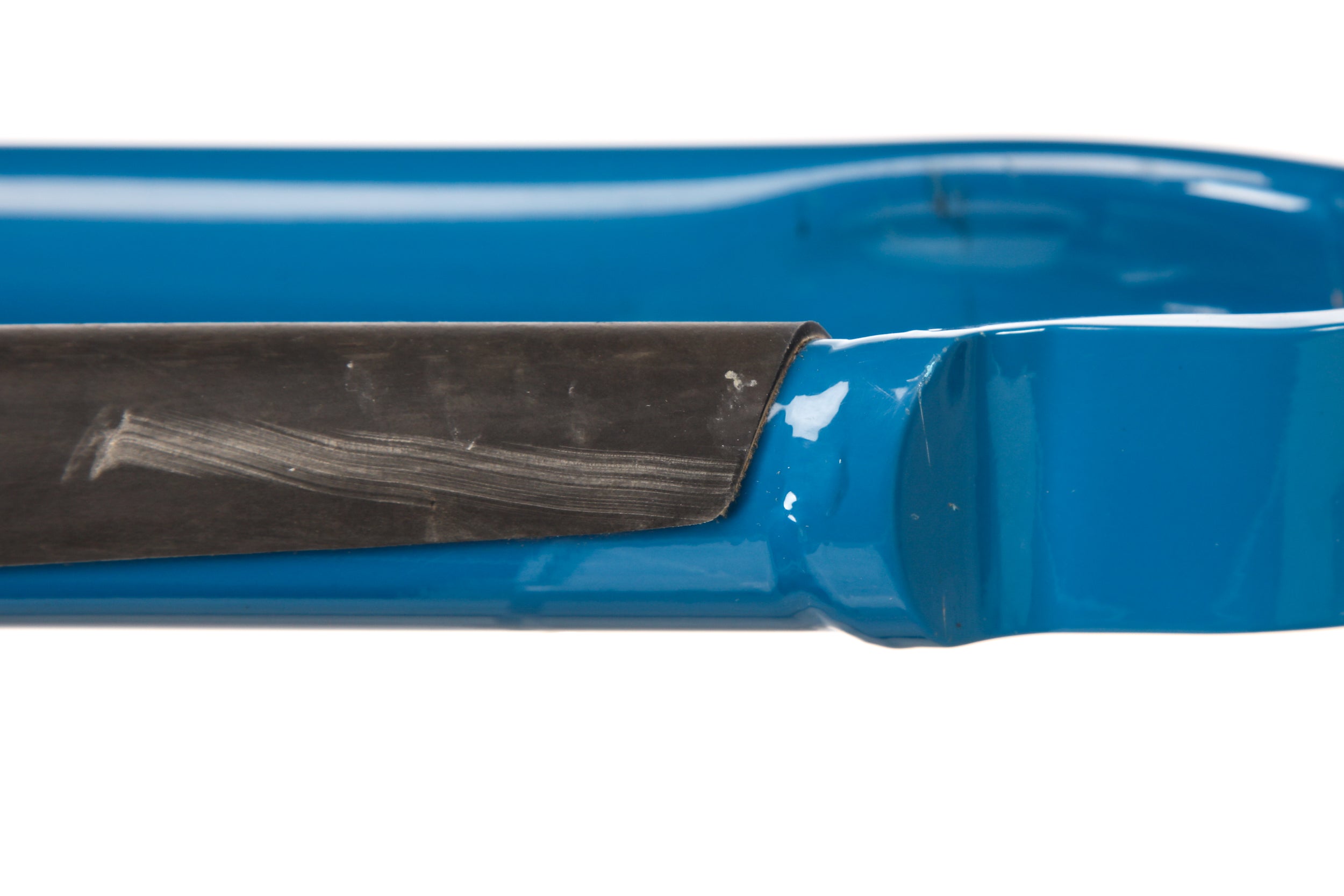

- Light scratches/scuffs & Light wear from regular use (cable/tire rub, heel rub, chain, etc)

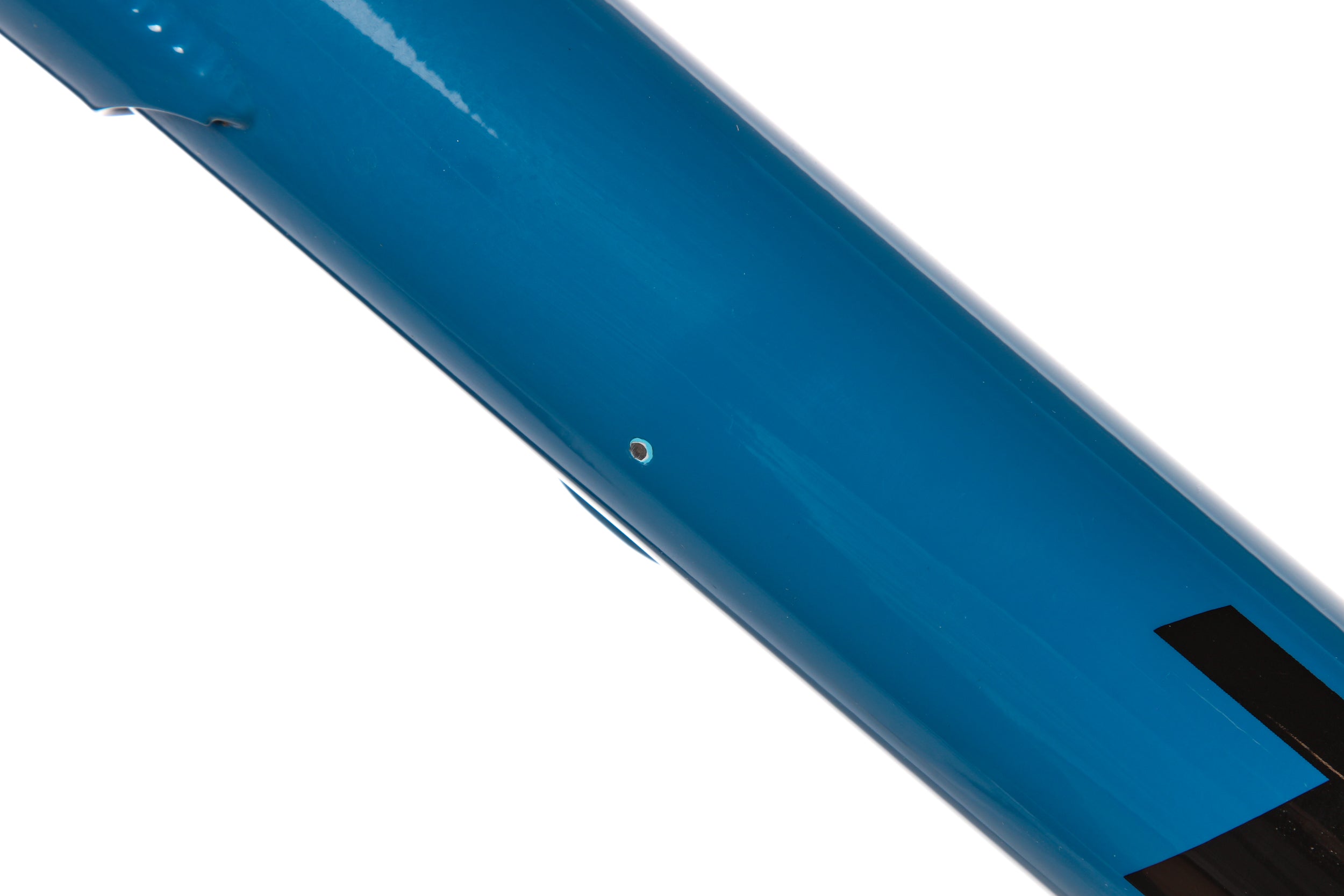

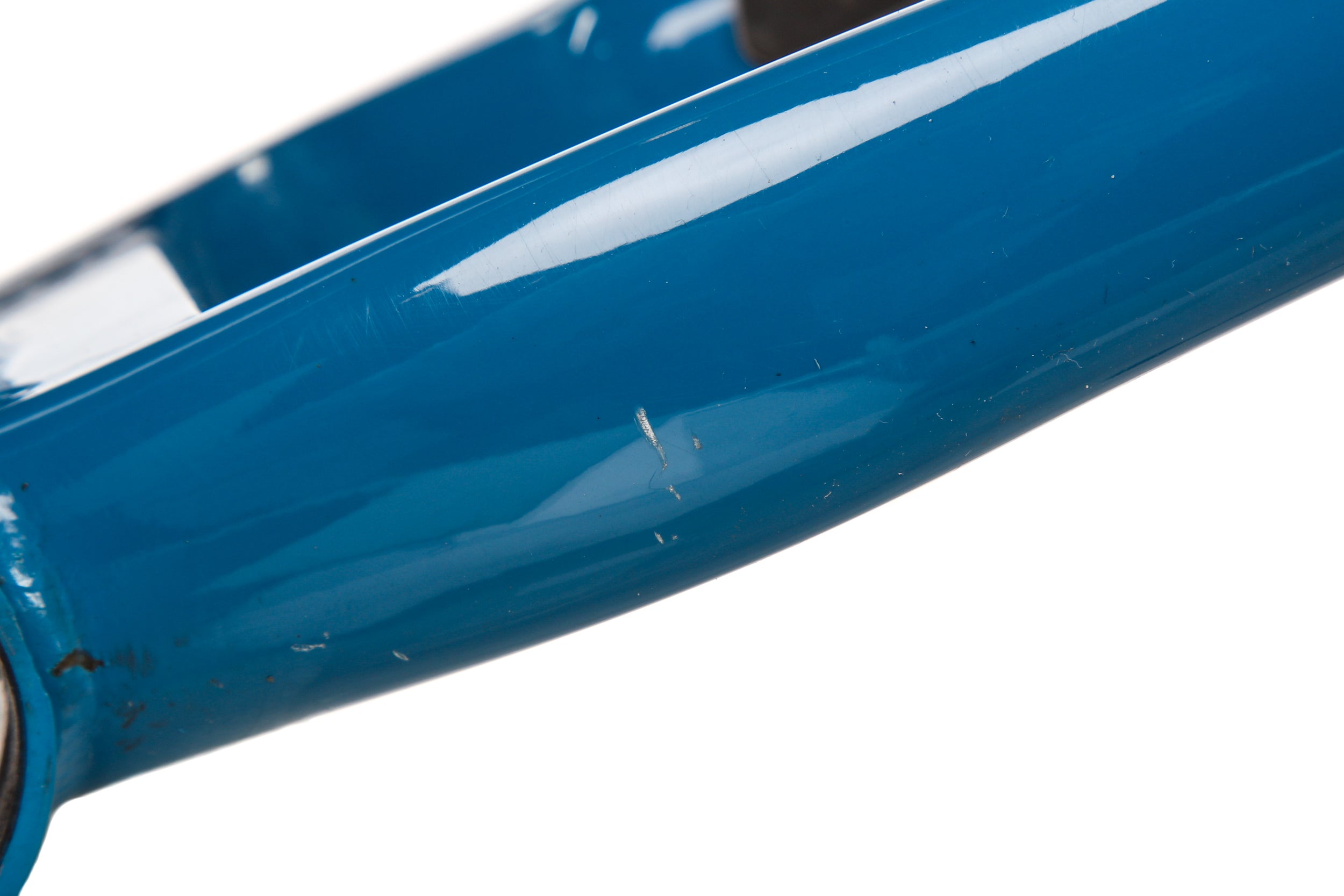

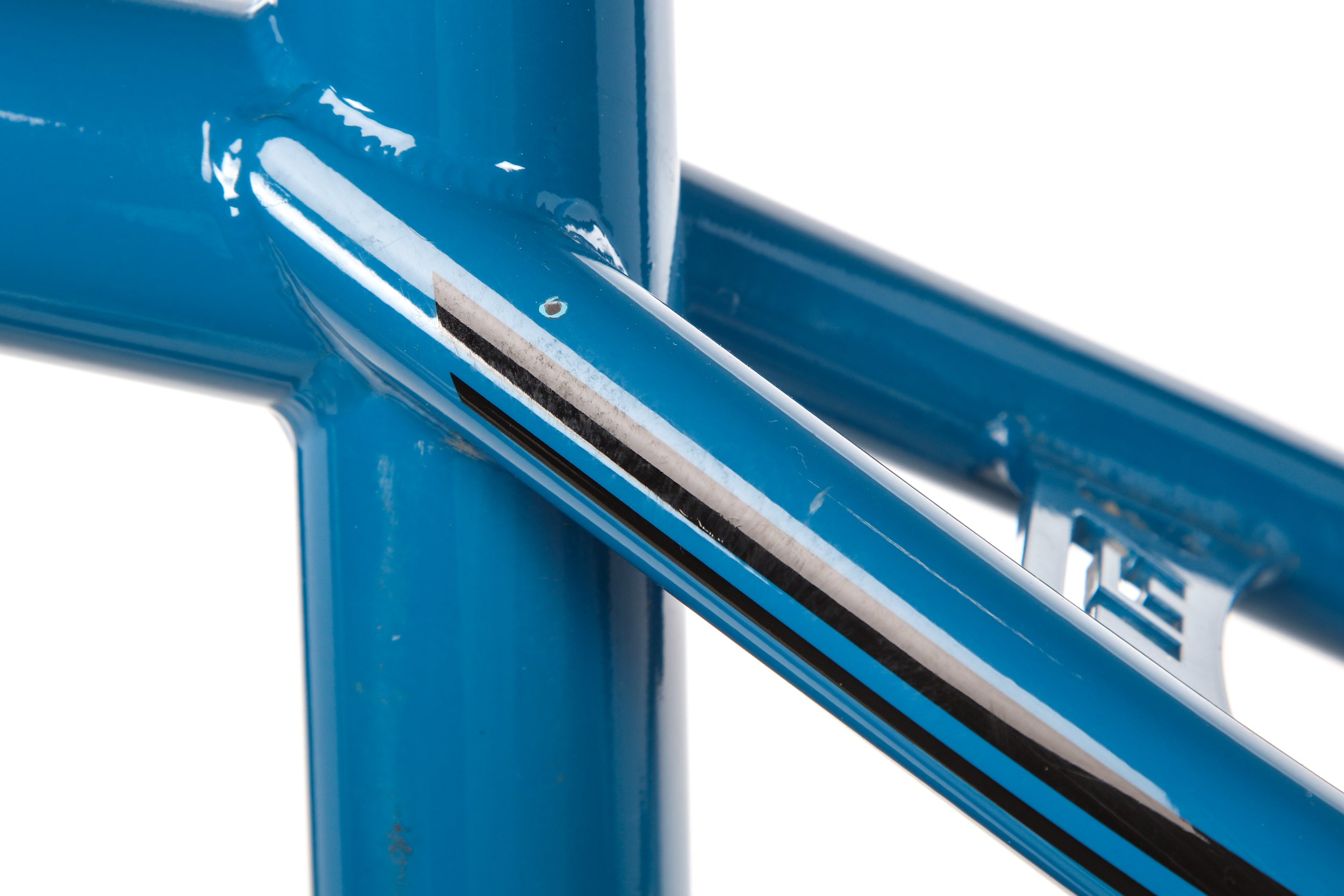

- Light scratches on the drive side fork leg, down tube, & rear triangle
- Manufacturer decals have been removed from front suspension
Specifications
Details
| Year | 2024 |
| Brand | Transition |
| Model | TransAM |
| Size | Large |
| Frame Material | Steel / Steel |

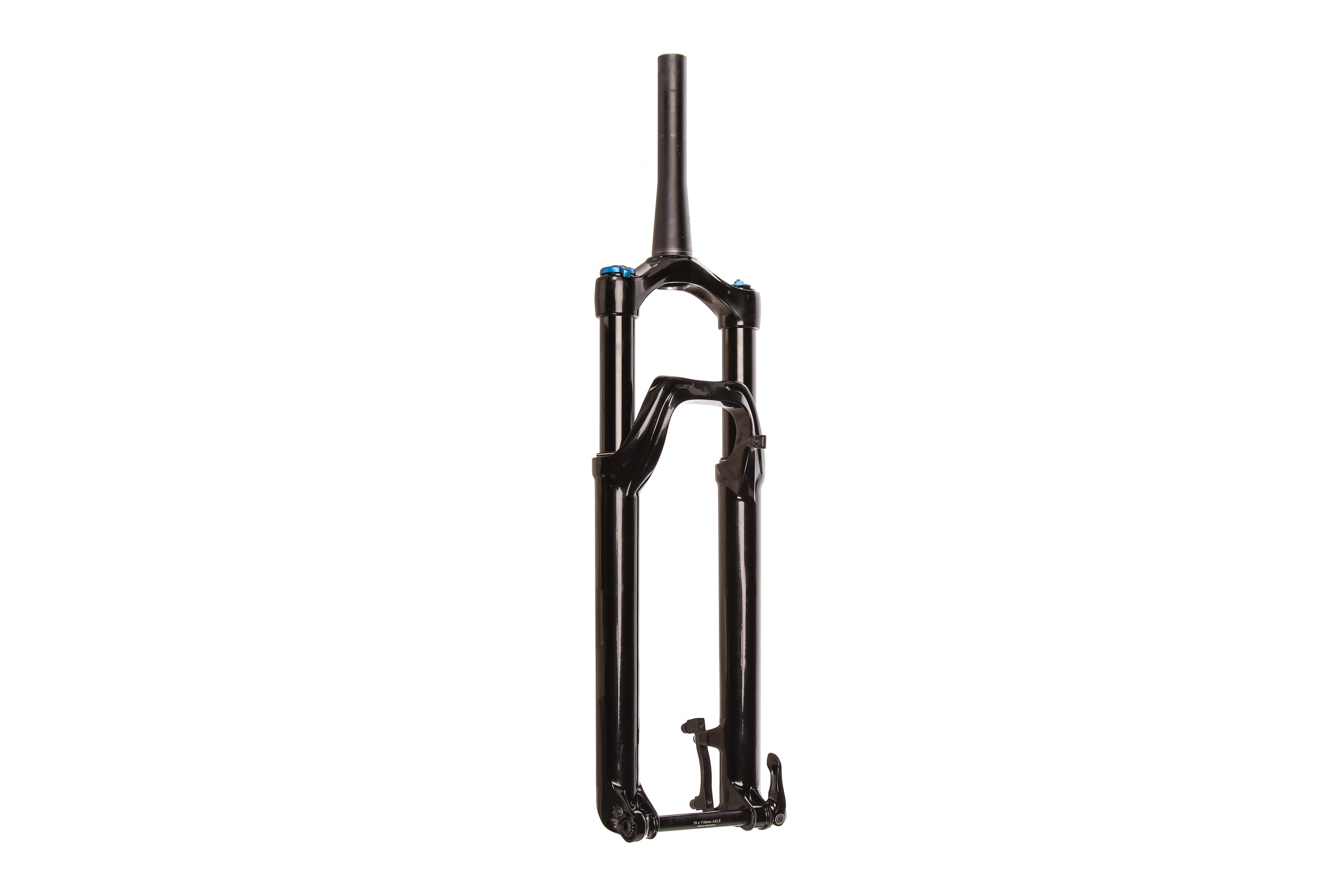

| Fork | FOX Performance 34 FLOAT |
| Fork Travel | 120mm |
| Steerer Tube | 200mm, Tapered |
| Rear Shock Travel | N/A |
| Brake Type | Disc Post-Mount |
| Bottom Bracket | Not Included, English |
| Wheel Size | 29" |
| Seatpost Diameter | 30.9mm |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 15x110mm Boost (Thru-Axle) |
| Rear Axle Spacing | 12x148mm Boost (Thru-Axle) |
| Weight | 11 lbs 6 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Geometry
| Fit Range |
5'10" - 6'2"
|
| A. Effective Top Tube | 640 mm |
| B. Seat Tube | 430 mm |
| C. Seat Tube Angle | 76.5° |
| D. Head Tube Angle | 64° |

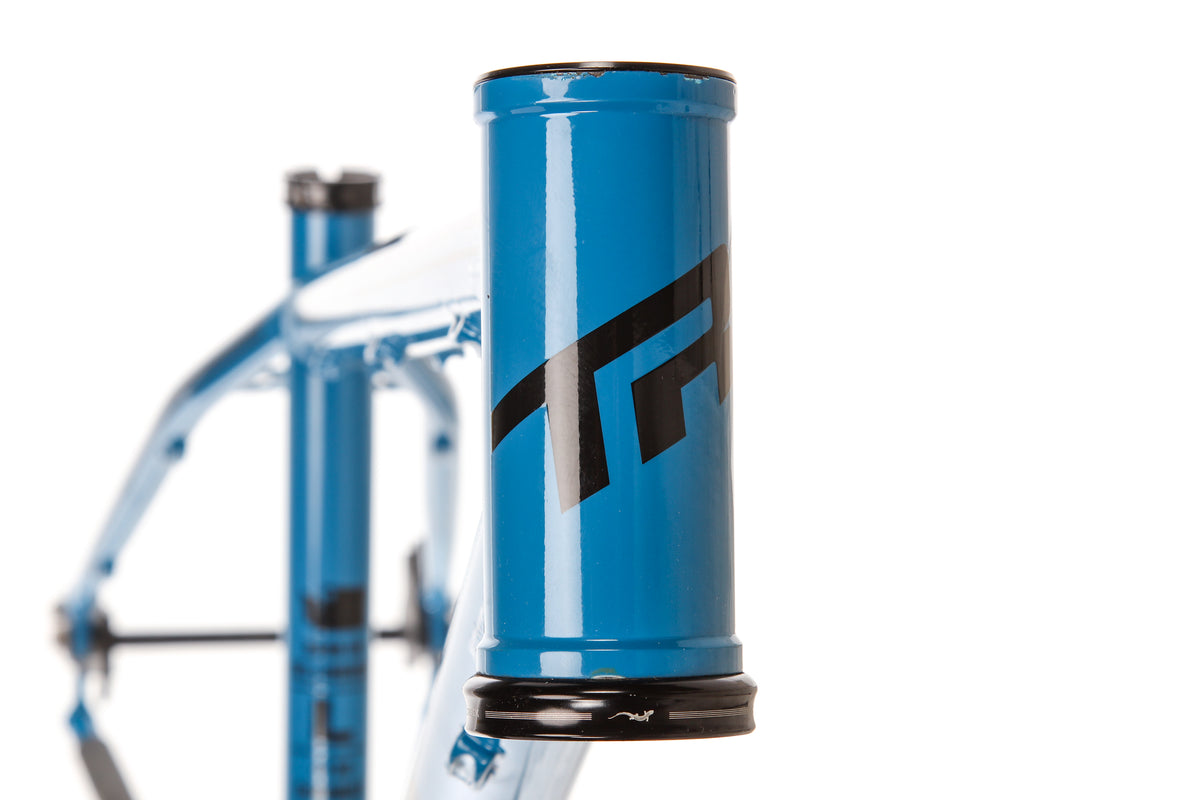

| E. Head Tube | 110 mm |
| F. Stack | 646 mm |
| G. Reach | 485 mm |
| H. Standover Height | 670 mm |
| I. Saddle Height Range | N/A |
