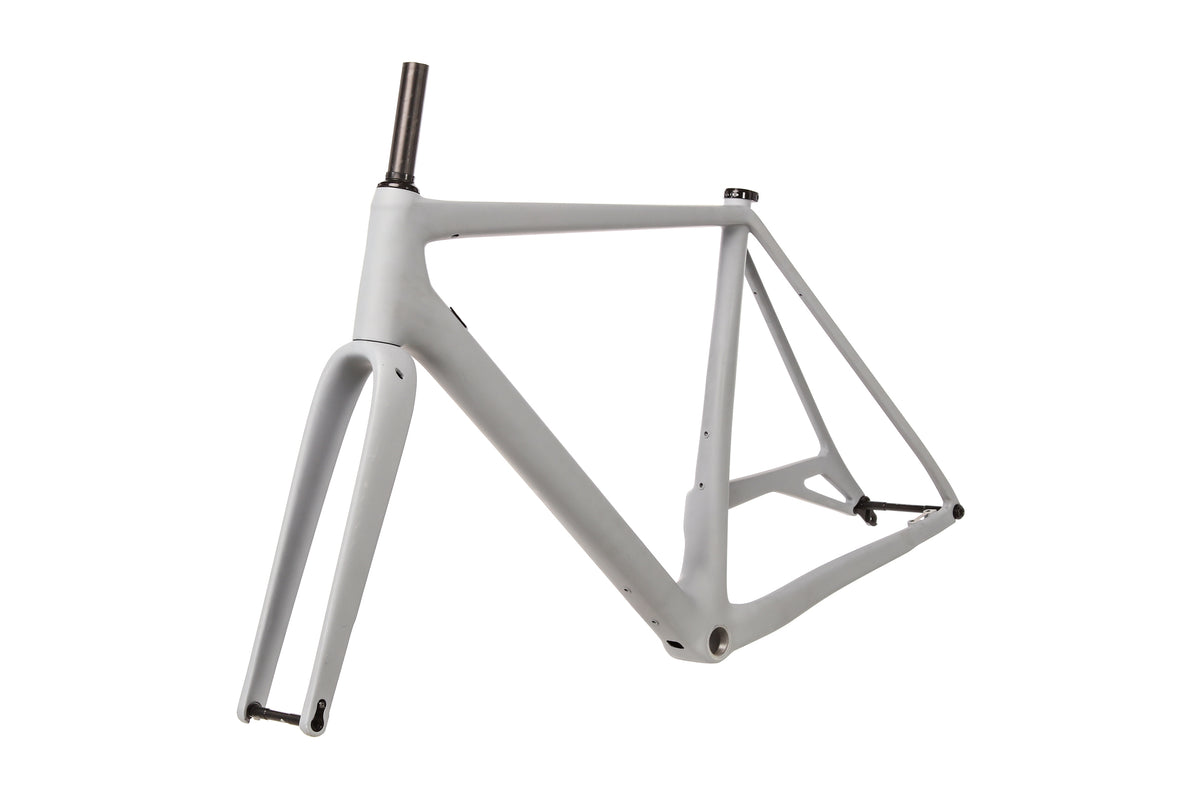

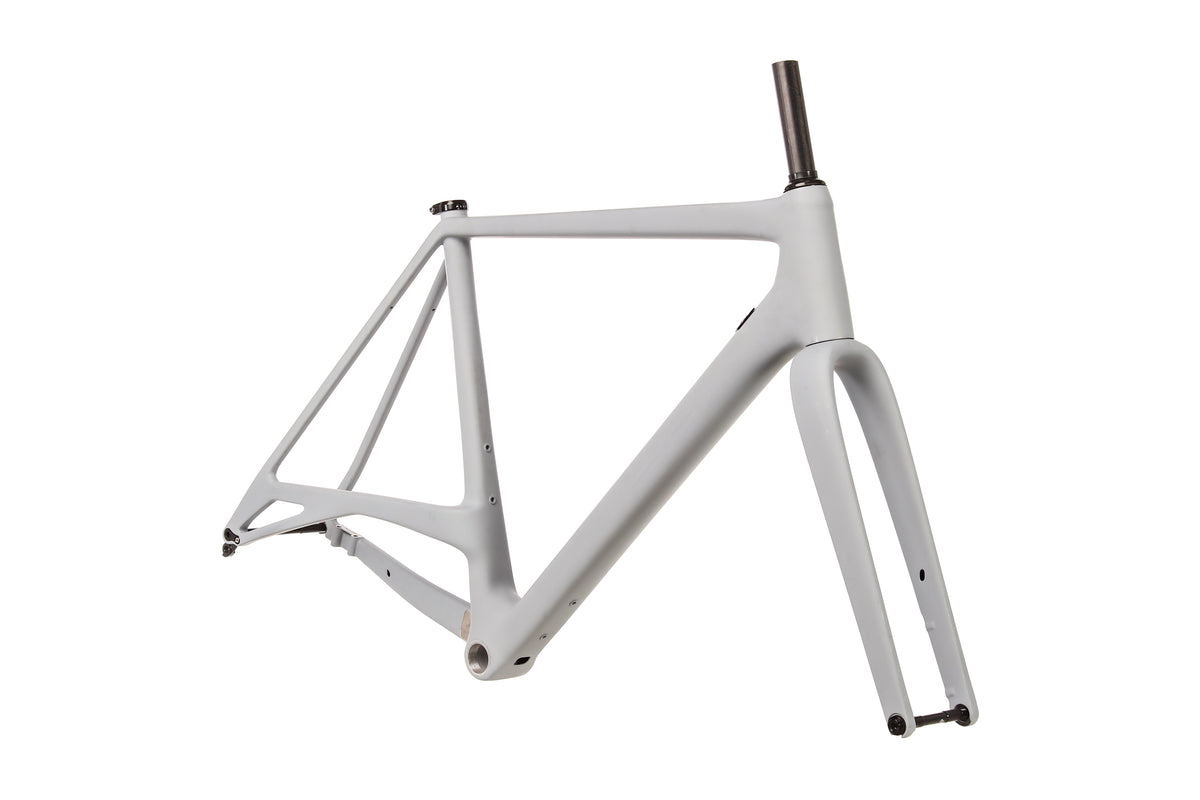

Allied Able Medium Frameset - 2023
Item #FGR10788
Condition:
Pre-Owned
Fit Range: 5'7" - 5'10"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
Every product we sell is covered by a hassle-free 30-day satisfaction guarantee. Restrictions may apply.
Gravel Course Records and Podiums
Why We Love It

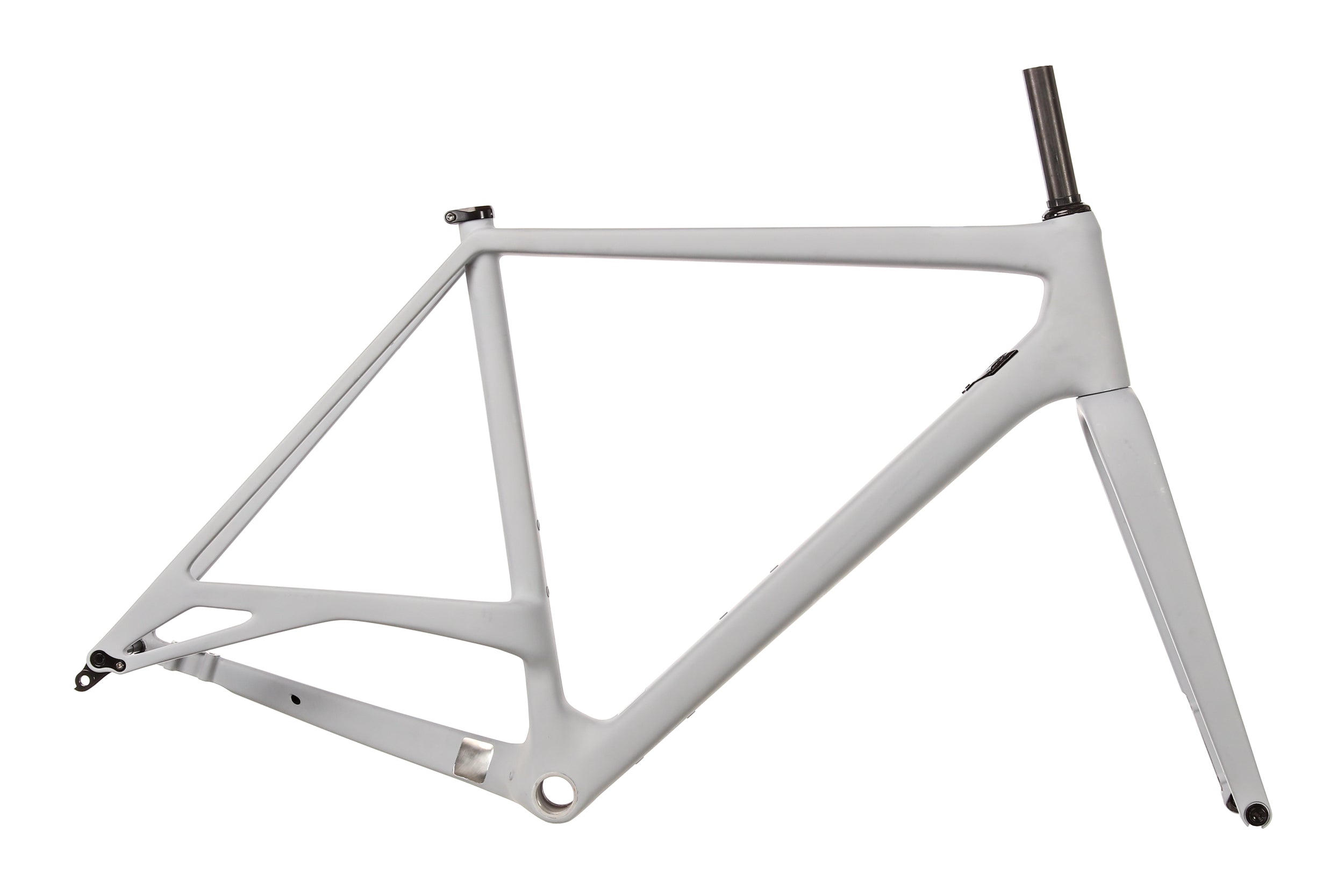

You may notice the unusual drive-side chainstay, what's up with that? One of the secrets to the ABLE's sports-car handling is the super short chain stay length, which keeps the bike nimble and quick. A short chainstay often limits tire clearance, and since bigger tires are necessary to win big gravel races, ALLIED's solution was elevating it out of the way to make room to easily accommodate 43mm tires. This gravel rocketship instantly proved its ability of podium finishes and course records, if that's what you're looking for, this is the bike.
Master Mechanic’s Notes

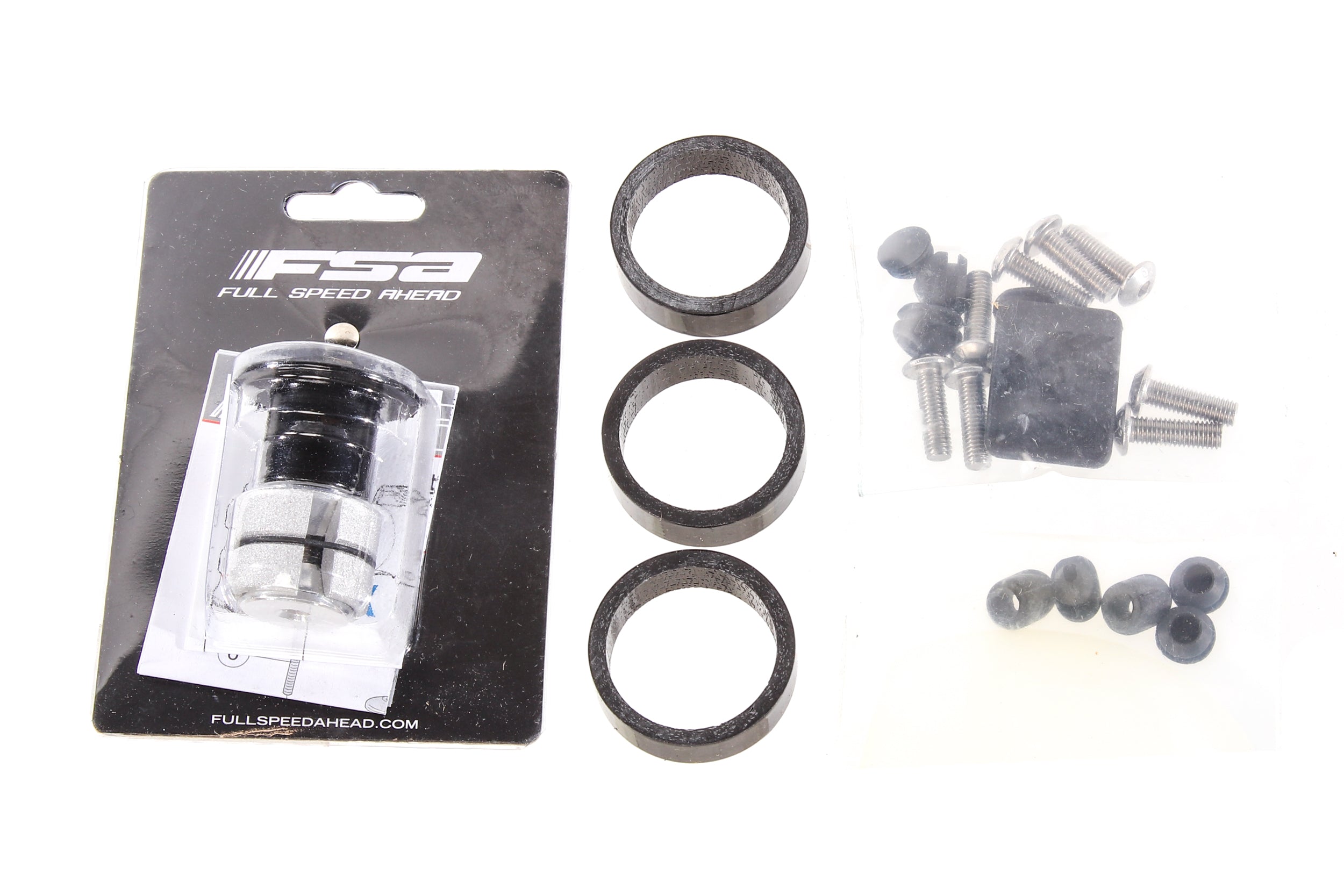

- Includes: headset, compression plug, seatpost collar, thru-axles, & rear derailleur hanger
- Excellent condition
- Light scratches/scuffs & Light wear from regular use (cable/tire rub, heel rub, chain, etc)

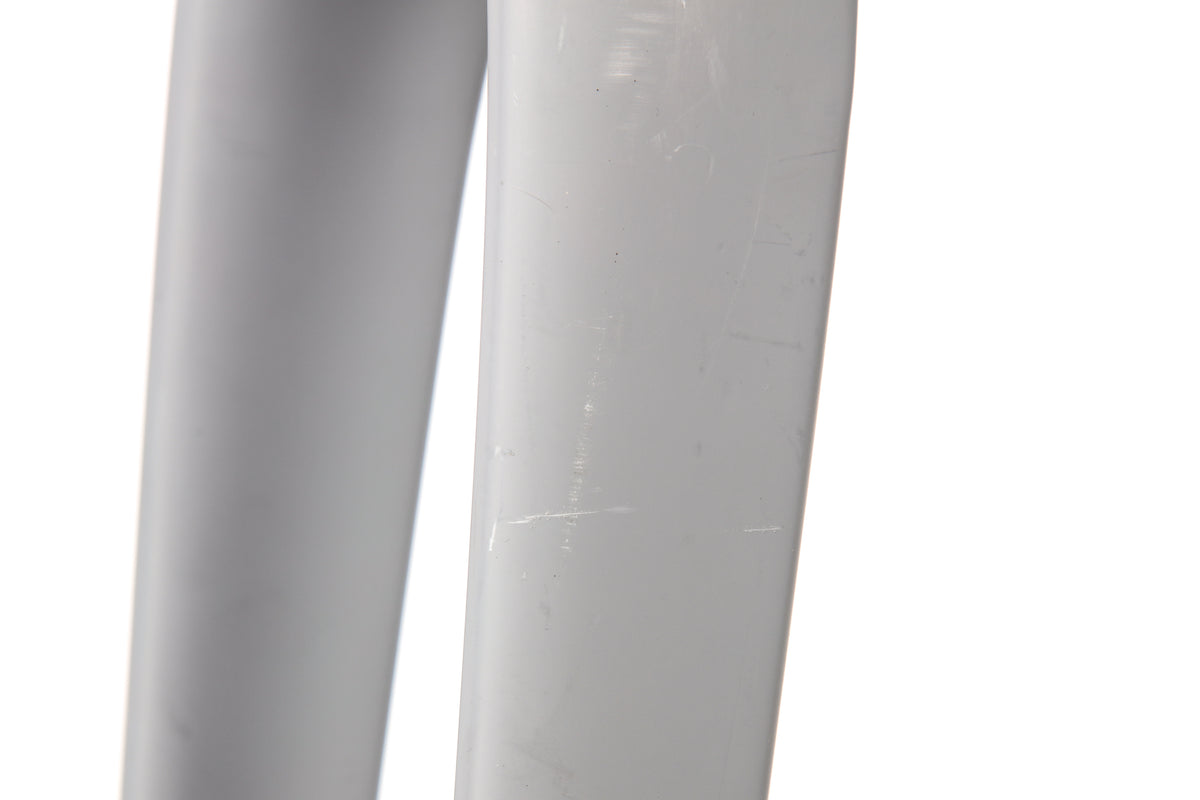

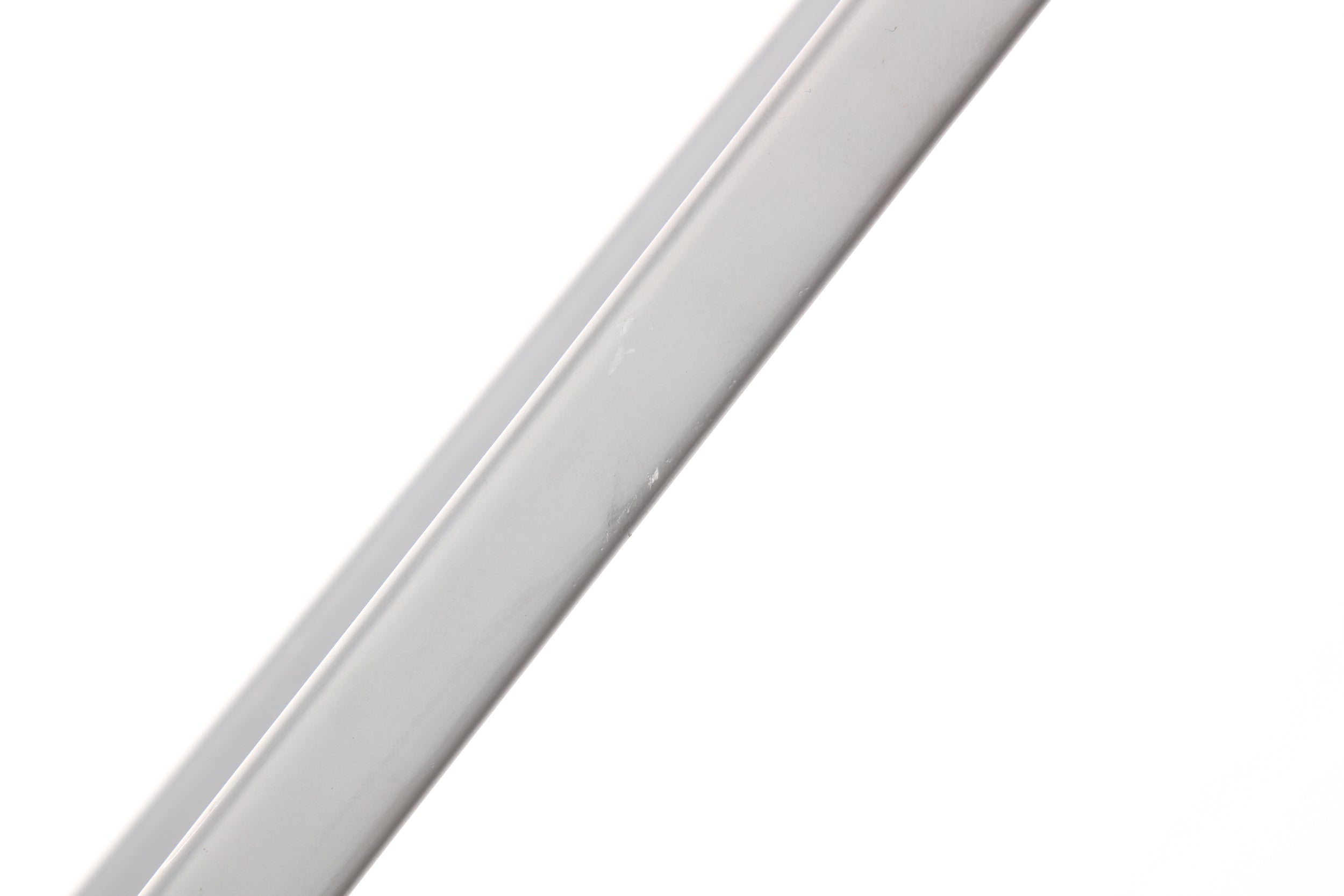

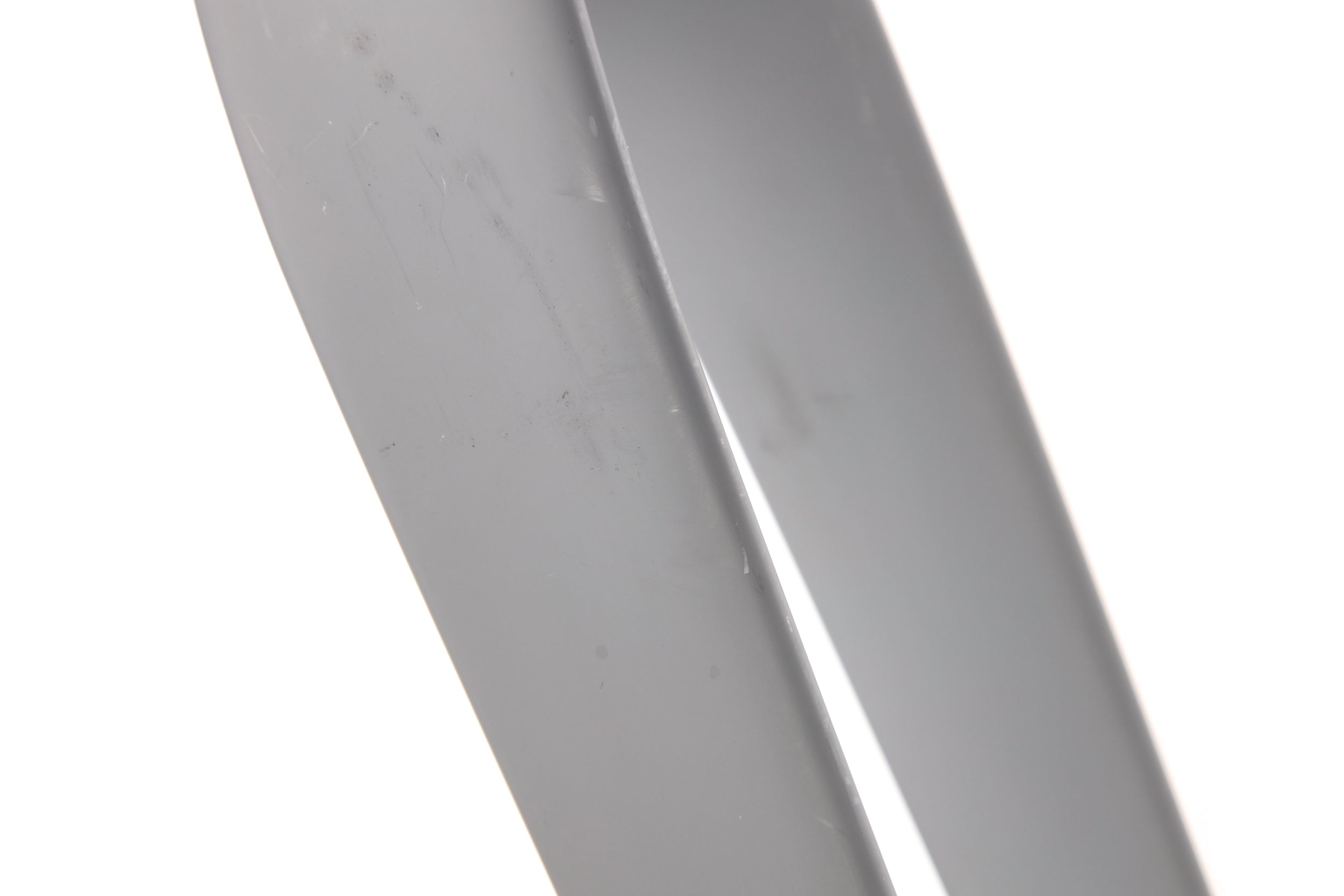

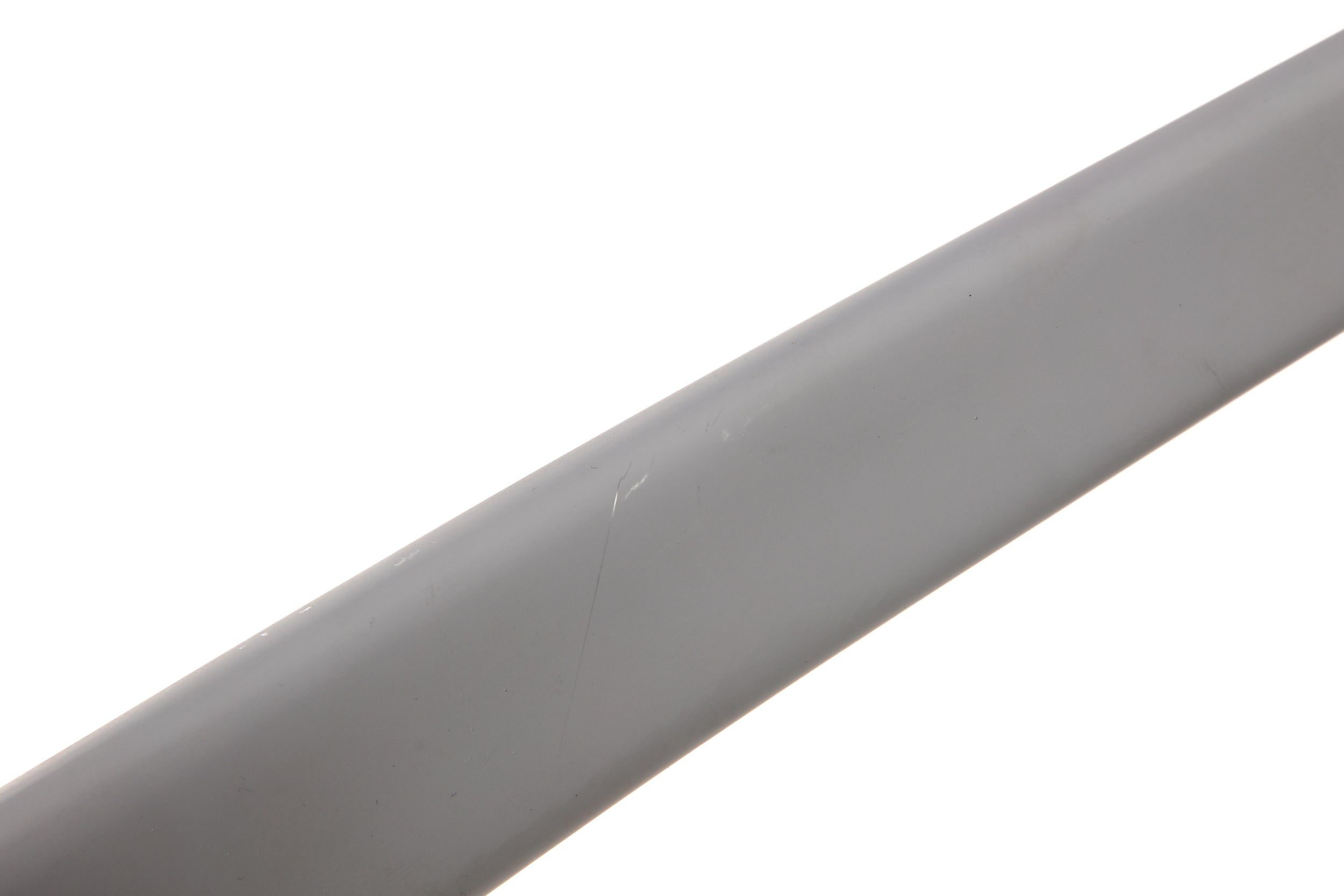

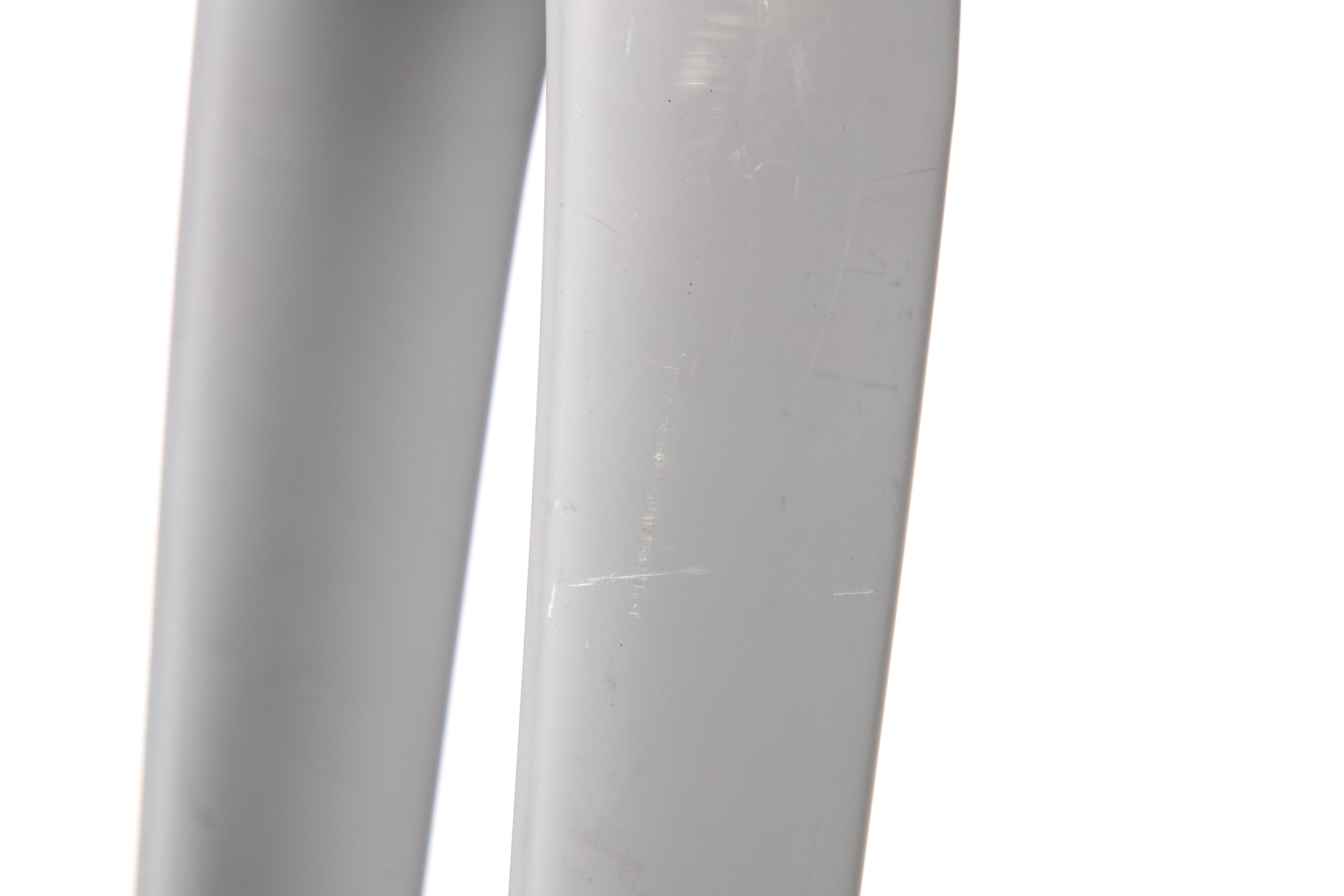

- Light scratches on the fork lowers, drive side seatstay, & non-drive side chainstay
Specifications
Details
| Year | 2023 |
| Brand | Allied |
| Model | Able |
| Size | Medium |
| Frame Material | Carbon Fiber |
| Fork | Allied Able |
| Fork Material | Carbon |
| Steerer Tube | 125mm Exposed, Tapered |
| Brake Type | Disc Flat-Mount |

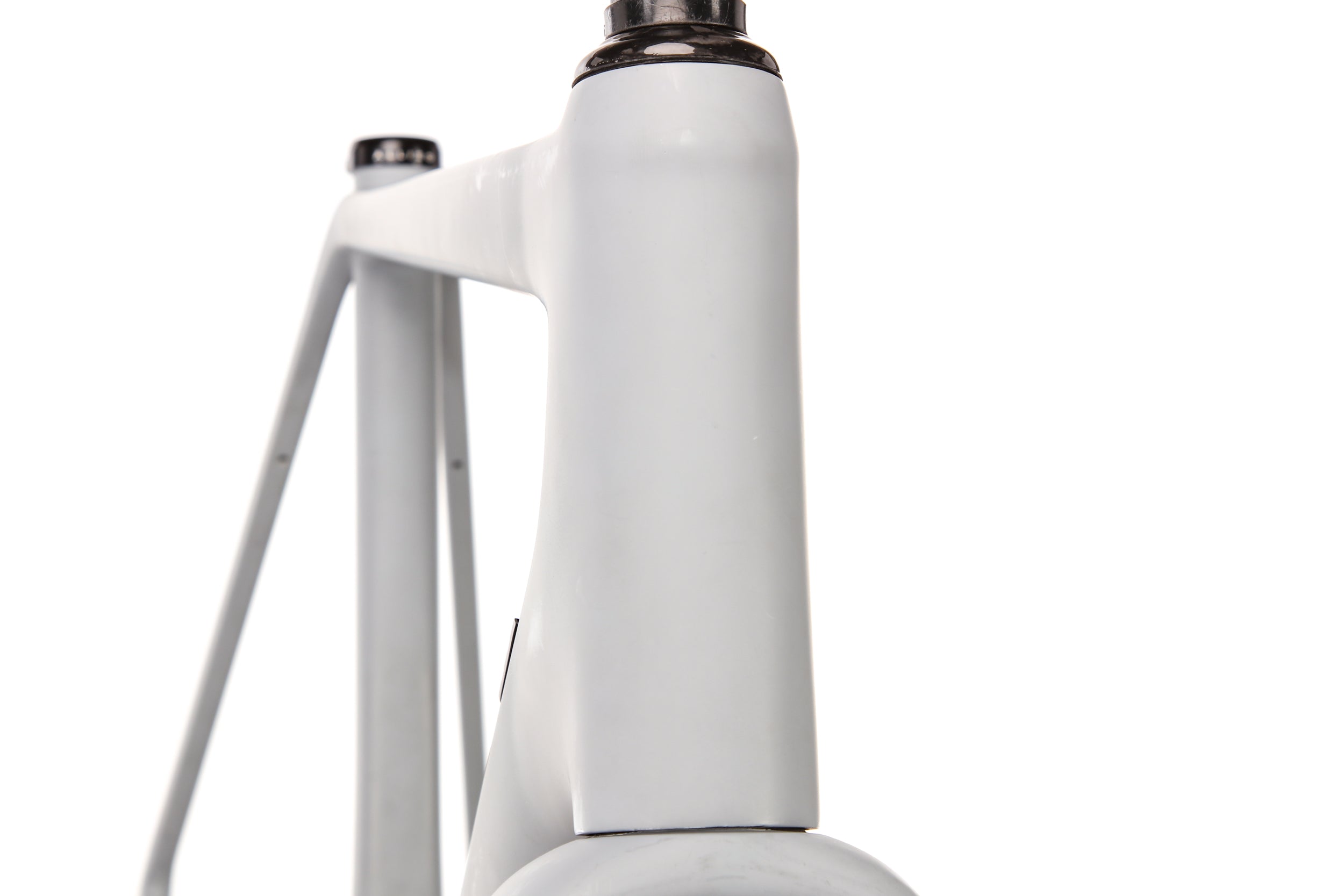

| Headset | Allied |
| Bottom Bracket | Not Included, English |
| Wheel Size | 700C |
| Seatpost Diameter | 27.2mm |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm (Thru-Axle) |
| Weight | 3 lbs 14 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Geometry
| Fit Range |
5'7" - 5'10"
|
| A. Effective Top Tube | 553 mm |
| B. Seat Tube | 540 mm |
| C. Seat Tube Angle | 74° |
| D. Head Tube Angle | 71° |
| E. Head Tube | 160 mm |
| F. Stack | 575 mm |
| G. Reach | 387 mm |
| H. Standover Height | 800 mm |
| I. Saddle Height Range | N/A |
