Our RideFast shipping means this bike gets to you quickly and securely.
Pro Build

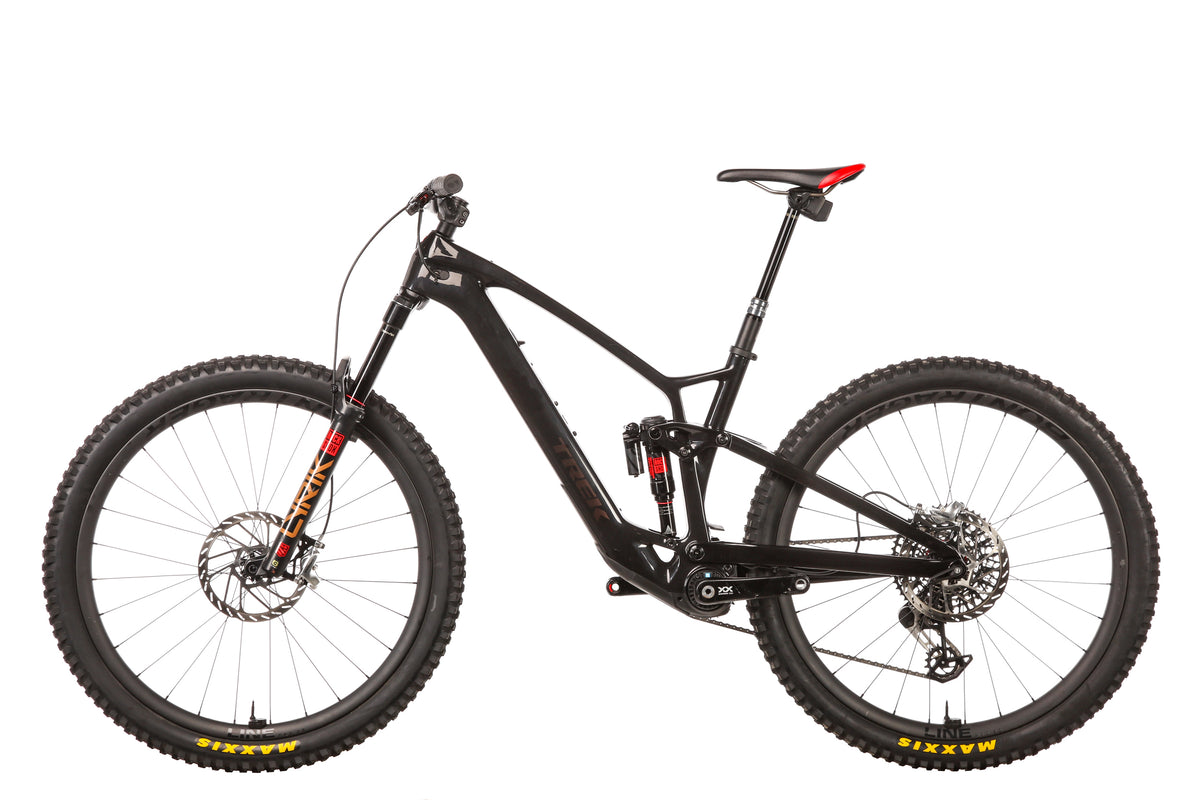

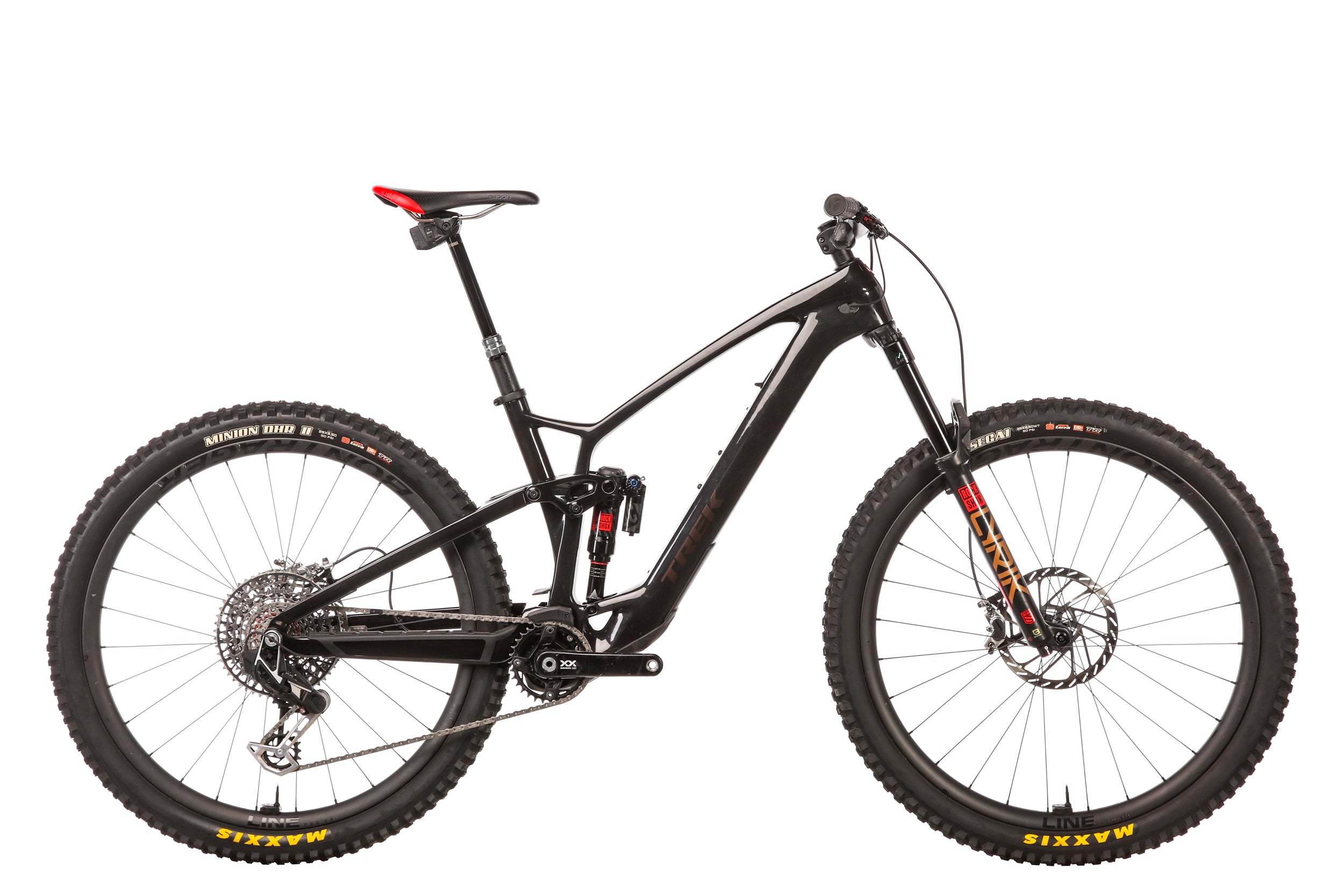

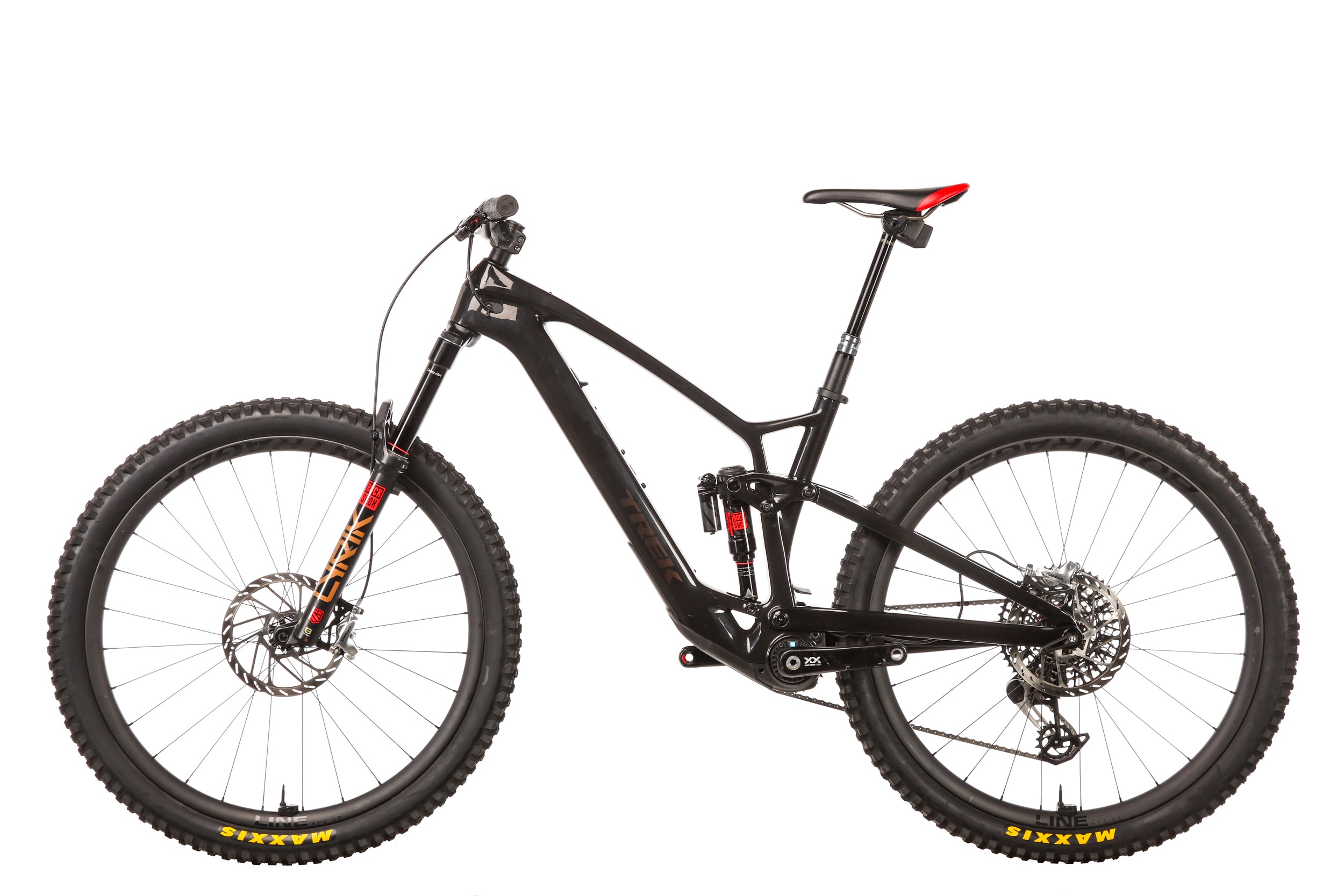

Trek Fuel EXe 9.9 XX AXS Mountain E-Bike - 2024, Large
Item #BMT35791
Condition: Certified Pre-Owned
Fit Range: 5'10" - 6'2"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
Raising the Bar for E-MTB Innovation
Why We Love It
It's clear when looking at the new (non-electric) Fuel EX, that these bikes were designed in unison. It's quite impressive that 2 riders could be riding side-by-side, one on the Fuel EXe and one on the Fuel EX and most bystanders wouldn't be able to tell the bikes apart.
The Fuel EXe utilizes a space-age TQ harmonix pin ring transmission in the bottom bracket, which silently assists you with 300w up to 20mph. This motor is the cheat code TDF riders were dreaming of in 2002. It's practically invisible on the bike and when we say ""silently assists"" we mean .12tu (tonality units), which is barely perceivable in a quiet room. Meaning while you're riding on a trail you can just enjoy the sound of the birds chirping, leaves rustling or the buzz of your freehub.
With this minimal and discrete drive system, the Fuel EXe stands tall as one of the lightest full suspension bikes in its trail-hungry category. 140mm of rear suspension and 150mm up front makes practically any level of trail possible no matter how rough things get out there.
Upgrades
- Quarq TyreWiz Air Pressure Sensor installed to both rims
Features
- TQ-HPR50 harmonic pin ring drive unit raises the bar for e-bike innovation
- 140mm rear and 150mm front suspension travel allows the Fuel EXe to tackle any trail
- One of the lightest full suspension e-MTB's in it's class
Master Mechanic’s Notes

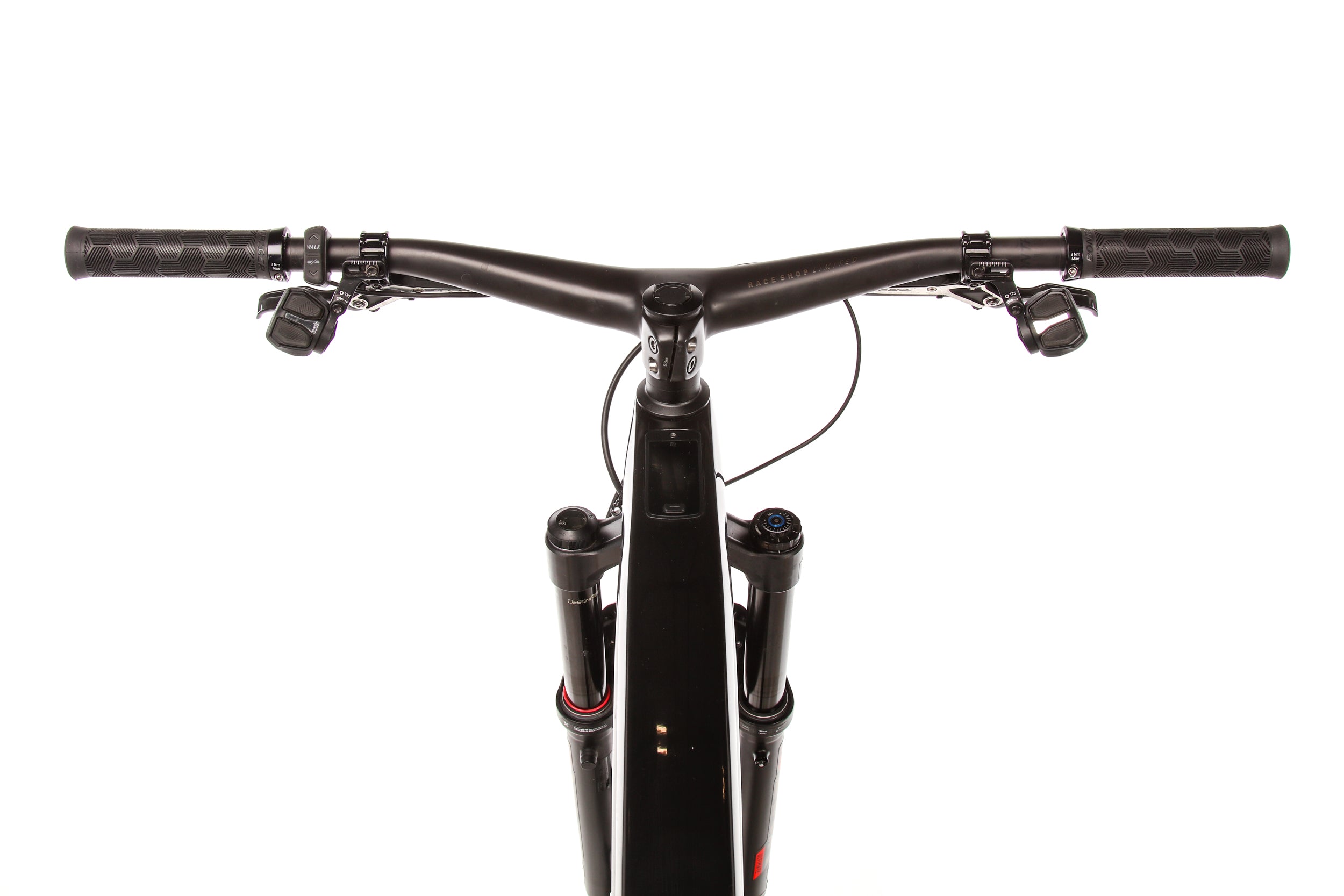

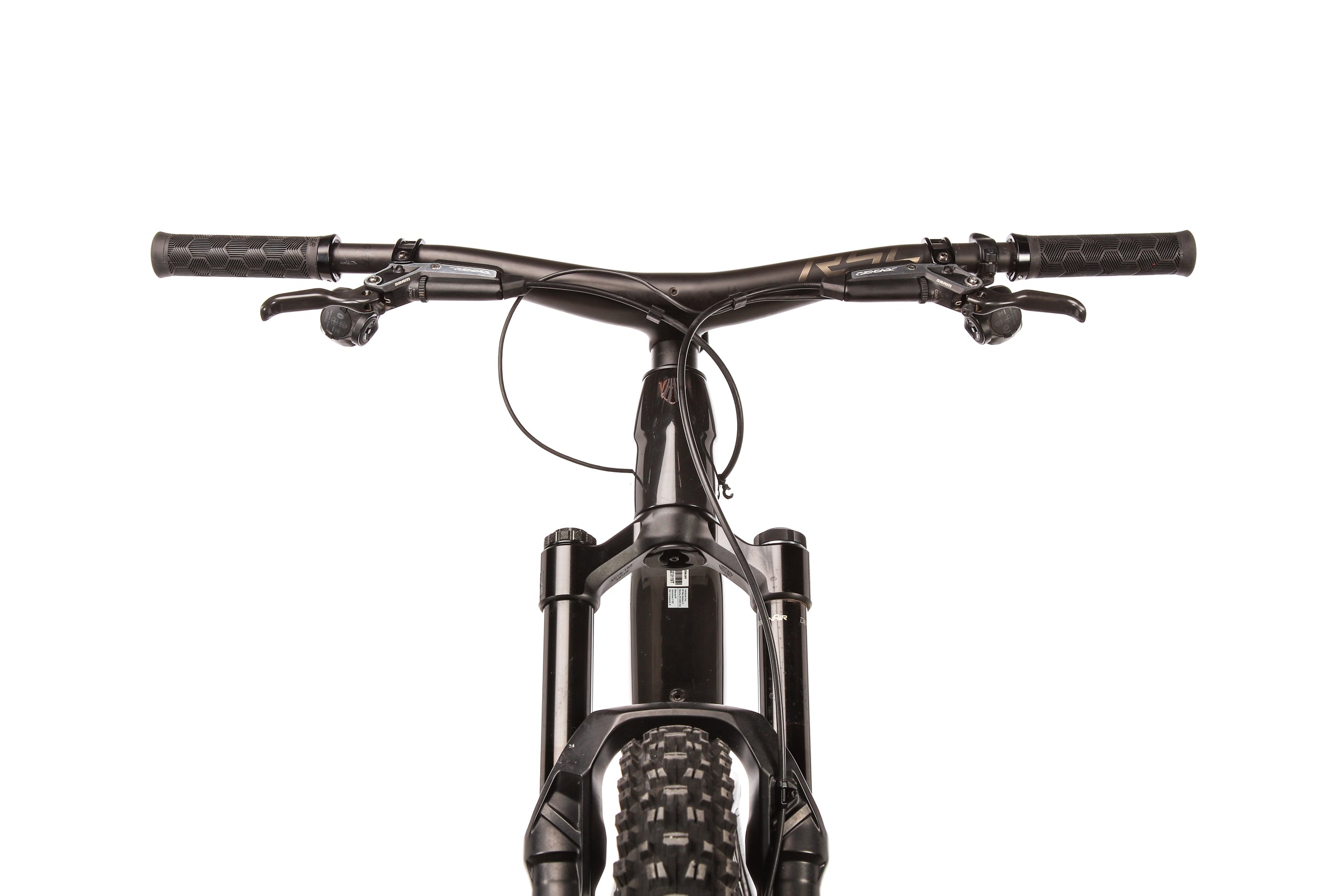

- New handlebar grips

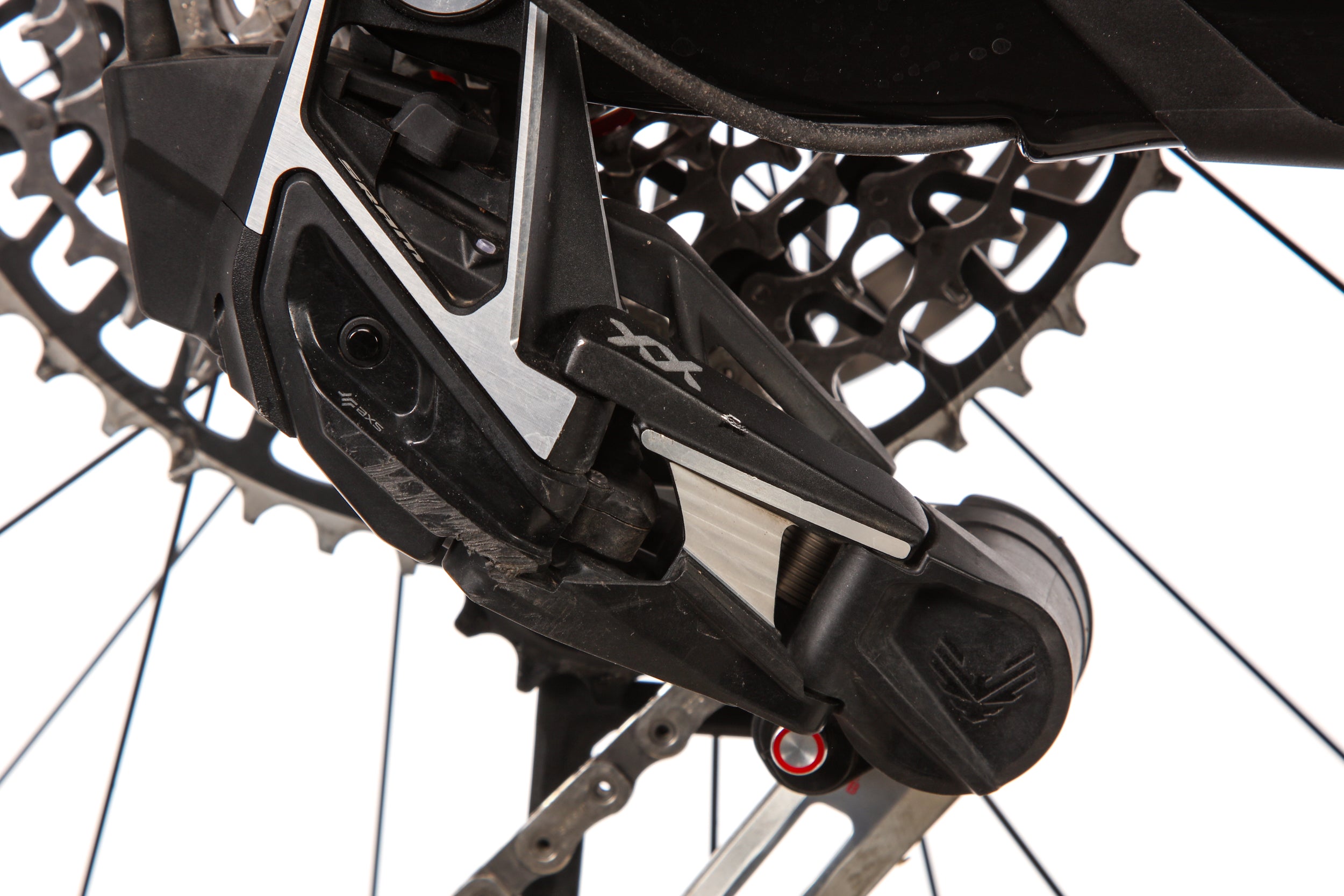

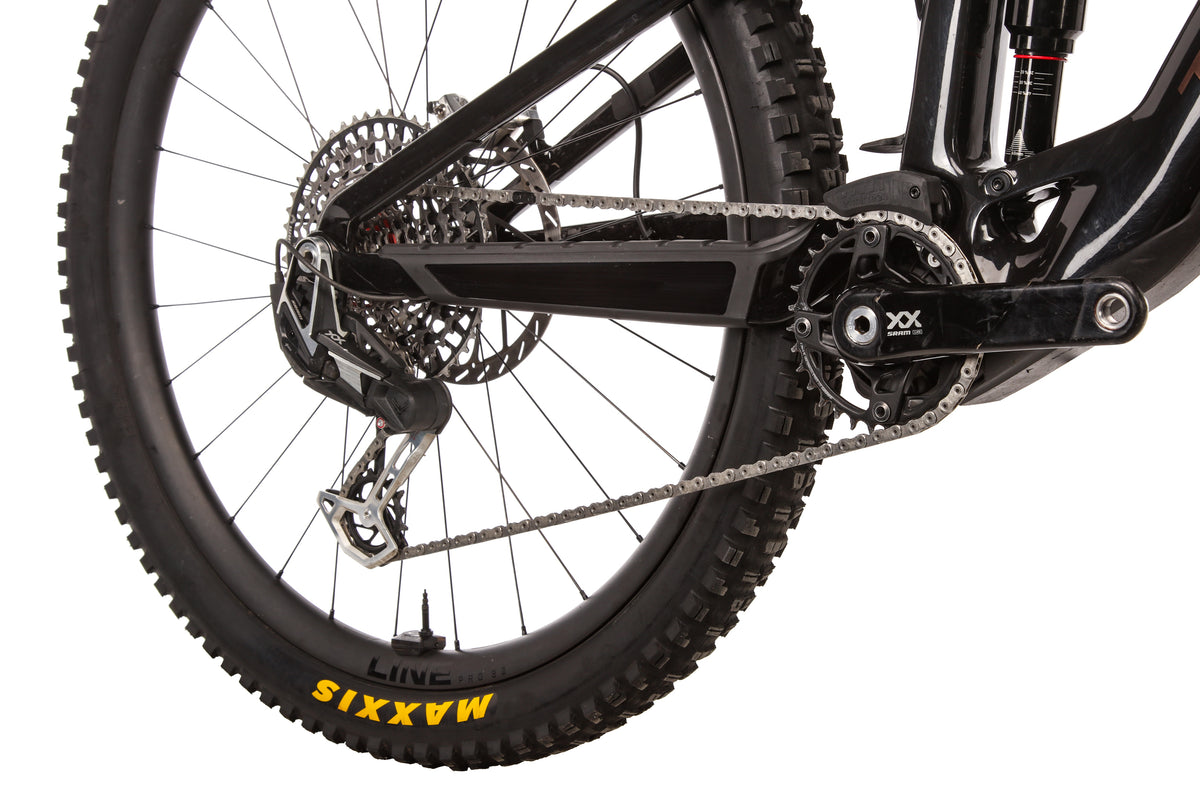

- Light scratches on the crank arms & rear derailleur

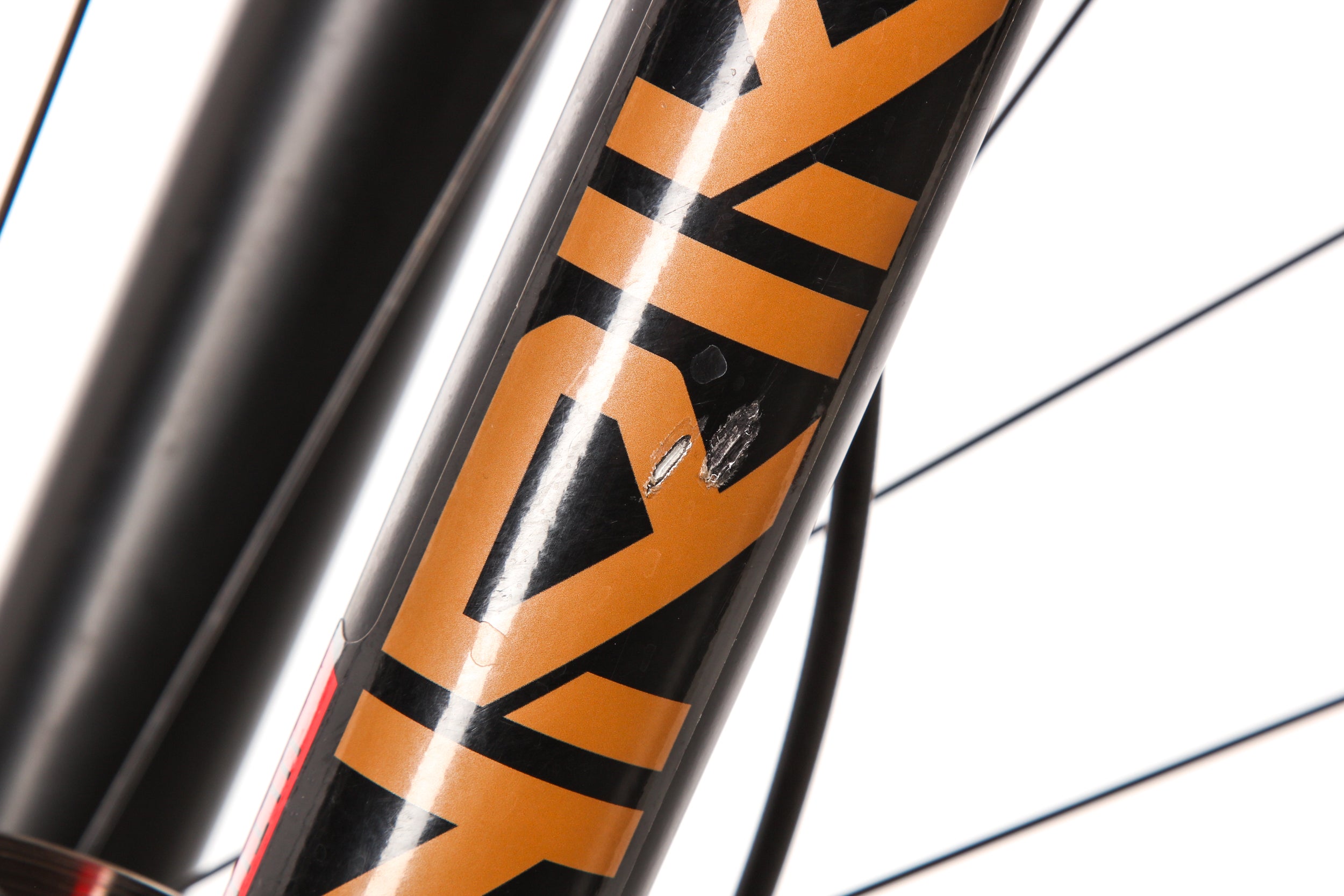

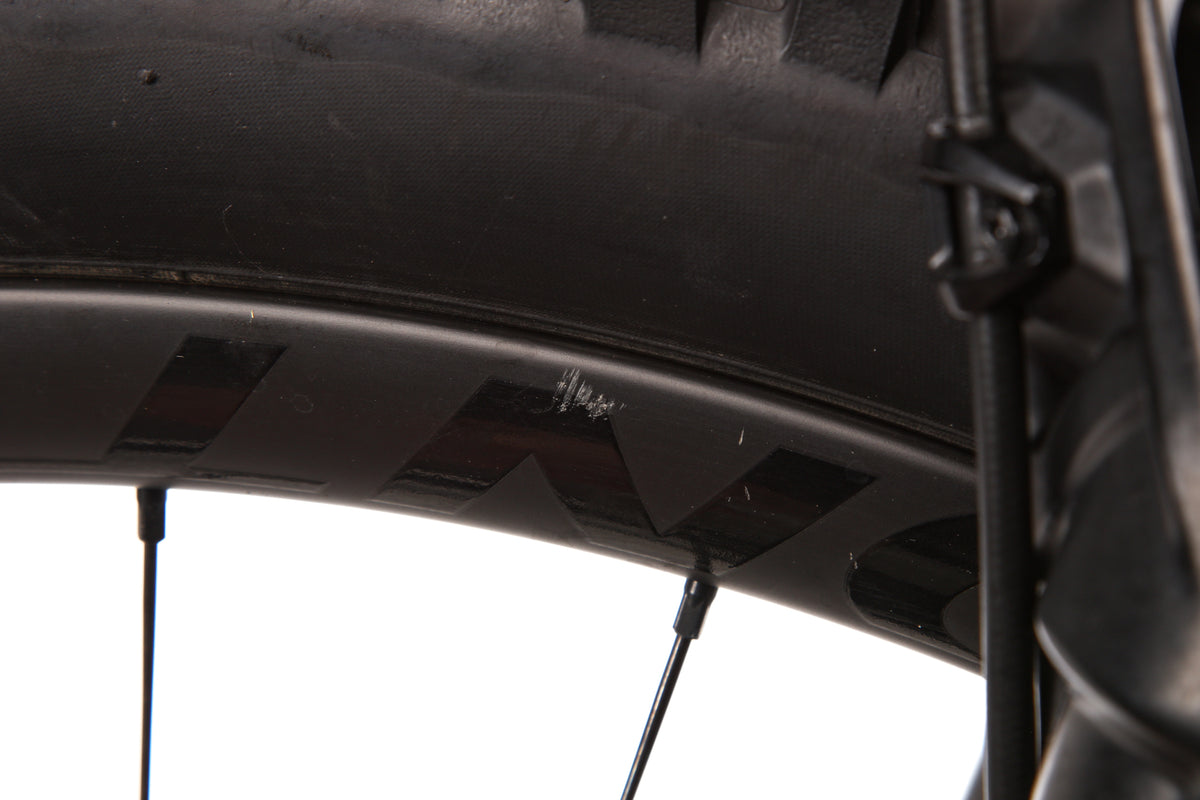

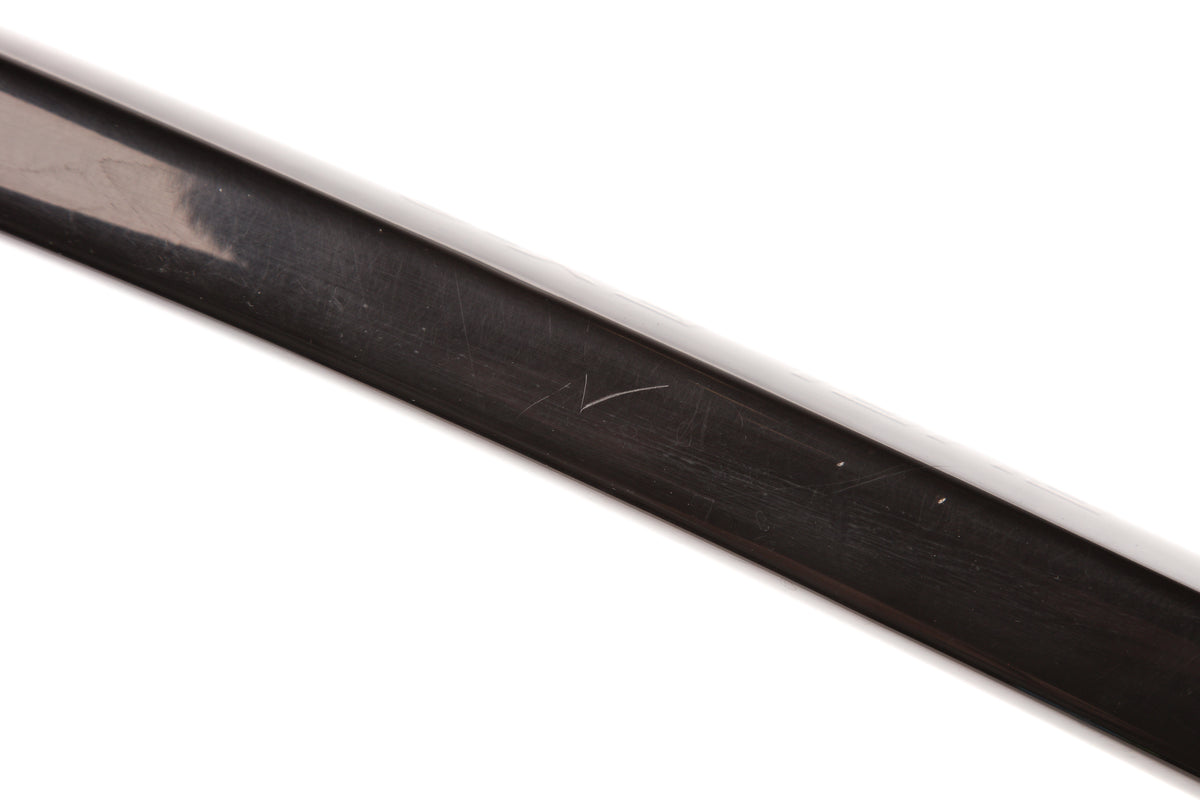

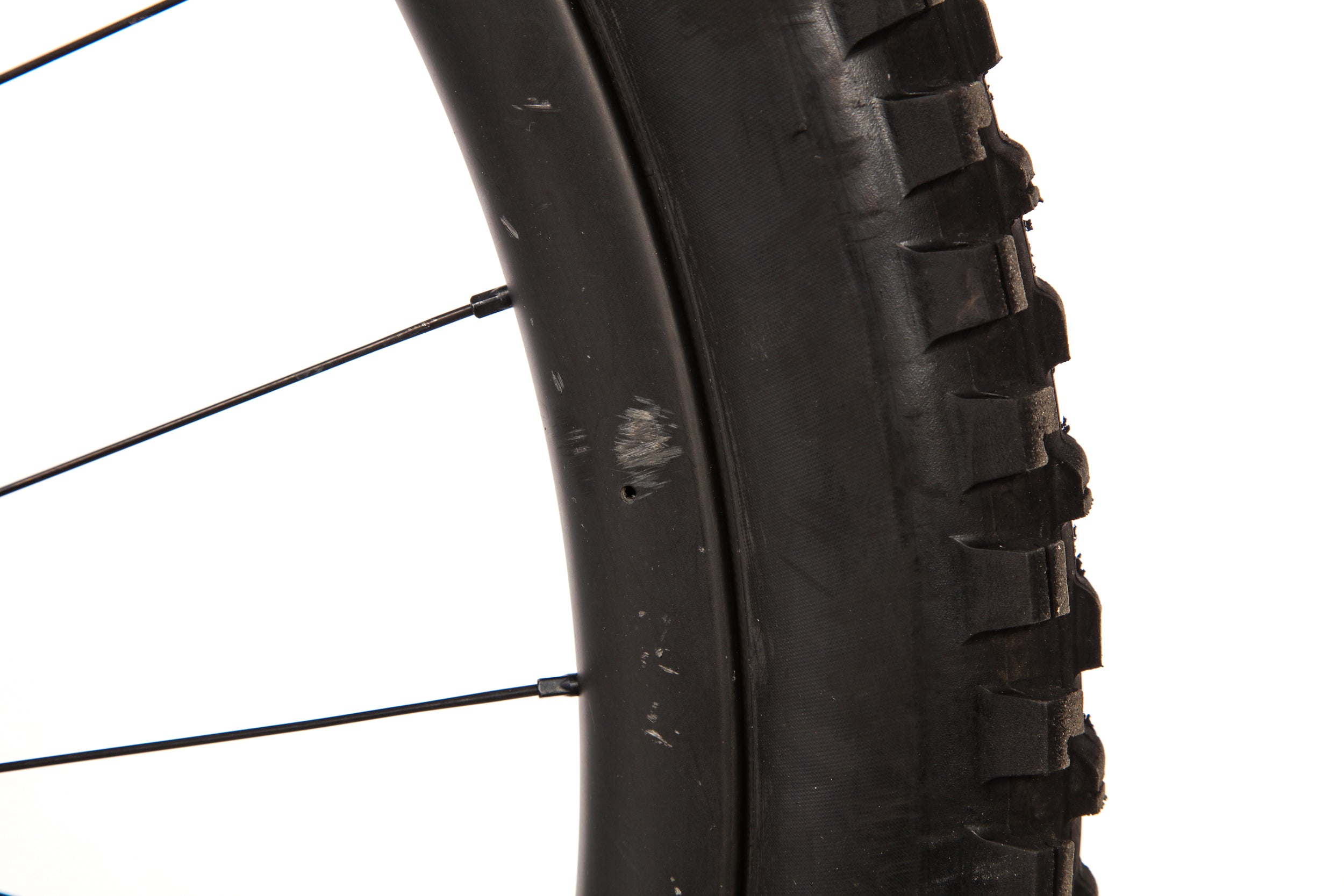

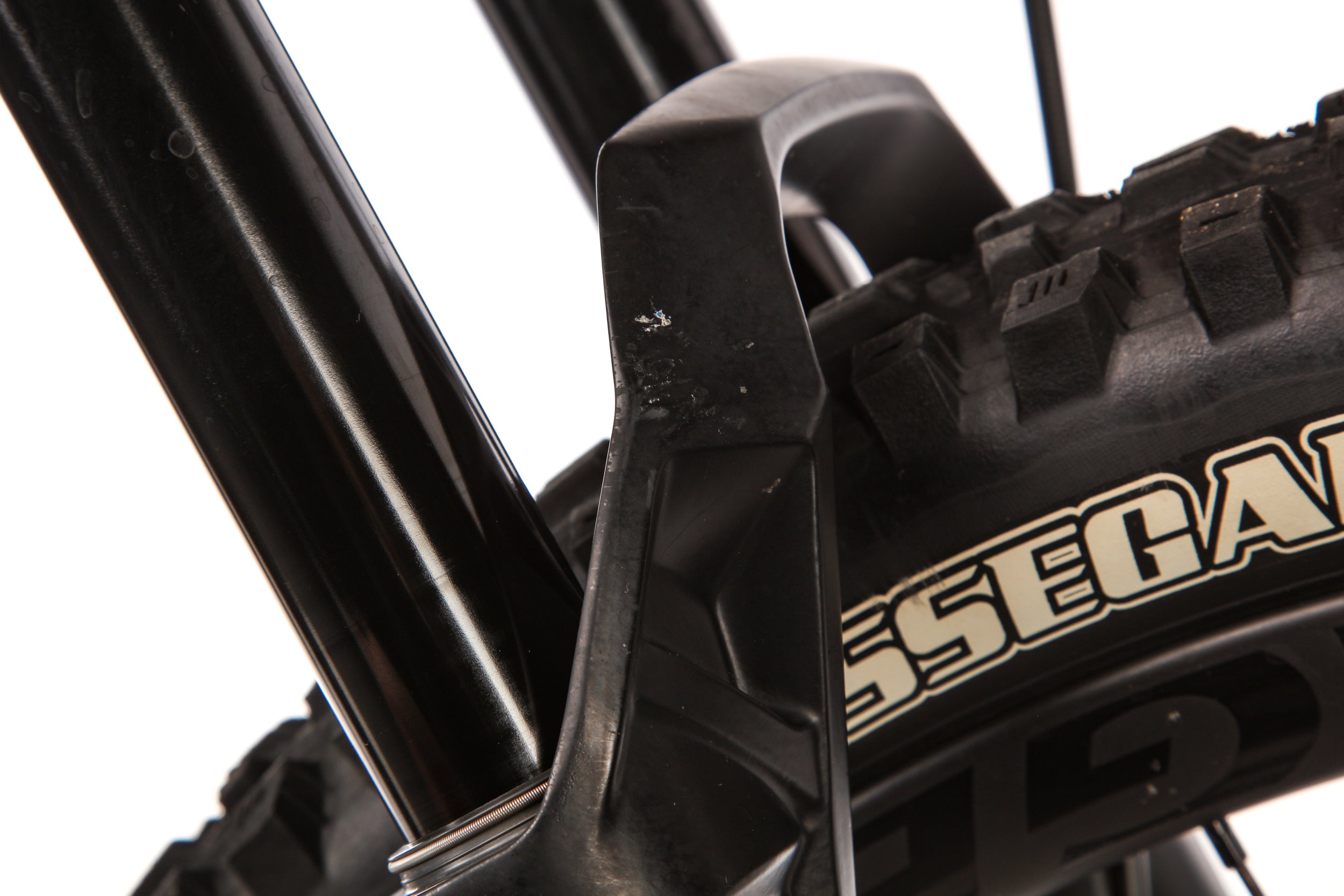

- Light scratches on the fork lowers, rims, & top tube
- 46 Charge Cycles
Specifications
Details
| Original MSRP | $14,000.00 |
| Year | 2024 |
| Brand | Trek |
| Model | Fuel EXe |
| Size | Large |
| Frame Material | Carbon Fiber |
| Drivetrain | SRAM, 1x12 spd |
| Weight | 40 lbs 14 oz |
Build
| Fork | RockShox Lyrik Ultimate |
| Fork Travel | 150mm |

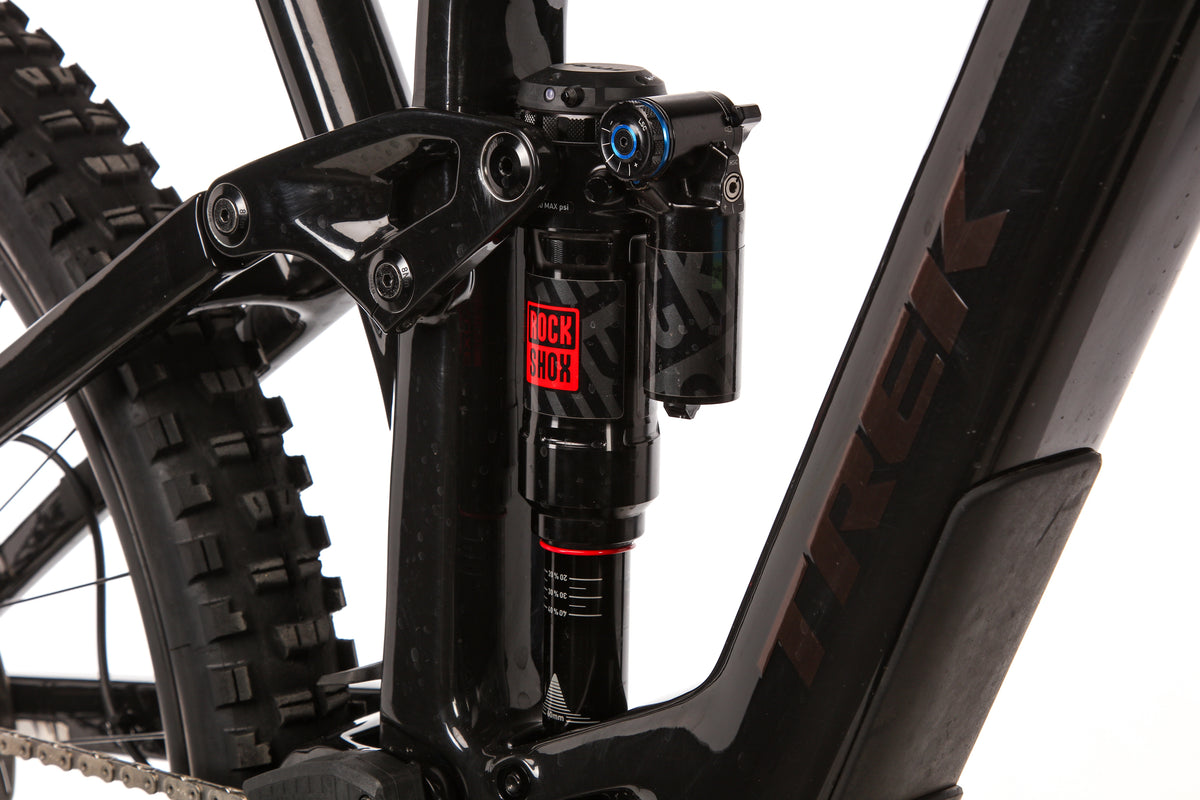

| Rear Shock | RockShox Super Deluxe Ultimate |
| Rear Shock Travel | 140mm |
| Brakes | SRAM Code Ultimate, Disc Brakes - Hydraulic |
| Shifters | SRAM AXS POD Controller, Electronic |
| Rear Derailleur | SRAM XX Eagle Transmission |
| Crankset | SRAM XX Eagle Transmission, 32t, 165mm |
| Cassette | SRAM XX Eagle Transmission XS-1297, 10-52t |
| Chain | SRAM |
| Handlebar | Bontrager Race Shop Limited Carbon Bar/Stem, 740mm |

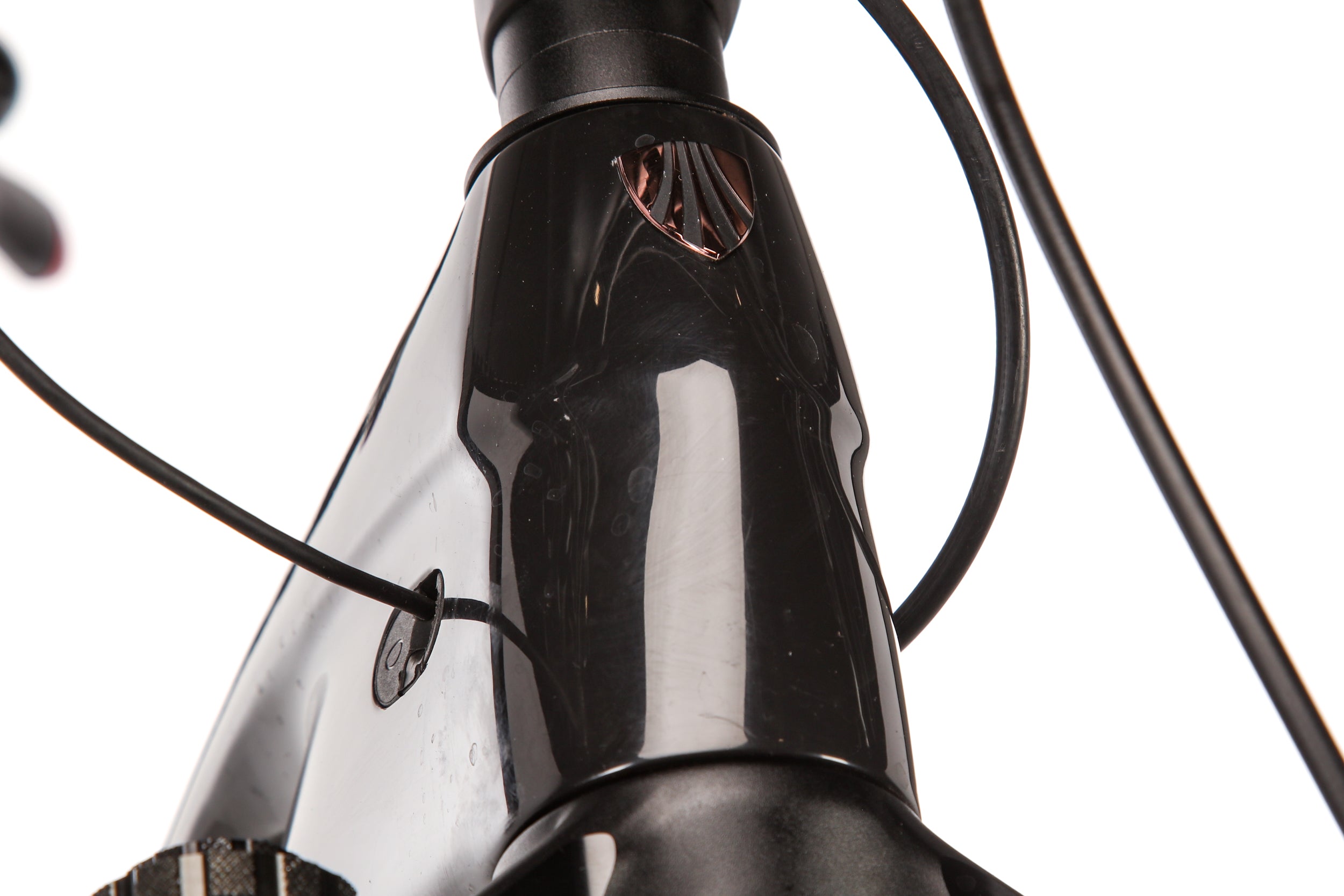

| Headset | Trek |
| Stem | Bontrager Race Shop Limited Carbon Bar/Stem, N/A x 40mm, 0° |
| Seatpost | RockShox Reverb AXS, 34.9mm |
| Seatpost Travel | 170mm |
| Saddle | Ergon SM Pro Men w/ Titanium Rails |
| Front Axle Spacing | 15x110mm Boost (Thru-Axle) |
| Rear Axle Spacing | 12x148mm Boost (Thru-Axle) |
| Wheelset | Bontrager Line Pro 30 Carbon Tubeless Compatible w/ Quarq TyreWiz Air Pressure Sensor, Bontrager |
| Front Tire | Maxxis Assegai 3C MaxxTerra EXO+ TR, 29" x 2.5" |

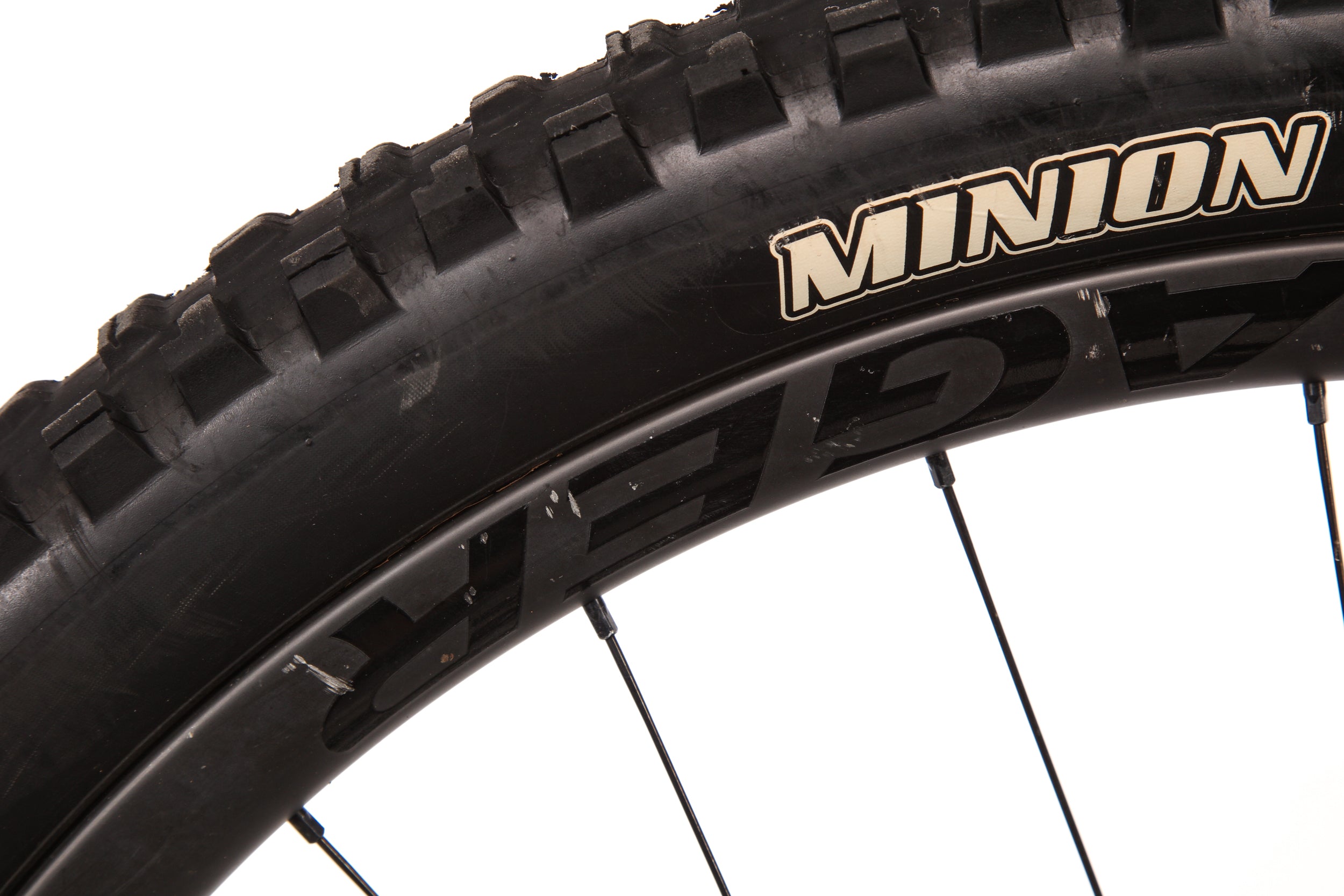

| Rear Tire | Maxxis Minion DHR II 3C MaxxTerra EXO+ TR, 29" x 2.5" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Bike ships tubeless |
| Motor | TQ-HPR50 |
| Torque | 50Nm |
| Wattage | 250w |
| Battery | TQ 360Wh |
| Top Speed | 20mph |
| Mileage | 1452mi |
| Charger Included | yes |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'10" - 6'2"
|
| A. Effective Top Tube | 629mm, 630mm (High, Low) |
| B. Seat Tube | 435 mm |
| C. Seat Tube Angle | 70.8, 70.3 (High, Low) |
| D. Head Tube Angle | 65.3, 64.8 (High, Low) |
| E. Head Tube | 110 mm |
| F. Stack | 625mm, 629mm (High, Low) |
| G. Reach | 489mm, 483mm (High, Low) |
| H. Standover Height | 739mm, 733mm (High, Low) |
| I. Saddle Height Range | N/A |
Inspected. Tested. Trusted.
What is CPO?
CPO bikes are gently ridden bikes that have been meticulously inspected, restored and serviced. Every CPO bike is cleaned, tuned and tested in our top-of-the-line Colorado headquarters. Road, mountain, ebike or gravel, TPC services each bike over 8 phases and multiple points of inspection.
