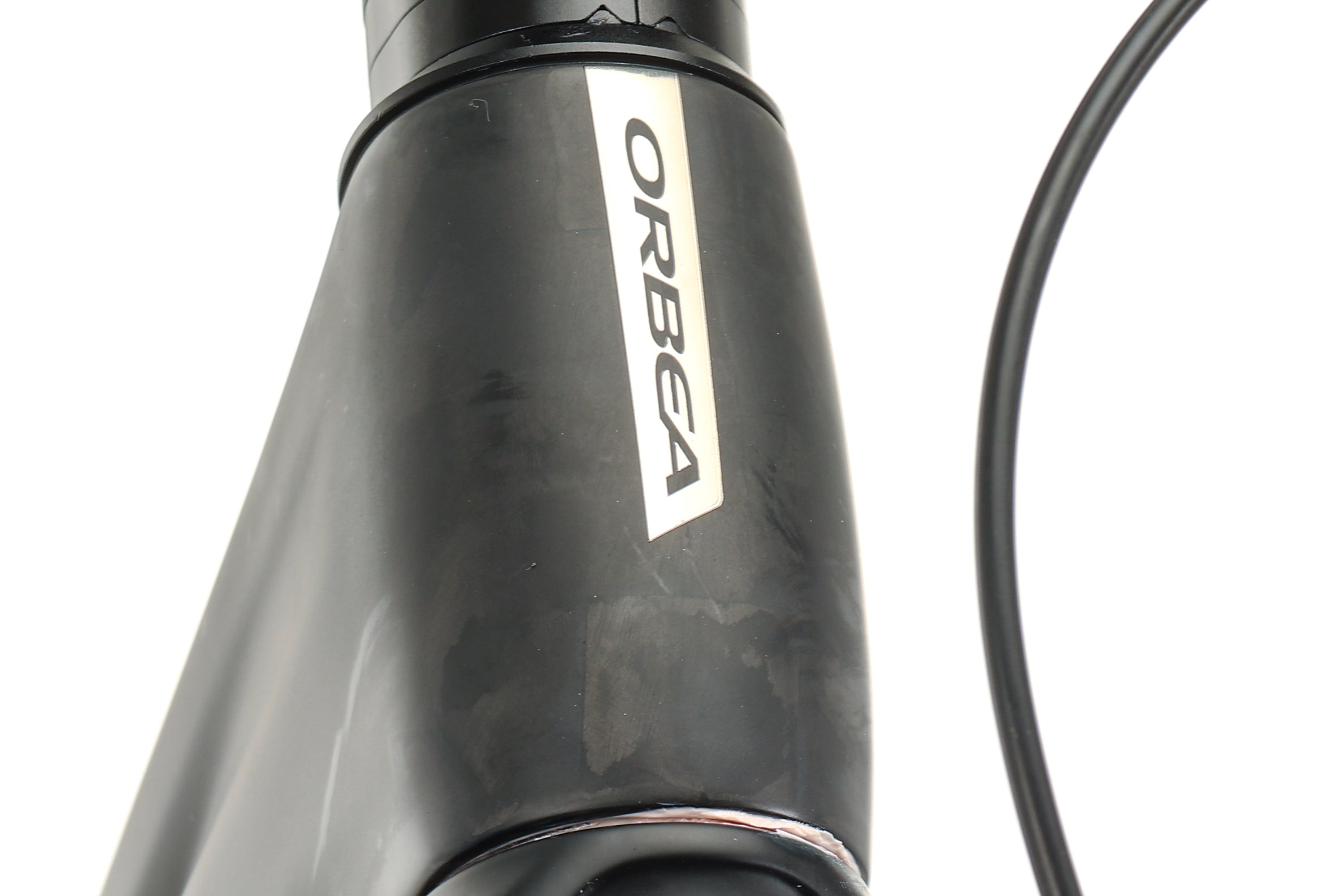

Orbea Rise M10 20MPH Mountain E-Bike - 2023, Medium
isn't available.
You'll be the first to know next time this or similar products are available.

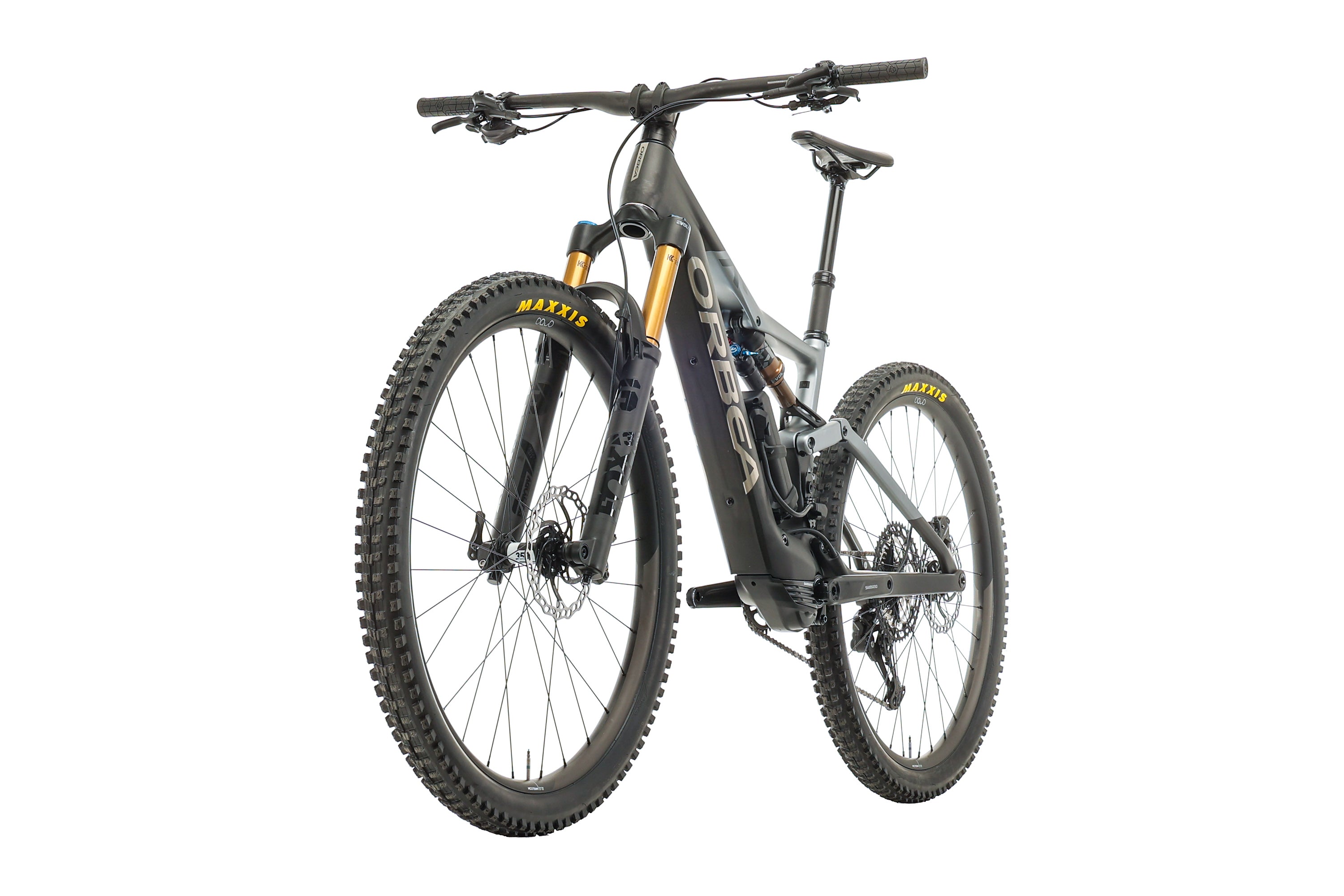

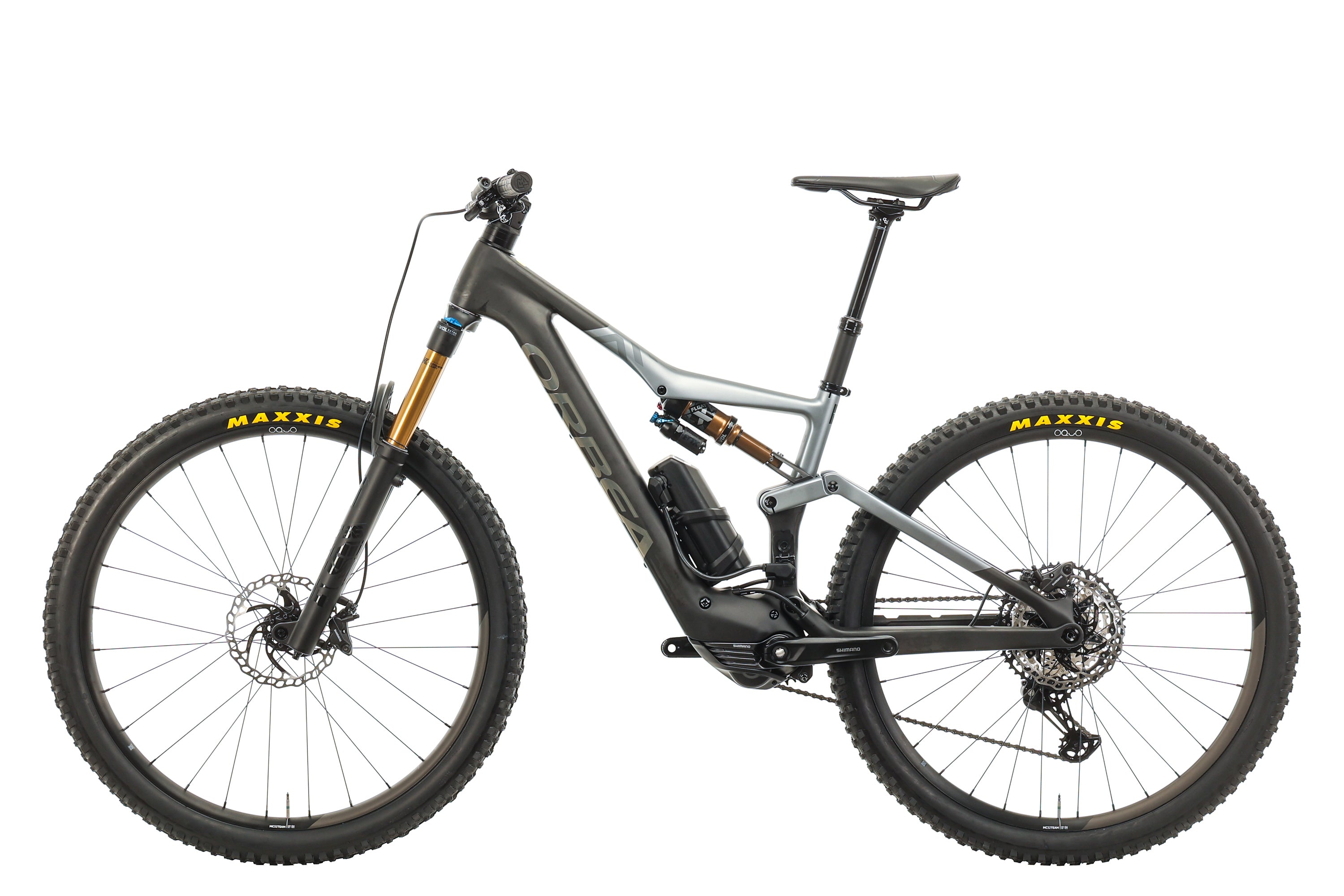

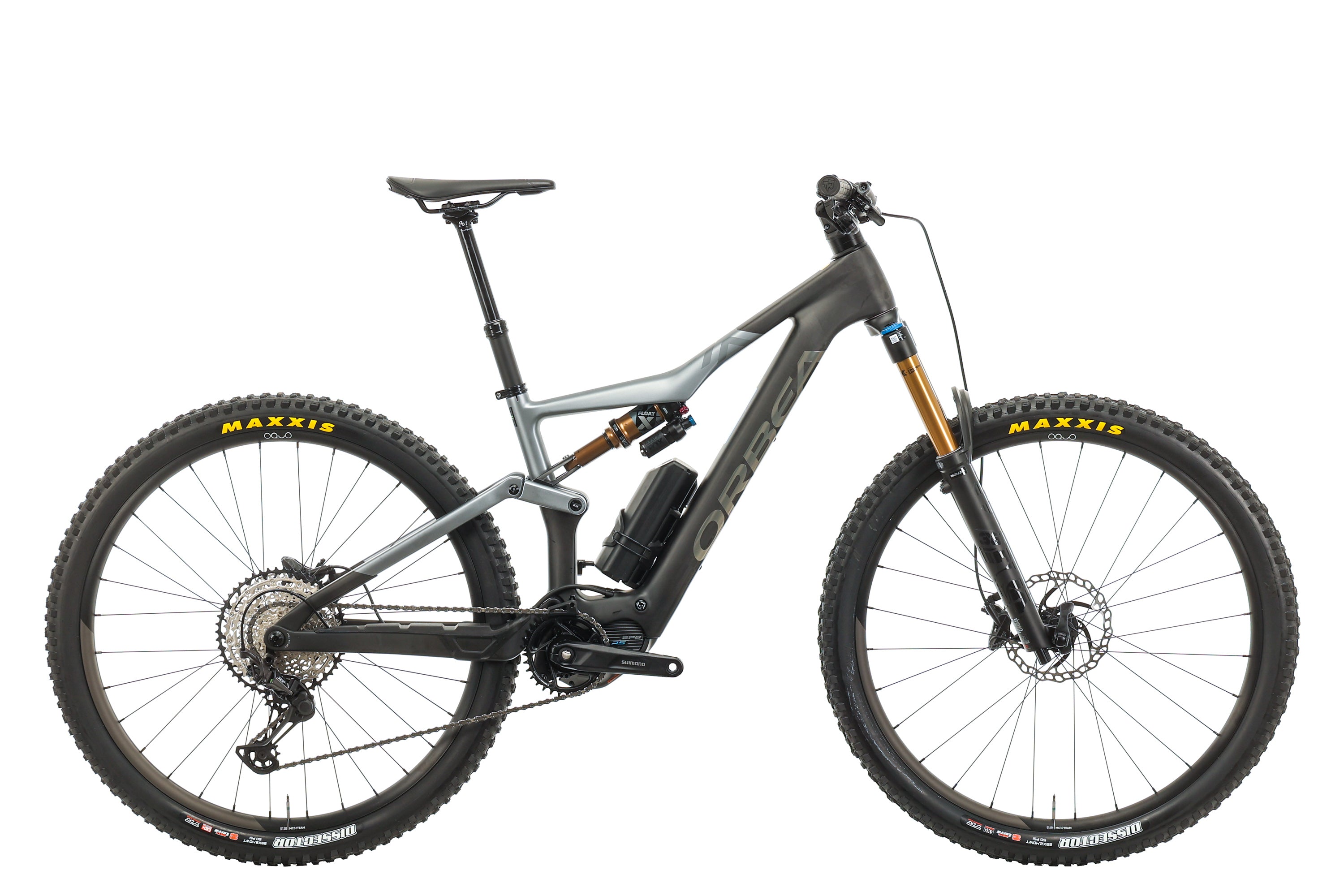

Orbea Rise M10 20MPH Mountain E-Bike - 2023, Medium
Item #BMT31936
Condition:
New with Warranty
Fit Range: 5'3" - 5'9"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Torque tool & video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Rise Up - Rip Down
Why We Love It
Upgrades
- Orbea RS Range Extender Gen 2 252Wh equipped
Master Mechanic’s Notes
- Bike is new and unridden
- Bike is covered by manufacturers’ warranties
Specifications
Details
| Year | 2023 |
| Brand | Orbea |
| Model | Rise |
| Size | Medium |
| Frame Material | Carbon Fiber |

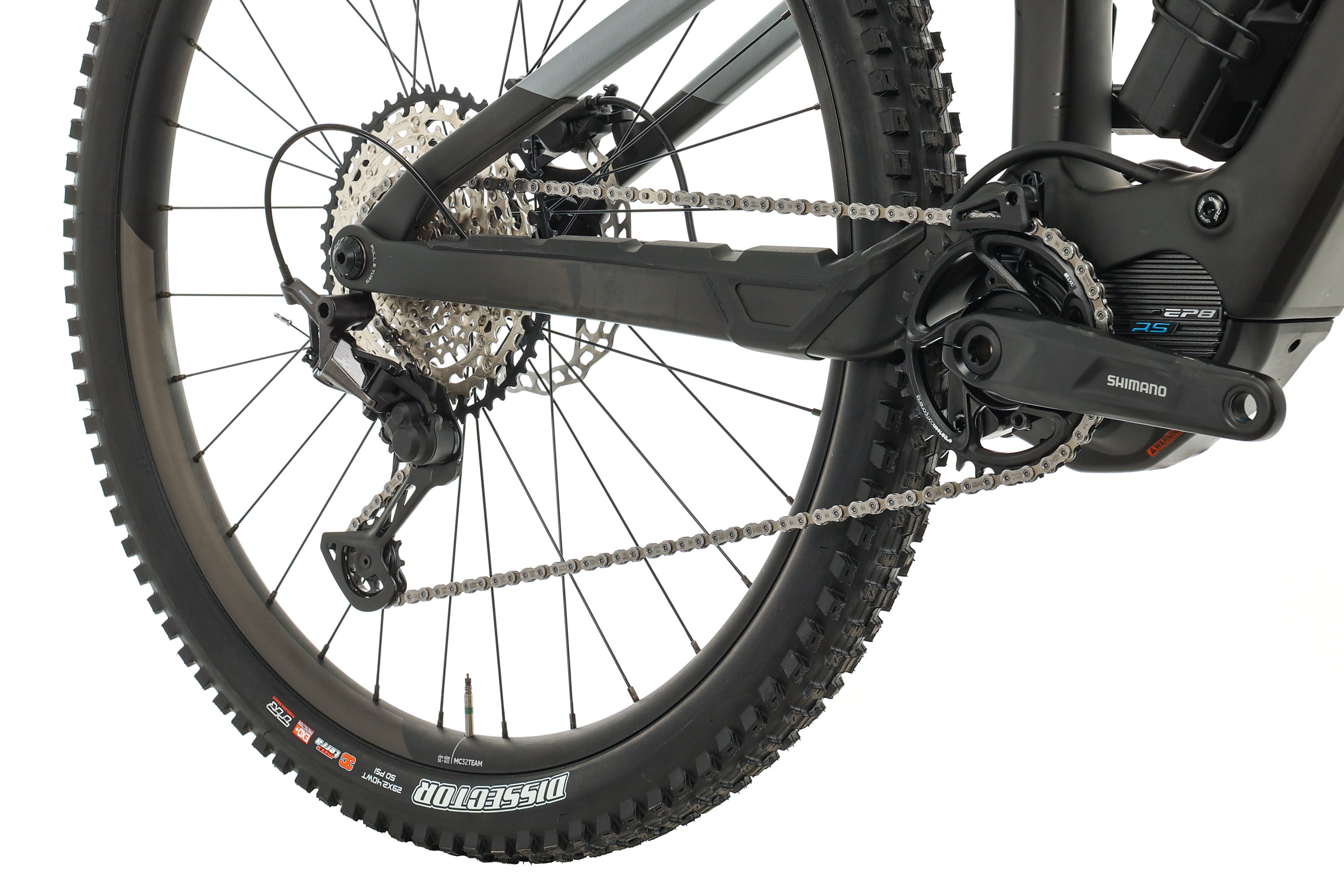

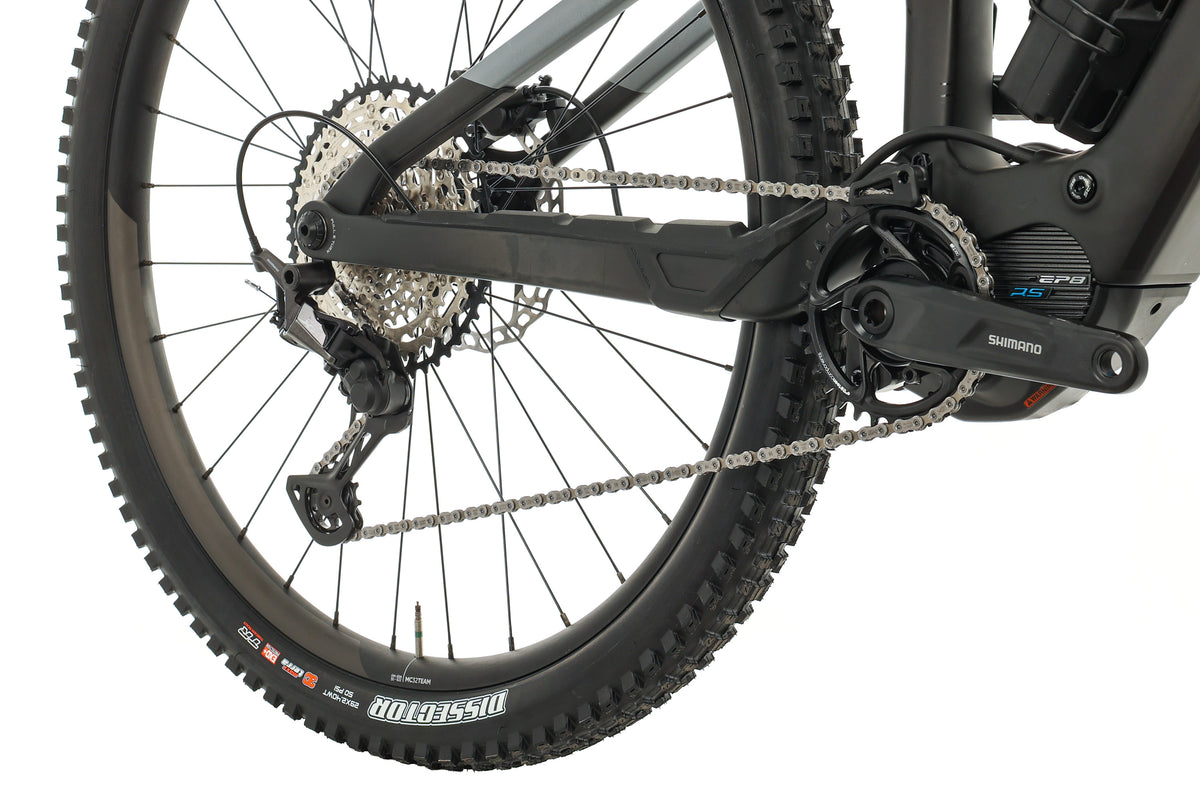

| Drivetrain | Shimano, 1x12 spd |
| Weight | 45 lbs 5 oz |
| mpn | N67505V2 |
Build
| Fork | FOX Factory Series 36 FLOAT |
| Fork Travel | 150mm |

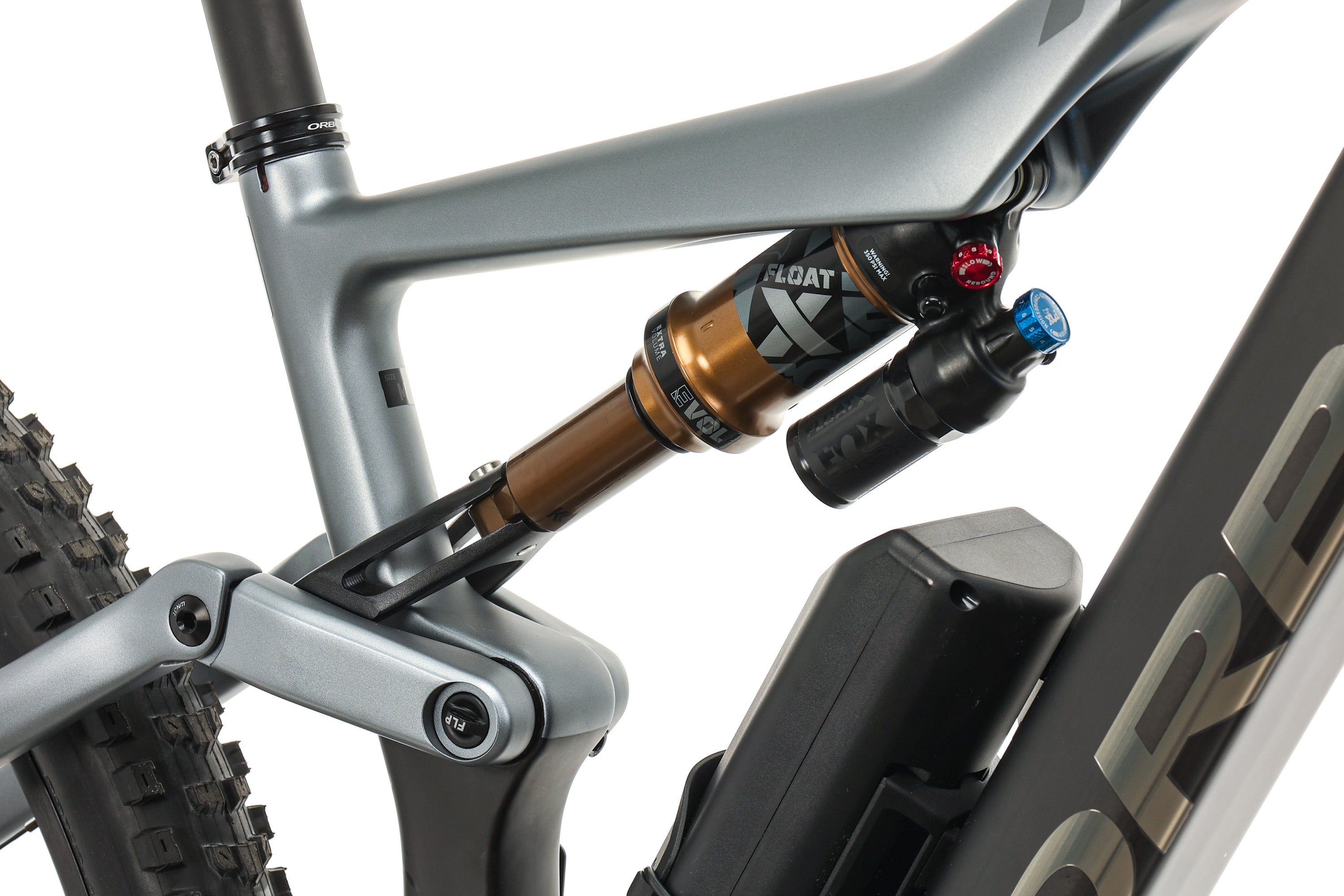

| Rear Shock | FOX Factory Series FLOAT X |
| Rear Shock Travel | 140mm |
| Brakes | Shimano Deore M6120, Disc Brakes - Hydraulic |
| Shifters | Shimano XT M8100, Mechanical |
| Rear Derailleur | Shimano XT M8100 |
| Bottom Bracket Shell | N/A |
| Crankset | Shimano EM600 Alloy, 32t, 165mm |
| Cassette | Shimano SLX M7100, 10-51t |
| Chain | Shimano |

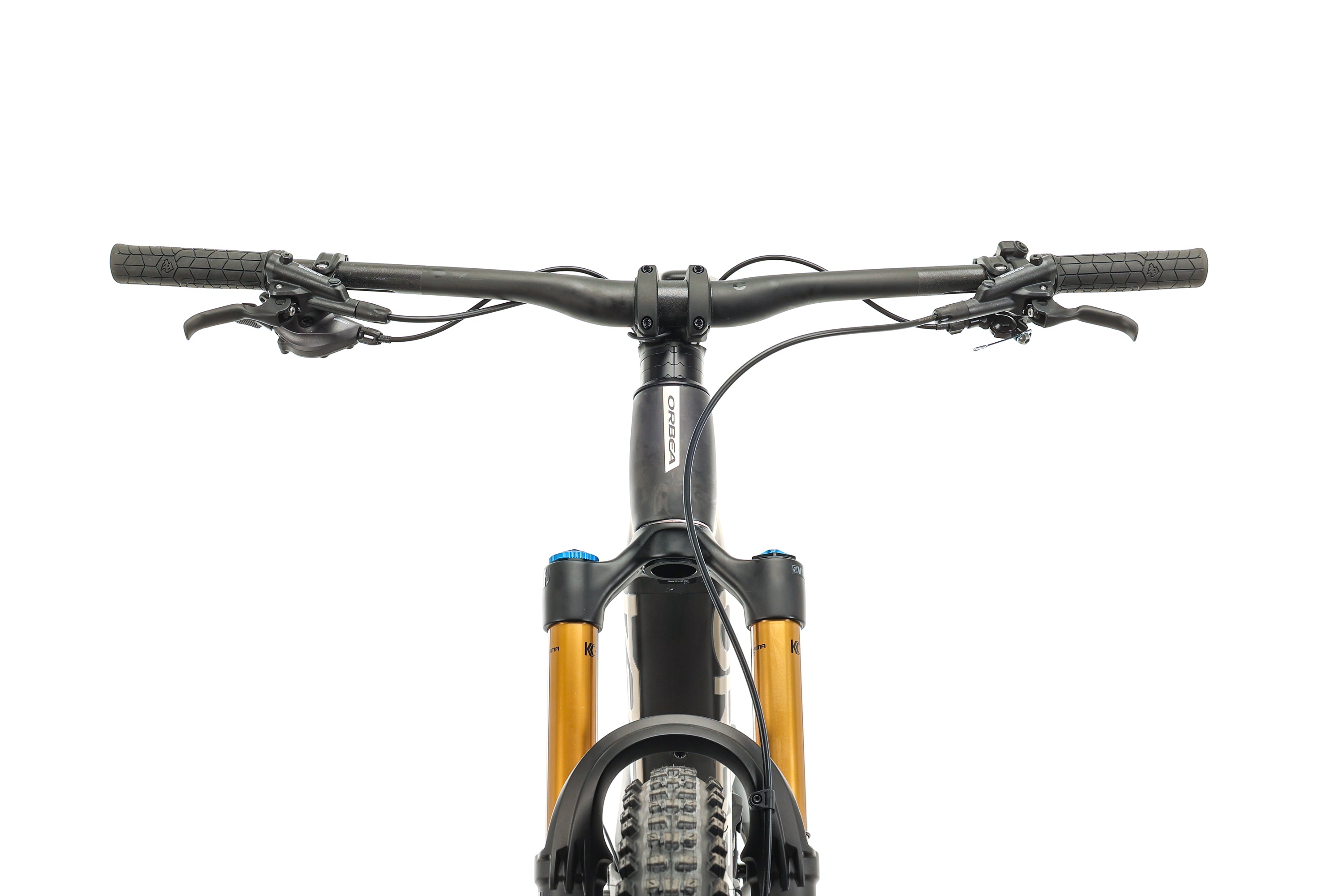

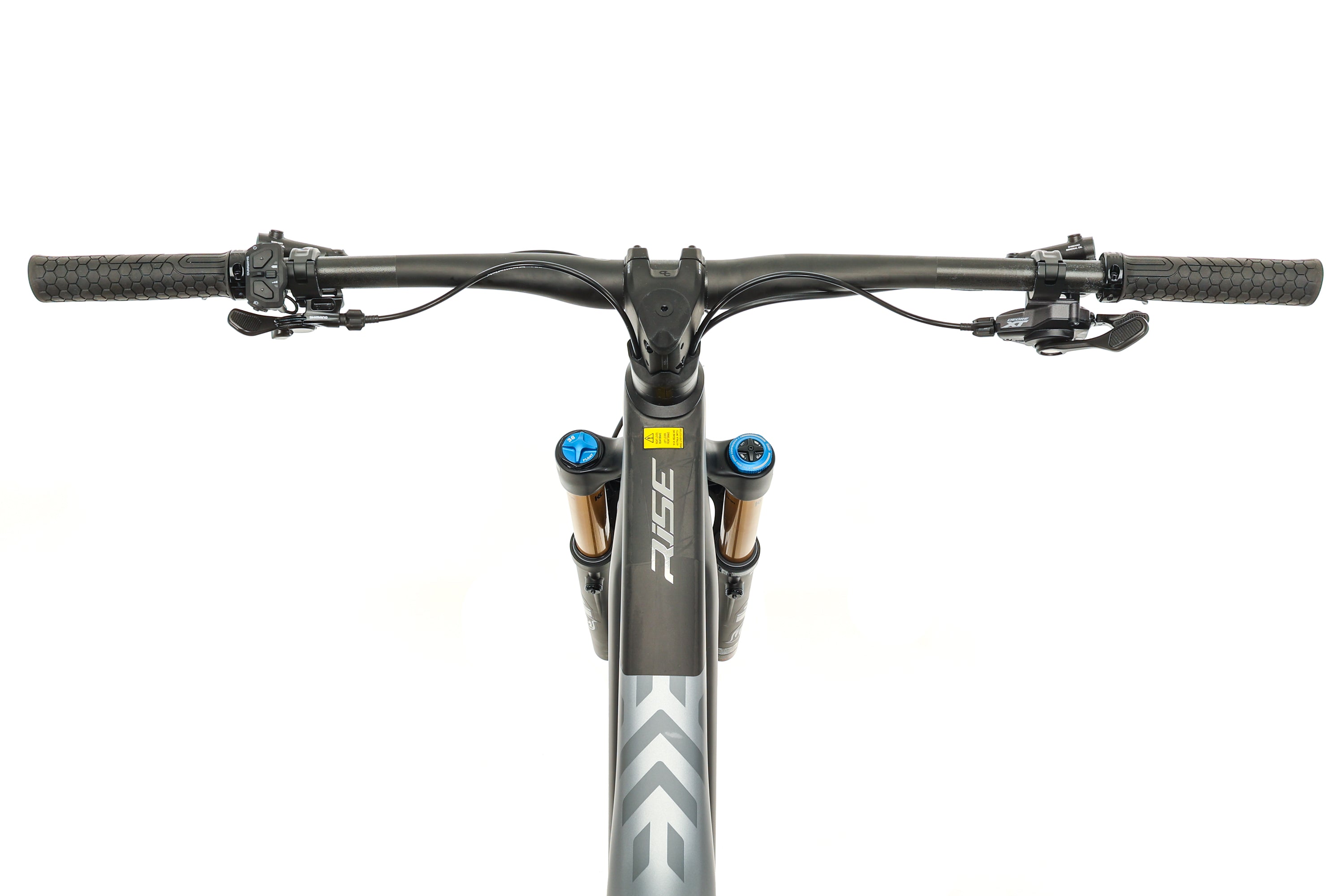

| Handlebar | OC Mountain Control MC10 Carbon, 800mm |
| Headset | Integrated |
| Stem | OC Mountain Control MC20 Alloy, 35.0mm x 40mm, 0° |
| Seatpost | OC Mountain Control MC20, 31.6mm |
| Seatpost Travel | 150mm |
| Saddle | fi'zi:k Taiga w/ S-Alloy Rails |
| Front Axle Spacing | 15x110mm (Boost) |
| Rear Axle Spacing | 12x148mm Boost |
| Wheelset | OQUO Mountain Control MC32TEAM Aluminum Tubeless Compatible, DT Swiss 350 |
| Front Tire | Maxxis Dissector 3C MaxxTerra EXO TR, 29" x 2.4" |
| Rear Tire | Maxxis Rekon 3C MaxxTerra EXO+ TR, 29" x 2.4" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Wheels are tubeless compatible but ships with tubes installed |
| Motor | Shimano EP801-RS |
| Wattage | 250w |
| Battery | Orbea RS Internal 360Wh w/ Rise Range Extender |
| Top Speed | 20mph |
| Mileage | New |
| Charger Included | yes |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'3" - 5'9"
|
| A. Effective Top Tube | 592 mm |
| B. Seat Tube | 419 mm |
| C. Seat Tube Angle | 77° |
| D. Head Tube Angle | 66° |
| E. Head Tube | 105 mm |
| F. Stack | 613 mm |
| G. Reach | 450 mm |
| H. Standover Height | 736 mm |
| I. Saddle Height Range | N/A |
