ENVE Melee Road Frameset
isn't available.
You'll be the first to know next time this or similar products are available.

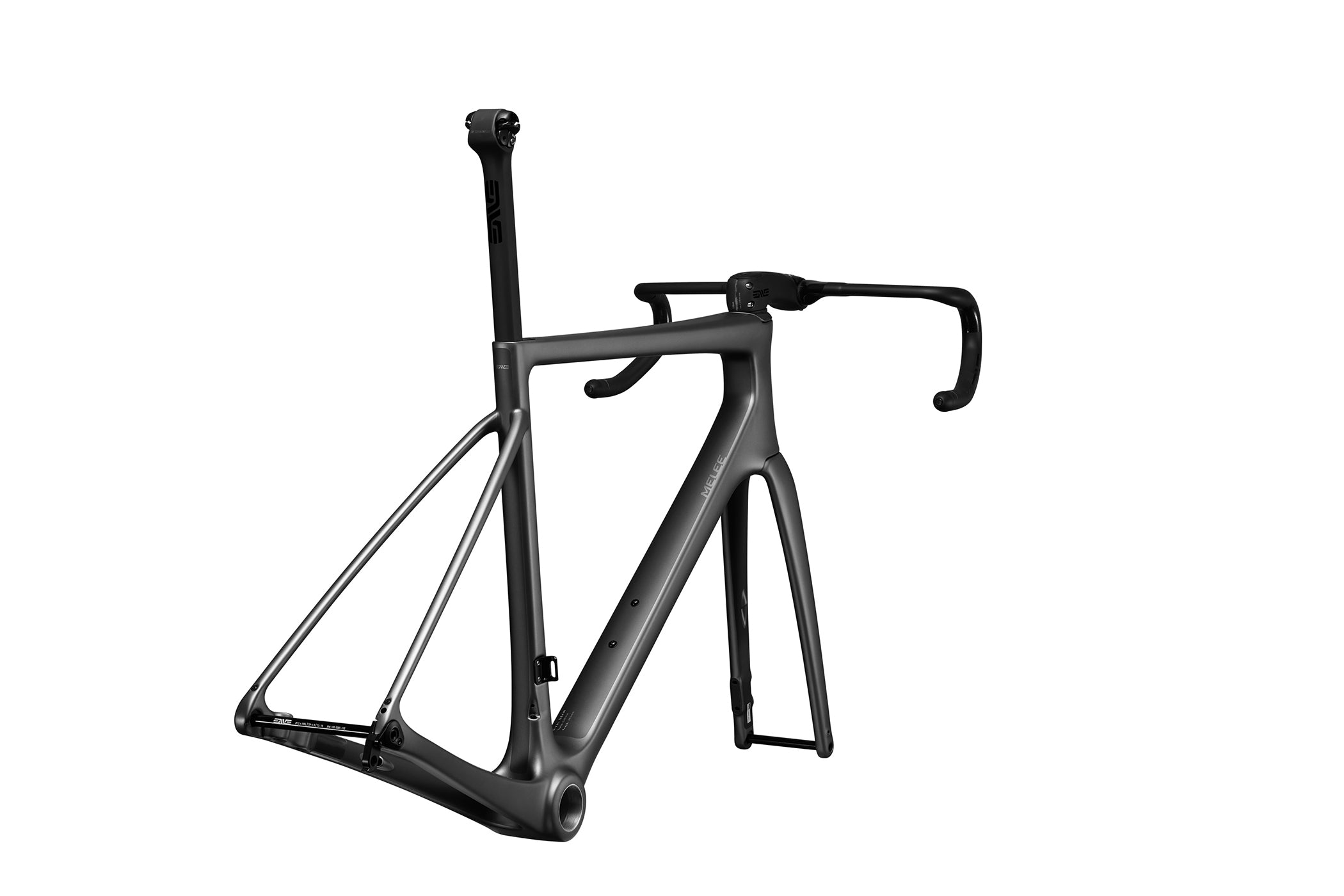

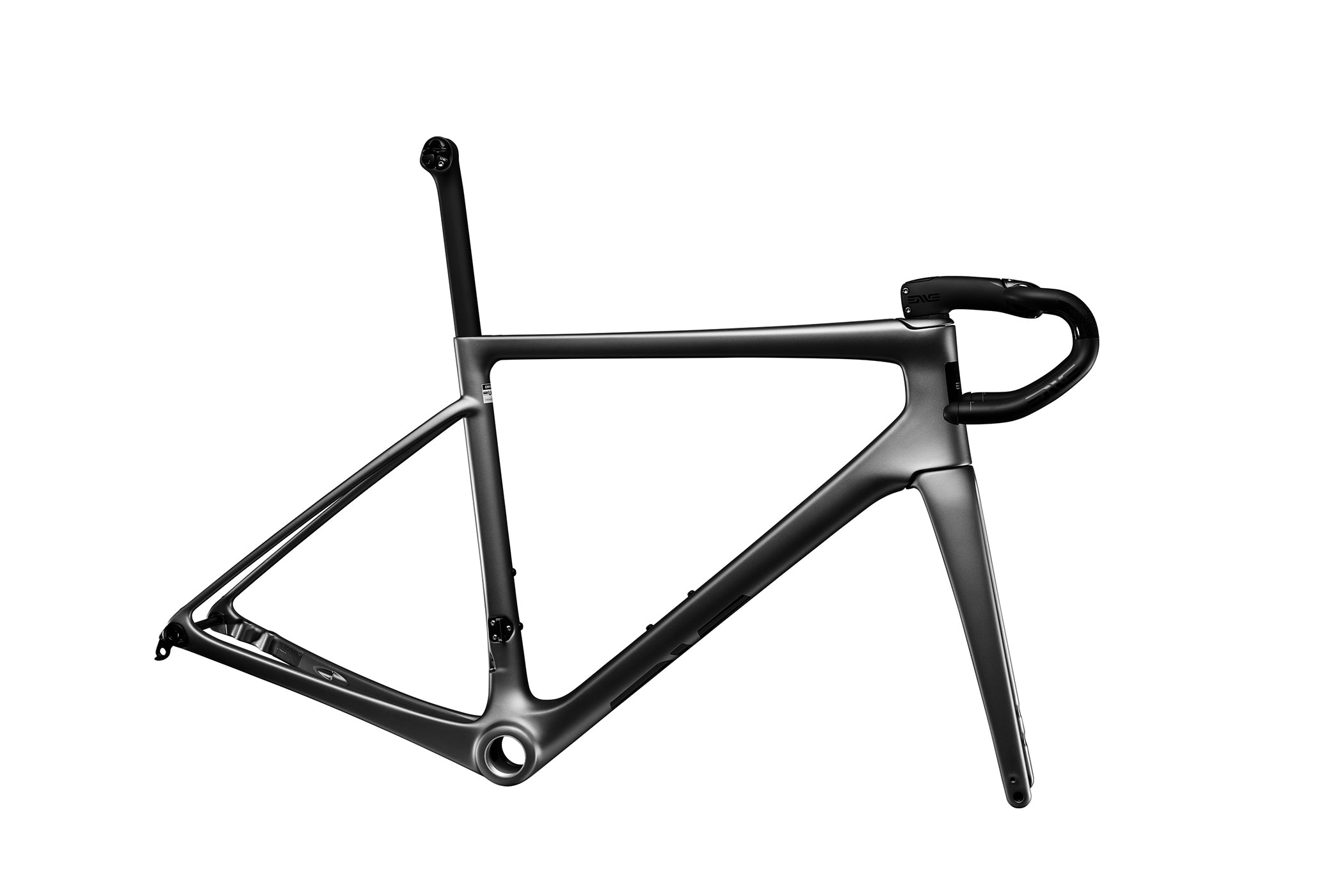

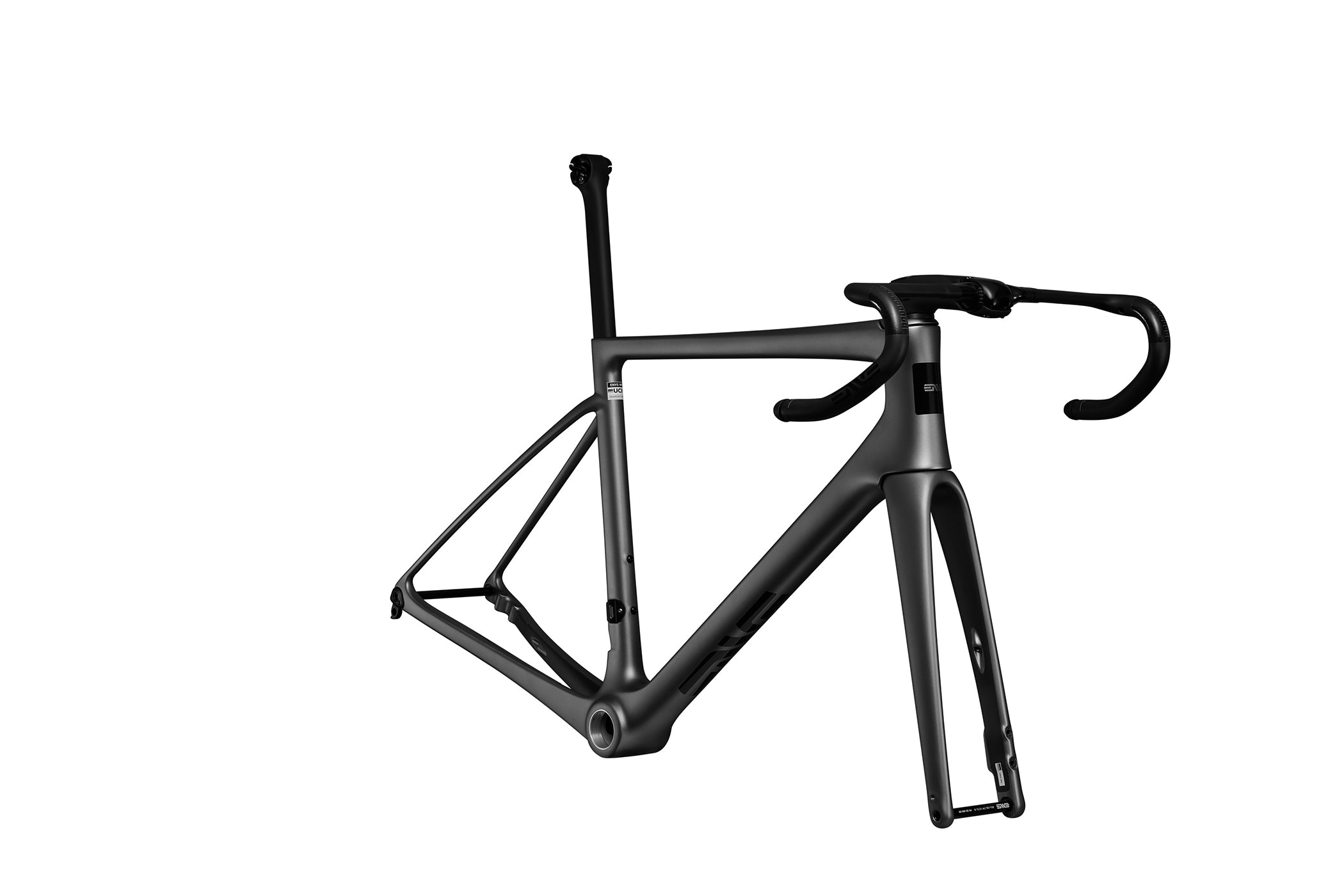

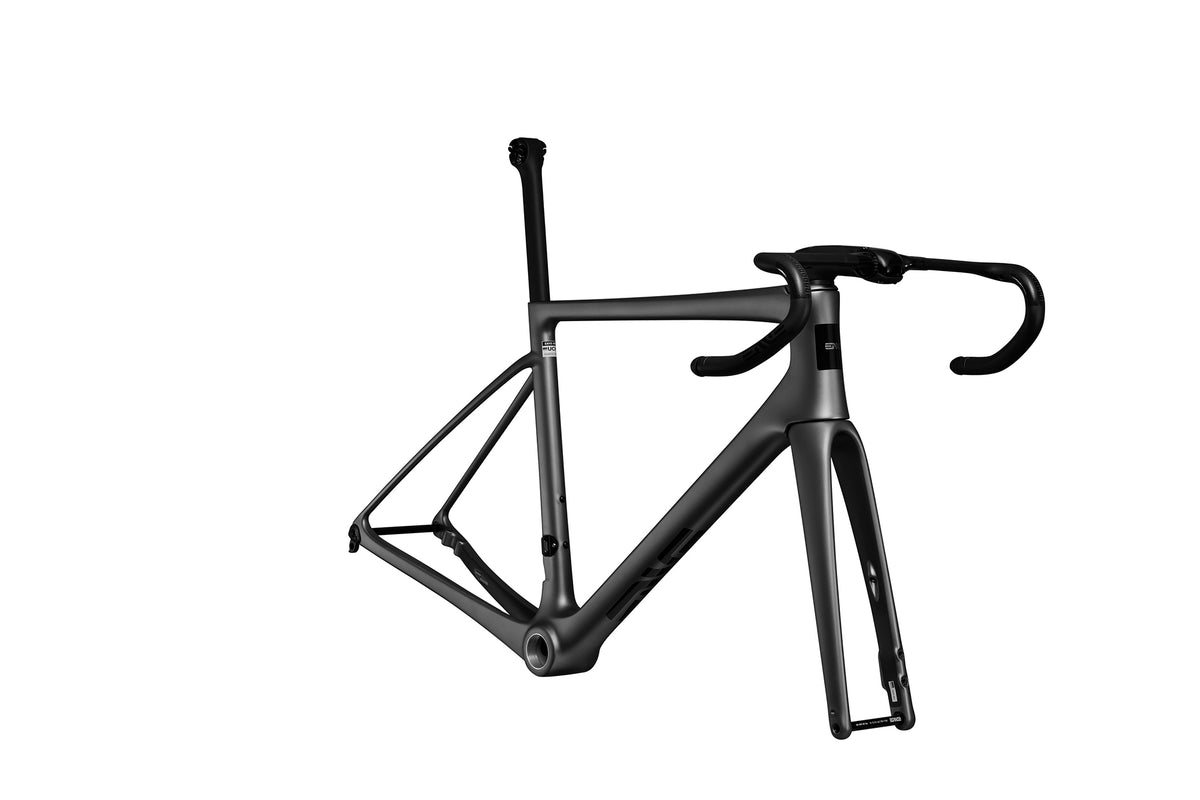

ENVE Melee Road Frameset
Item #FRD12641
Condition:
New with Warranty
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Why We Love It
About This Item
- Stock fit not for you? ENVE’s A La Carte build lets you dial in the perfect fit, with the option to swap out the handlebars, stem and seatpost. Our Ride Guides are here to help build you the perfect bike. Contact us to find out more.
- 850g frame weight for 56cm
- Frames fit 25-35 mm tires
- Not compatible with SRAM 2x Mechanical drivetrains, Campagnolo 2x Mechanical, or Campagnolo EPS
- Comes with ENVE Integrated Aero Stem, ENVE SES AR Road Handlebar, and ENVE Aero Seatpost
- 47cm: 80mm / -7° stem, 38/43cm bars, 0 offset / 275mm seatpost
- 50cm: 100mm / -7° stem, 40/45cm bars, 0 offset / 350mm seatpost
- 52cm: 100mm / -7° stem, 40/45cm bars, 0 offset / 350mm seatpost
- 54cm: 100mm / -7° stem, 40/45cm bars, 0 offset / 350mm seatpost
- 56cm: 110mm / -7° stem, 42/47cm bars, 0 offset / 350mm seatpost
- 58cm: 120mm / -7° stem, 42/47cm bars, 0 offset / 350mm seatpost
- 60cm: 130mm / -7° stem, 46/51cm bars, 20 offset / 350mm seatpost
Specifications
Details
| Year | 2022 |
| Brand | ENVE |
| Model | Melee |
| Size | 52cm |
| Frame Material | Carbon Fiber |
| Fork Material | ENVE M.O.D Carbon |
| Steerer Tube | Tapered |
| Brake Type | Disc Brakes - Hydraulic |
| Front Derailleur Mount | Braze-On |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Bottom Bracket | Not Included, T47 |
| Wheel Size | 700C |
| Seatpost Diameter | Frame Specific |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Weight | 850 |
| Drivetrain Compatibility | Mechanical/Electronic |
| mpn | N/A |

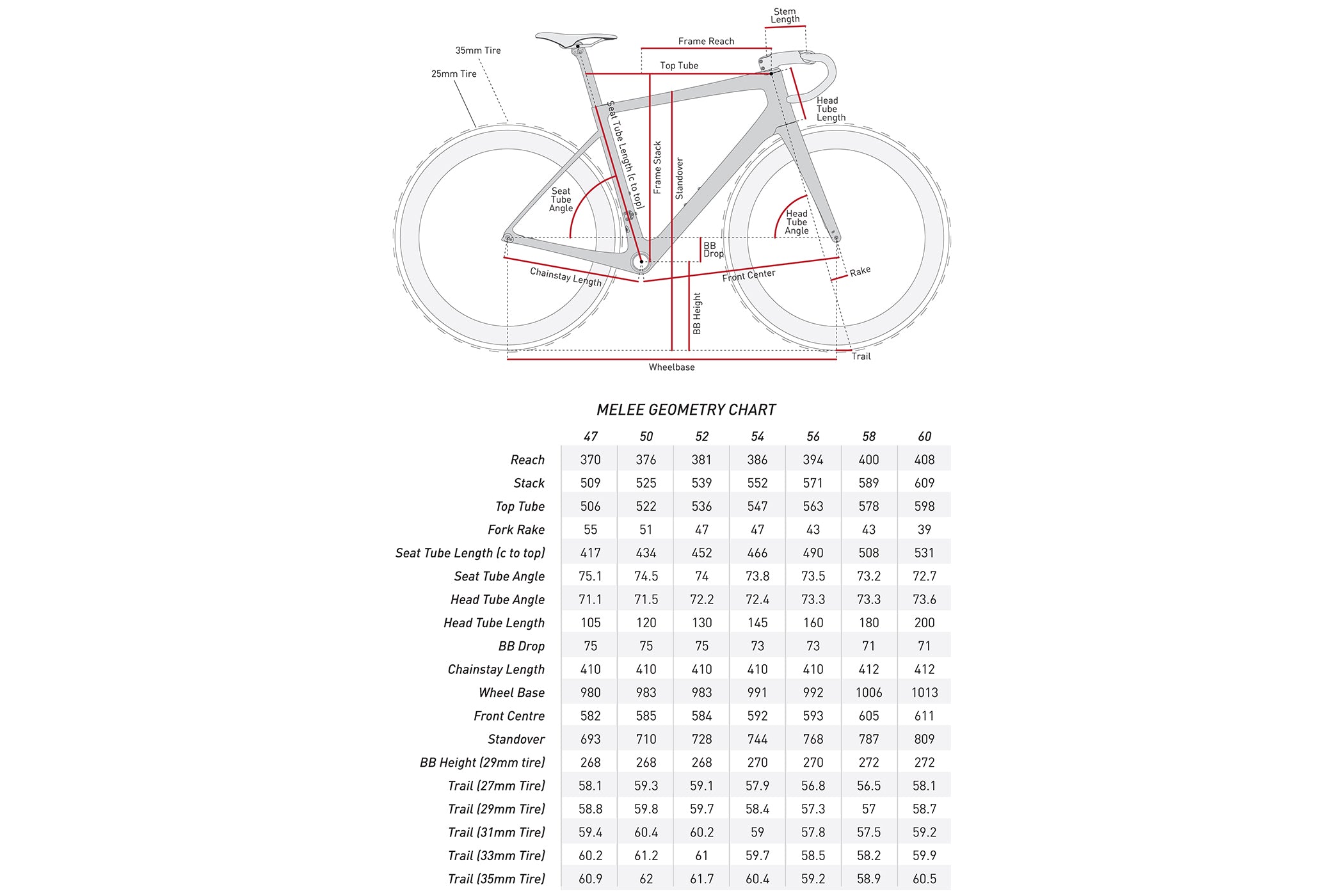

Geometry
| Fit Range |
N/A
|
| A. Effective Top Tube | 506 mm |
| B. Seat Tube | 417 mm |
| C. Seat Tube Angle | 75.1° |
| D. Head Tube Angle | 71.1° |
| E. Head Tube | 105 mm |
| F. Stack | 509 mm |
| G. Reach | 370 mm |
| H. Standover Height | 693 mm |
| I. Saddle Height Range | N/A |
