Sorry, this Orbea Occam M10 LT Mountain Bike - 2022, Medium has been sold.
Try these similar items:

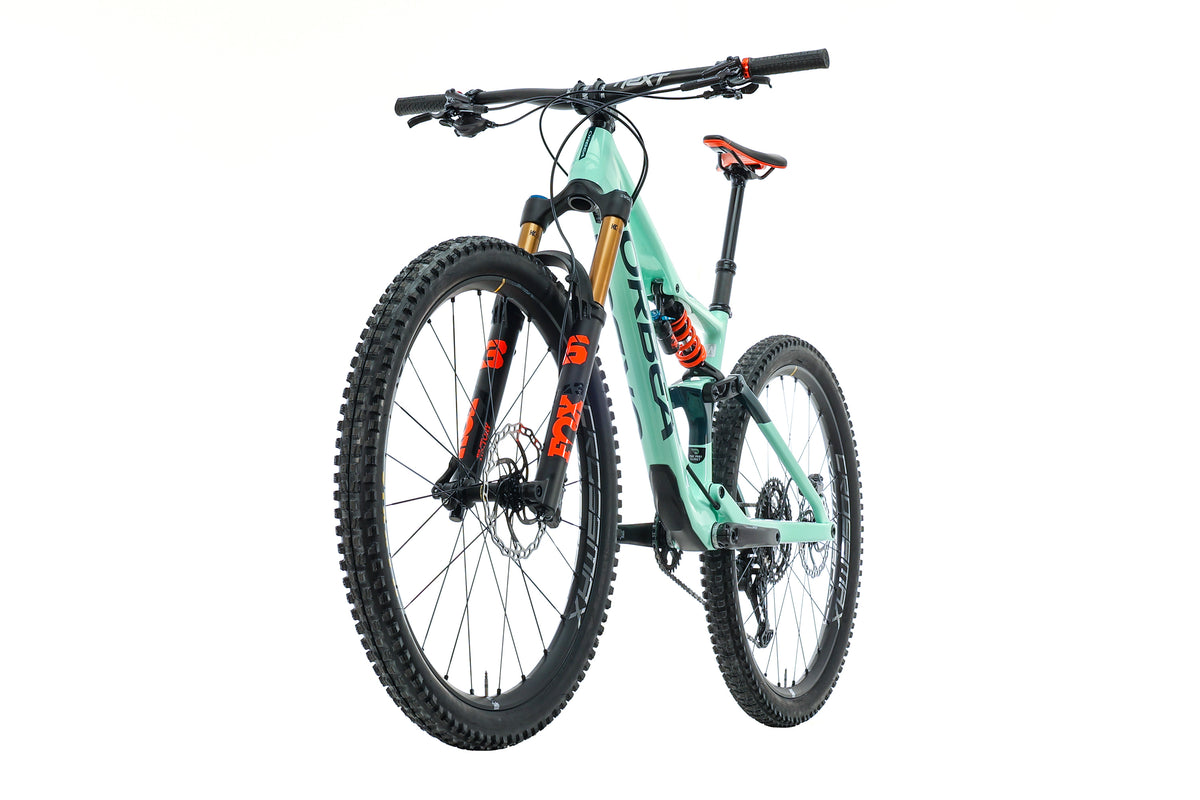

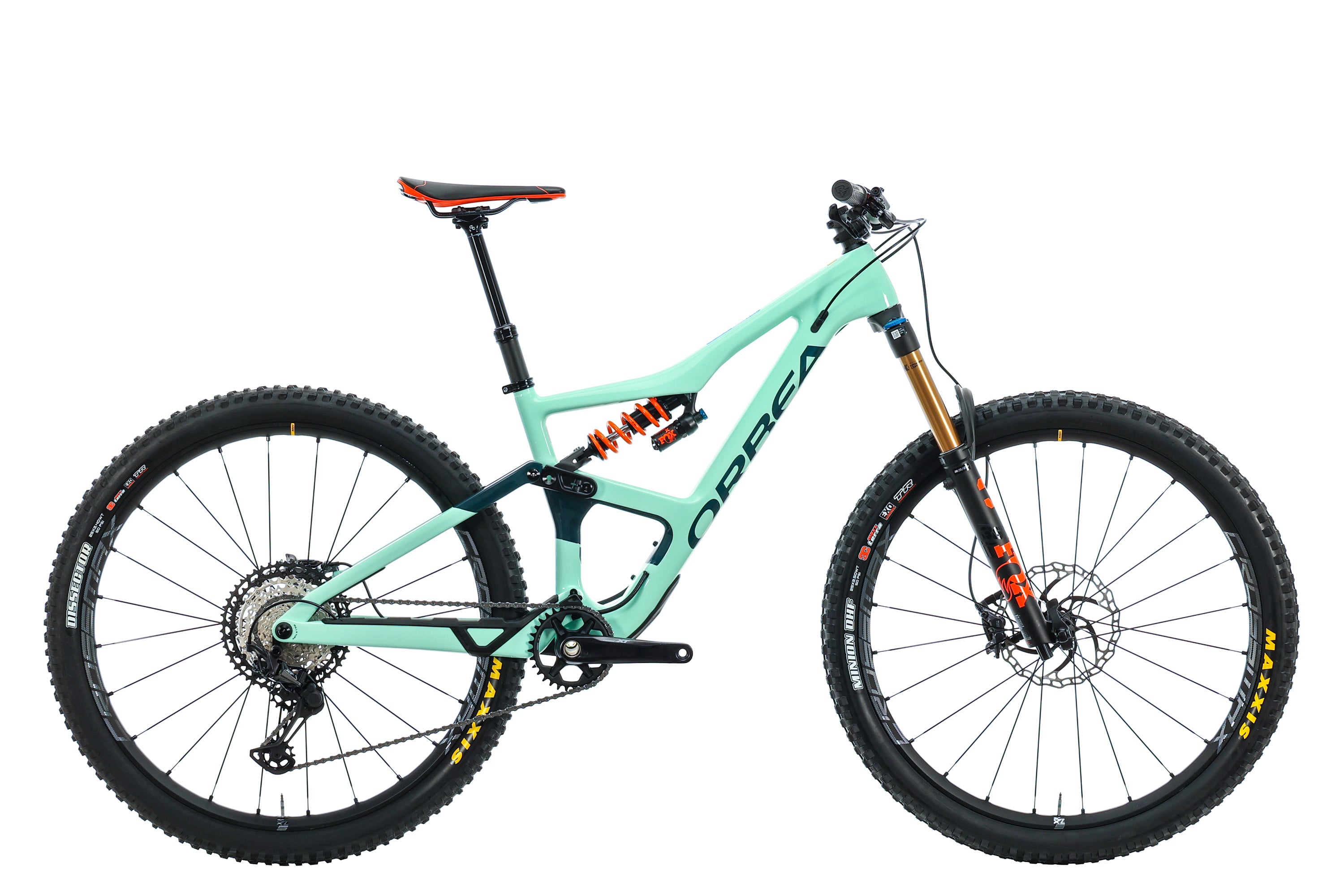

Orbea Occam M10 LT Mountain Bike - 2022, Medium
Fit Range: 5'3" - 5'9"
Shipping & Assembly
- Bikes arrive tuned and mostly pre-assembled
- Torque tool & video guide included
- Get riding in 15 minutes
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
Super Charged Occam
- 150mm of front and rear travel for true all-trail tenacity
- Fast 29er wheels
- Quick and responsive frame design
- Bike is new and unridden
- Bike is covered by manufacturers’ warranties
|Model||Occam M10 LT|
|Frame Material||Carbon Fiber|

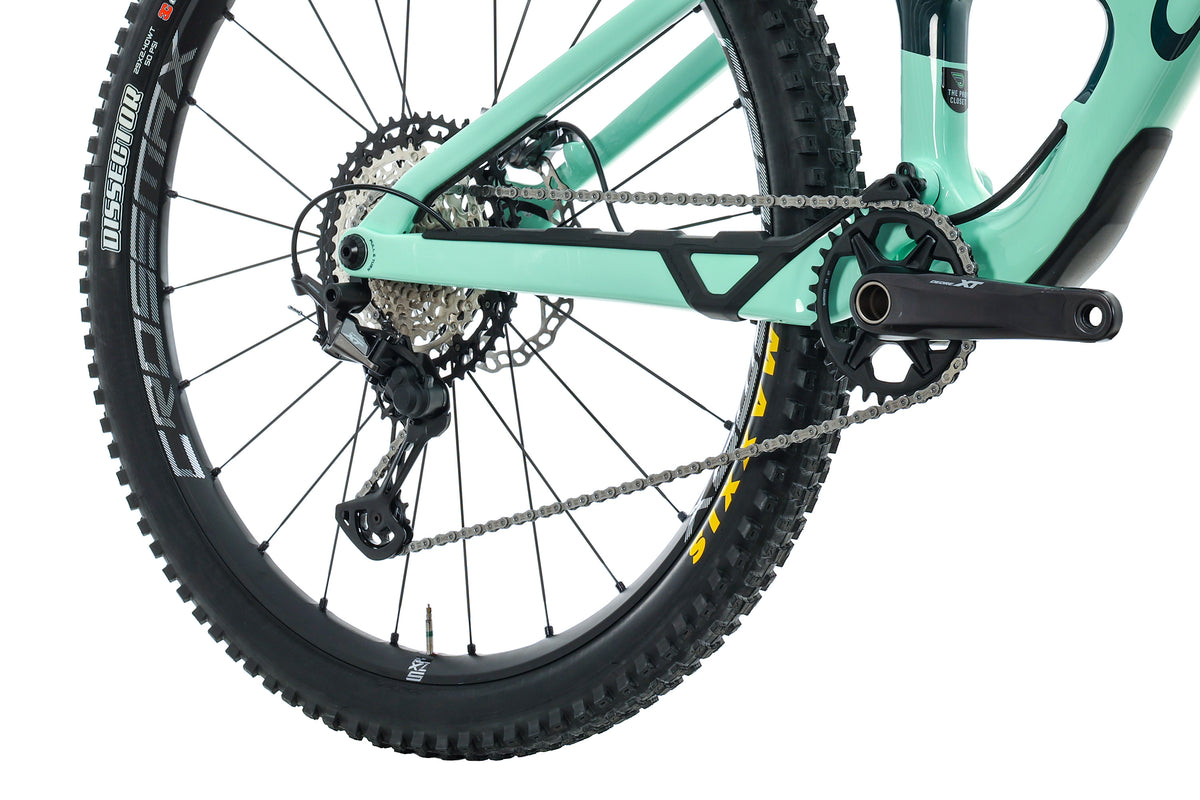

|Drivetrain||Shimano, 1x12 spd|
|Weight||31 lbs 7 oz|
|Fork||FOX Factory Series 36 FLOAT|

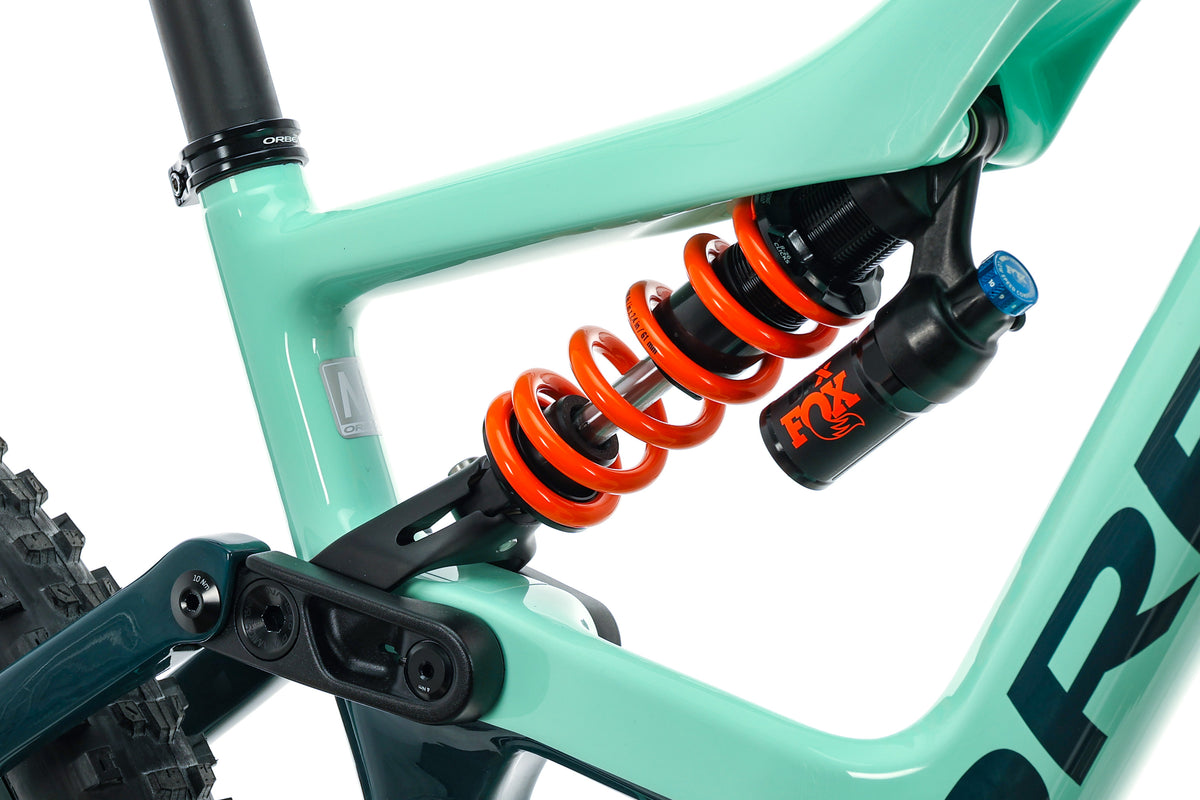

|Rear Shock||FOX Factory Series DHX, Coil: 450 lb/in x 2.4 in/61mm|
|Rear Shock Travel||150mm|
|Brakes||Shimano XT M8120, Disc Brakes - Hydraulic|
|Shifters||Shimano XT M8100, Mechanical|
|Rear Derailleur||Shimano XT M8100|
|Bottom Bracket Shell||Threaded|
|Crankset||Shimano XT M8100, 32t, 170mm|
|Cassette||Shimano XT M8100, 10-51t|

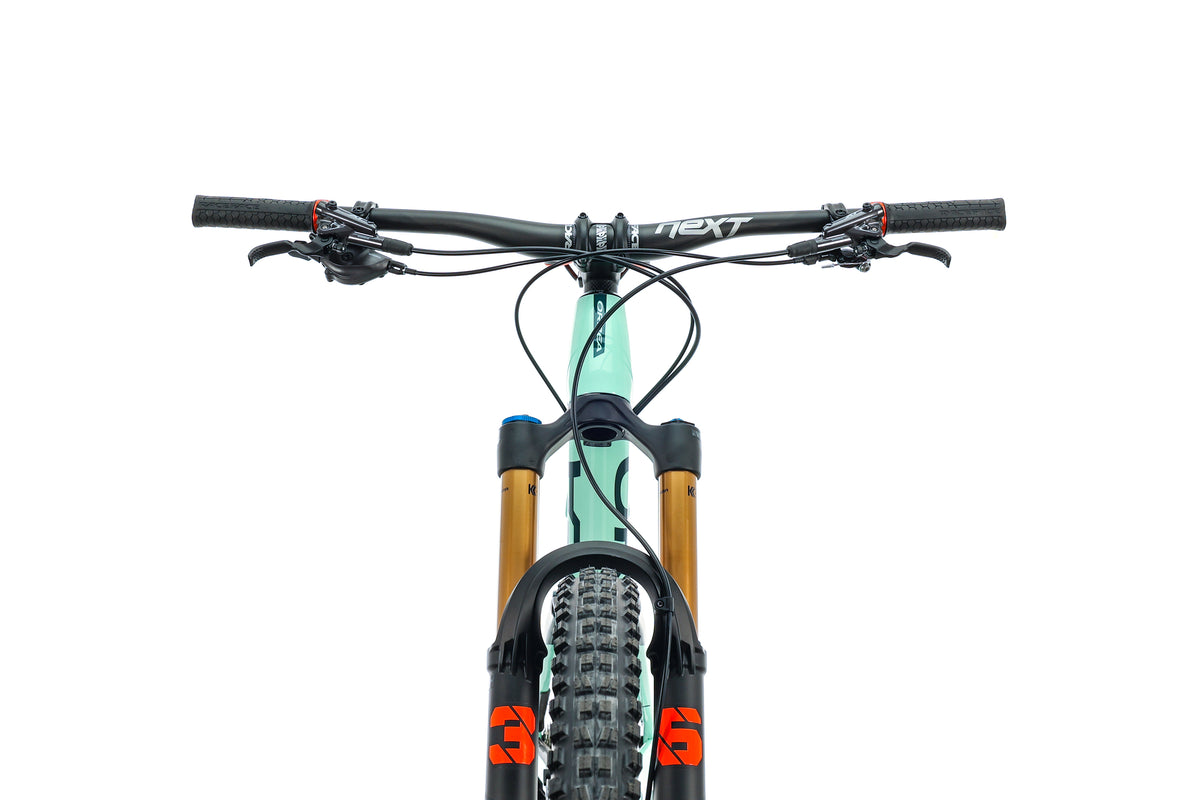

|Handlebar||Race Face Next Carbon, 760mm|
|Stem||Race Face Aeffect Alloy, 35.0mm x 50mm, 0°|
|Seatpost||OC MC20, 31.6mm|
|Front Axle Spacing||15x110mm (Boost)|
|Rear Axle Spacing||12x148mm Boost|
|Wheelset||Mavic Crossmax XL S Disc Aluminum Tubeless Compatible, Mavic|
|Front Tire||Maxxis Minion DHF 3C MaxxTerra EXO TR, 29" x 2.5"|
|Rear Tire||Maxxis Dissector 3C MaxxTerra EXO TR, 29" x 2.4"|
|Tubeless Compatibility||Wheels are tubeless compatible but ships with tubes installed|
5'3" - 5'9"
|A. Effective Top Tube||592 mm|
|B. Seat Tube||419 mm|
|C. Seat Tube Angle||76.5°|
|D. Head Tube Angle||65.5°|
|E. Head Tube||105 mm|
|F. Stack||613 mm|
|G. Reach||450 mm|
|H. Standover Height||736 mm|
|I. Saddle Height Range||N/A|
