Orbea Occam TR M10 Mountain Bike - 2017, Large
isn't available.
You'll be the first to know next time this or similar products are available.

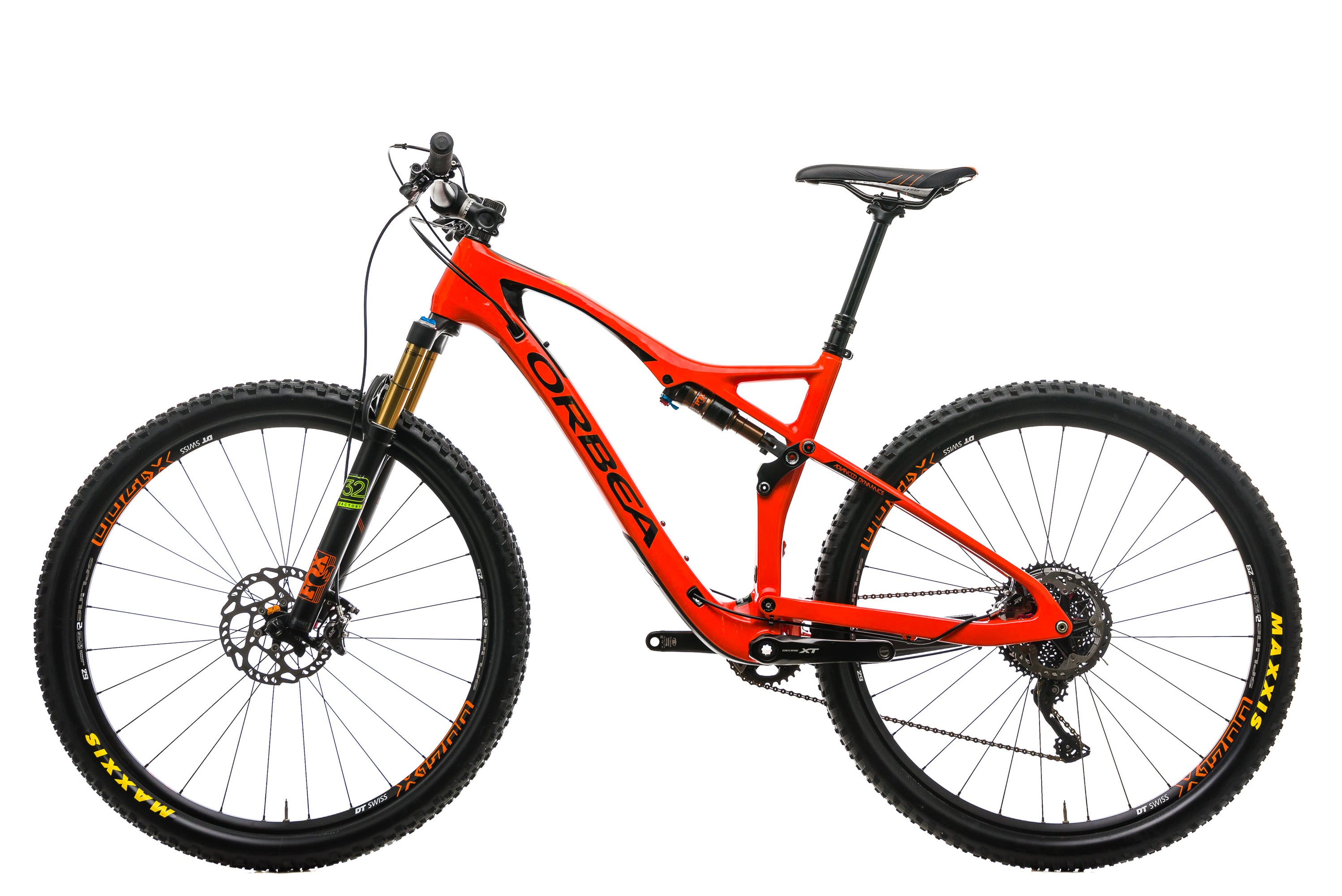

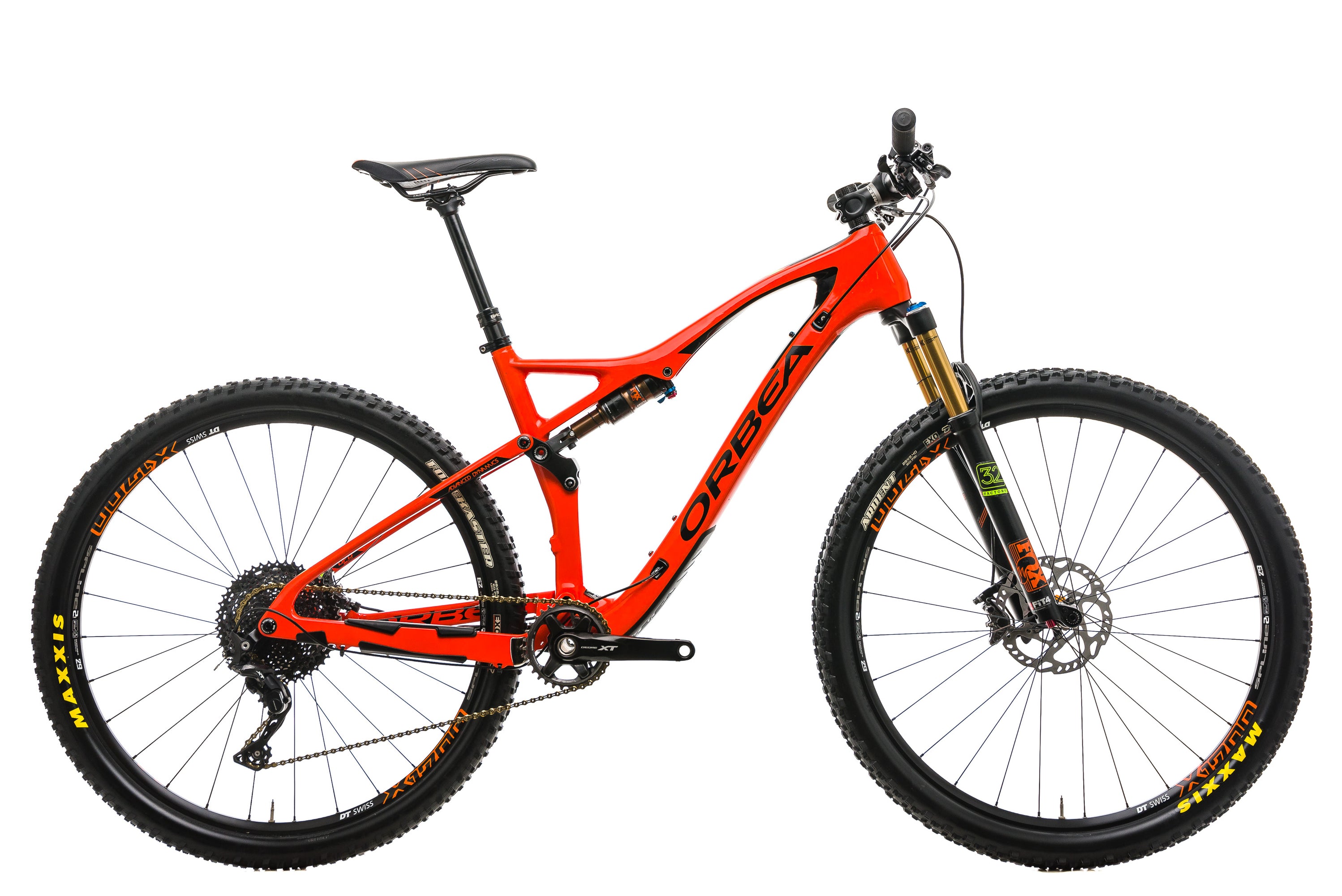

Orbea Occam TR M10 Mountain Bike - 2017, Large
Item #BMT14807
Condition:
Pre-Owned
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Torque tool & video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Specifications
Details
| Year | 2017 |
| Brand | Orbea |
| Model | Occam TR M10 |
| Size | Large |

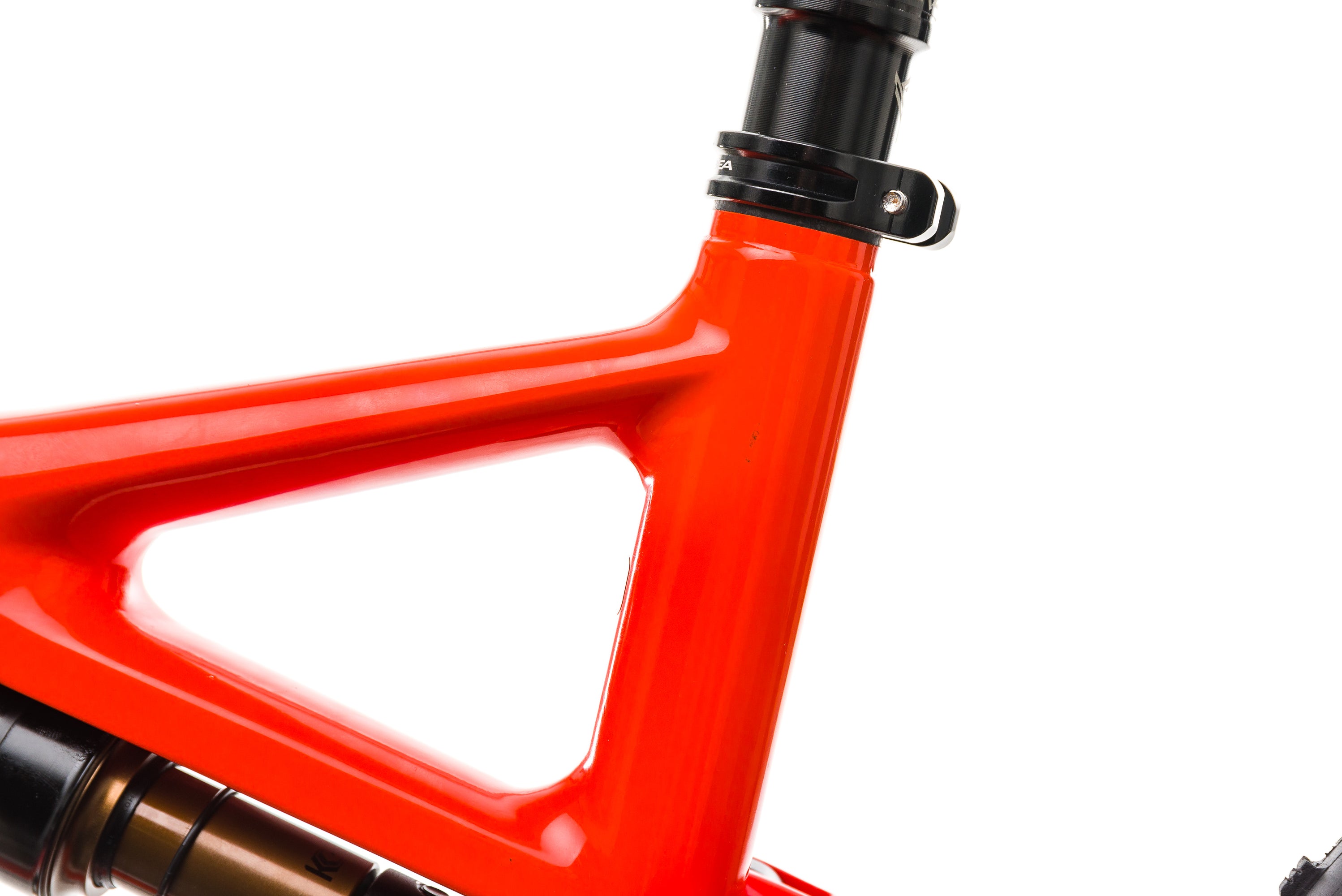

| Frame Material | Carbon Fiber |
| Drivetrain | Shimano, 1x11 spd |
| Weight | 25 lbs 11 oz |
Build

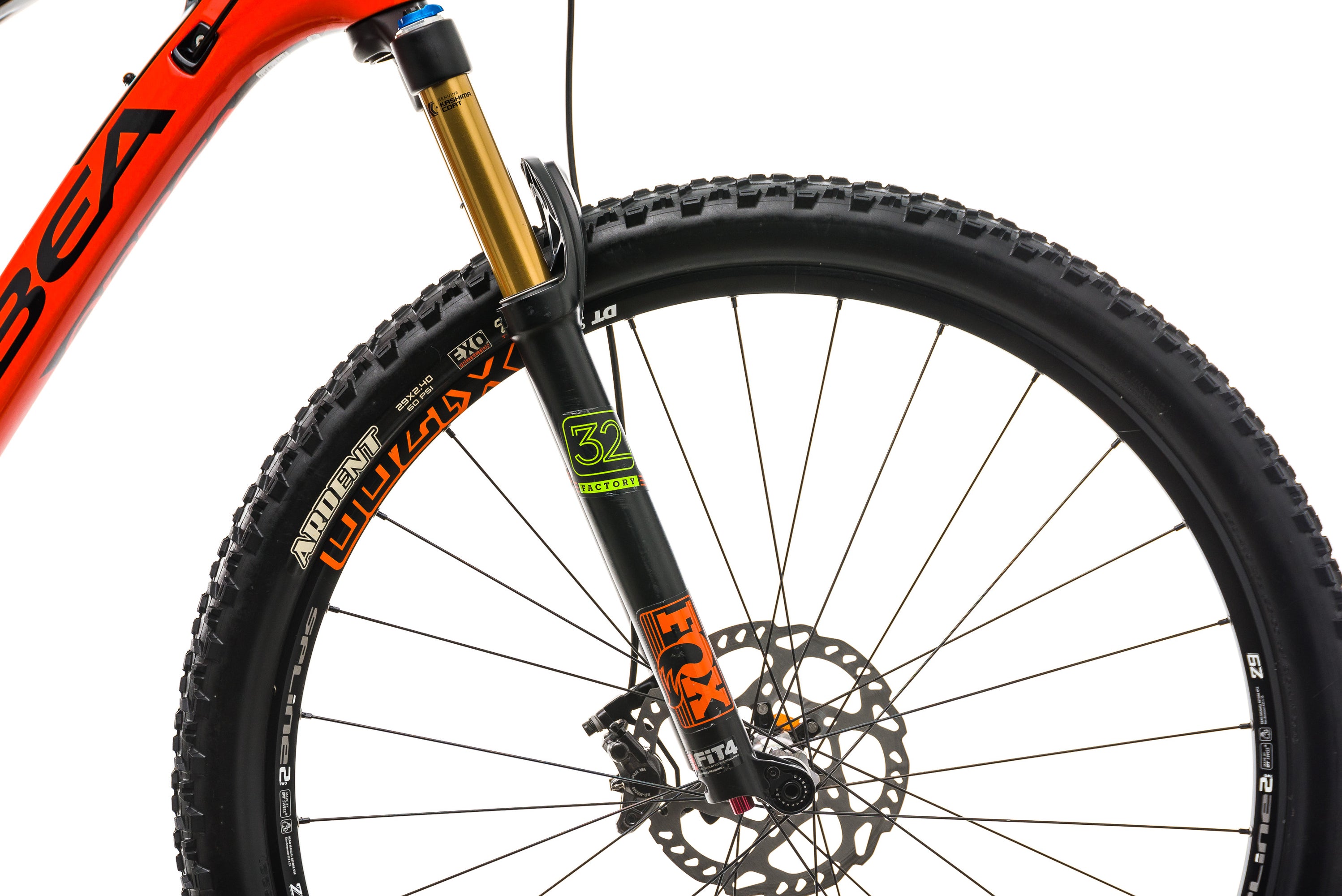

| Fork | Fox Float 32 Factory |
| Fork Travel | 120mm |

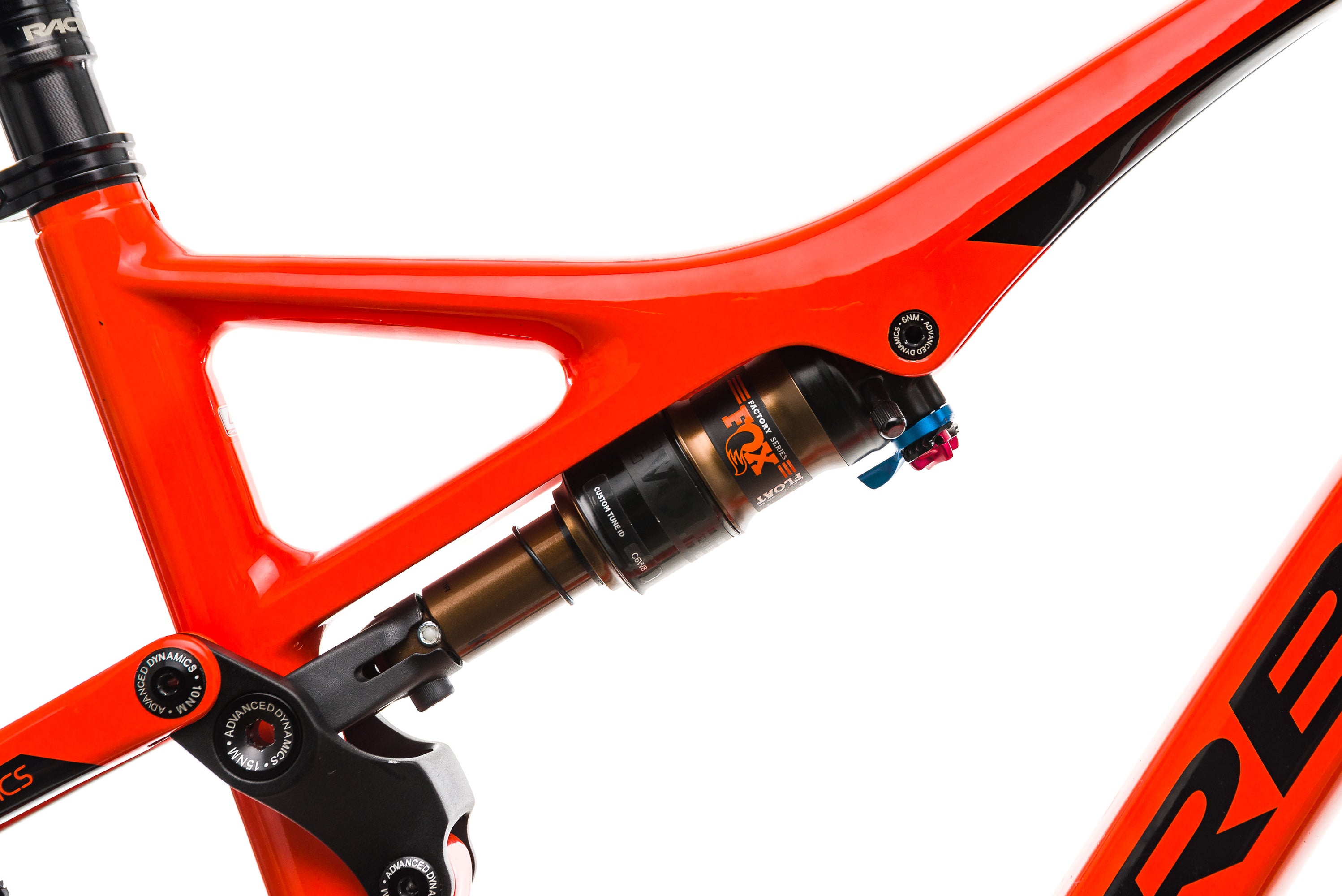

| Rear Shock | Fox Float DPS Factory |
| Rear Shock Travel | 120mm |
| Brakes | Shimano XT M8000, Disc Brakes - Hydraulic |
| Shifters | Shimano XT M8000, Mechanical |
| Front Derailleur | N/A |

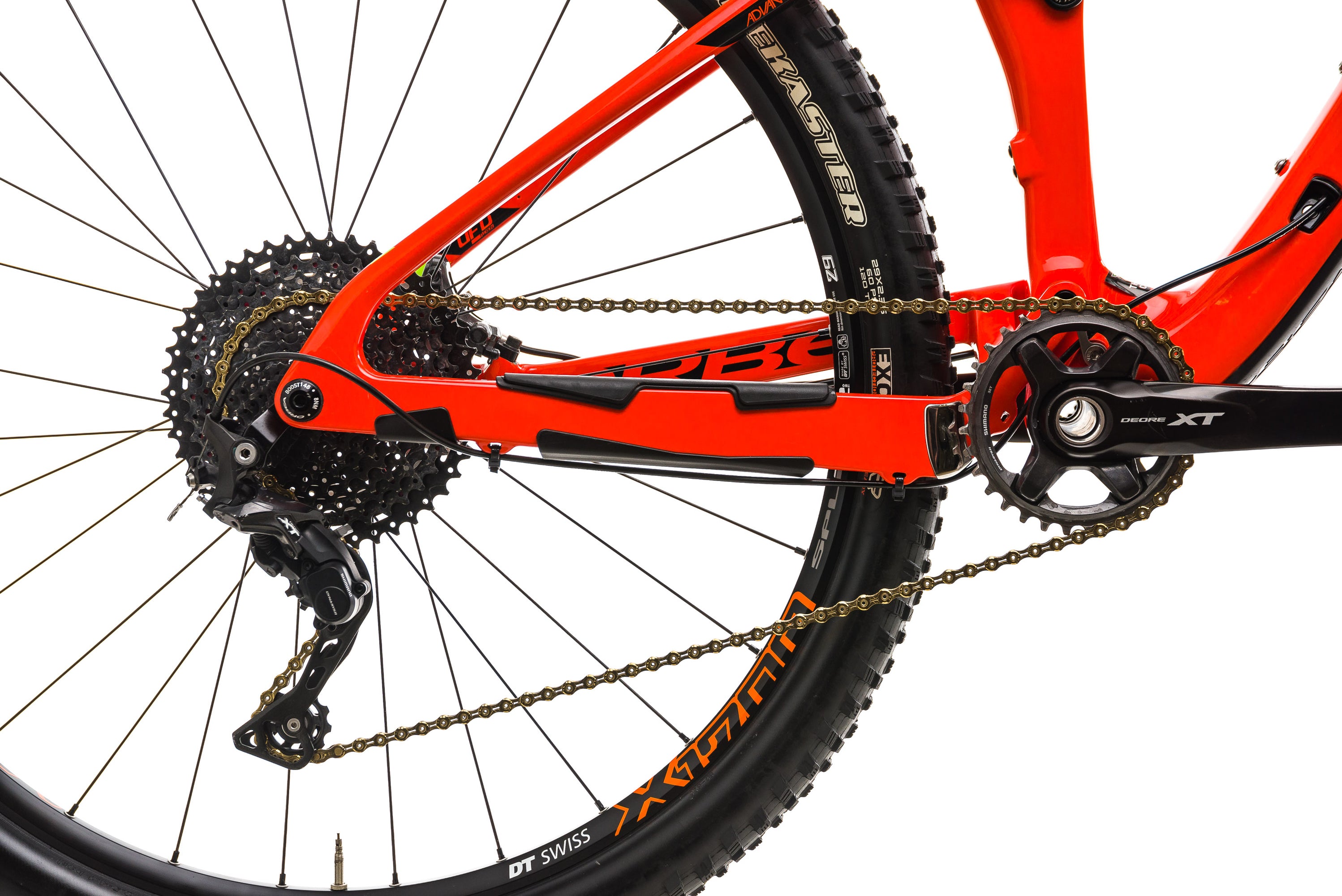

| Rear Derailleur | Shimano XT M8000 |

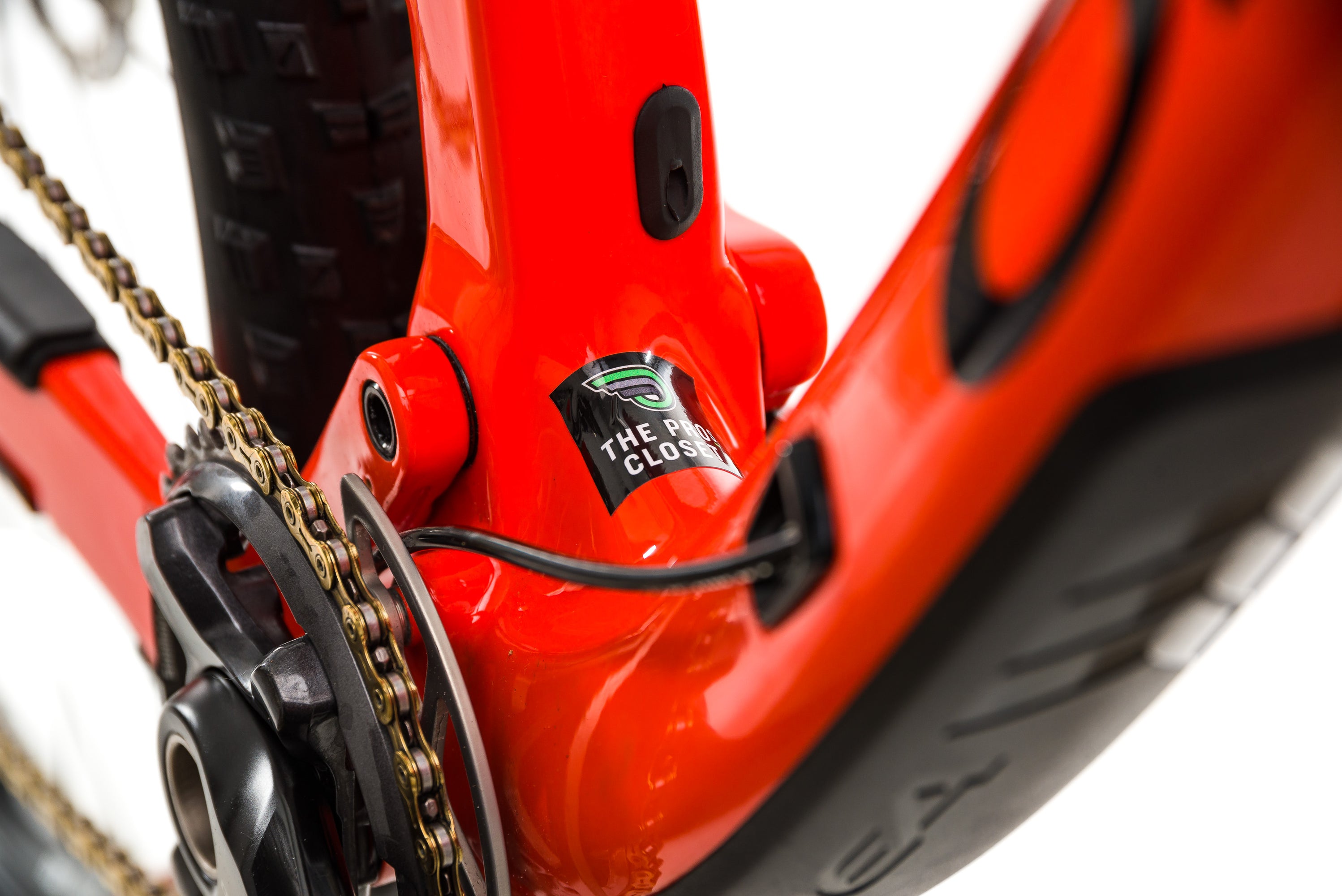

| Crankset | Shimano XT M8000, 32t, 175 mm |
| Cassette | Sunrace, 11spd, 11-46t |
| Chain | KMC |

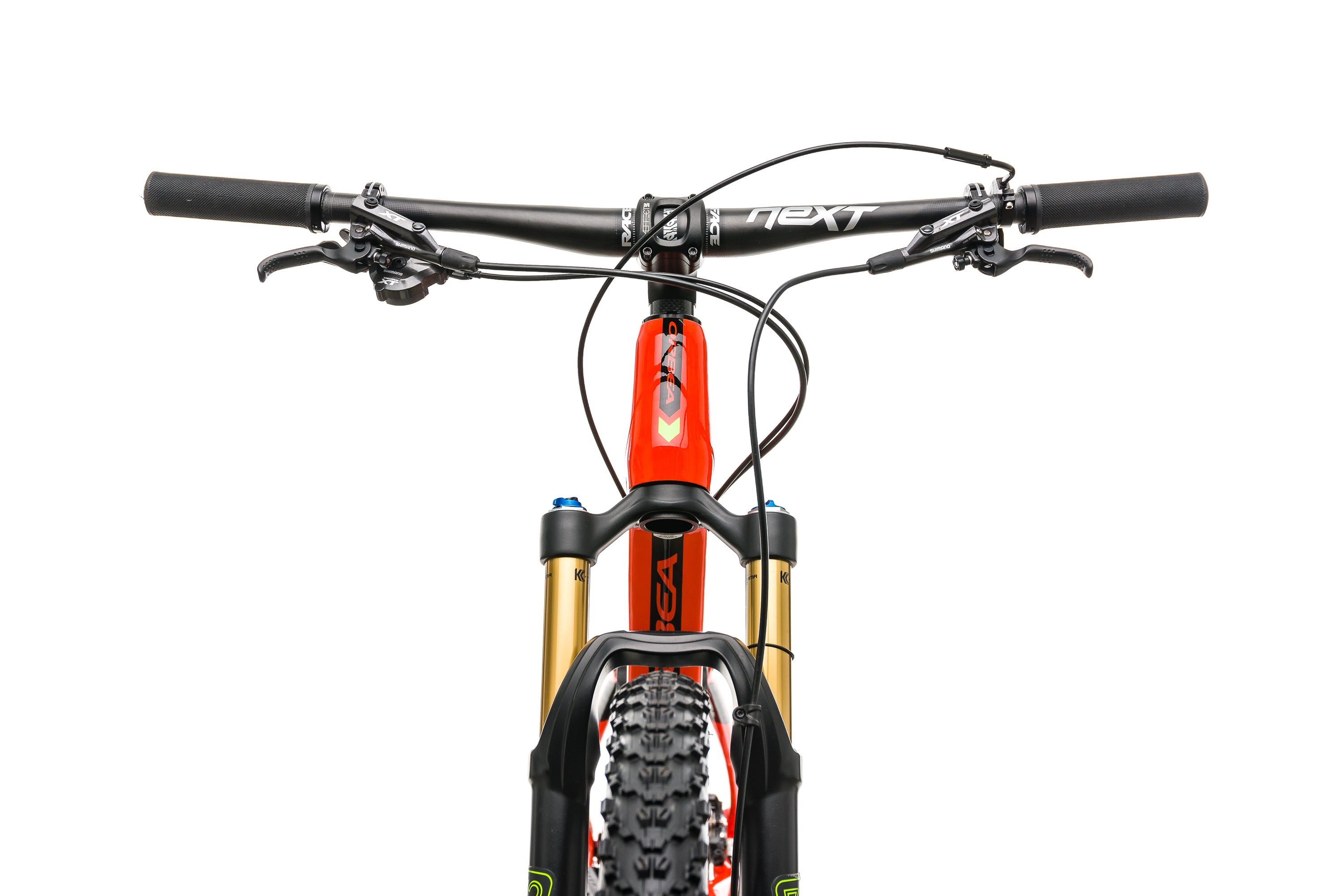

| Handlebar | Race Face Next Carbon, 740 mm |
| Headset | FS Integrated |
| Stem | Race Face Aeffect, 35.0 mm x 65mm, 6° |
| Seatpost | Race Face Turbine, 31.6mm |
| Seatpost Travel | 150mm |
| Saddle | Fizik Gobi |
| Front Axle Spacing | 15x110mm Boost (Thru-Axle) |

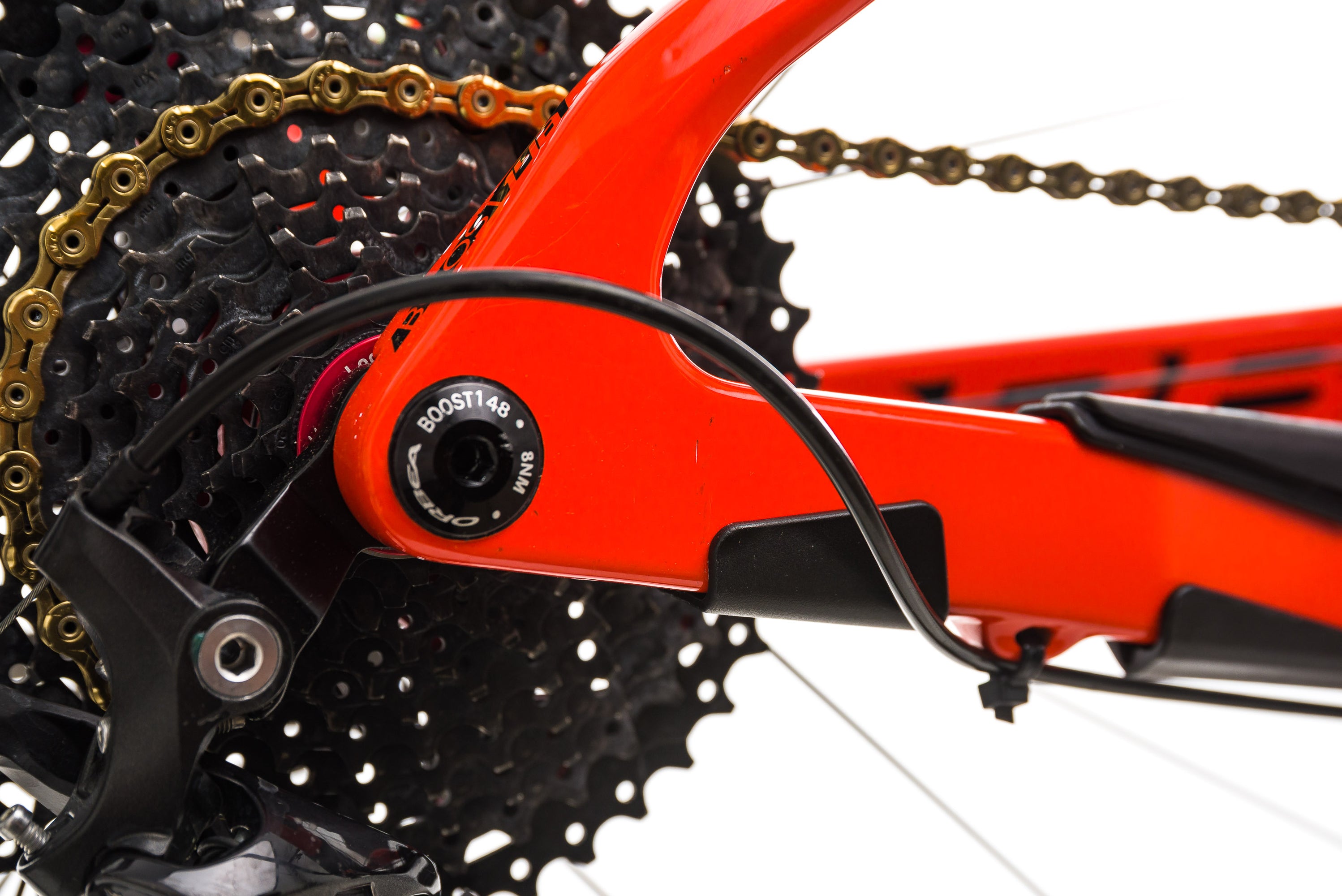

| Rear Axle Spacing | 12x148mm Boost (Thru-Axle) |
| Wheelset | DT Swiss Spline 2 X1700, DT Swiss |
| Front Tire | Maxxis Ardent, 29" x 2.4" |
| Rear Tire | Maxxis Forekaster, 29" x 2.35" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Yes (rim strips and valve stem included) |
Geometry
| Fit Range |
N/A
|
| A. Effective Top Tube | 621 mm |
| B. Seat Tube | 470 mm |
| C. Seat Tube Angle | 74° |
| D. Head Tube Angle | 67.5° |
| E. Head Tube | 125 mm |
| F. Stack | 615 mm |
| G. Reach | 450 mm |
| H. Standover Height | 769 mm |
