ENVE Custom Road Bike Race Geometry Medium Frameset - 2022
isn't available.
You'll be the first to know next time this or similar products are available.
ENVE Custom Road Bike Race Geometry Medium Frameset - 2022
Item #FRD12603
Condition:
Pre-Owned
Fit Range: 5'6" - 5'9"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
About This Item
- Race geometry, which prioritizes agility and responsiveness and a shorter wheelbase
- Rider archetype: Road/criterium racer, aggressive and responsive, out of the saddle
Master Mechanic’s Notes
- Includes: Frame, fork, headset, stem, handlebar, seatpost, and rear derailleur hanger (installed)
- Excellent condition

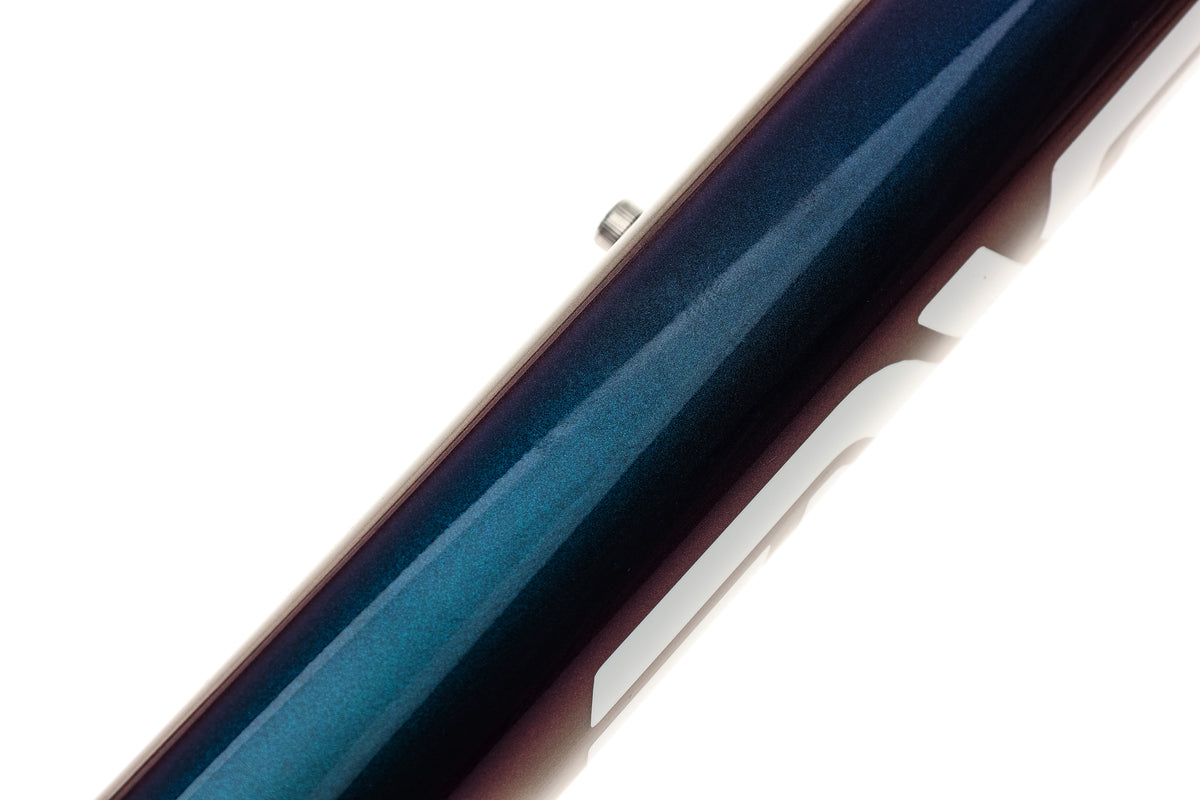

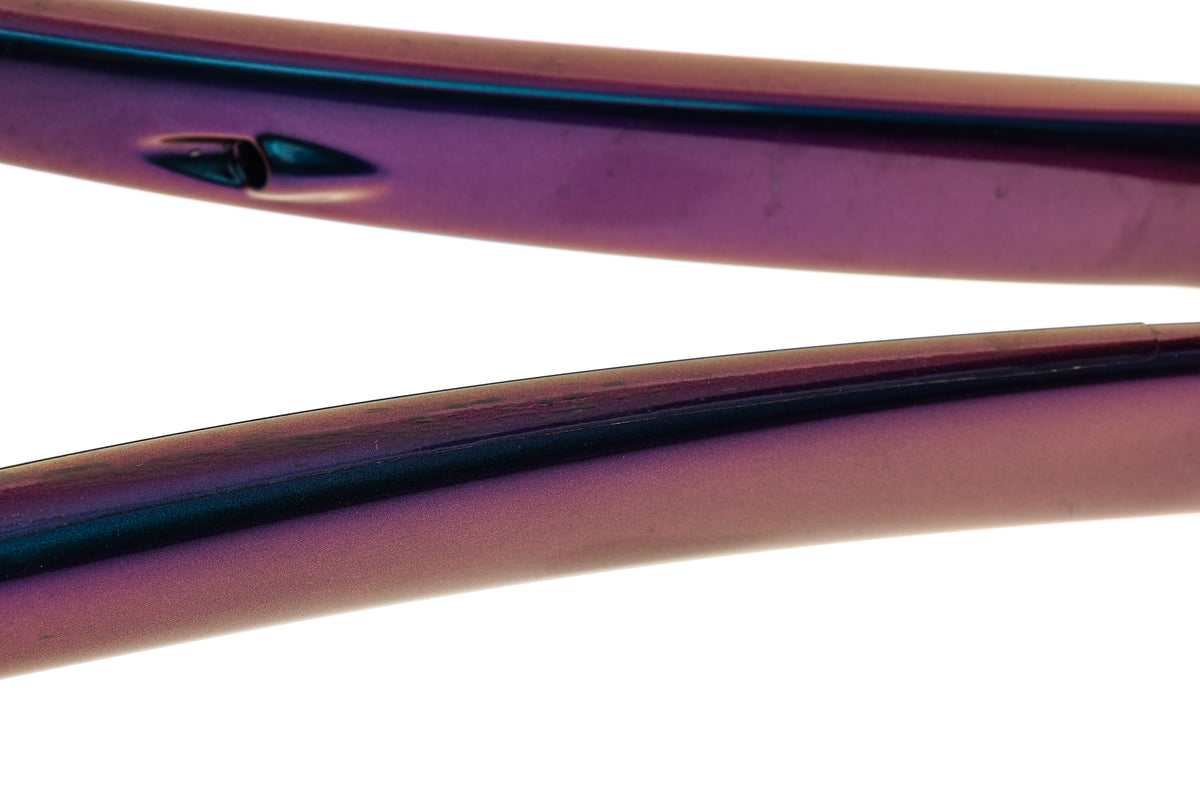

- Light wear and tear from cable/tire rub, heel rub, chain, etc
- Max tire clearance - 35mm (labeled)
- Stem: 110mm length
- Handlebar: 42cm (tops), 47cm (drops)
- Please note that the geometry measurements have been hand measured, which may be slightly off from ENVE's precise measurements
- Missing thru axles
Specifications
Details
| Original MSRP | $7,000.00 |
| Year | 2022 |
| Brand | ENVE |
| Model | Custom Road Bike |
| Size | Medium |
| Frame Material | Carbon Fiber |
| Fork | ENVE Custom Road Disc |
| Fork Material | Carbon Fiber |
| Steerer Tube | 225 mm, Tapered |
| Brake Type | Disc Brakes - Hydraulic |
| Front Derailleur Mount | Braze-On |
| Headset | Chris King |
| Bottom Bracket | Not Included, BB386 |
| Wheel Size | 700C |
| Seatpost Diameter | Frame Specific |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Weight | 4 lbs 13 oz |
| Drivetrain Compatibility | Electronic |
Geometry
| Fit Range |
5'6" - 5'9"
|
| A. Effective Top Tube | 535 mm (C-C) |
| B. Seat Tube | 500 mm |
| C. Seat Tube Angle | 75° |
| D. Head Tube Angle | 75° |
| E. Head Tube | 133 mm |
| F. Stack | 525 mm |
| G. Reach | 345 mm |
| H. Standover Height | N/A |
| I. Saddle Height Range | 700 - 735 mm |
