Orbea Oiz M10 TR Mountain Bike - 2022, Medium
isn't available.
You'll be the first to know next time this or similar products are available.

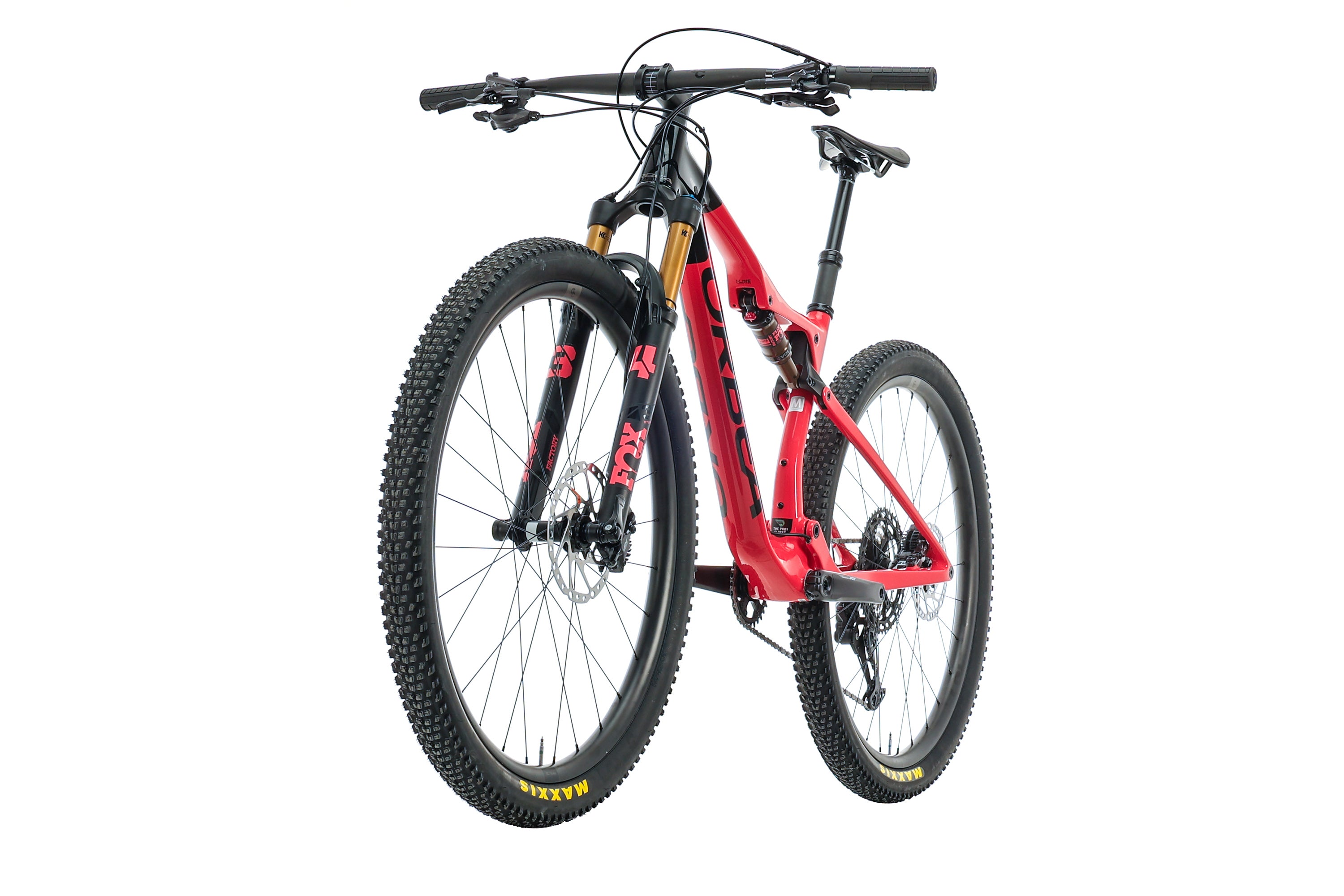

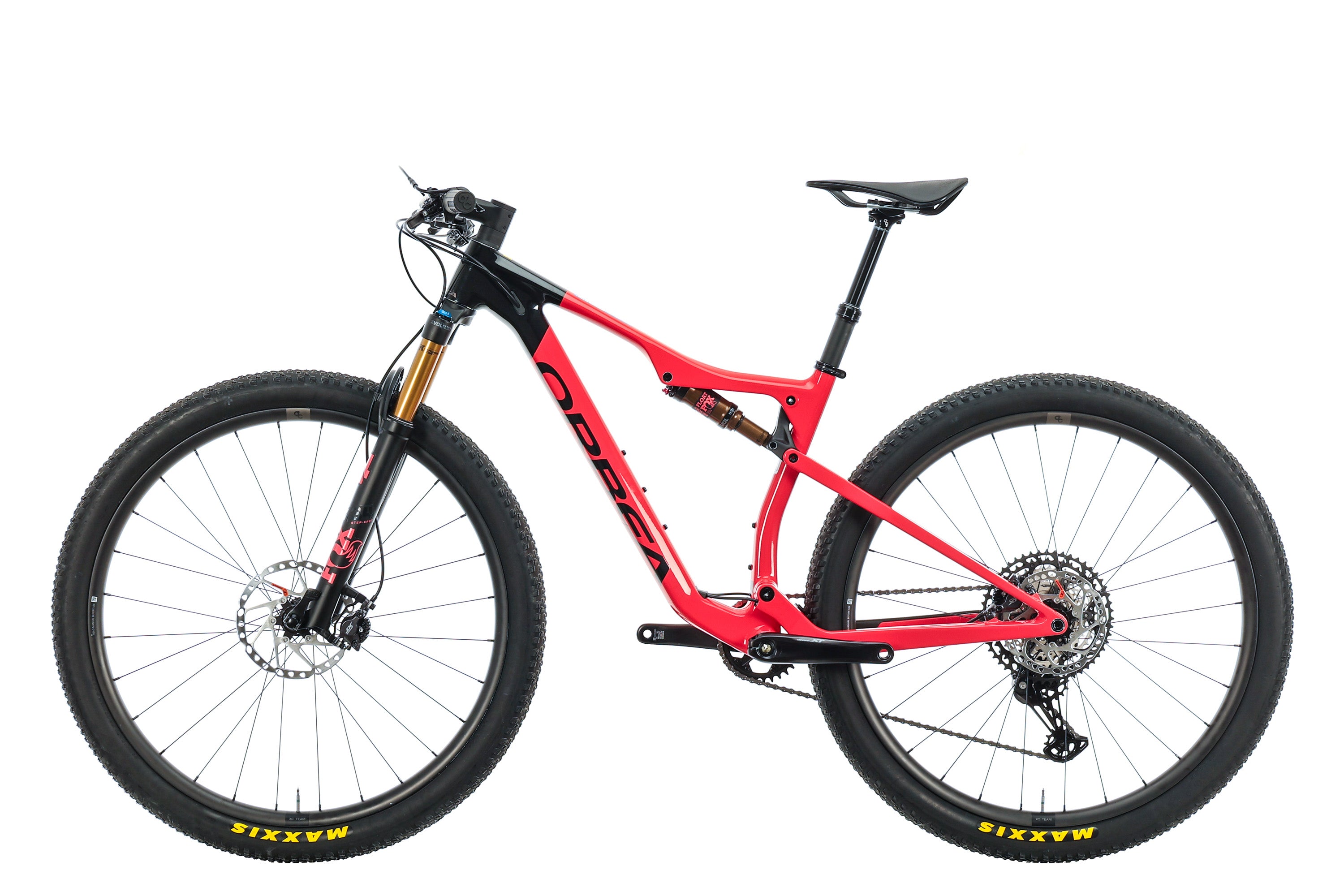

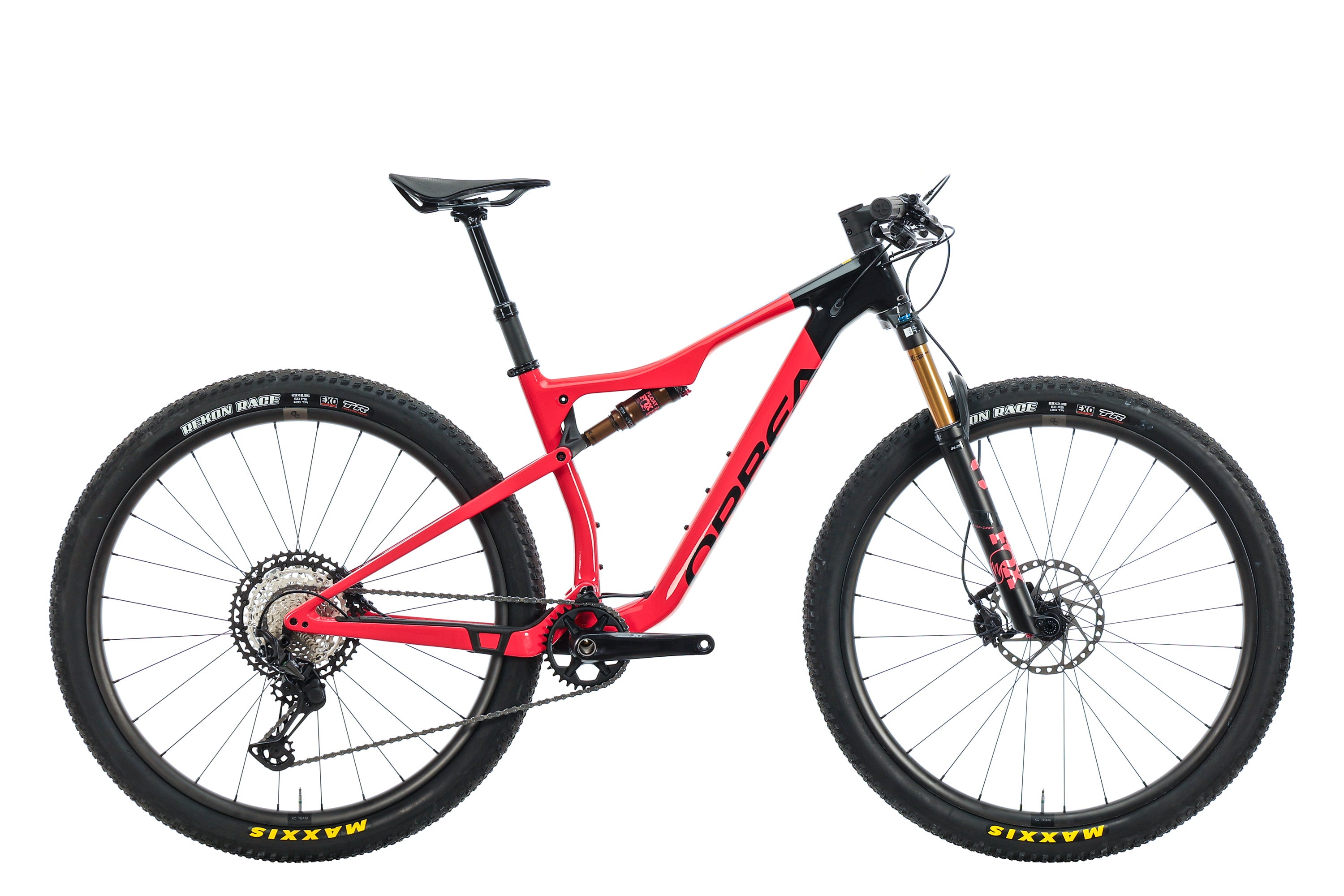

Orbea Oiz M10 TR Mountain Bike - 2022, Medium
Item #BMT25495
Condition:
New with Warranty
Fit Range: 5'5" - 5'11"
people are looking at this
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Torque tool & video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Our Guarantee
Guaranteed Buyback
We'll happily purchase this bike back from you when you're ready for your next upgrade. A TPC buyback offer is guaranteed for 18 month on all qualifying bikes.
The Bike of Champions
Why We Love It
Features
- No nonsense cross-country geometry built for speed
- Ultralight and stiff carbon or hydro-formed aluminum frame
- Patented I-Line internal shock lockout to guarantee efficiency
- Space for two water bottles inside the front triangle
Master Mechanic’s Notes
- Bike is new and unridden
- Bike is covered by manufacturers’ warranties
Specifications
Details
| Year | 2022 |
| Brand | Orbea |
| Model | Oiz M10 TR |
| Size | Medium |
| Frame Material | Carbon Fiber |
| Drivetrain | Shimano, 1x12 spd |
| Weight | 25 lbs 10 oz |
Build
| Fork | FOX Factory Series 34 FLOAT Step-Cast |
| Fork Travel | 120mm |

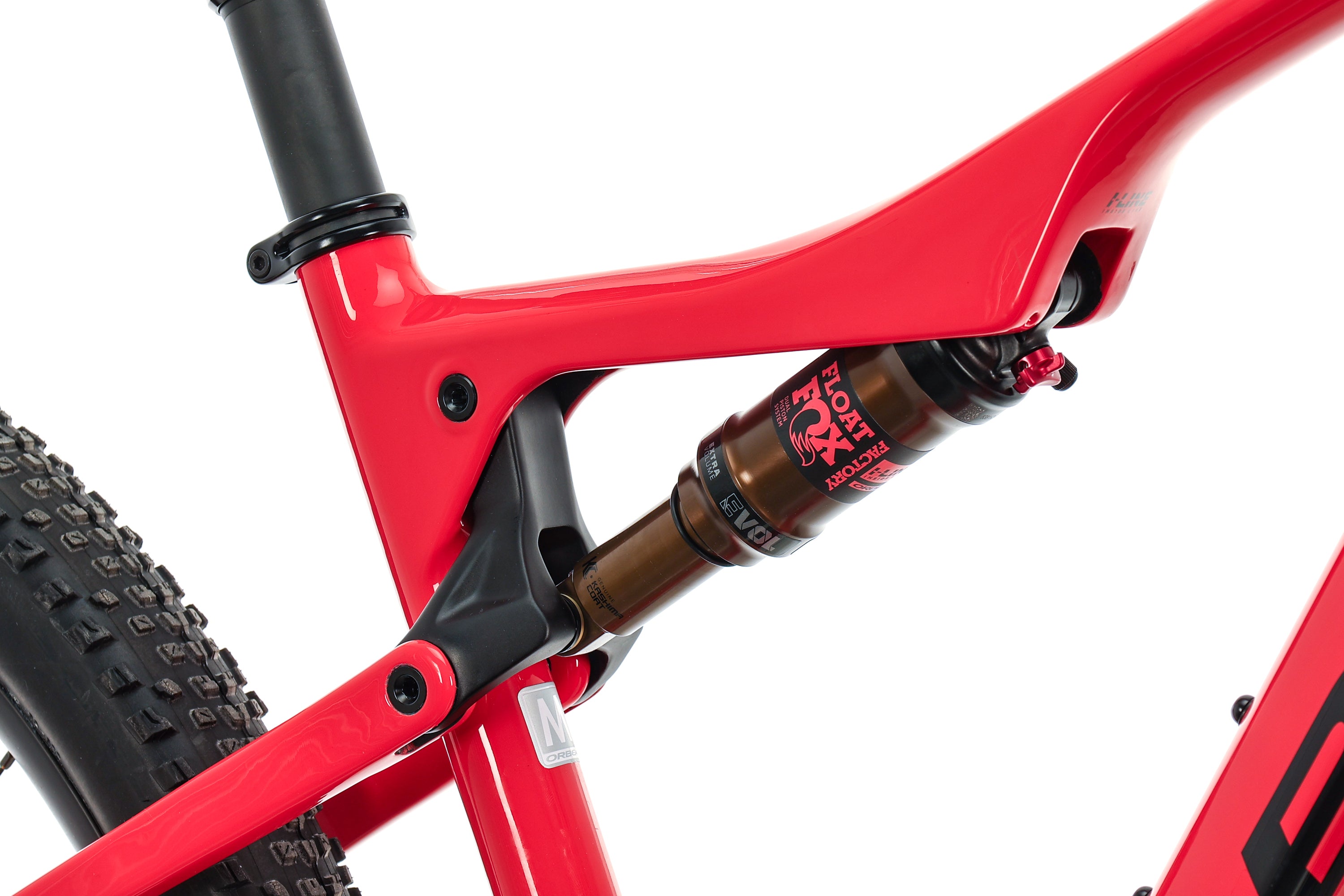

| Rear Shock | FOX Factory Series FLOAT DPS |
| Rear Shock Travel | 120mm |
| Brakes | Shimano XT M8100, Disc Brakes - Hydraulic |
| Shifters | Shimano XT M8100, Mechanical |

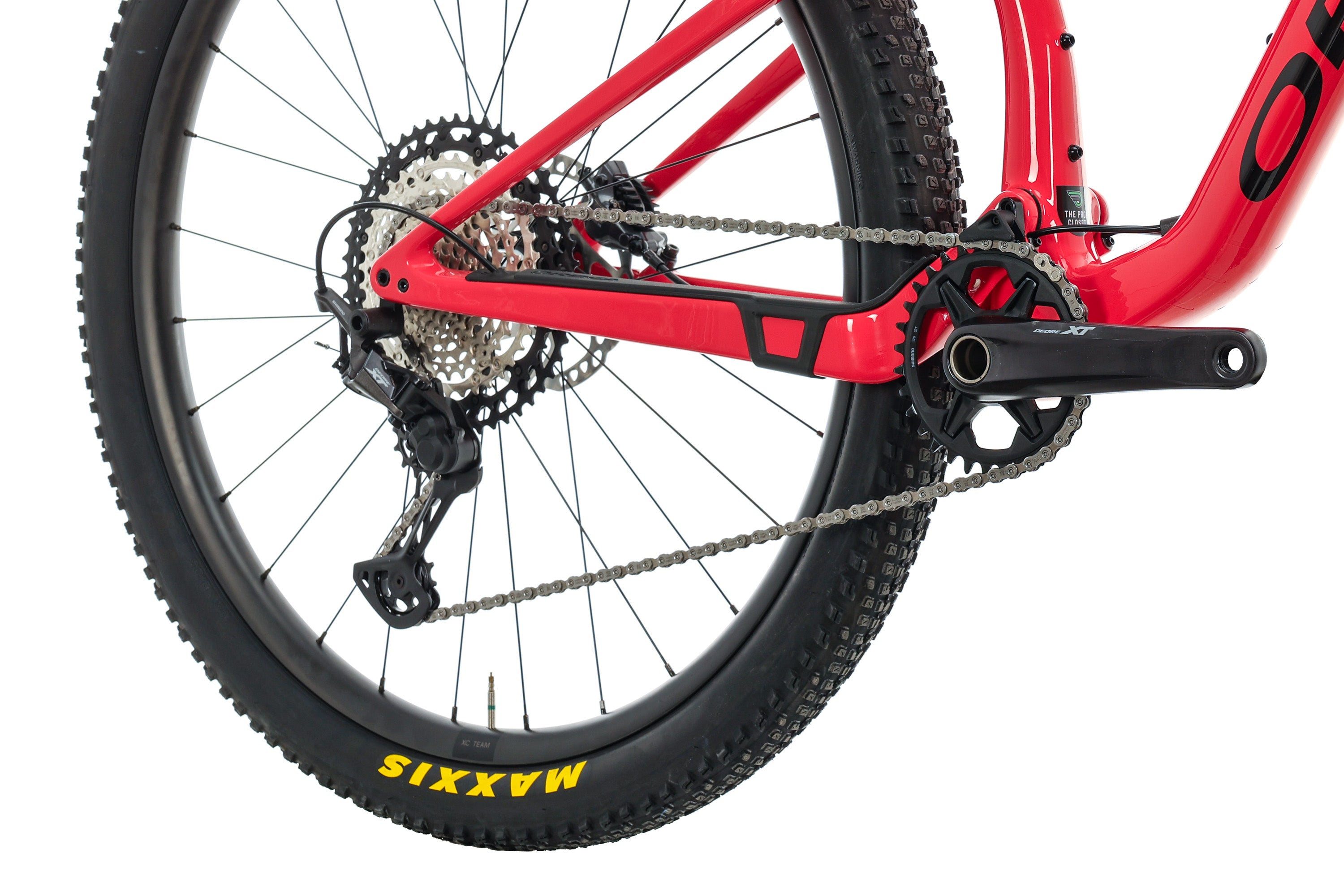

| Rear Derailleur | Shimano XT M8100 |
| Bottom Bracket Shell | Press fit |
| Crankset | Shimano XT M8100 , 32t, 175mm |
| Cassette | Shimano XT M8100, 10-51t |
| Chain | Shimano |

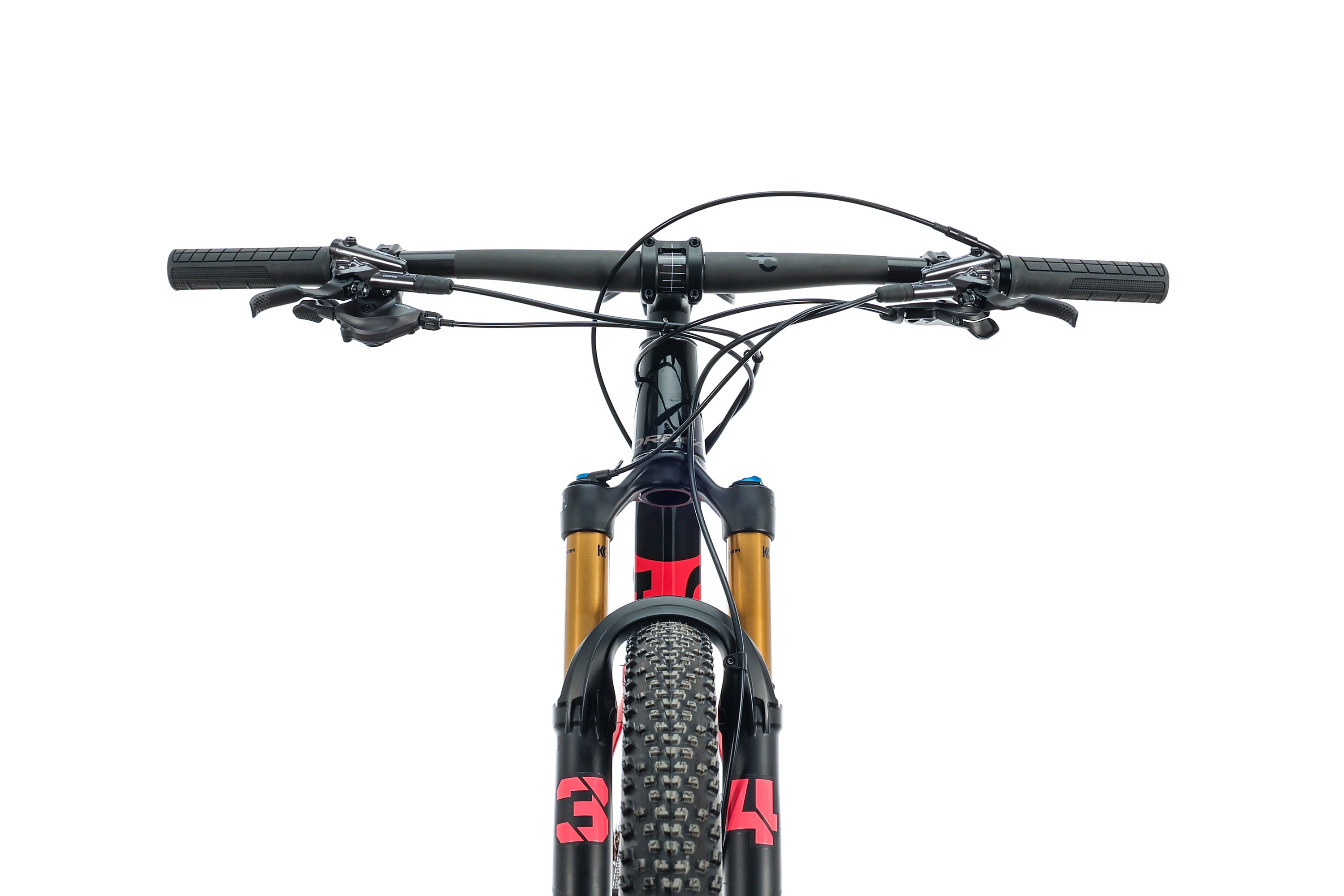

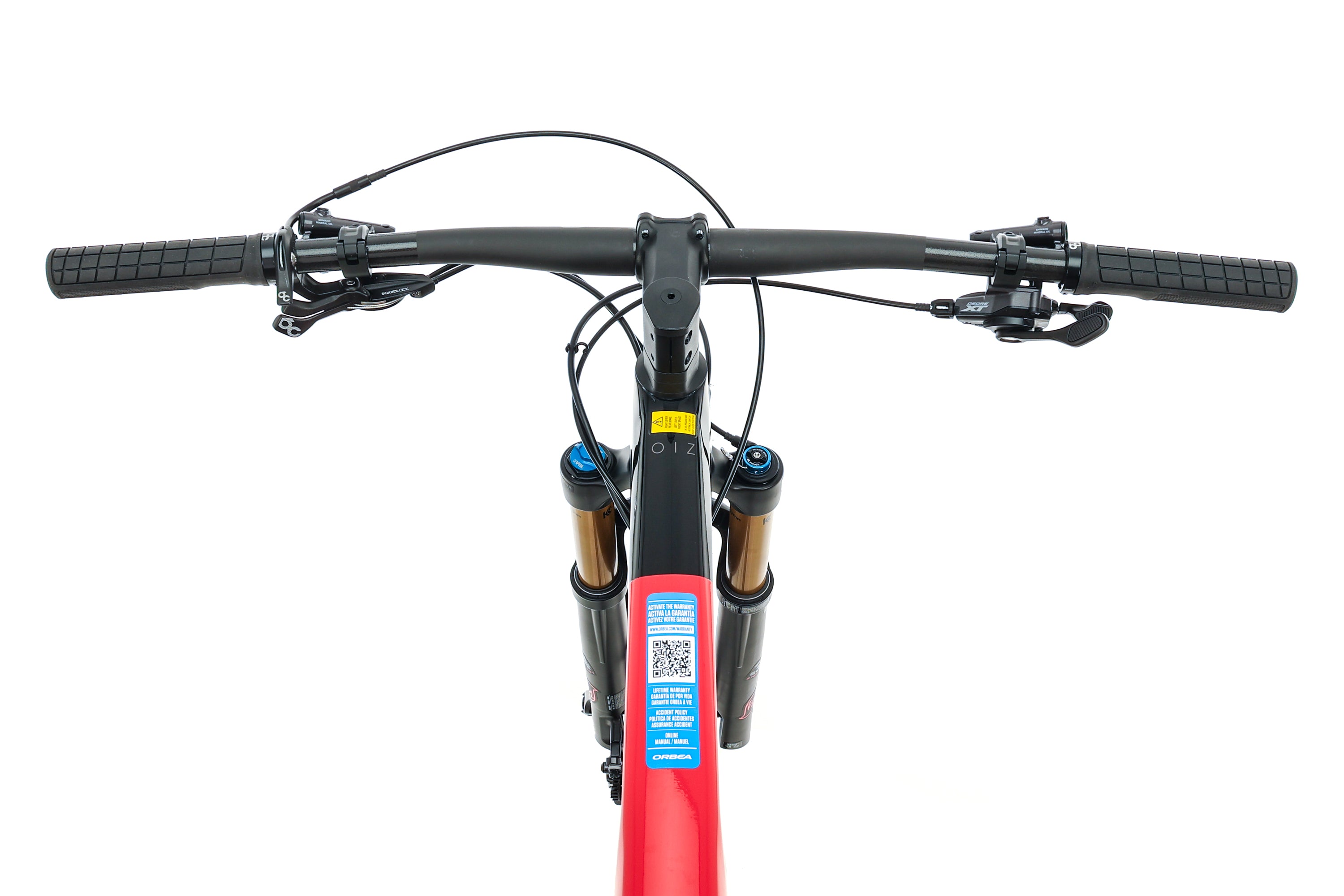

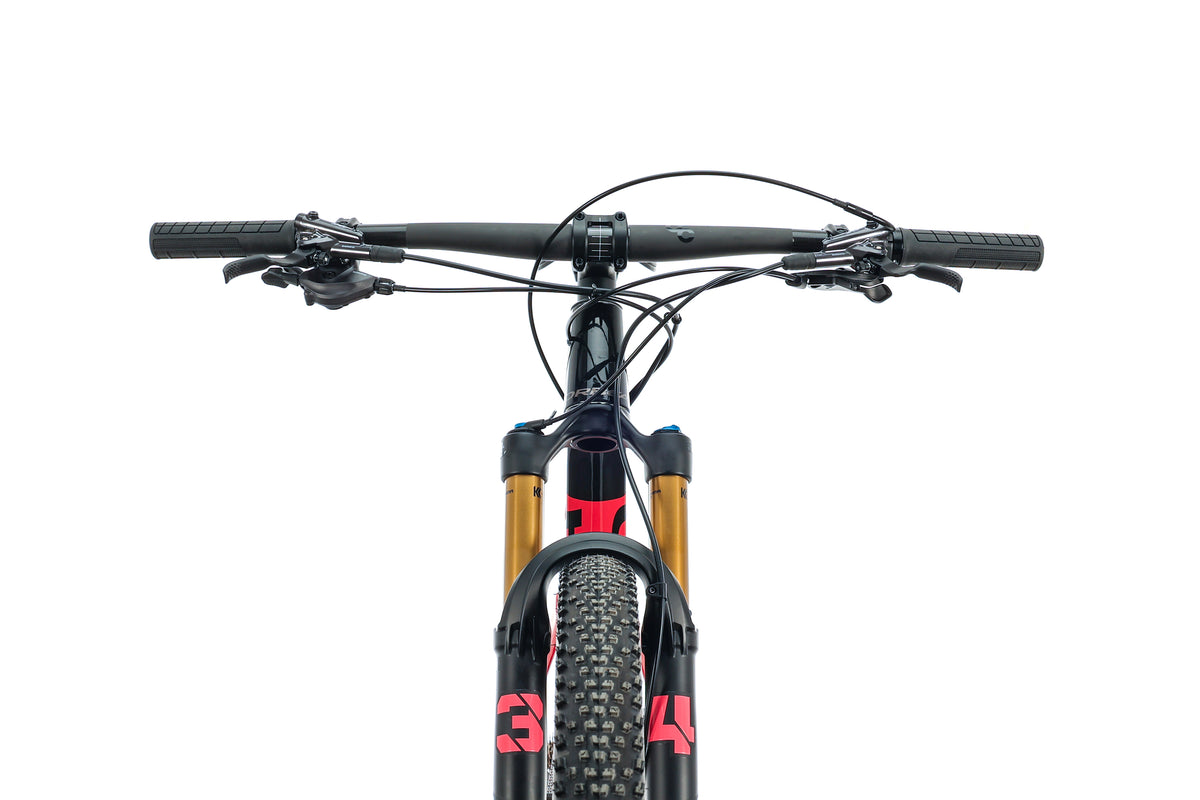

| Handlebar | OC MP10 Mountain Performance Carbon, 760mm |

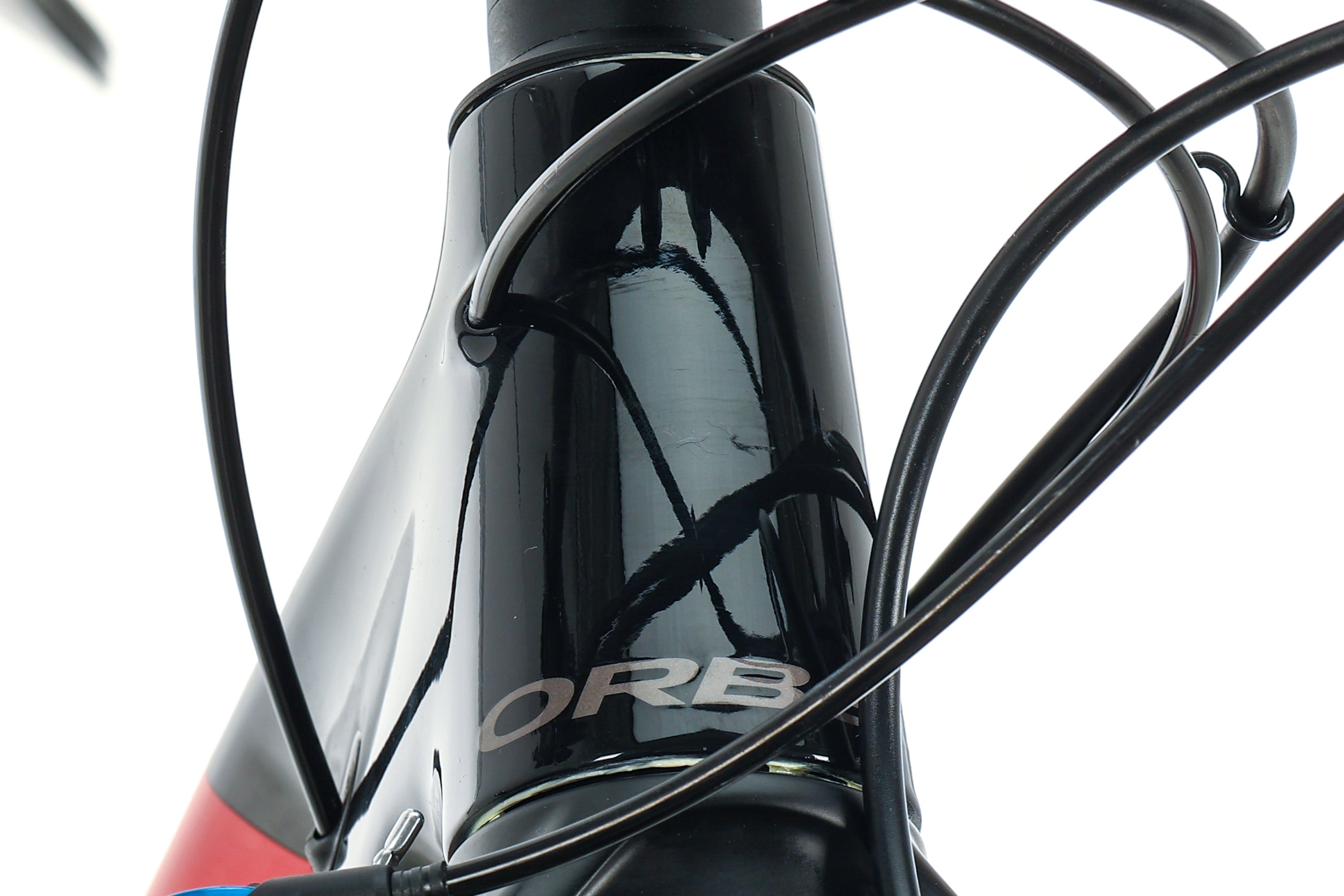

| Headset | Acros |
| Stem | OC MP20 Mountain Performance, 31.8mm x 80mm, 8° |
| Seatpost | OC MC20 Mountain Control, 31.6mm |
| Seatpost Travel | 125mm |
| Saddle | Selle Italia Novus Boost Superflow |
| Front Axle Spacing | 15x110mm (Boost) |
| Rear Axle Spacing | 12x148mm Boost |
| Wheelset | Orbea OC XC Team Disc Carbon Tubeless Compatible, DT Swiss 350 |
| Front Tire | Maxxis Rekon Race EXO TR, 29" x 2.35" |
| Rear Tire | Maxxis Rekon Race EXO TR, 29" x 2.35" |
| Tire Type | Tubeless |
| Tubeless Compatibility | Wheels are tubeless compatible but ships with tubes installed |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'5" - 5'11"
|
| A. Effective Top Tube | 596 mm |
| B. Seat Tube | 432 mm |
| C. Seat Tube Angle | 74° |
| D. Head Tube Angle | 68° |
| E. Head Tube | 95 mm |
| F. Stack | 598 mm |
| G. Reach | 425 mm |
| H. Standover Height | 739 mm |
| I. Saddle Height Range | N/A |
