Shipping
Your bike ships fast for a $94.99 flat rate.
Sorry, this Marin Sausalito E1 Step Thru Commuter E-Bike - 2022, Large has been sold.
Try these similar items:
Tap to Zoom

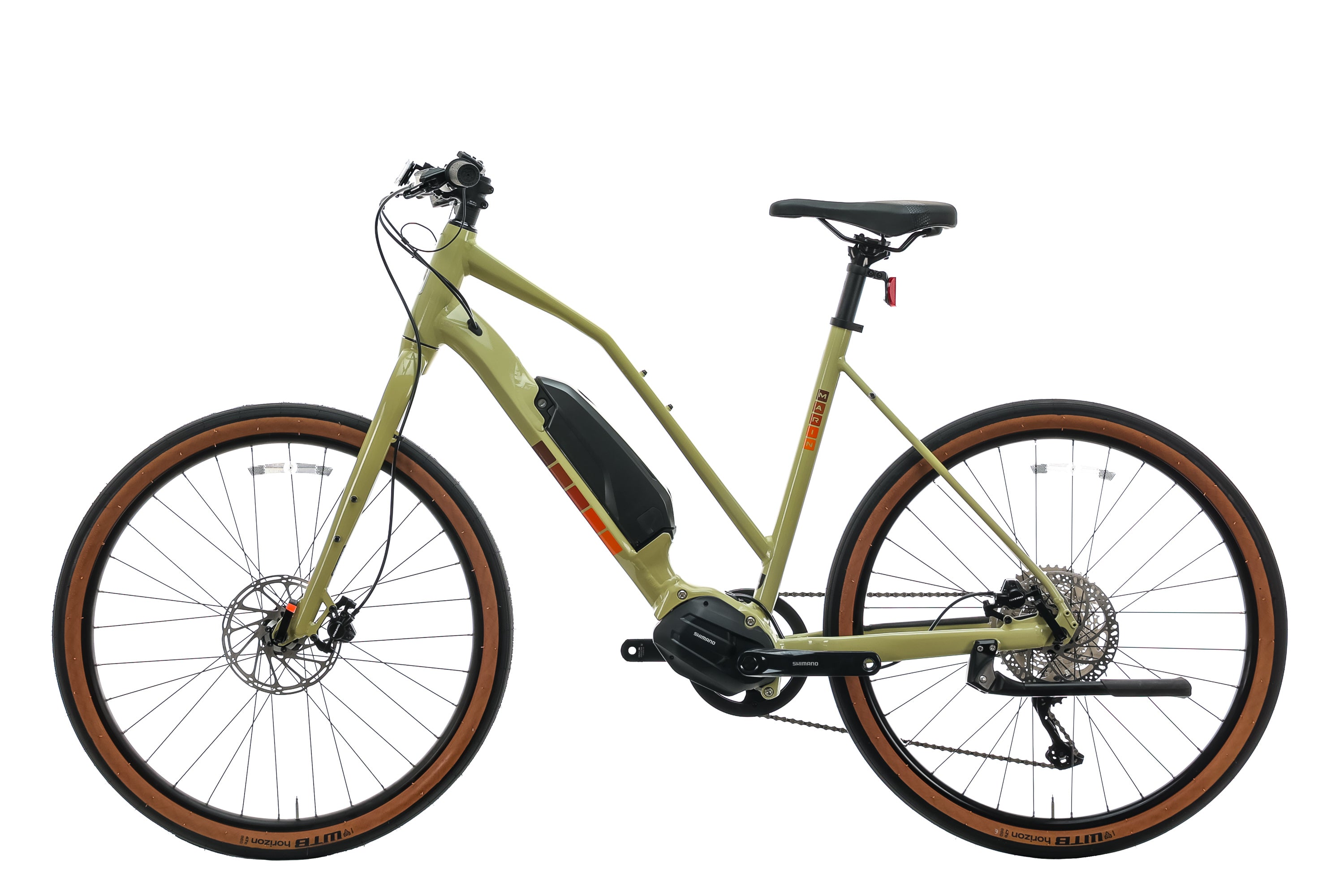

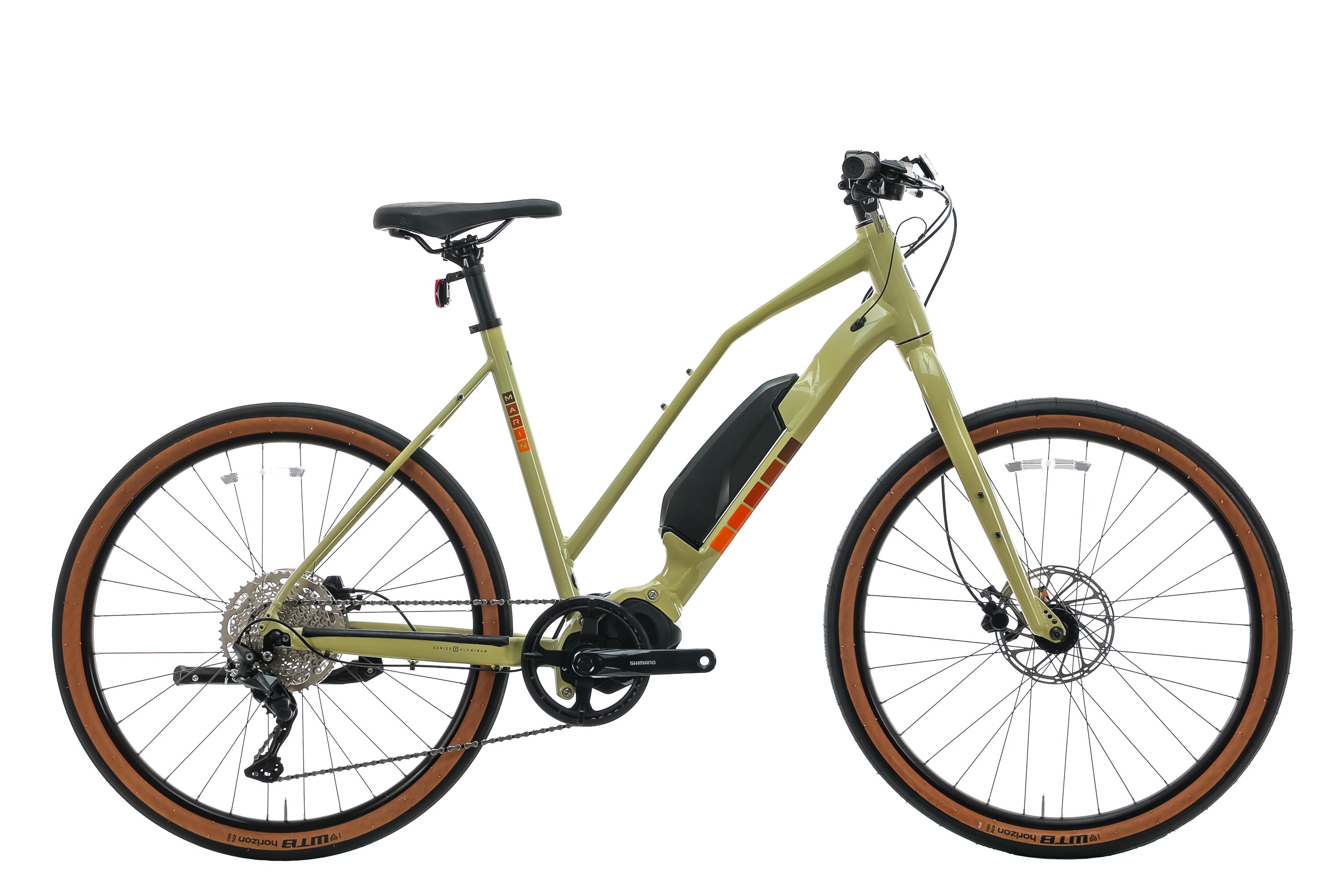

Marin Sausalito E1 Step Thru Commuter E-Bike - 2022, Large
Item #BRD28107
Condition: New
Fit Range: 5'10" - 6'1"
Shipping & Assembly
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Torque tool & video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
Ultimate Urban Commuter
Why We Love It
Features
- Shimano 250w pedal assist
- 418Wh battery for long lasting pedal power
- Mounts for fenders and a cargo rack
Master Mechanic’s Notes
- Bike is new & unridden.
Specifications
Details
| Year | 2022 |
| Brand | Marin |
| Model | Sausalito E1 Step Thru |
| Size | Large |
| Frame Material | Aluminum |

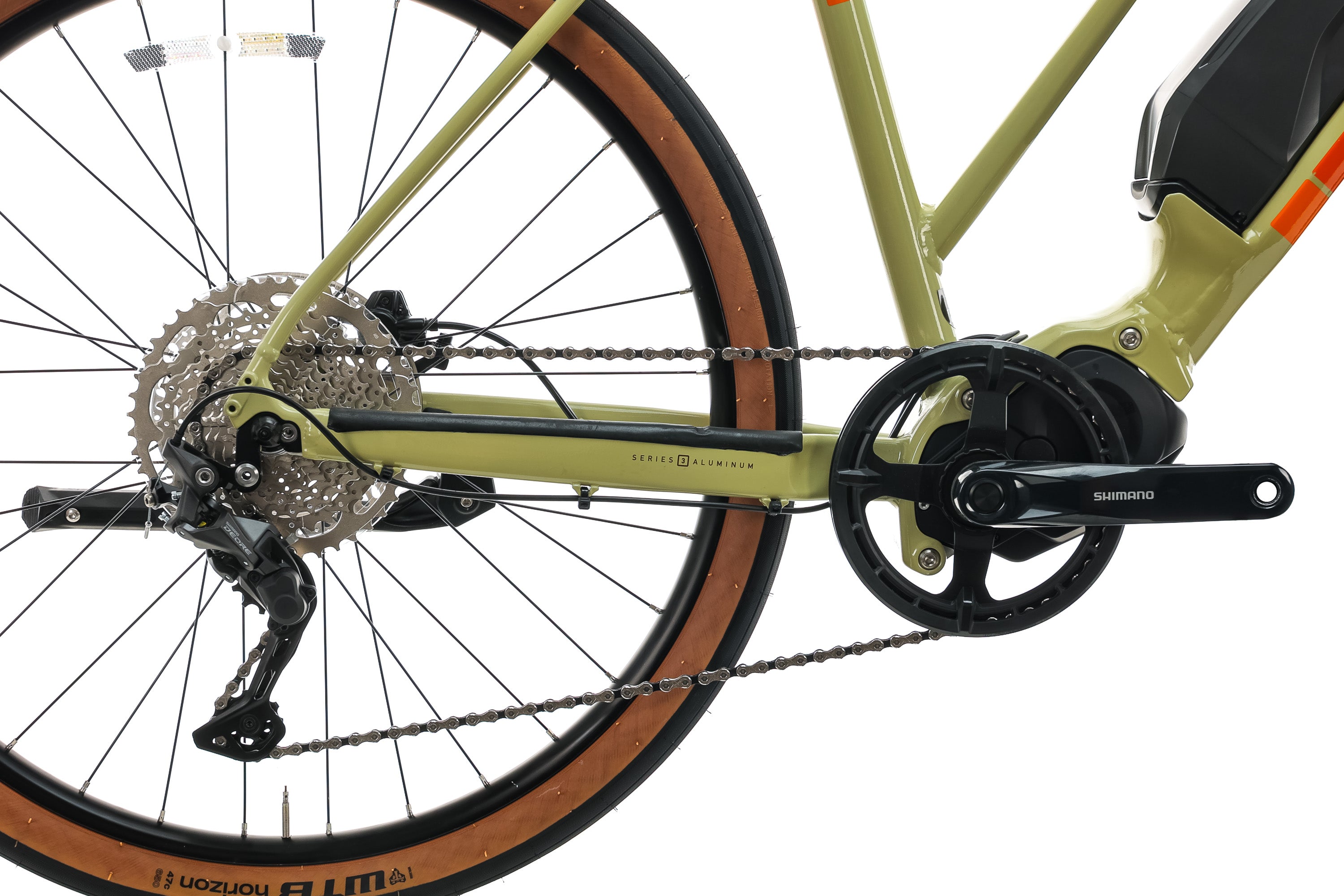

| Drivetrain | Shimano, 1x12 spd |
| Weight | 43 lbs 10 oz |
Build
| Fork | Marin Sausalito , Aluminum |
| Brakes | Tektro HD, Disc Brakes - Hydraulic |
| Shifters | Shimano Deore M4100, Mechanical |
| Rear Derailleur | Shimano Deore M5120 |
| Bottom Bracket Shell | N/A |
| Crankset | Shimano E5010, 44t, 175mm |
| Cassette | Shimano Deore M4100, 11-46t |
| Chain | KMC |
| Handlebar | Marin Alloy, 750mm |
| Headset | Integrated |
| Stem | Marin Alloy, 31.8mm x 45mm, 3° |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin City Plush |
| Front Axle Spacing | 9x100mm (Quick Release) |
| Rear Axle Spacing | 10x135mm |
| Wheelset | Marin Aluminum, Marin |
| Front Tire | WTB Horizon, 650B x 47C |
| Rear Tire | WTB Horizon, 650B x 47C |
| Tire Type | Clincher |
| Tubeless Compatibility | Wheels are not tubeless compatible |
| Motor | Shimano STEPS E5000 |
| Wattage | 250W |
| Battery | Shimano BT6010 |
| Top Speed | 20mph |
| Mileage | 2mi |

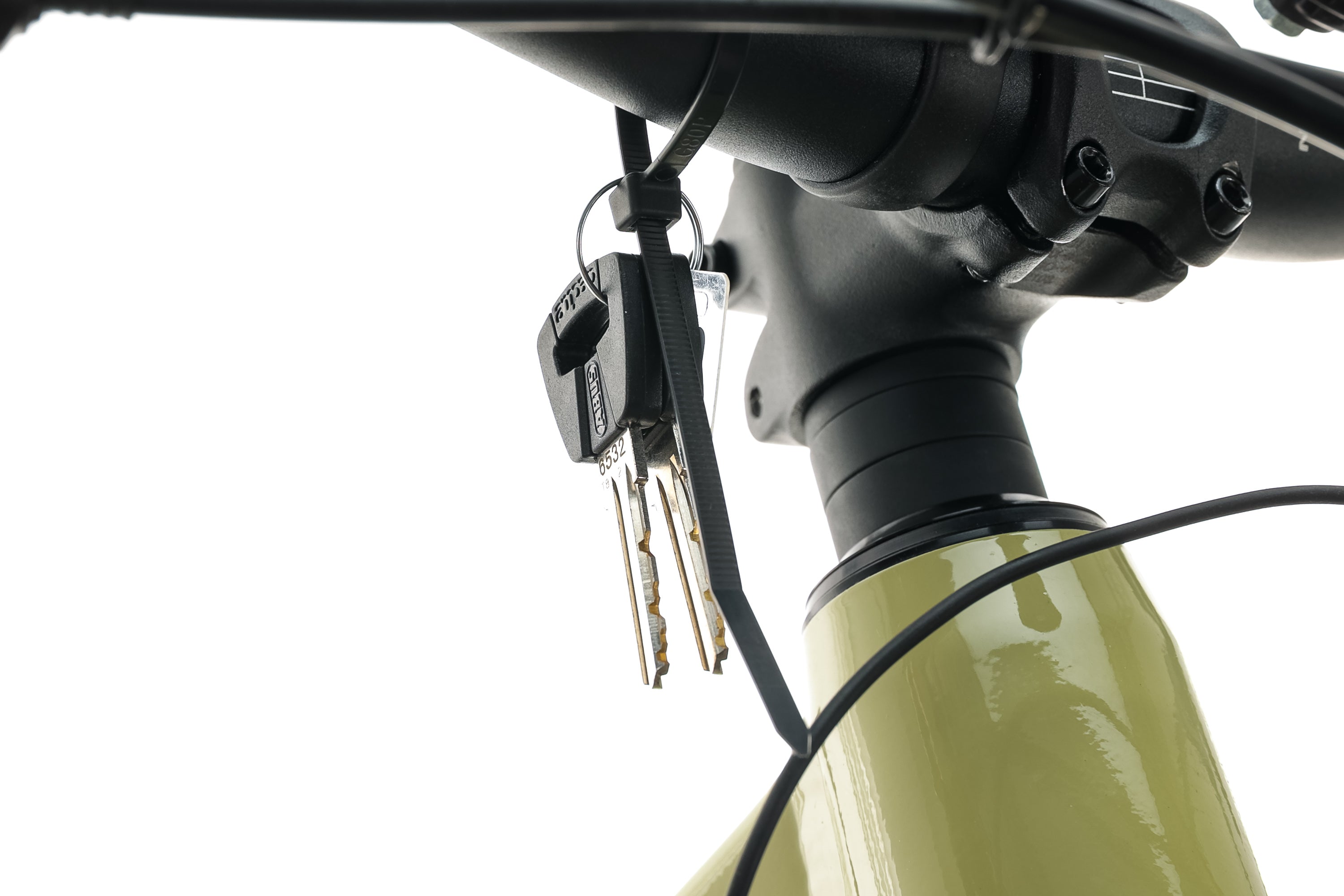

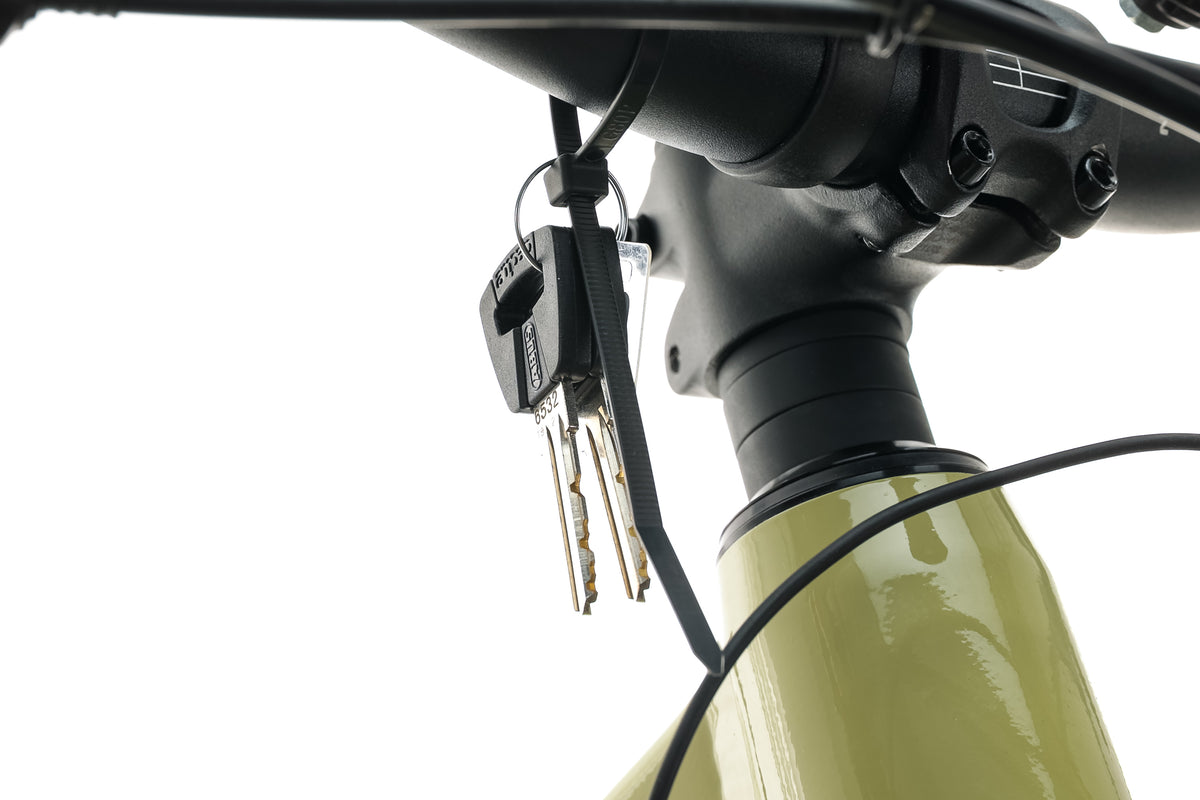

| Key Included | Yes |
| Charger Included | Yes |
| Pedals | Sold separately |
Geometry
| Fit Range |
5'10" - 6'1"
|
| A. Effective Top Tube | 610 mm |
| B. Seat Tube | 520 mm |
| C. Seat Tube Angle | 74° |
| D. Head Tube Angle | 69.5° |
| E. Head Tube | 180 mm |
| F. Stack | 646 mm |
| G. Reach | 425 mm |
| H. Standover Height | 511 mm |
| I. Saddle Height Range | N/A |
Marin Sausalito E1 Step Thru Commuter E-Bike - 2022, Large
Item #BRD28107
Condition: New
Fit Range: 5'10" - 6'1"
Shipping & Assembly
Shipping
Your bike ships fast for a $94.99 flat rate.
Quick Assembly
- Bikes arrive tuned and mostly pre-assembled
- Torque tool & video guide included
- Get riding in 15 minutes
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
If this bike isn't perfect for you, our Ride Guides will help you find the right one.
Changing the way cyclists buy bikes.
Who is TPC?
We’re fellow bike nerds. We're cyclists who want to find the right bike, components, and accessories for you. That’s why we created our innovative Certified Pre-Owned bike process and why we’re committed to finding the best products you need for your adventures.
Bikes are meant
to be used.
Ask a Ride Guide about this
Marin Sausalito E1 Step Thru Commuter E-Bike - 2022, Large
Sizing Guide
The chart below provides a general suggested range of heights and is not exact. Sizing may vary across brands.
The tailoring of any bike is an important step in the long term enjoyment of riding and it can take time to adjust to the fit of a new bike. All contact points (pedals, shoes, and saddle) can be changed and altered for personal preference, performance, and comfort.
| Measured Frame Size | Frame Size | Min Rider Height | Max Rider Height |
|---|---|---|---|
| 48cm | XS | 4' 11" | 5' 2" |
| 50 cm | Small | 5' 2" | 5' 5" |
| 52 cm | Small/M | 5' 5" | 5' 7" |
| 54 cm | Medium | 5' 7" | 5' 10" |
| 56 cm | Large | 5' 10" | 6' 1" |
| 58 cm | Large/XL | 6' 1" | 6' 3" |
| 60 cm | XL | 6' 3" | 6' 5" |
Contact our Ride Guides if you have any questions about the fit of your new bike.
866.401.9636 - Contact the Ride Guides
Purchase your next bike with the same confidence you would when buying new. We scrutinize age, condition, and quality. If a bike meets the standard, our pro tune and service will guarantee that your ride will be in pristine condition when it arrives at your door.
Full Inspection
At TPC every bike is certified pre-owned and has gone through our 141 point inspection and service. Our aim is to give you confidence that your pre-owned bike is ready to ride and love.
Professional Service
Our mechanics give every CPO bike a pro tune & service. All parts that didn’t pass our inspection are serviced or replaced.
Ridefast Shipping
New bike day is awesome and we don’t want anything to stand in the way of you riding your new bike. That’s why all our Certified Pre-Owned bikes ship in our RideFast box.
Super Easy Returns
We want you to love your bike which is why we offer a 30-day, no questions asked return policy. If the bike isn’t right for you, send it back and we’ll help you find another one.
