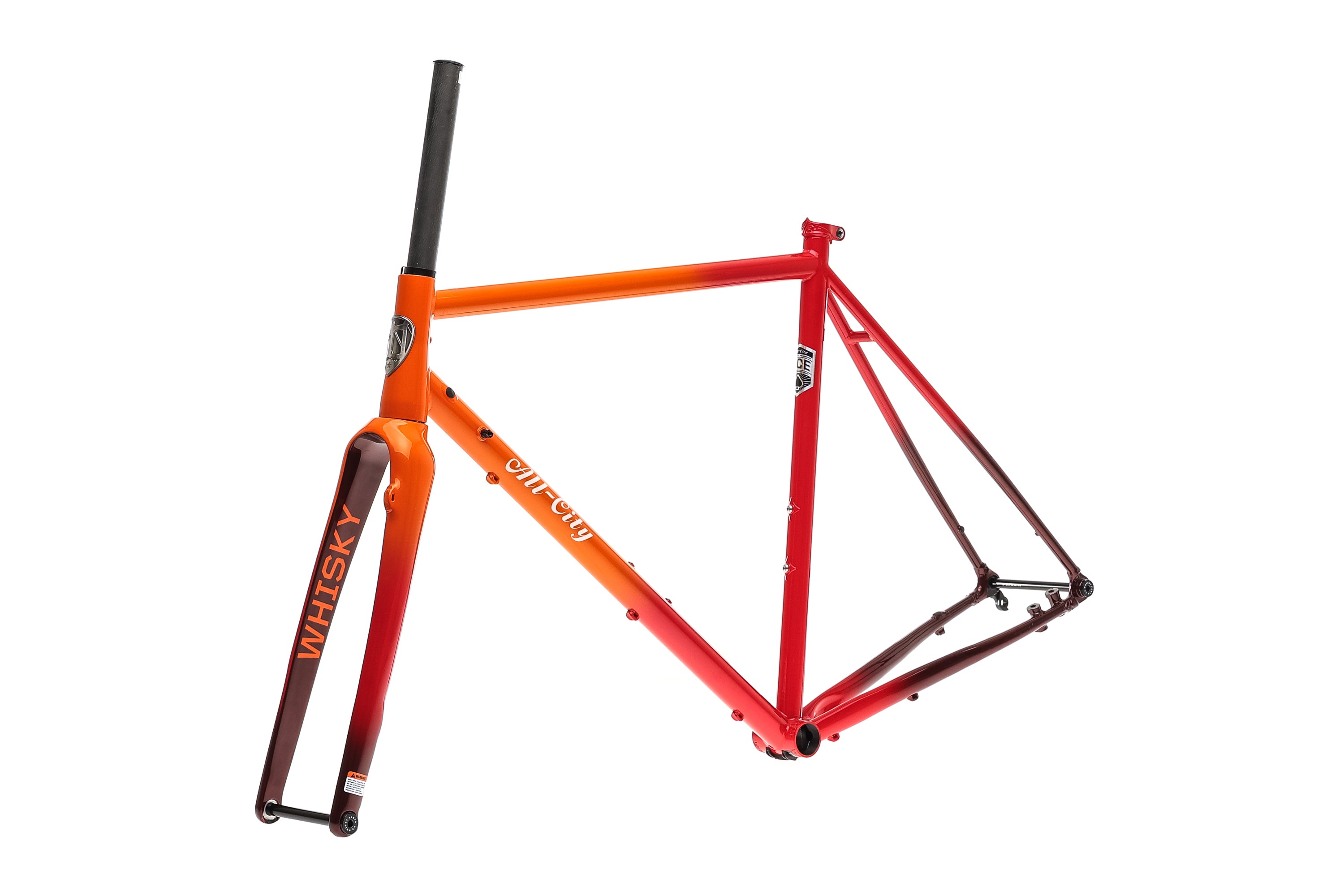

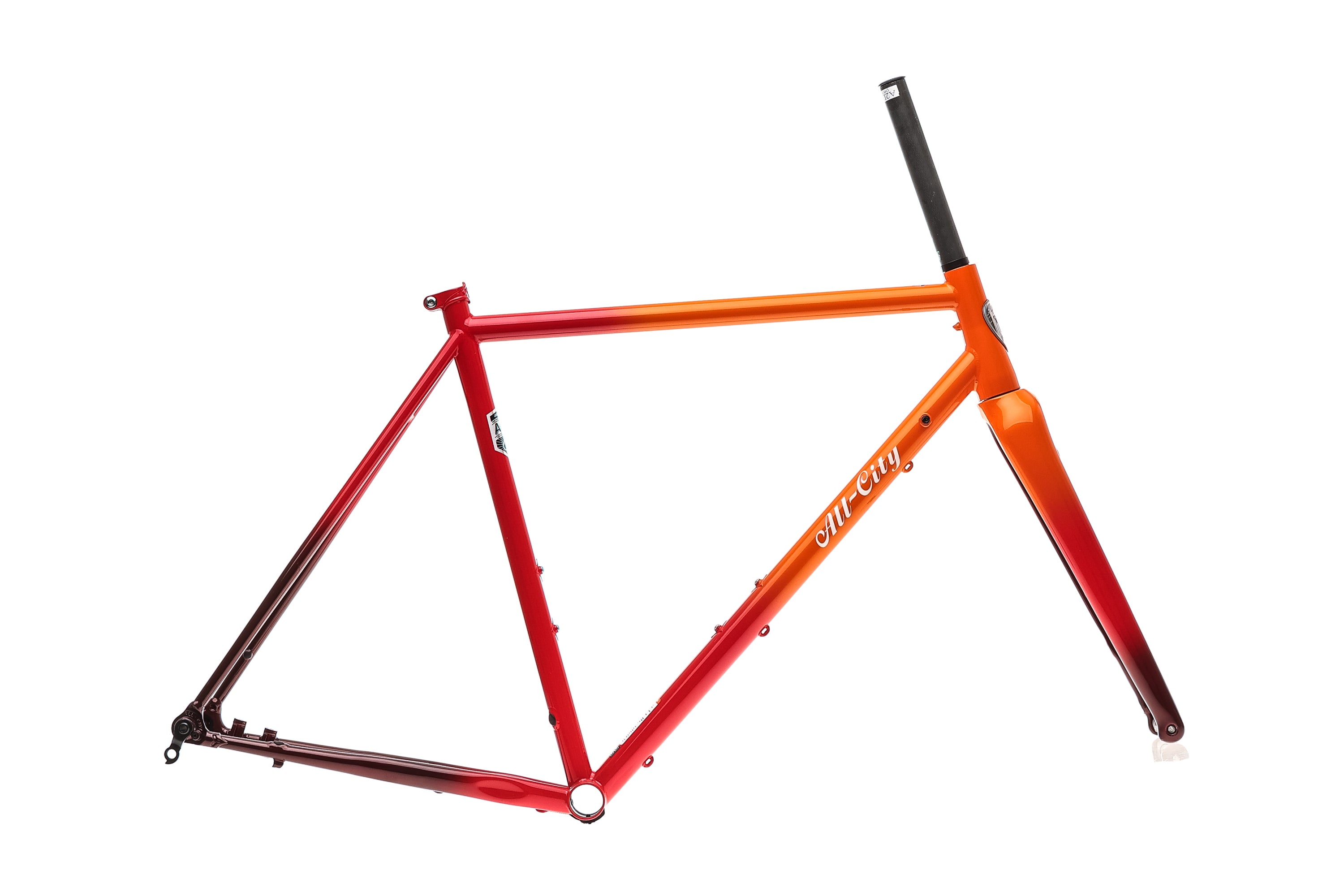

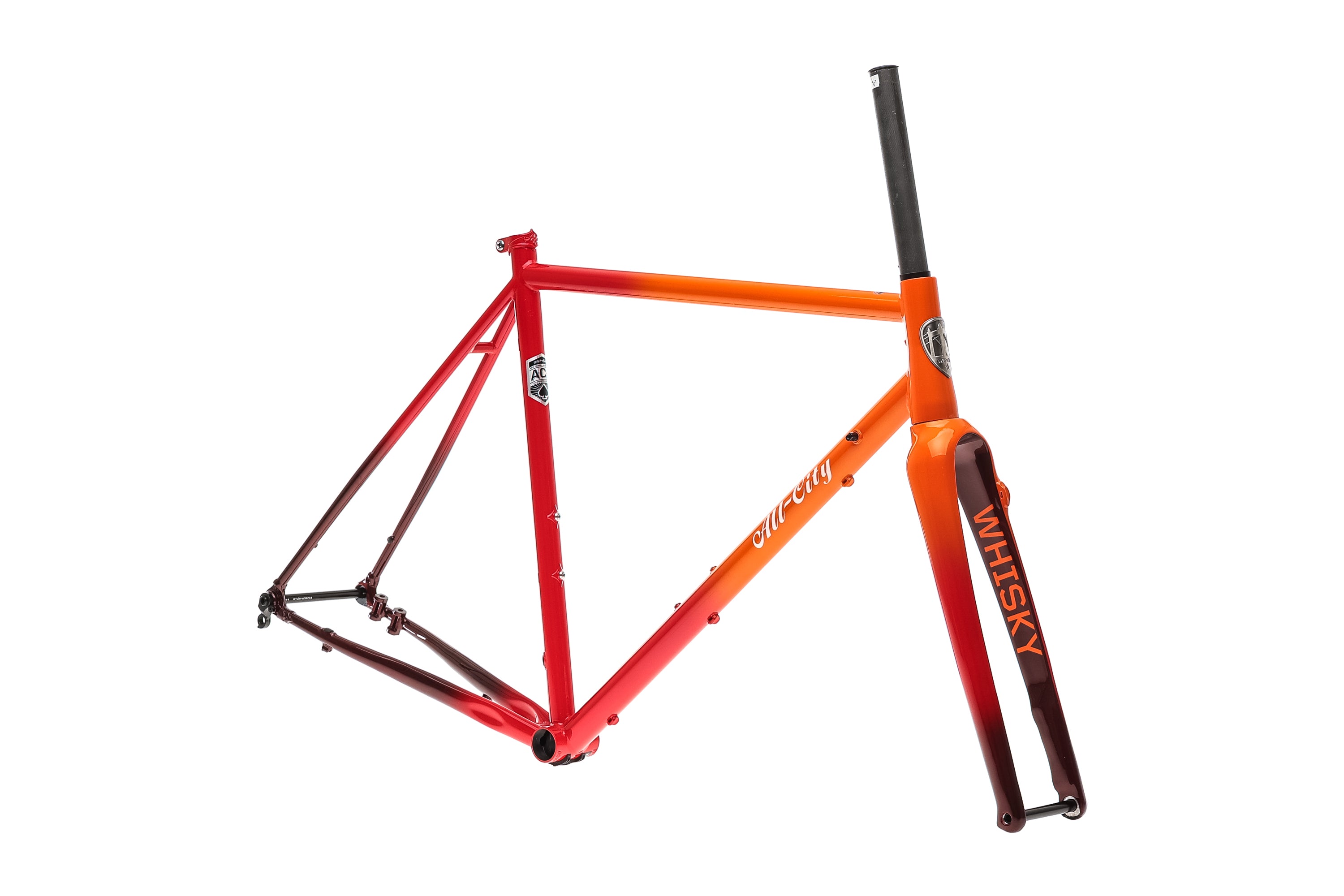

All-City Zig Zag 52cm Frameset - 2022
Item #FRD12848
Condition: Pre-Owned
Fit Range: 5'5" - 5'7"
Questions about this
frame?
Shipping
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
Returns
30-Day Returns
Every product we sell is covered by a hassle-free 30-day satisfaction guarantee.
Everything a Road Bike Should Be
Why We Love It
About This Item
- Crafted with world-class A.C.E. steel tubing to cut weight without sacrificing strength
- Endurance geometry and the silky ride of a steel for all-day comfort
- Modern flat-mount disc brakes for superior braking
- Sleek, hidden fender mounts keep you riding through rain or shine
- Clearance for 32mm tires with fenders, or 35mm without
- We've found All-City bikes run a little big and recommend studying the geometry numbers included on this page or reaching out to our knowledgeable Ride Guides to help make sure you find your correct size.
Master Mechanic’s Notes

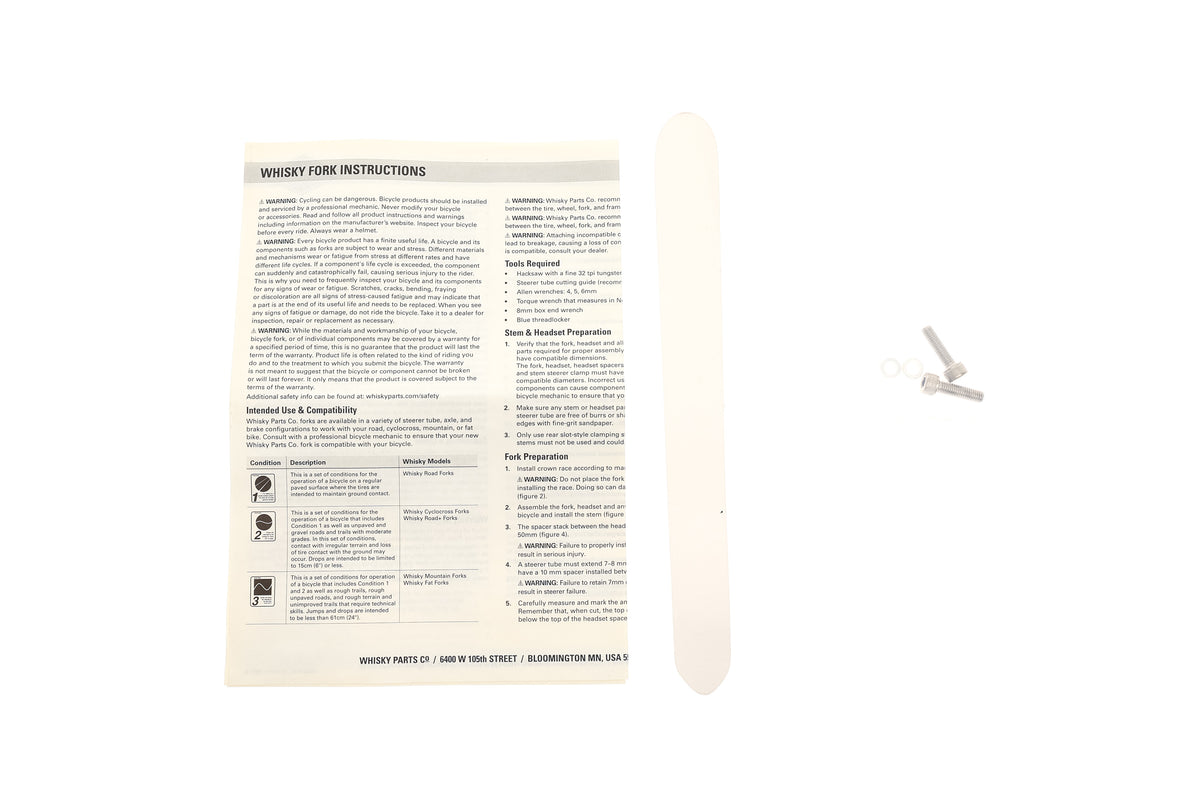

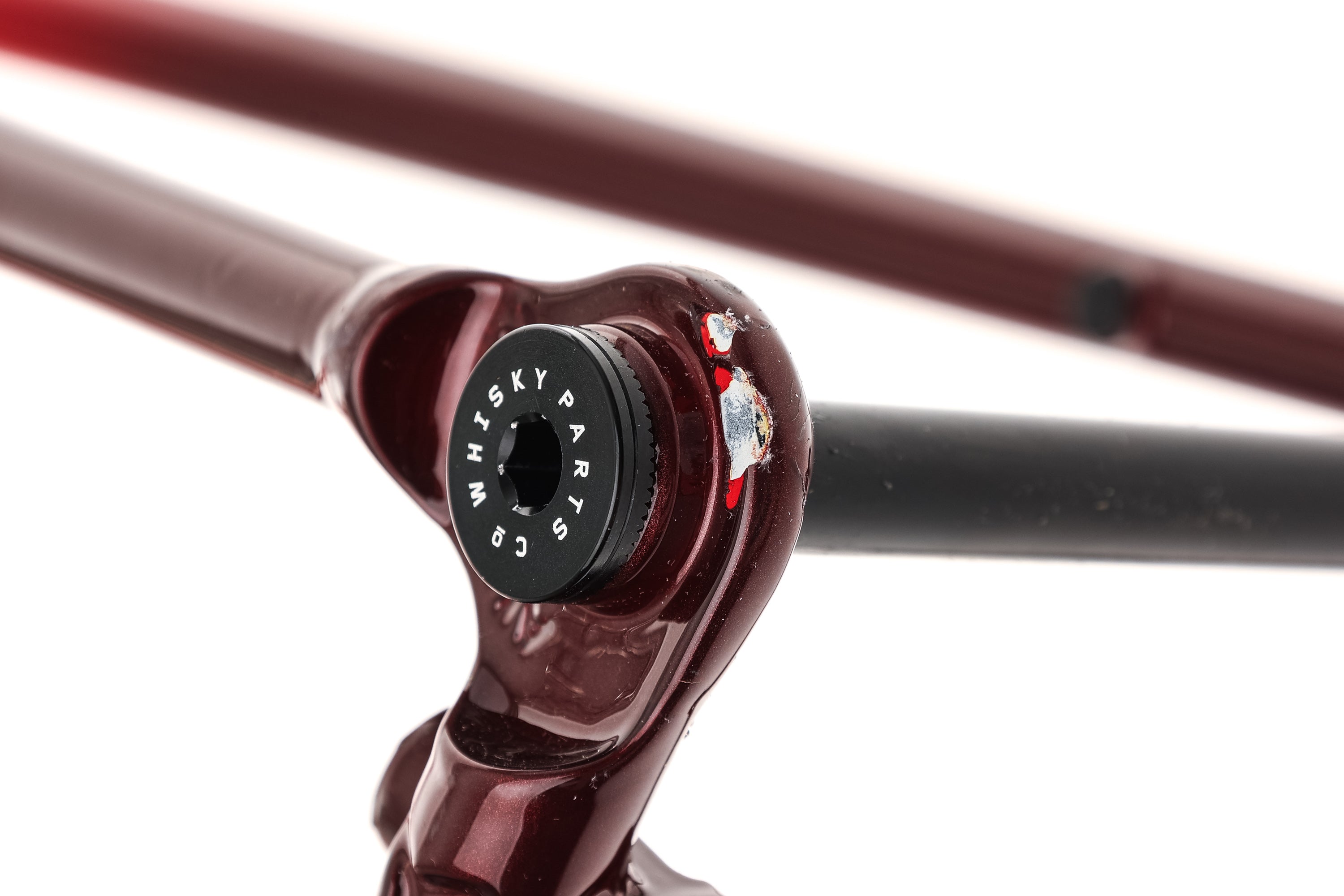

- Includes: Frame, fork, and, rear derailleur hanger (installed)
- Excellent condition

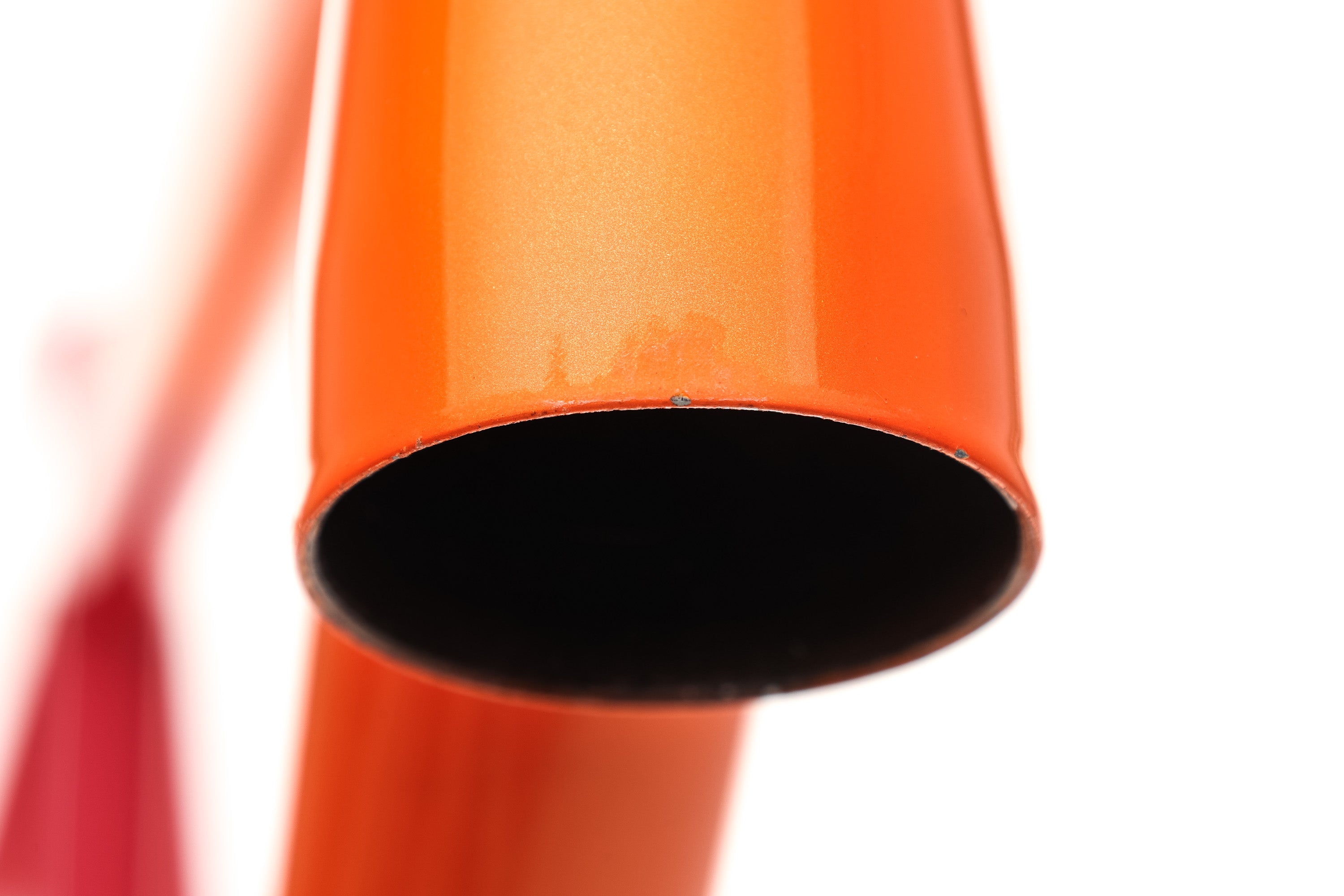

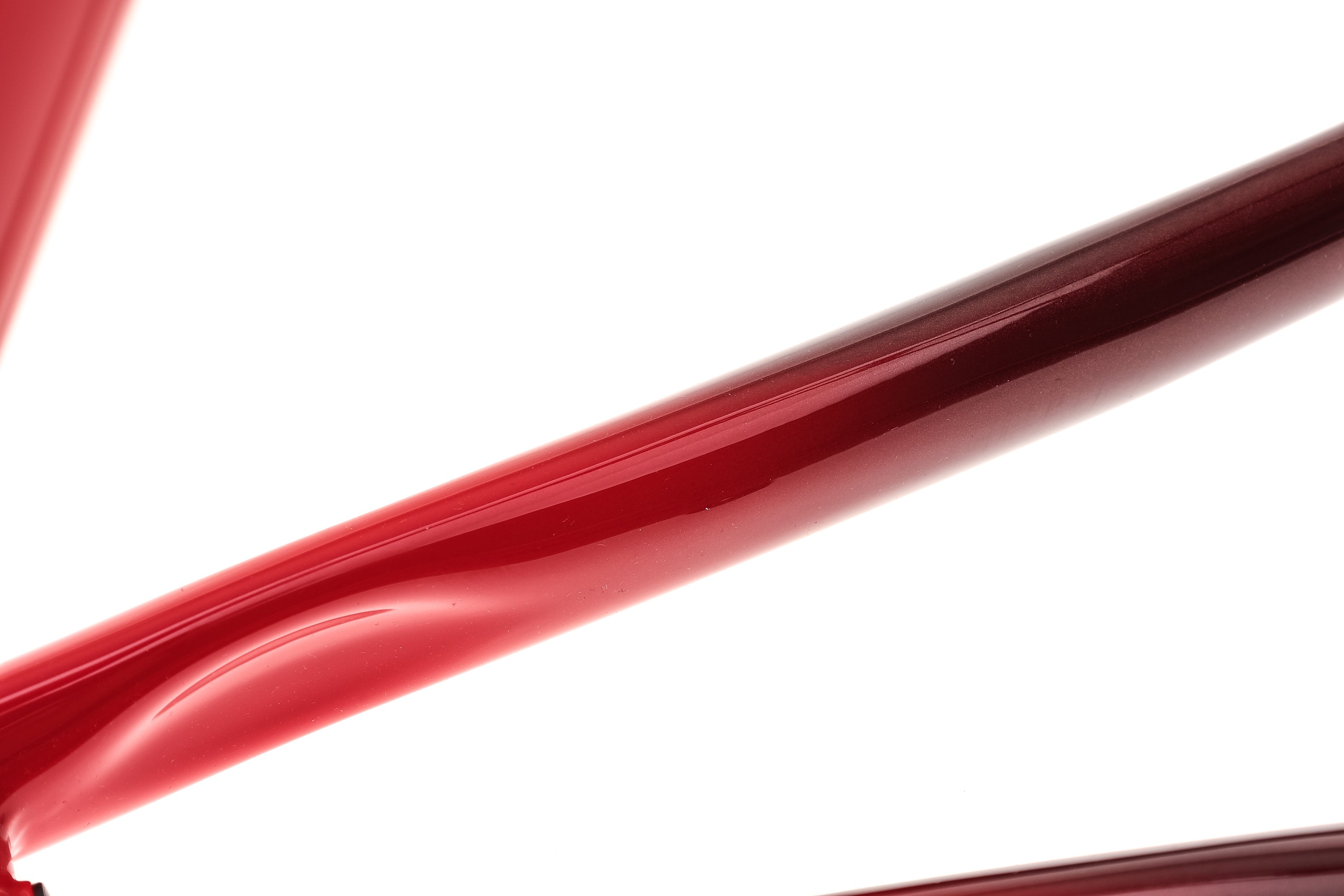

- Light wear and tear from cable/tire rub, heel rub, chain, etc
- Missing derailleur, downtube, bottom bracket and seat stay plug
Specifications
Details
| Original MSRP | $1,350.00 |
| Year | 2022 |
| Brand | All-City |
| Model | Zig Zag |
| Size | 52cm |
| Frame Material | Steel |
| Fork | Whiskey No. 9 |
| Fork Material | Carbon |
| Steerer Tube | 347, Tapered |
| Brake Type | Disc Brakes - Hydraulic |
| Front Derailleur Mount | 28.6mm |
| Bottom Bracket | Not Included, English |
| Wheel Size | 700C |
| Seatpost Diameter | 27.2mm |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Weight | 6 lbs 3 oz |
| Drivetrain Compatibility | Mechanical |
Build
| Fork | Whiskey No. 9, Carbon |
| Brakes | Disc Brakes - Hydraulic |
| Shifters | Mechanical |
| Seatpost | 27.2mm |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
Geometry
| Fit Range |
5'5" - 5'7"
|
| A. Effective Top Tube | 545 mm |
| B. Seat Tube | 520 mm |
| C. Seat Tube Angle | 73.5° |
| D. Head Tube Angle | 72° |
| E. Head Tube | 140 mm |
| F. Stack | 562 mm |
| G. Reach | 384 mm |
| H. Standover Height | 788 mm |
| I. Saddle Height Range | N/A |
