Factor ViSTA CHPT3 Disc 58cm Frameset - 2019
isn't available.
You'll be the first to know next time this or similar products are available.
Factor ViSTA CHPT3 Disc 58cm Frameset - 2019
Item #FRD12490
Condition:
New
Fit Range: 6'1" - 6'3"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
About This Item

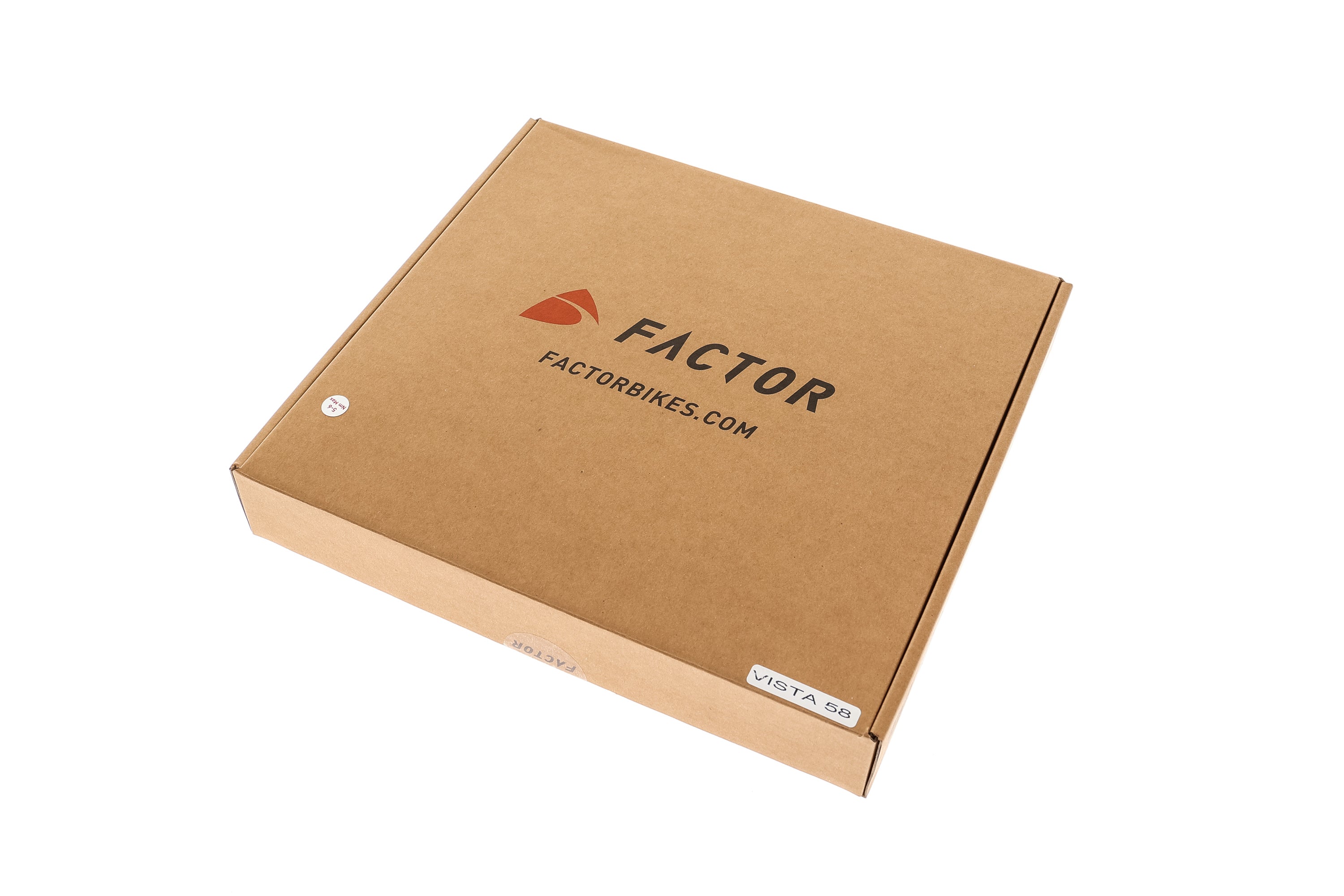

- Frameset is new w/ original packaging and original manufacturer's warranty

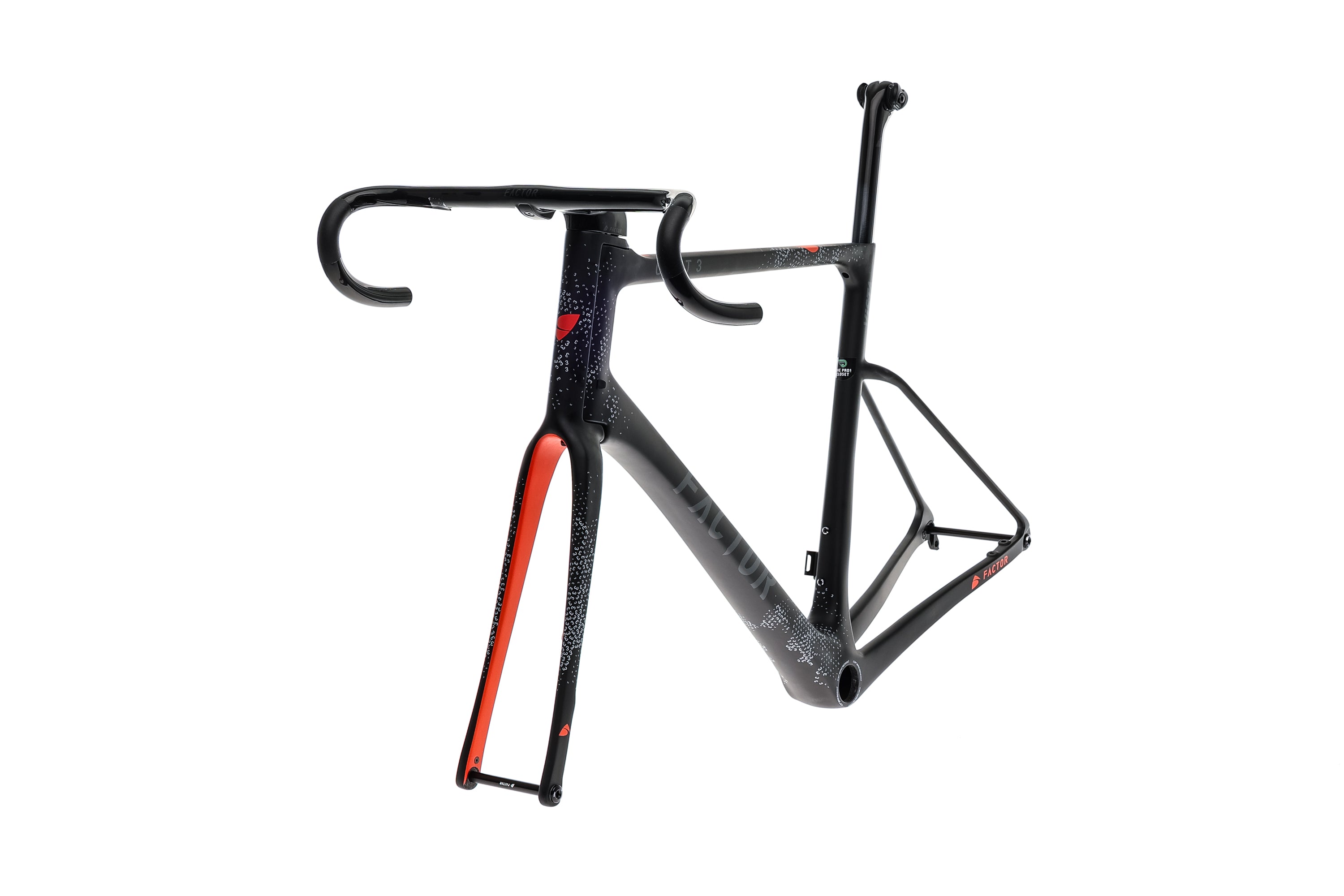

- Includes: Frame, fork, handlebar/stem, headset, bottom bracket, seatpost, thru axles, and rear derailleur hanger (installed)
- Factor Otis All-Road Carbon Integrated handlebar/stem, 44cm x 120mm included
- Frame parts kit included
Specifications
Details
| Year | 2019 |
| Brand | Factor |
| Model | ViSTA CHPT3 Disc |
| Size | 58cm |
| Frame Material | Carbon Fiber |
| Fork | Factor RBi OTIS All-Road Disc |
| Fork Material | Carbon |
| Steerer Tube | 200 mm, Tapered |
| Brake Type | Disc Brakes - Hydraulic |
| Front Derailleur Mount | Braze-On |
| Headset | FSA Integrated w/ Top Cover |
| Bottom Bracket | Included, PF30 |
| Wheel Size | 700C |
| Seatpost Diameter | Frame Specific |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Weight | 5 lbs 6 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Build
| Fork | Factor RBi OTIS All-Road Disc , Carbon |
| Brakes | Disc Brakes - Hydraulic |
| Shifters | Mechanical/Electronic |
| Headset | FSA Integrated w/ Top Cover |
| Seatpost | Factor RBi Carbon All-Road w/ 15mm Setback , Frame Specific |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
Geometry
| Fit Range |
6'1" - 6'3"
|
| A. Effective Top Tube | 575 mm |
| B. Seat Tube | 548 mm |
| C. Seat Tube Angle | 73.5° |
| D. Head Tube Angle | 72.5° |
| E. Head Tube | 189 mm |
| F. Stack | 610 mm |
| G. Reach | 394 mm |
| H. Standover Height | 825 mm |
| I. Saddle Height Range | N/A |
