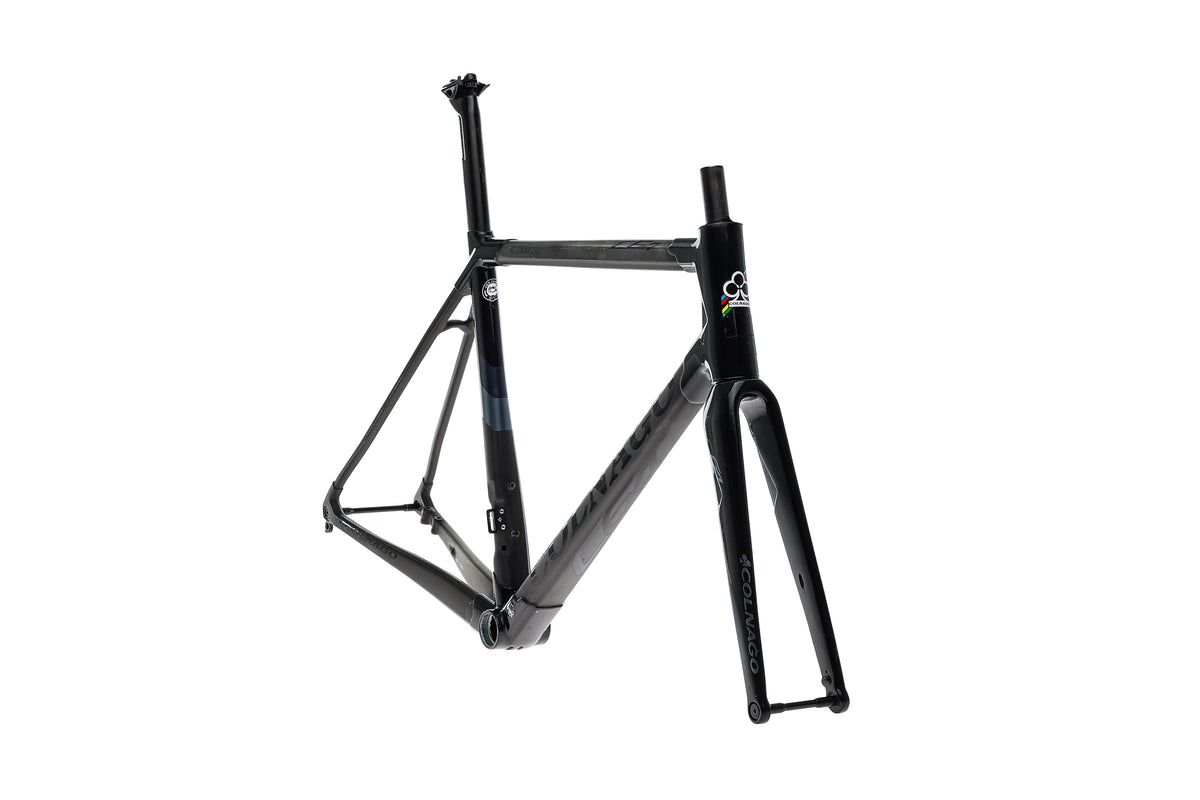

Colnago C64 Disc 54cm Frameset - 2020

Name: Colnago C64 Disc 54cm Frameset - 2020
Brand: Colnago
SKU: FRD12536
Price: 3999.99 USD
Availability: InStock

Item #FRD12536

Recommended Rider Height: 5'7" - 5'10" Sizing Guide

Condition: Pre-Owned

SHIPPING

RETURNS

Product Details

About This Item

Includes: Frame, fork, headset, seatpost, thru axles, and rear derailleur hanger (installed).
Frameset is in good condition.

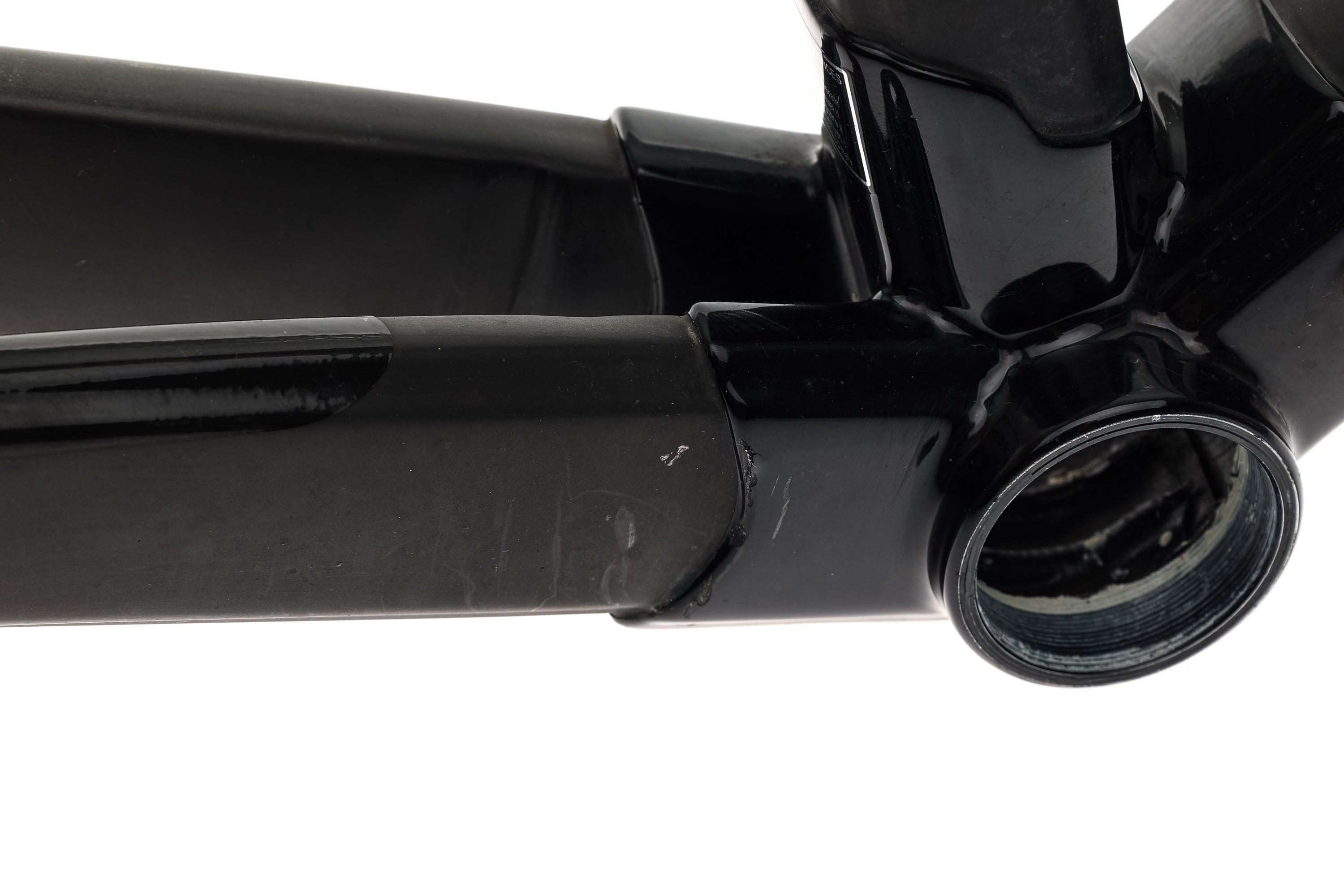

Light wear and tear from cable rub, heel rub, chain, etc.

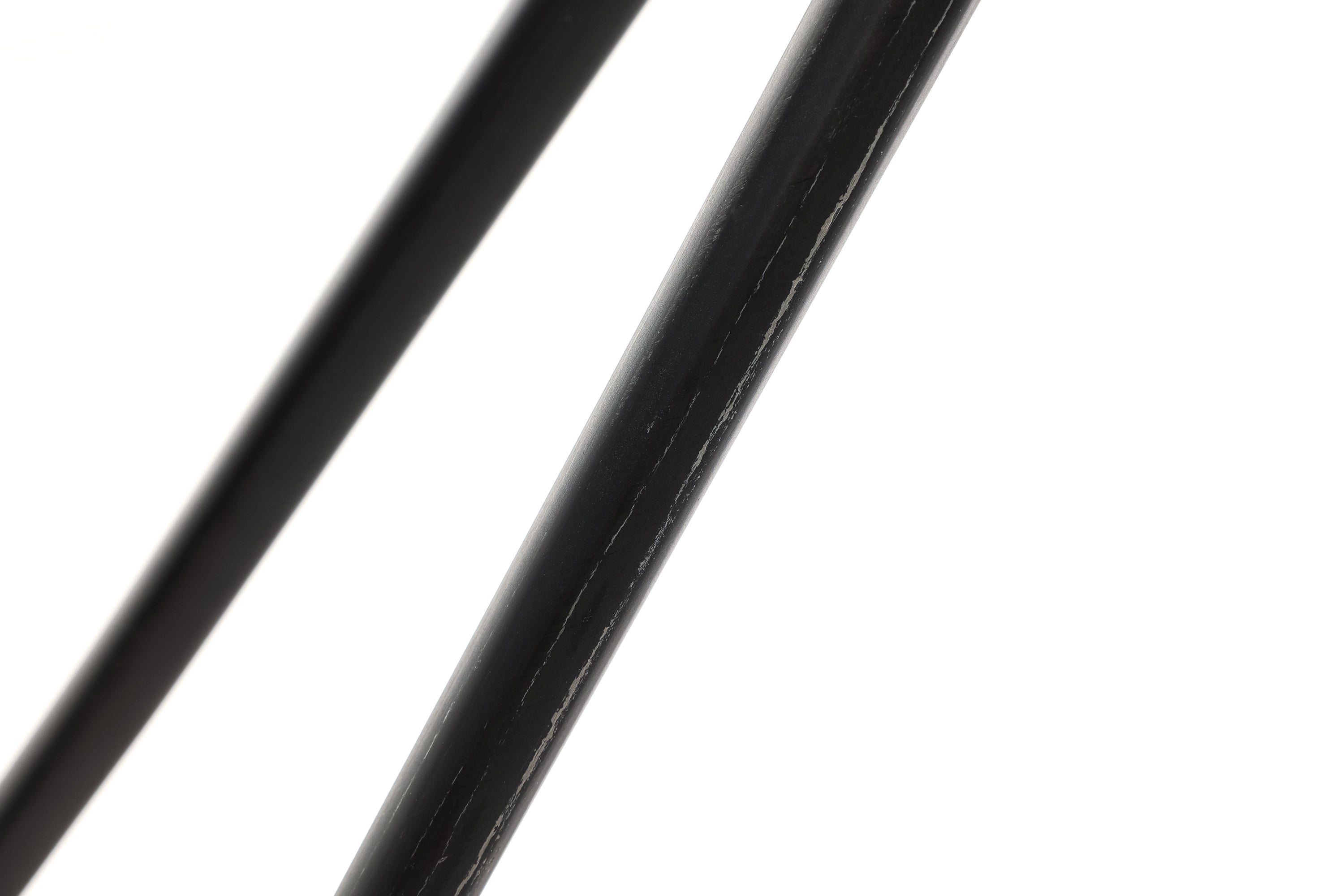

Frameset has some moderate scratches/scuffs.
Cable grommets/guides not included.

Specifications

Details

Year	2020
Brand	Colnago
Model	C64 Disc
Size	54cm
Frame Material	Carbon Fiber
Fork	Colnago C64 Disc
Fork Material	Carbon
Steerer Tube	250 mm, Tapered
Brake Type	Disc Brakes - Hydraulic
Front Derailleur Mount	Braze-On
Headset	Not Included
Bottom Bracket	Not Included, BB86
Wheel Size	700C
Seatpost Diameter	Frame Specific
Seatpost Clamp	Yes
Front Axle Spacing	12x100mm (Thru-Axle)
Rear Axle Spacing	12x142mm
Weight	4 lbs 8 oz
Drivetrain Compatibility	Mechanical/Electronic

Geometry

Recommended Rider Height	5'7" - 5'10" Sizing Guide
a. Effective Top Tube	565 mm
b. Seat Tube	540 mm
c. Seat Tube Angle	72.8°
d. Head Tube Angle	72.5°
e. Head Tube	175 mm
f. Stack	583 mm
g. Reach	385 mm
h. Standover Height	N/A
i. Saddle Height Range	N/A
