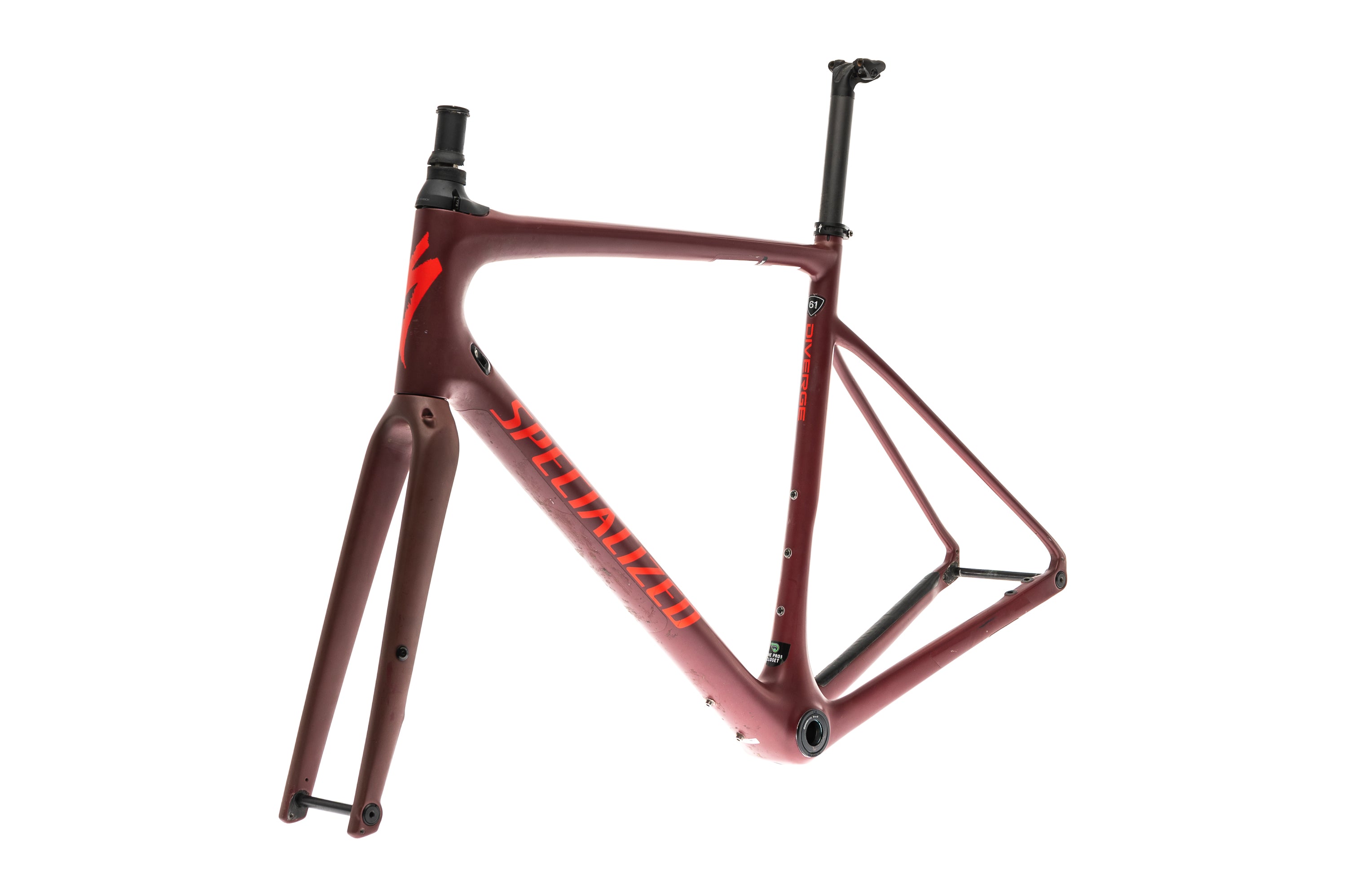

Specialized Diverge Carbon Disc 61cm Frameset - 2020
isn't available.
You'll be the first to know next time this or similar products are available.
Specialized Diverge Carbon Disc 61cm Frameset - 2020
Item #FGR10148
Condition:
Pre-Owned
Fit Range: 6'2" - 6'5"
people are looking at this
Shipping
Canadian Customers
Please note that any duties, taxes, or surcharges as required by Canadian customs and provincial authorities will be the buyer's responsibility. Shipping to Canadian addresses may take longer than expected due to customs.
About This Item

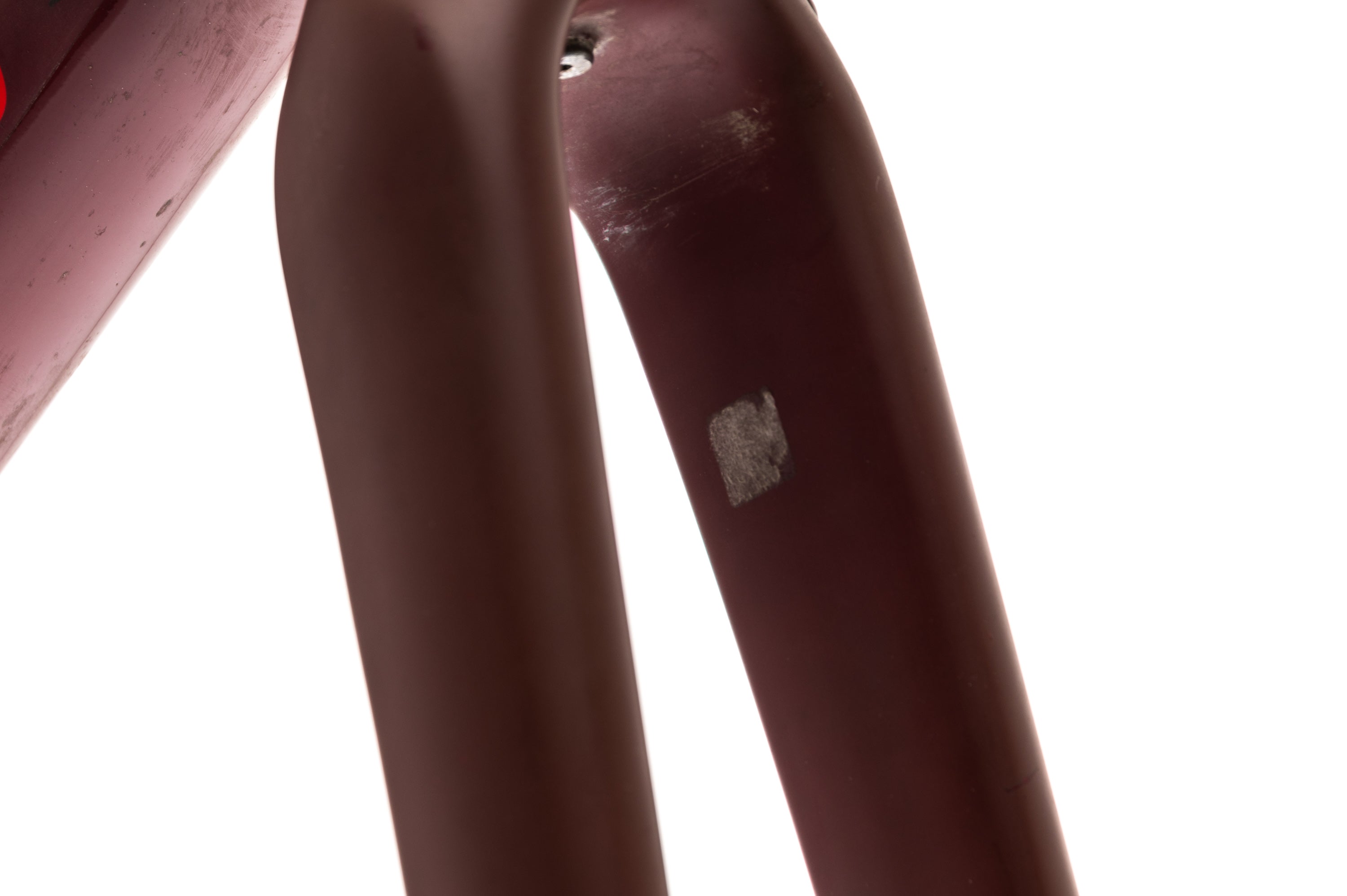

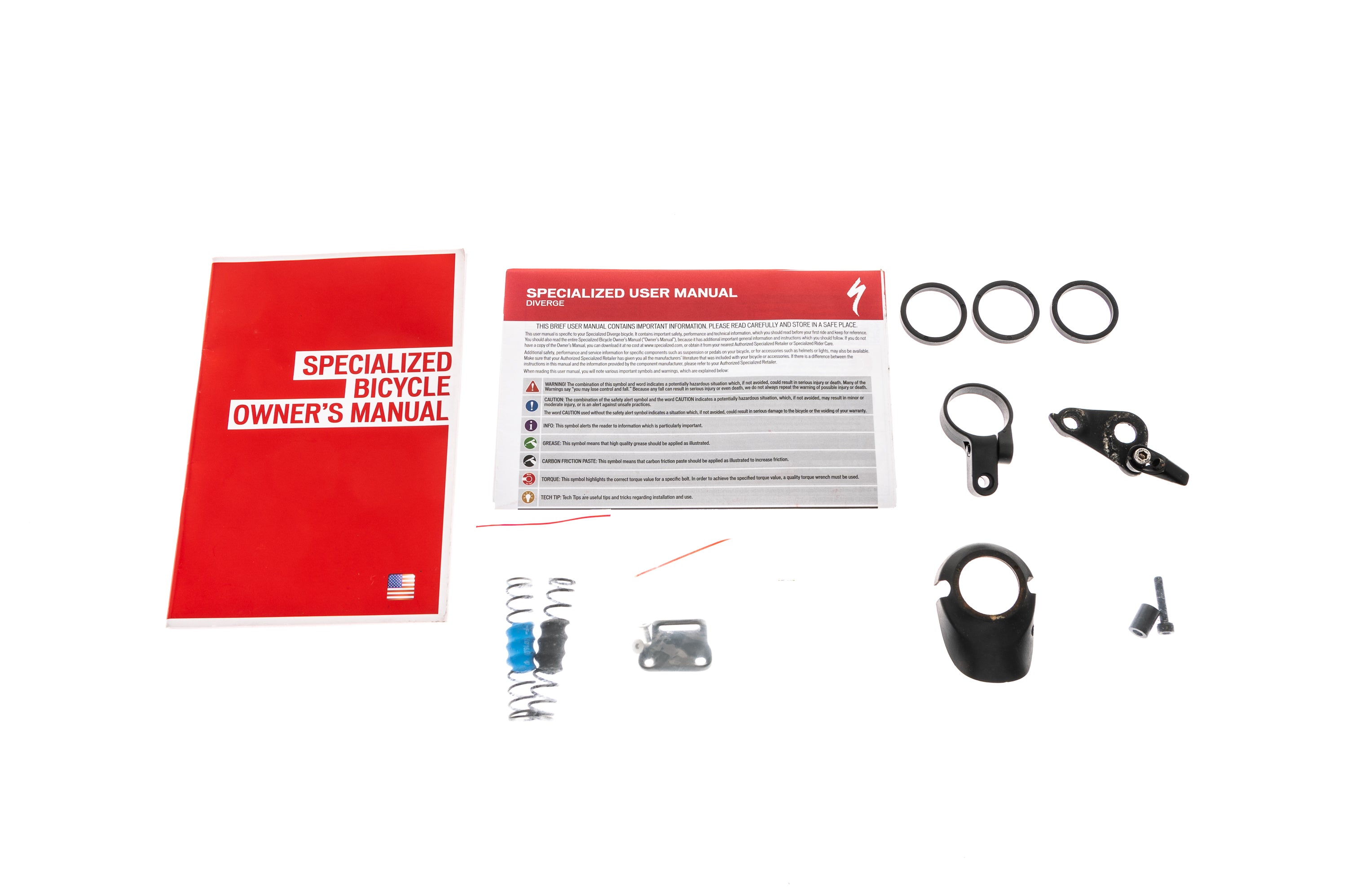

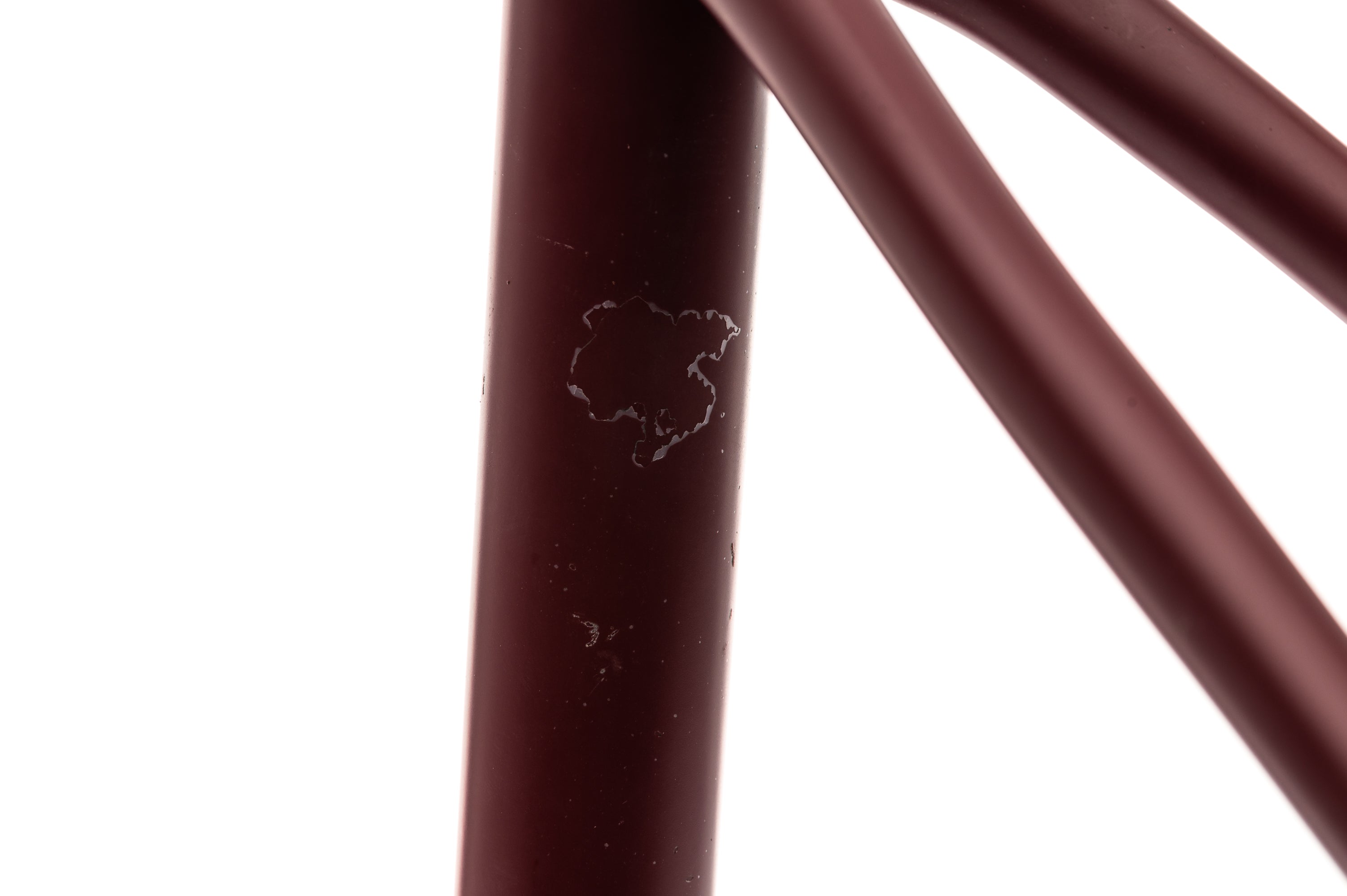

- "Mechanic's Comments:\n- Includes: Frame, fork, headset, seatpost, thru axles, & rear derailleur hanger (installed).\n- Moderate wear and tear from cable rub, heel rub, chain, etc.\n- Frameset has some light to moderate scratches/scuffing. \n- Some tearing to rubber boot on Future Shock. \n- Paint chipping to seat tube on drive side and clear coat layer on back of seat tube.\n- Chain drop gouge on drive side bottom bracket shell.\n- Tire rub marks on both inner chainstays.\n- Cable grommet/guide on drive side chainstay not included. \n- Some corrosion to seat clamp rail mounts."
Specifications
Details
| Year | 2020 |
| Brand | Specialized |
| Model | Diverge Carbon Disc |
| Size | 61cm |
| Frame Material | Carbon Fiber |
| Fork | Specialized Disc w/ Future Shock 1.5 |
| Fork Material | FACT Carbon |
| Steerer Tube | 210 mm, Tapered |
| Brake Type | Disc Brakes - Hydraulic |
| Headset | Integrated |
| Bottom Bracket | Included, BB386 |
| Wheel Size | 700C |
| Seatpost Diameter | 27.2mm |
| Seatpost Clamp | Yes |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
| Weight | 5 lbs 13 oz |
| Drivetrain Compatibility | Mechanical/Electronic |
Build
| Fork | Specialized Disc w/ Future Shock 1.5, FACT Carbon |
| Brakes | Disc Brakes - Hydraulic |
| Shifters | Mechanical/Electronic |
| Headset | Integrated |
| Seatpost | Specialized Carbon , 27.2mm |
| Front Axle Spacing | 12x100mm (Thru-Axle) |
| Rear Axle Spacing | 12x142mm |
Geometry
| Fit Range |
6'2" - 6'5"
|
| A. Effective Top Tube | 605 mm |
| B. Seat Tube | 560 mm |
| C. Seat Tube Angle | 73.5° |
| D. Head Tube Angle | 71.8° |
| E. Head Tube | 185 mm |
| F. Stack | 659 mm |
| G. Reach | 410 mm |
| H. Standover Height | 832 mm |
| I. Saddle Height Range | N/A |
