About This Item

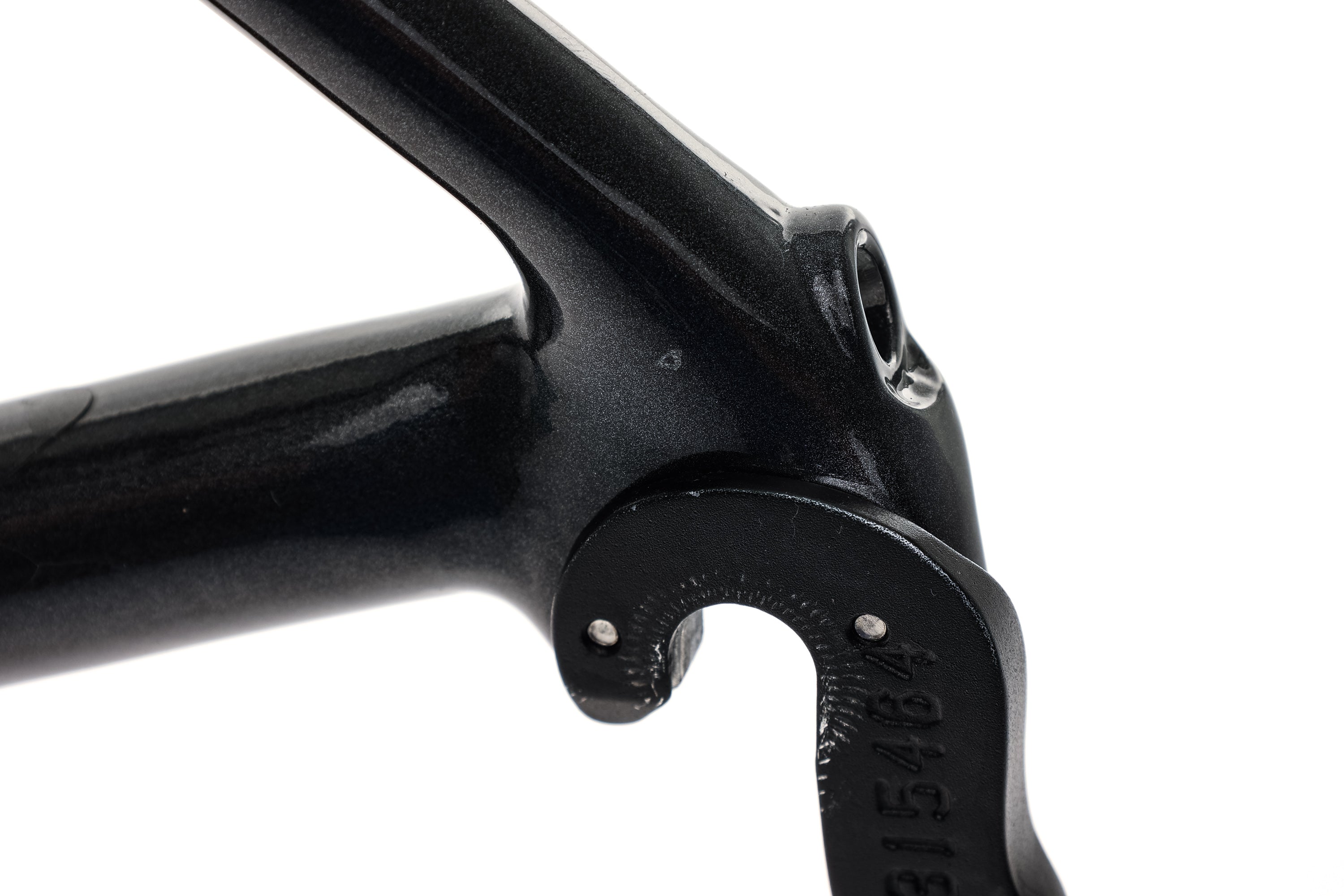

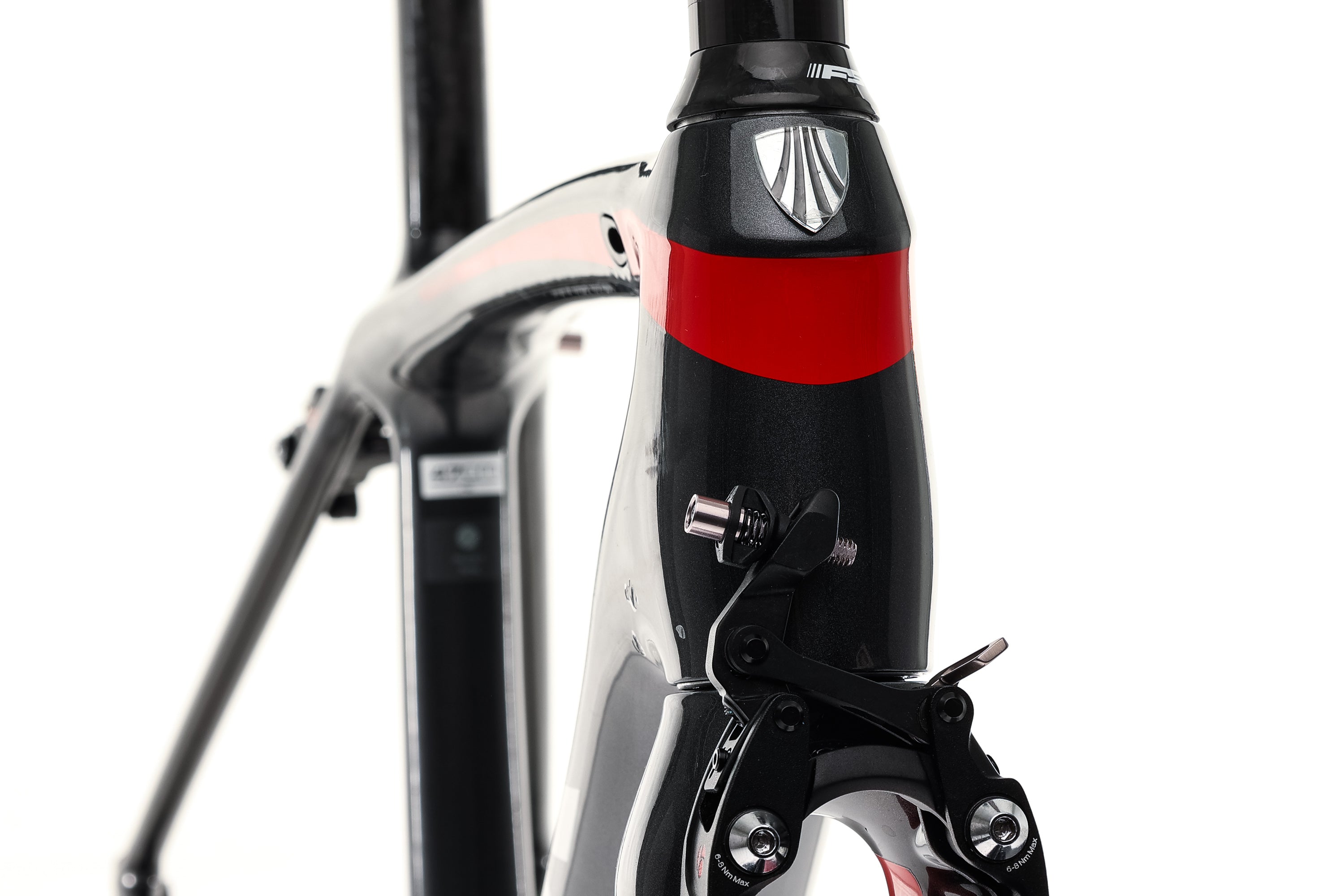

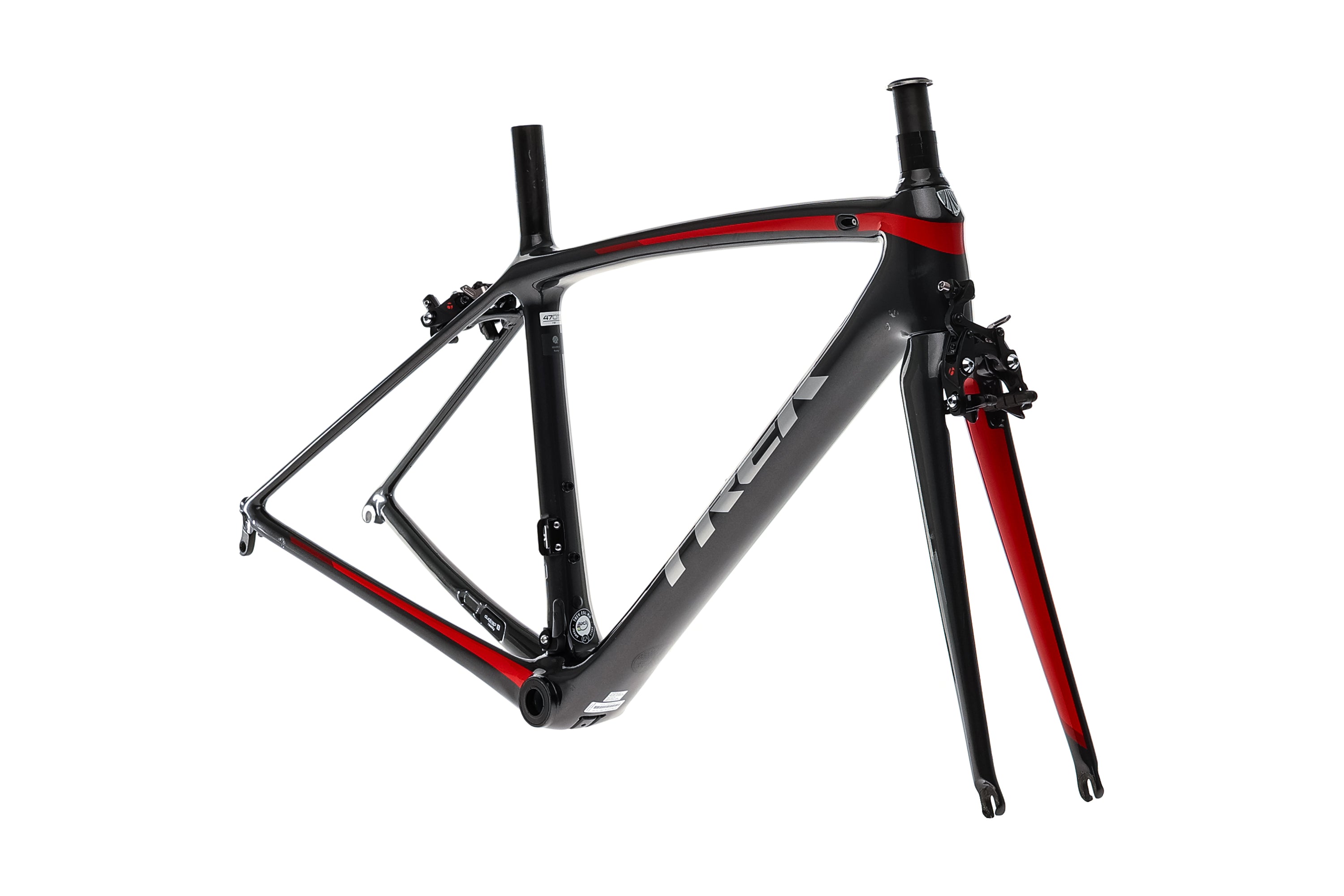

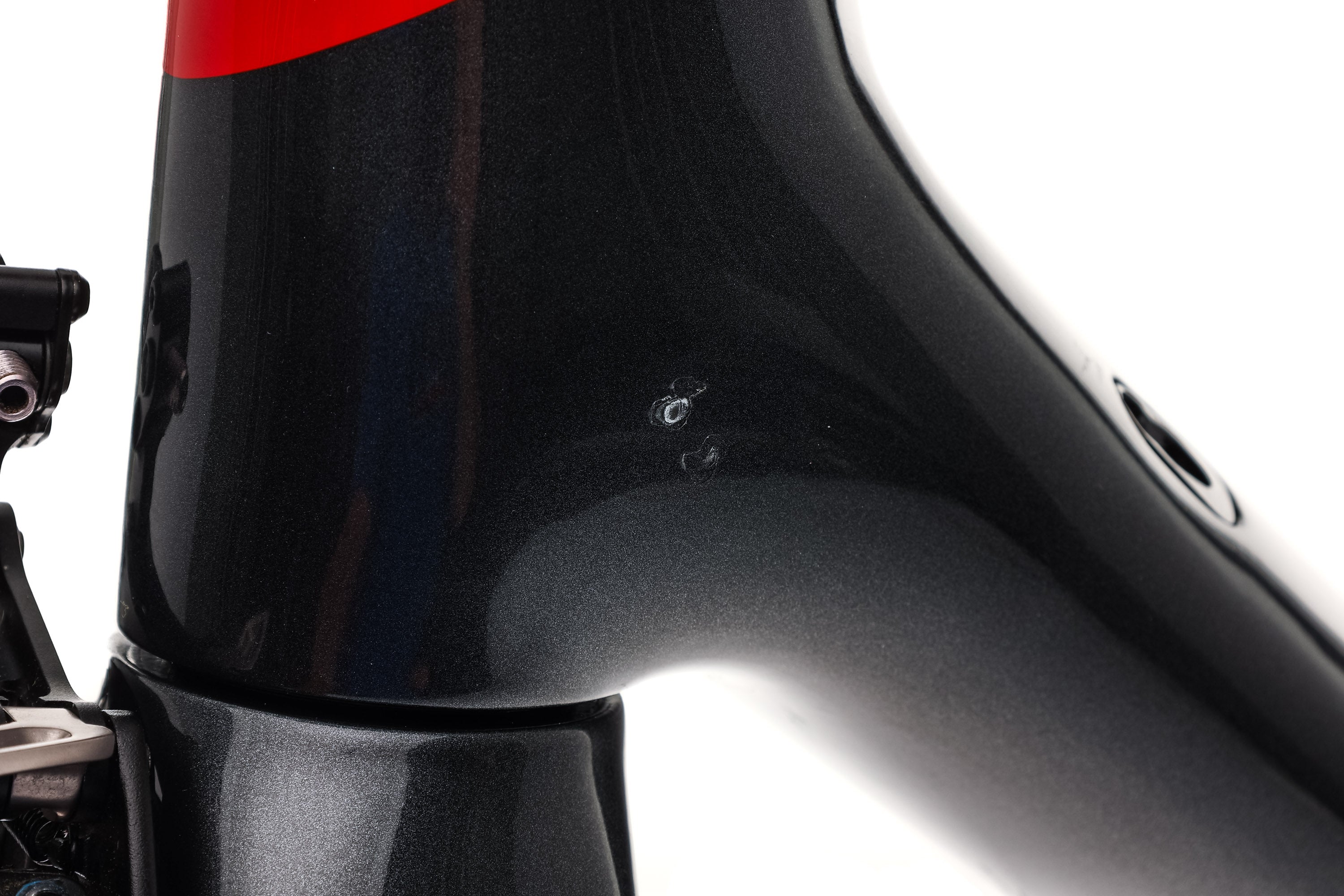

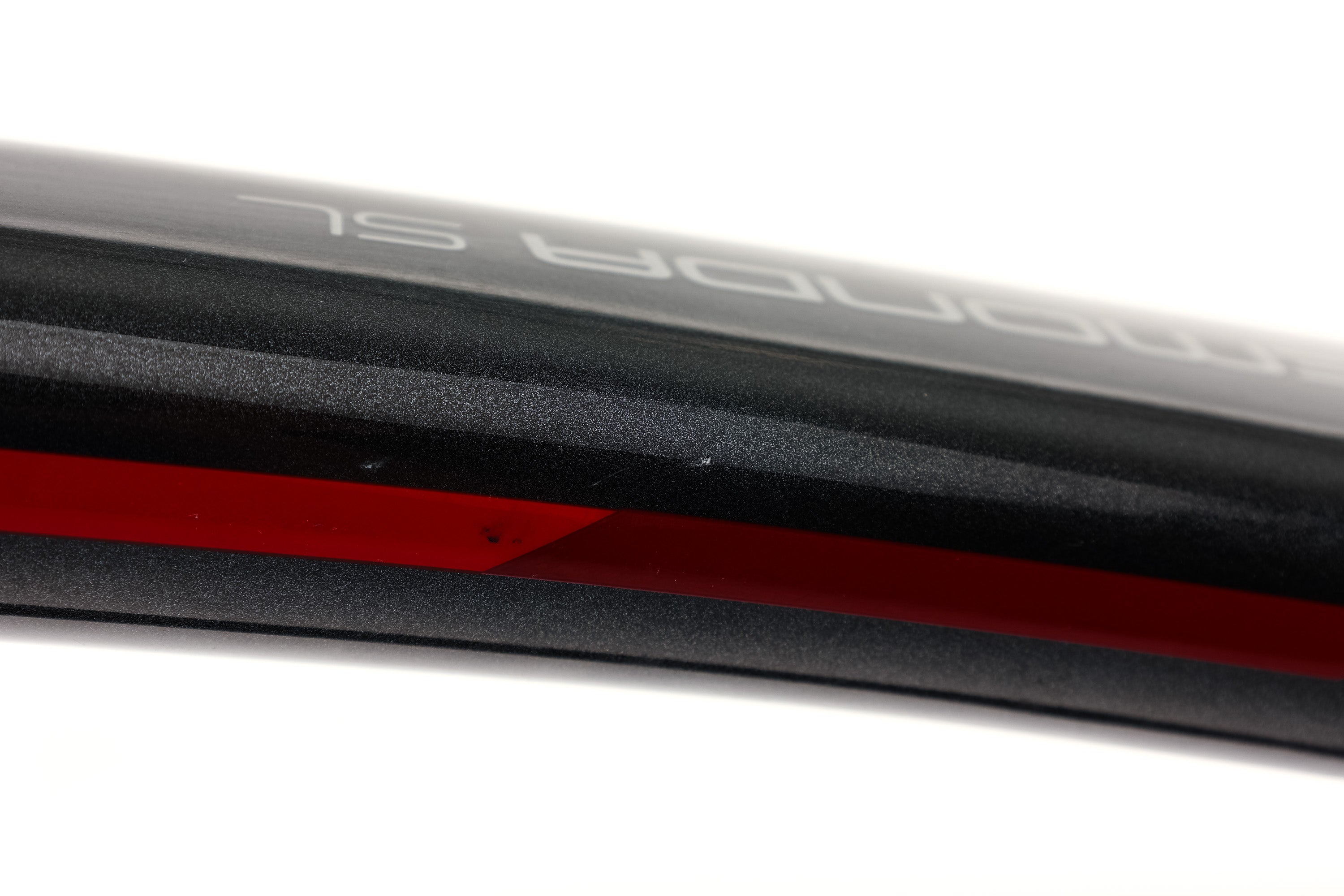

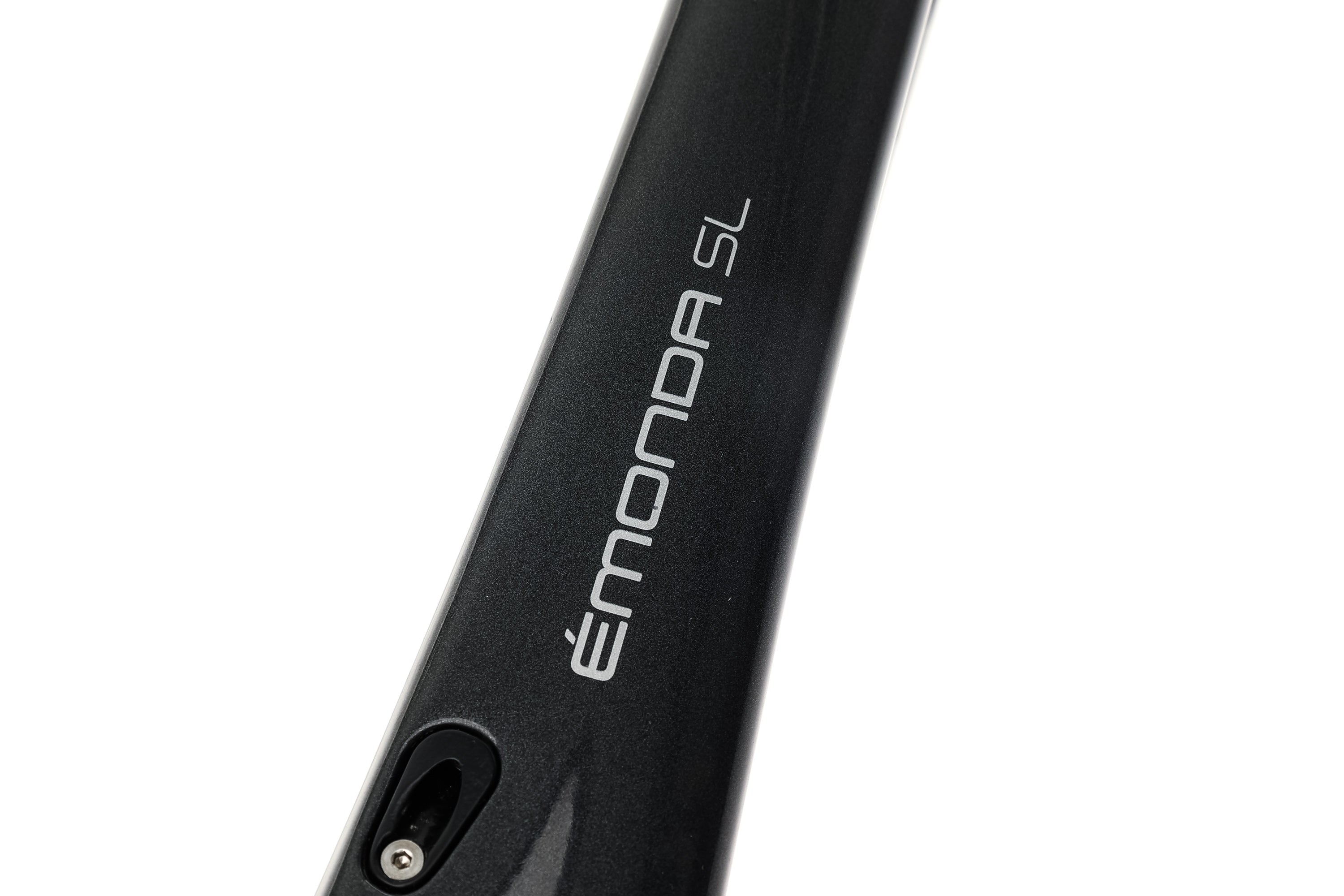

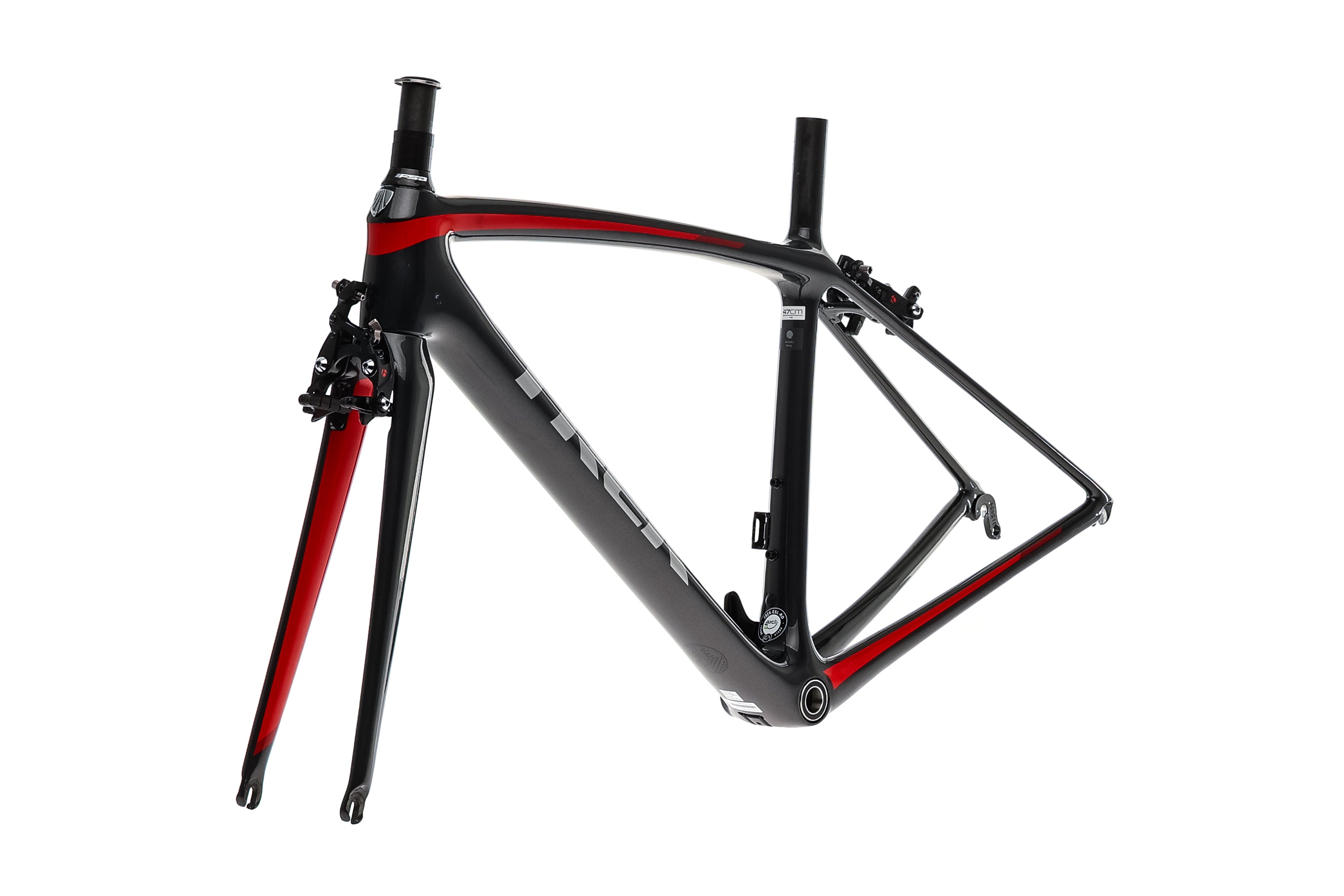

- Mechanic’s Comments: Includes: Frame, fork, bottom bracket, brake calipers, headset and rear derailleur hanger (installed). - Great condition. - Light wear and tear from cable/tire rub, heel rub, chain, etc. - Light paint chips/scuffs along the head tube, and seat/chain stays. - Missing seat mast cap.
|Model||Emonda SL 6|
|Frame Material||Carbon Fiber|
|Fork Material||Carbon Fiber|
|Steerer Tube||197mm, Tapered|
|Brake Type||Caliper - Direct Mount|
|Front Derailleur Mount||Braze-On|
|Bottom Bracket||Included, BB90|
|Seatpost Diameter||Frame Specific|
|Front Axle Spacing||9x100mm|
|Rear Axle Spacing||10x130mm|
|Weight||4 lbs 2 oz|
|Recommended Rider Height||
4'7" - 5'3"
|a. Effective Top Tube||513 mm|
|b. Seat Tube||444 mm|
|c. Seat Tube Angle||74.6°|
|d. Head Tube Angle||71.2°|
|e. Head Tube||115 mm|
|f. Stack||522 mm|
|g. Reach||369 mm|
|h. Standover Height||698 mm|
|i. Saddle Height Range||595 - 695 mm|
