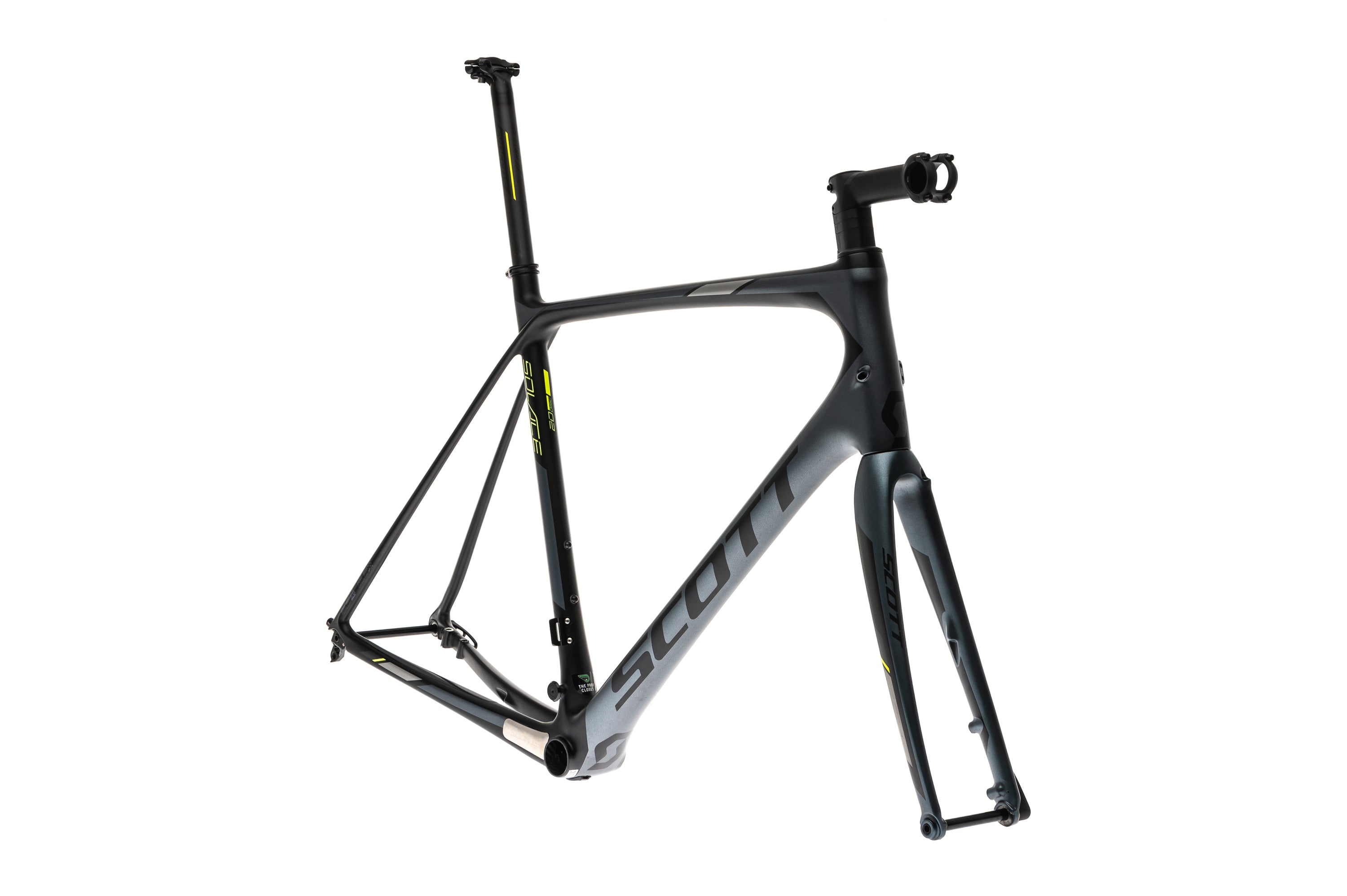

Scott Solace 20 Disc X-Large Frameset - 2017

Name: Scott Solace 20 Disc X-Large Frameset - 2017
Brand: Scott
SKU: FRD12266
Price: 1124.99 USD
Availability: InStock

Item #FRD12266

Recommended Rider Height: 6'2" - 6'6" Sizing Guide

Condition: Pre-Owned What's this?

SHIPPING

RETURNS

Seek Solace in Speed

Product Details

About This Item

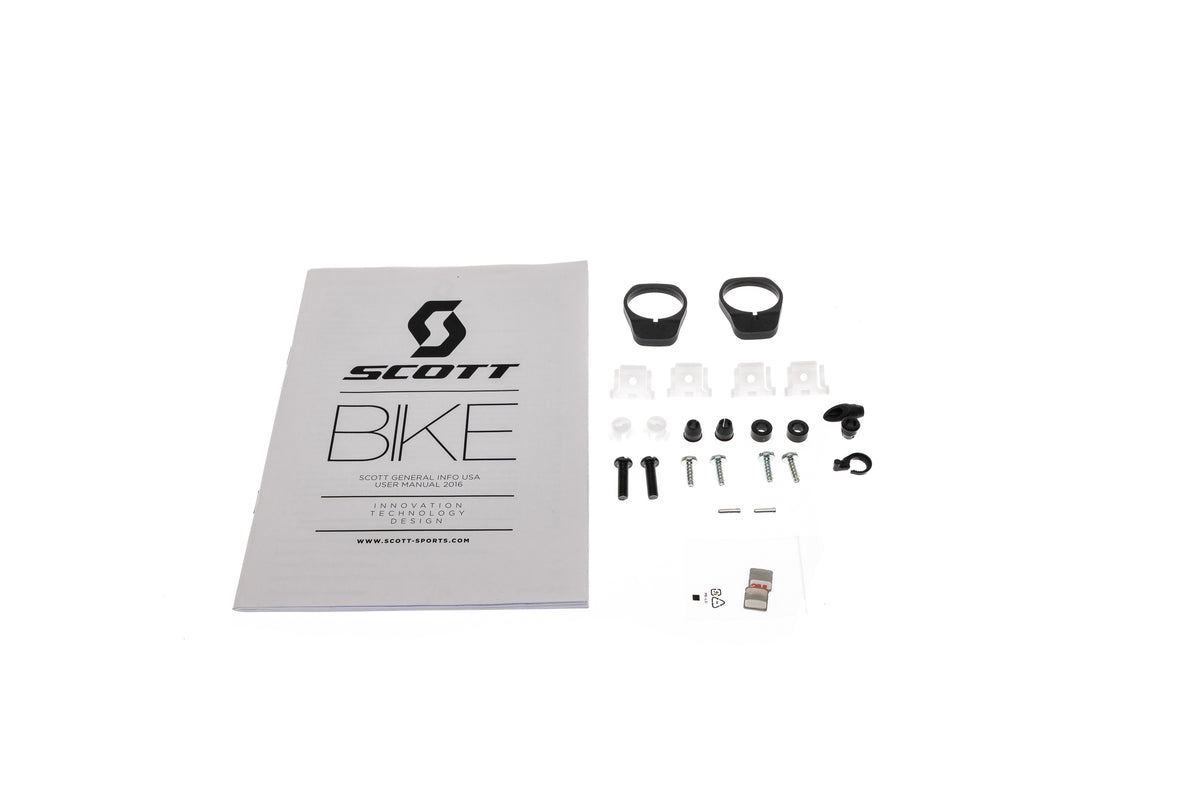

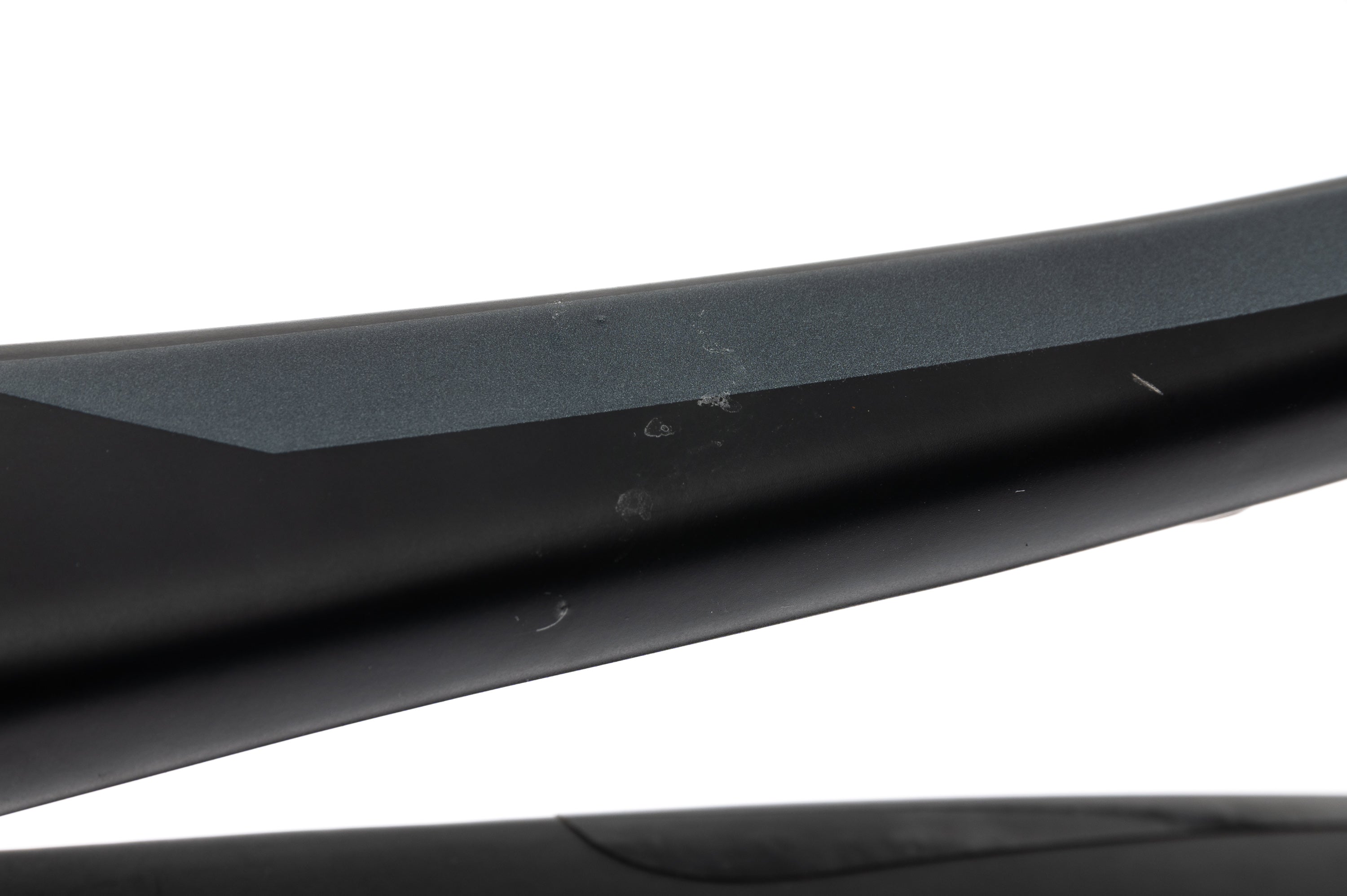

Mechanic’s Comments: Includes: Frame, fork, stem, seatpost, headset and rear derailleur hanger (installed). - Excellent condition. - Light paint chip around cable guide area of bottom bracket. - Includes small parts bag with headset spacers and cable plugs.

Specifications

Details

Year	2017
Brand	Scott
Model	Solace 20 Disc
Size	X-Large
Frame Material	Carbon Fiber
Fork	Solace HMF
Fork Material	Carbon Fiber
Steerer Tube	285, 1-1/8 in
Brake Type	Disc Brakes - Hydraulic
Front Derailleur Mount	Braze-On
Headset	Syncros
Bottom Bracket	Not Included, BB86
Wheel Size	700C
Seatpost Diameter	27.2mm
Seatpost Clamp	Yes
Front Axle Spacing	12x100mm (Thru-Axle)
Rear Axle Spacing	12x142mm
Weight	4 lbs 3 oz
Drivetrain Compatibility	Mechanical/Electronic

Geometry

Recommended Rider Height	6'2" - 6'6" Sizing Guide
a. Effective Top Tube	575 mm
b. Seat Tube	580 mm
c. Seat Tube Angle	73.1°
d. Head Tube Angle	73.3°
e. Head Tube	205 mm
f. Stack	613 mm
g. Reach	389 mm
h. Standover Height	827 mm
i. Saddle Height Range	N/A
